Pinpoint Test TJ: Output Shaft Speed (OSS) Sensor Introduction: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:
  1. OSS.
  2. PCM.

Harness circuits:

  1. OSS.
  2. SIGRTN.

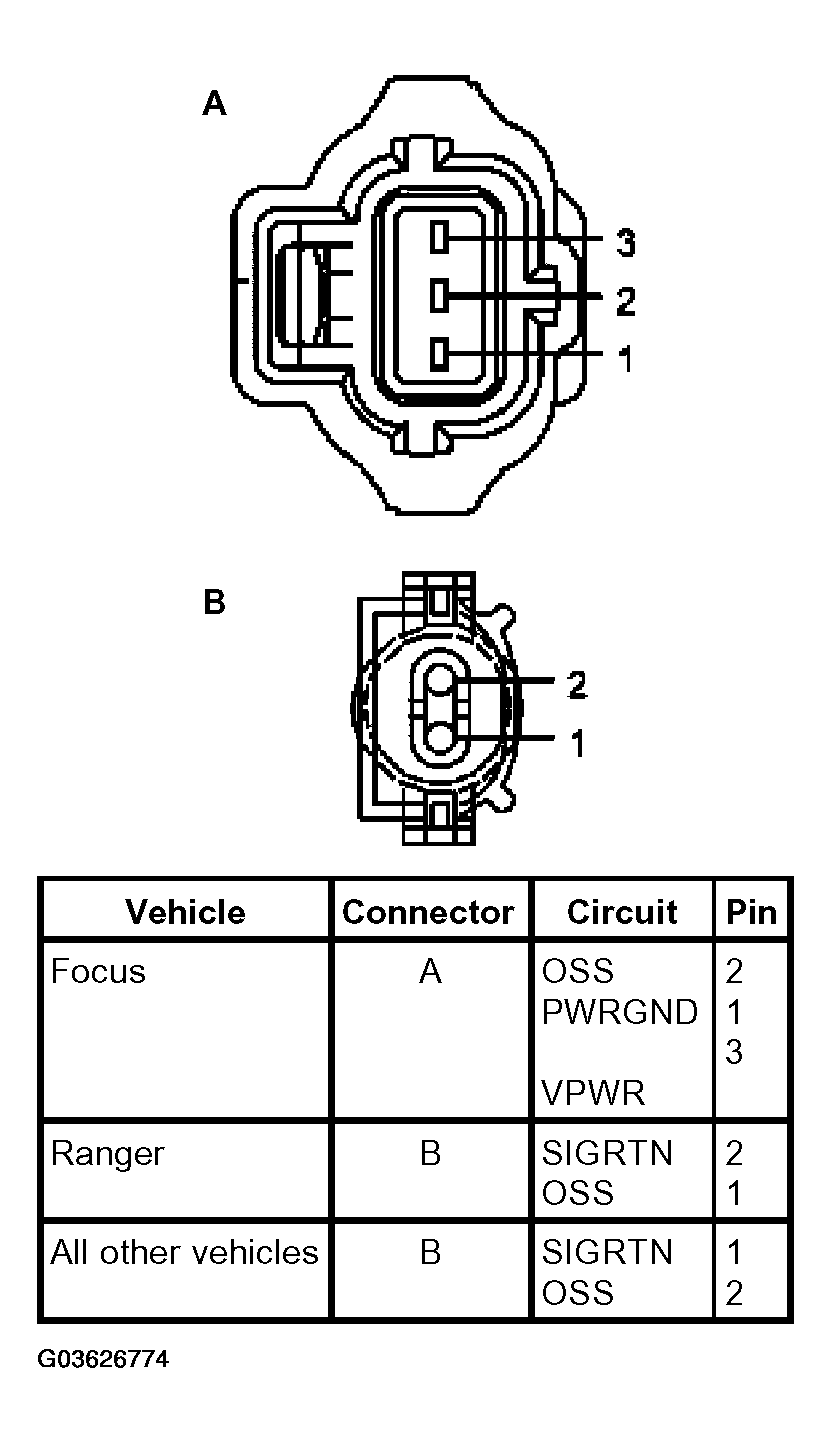

Fig 1: Identifying Output Shaft Speed (OSS) Connector
G03626774Courtesy of FORD MOTOR CO.
