Bussed Electrical Center C1035a

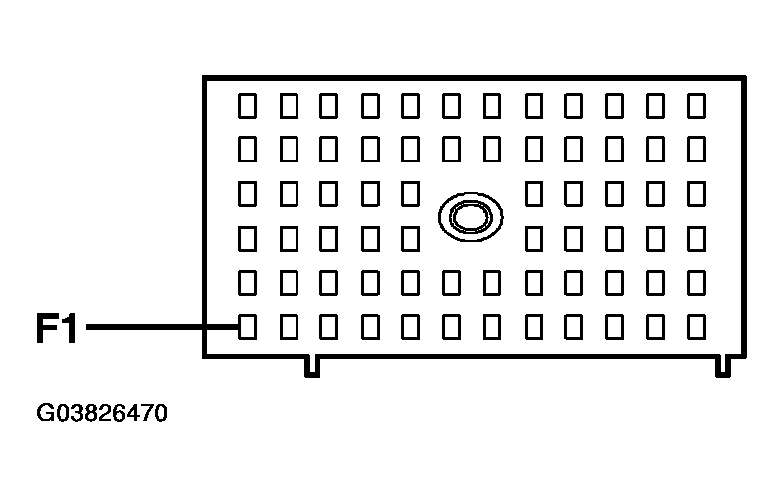

Fig 1: View Of Bussed Electrical Center C1035a Connector
G03826470Courtesy of FORD MOTOR CO.
C1035a CONNECTOR CIRCUIT DESCRIPTIONS

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
F1 535 (LB/RD) Brake pressure switch input Less than 5 ohms between the switch and the anti-lock brake system (ABS) module.
