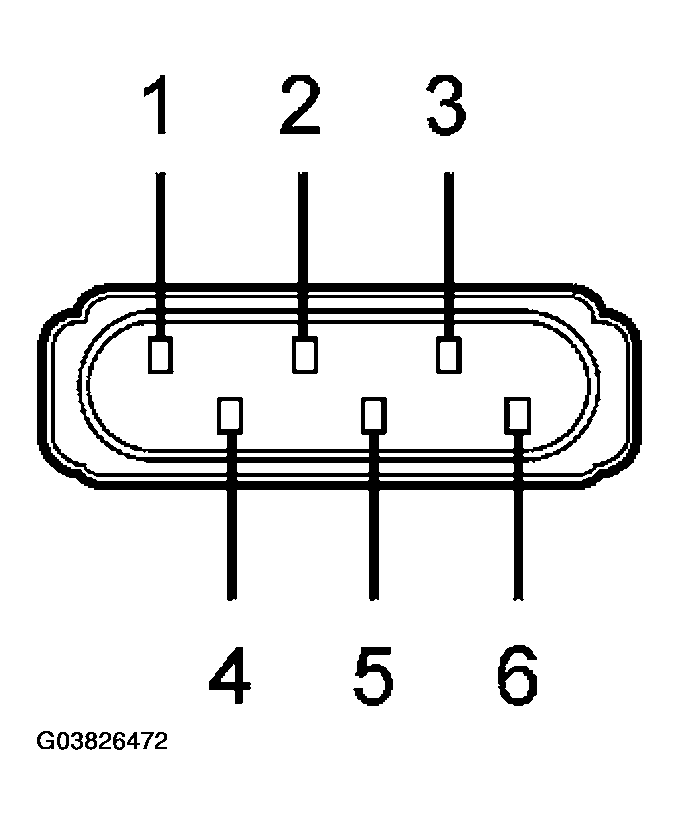

Sensor Cluster C3073
C3037 CONNECTOR CIRCUIT DESCRIPTIONS
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1574 (DB) yaw velocity sensor reference voltage | 5 volts in RUN. |
| 2 | 1577 (RD/LB) yaw velocity sensor lateral acceleration | Less than 5 ohms between the ABS control module and the sensor cluster. Greater than 10,000 ohms between the sensor cluster and ground. |
| 3 | 1576 (TN/BK) yaw velocity sensor yaw rate | Less than 5 ohms between the ABS control module and the sensor cluster. Greater than 10,000 ohms between the sensor cluster and ground. |
| 4 | 1578 (GY/BK) yaw velocity sensor self test | Less than 5 ohms between the ABS control module and the sensor cluster. Greater than 10,000 ohms between the sensor cluster and ground. |
| 5 | 1579 (OG/RD) yaw velocity sensor ring frequency | Less than 5 ohms between the ABS control module and the sensor cluster. Greater than 10,000 ohms between the sensor cluster and ground. |
| 6 | 1575 (BK/WH) yaw velocity sensor ground | Less than 5 ohms between the ABS control module and the sensor cluster. |
