Stability Assist Switch C2114

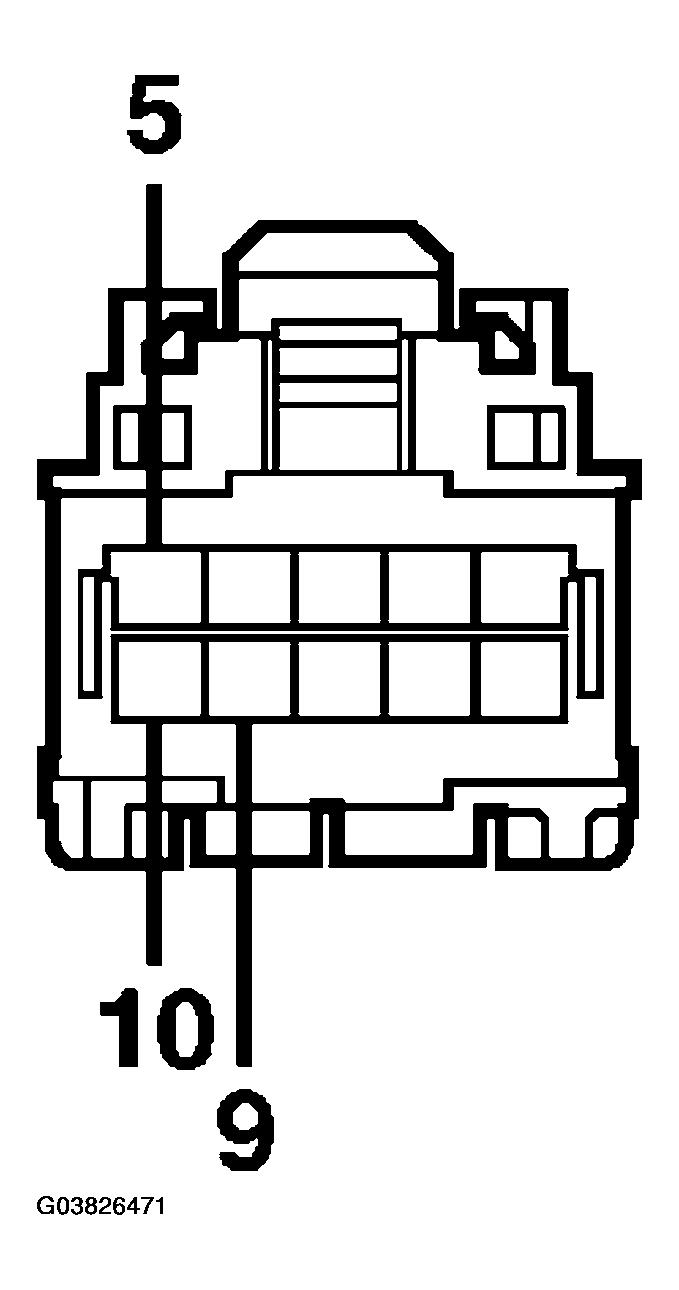

C2114 CONNECTOR CIRCUIT DESCRIPTIONS
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 5 | 1205 (BK) Illumination ground | Less than 5 ohms between the switch and ground. |
| 9 | 1417 (LG/RD) Light emitting diode (LED) illumination | Less than 5 ohms between the switch and SJB. |
| 10 | 1412 (WH/PK) Traction control override | Less than 5 ohms between the switch and the instrument cluster. |
