Removal and Installation

NOTE: When installing a new accelerometer, the ABS module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the configuration and calibration procedures. For module configuration and calibration, refer to MODULE COMMUNICATIONS NETWORK

Remove the driver side front seat. For additional information, refer to SEATING .
Remove the lower B-pillar trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the parts in the order indicated in the following illustration and table.

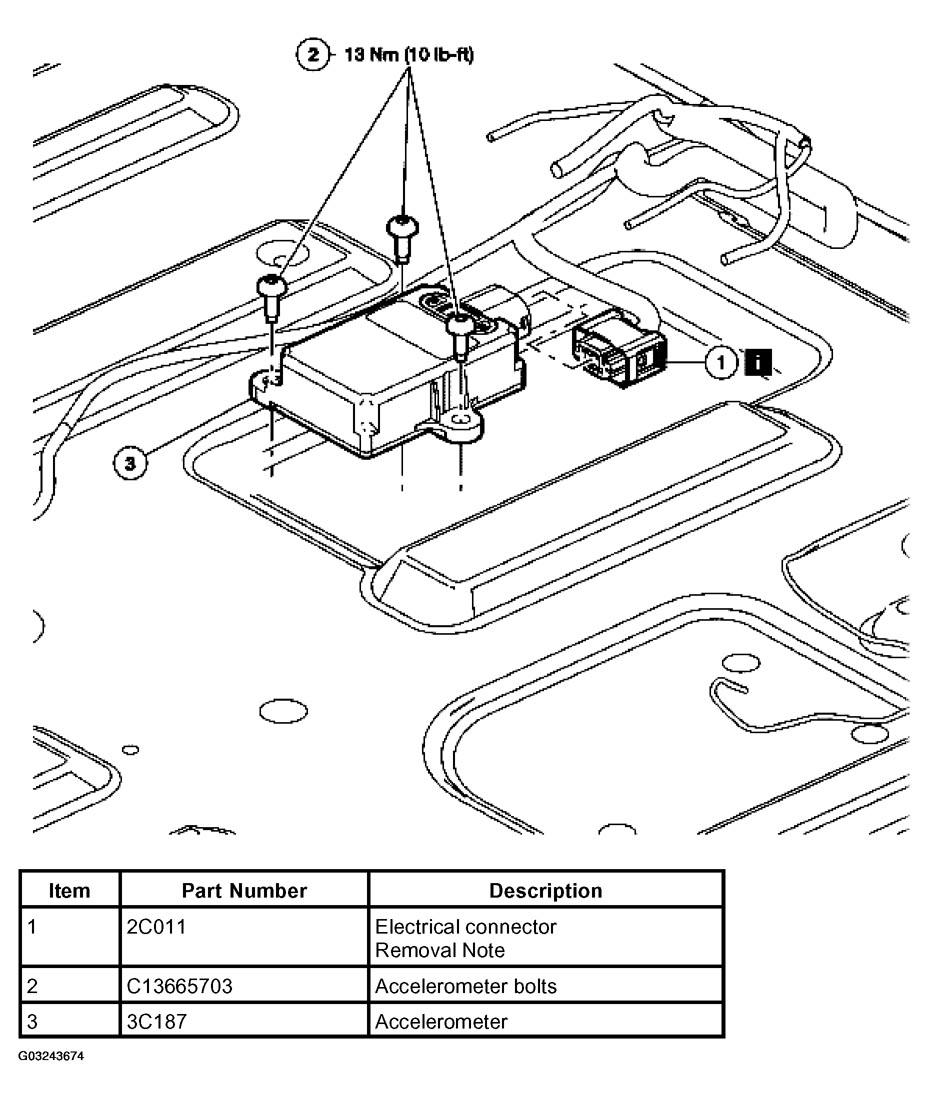

Fig 1: Removing Accelerometer
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
