Steering Wheel Rotation Sensor
NOTE:
When installing a new steering wheel rotation sensor, the ABS module must be configured (using vehicle as-built data) and calibrated. Follow the diagnostic tool directions for the configuration procedures. For module configuration and calibration, refer to MODULE COMMUNICATIONS NETWORK
.

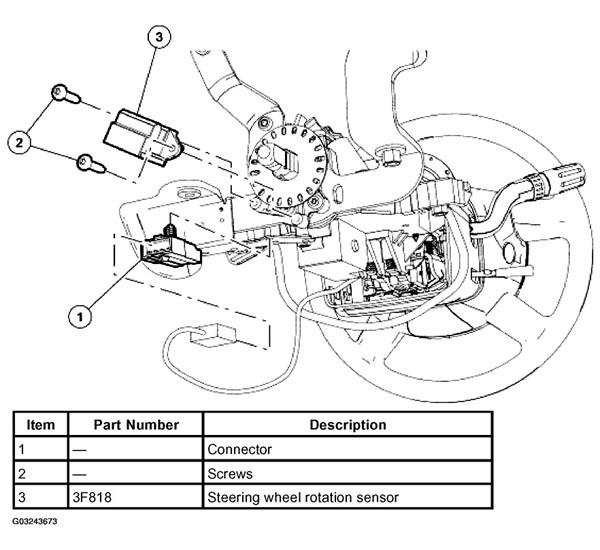

- Remove the parts in the order indicated in the following illustration and table.
