Connector Views

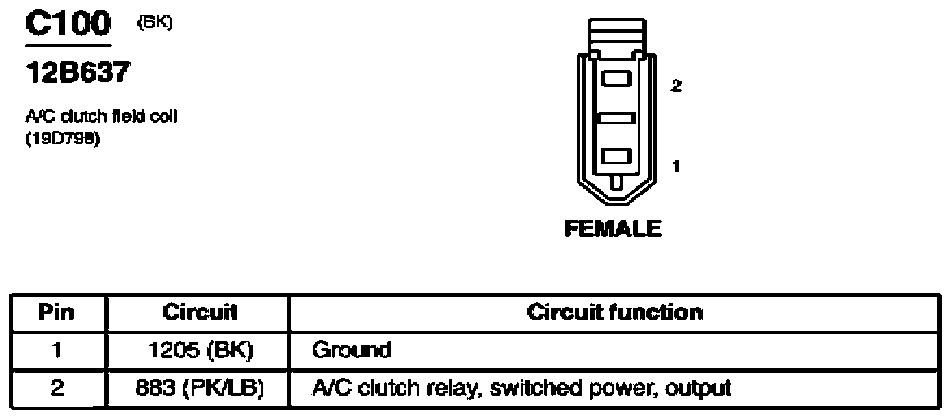

Fig 1: A/C Clutch Field Coil Connector End View (C100)
G07838325Courtesy of FORD MOTOR CO.

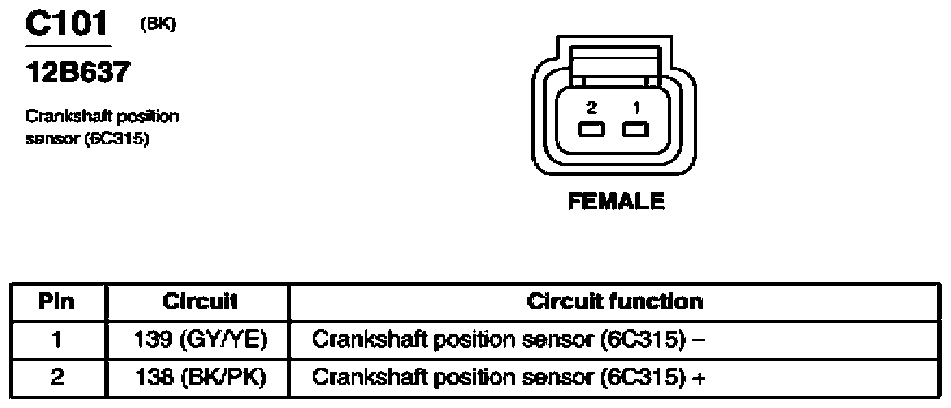

Fig 2: Crankshaft Position Sensor Connector End View (C101)
G07838326Courtesy of FORD MOTOR CO.

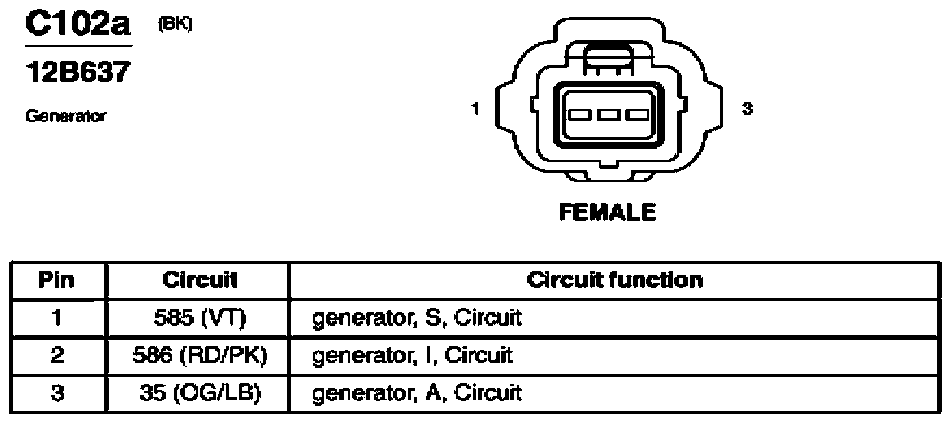

Fig 3: Generator Connector End View (C102a)
G07838327Courtesy of FORD MOTOR CO.

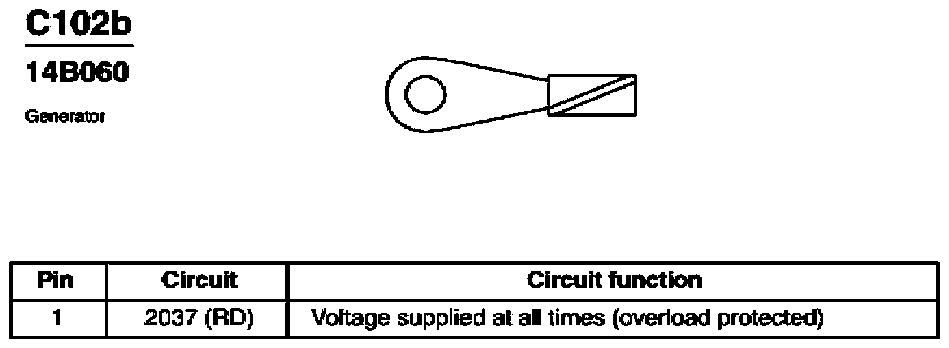

Fig 4: Generator Connector End View (C102b)
G07838328Courtesy of FORD MOTOR CO.

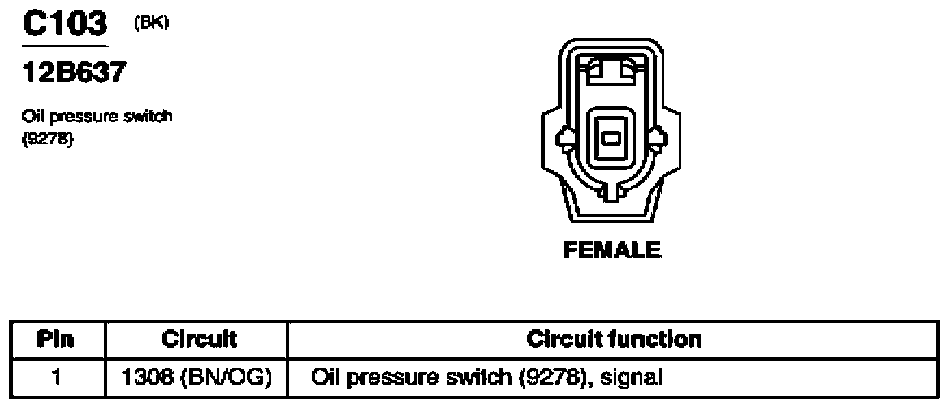

Fig 5: Oil Pressure Switch Connector End View (C103)
G07838329Courtesy of FORD MOTOR CO.

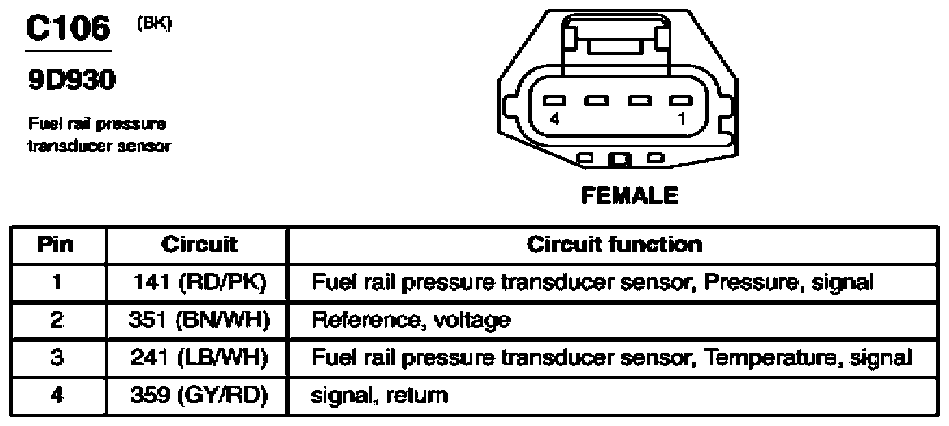

Fig 6: Fuel Rail Pressure Transducer Sensor Connector End View (C106)
G07838330Courtesy of FORD MOTOR CO.

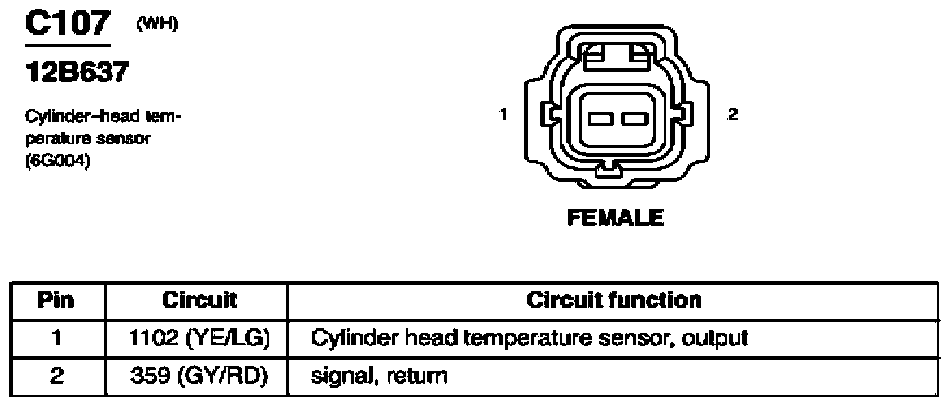

Fig 7: Cylinder-Head Temperature Sensor Connector End View (C107)
G07838331Courtesy of FORD MOTOR CO.

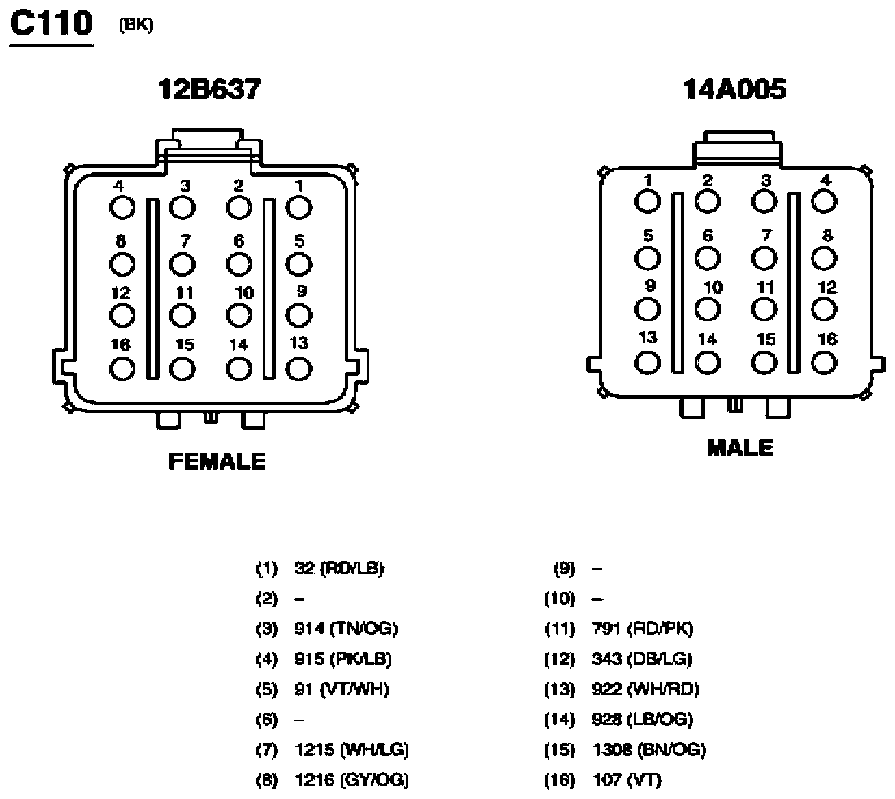

Fig 8: Inline Connector End View (C110)
G07838332Courtesy of FORD MOTOR CO.

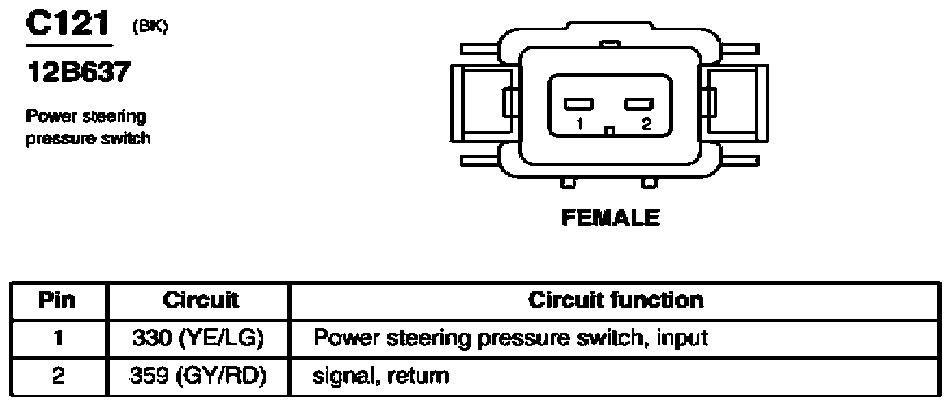

Fig 9: Power Steering Pressure Switch Connector End View (C121)
G07838333Courtesy of FORD MOTOR CO.

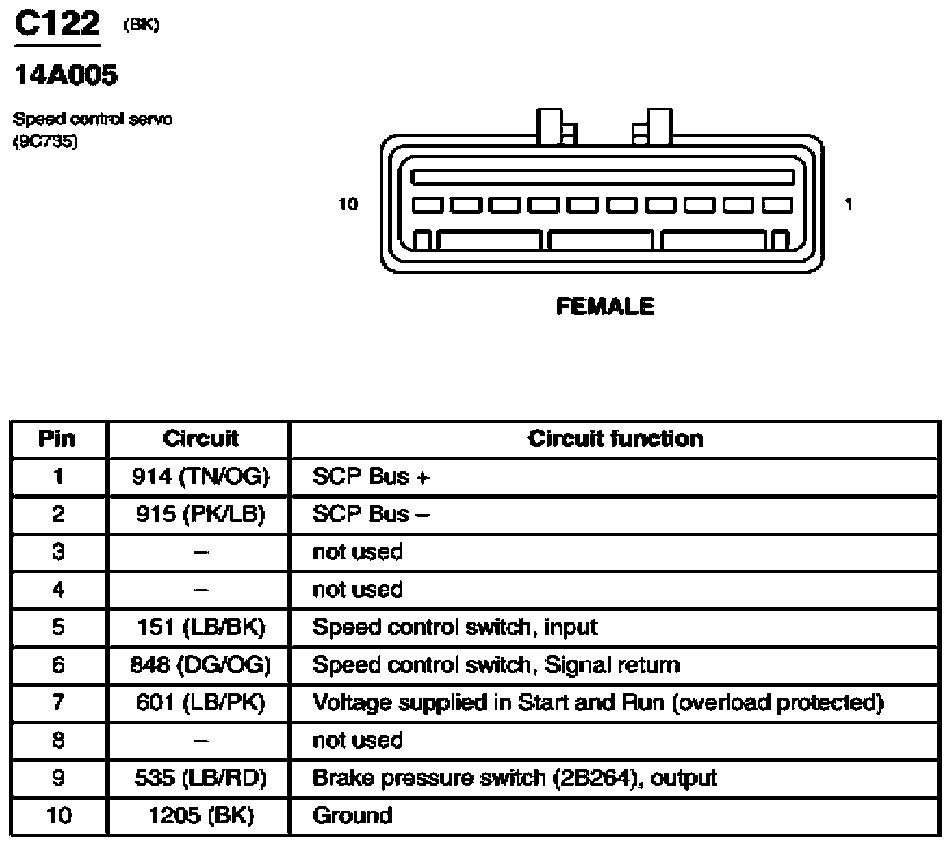

Fig 10: Speed Control Servo Connector End View (C122)
G07838334Courtesy of FORD MOTOR CO.

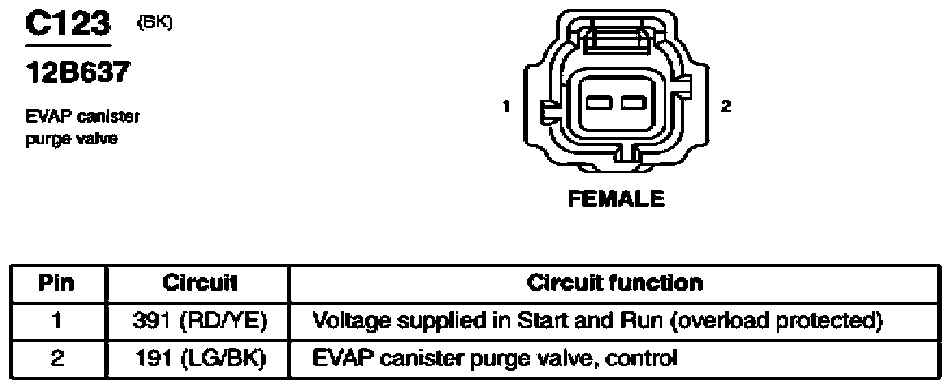

Fig 11: EVAP Canister Purge Valve Connector End View (C123)
G07838335Courtesy of FORD MOTOR CO.

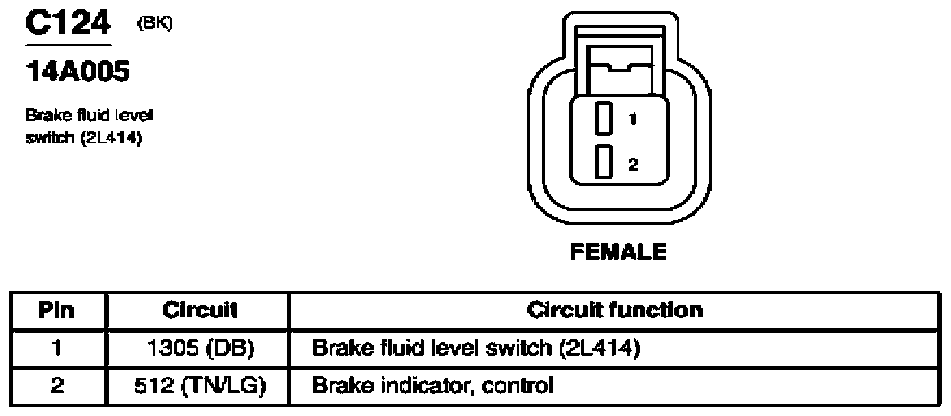

Fig 12: Brake Fluid Level Switch Connector End View (C124)
G07838336Courtesy of FORD MOTOR CO.

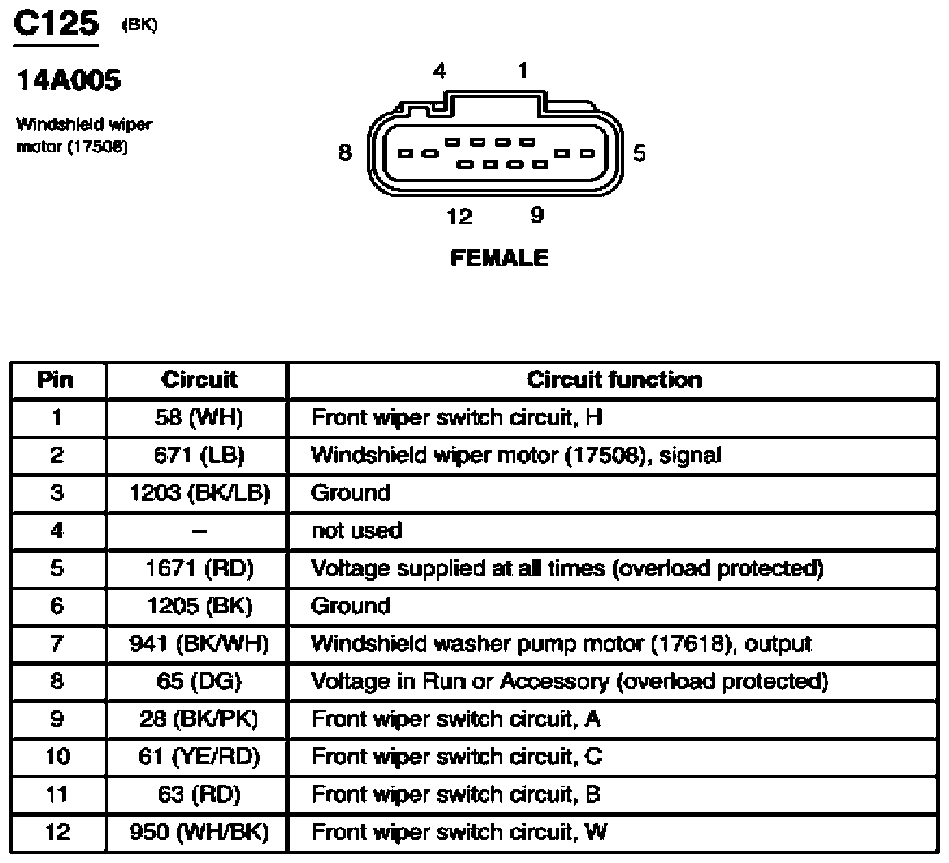

Fig 13: Windshield Wiper Motor Connector End View (C125)
G07838337Courtesy of FORD MOTOR CO.

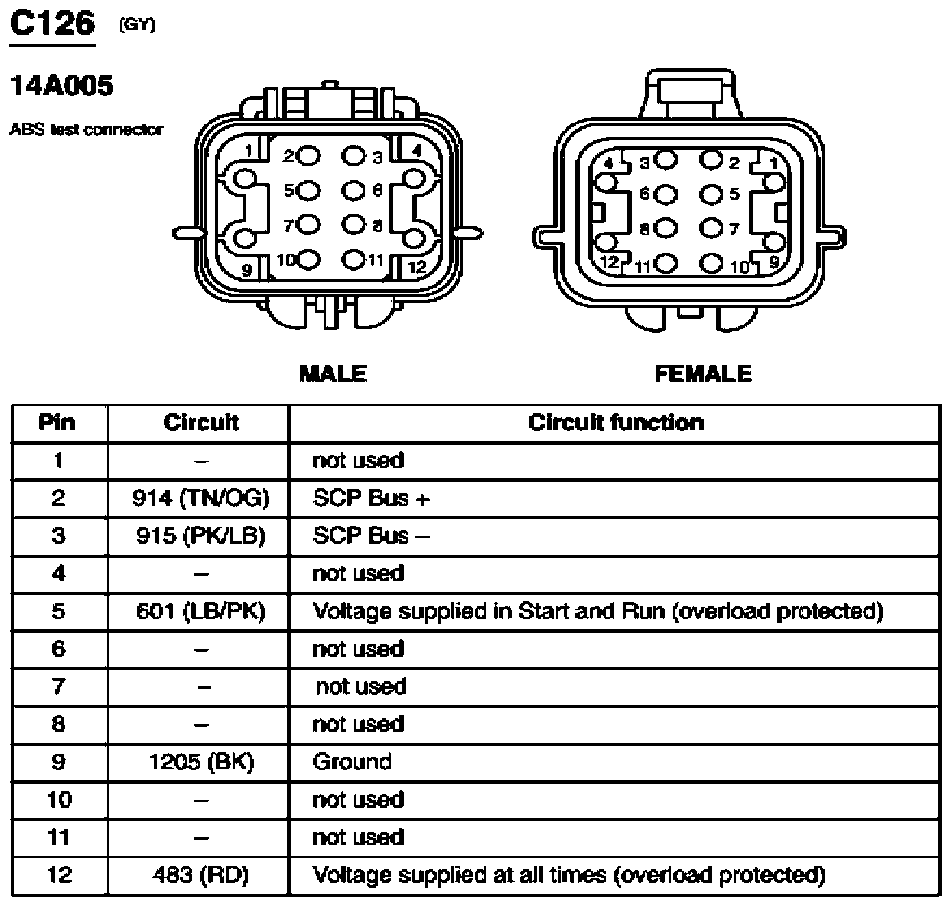

Fig 14: ABS Test Connector End View (C126)
G07838338Courtesy of FORD MOTOR CO.

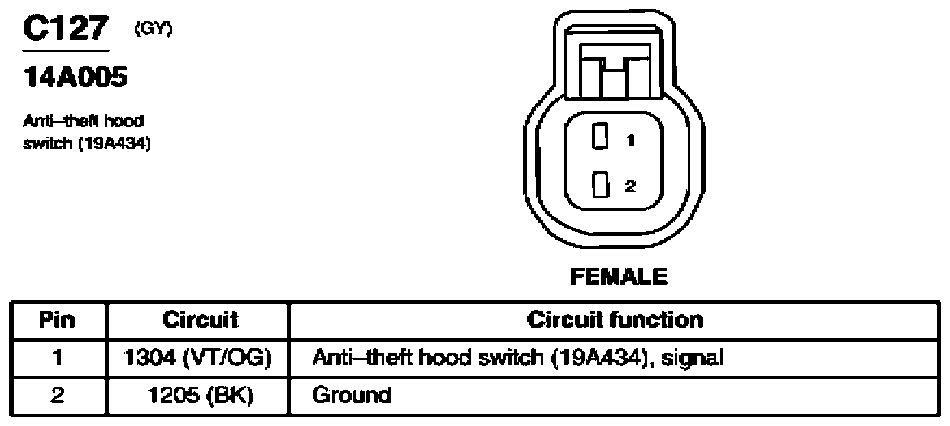

Fig 15: Anti-Theft Hood Switch Connector End View (C127)
G07838339Courtesy of FORD MOTOR CO.

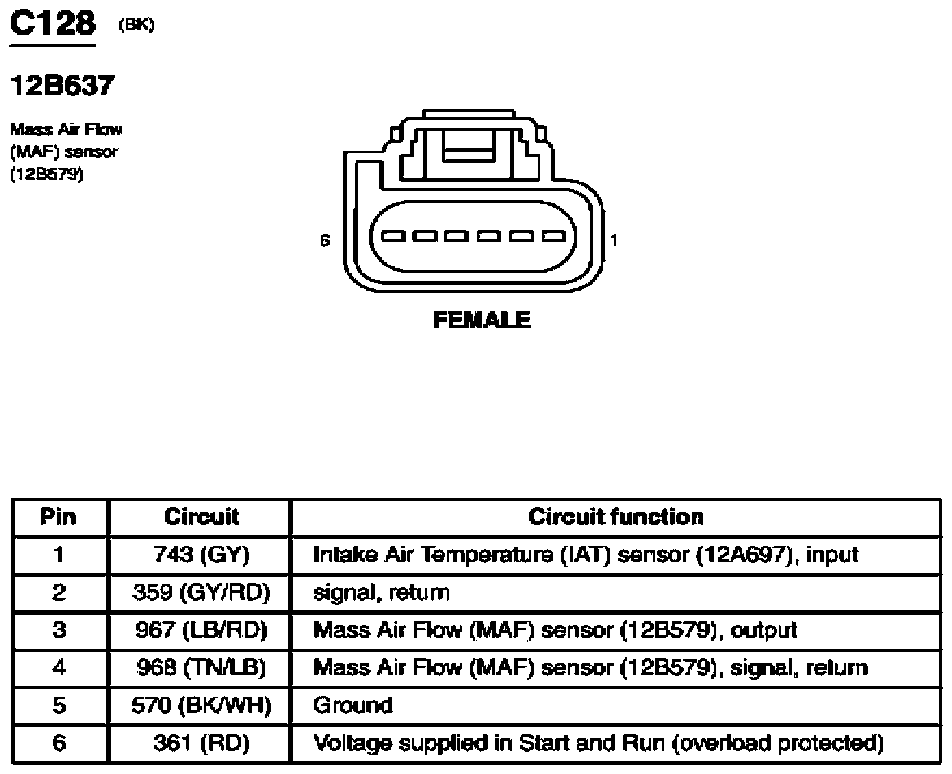

Fig 16: Mass Air Flow (MAF) Sensor Connector End View (C128)
G07838340Courtesy of FORD MOTOR CO.

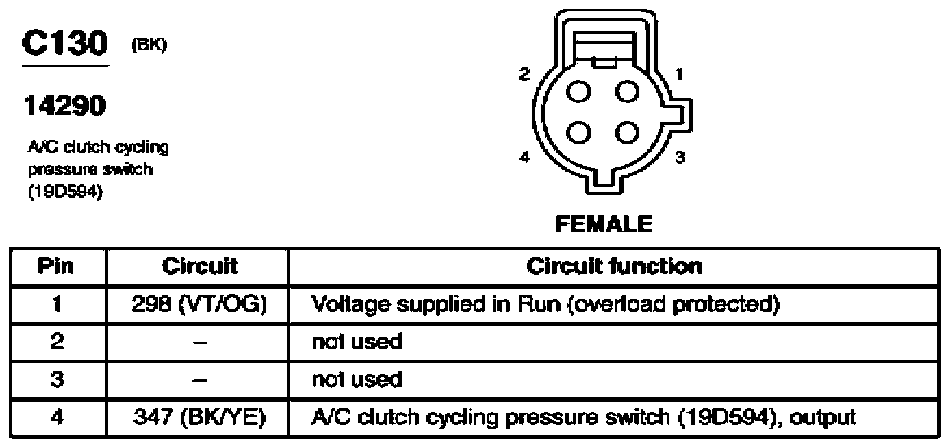

Fig 17: A/C Clutch Cycling Pressure Switch Connector End View (C130)
G07838341Courtesy of FORD MOTOR CO.

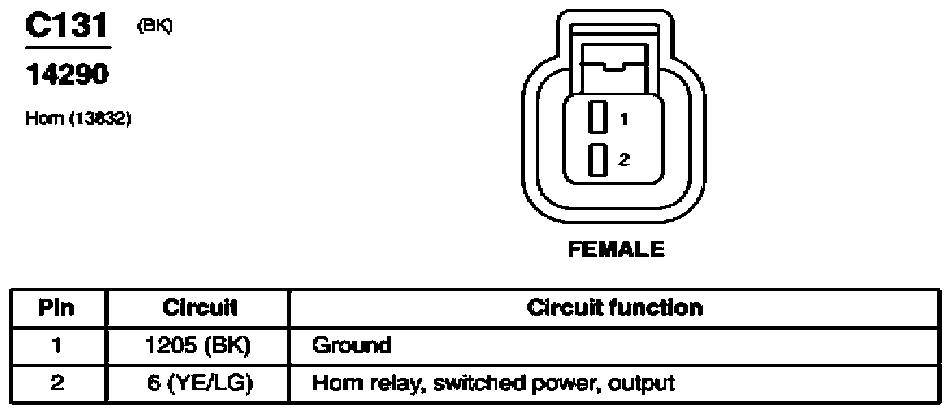

Fig 18: Horn Connector End View (C131)
G07838342Courtesy of FORD MOTOR CO.

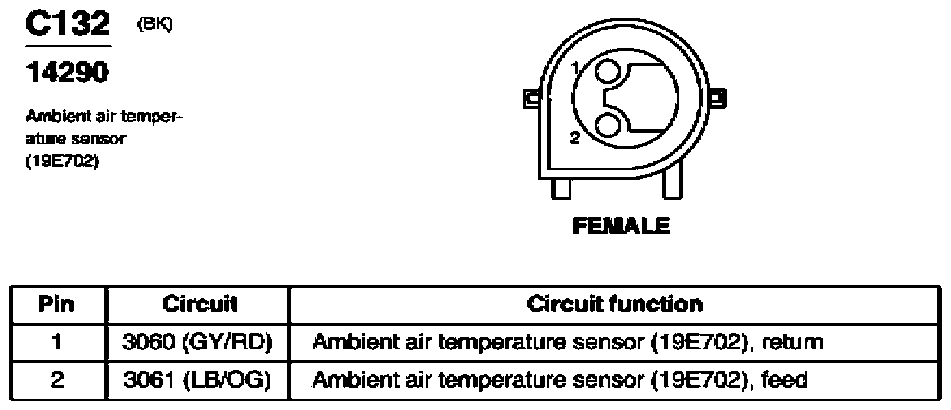

Fig 19: Ambient Air Temperature Sensor Connector End View (C132)
G07838343Courtesy of FORD MOTOR CO.

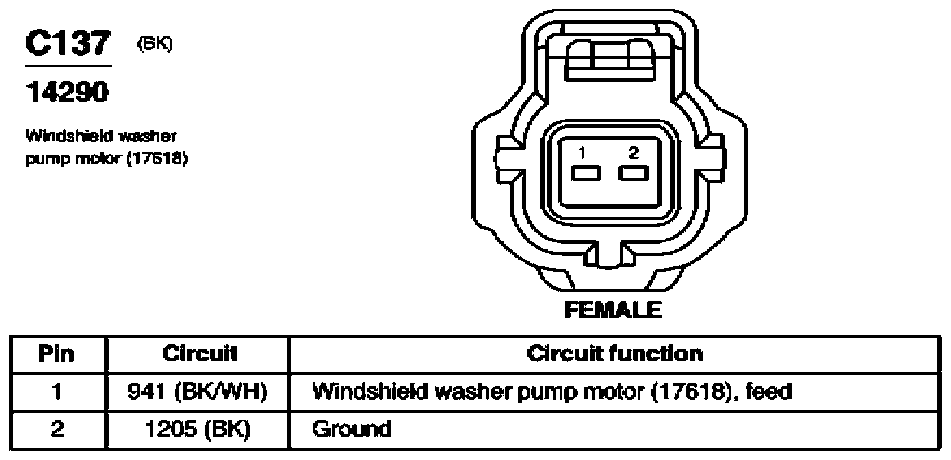

Fig 20: Windshield Washer Pump Motor Connector End View (C137)
G07838344Courtesy of FORD MOTOR CO.

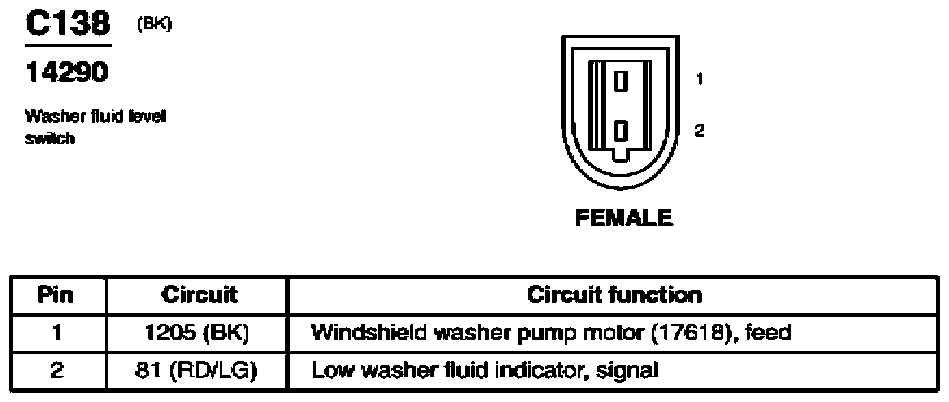

Fig 21: Washer Fluid Level Switch Connector End View (C138)
G07838345Courtesy of FORD MOTOR CO.

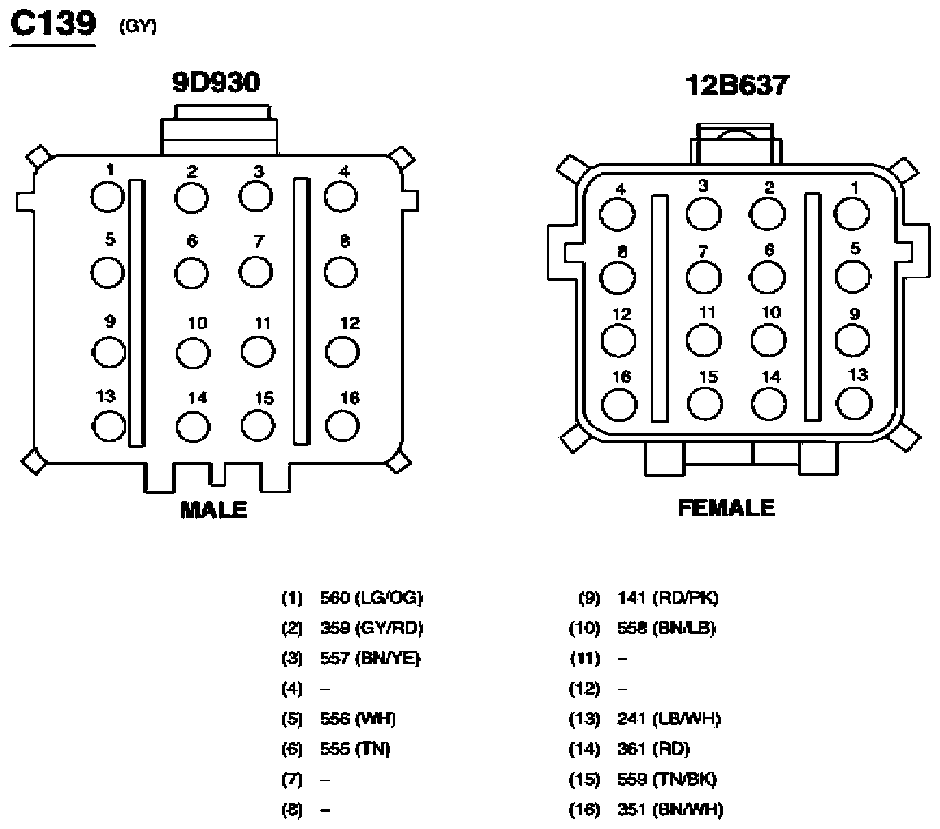

Fig 22: Inline Connector End View (C139)
G07838346Courtesy of FORD MOTOR CO.

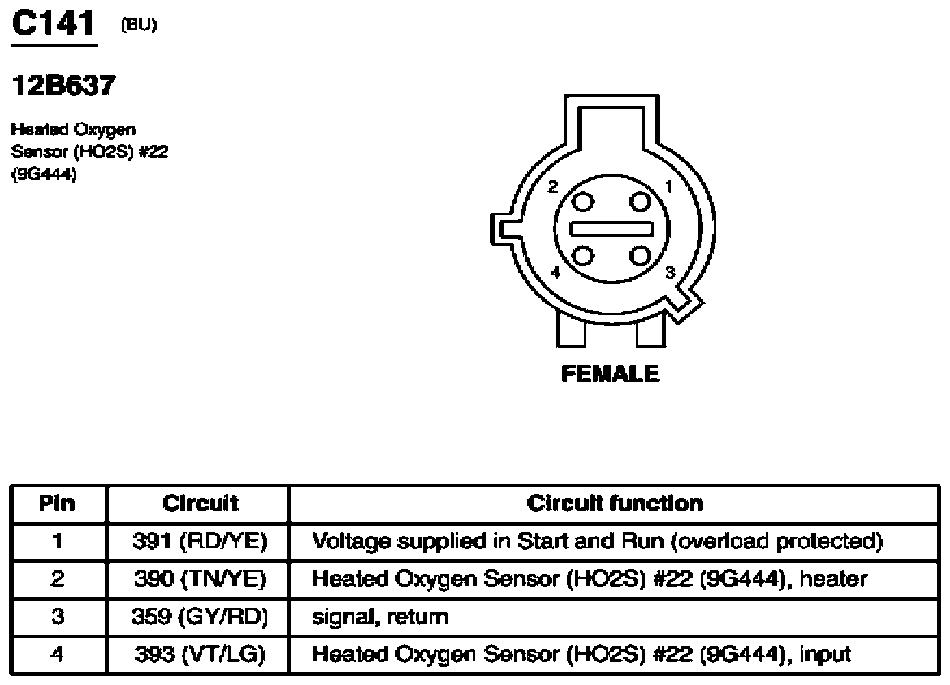

Fig 23: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)
G07838347Courtesy of FORD MOTOR CO.

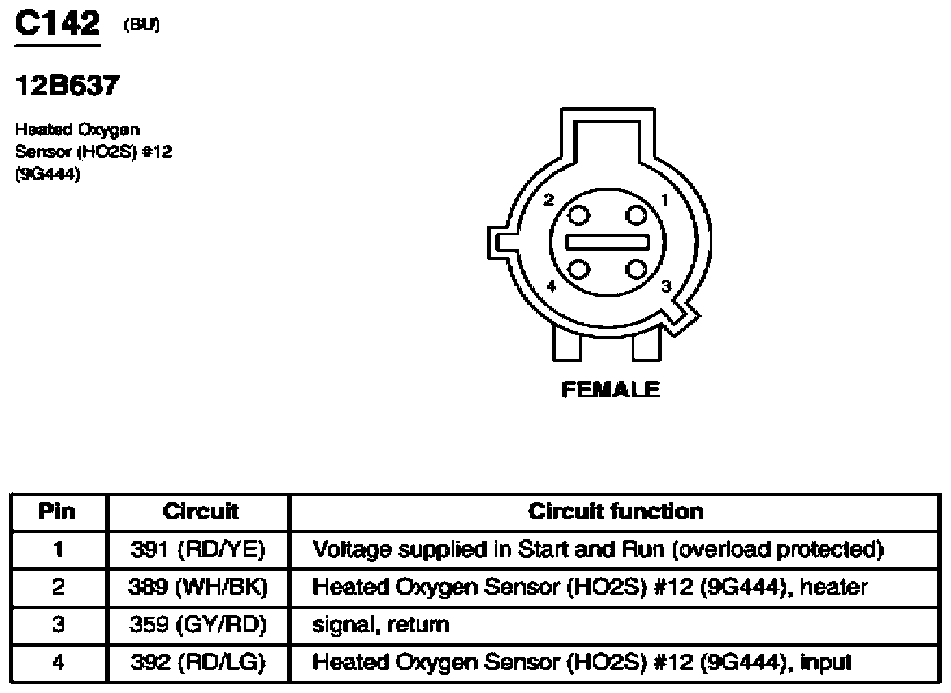

Fig 24: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)
G07838348Courtesy of FORD MOTOR CO.

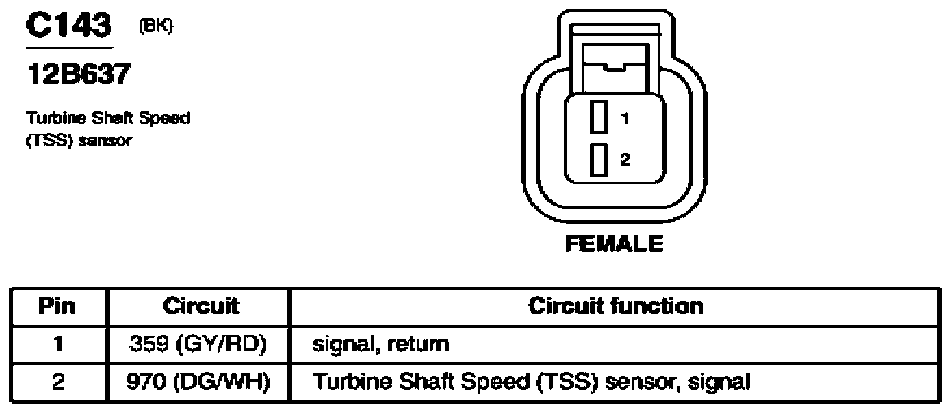

Fig 25: Turbine Shaft Speed (TSS) Sensor Connector End View (C143)
G07838349Courtesy of FORD MOTOR CO.

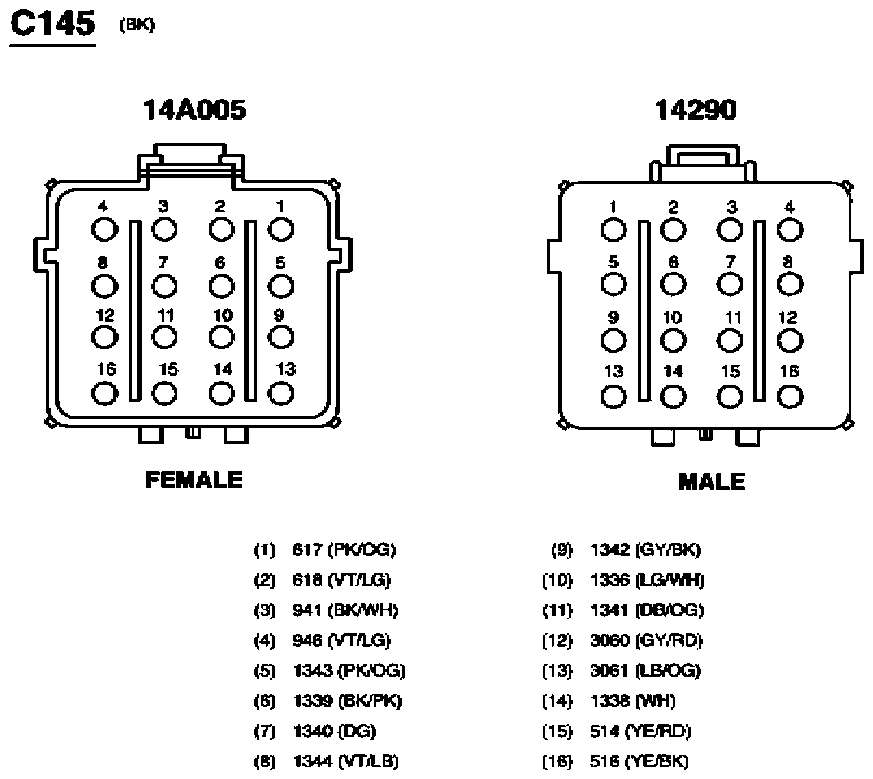

Fig 26: Inline Connector End View (C145)
G07838350Courtesy of FORD MOTOR CO.

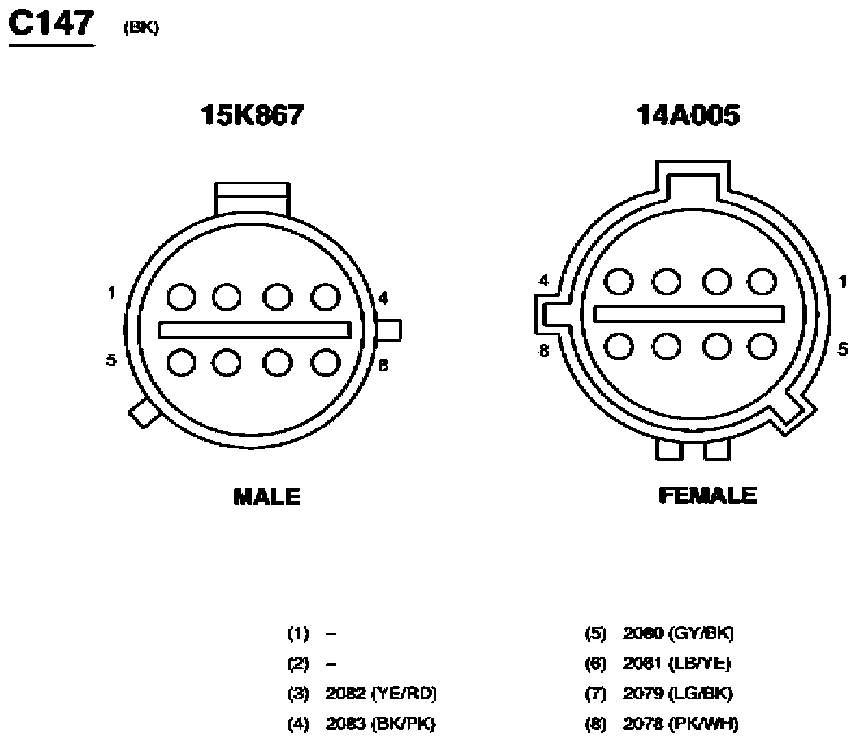

Fig 27: Inline Connector End View (C1147)
G07838351Courtesy of FORD MOTOR CO.

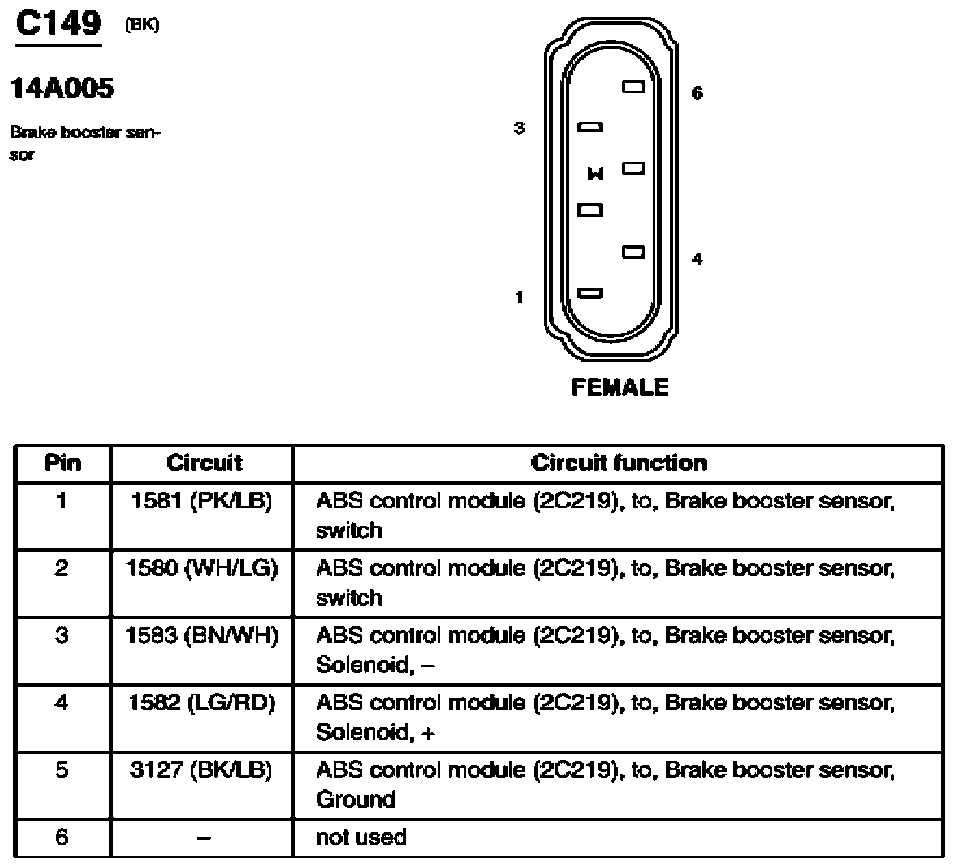

Fig 28: Brake Booster Sensor Connector End View (C149)
G07838352Courtesy of FORD MOTOR CO.

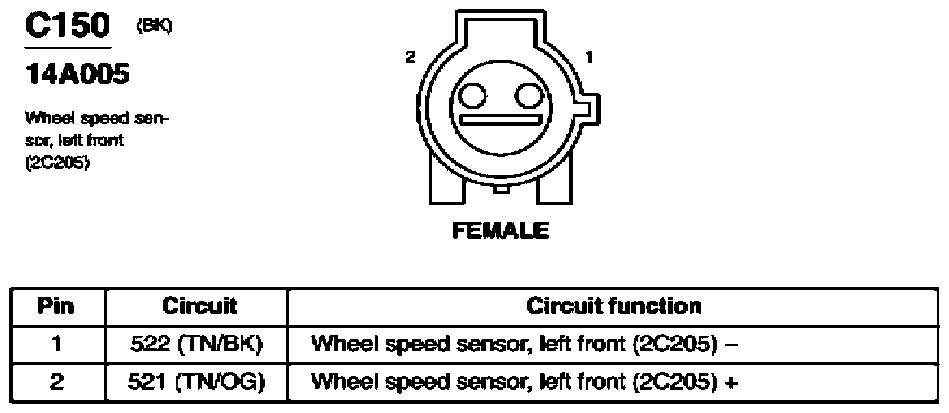

Fig 29: Wheel Speed Sensor, Left Front Connector End View (C150)
G07838353Courtesy of FORD MOTOR CO.

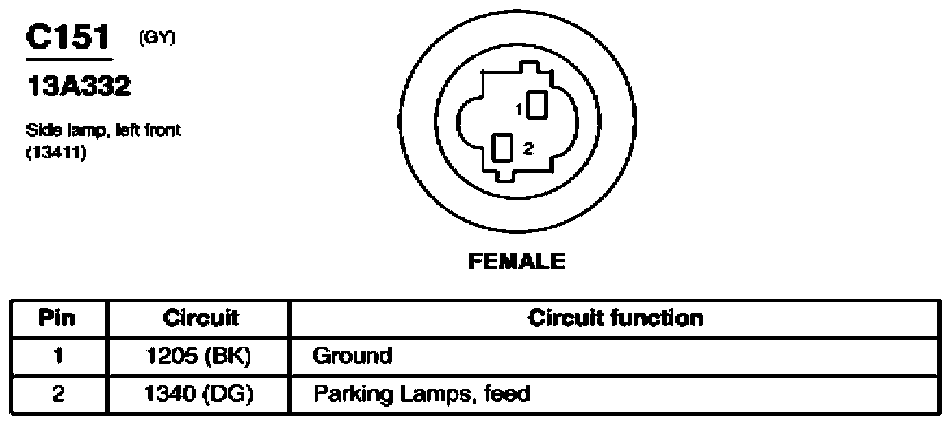

Fig 30: Side Lamp, Left Front Connector End View (C151)
G07838354Courtesy of FORD MOTOR CO.

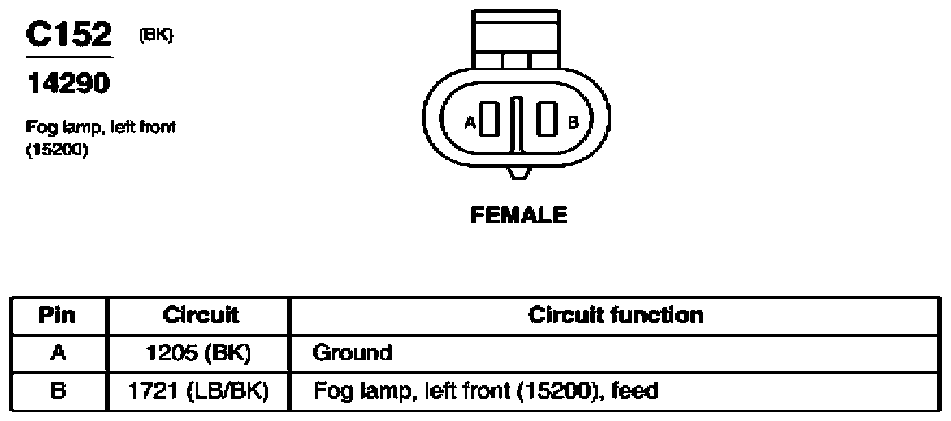

Fig 31: Fog Lamp, Left Front Connector End View (C152)
G07838355Courtesy of FORD MOTOR CO.

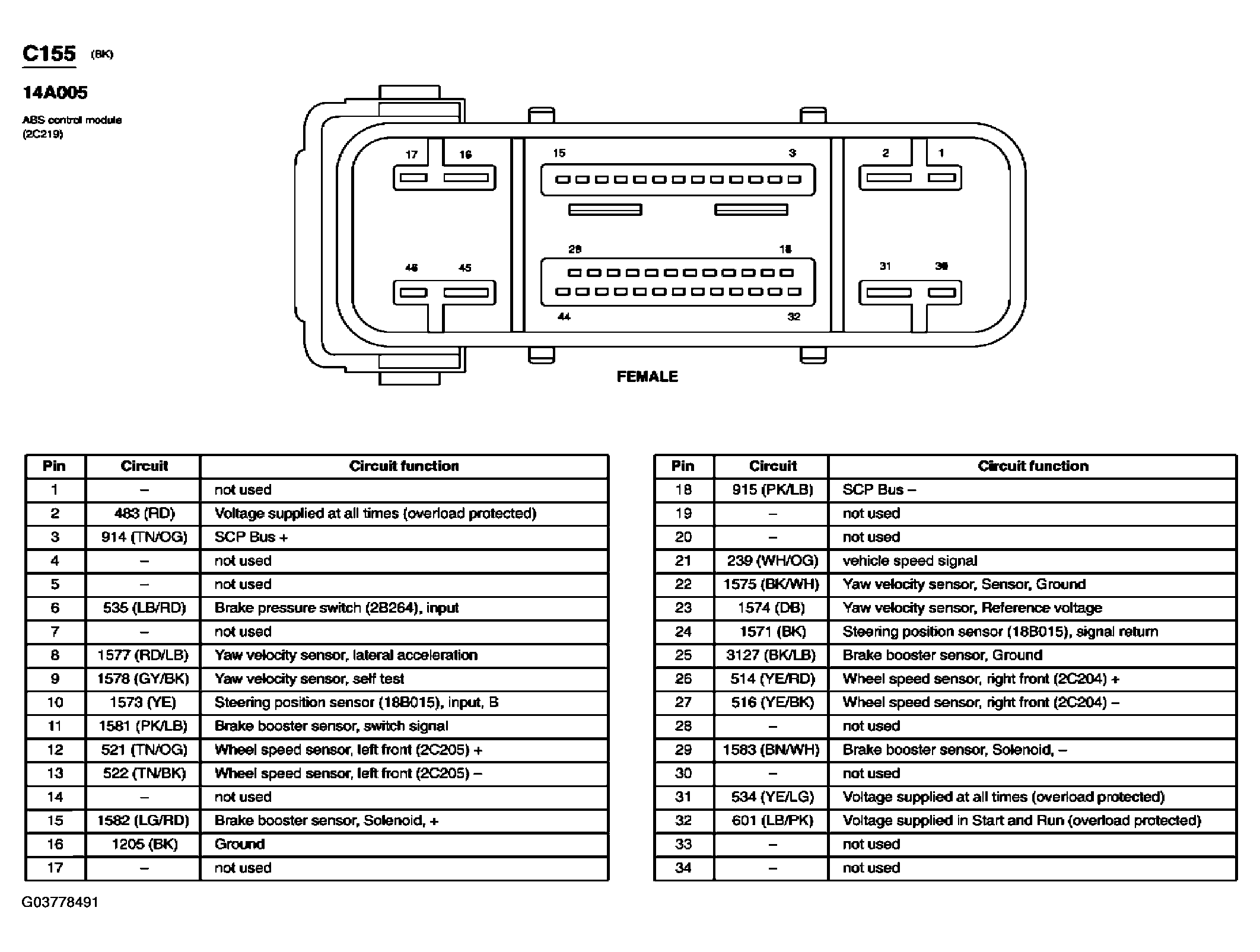

Fig 32: ABS Control Module Connector End View (C155) (1 Of 2)
G03778491Courtesy of FORD MOTOR CO.

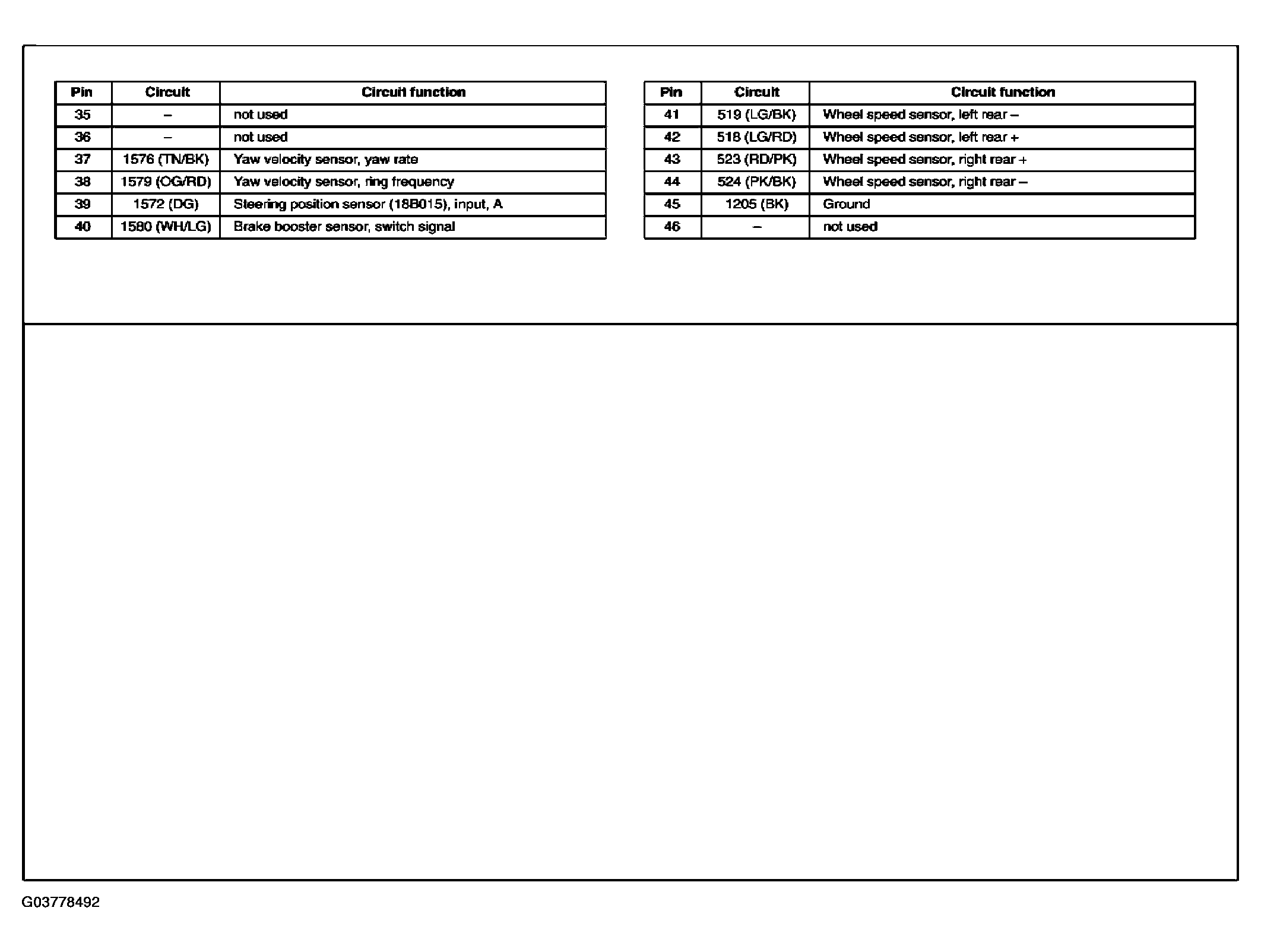

Fig 33: ABS Control Module Connector End View (C155) (2 Of 2)
G03778492Courtesy of FORD MOTOR CO.

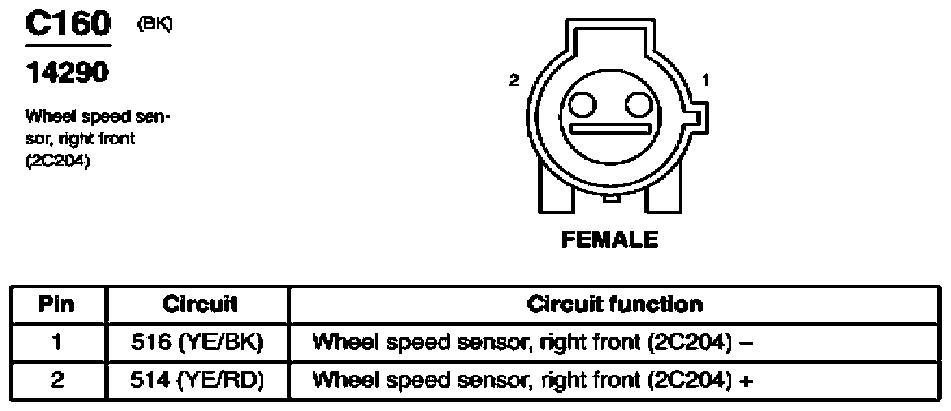

Fig 34: Wheel Speed Sensor, Right Front Connector End View (C160)
G07838356Courtesy of FORD MOTOR CO.

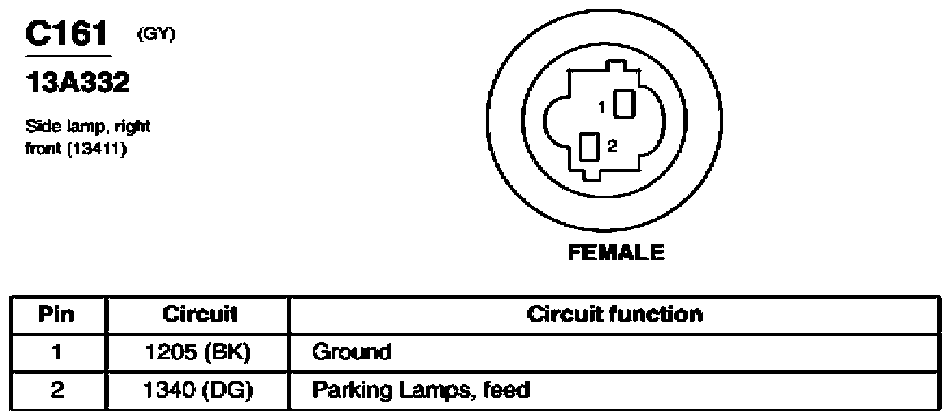

Fig 35: Side Lamp, Right Front Connector End View (C161)
G07838357Courtesy of FORD MOTOR CO.

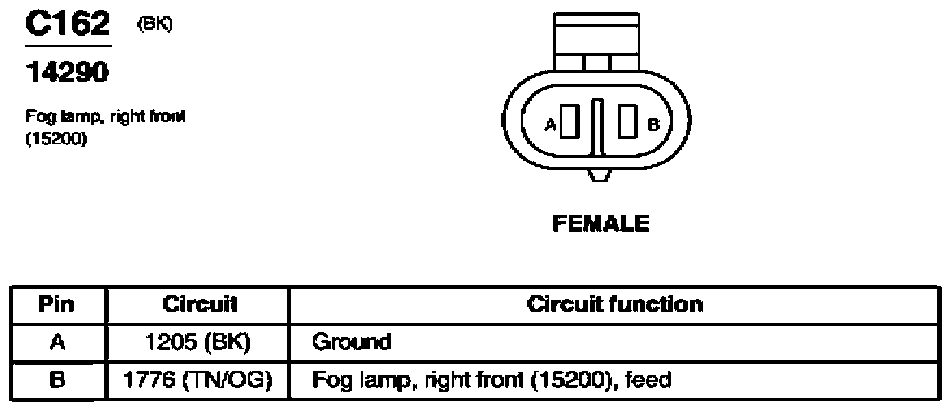

Fig 36: Fog Lamp, Right Front Connector End View (C162)
G07838358Courtesy of FORD MOTOR CO.

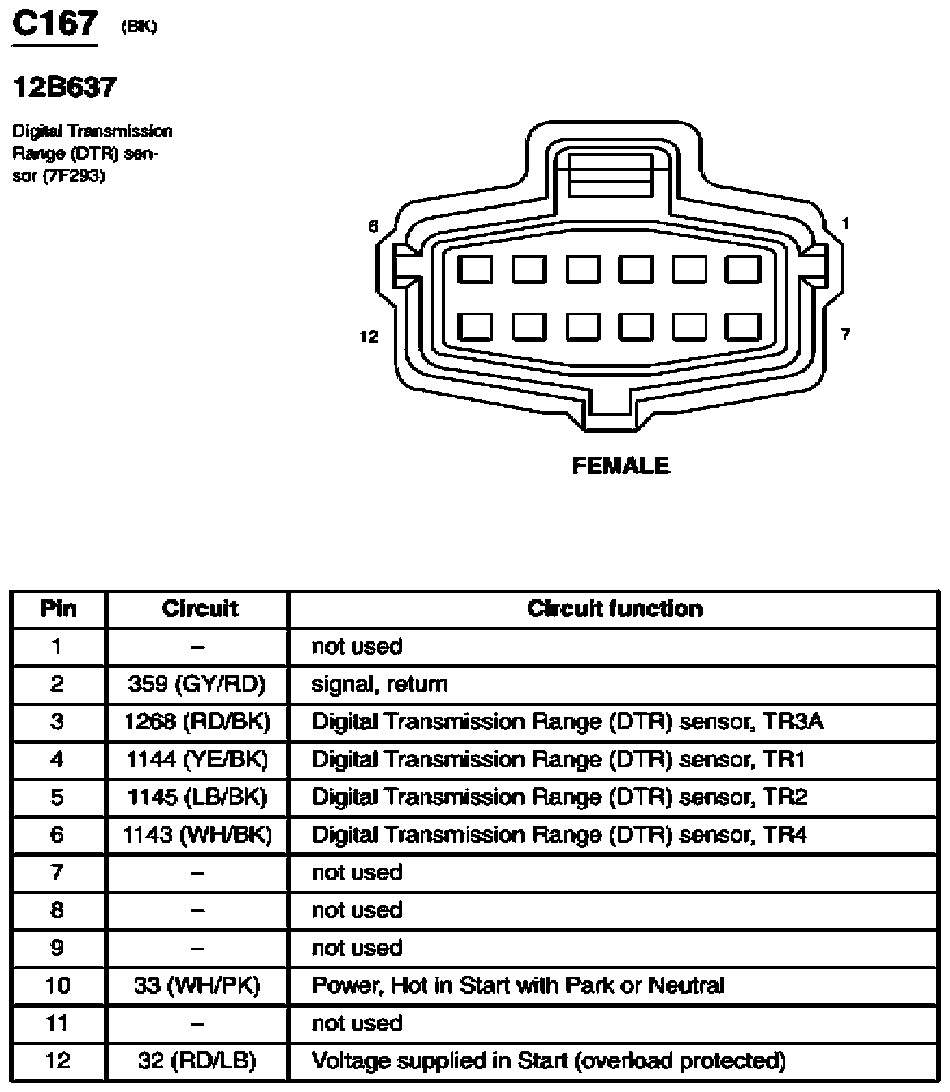

Fig 37: Digital Transmission Range (DTR) Sensor Connector End View (C167)
G07838359Courtesy of FORD MOTOR CO.

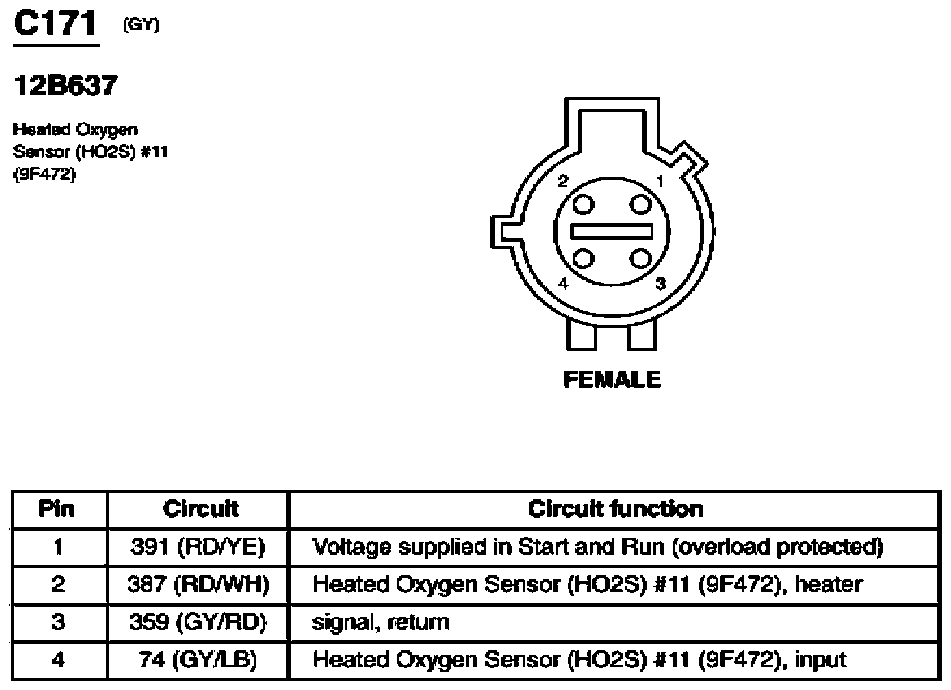

Fig 38: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)
G07838360Courtesy of FORD MOTOR CO.

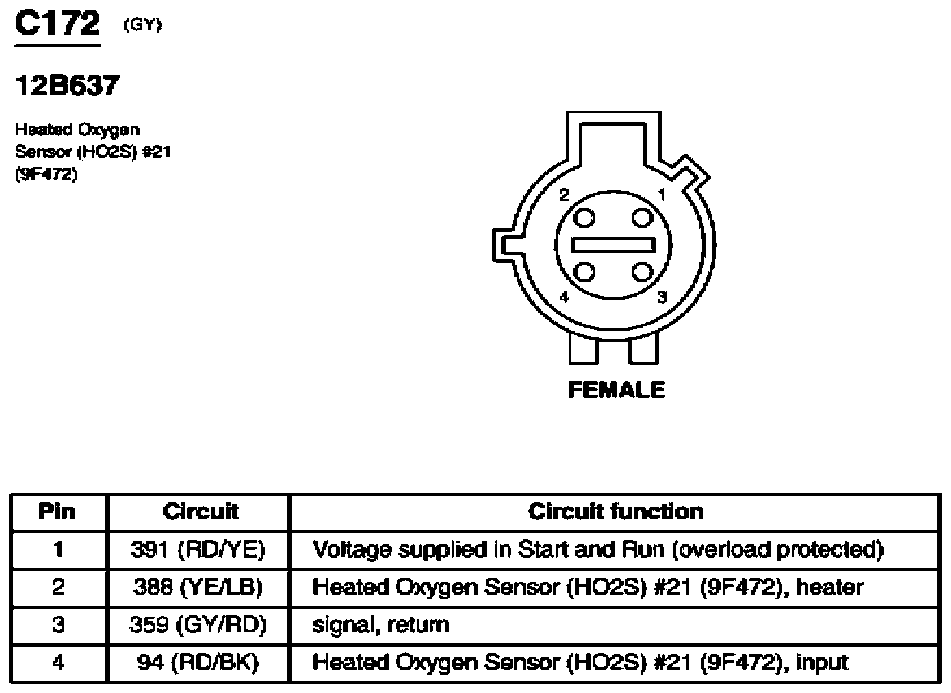

Fig 39: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)
G07838361Courtesy of FORD MOTOR CO.

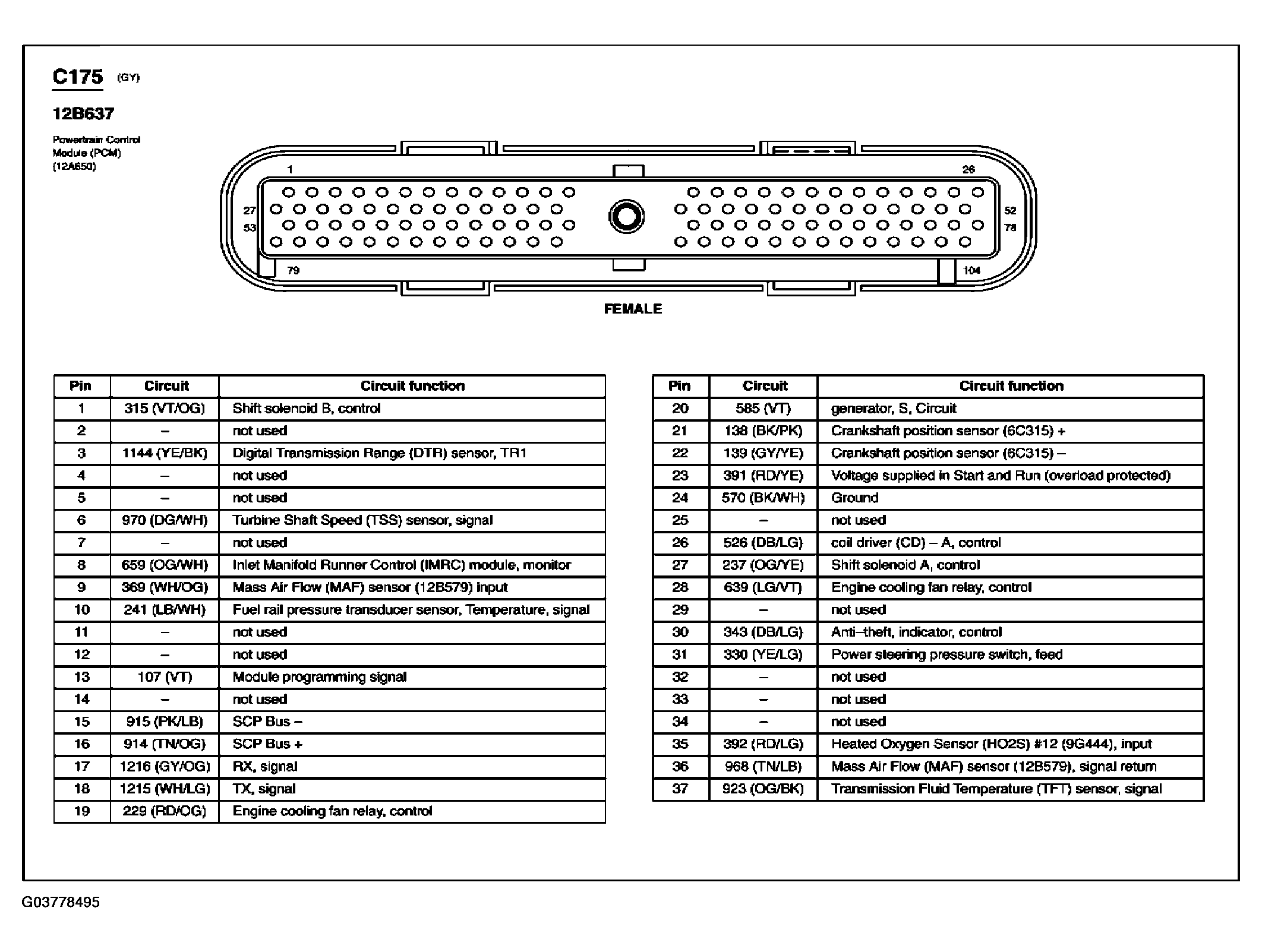

Fig 40: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)
G03778495Courtesy of FORD MOTOR CO.

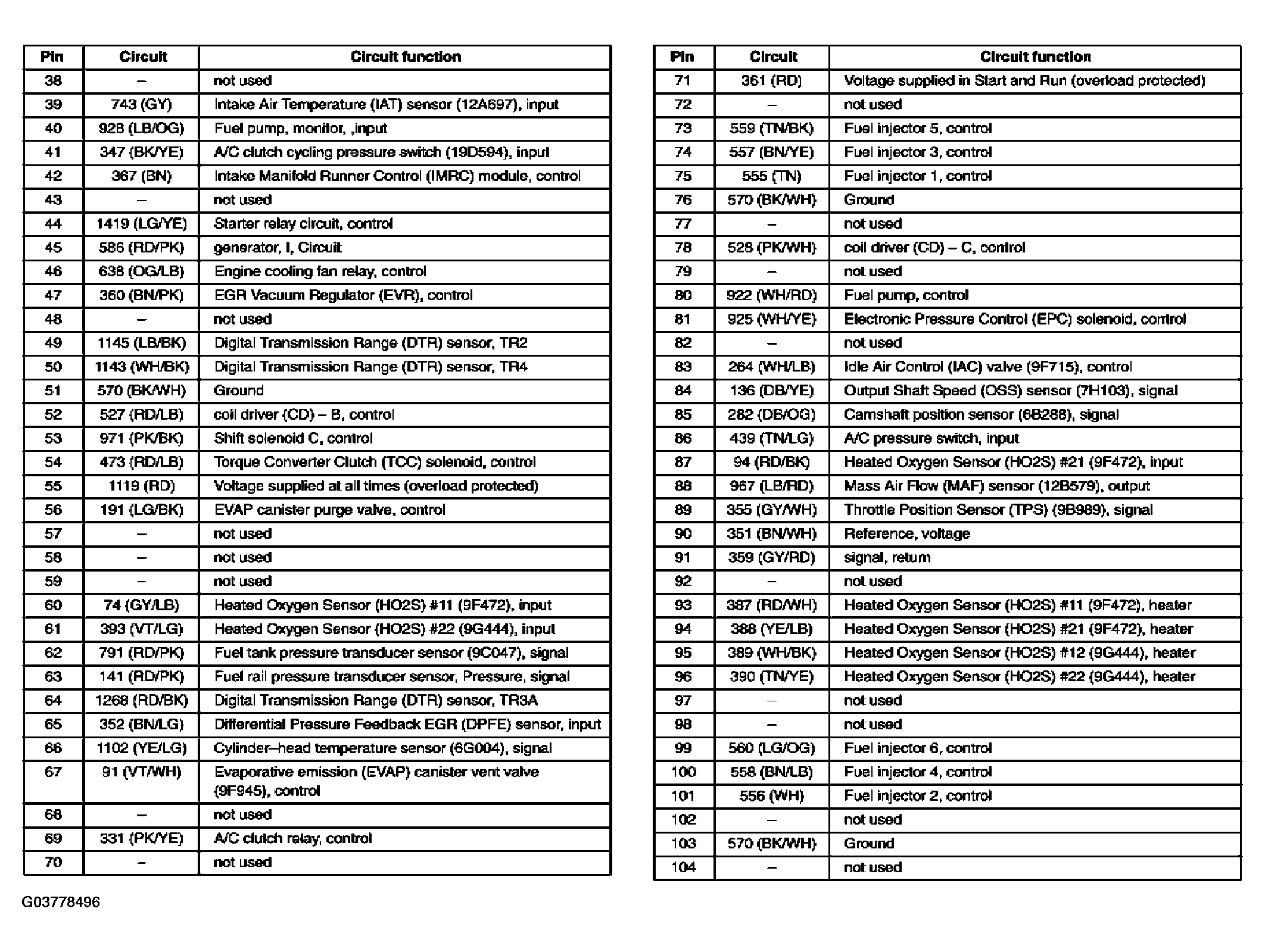

Fig 41: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)
G03778496Courtesy of FORD MOTOR CO.

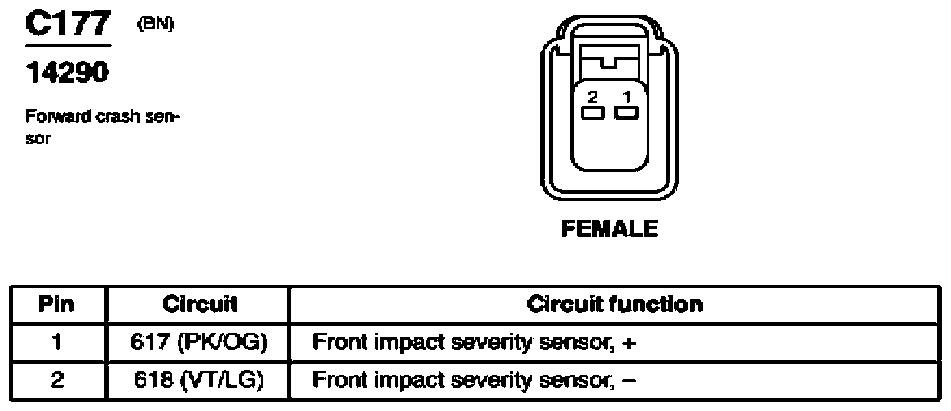

Fig 42: Forward Crash Sensor Connector End View (C177)
G07838362Courtesy of FORD MOTOR CO.

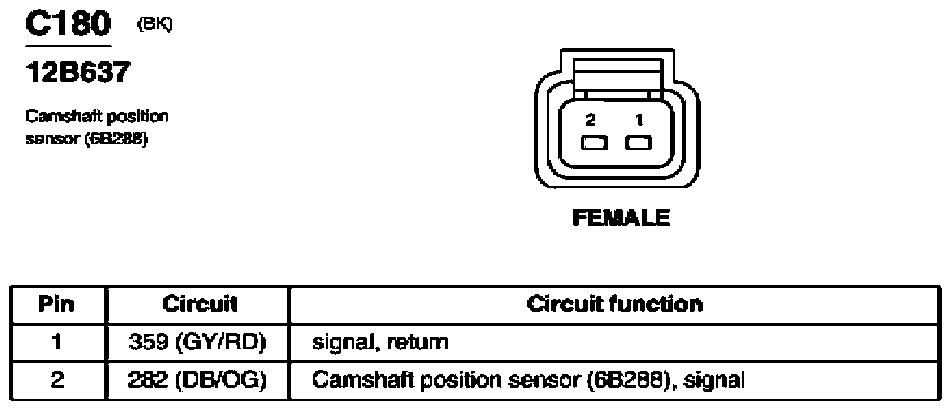

Fig 43: Camshaft Position Sensor Connector End View (C180)
G07838363Courtesy of FORD MOTOR CO.

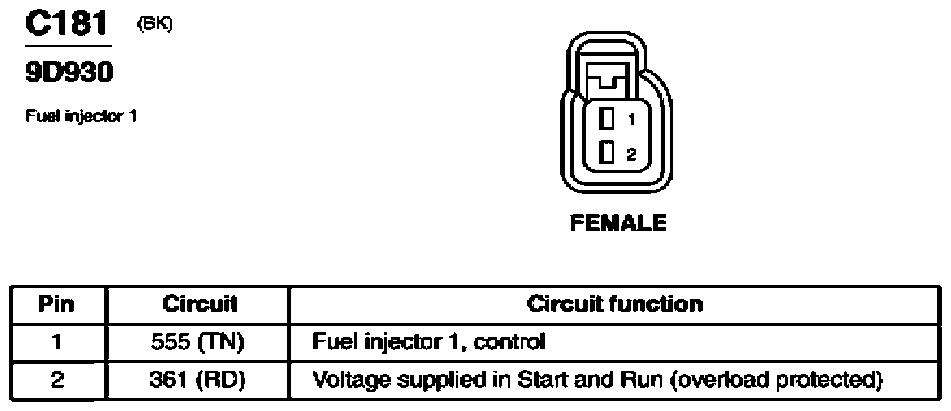

Fig 44: Fuel Injector 1 Connector End View (C181)
G07838364Courtesy of FORD MOTOR CO.
Fig 45: Fuel Injector 2 Connector End View (C182)
G07838365Courtesy of FORD MOTOR CO.

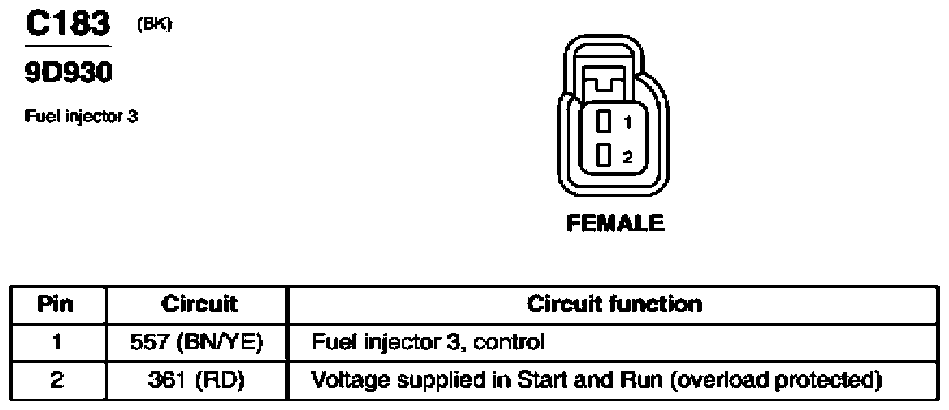

Fig 46: Fuel Injector 3 Connector End View (C183)
G07838366Courtesy of FORD MOTOR CO.

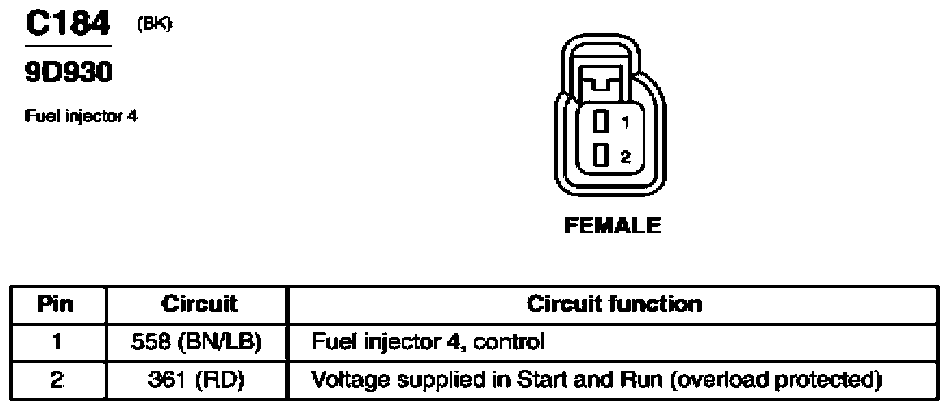

Fig 47: Fuel Injector 4 Connector End View (C184)
G07838367Courtesy of FORD MOTOR CO.

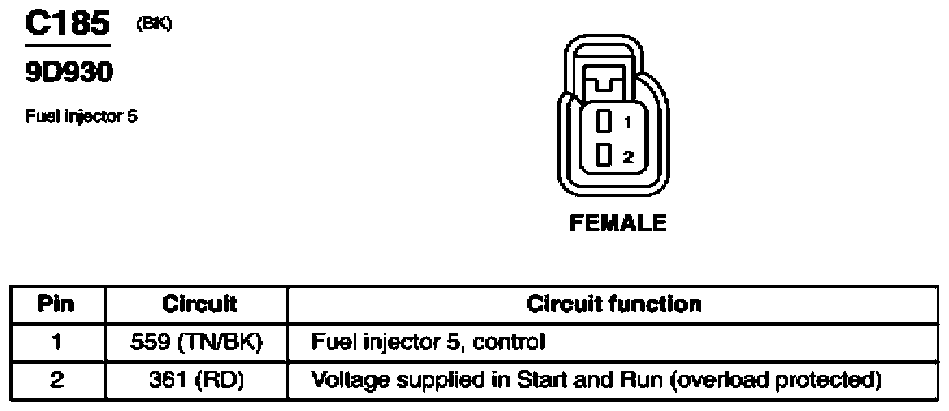

Fig 48: Fuel Injector 5 Connector End View (C185)
G07838368Courtesy of FORD MOTOR CO.

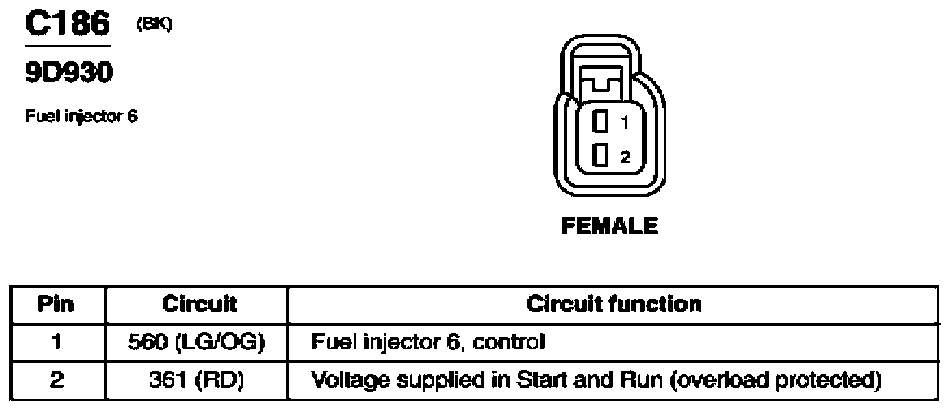

Fig 49: Fuel Injector 6 Connector End View (C186)
G07838369Courtesy of FORD MOTOR CO.

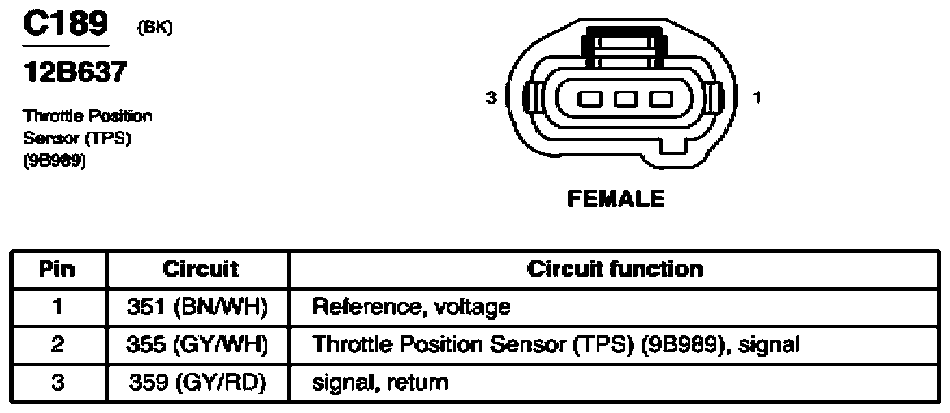

Fig 50: Throttle Position Sensor (TPS) Connector End View (C189)
G07838370Courtesy of FORD MOTOR CO.

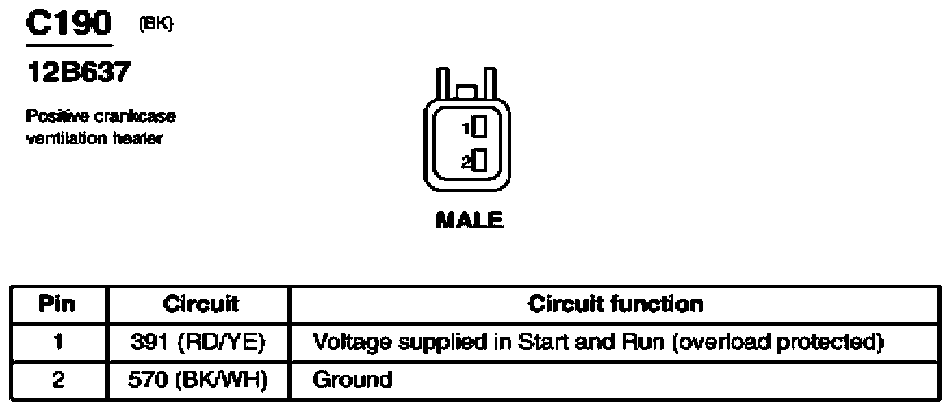

Fig 51: Positive Crankcase Ventilation Heater Connector End View (C190)
G07838371Courtesy of FORD MOTOR CO.

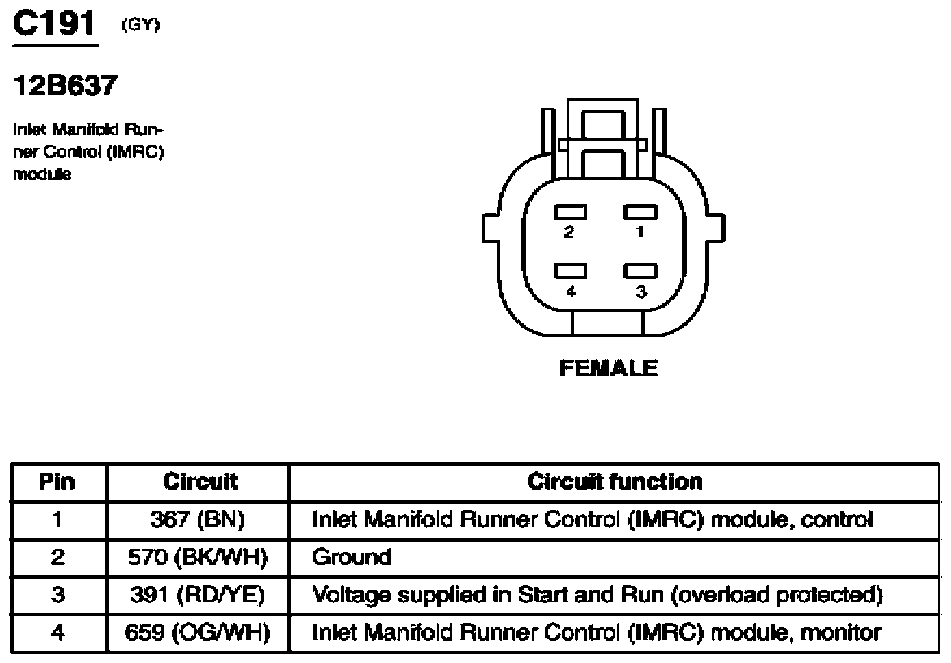

Fig 52: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)
G07838372Courtesy of FORD MOTOR CO.

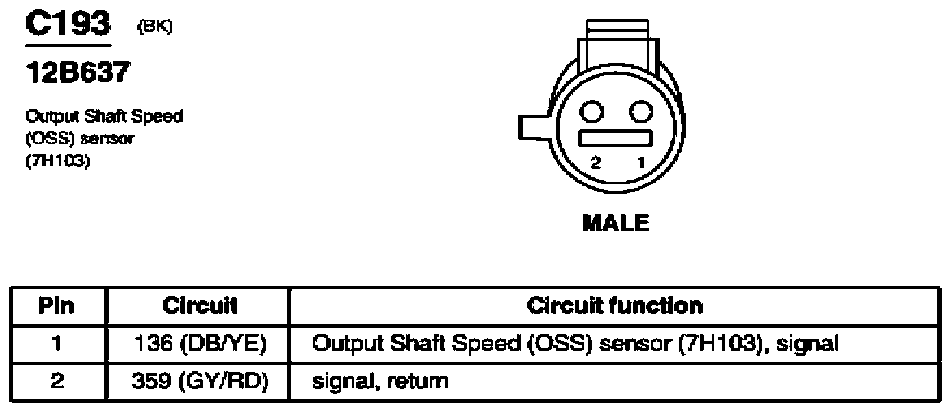

Fig 53: Output Shaft Speed (OSS) Sensor Connector End View (C193)
G07838373Courtesy of FORD MOTOR CO.

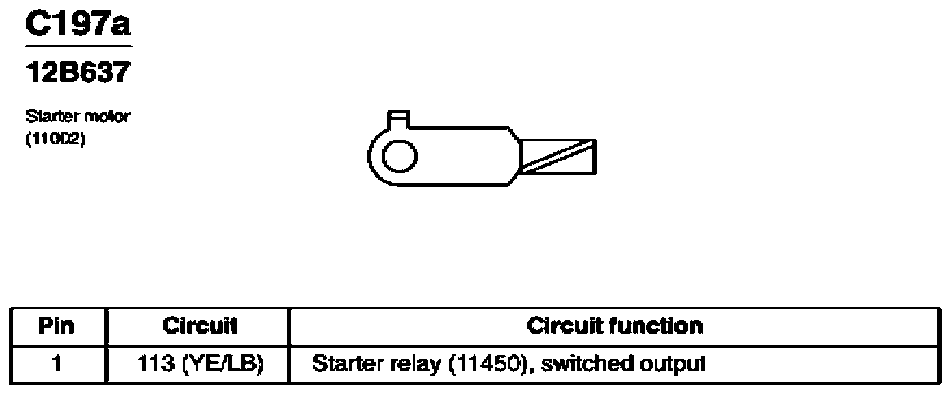

Fig 54: Starter Motor Connector End View (C197a)
G07838374Courtesy of FORD MOTOR CO.

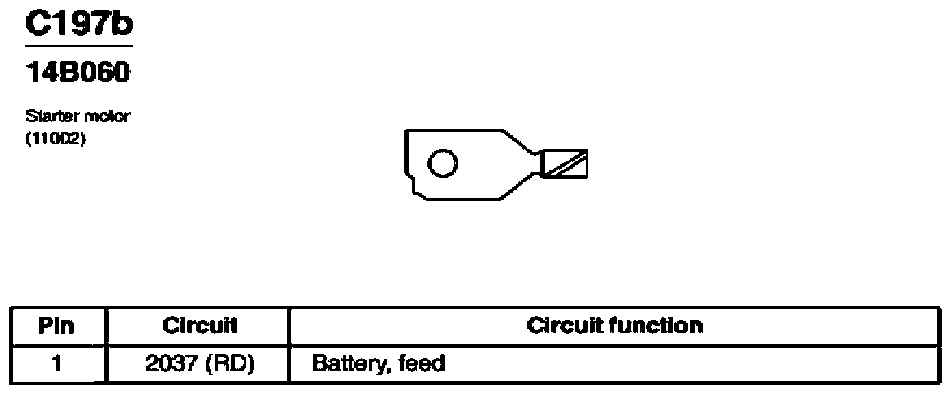

Fig 55: Starter Motor Connector End View (C197b)
G07838375Courtesy of FORD MOTOR CO.

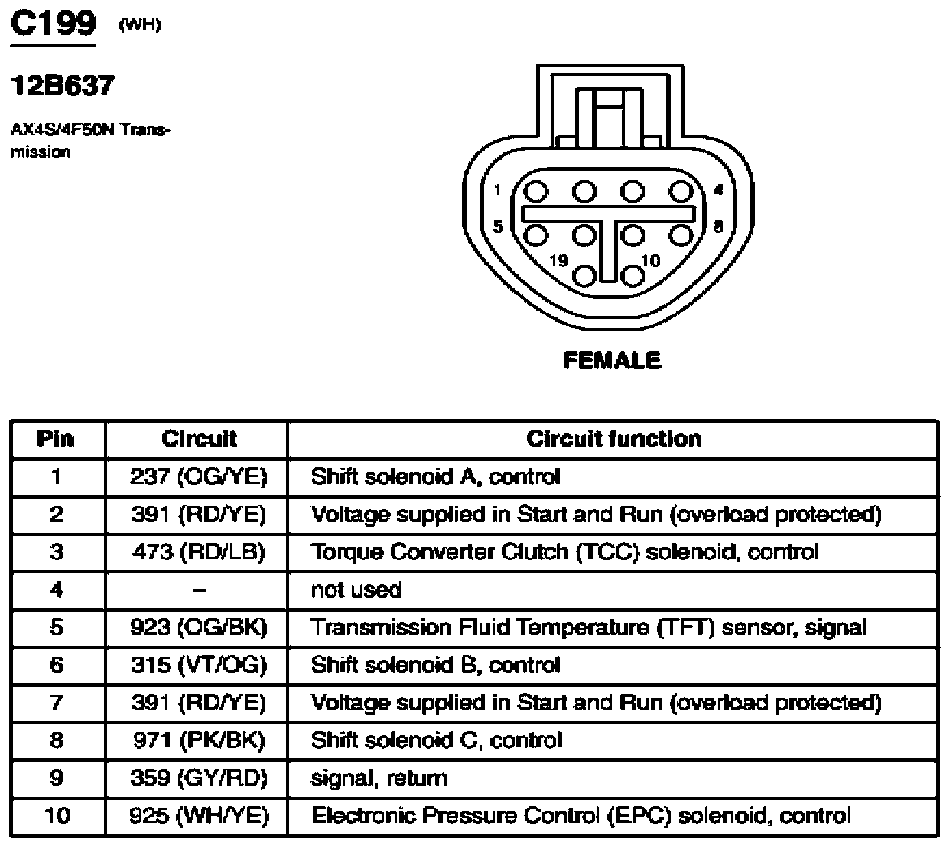

Fig 56: AX4S/4F50N Transmission Connector End View (C199)
G07838376Courtesy of FORD MOTOR CO.

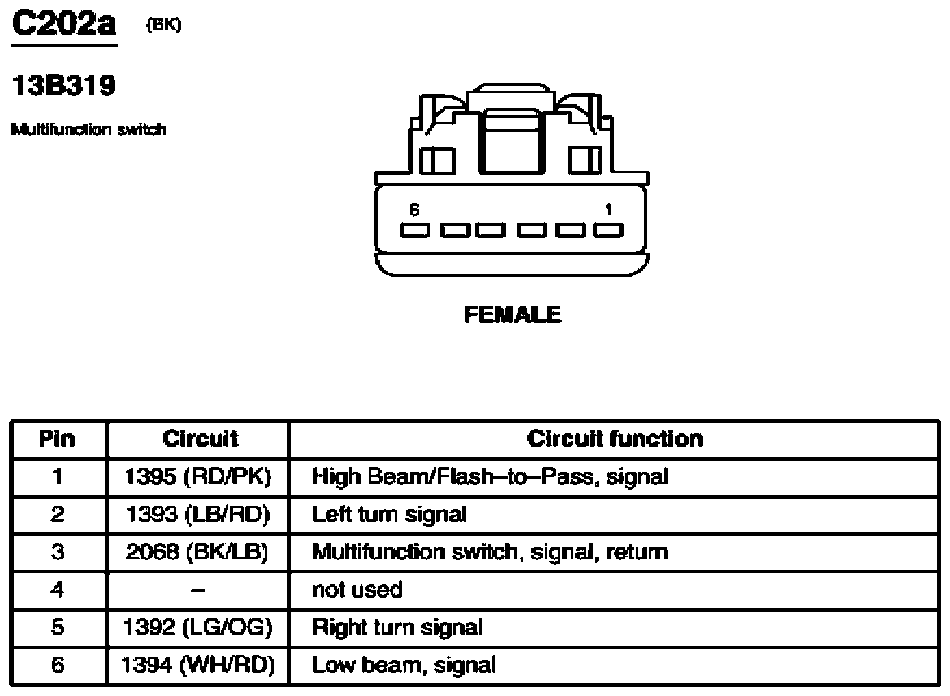

Fig 57: Multifunction Switch Connector End View (C202a)
G07838377Courtesy of FORD MOTOR CO.

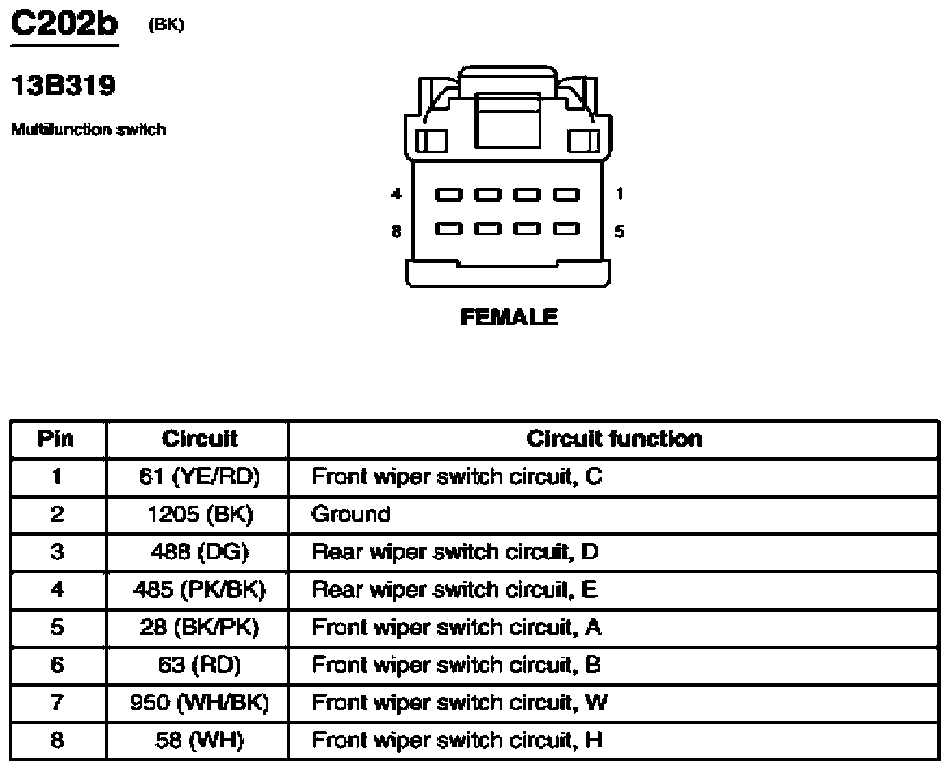

Fig 58: Multifunction Switch Connector End View (C202b)
G07838378Courtesy of FORD MOTOR CO.

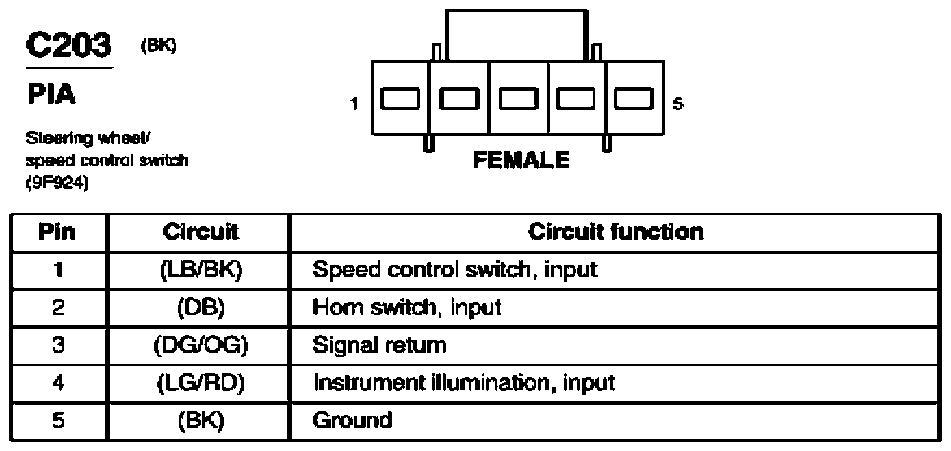

Fig 59: Steering Wheel/Speed Control Switch Connector End View (C203)
G07838379Courtesy of FORD MOTOR CO.

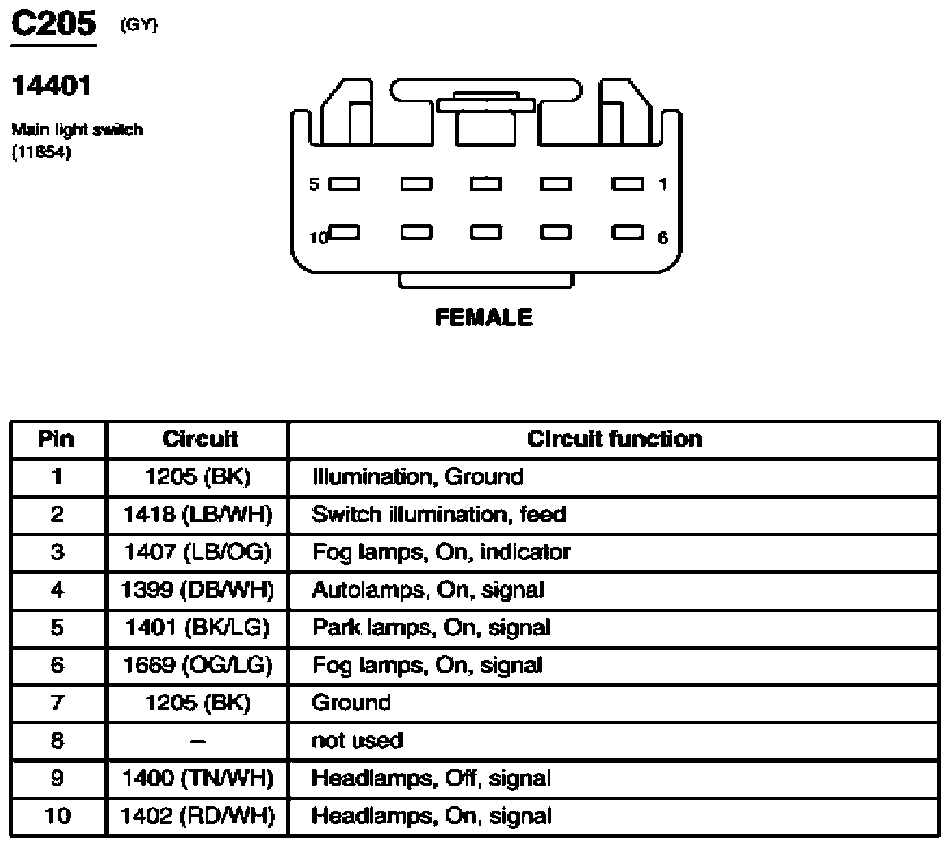

Fig 60: Main Light Switch Connector End View (C205)
G03778501Courtesy of FORD MOTOR CO.

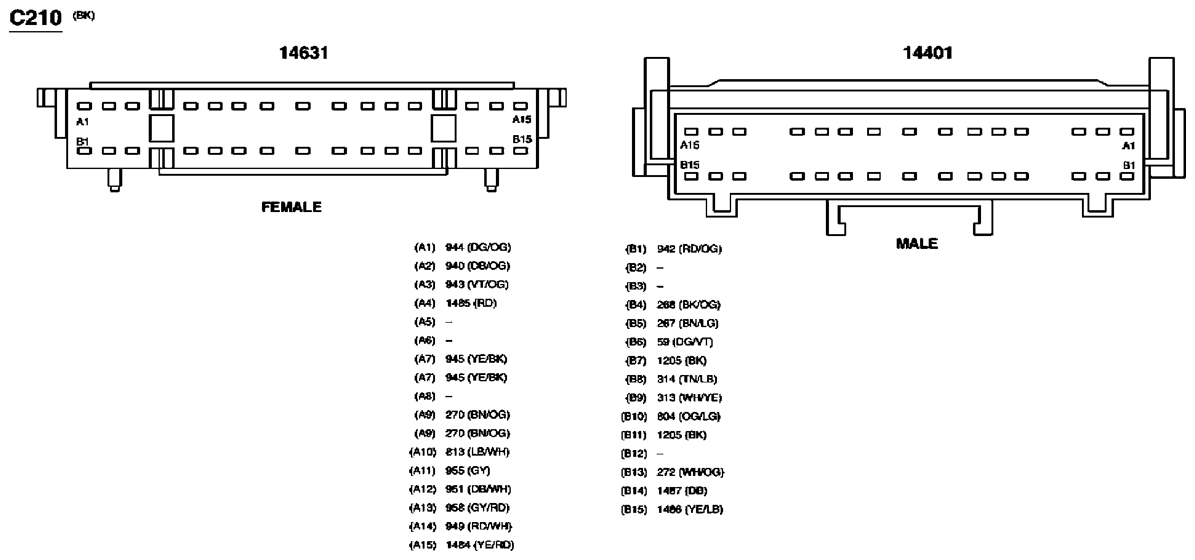

Fig 61: Inline Connector End View (C210)
G03778502Courtesy of FORD MOTOR CO.

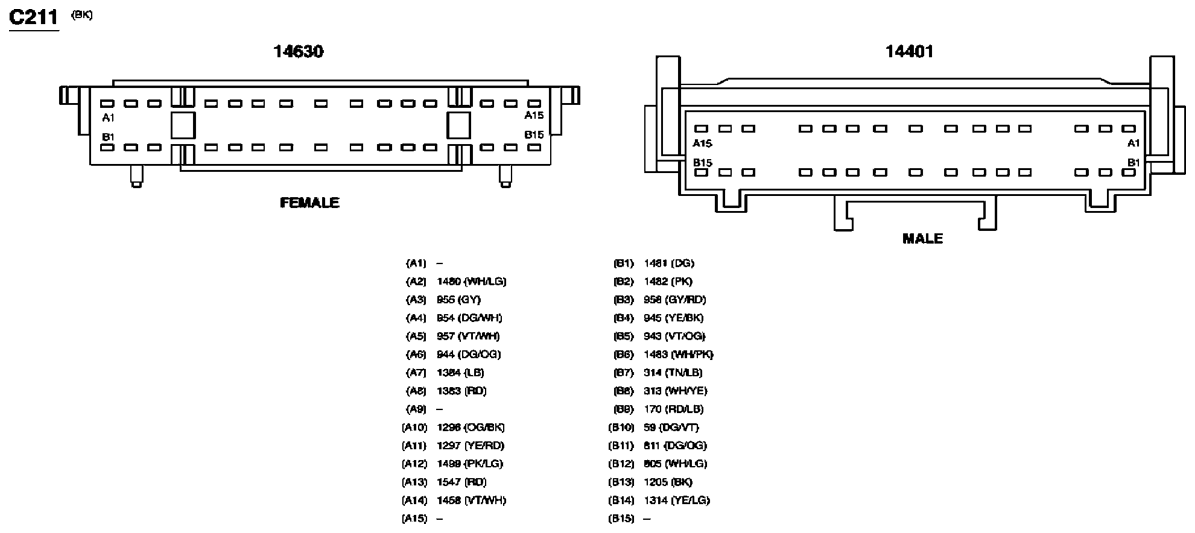

Fig 62: Inline Connector End View (C211)
G03778503Courtesy of FORD MOTOR CO.

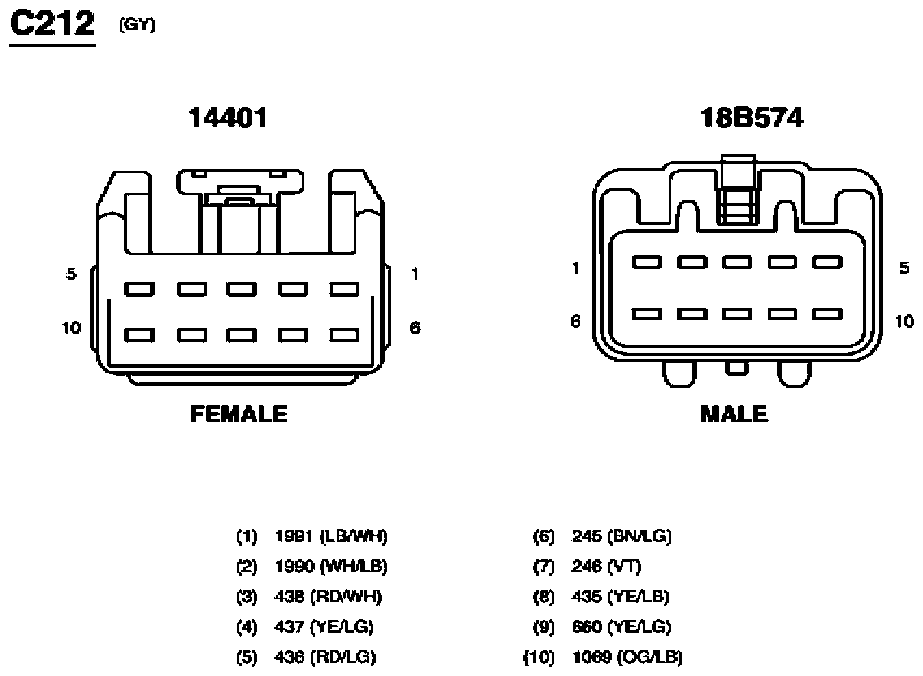

Fig 63: Inline Connector End View (C212)
G07838380Courtesy of FORD MOTOR CO.

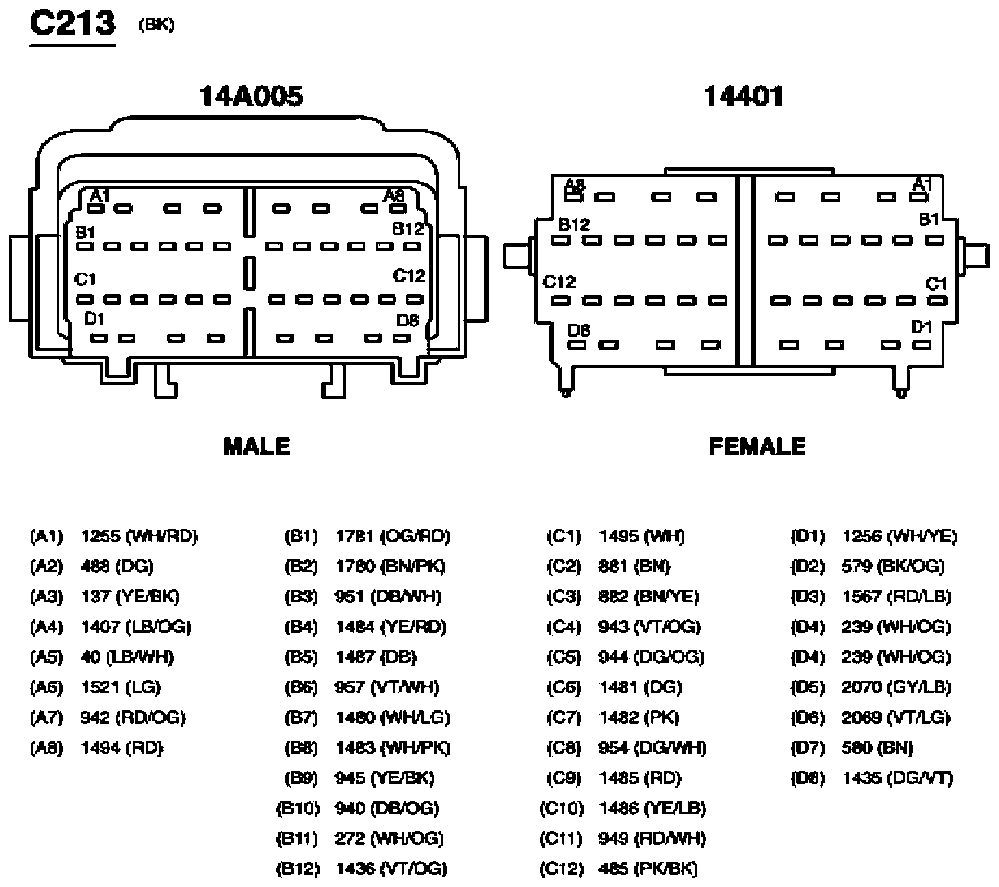

Fig 64: Inline Connector End View (C213)
G07838381Courtesy of FORD MOTOR CO.

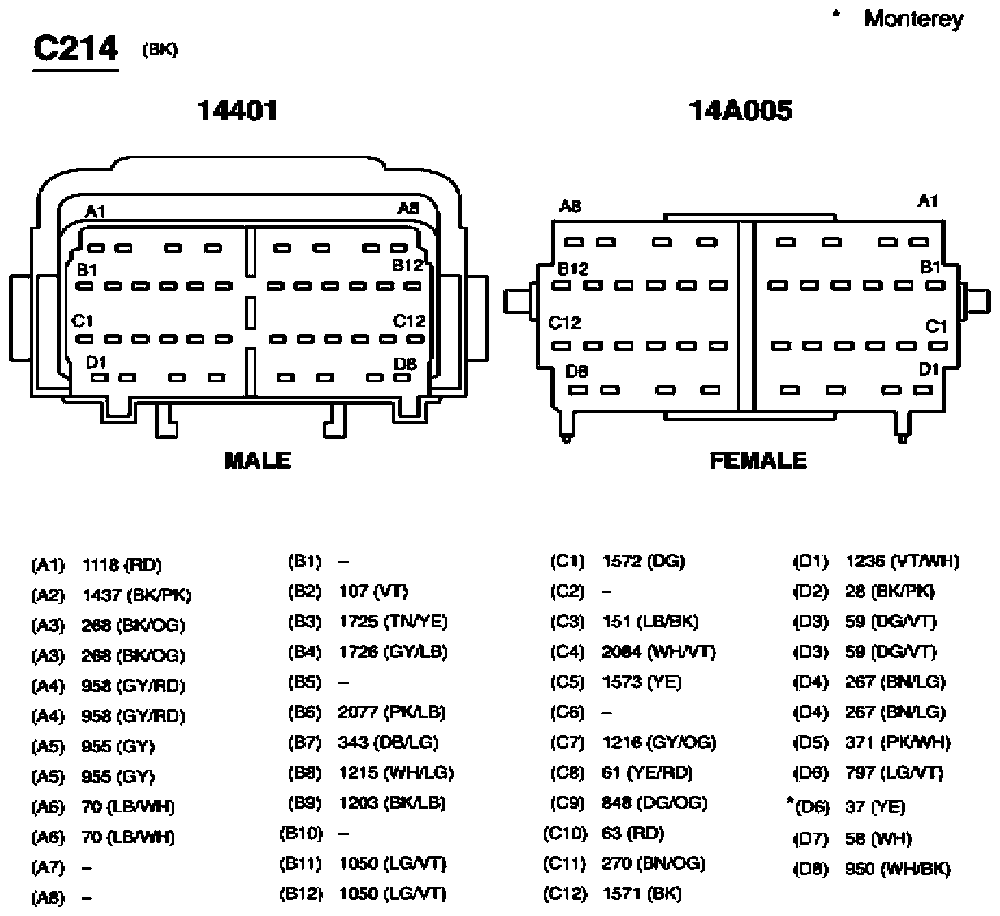

Fig 65: Inline Connector End View (C214)
G07838382Courtesy of FORD MOTOR CO.

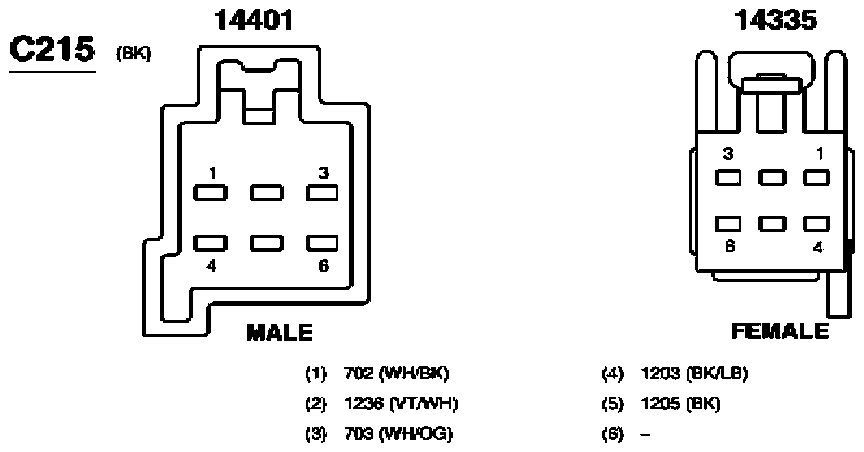

Fig 66: Inline Connector End View (C215)
G07838383Courtesy of FORD MOTOR CO.

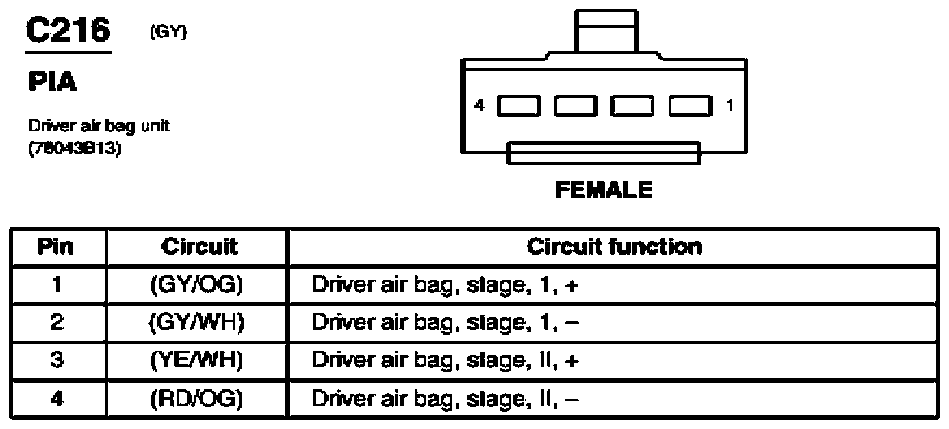

Fig 67: Driver Air Bag Unit Connector End View (C216)
G07838384Courtesy of FORD MOTOR CO.

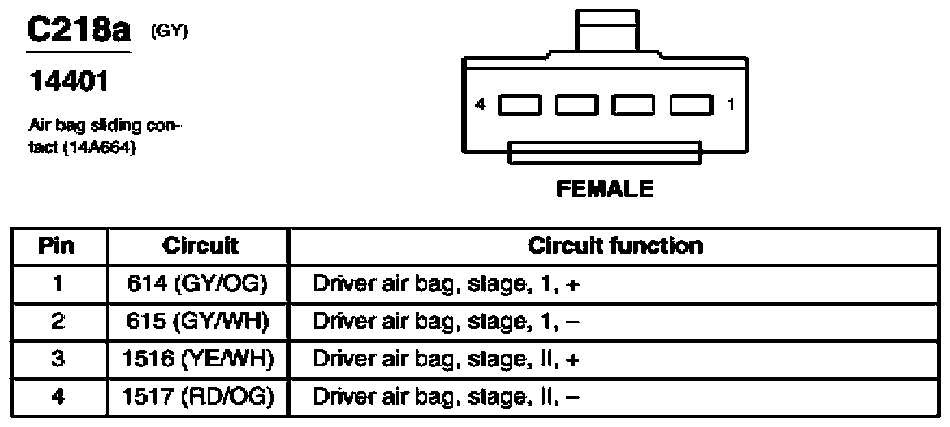

Fig 68: Air Bag Sliding Contact Connector End View (C218a)
G07838385Courtesy of FORD MOTOR CO.

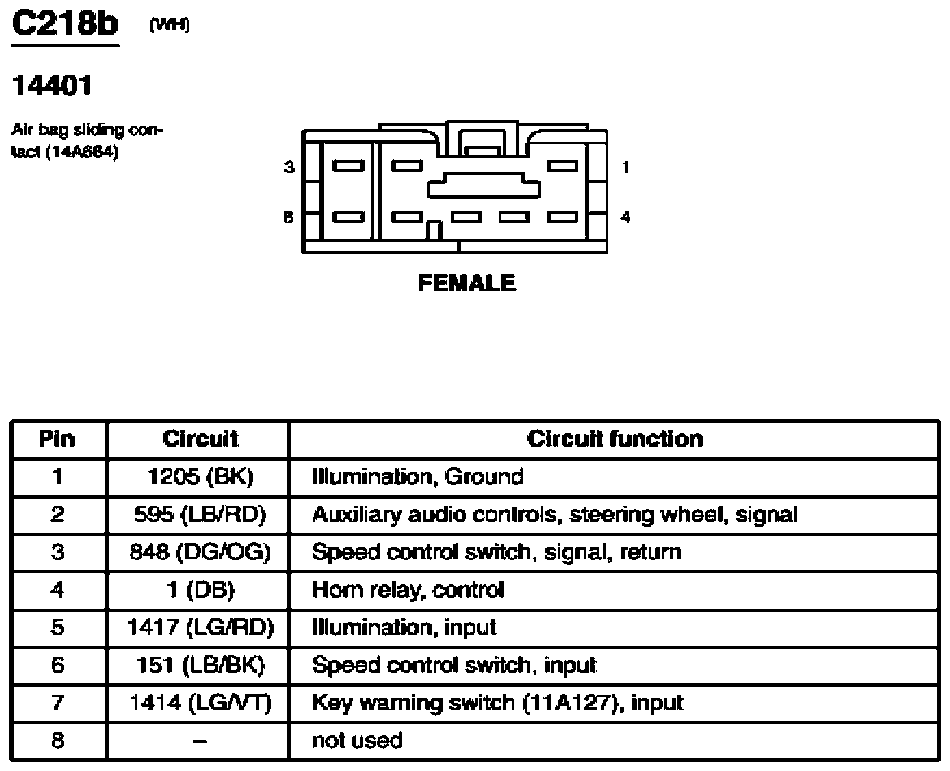

Fig 69: Air Bag Sliding Contact Connector End View (C218b)
G07838386Courtesy of FORD MOTOR CO.

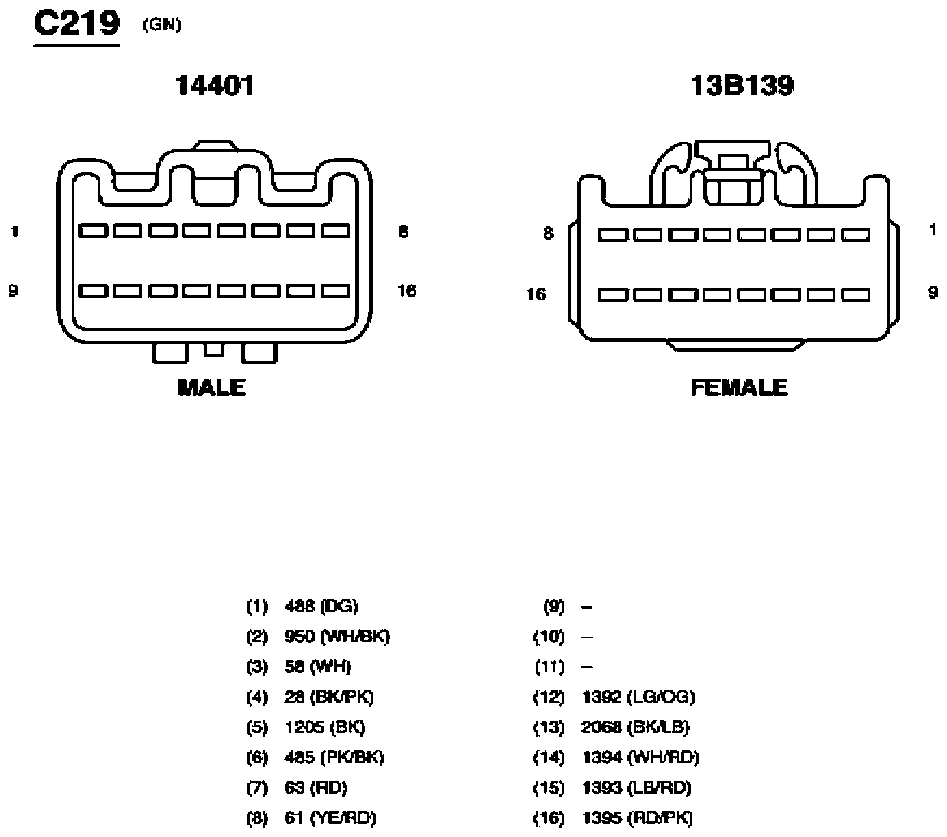

Fig 70: Inline Connector End View (C219)
G07838387Courtesy of FORD MOTOR CO.

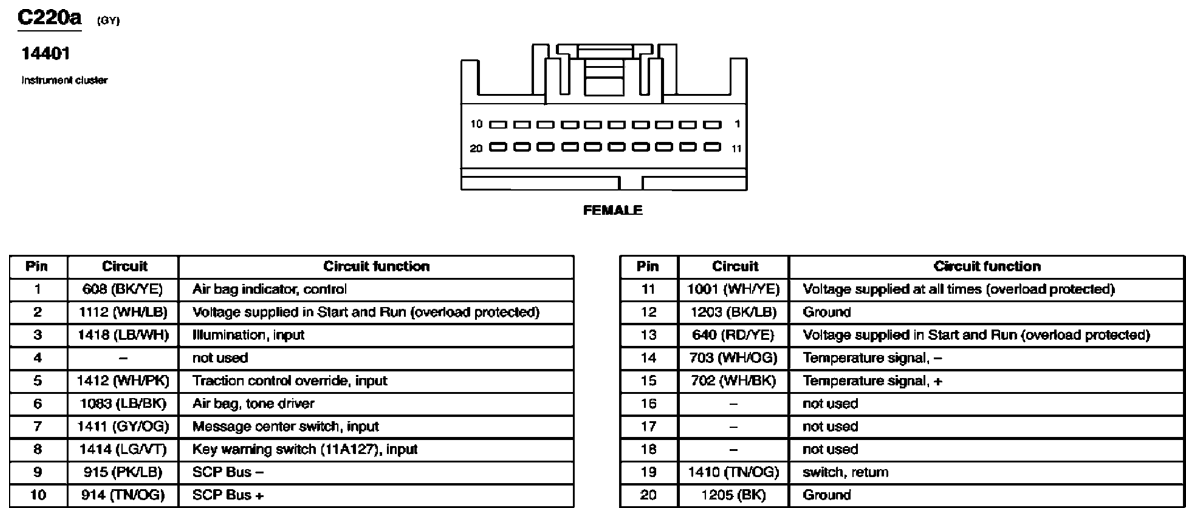

Fig 71: Instrument Cluster Connector End View (C220a)
G03778507Courtesy of FORD MOTOR CO.

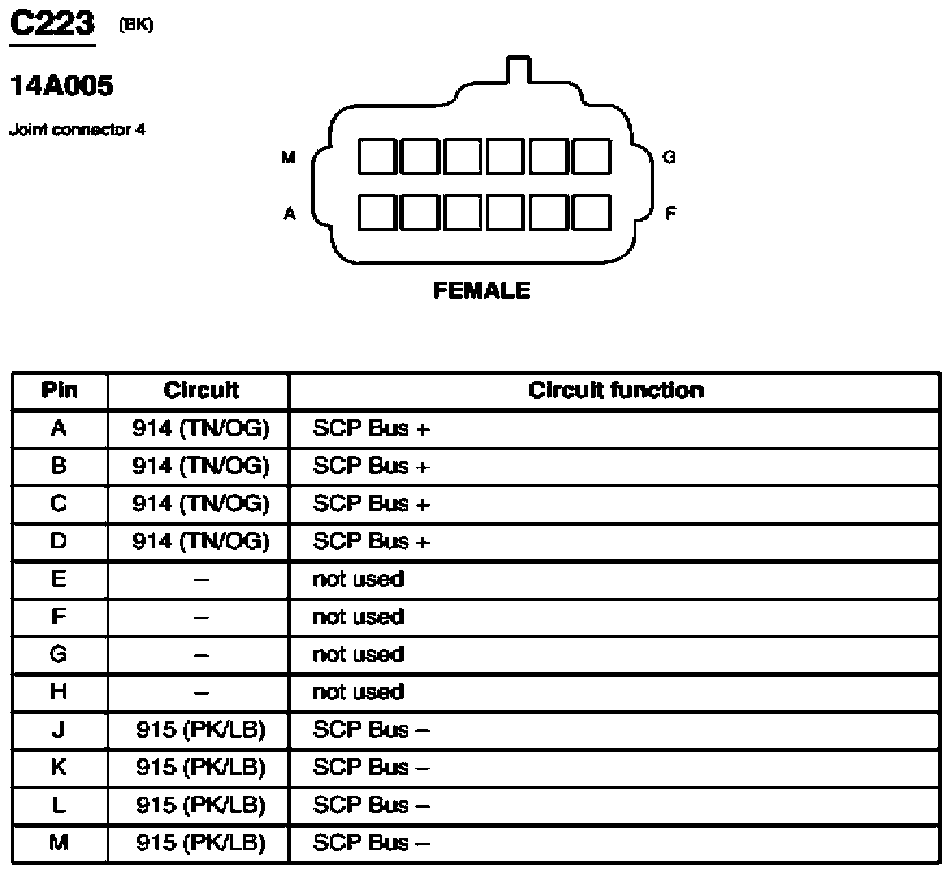

Fig 72: Joint Connector 4 Connector End View (C223)
G07838388Courtesy of FORD MOTOR CO.

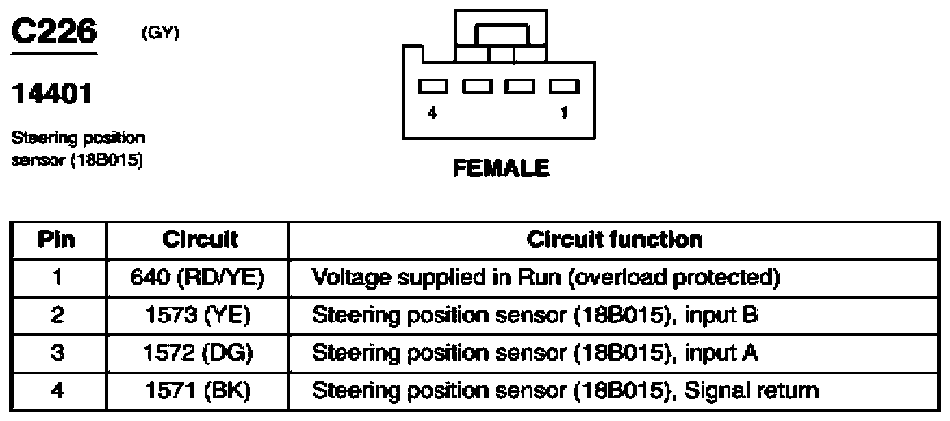

Fig 73: Steering Position Sensor Connector End View (C226)
G07838389Courtesy of FORD MOTOR CO.

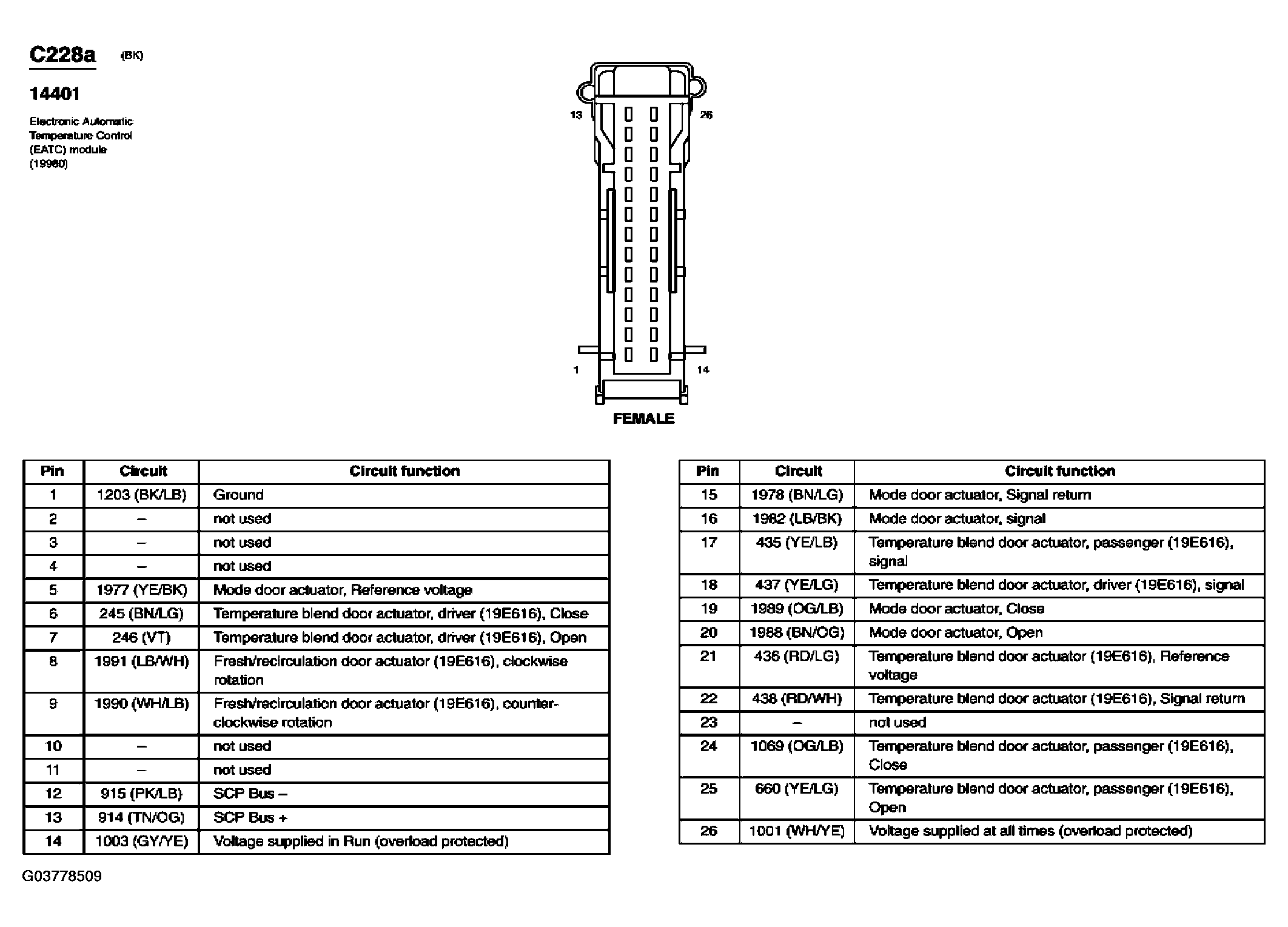

Fig 74: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)
G03778509Courtesy of FORD MOTOR CO.

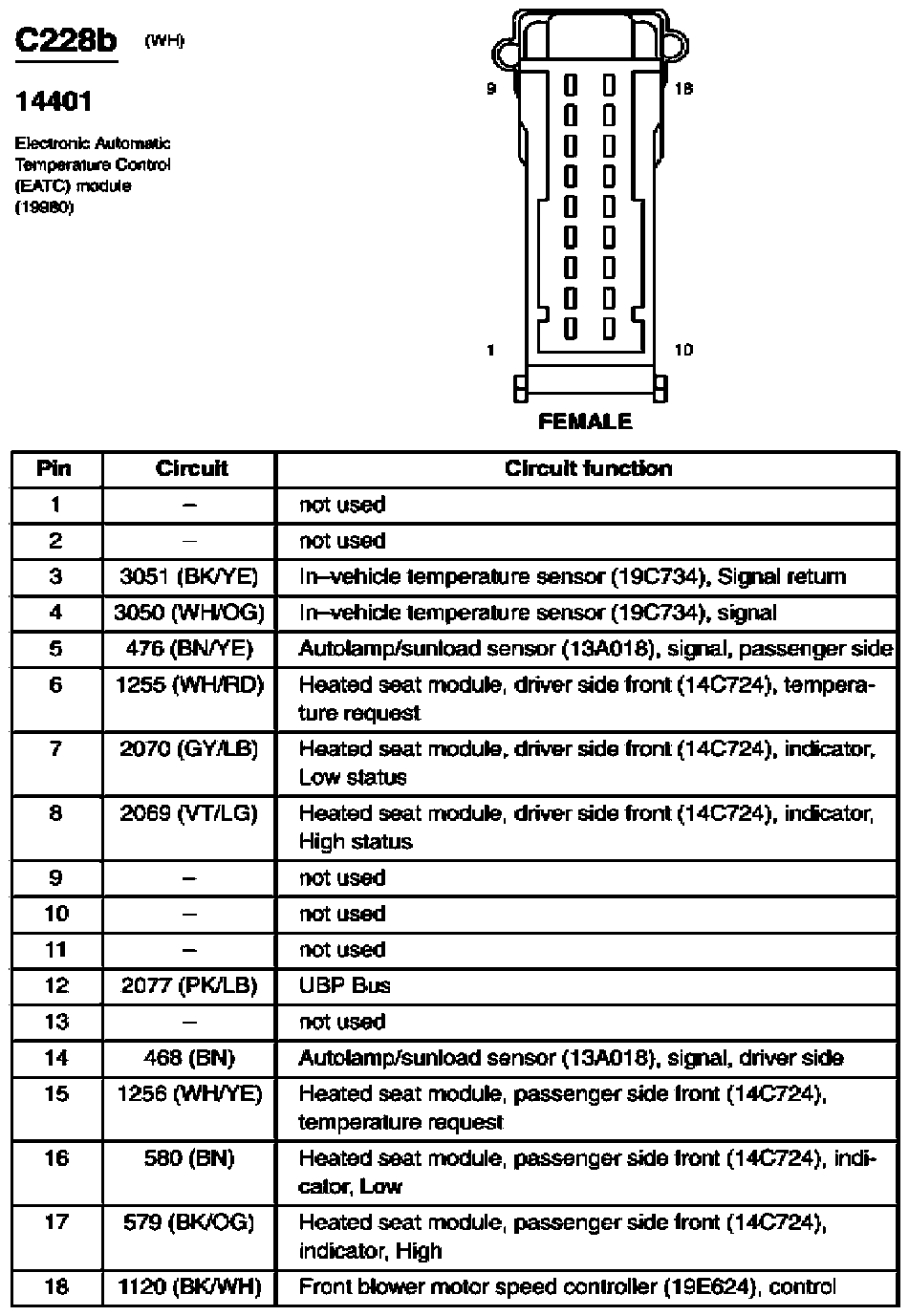

Fig 75: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)
G07838390Courtesy of FORD MOTOR CO.

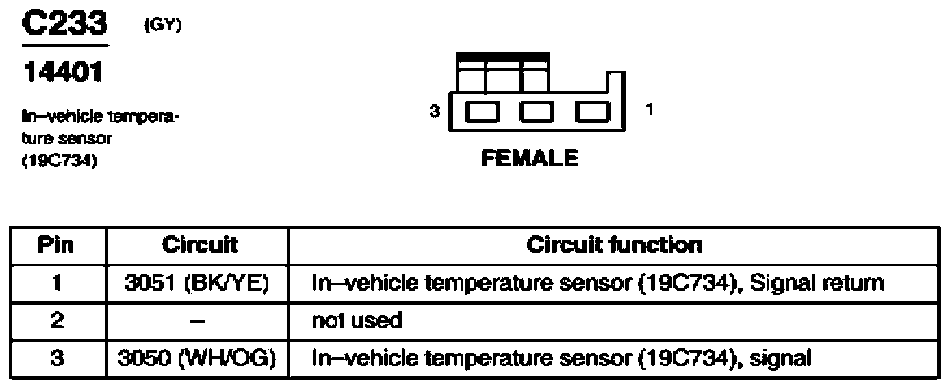

Fig 76: In-Vehicle Temperature Sensor Connector End View (C233)
G07838391Courtesy of FORD MOTOR CO.

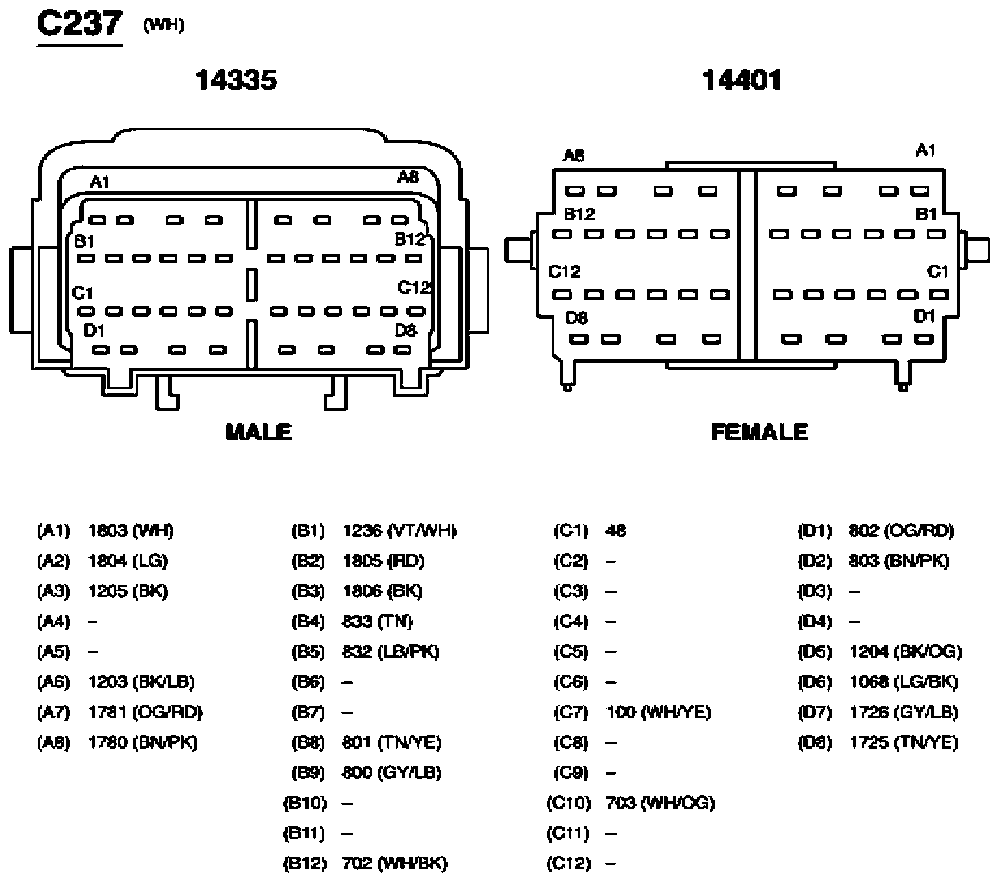

Fig 77: Inline Connector End View (C237)
G07838392Courtesy of FORD MOTOR CO.

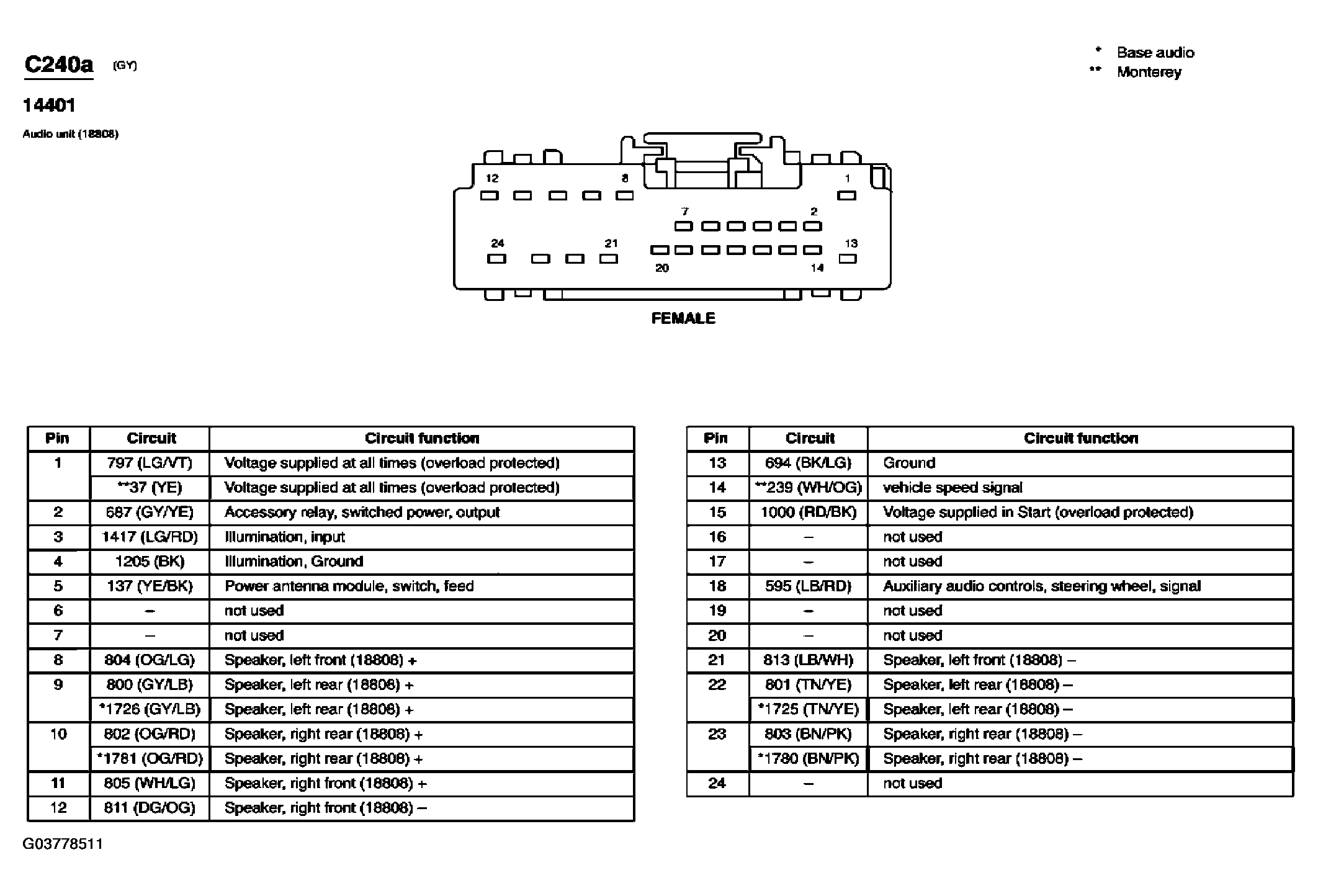

Fig 78: Audio Unit Connector End View (C240a)
G03778511Courtesy of FORD MOTOR CO.

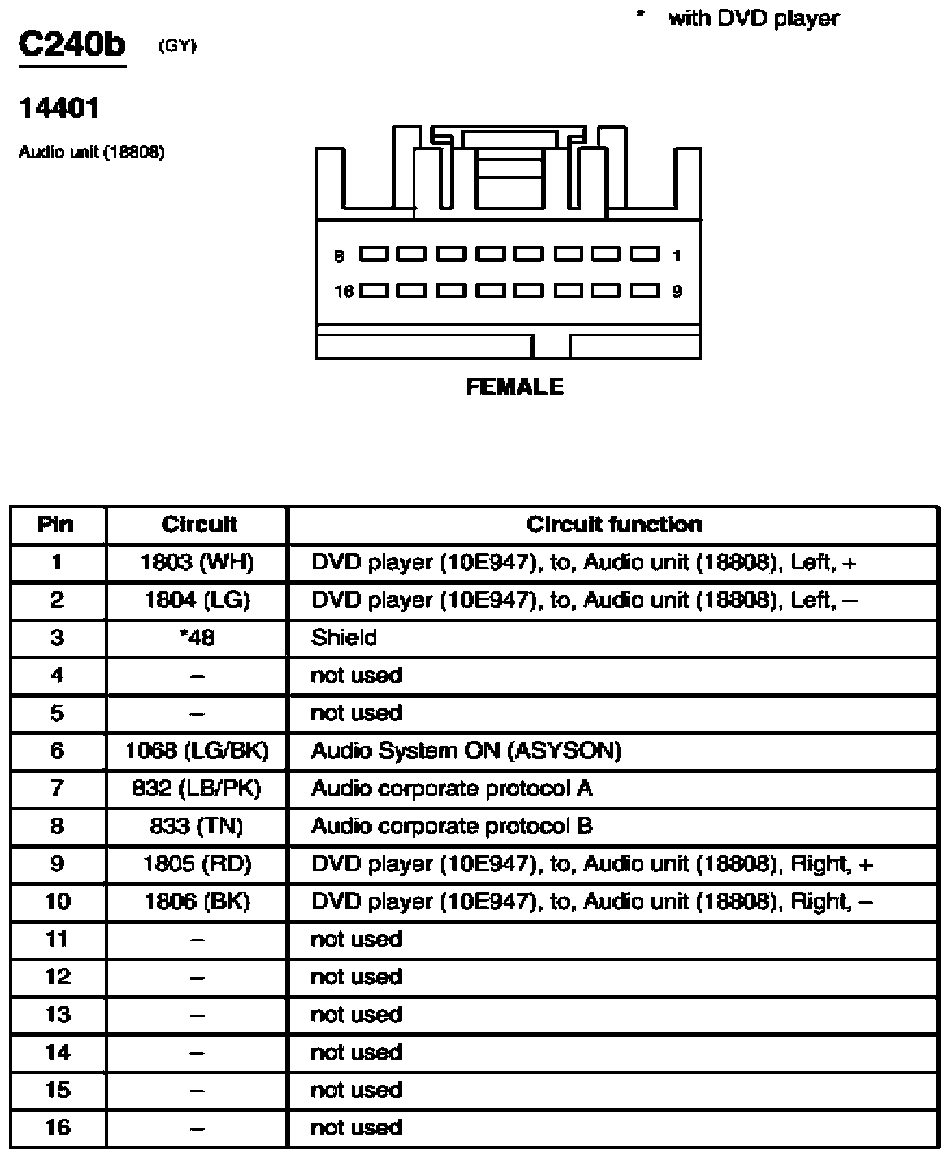

Fig 79: Audio Unit Connector End View (C240b)
G07838393Courtesy of FORD MOTOR CO.

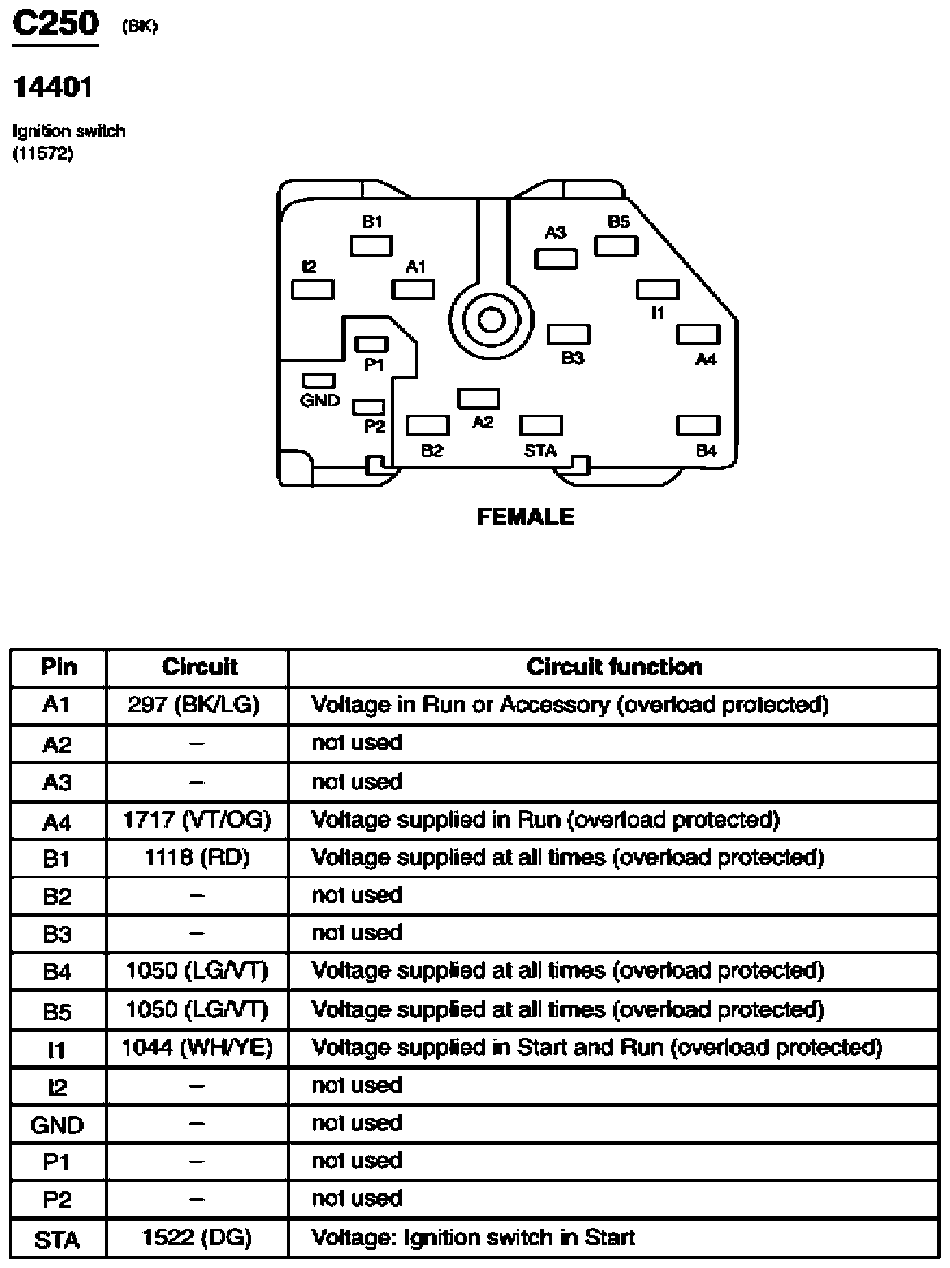

Fig 80: Ignition Switch Connector End View (C250)
G07838394Courtesy of FORD MOTOR CO.

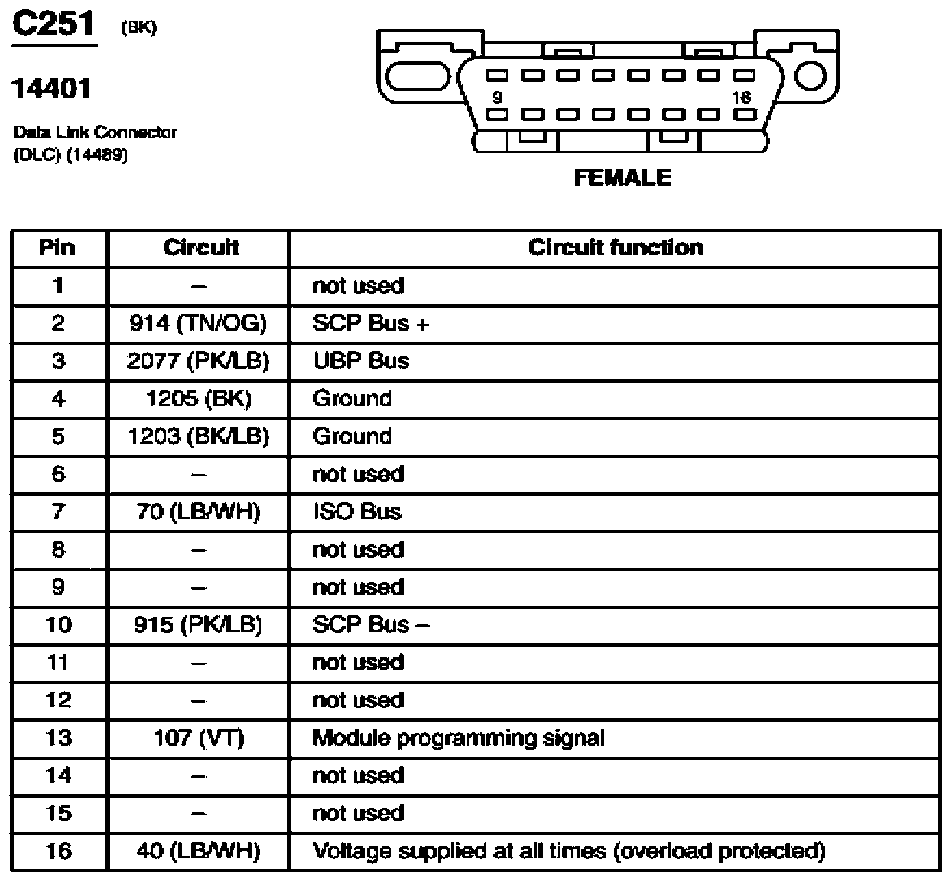

Fig 81: Data Link Connector (DLC) Connector End View (C251)
G07838395Courtesy of FORD MOTOR CO.

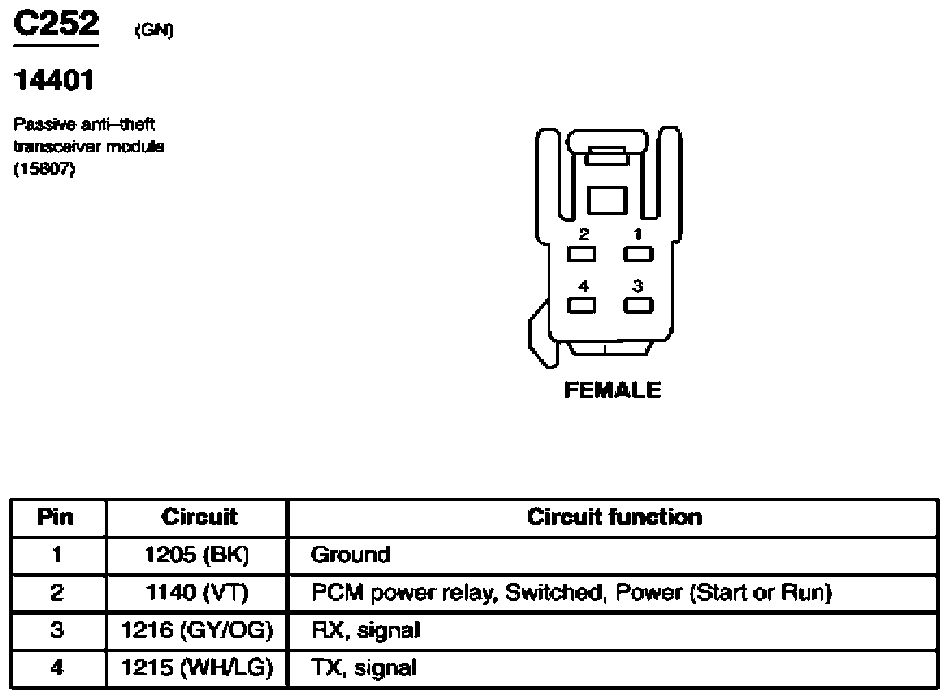

Fig 82: Passive Anti-Theft Transceiver Module Connector End View (C252)
G07838396Courtesy of FORD MOTOR CO.

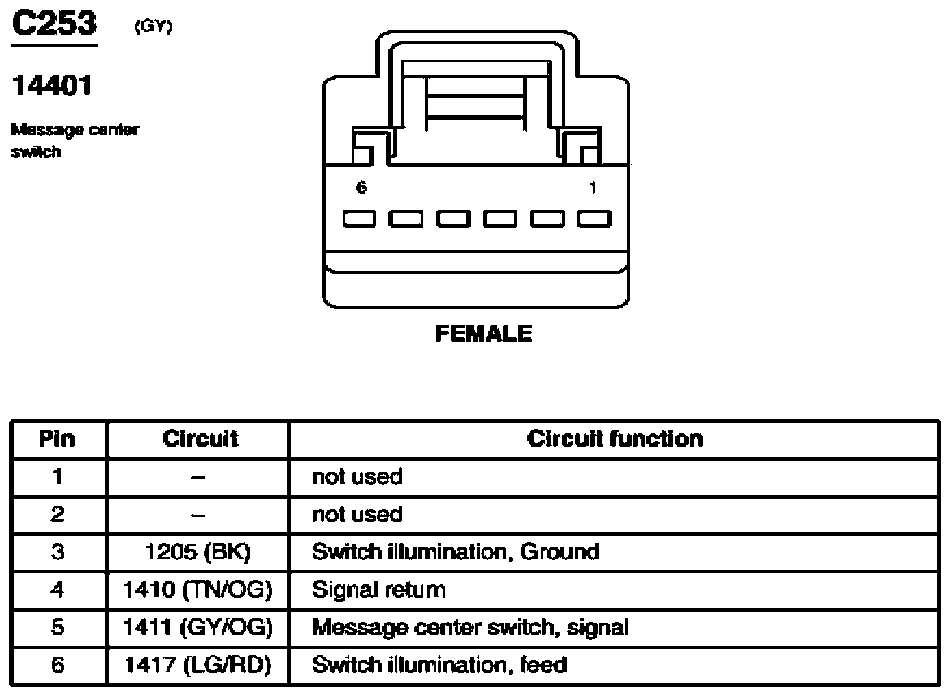

Fig 83: Message Center Switch Connector End View (C253)
G07838397Courtesy of FORD MOTOR CO.

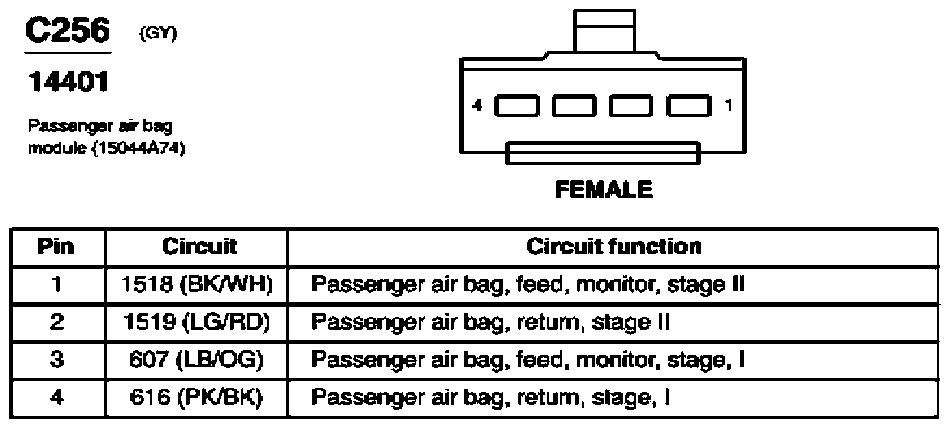

Fig 84: Passenger Air Bag Module Connector End View (C256)
G07838398Courtesy of FORD MOTOR CO.

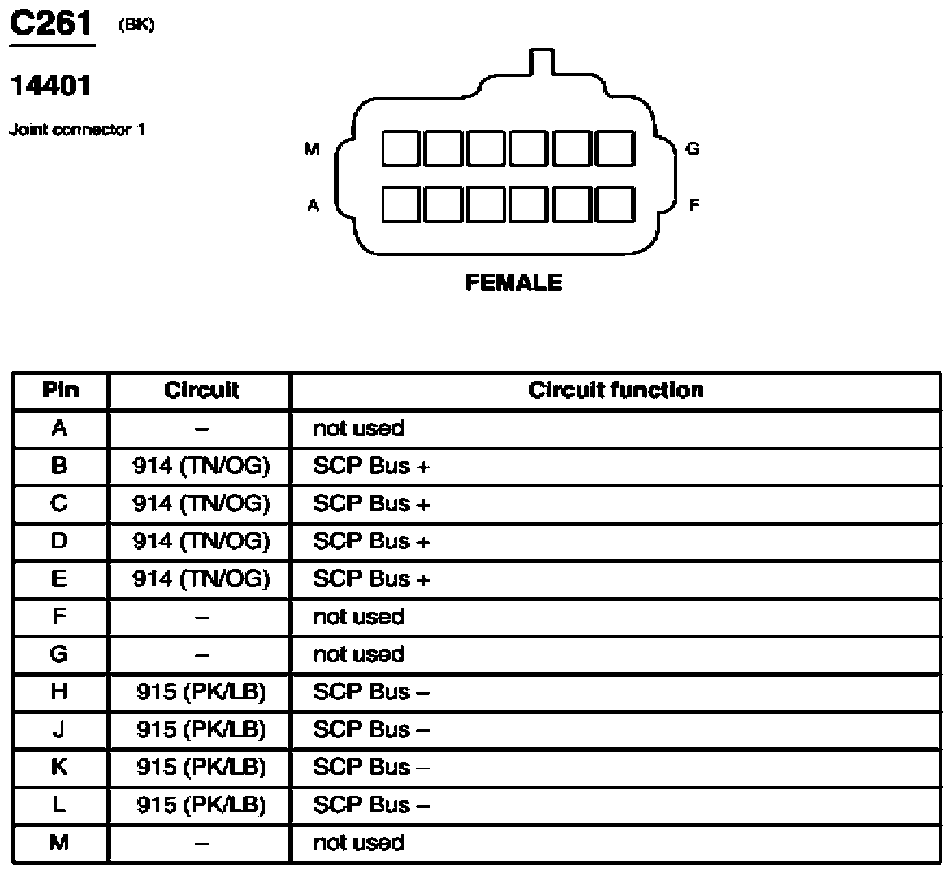

Fig 85: Joint Connector 1 Connector End View (C261)
G07838399Courtesy of FORD MOTOR CO.

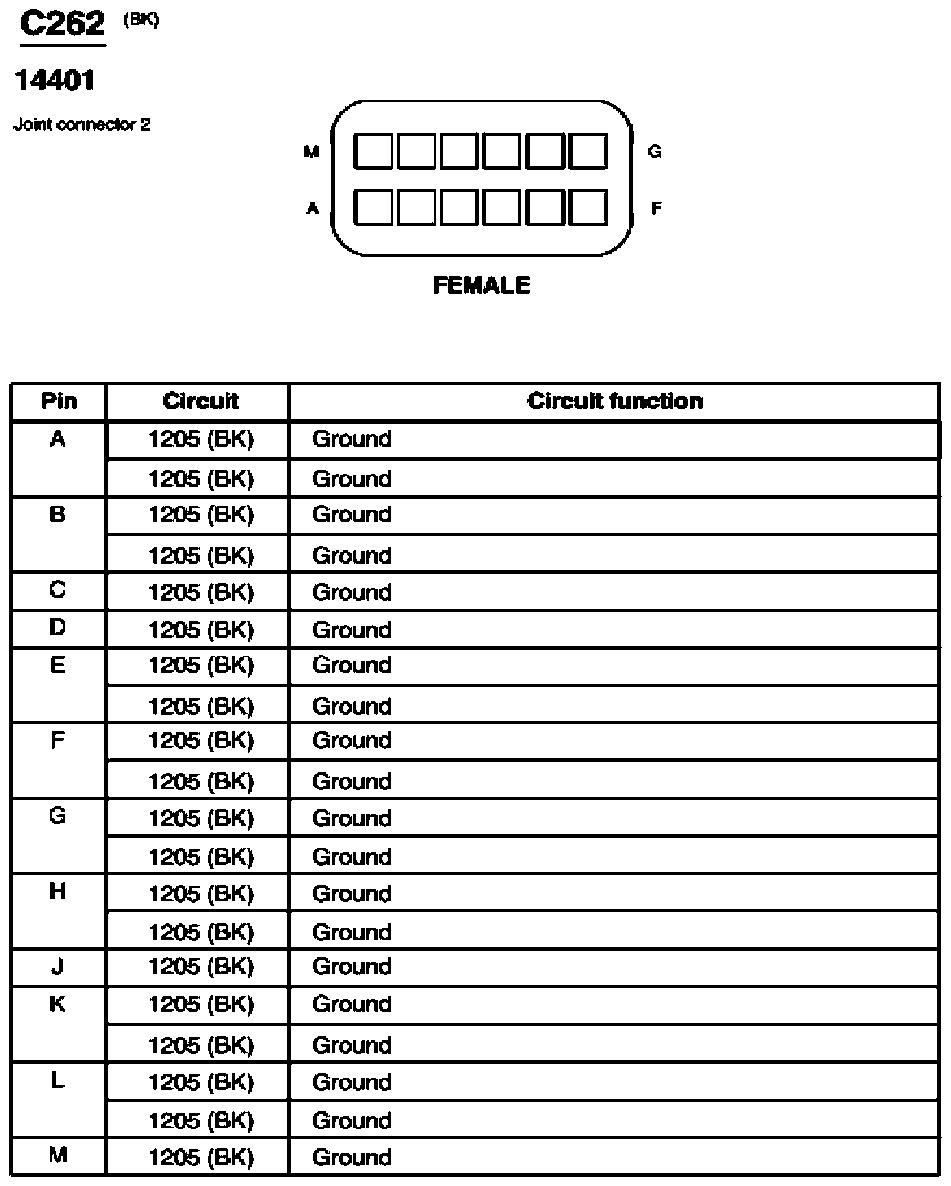

Fig 86: Joint Connector 2 Connector End View (C262)
G07838400Courtesy of FORD MOTOR CO.

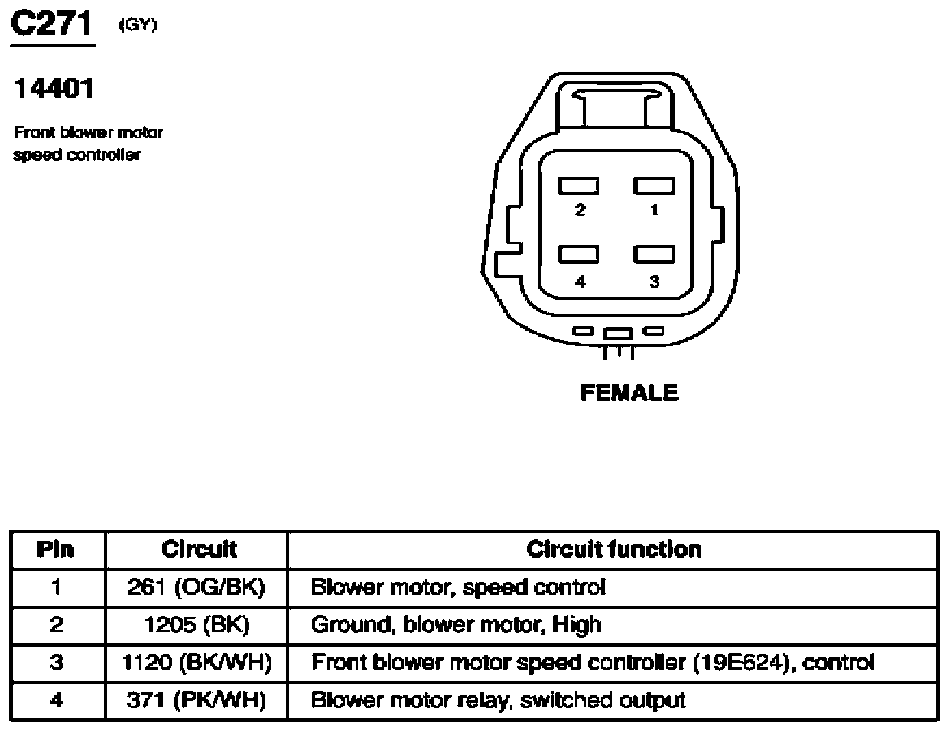

Fig 87: Front Blower Motor Speed Controller Connector End View (C271)
G07838401Courtesy of FORD MOTOR CO.

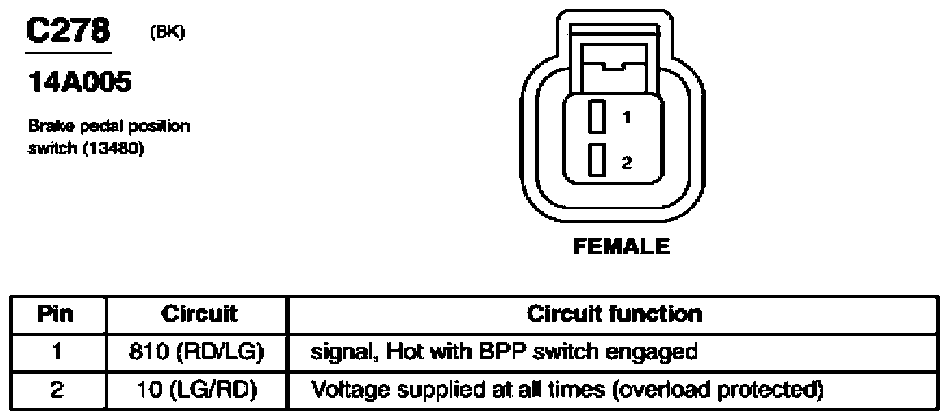

Fig 88: Brake Pedal Position Switch Connector End View (C278)
G07838402Courtesy of FORD MOTOR CO.

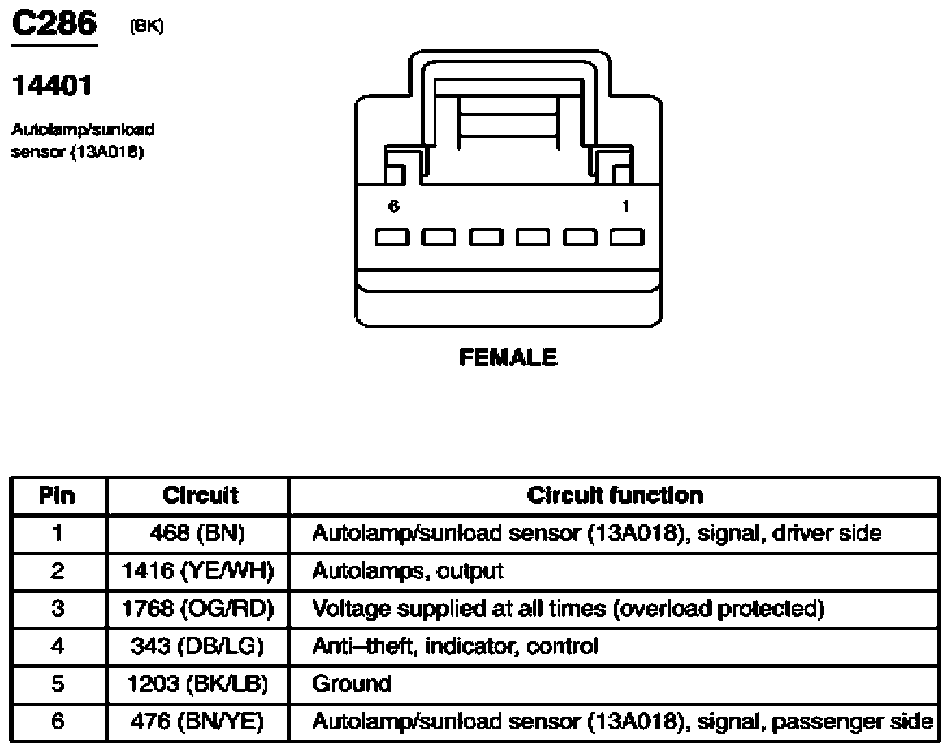

Fig 89: Autolamp/Sunload Sensor Connector End View (C286)
G07838403Courtesy of FORD MOTOR CO.

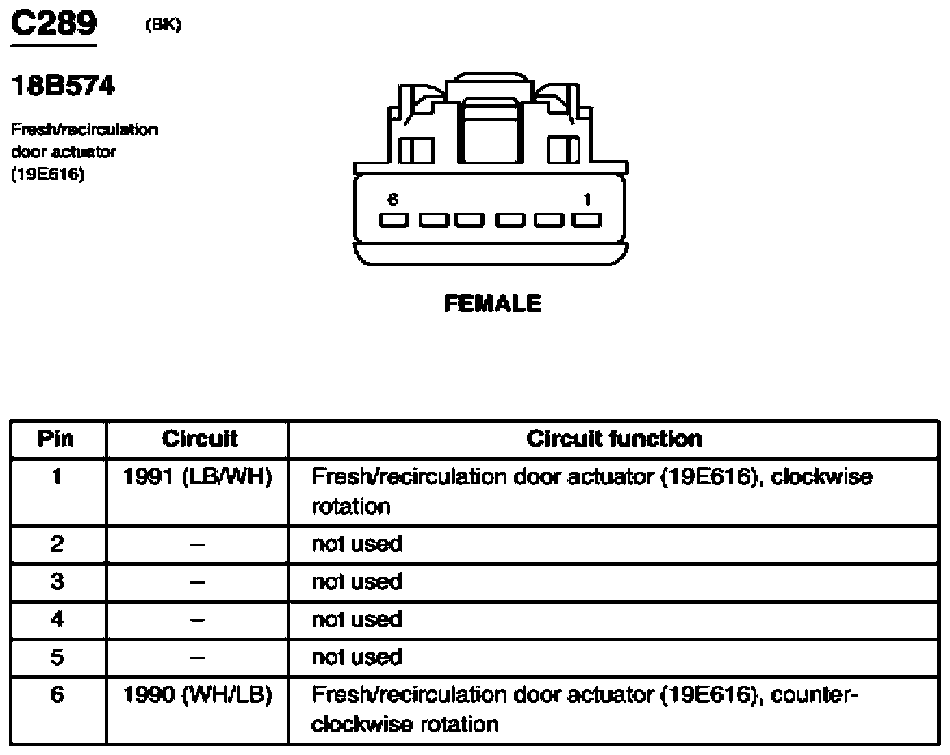

Fig 90: Fresh/Recirculation Door Actuator Connector End View (C289)
G07838404Courtesy of FORD MOTOR CO.

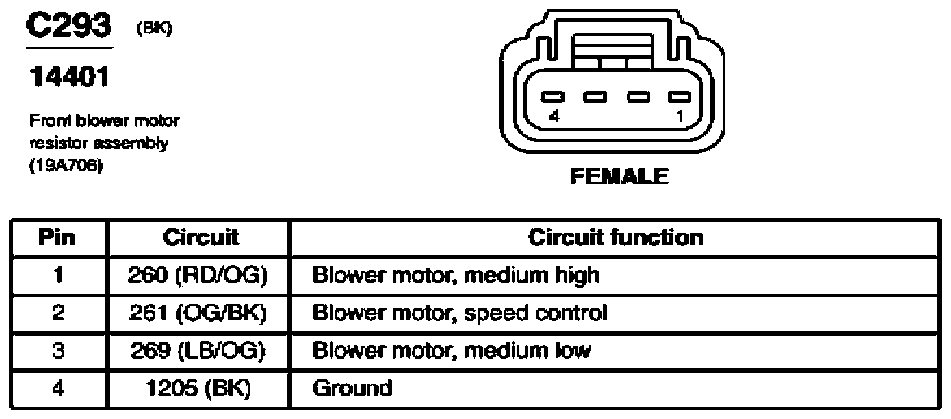

Fig 91: Front Blower Motor Resistor Assembly Connector End View (C293)
G07838405Courtesy of FORD MOTOR CO.

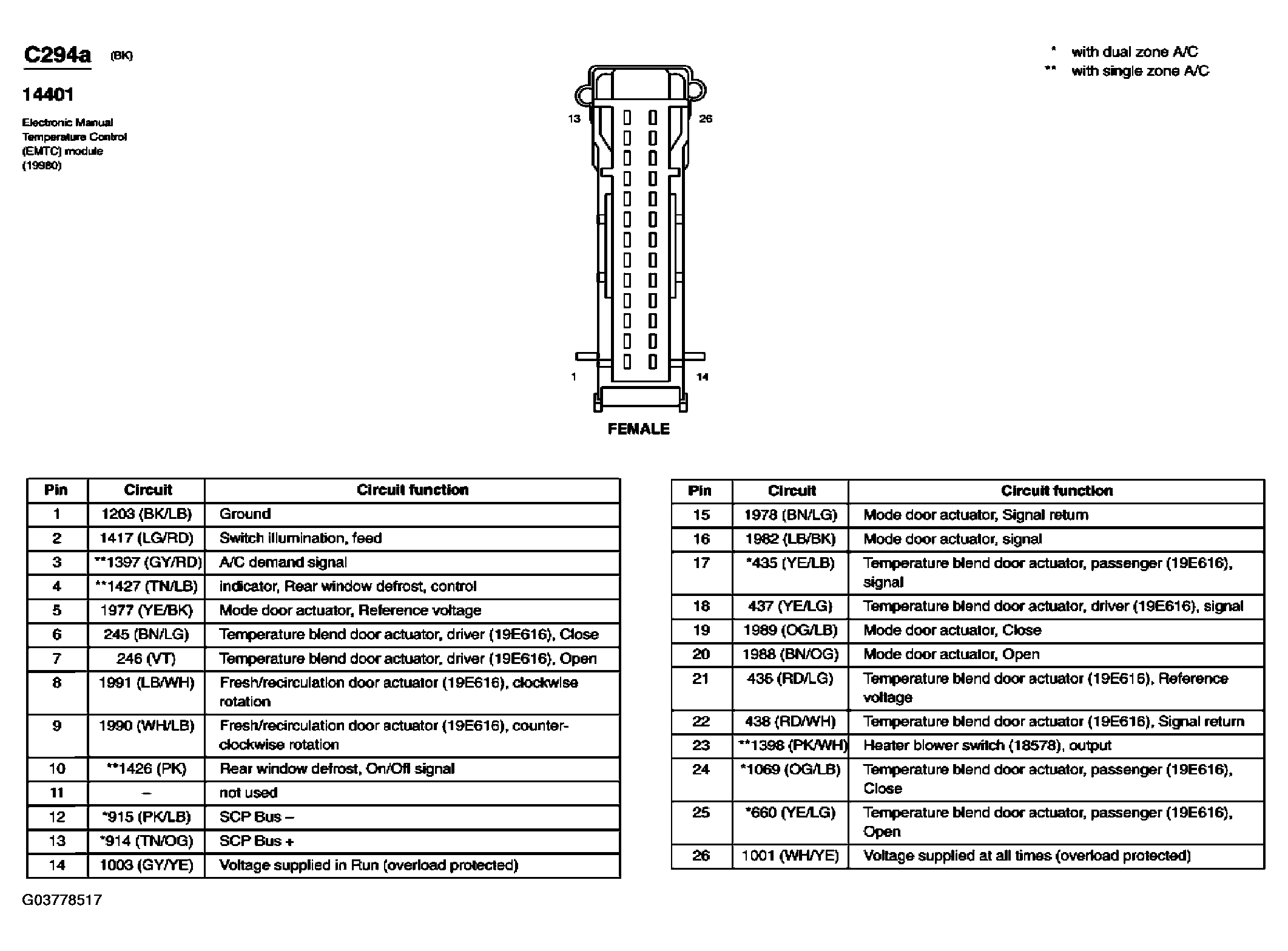

Fig 92: Electronic Automatic Temperature Control (EATC) Module Connector End View (C294a)
G03778517Courtesy of FORD MOTOR CO.

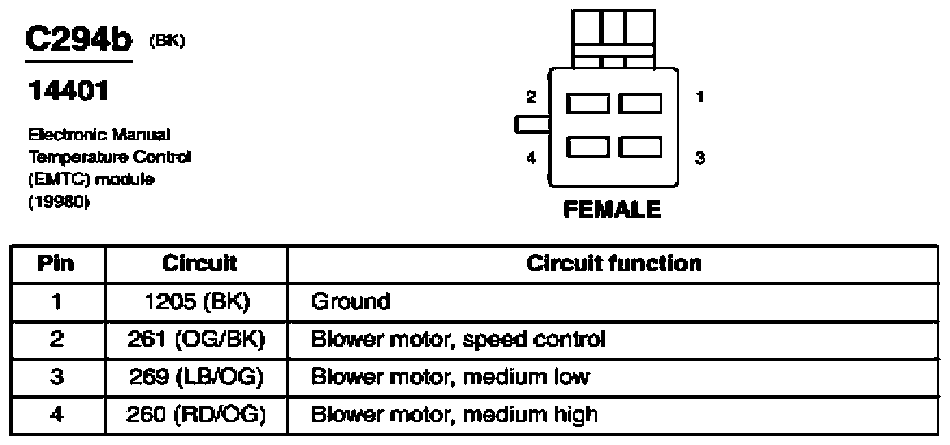

Fig 93: Electronic Manual Temperature Control (EMTC) Module Connector End View (C294b)
G07838406Courtesy of FORD MOTOR CO.

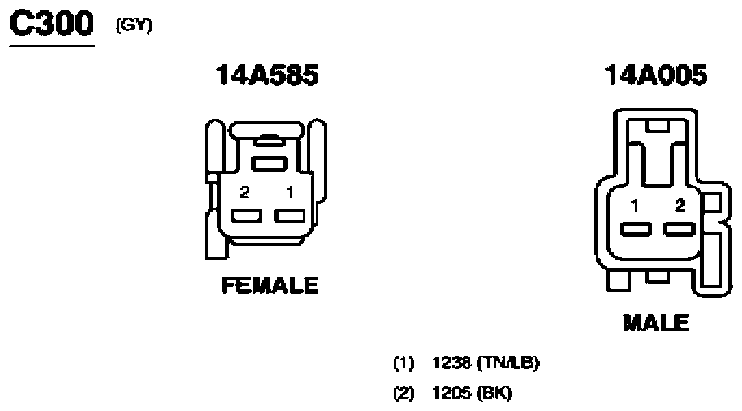

Fig 94: Inline Connector End View (C300)
G07838407Courtesy of FORD MOTOR CO.

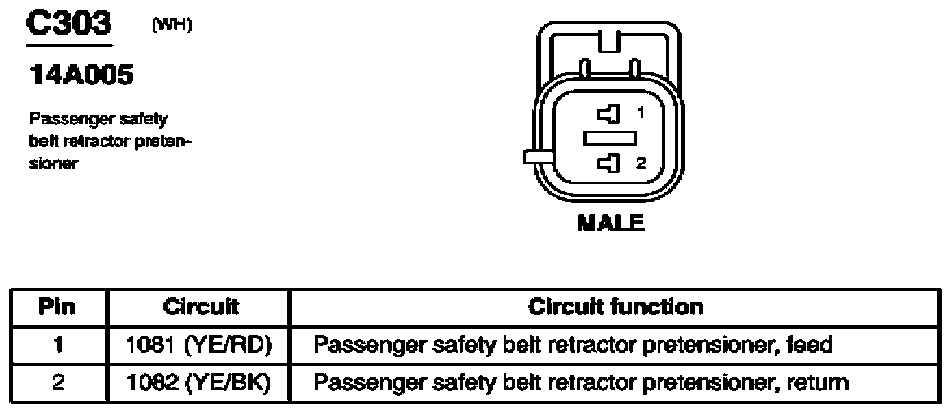

Fig 95: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)
G07838408Courtesy of FORD MOTOR CO.

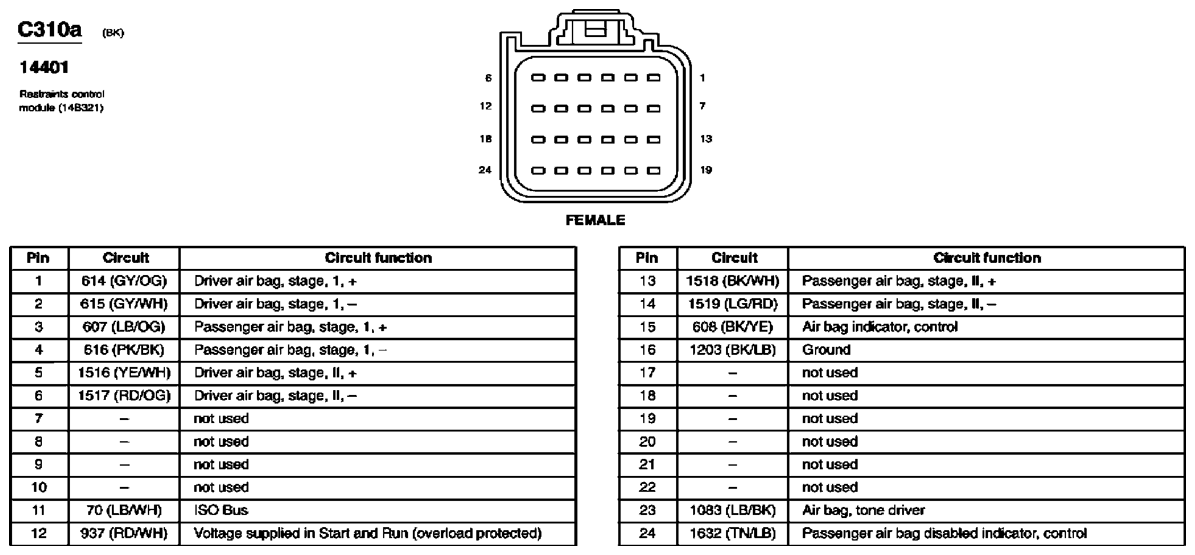

Fig 96: Restraints Control Module Connector End View (C310a)
G03778519Courtesy of FORD MOTOR CO.

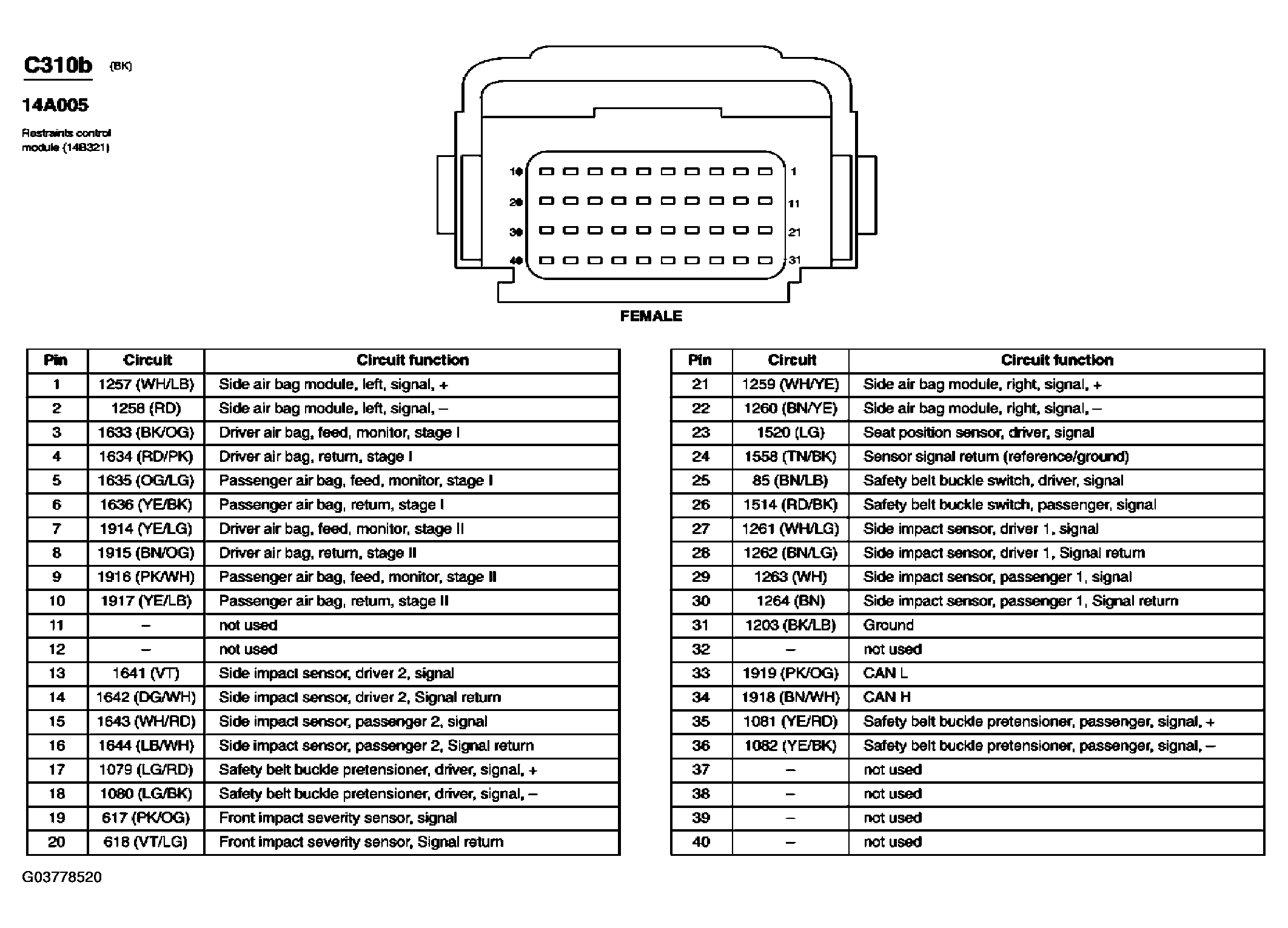

Fig 97: Restraints Control Module Connector End View (C310b) (1 Of 3)
G03778520Courtesy of FORD MOTOR CO.

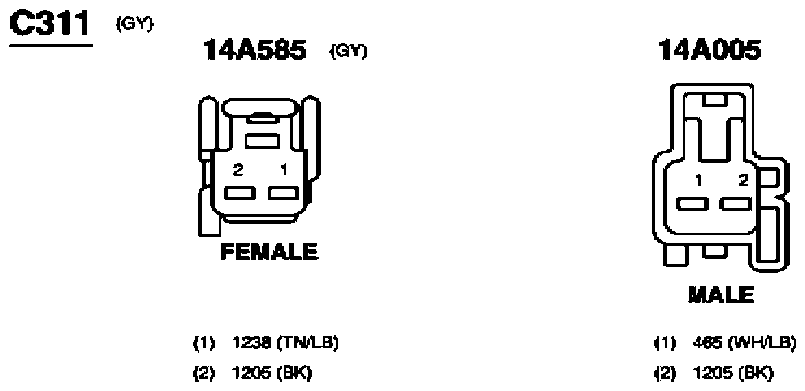

Fig 98: Inline Connector End View (C311)
G07838409Courtesy of FORD MOTOR CO.

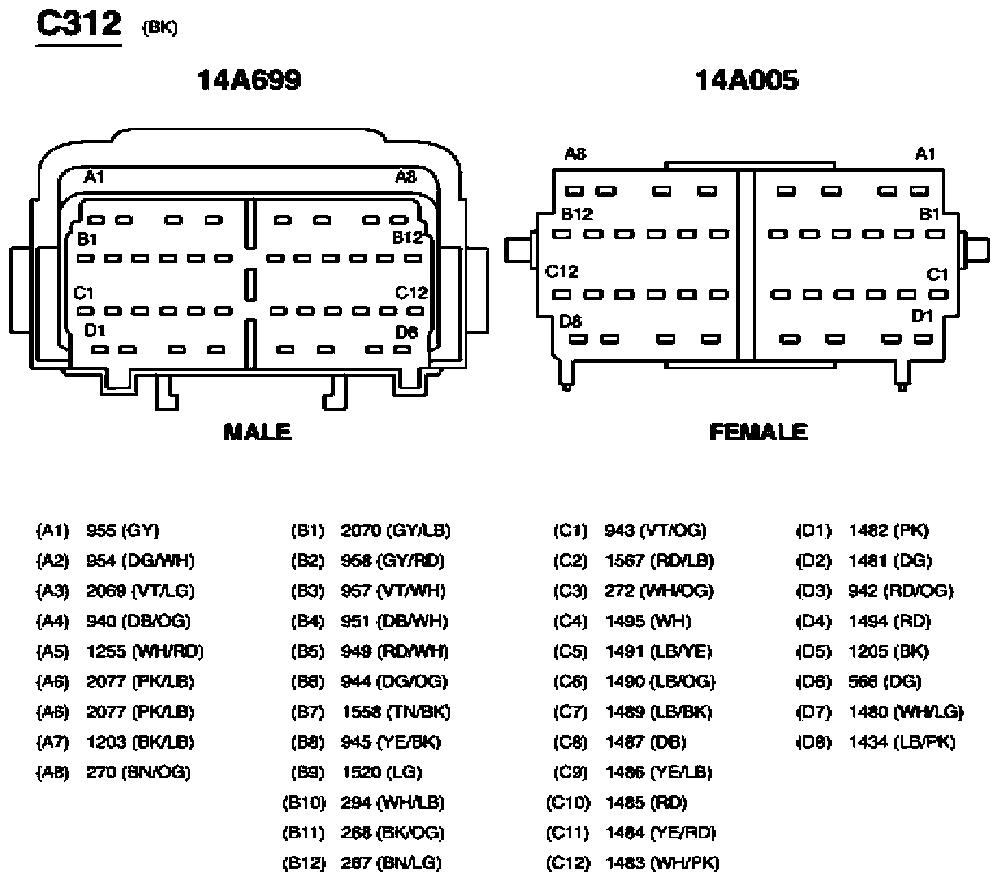

Fig 99: Inline Connector End View (C312)
G07838410Courtesy of FORD MOTOR CO.

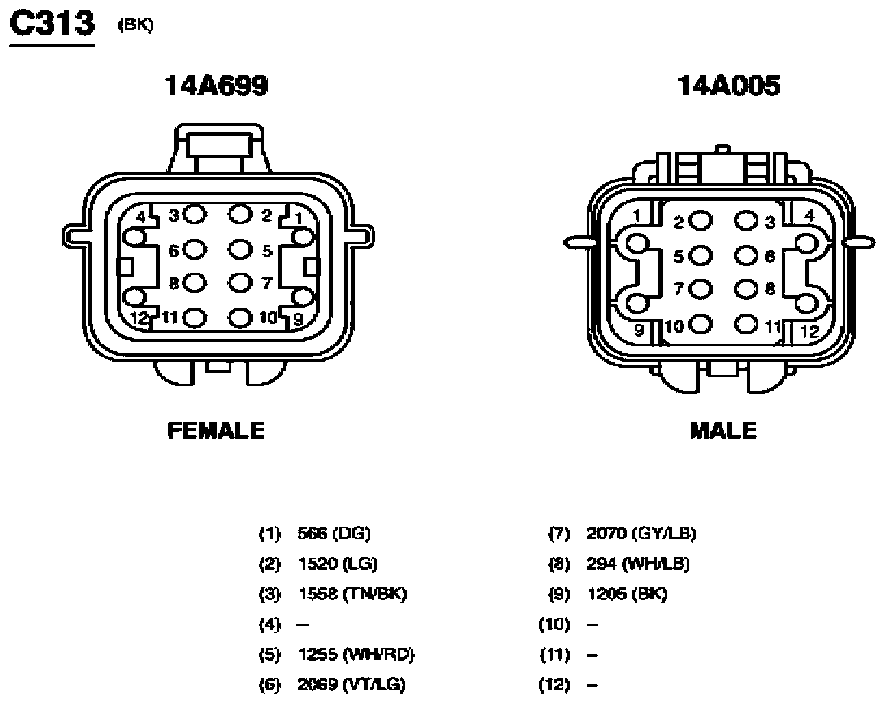

Fig 100: Inline Connector End View (C313)
G07838411Courtesy of FORD MOTOR CO.

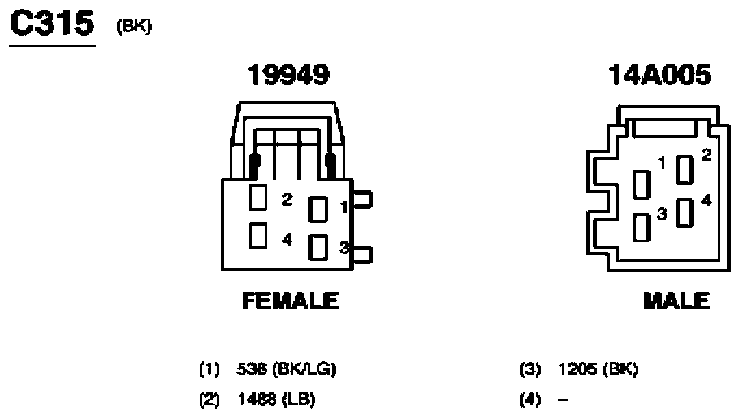

Fig 101: Inline Connector End View (C315)
G07838412Courtesy of FORD MOTOR CO.

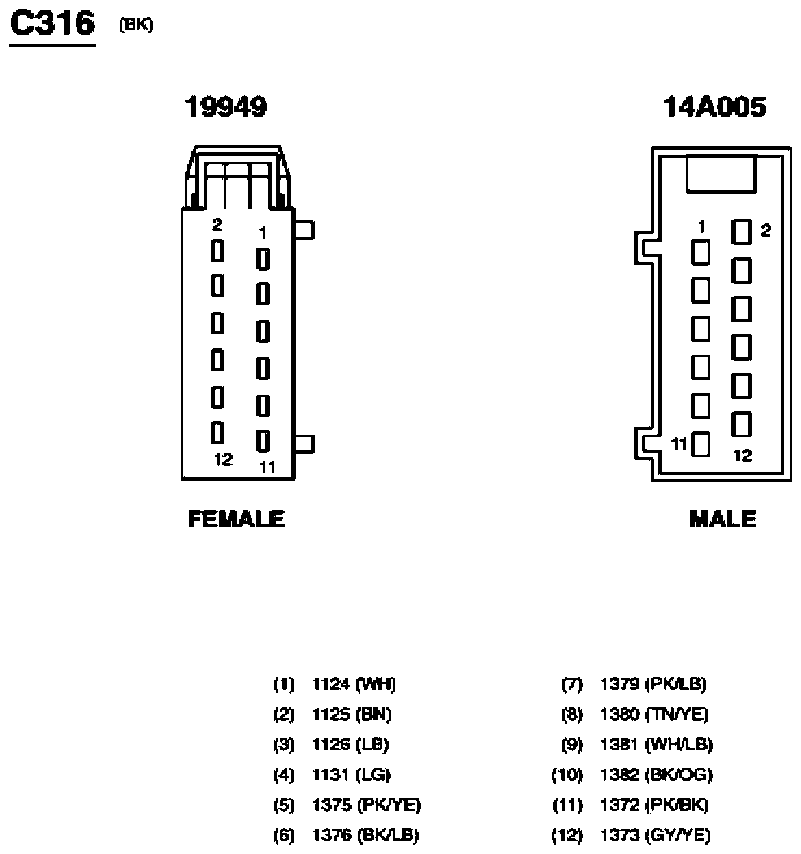

Fig 102: Inline Connector End View (C316)
G07838413Courtesy of FORD MOTOR CO.

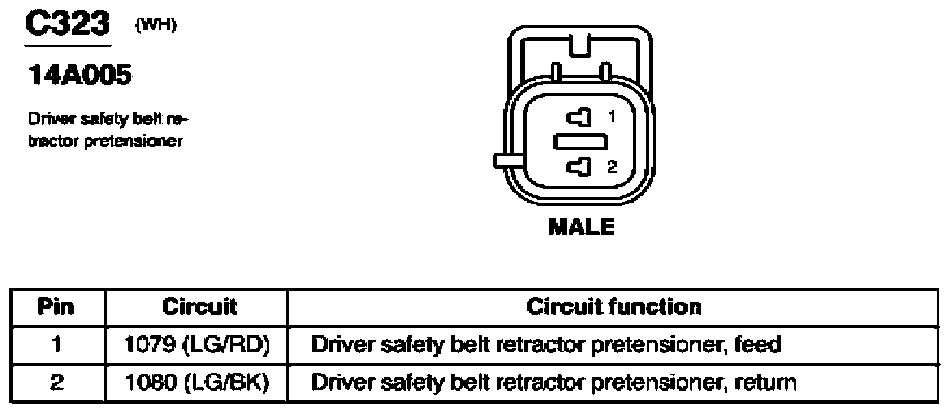

Fig 103: Driver Safety Belt Retractor Pretensioner Connector End View (C323)
G07838414Courtesy of FORD MOTOR CO.

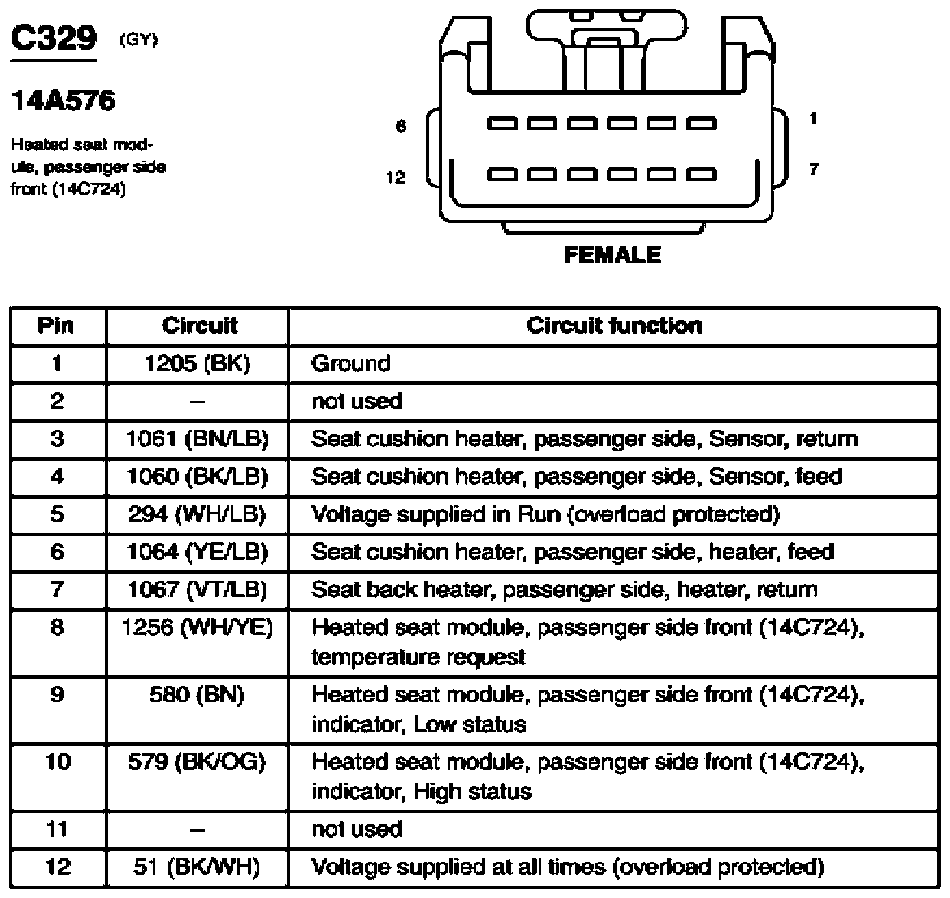

Fig 104: Heated Seat Module, Passenger Side Front Connector End View (C329)
G07838415Courtesy of FORD MOTOR CO.

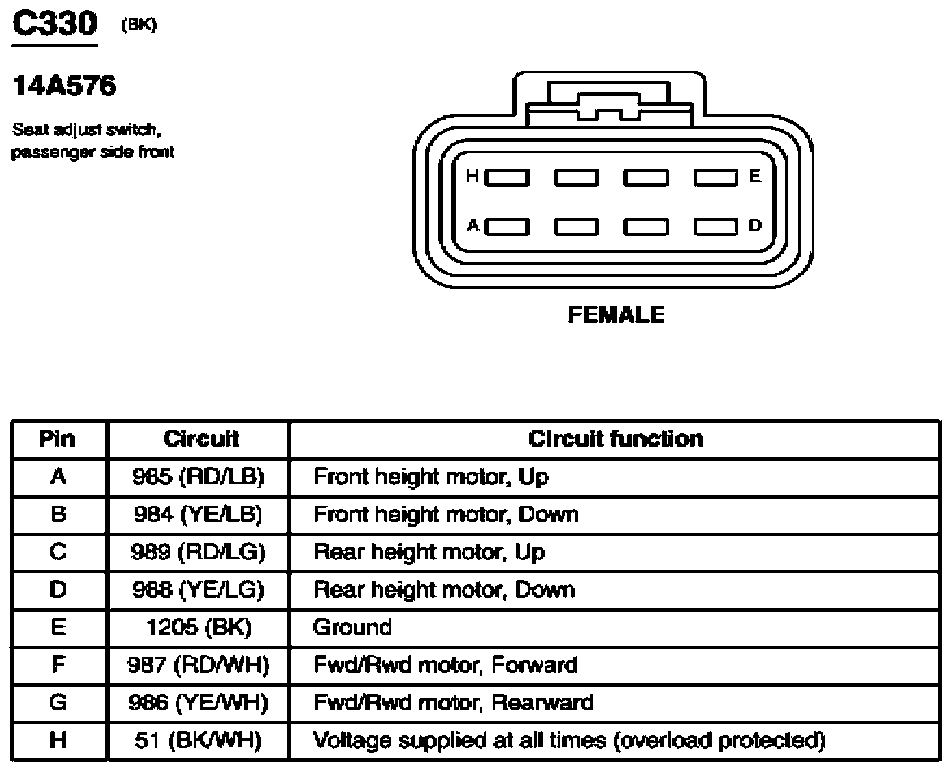

Fig 105: Seat Adjust Switch, Passenger Side Front Connector End View (C330)
G07838416Courtesy of FORD MOTOR CO.

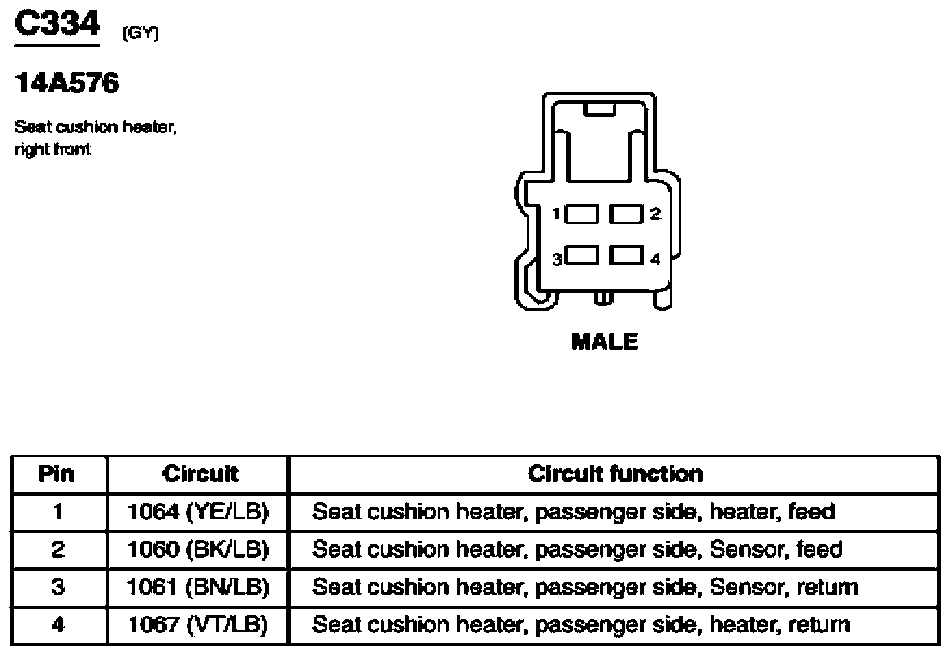

Fig 106: Seat Cushion Heater, Right Front Connector End View (C334)
G07838417Courtesy of FORD MOTOR CO.

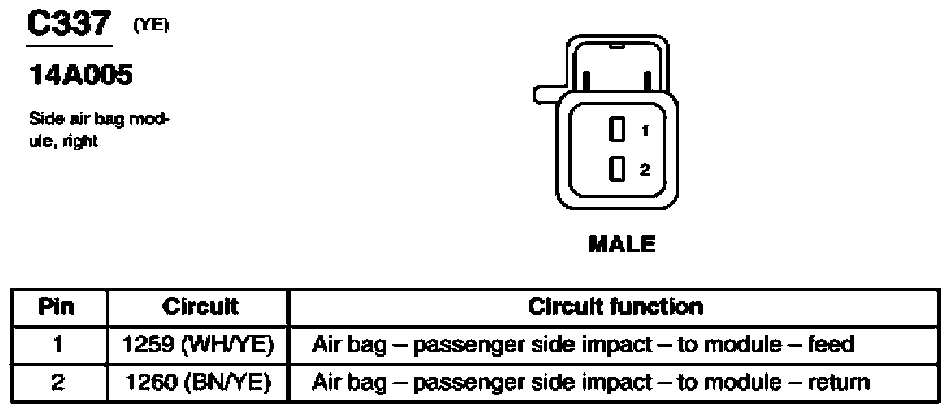

Fig 107: Side Air Bag Module, Right Connector End View (C337)
G07838418Courtesy of FORD MOTOR CO.

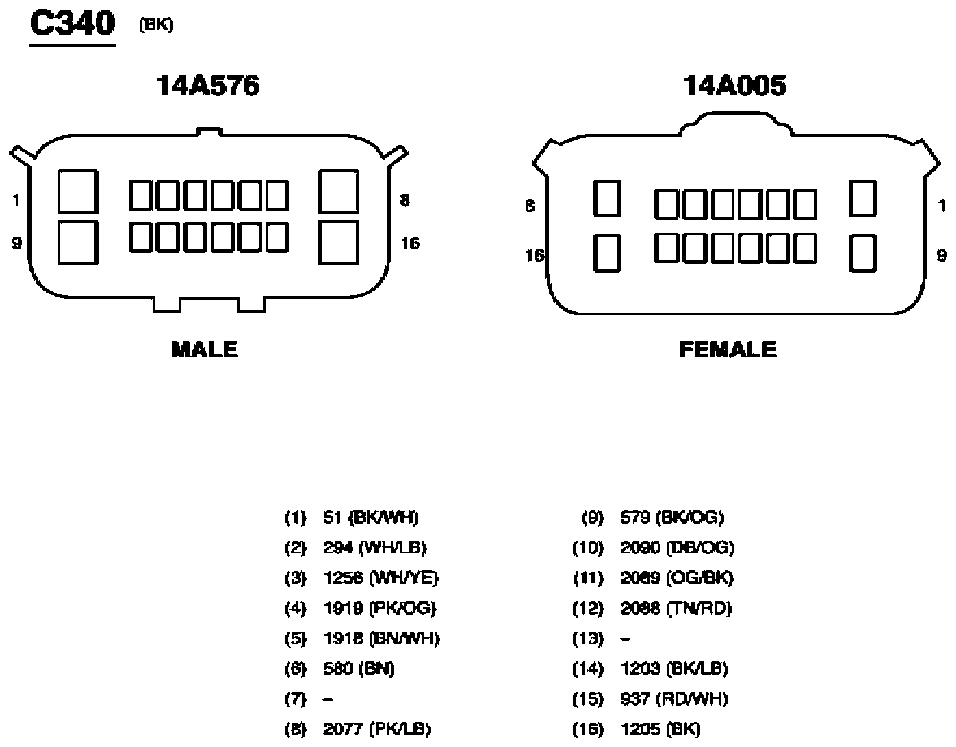

Fig 108: Inline Connector End View (C340)
G07838419Courtesy of FORD MOTOR CO.

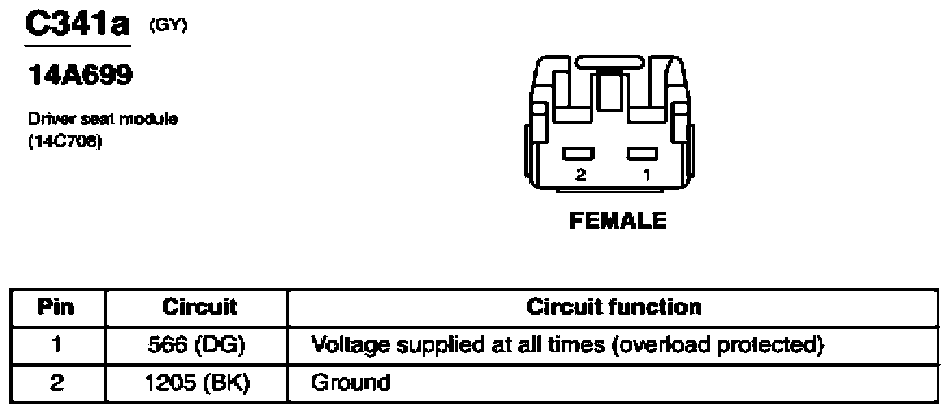

Fig 109: Driver Seat Module Connector End View (C341a)
G07838420Courtesy of FORD MOTOR CO.

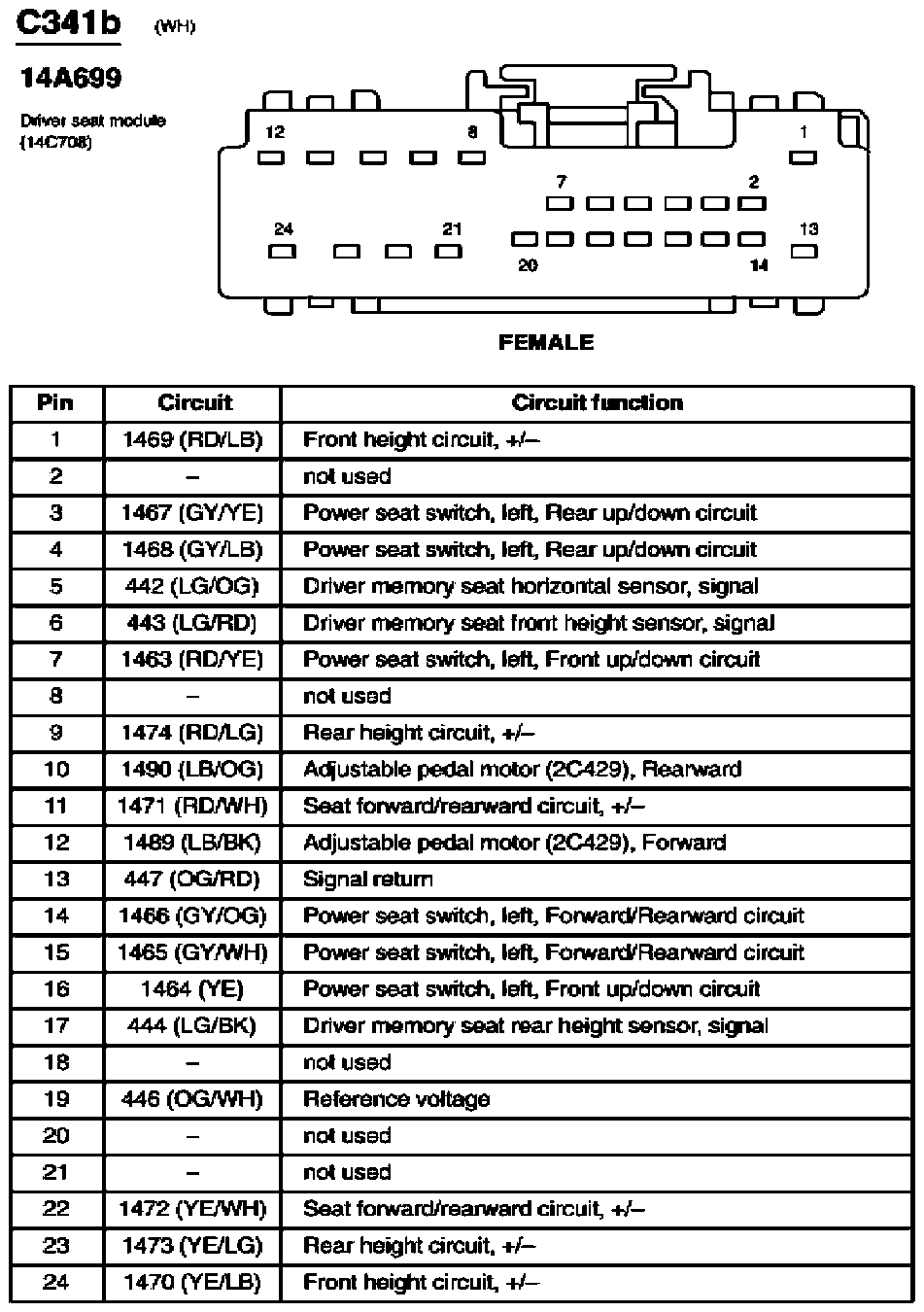

Fig 110: Driver Seat Module Connector End View (C341b)
G07838421Courtesy of FORD MOTOR CO.
Fig 111: Driver Seat Module Connector End View (C341c)
G07838422Courtesy of FORD MOTOR CO.

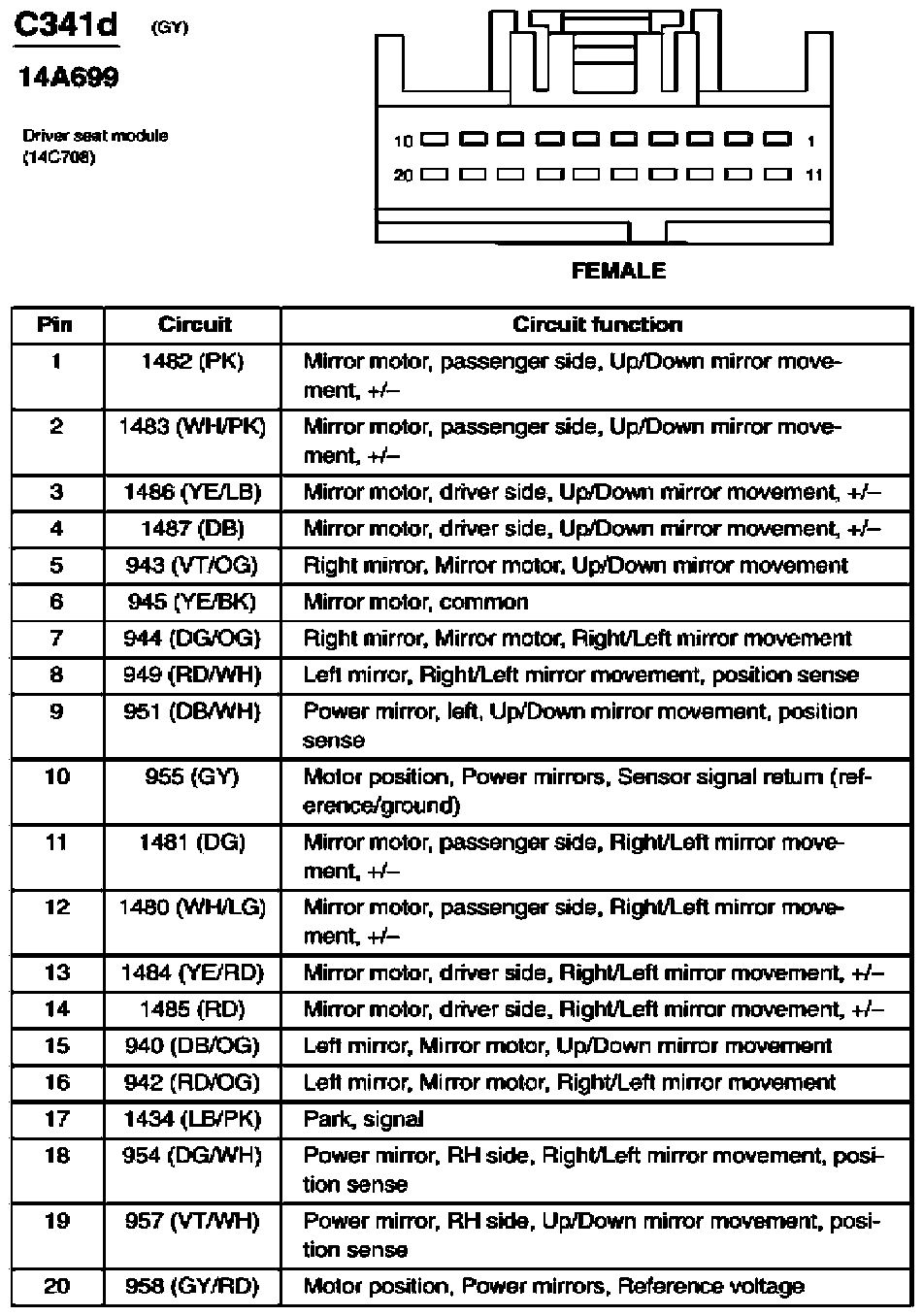

Fig 112: Driver Seat Module Connector End View (C341d)
G07838423Courtesy of FORD MOTOR CO.

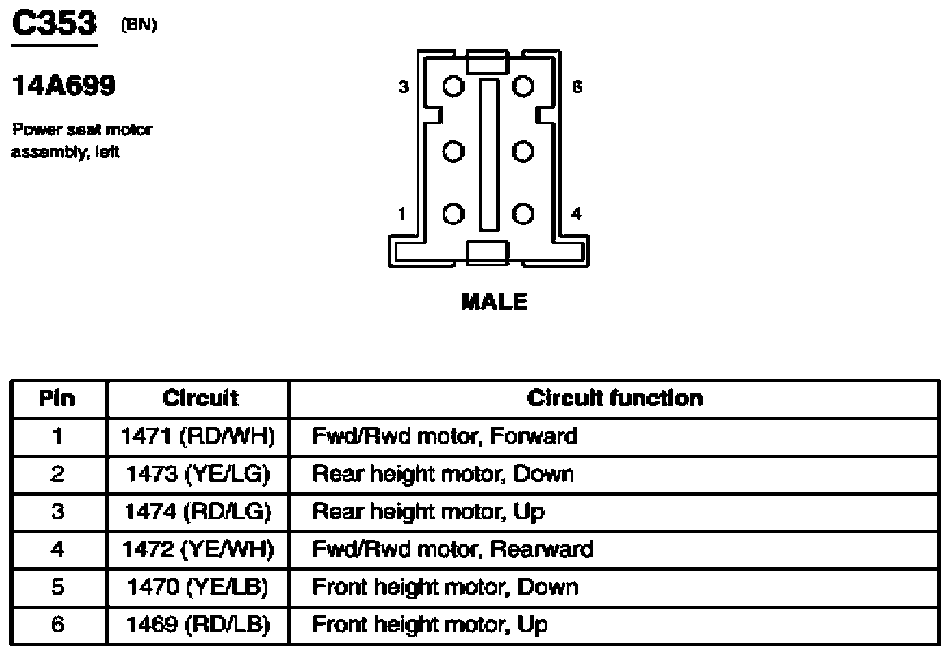

Fig 113: Power Seat Motor Assembly, Left Connector End View (C353)
G07838424Courtesy of FORD MOTOR CO.

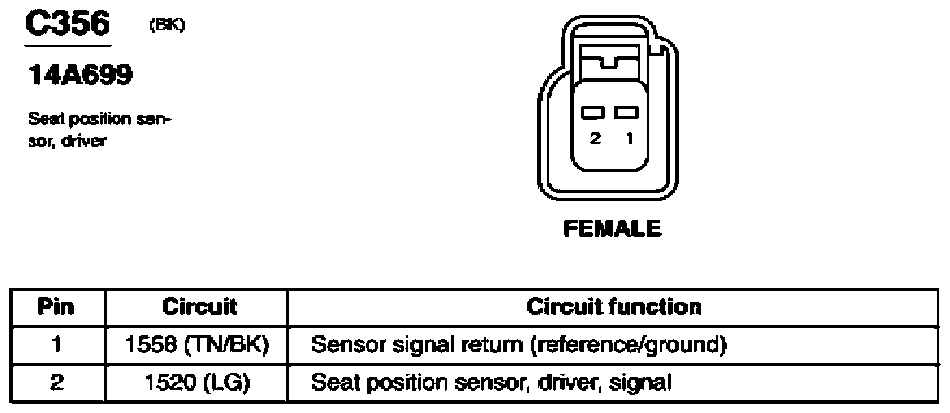

Fig 114: Seat Position Sensor, Driver Connector End View (C356)
G07838425Courtesy of FORD MOTOR CO.

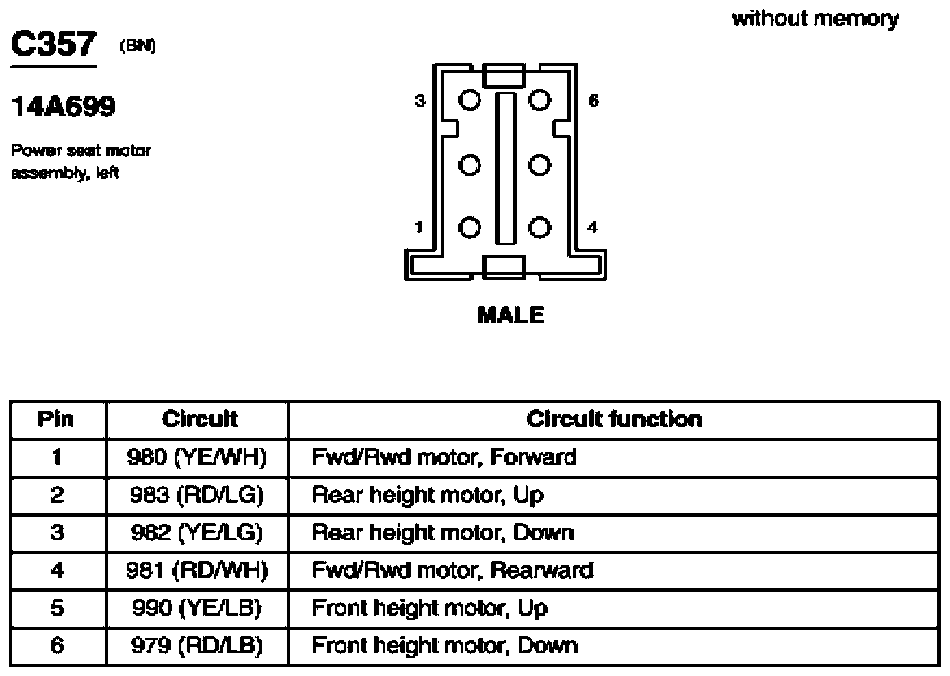

Fig 115: Power Seat Motor Assembly, Left Connector End View (C357)
G07838426Courtesy of FORD MOTOR CO.
Fig 116: Heated Seat Module, Driver Side Front Connector End View (C359)
G07838427Courtesy of FORD MOTOR CO.

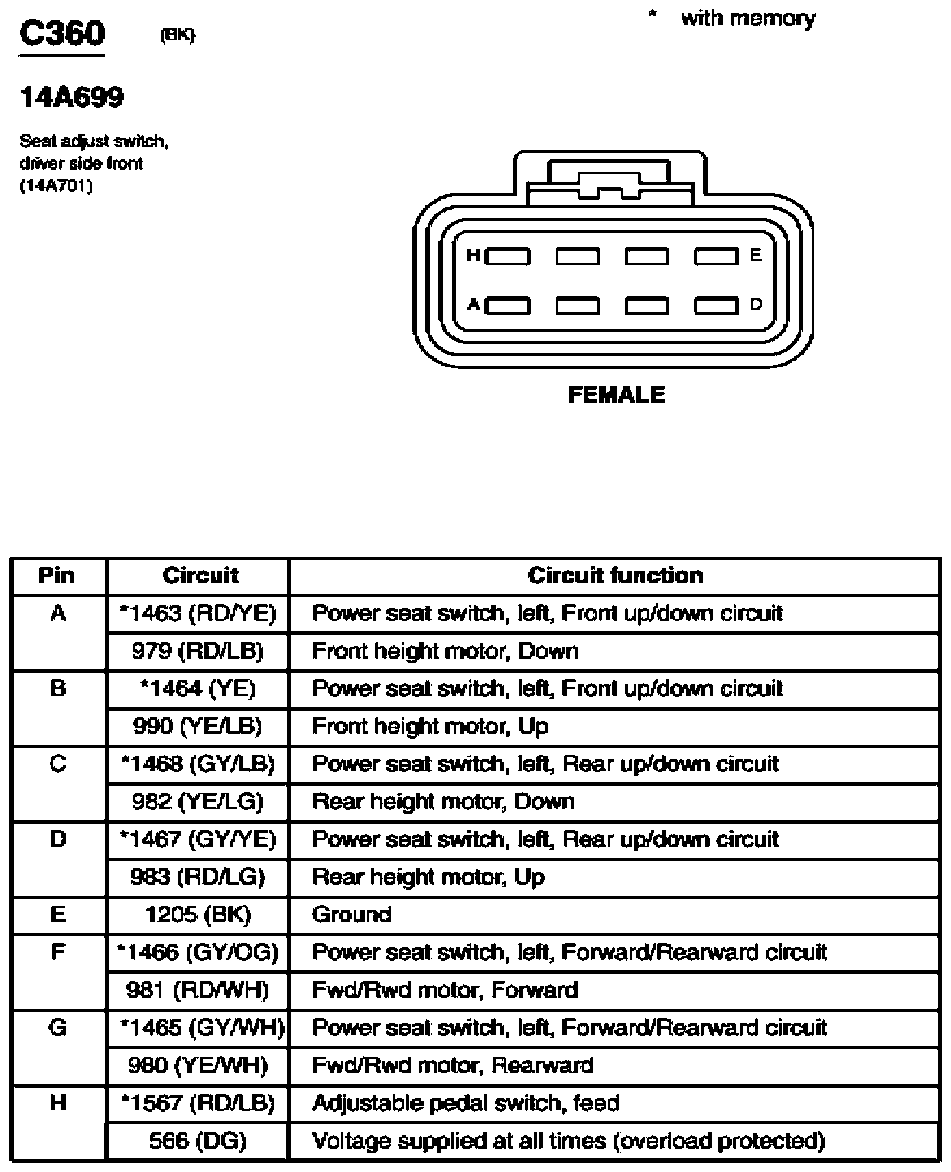

Fig 117: Seat Adjust Switch, Driver Side Front Connector End View (C360)
G07838428Courtesy of FORD MOTOR CO.

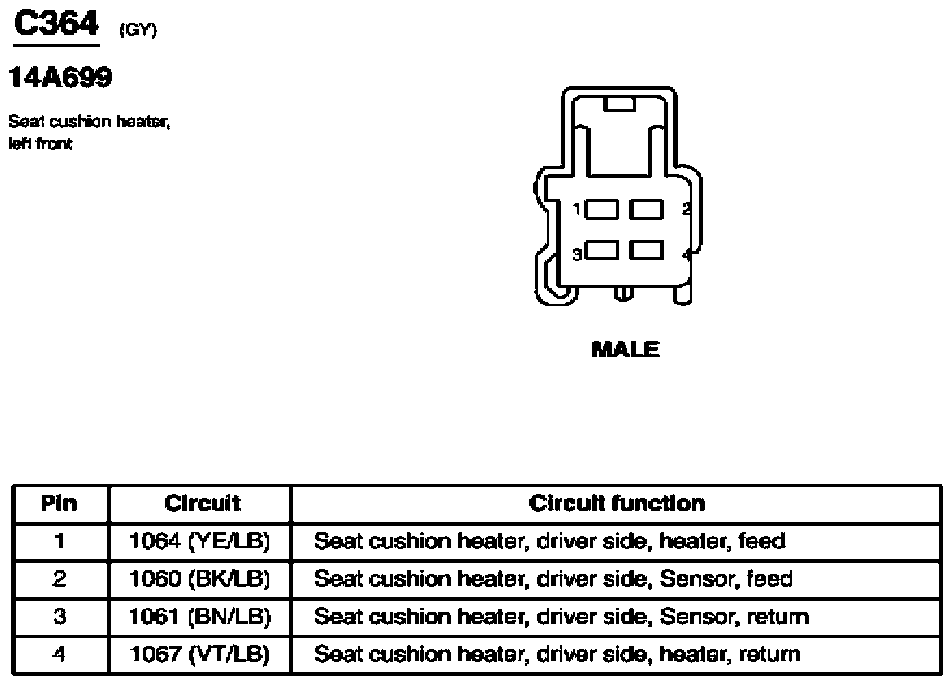

Fig 118: Seat Cushion Heater, Left Front Connector End View (C364)
G07838429Courtesy of FORD MOTOR CO.

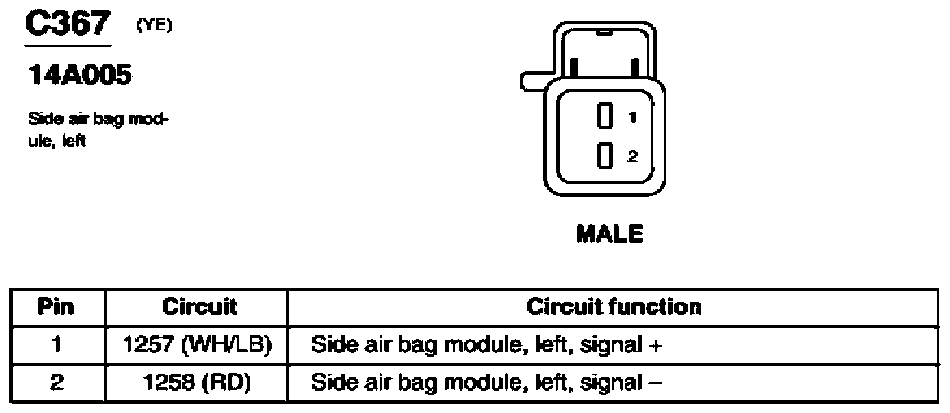

Fig 119: Side Air Bag Module, Left Connector End View (C367)
G07838430Courtesy of FORD MOTOR CO.

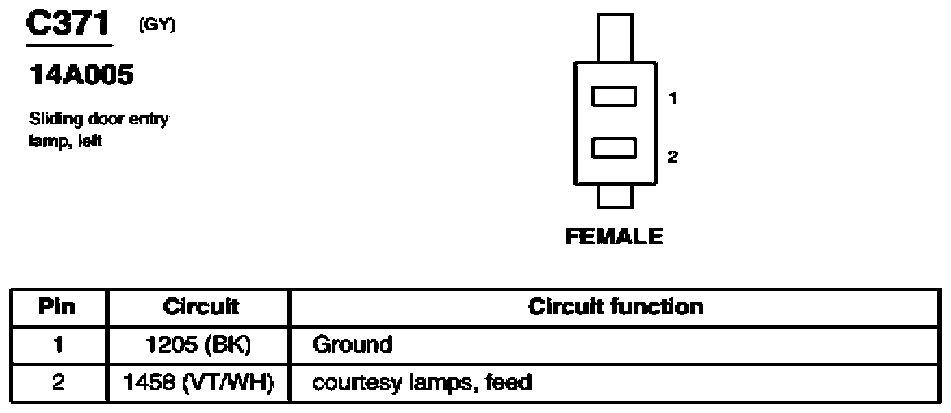

Fig 120: Sliding Door Entry Lamp, Left Connector End View (C371)
G07838431Courtesy of FORD MOTOR CO.

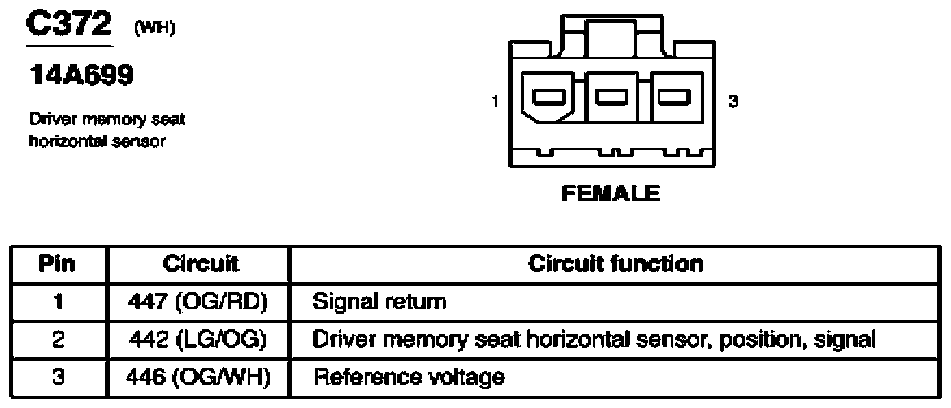

Fig 121: Driver Memory Seat Horizontal Sensor Connector End View (C372)
G07838432Courtesy of FORD MOTOR CO.

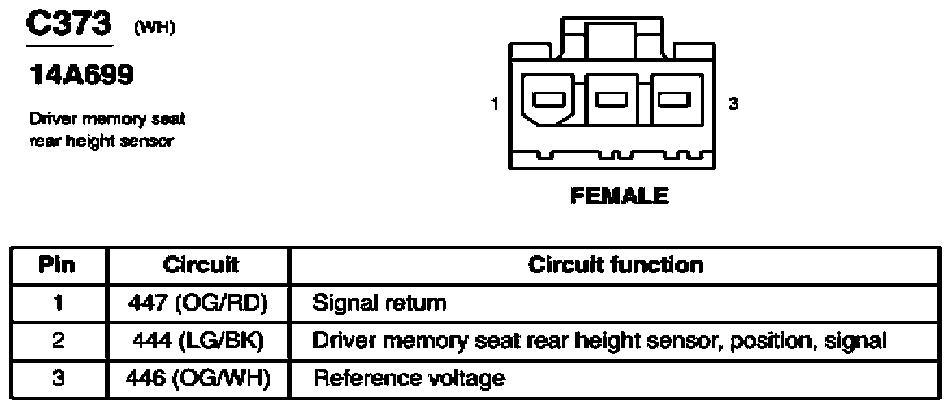

Fig 122: Driver Memory Seat Rear Height Sensor Connector End View (C373)
G07838433Courtesy of FORD MOTOR CO.

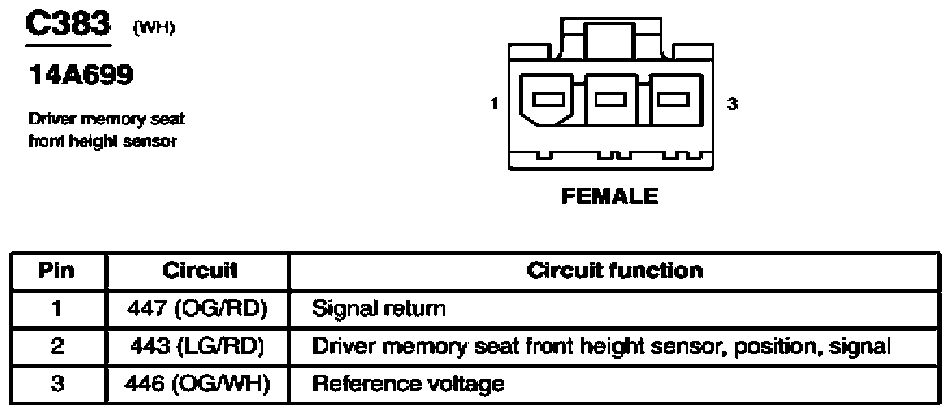

Fig 123: Driver Memory Seat Front Height Sensor Connector End View (C383)
G07838434Courtesy of FORD MOTOR CO.

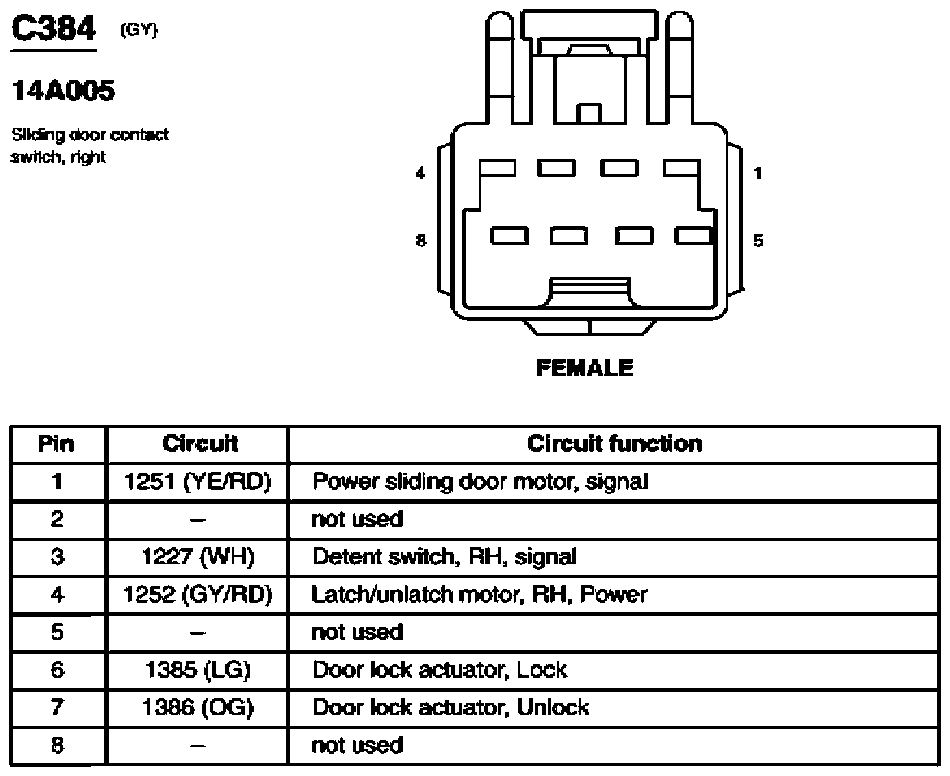

Fig 124: Sliding Door Contact Switch, Right Connector End View (C384)
G07838435Courtesy of FORD MOTOR CO.

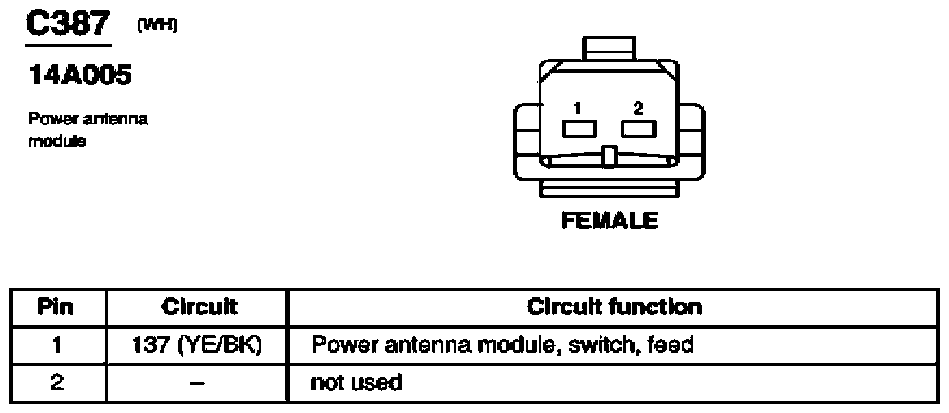

Fig 125: Power Antenna Module Connector End View (C387)
G07838436Courtesy of FORD MOTOR CO.

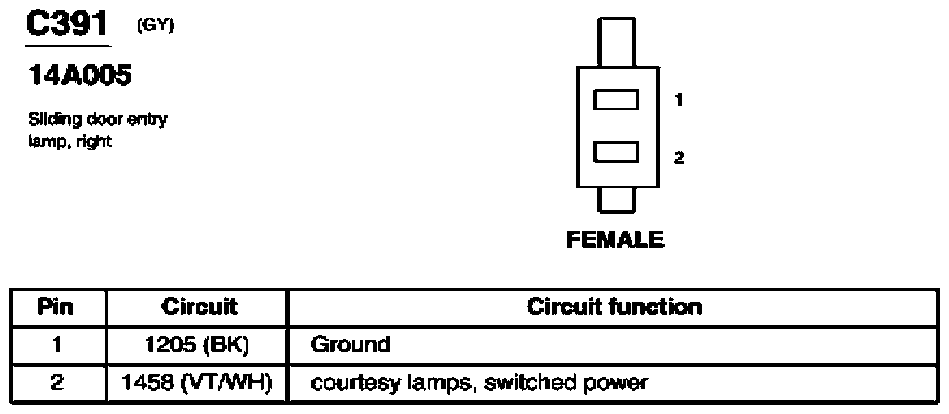

Fig 126: Sliding Door Entry Lamp, Right Connector End View (C391)
G07838437Courtesy of FORD MOTOR CO.

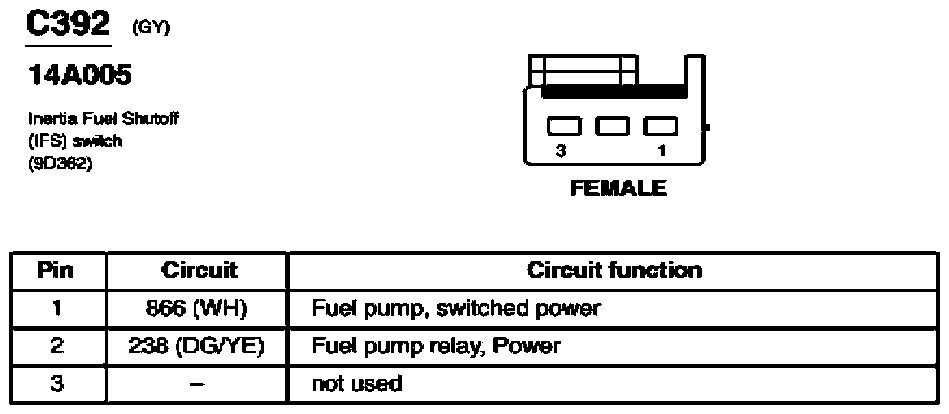

Fig 127: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)
G07838438Courtesy of FORD MOTOR CO.

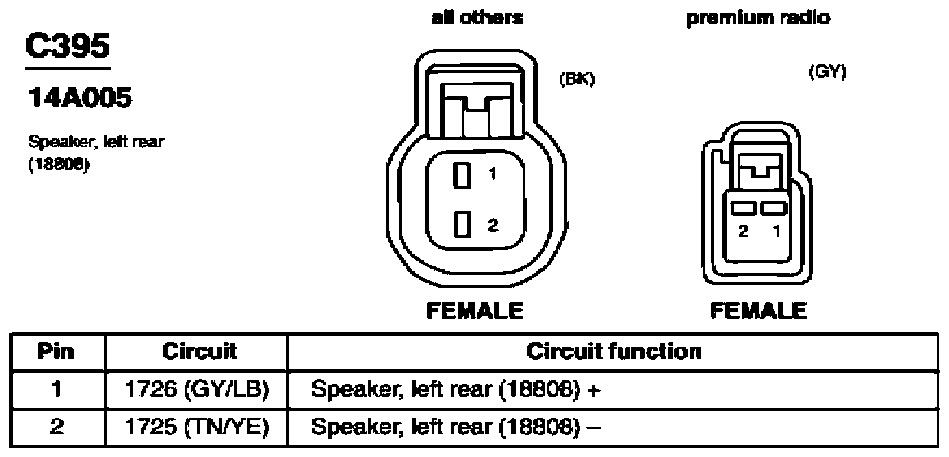

Fig 128: Speaker, Left Rear Connector End View (C395)
G07838439Courtesy of FORD MOTOR CO.

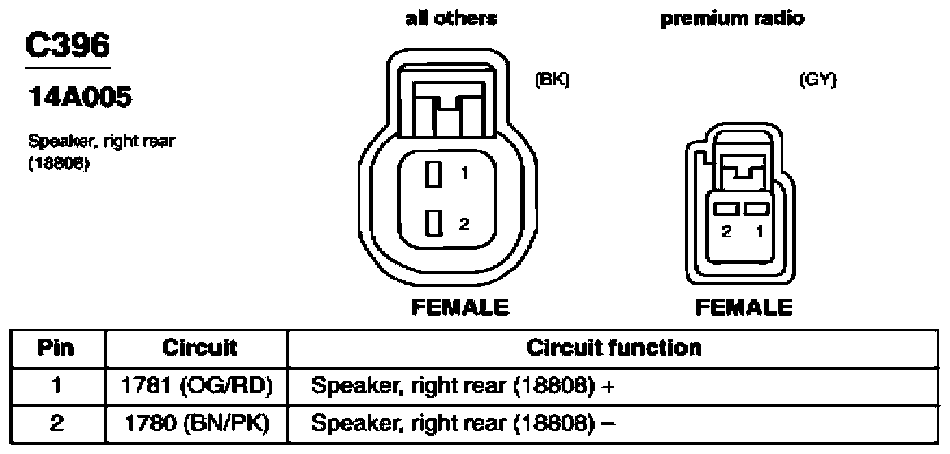

Fig 129: Speaker, Right Rear Connector End View (C396)
G07838440Courtesy of FORD MOTOR CO.

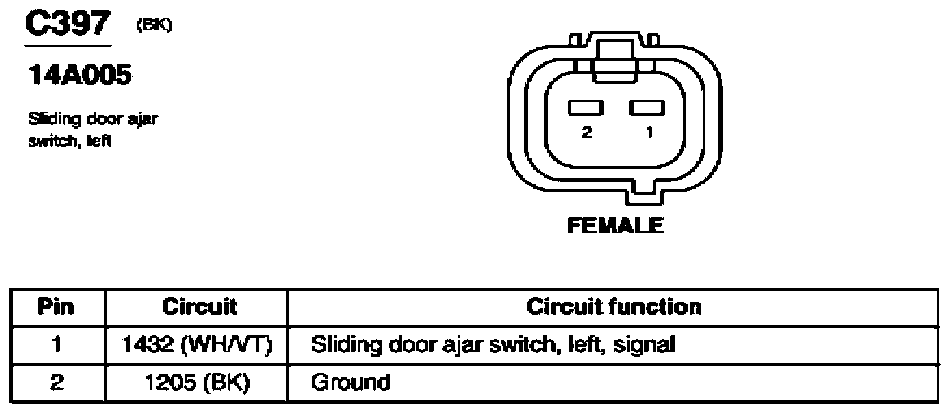

Fig 130: Sliding Door Ajar Switch, Left Connector End View (C397)
G07838441Courtesy of FORD MOTOR CO.

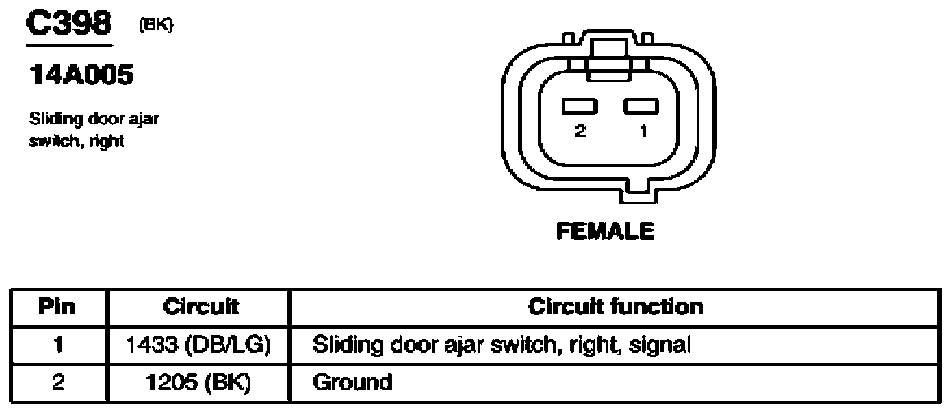

Fig 131: Sliding Door Ajar Switch, Right Connector End View (C398)
G07838442Courtesy of FORD MOTOR CO.

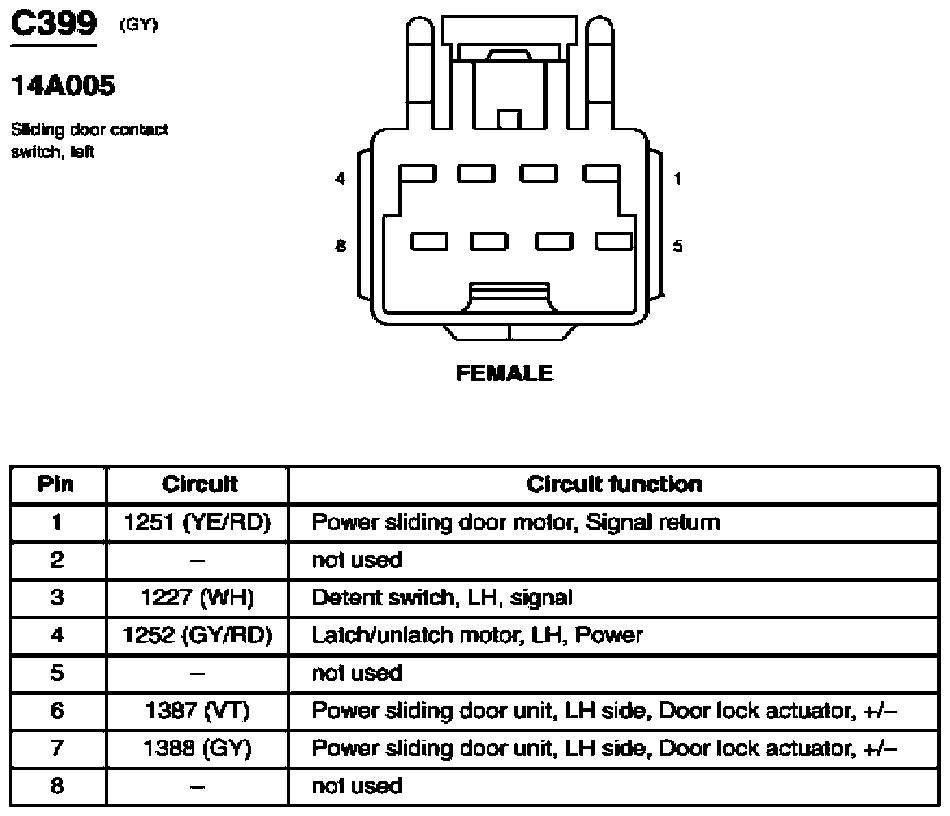

Fig 132: Sliding Door Contact Switch, Left Connector End View (C399)
G07838443Courtesy of FORD MOTOR CO.

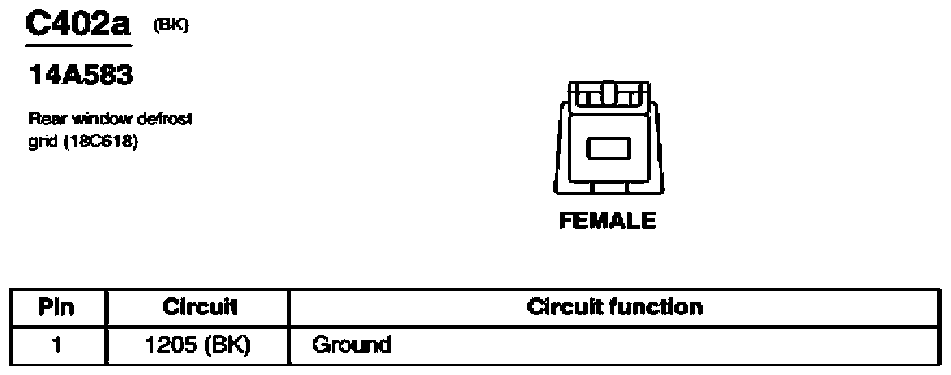

Fig 133: Rear Window Defrost Grid Connector End View (C402a)
G07838444Courtesy of FORD MOTOR CO.

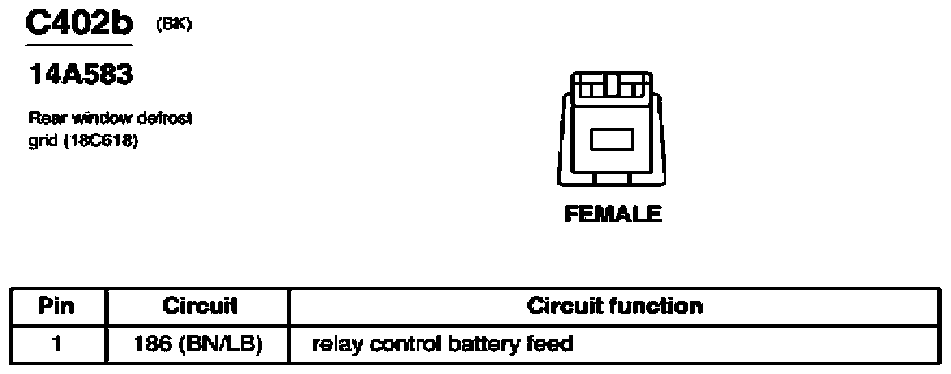

Fig 134: Rear Window Defrost Grid Connector End View (C402b)
G07838445Courtesy of FORD MOTOR CO.

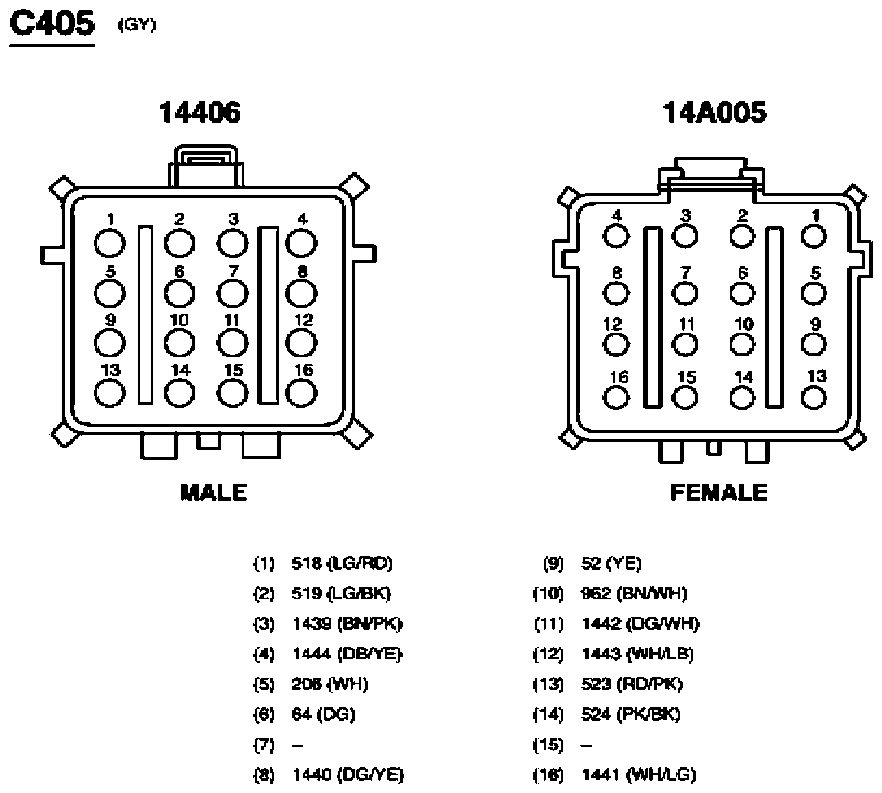

Fig 135: Inline Connector End View (C405)
G07838446Courtesy of FORD MOTOR CO.

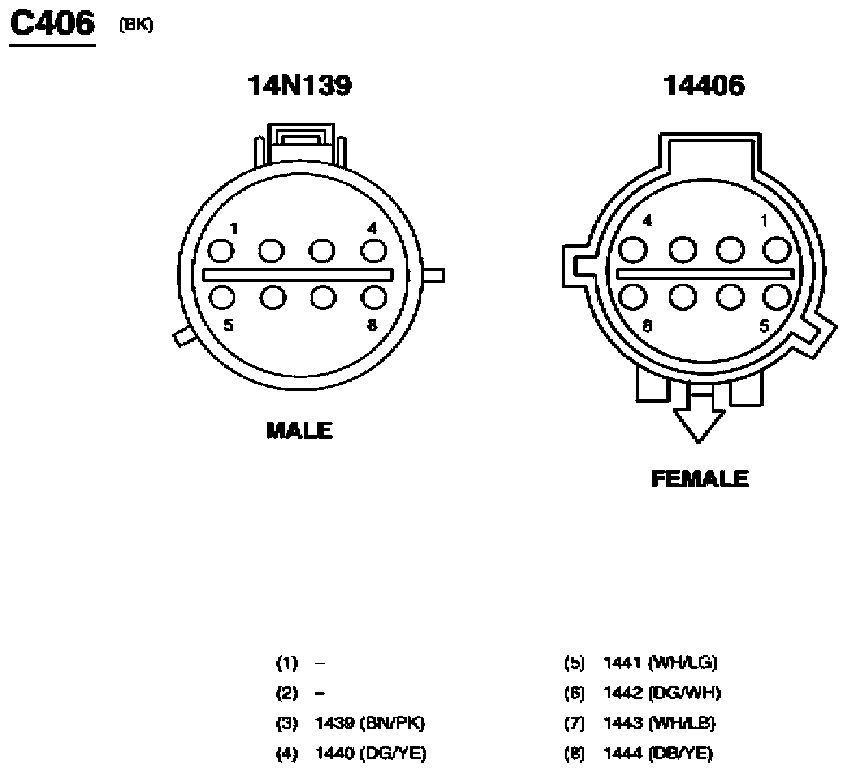

Fig 136: Inline Connector End View (C406)
G07838447Courtesy of FORD MOTOR CO.

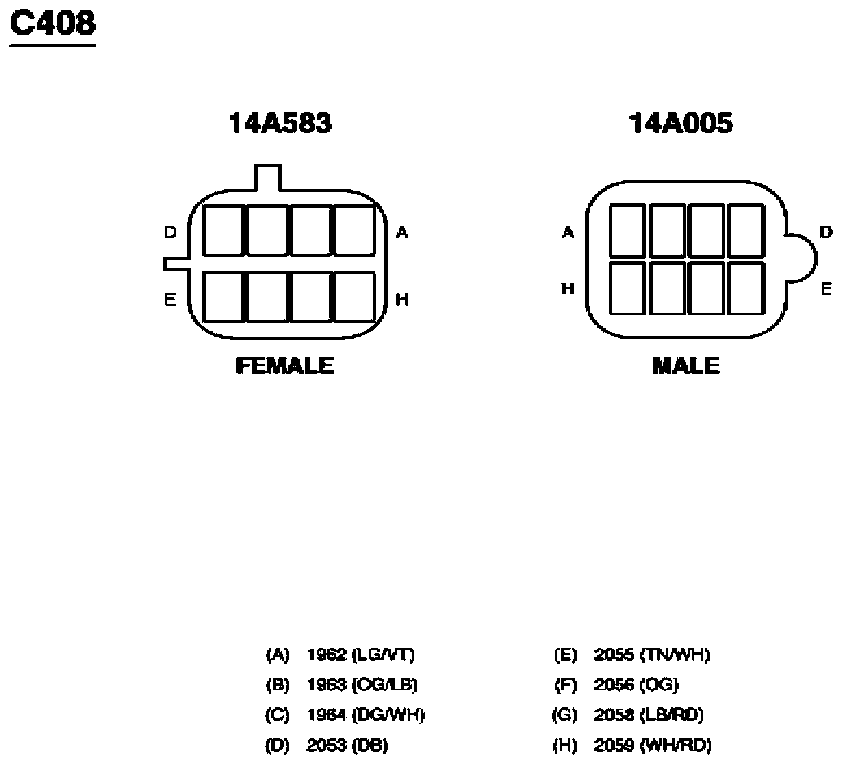

Fig 137: Inline Connector End View (C408)
G07838448Courtesy of FORD MOTOR CO.

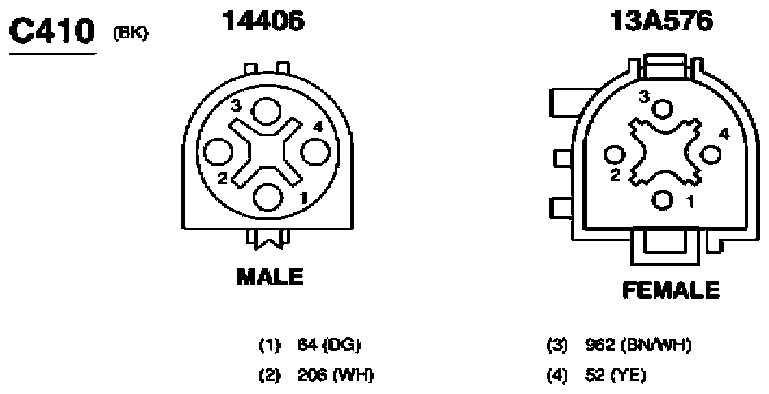

Fig 138: Inline Connector End View (C410)
G07838449Courtesy of FORD MOTOR CO.

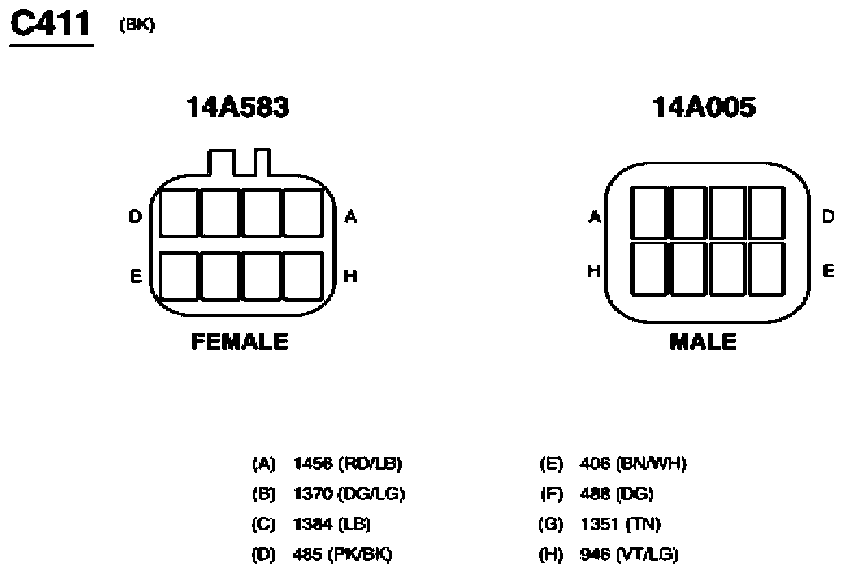

Fig 139: Inline Connector End View (C411)
G07838450Courtesy of FORD MOTOR CO.

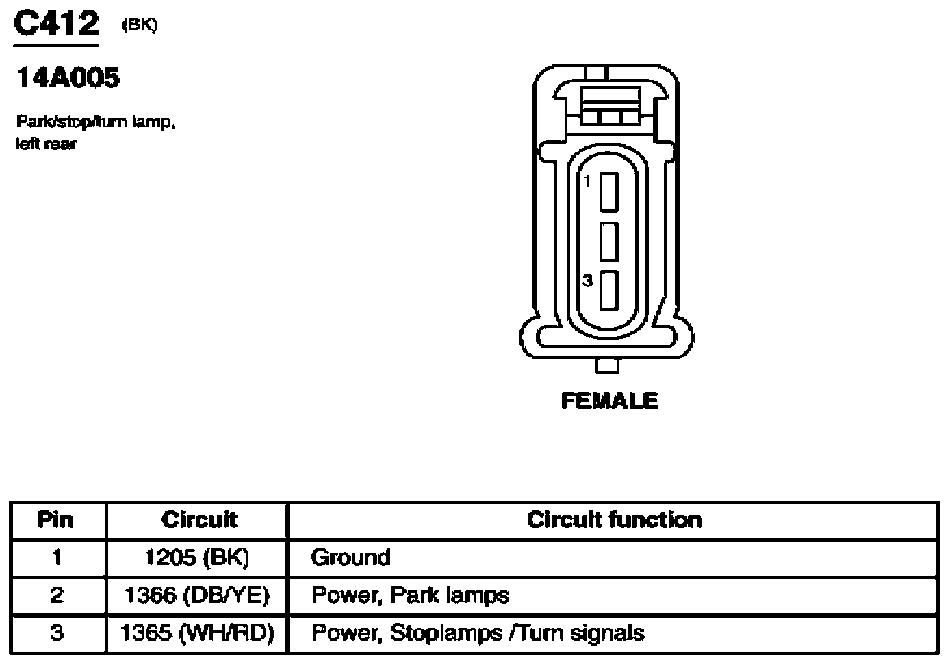

Fig 140: Park/Stop/Turn Lamp, Left Rear Connector End View (C412)
G07838451Courtesy of FORD MOTOR CO.

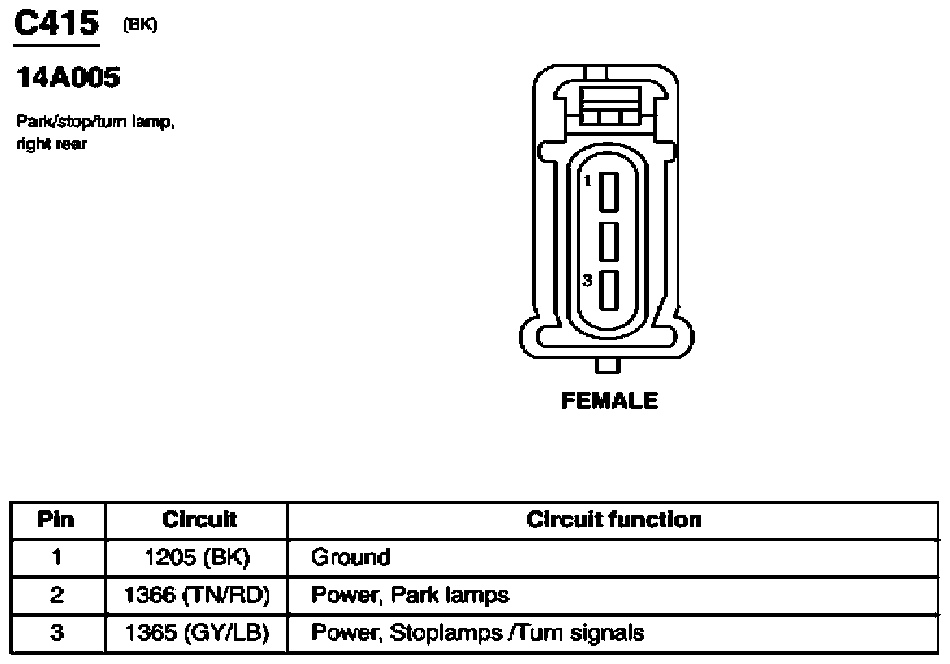

Fig 141: Park/Stop/Turn Lamp, Right Rear Connector End View (C415)
G07838452Courtesy of FORD MOTOR CO.

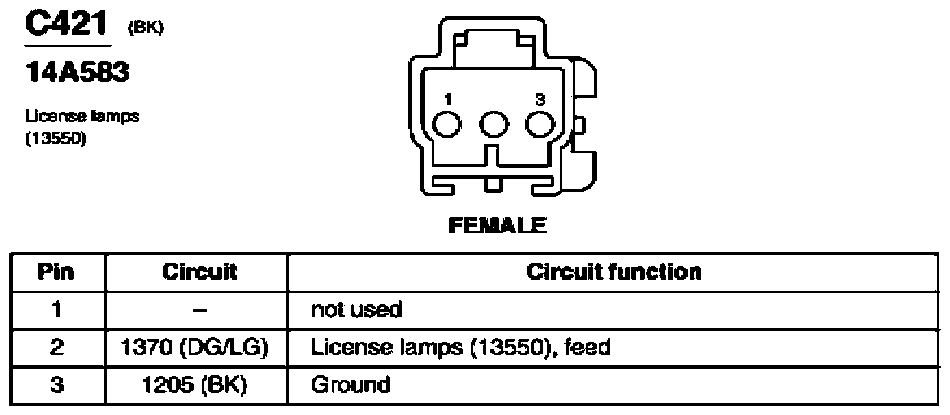

Fig 142: License Lamps Connector End View (C421)
G07838453Courtesy of FORD MOTOR CO.

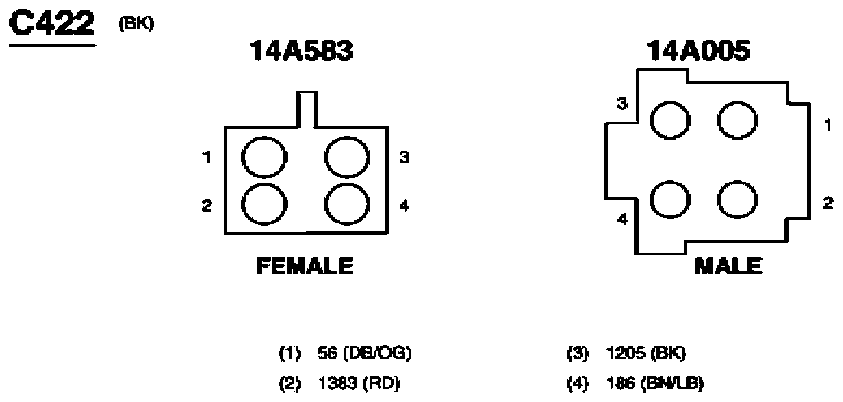

Fig 143: Inline Connector End View (C422)
G07838454Courtesy of FORD MOTOR CO.

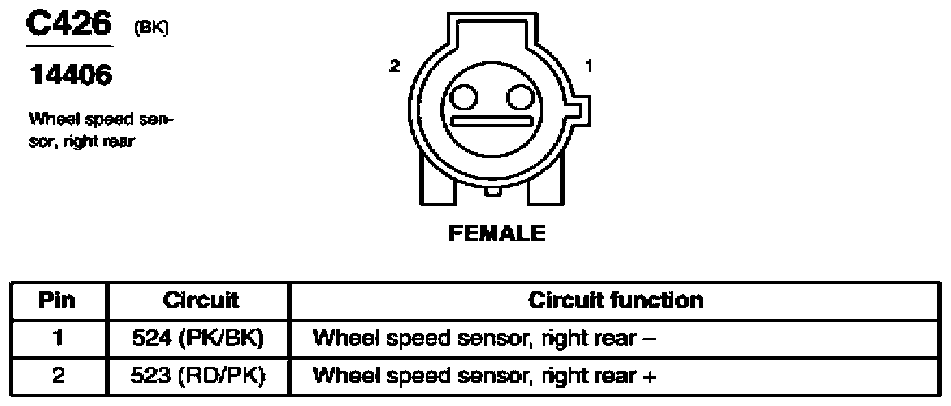

Fig 144: Wheel Speed Sensor, Right Rear Connector End View (C426)
G07838455Courtesy of FORD MOTOR CO.

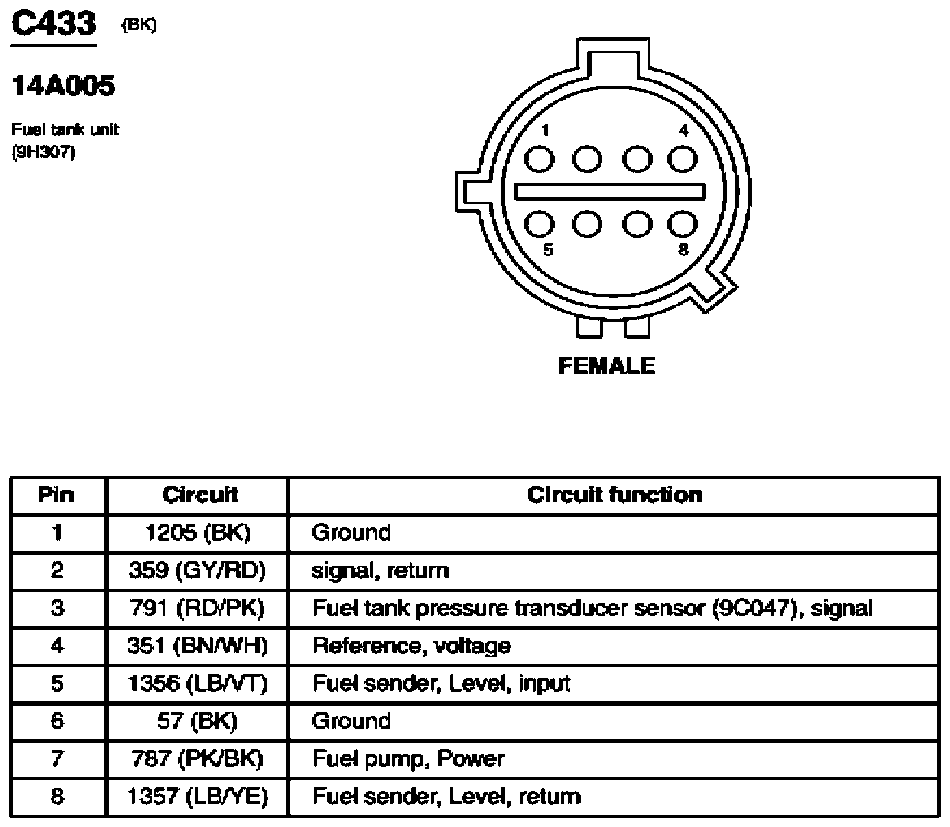

Fig 145: Fuel Tank Unit Connector End View (C433)
G07838456Courtesy of FORD MOTOR CO.

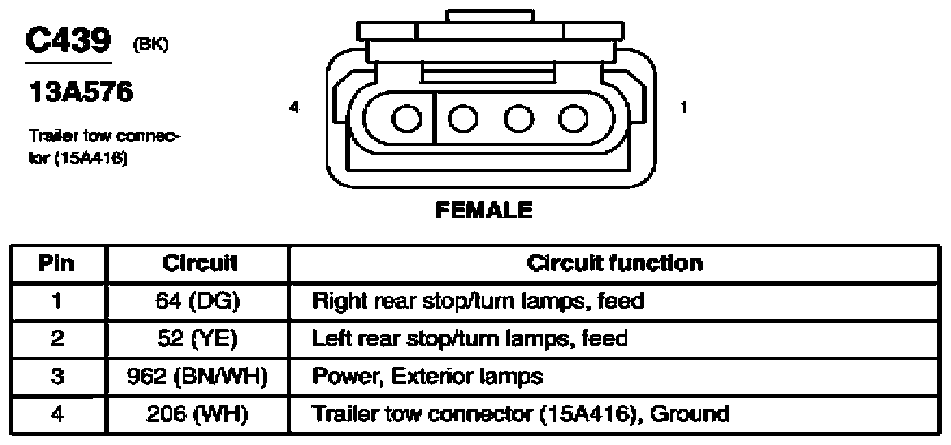

Fig 146: Trailer Tow Connector End View (C439)
G07838457Courtesy of FORD MOTOR CO.

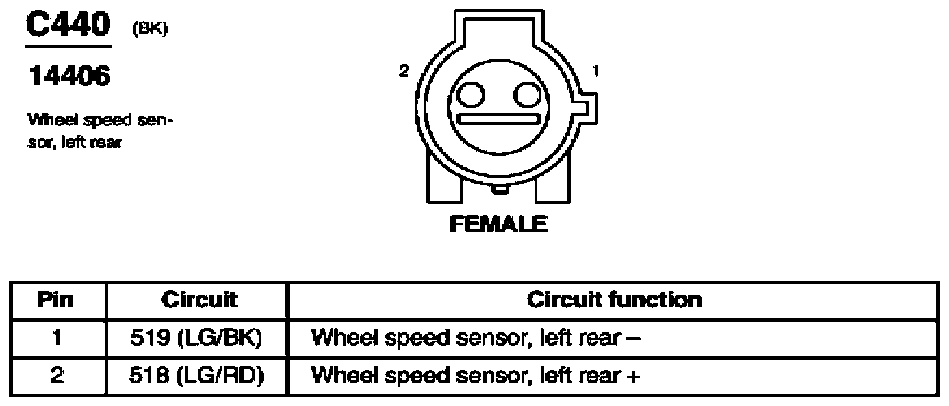

Fig 147: Wheel Speed Sensor, Left Rear Connector End View (C440)
G07838458Courtesy of FORD MOTOR CO.

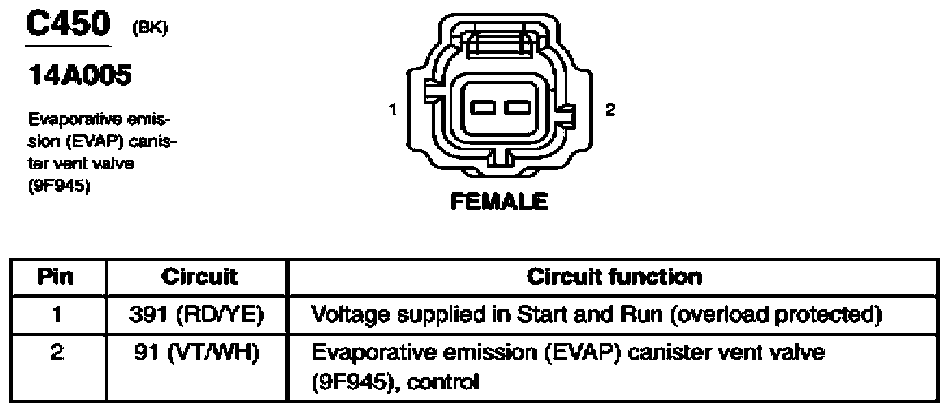

Fig 148: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)
G07838459Courtesy of FORD MOTOR CO.

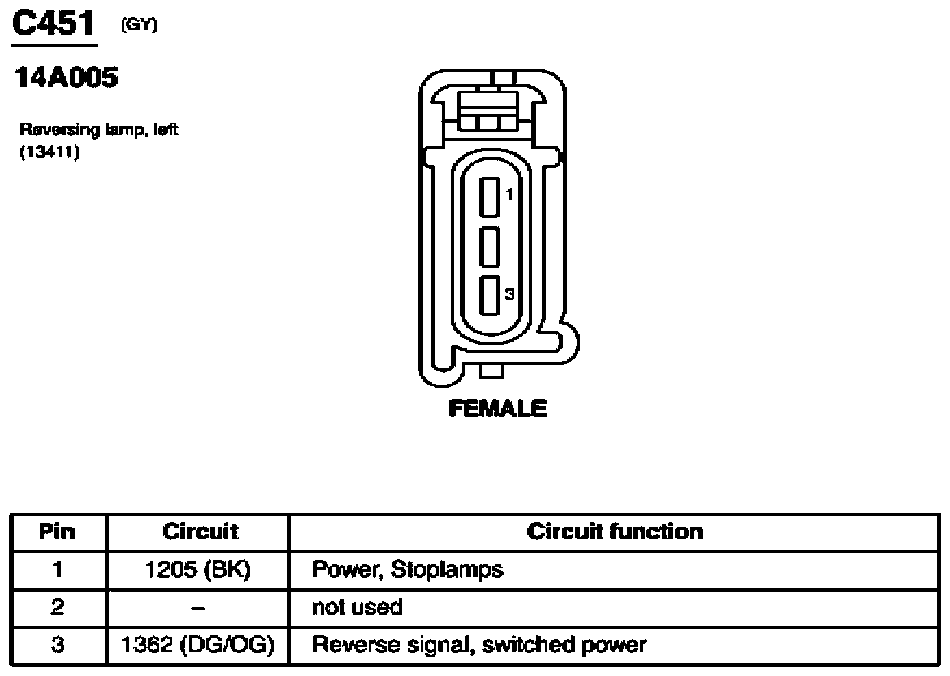

Fig 149: Reversing Lamp, Left Connector End View (C451)
G07838460Courtesy of FORD MOTOR CO.

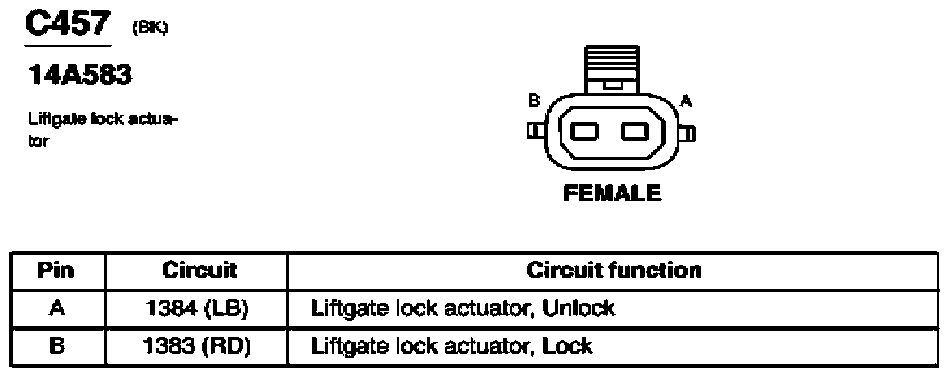

Fig 150: Liftgate Lock Actuator Connector End View (C457)
G07838461Courtesy of FORD MOTOR CO.

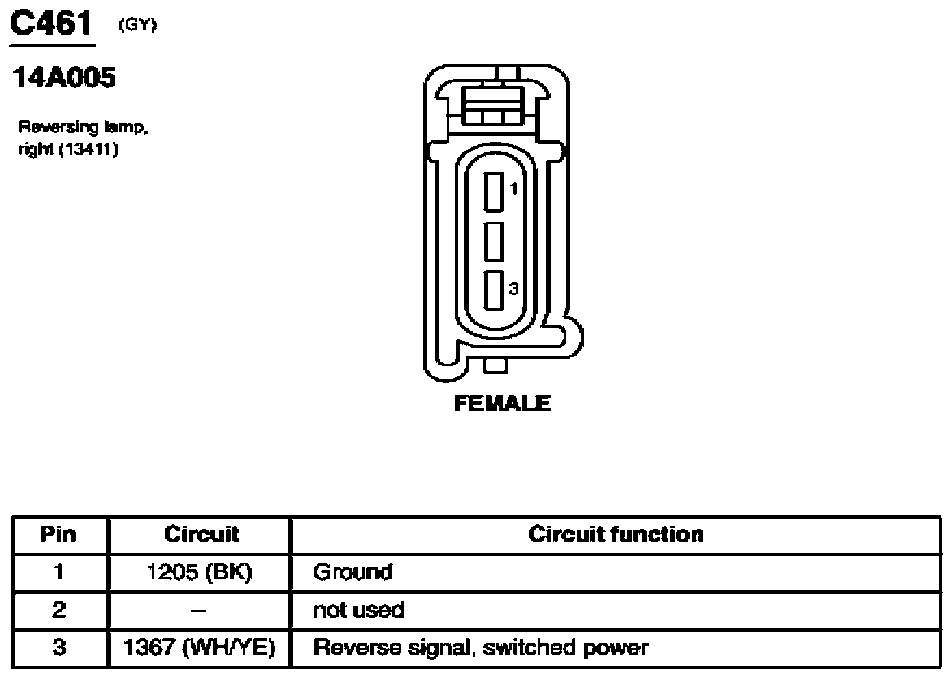

Fig 151: Reversing Lamp, Right Connector End View (C461)
G07838462Courtesy of FORD MOTOR CO.

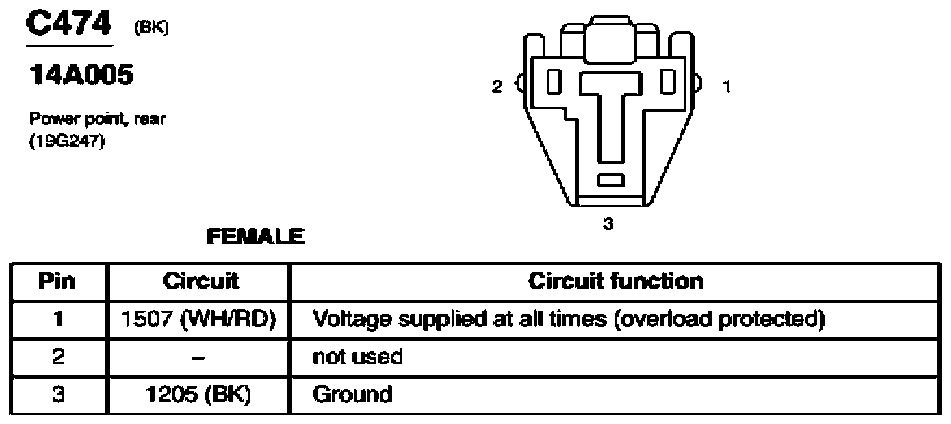

Fig 152: Power Point, Rear Connector End View (C474)
G07838463Courtesy of FORD MOTOR CO.

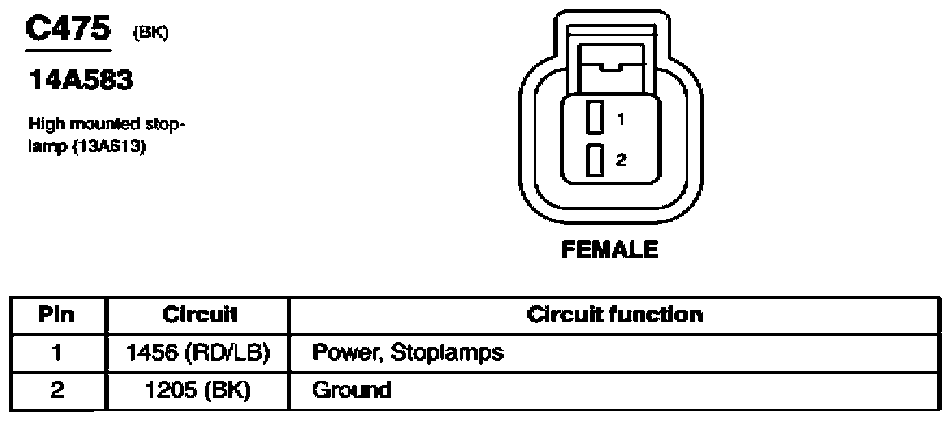

Fig 153: High Mounted Stoplamp Connector End View (C475)
G07838464Courtesy of FORD MOTOR CO.

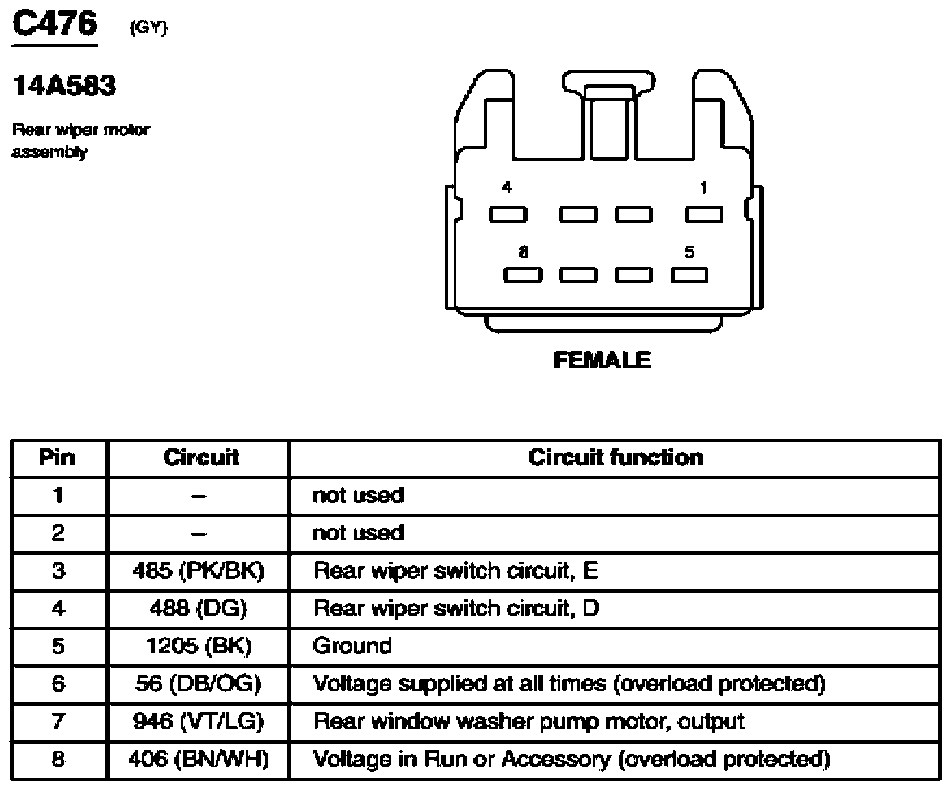

Fig 154: Rear Wiper Motor Assembly Connector End View (C476)
G07838465Courtesy of FORD MOTOR CO.

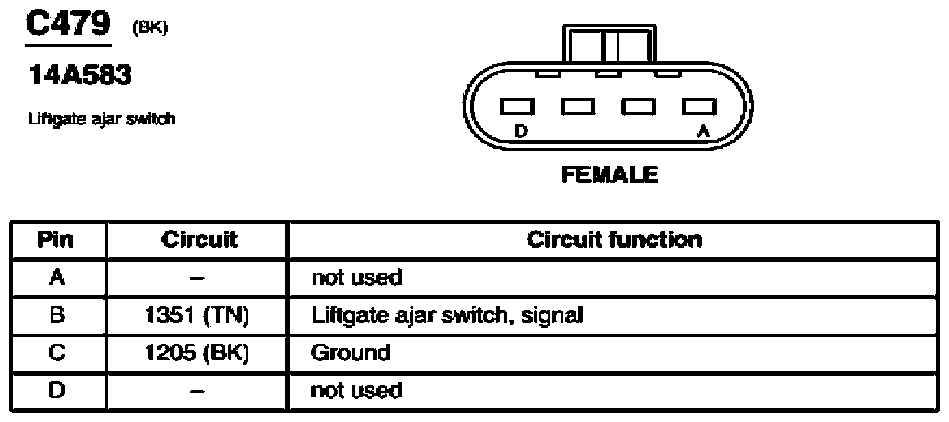

Fig 155: Liftgate Ajar Switch Connector End View (C479)
G07838466Courtesy of FORD MOTOR CO.

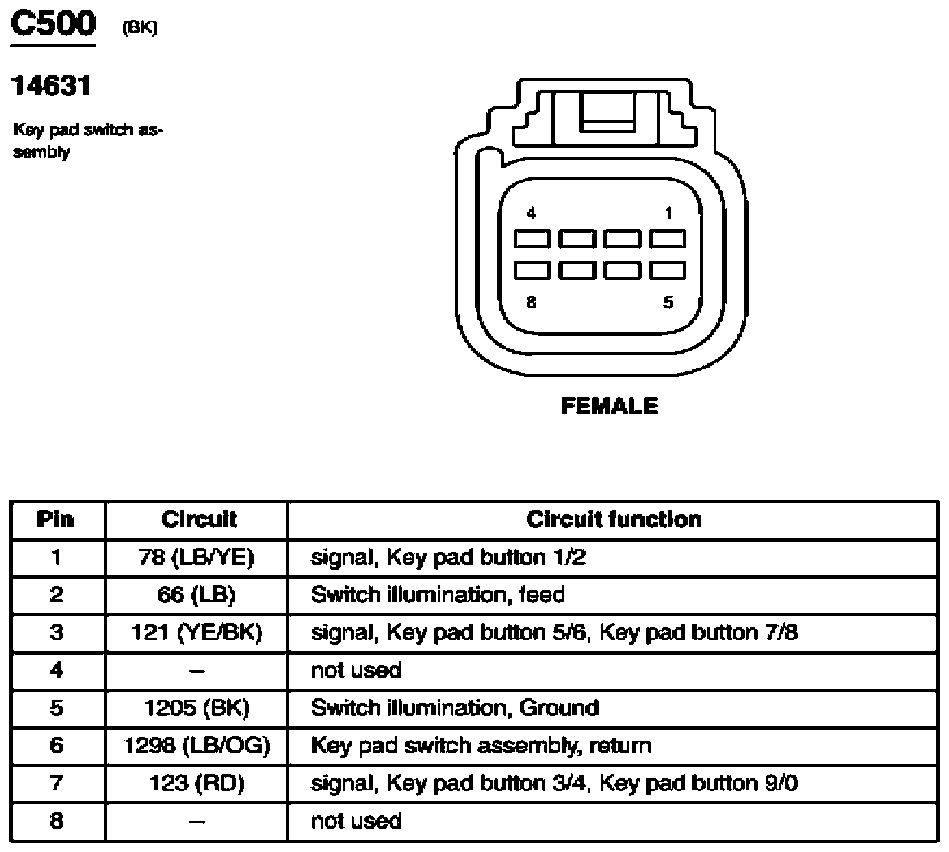

Fig 156: Key Pad Switch Assembly Connector End View (C500)
G07838467Courtesy of FORD MOTOR CO.

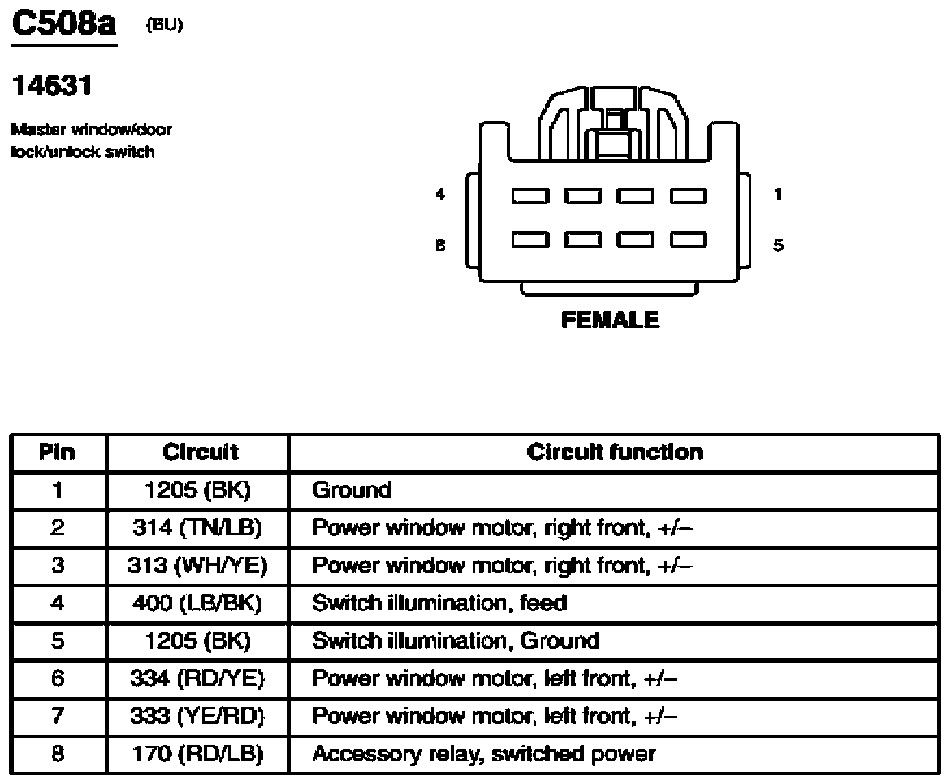

Fig 157: Master Window/Door Lock/Unlock Switch Connector End View (C508a)
G07838468Courtesy of FORD MOTOR CO.

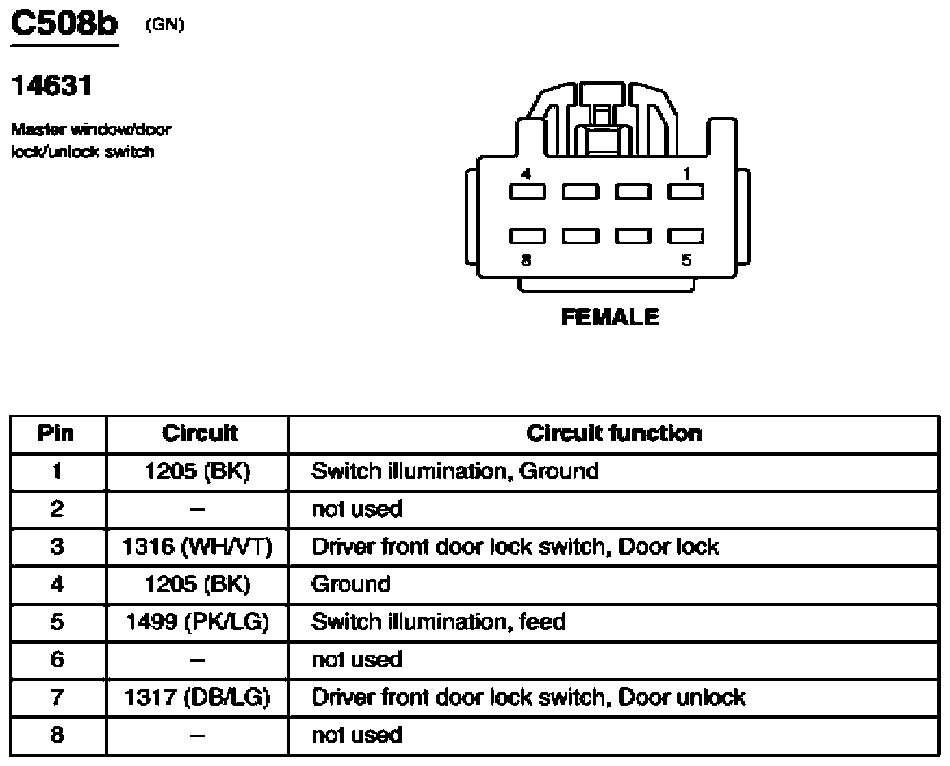

Fig 158: Master Window/Door Lock/Unlock Switch Connector End View (C508b)
G07838469Courtesy of FORD MOTOR CO.

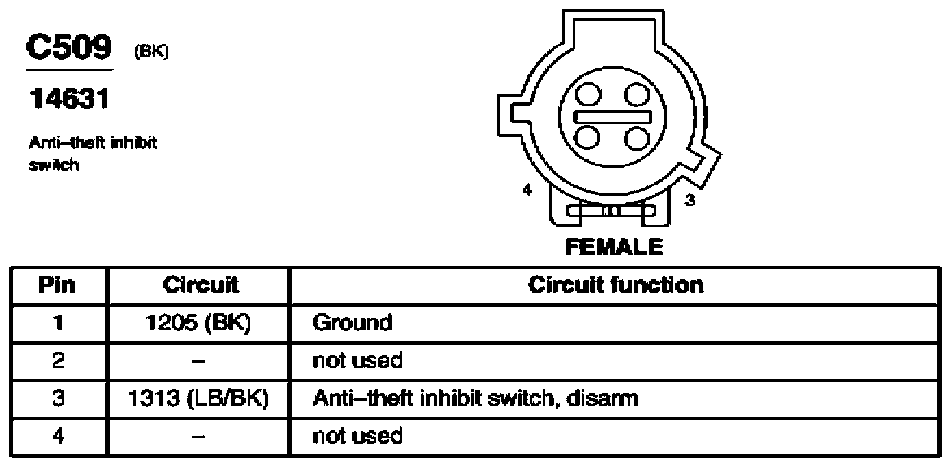

Fig 159: Anti-Theft Inhibit Switch Connector End View (C509)
G07838470Courtesy of FORD MOTOR CO.

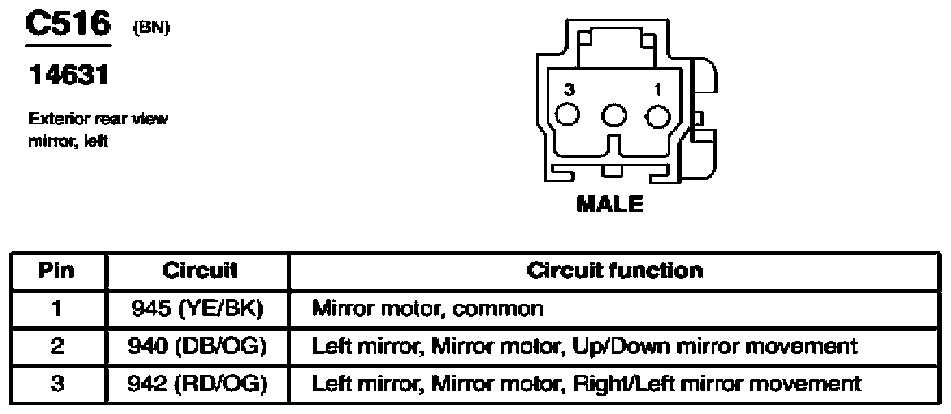

Fig 160: Exterior Rear View Mirror, Left Connector End View (C516)
G07838471Courtesy of FORD MOTOR CO.

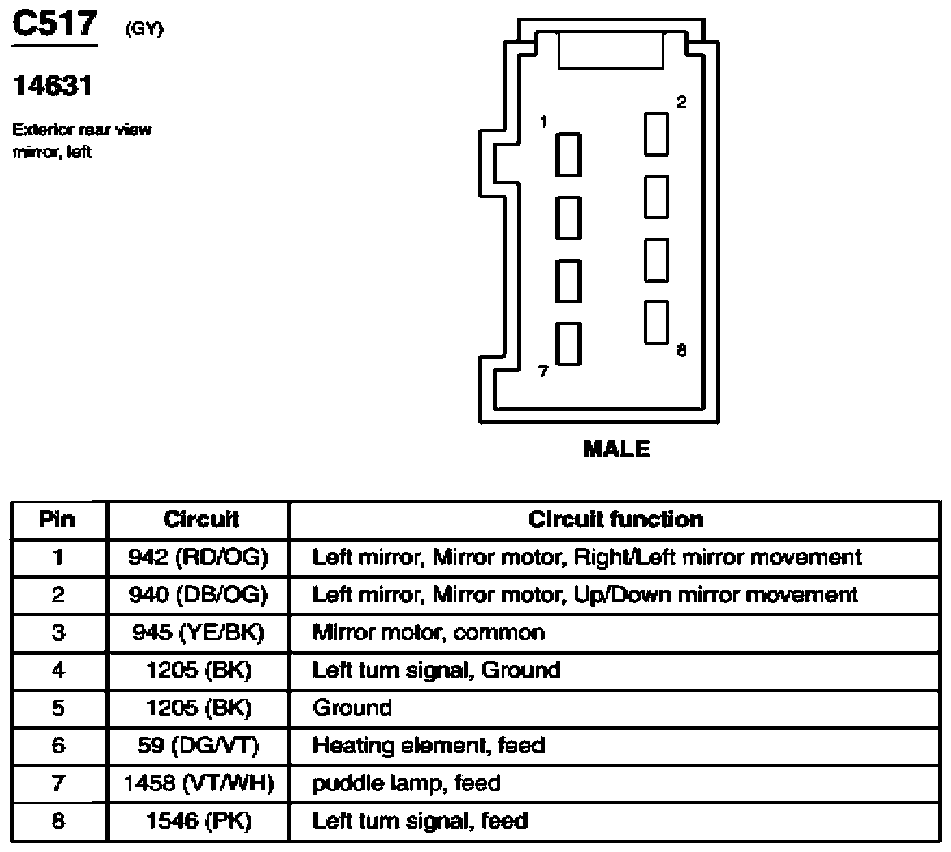

Fig 161: Exterior Rear View Mirror, Left Connector End View (C517)
G07838472Courtesy of FORD MOTOR CO.

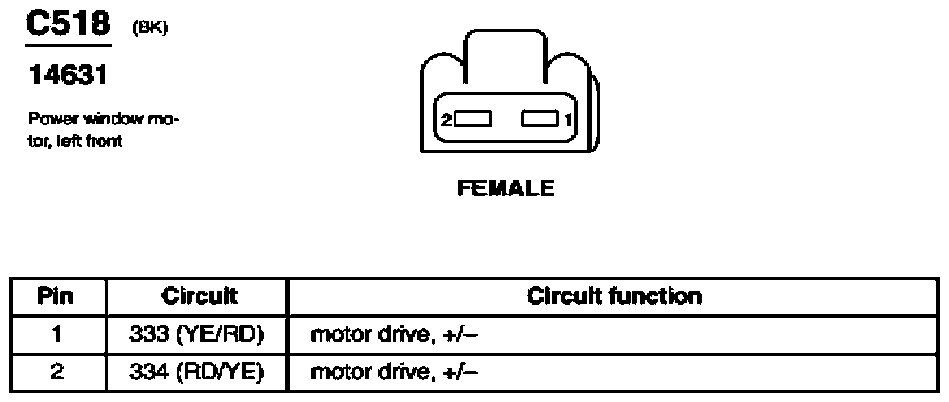

Fig 162: Power Window Motor, Left Front Connector End View (C518)
G07838473Courtesy of FORD MOTOR CO.

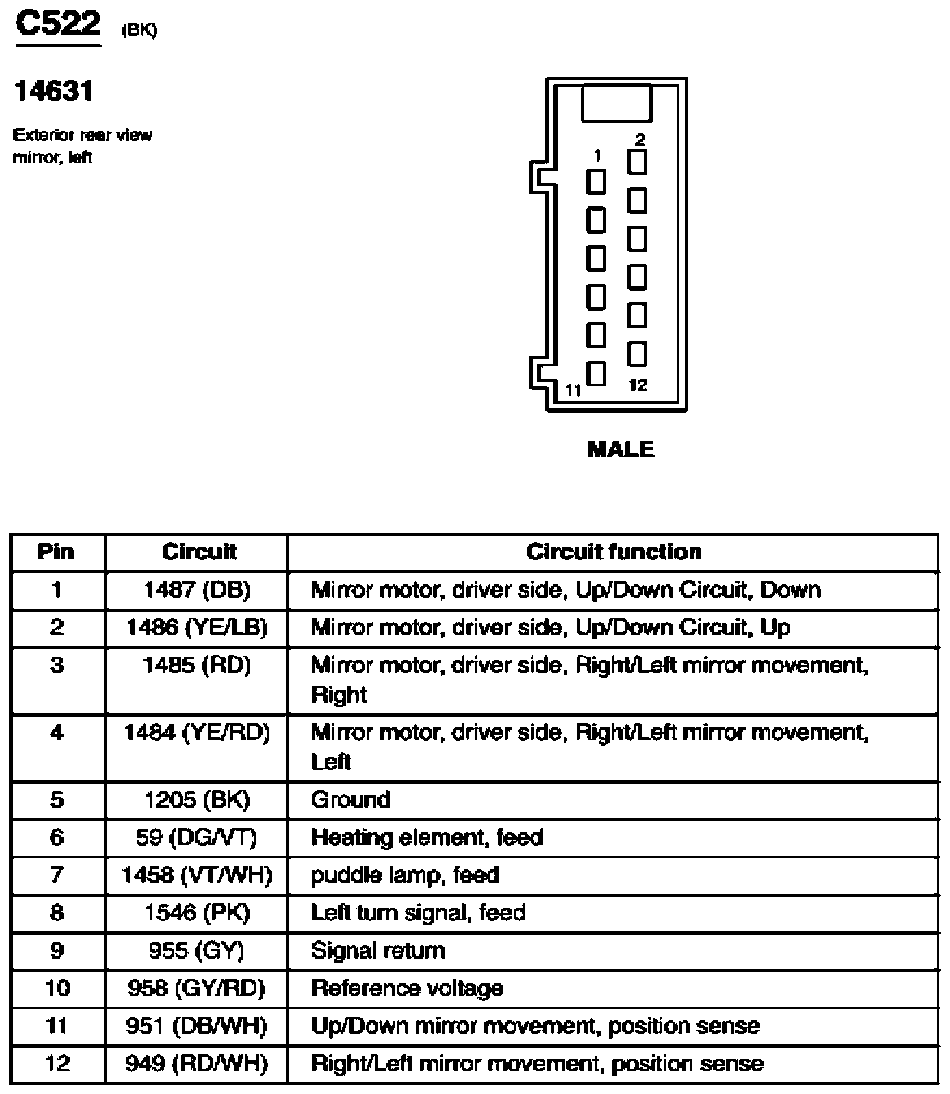

Fig 163: Exterior Rear View Mirror, Left Connector End View (C522)
G07838474Courtesy of FORD MOTOR CO.

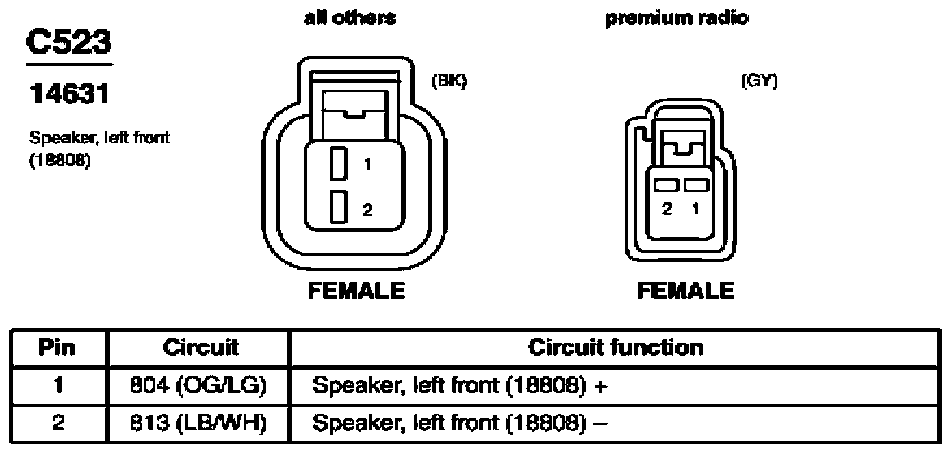

Fig 164: Speaker, Left Front Connector End View (C523)
G07838475Courtesy of FORD MOTOR CO.

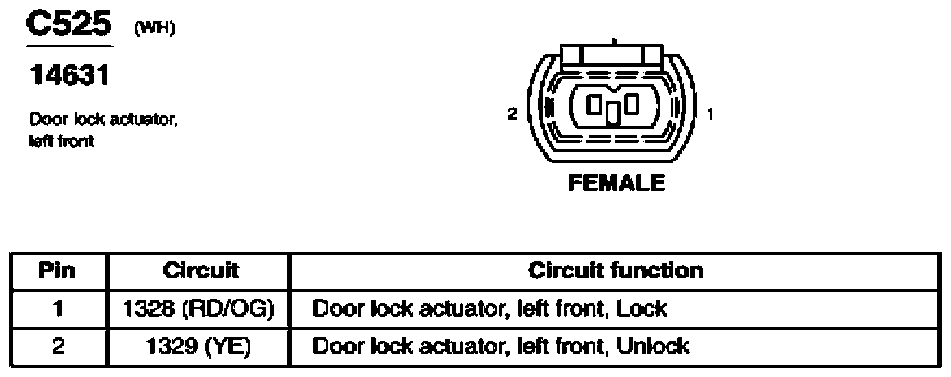

Fig 165: Door Lock Actuator, Left Front Connector End View (C525)
G07838476Courtesy of FORD MOTOR CO.

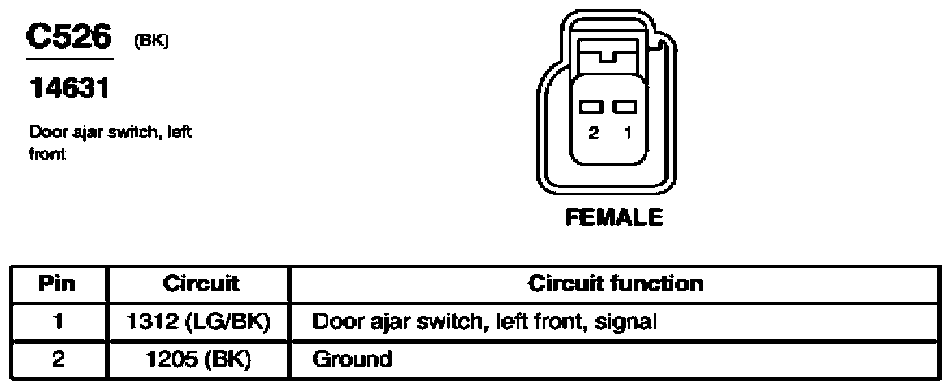

Fig 166: Door Ajar Switch, Left Front Connector End View (C526)
G07838477Courtesy of FORD MOTOR CO.

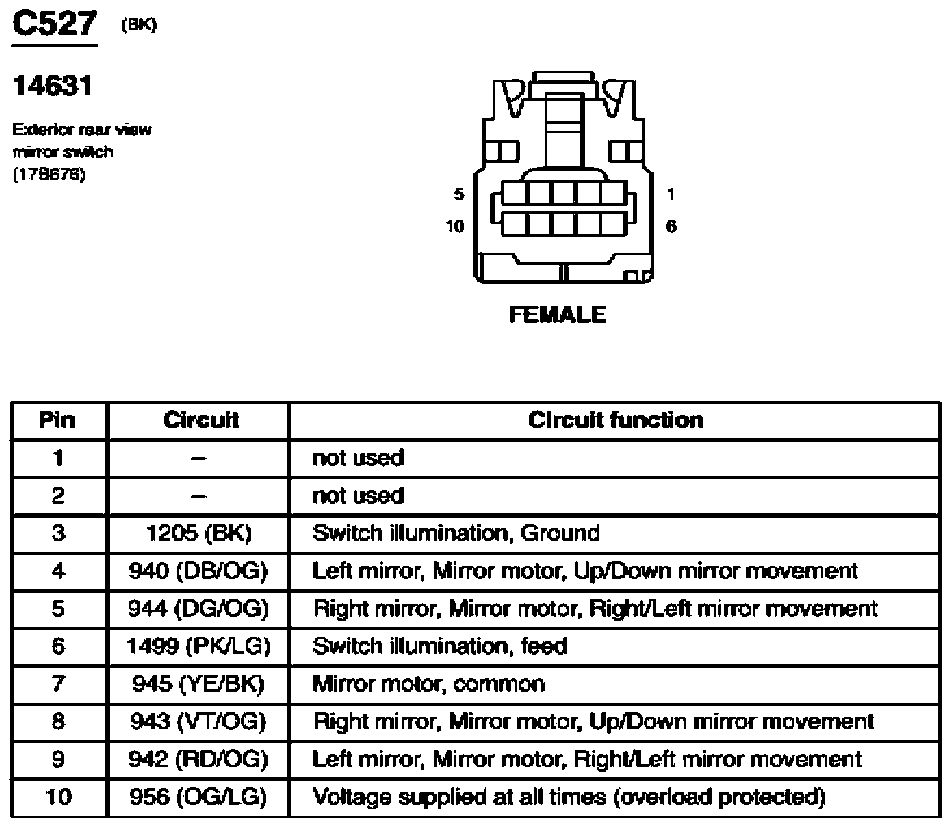

Fig 167: Exterior Rear View Mirror Switch Connector End View (C527)
G07838478Courtesy of FORD MOTOR CO.

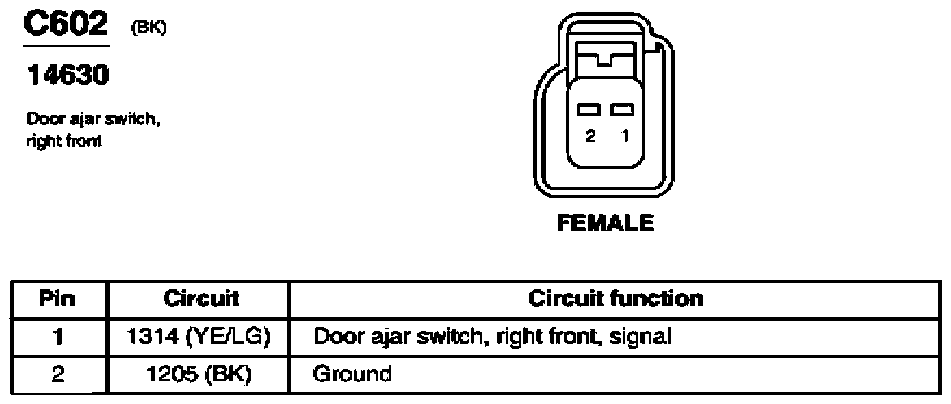

Fig 168: Door Ajar Switch, Right Front Connector End View (C602)
G07838479Courtesy of FORD MOTOR CO.

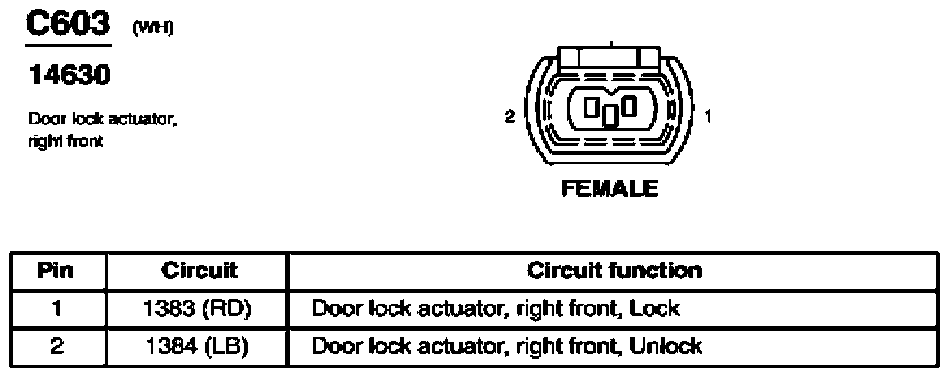

Fig 169: Door Lock Actuator, Right Front Connector End View (C603)
G07838480Courtesy of FORD MOTOR CO.

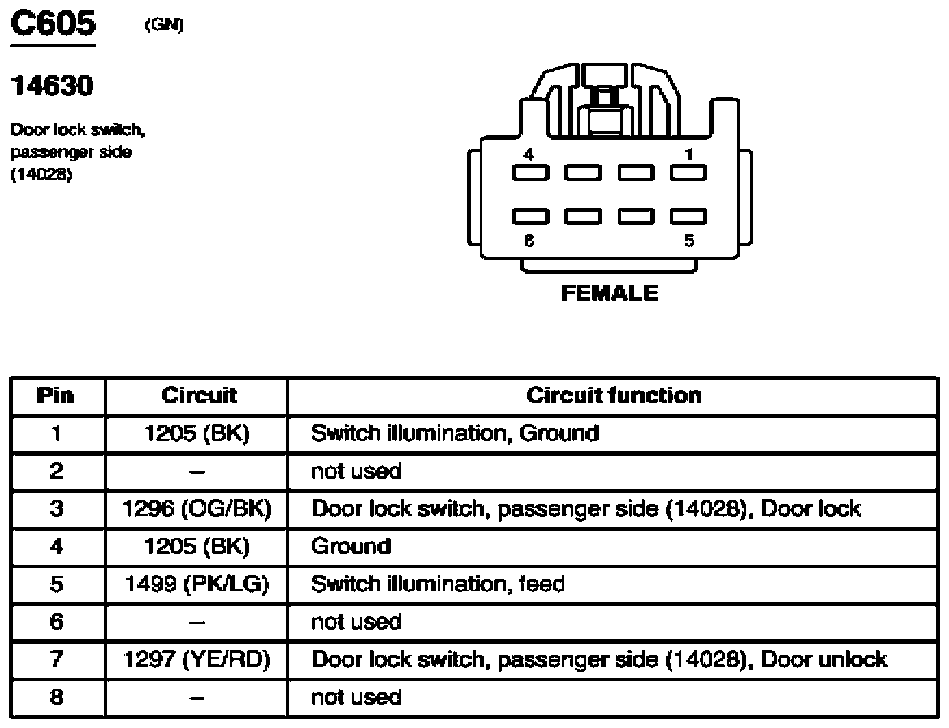

Fig 170: Door Lock Switch, Passenger Side Connector End View (C605)
G07838481Courtesy of FORD MOTOR CO.

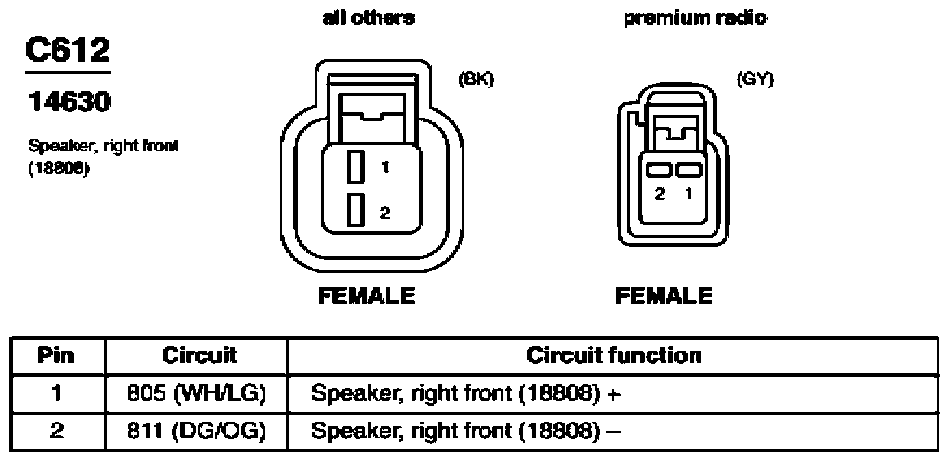

Fig 171: Speaker, Right Front Connector End View (C612)
G07838482Courtesy of FORD MOTOR CO.

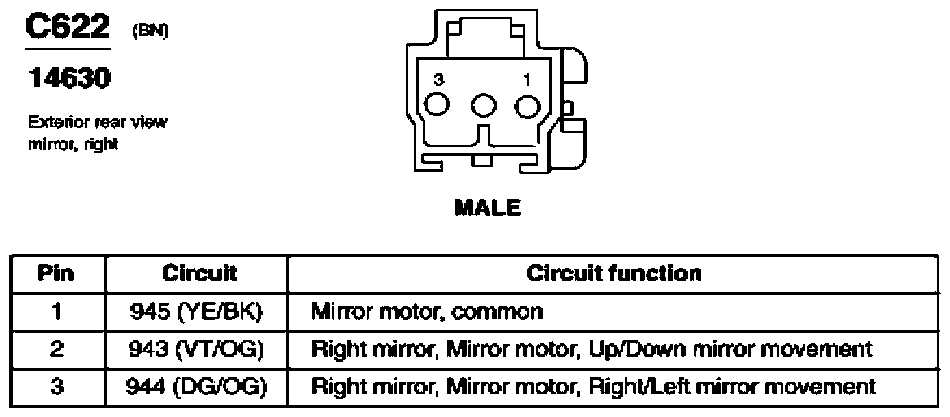

Fig 172: Exterior Rear View Mirror, Right Connector End View (C622)
G07838483Courtesy of FORD MOTOR CO.

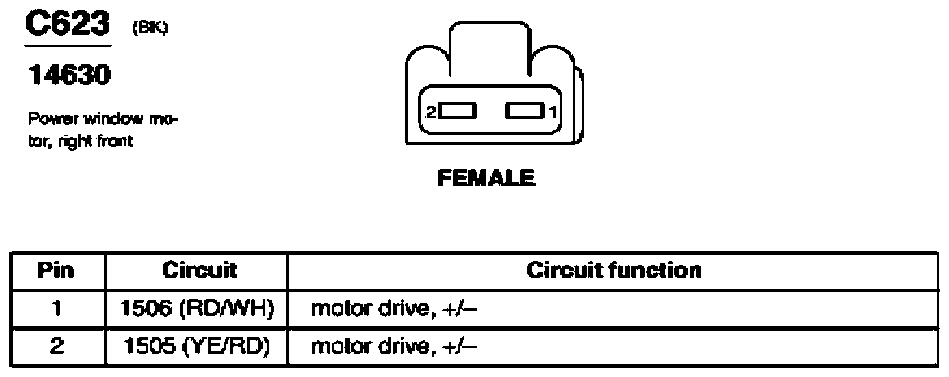

Fig 173: Power Window Motor, Right Front Connector End View (C623)
G07838484Courtesy of FORD MOTOR CO.

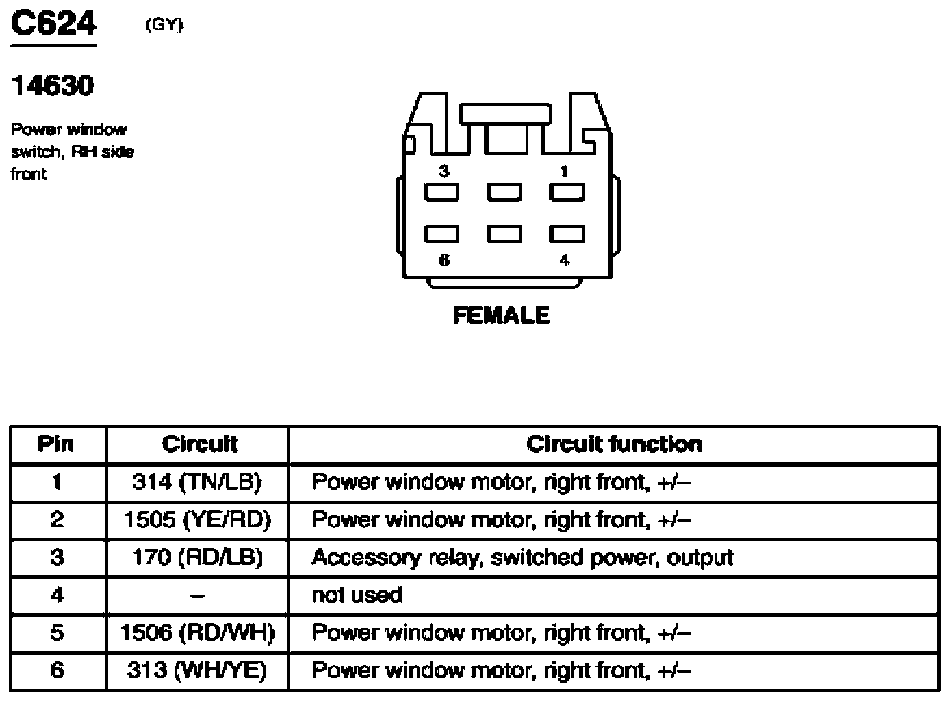

Fig 174: Power Window Switch, RH Side Front Connector End View (C624)
G07838485Courtesy of FORD MOTOR CO.

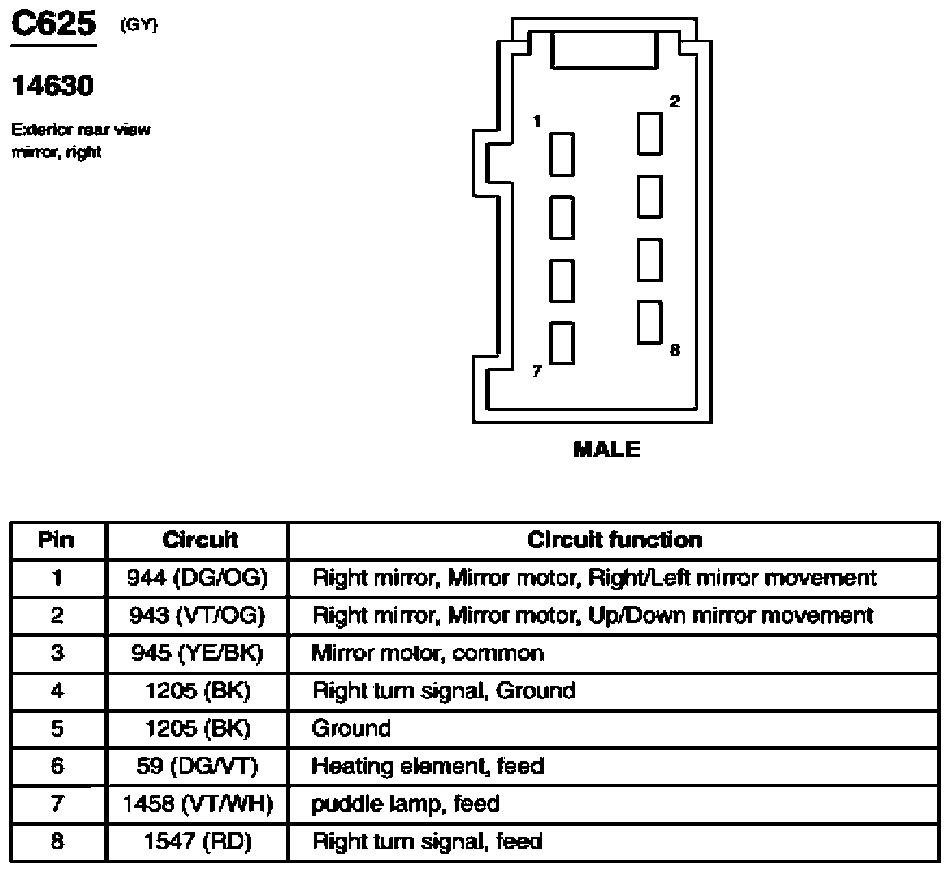

Fig 175: Exterior Rear View Mirror, Right Connector End View (C625)
G07838486Courtesy of FORD MOTOR CO.

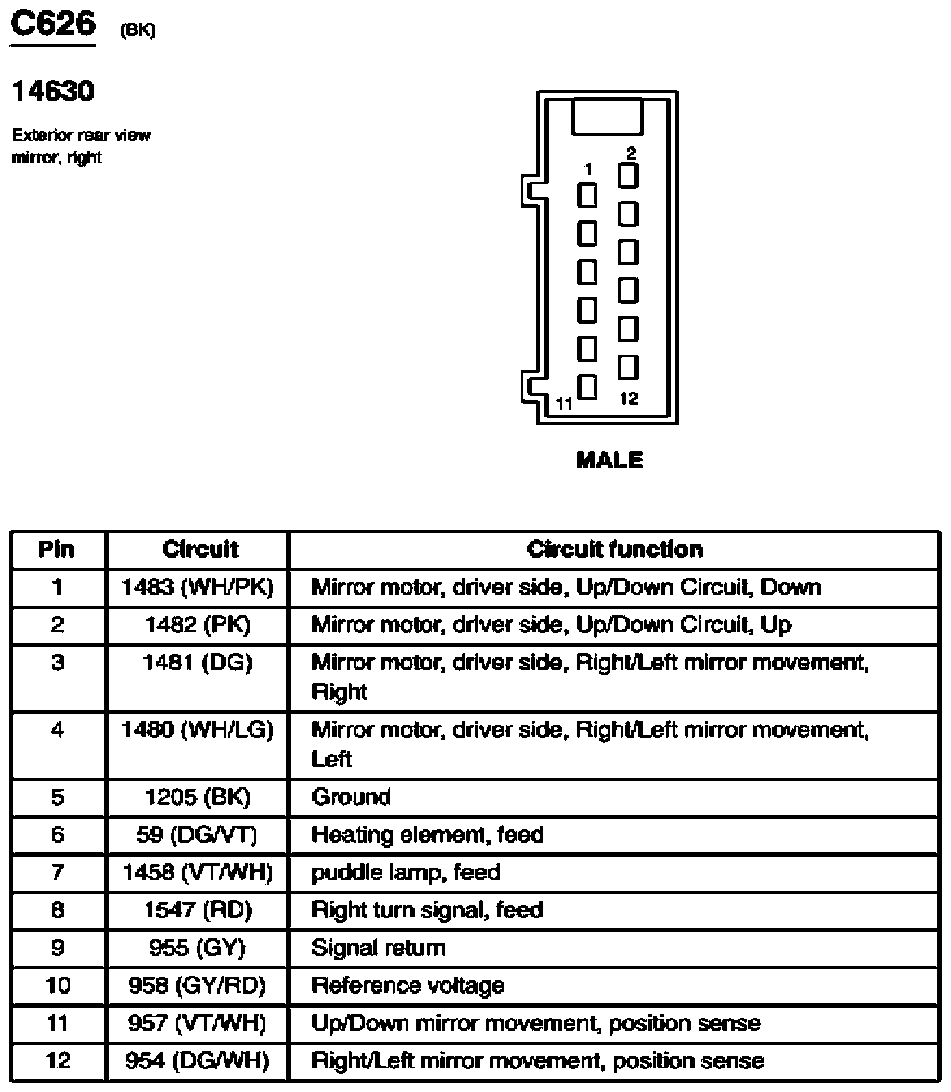

Fig 176: Exterior Rear View Mirror, Right Connector End View (C626)
G07838487Courtesy of FORD MOTOR CO.

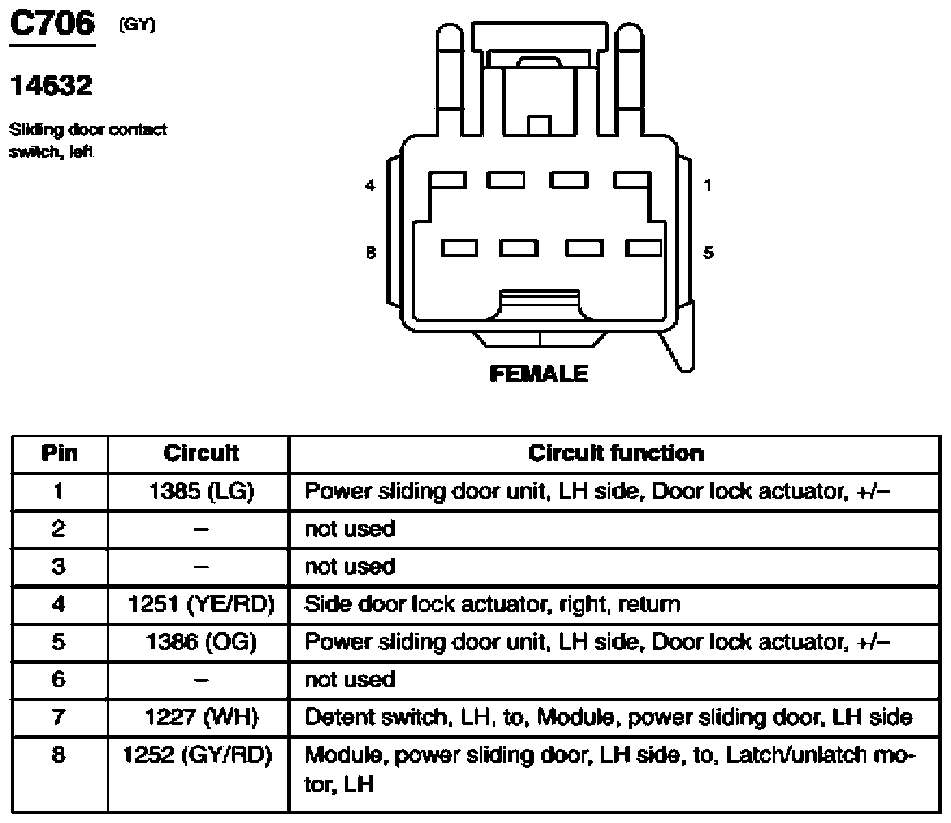

Fig 177: Sliding Door Contact Switch, Left Connector End View (C706)
G07838488Courtesy of FORD MOTOR CO.

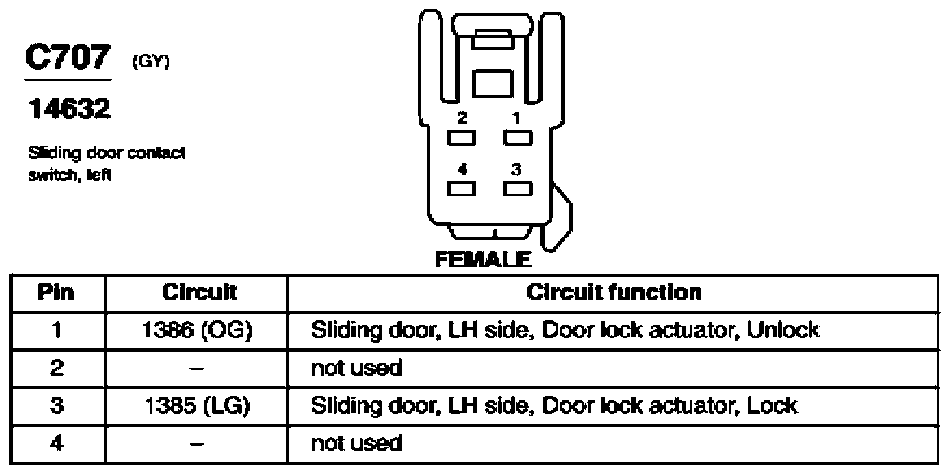

Fig 178: Sliding Door Contact Switch, Left Connector End View (C707)
G07838489Courtesy of FORD MOTOR CO.

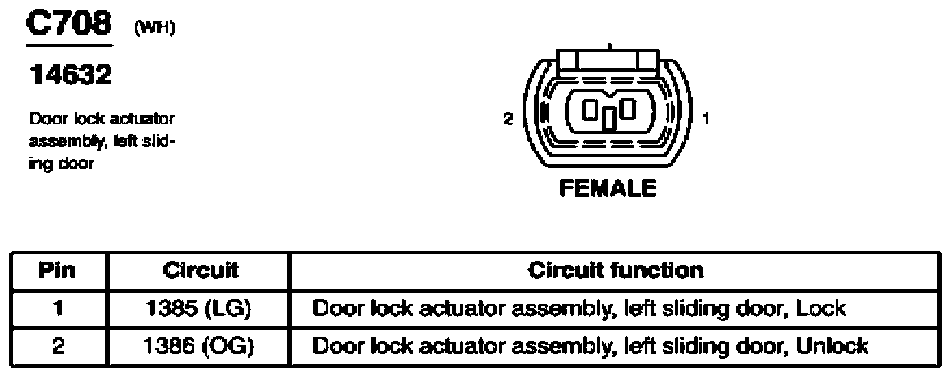

Fig 179: Door Lock Actuator Assembly, Left Sliding Door Connector End View (C708)
G07838490Courtesy of FORD MOTOR CO.

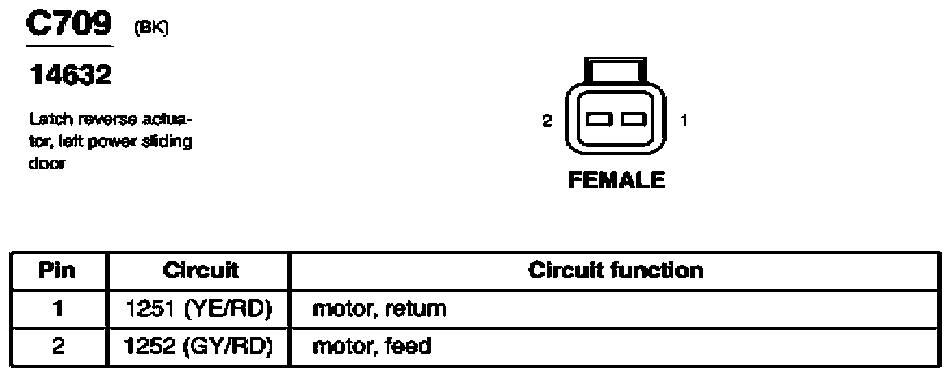

Fig 180: Latch Reverse Actuator, Left Power Sliding Door Connector End View (C709)
G07838491Courtesy of FORD MOTOR CO.

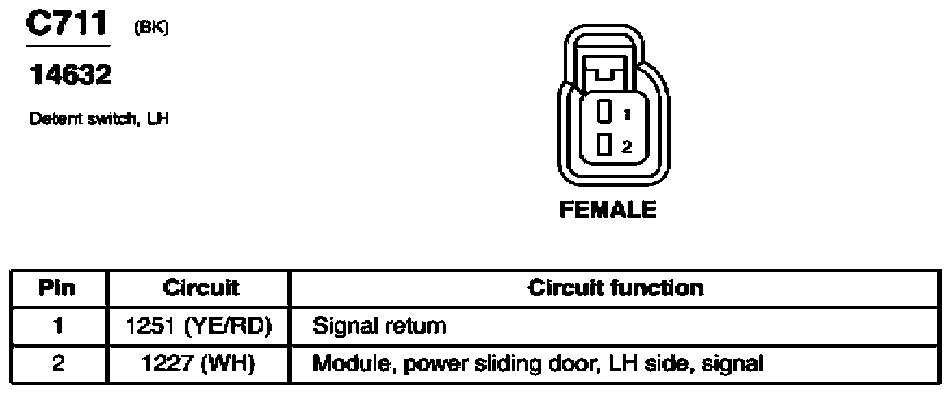

Fig 181: Detent Switch, LH Connector End View (C711)
G07838492Courtesy of FORD MOTOR CO.

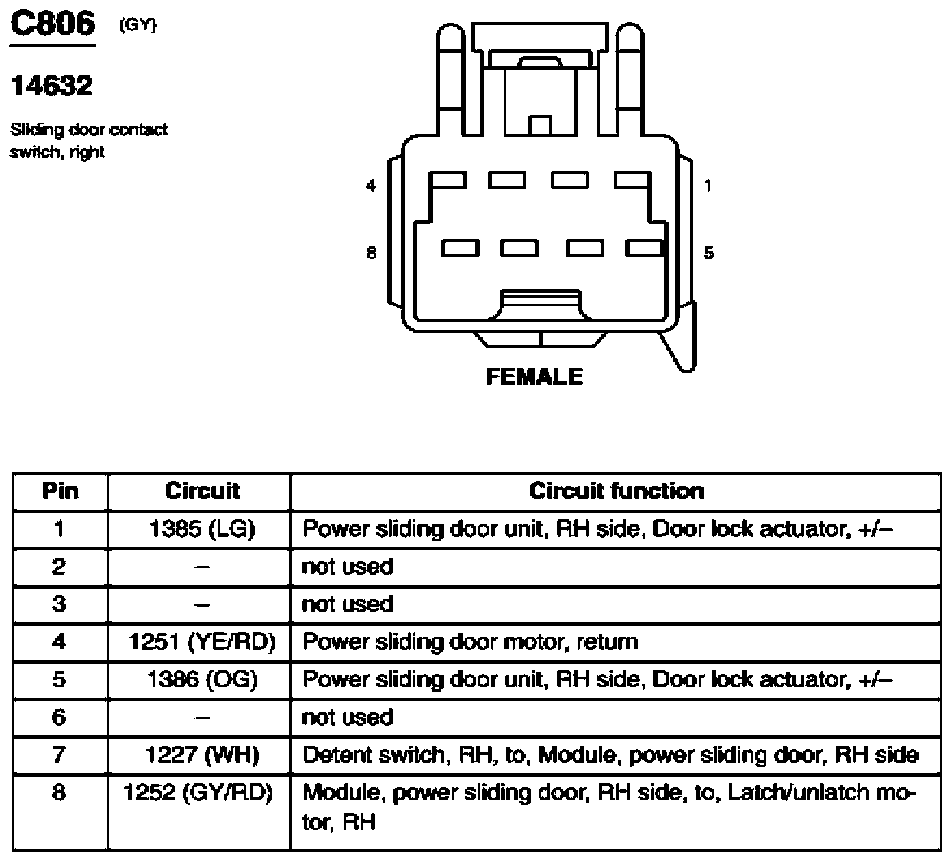

Fig 182: Sliding Door Contact Switch, Right Connector End View (C806)
G07838493Courtesy of FORD MOTOR CO.

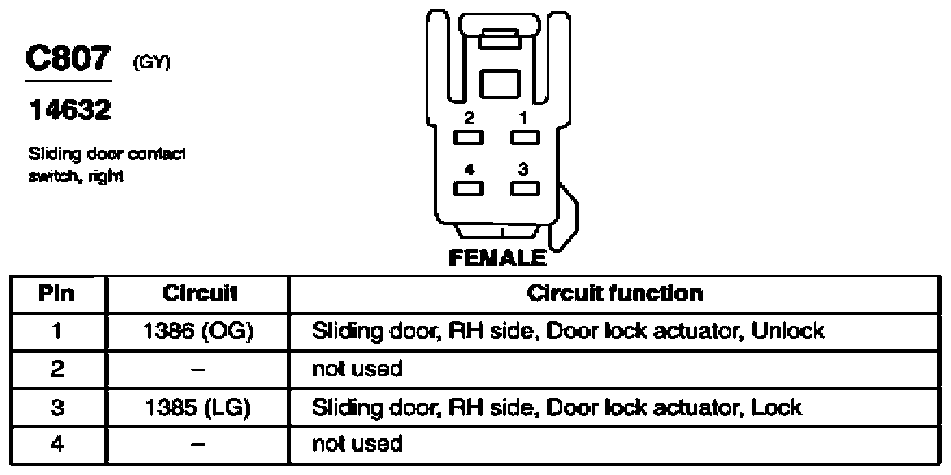

Fig 183: Sliding Door Contact Switch, Right Connector End View (C807)
G07838494Courtesy of FORD MOTOR CO.

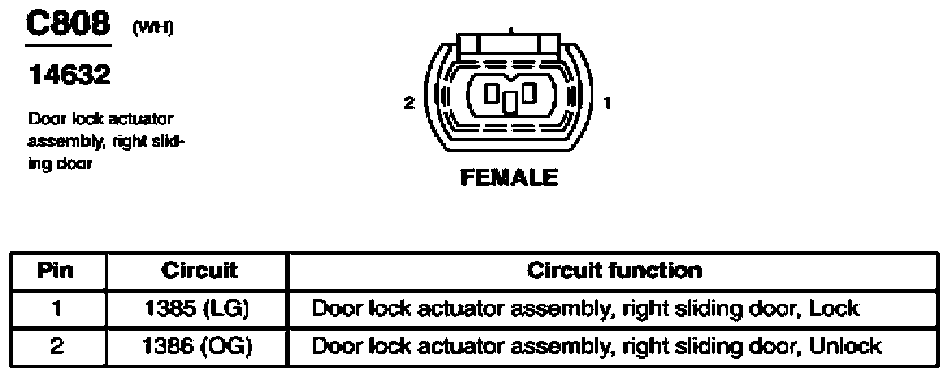

Fig 184: Door Lock Actuator Assembly, Right Sliding Door Connector End View (C808)
G07838495Courtesy of FORD MOTOR CO.

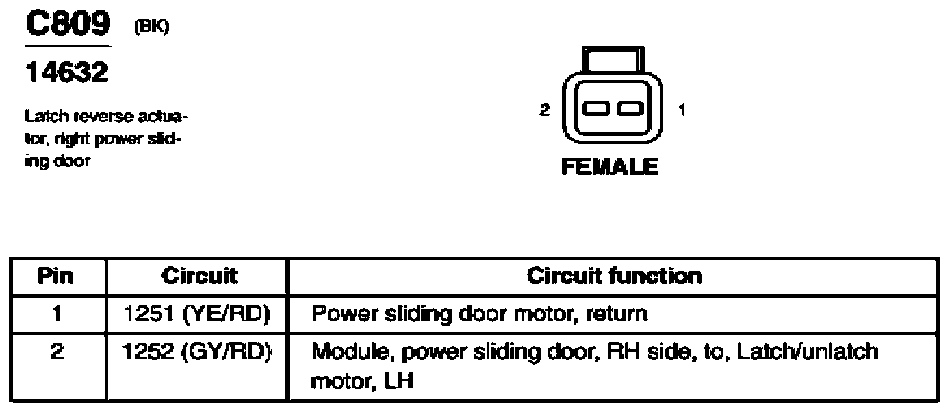

Fig 185: Latch Reverse Actuator, Right Power Sliding Door Connector End View (C809)
G07838496Courtesy of FORD MOTOR CO.

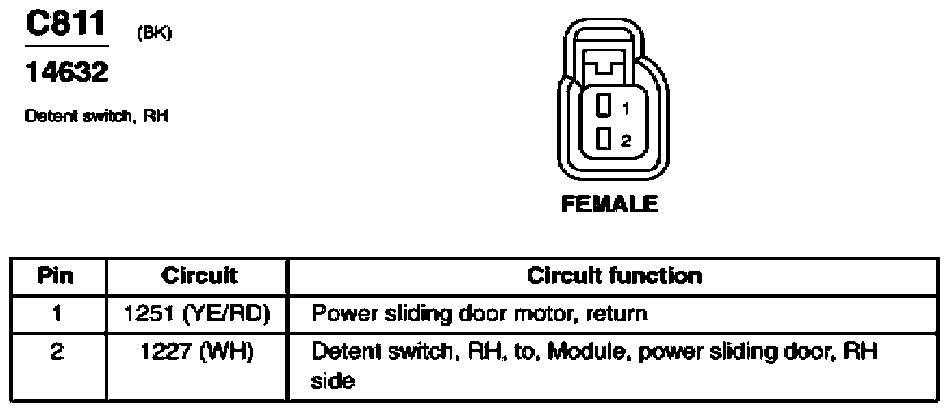

Fig 186: Detent Switch, RH Connector End View (C811)
G07838497Courtesy of FORD MOTOR CO.

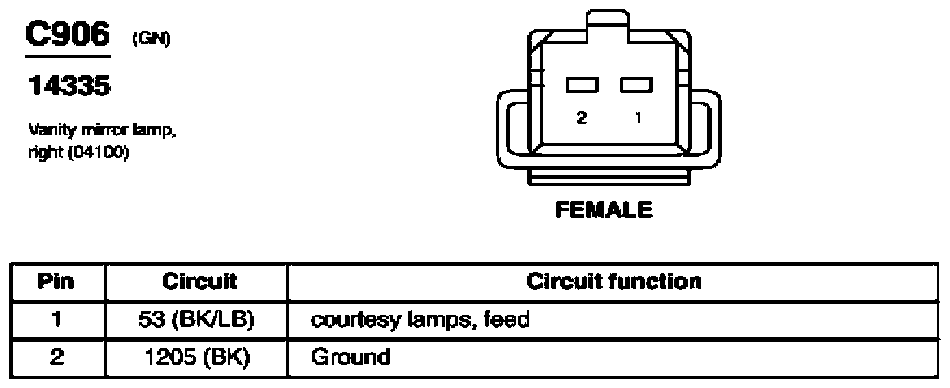

Fig 187: Vanity Mirror Lamp, Right Connector End View (C906)
G07838498Courtesy of FORD MOTOR CO.

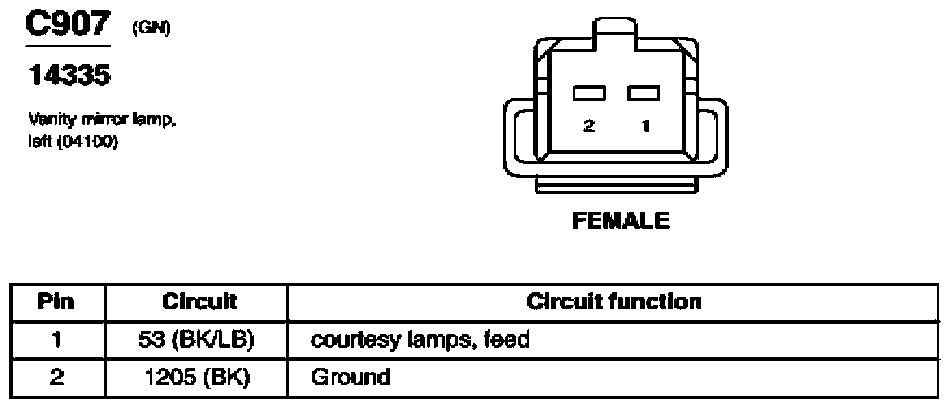

Fig 188: Vanity Mirror Lamp, Left Connector End View (C907)
G07838499Courtesy of FORD MOTOR CO.

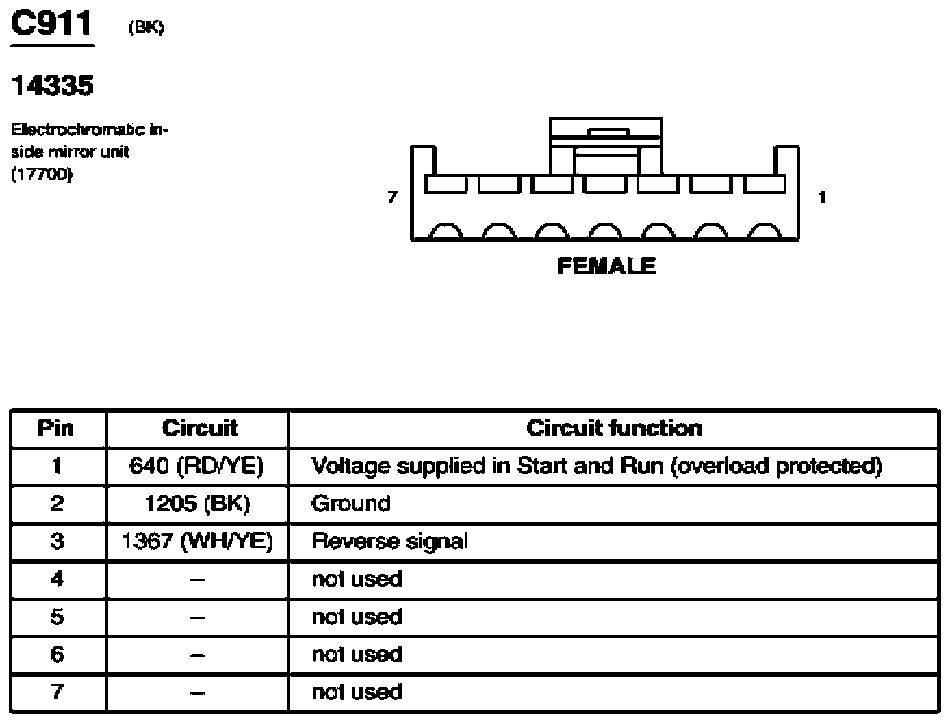

Fig 189: Electrochromatic Inside Mirror Unit Connector End View (C911)
G07838500Courtesy of FORD MOTOR CO.

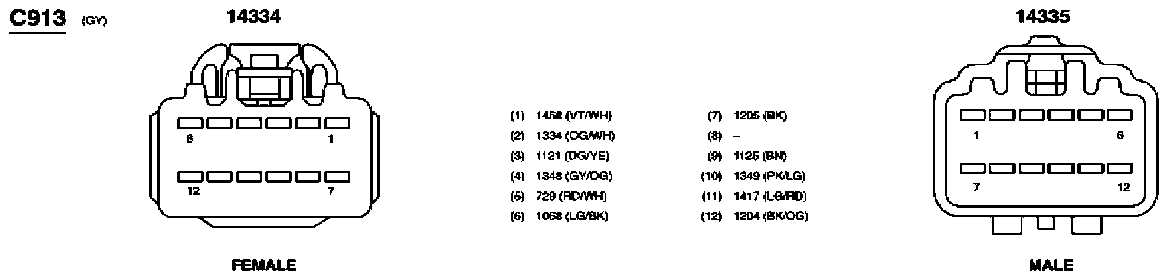

Fig 190: Inline Connector End View (C913)
G07838501Courtesy of FORD MOTOR CO.

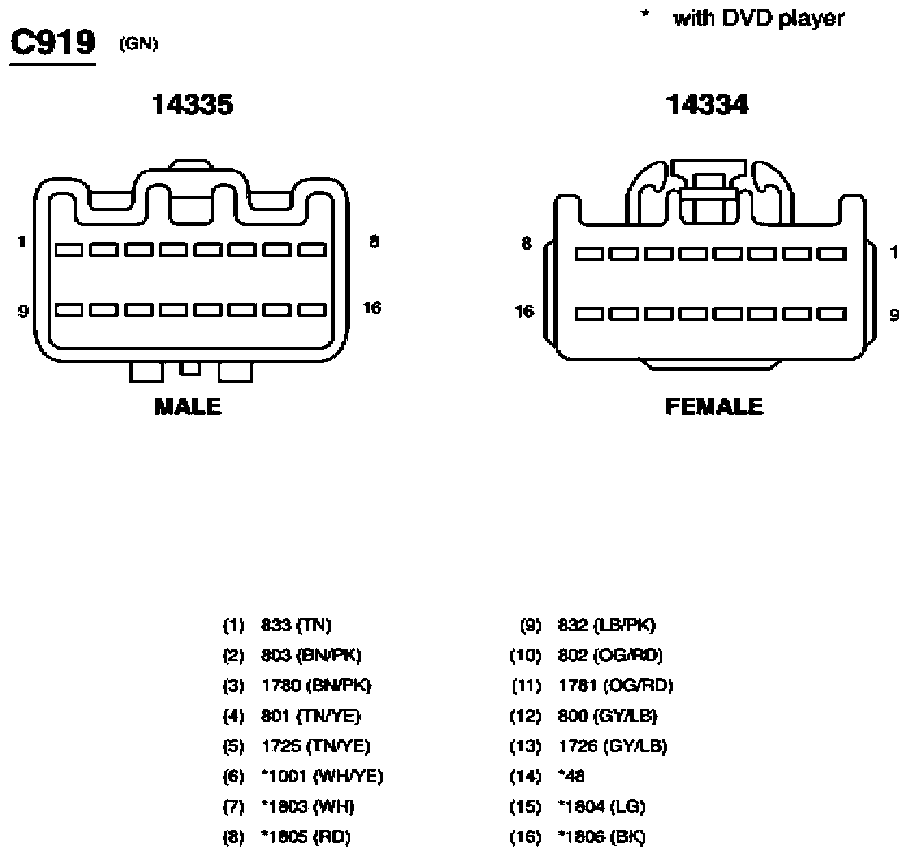

Fig 191: Inline Connector End View (C919)
G07838502Courtesy of FORD MOTOR CO.

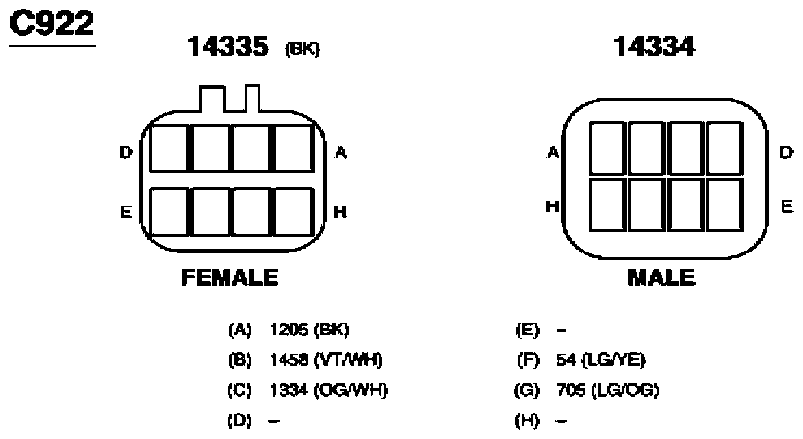

Fig 192: Inline Connector End View (C922)
G07838503Courtesy of FORD MOTOR CO.

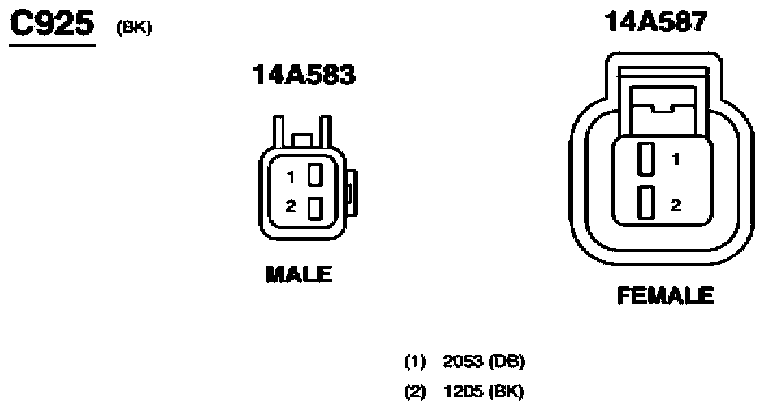

Fig 193: Inline Connector End View (C925)
G07838504Courtesy of FORD MOTOR CO.

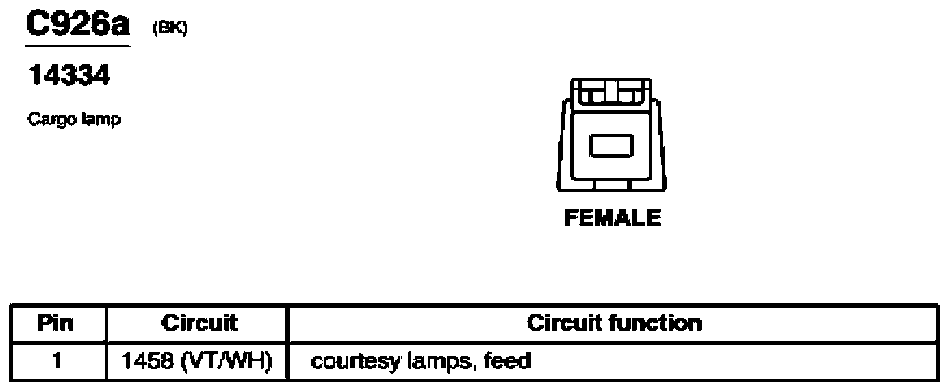

Fig 194: Cargo Lamp Connector End View (C926a)
G07838505Courtesy of FORD MOTOR CO.

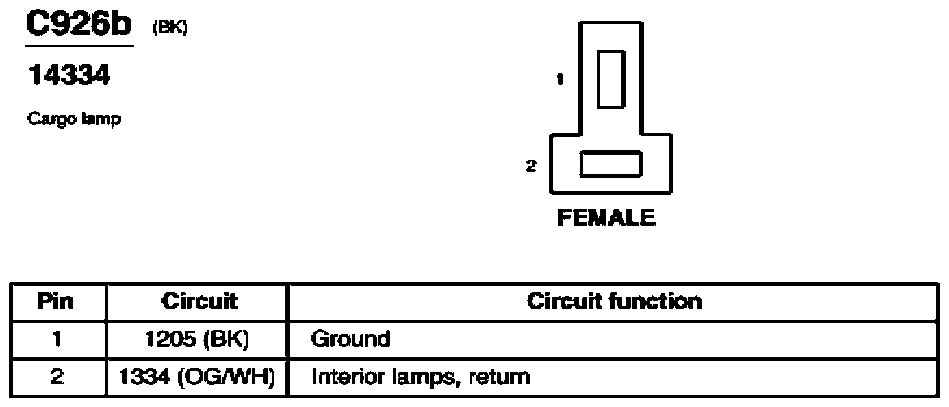

Fig 195: Cargo Lamp Connector End View (C926b)
G07838506Courtesy of FORD MOTOR CO.

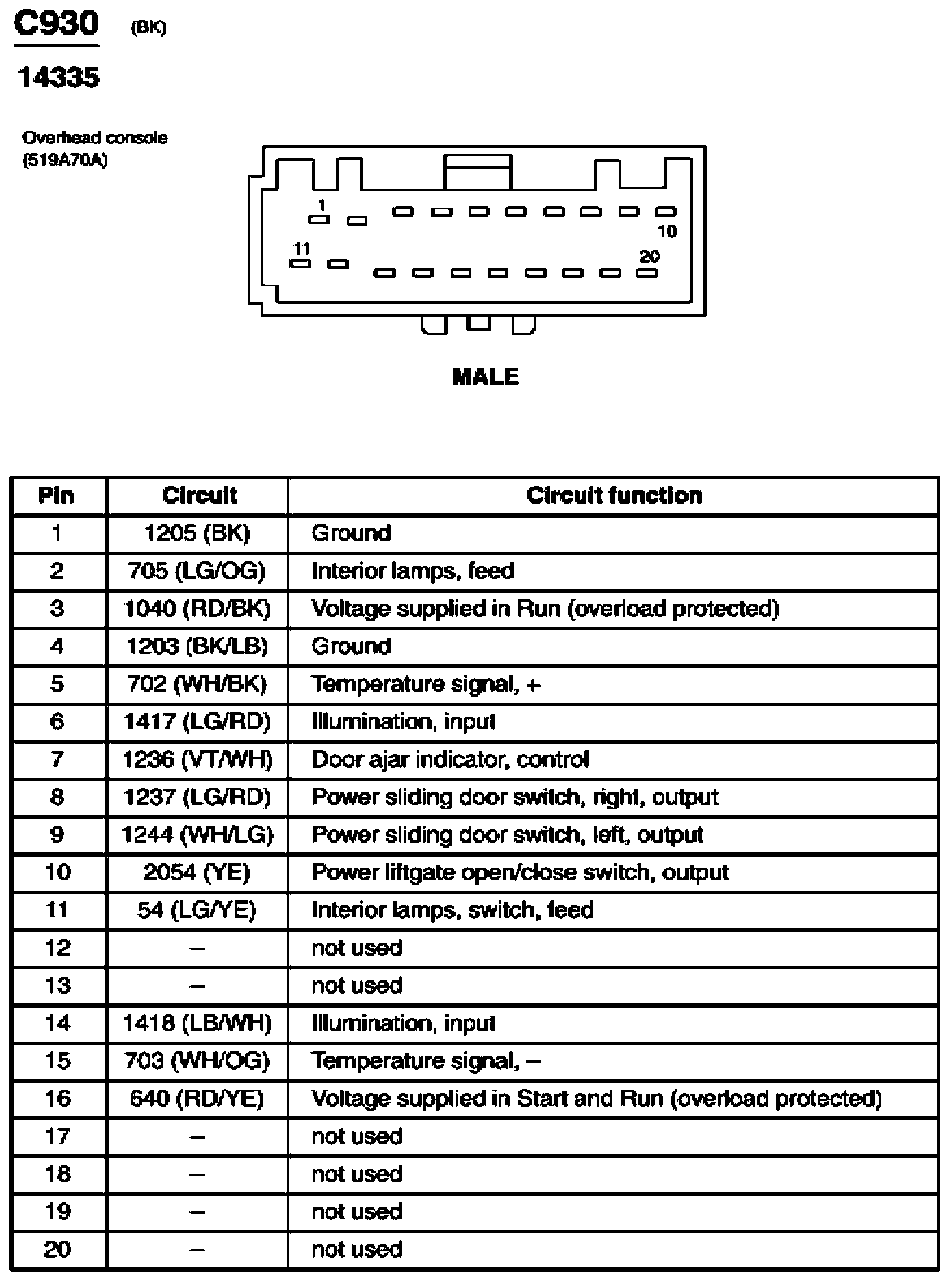

Fig 196: Overhead Console Connector End View (C930)
G07838507Courtesy of FORD MOTOR CO.

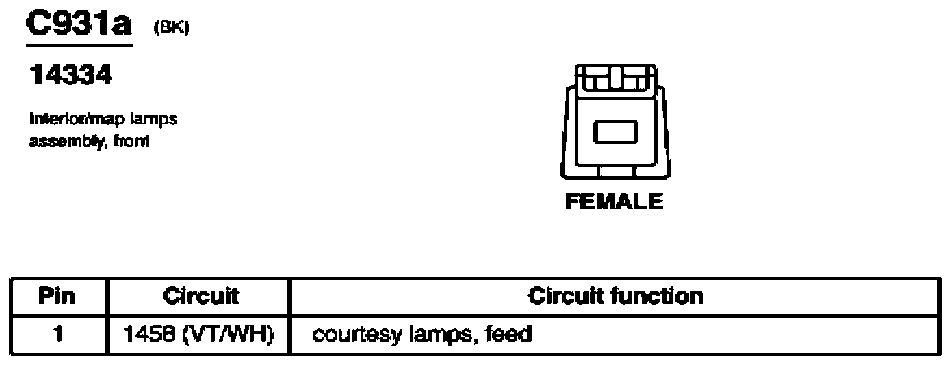

Fig 197: Interior/Map Lamps Assembly, Front Connector End View (C931a)
G07838508Courtesy of FORD MOTOR CO.

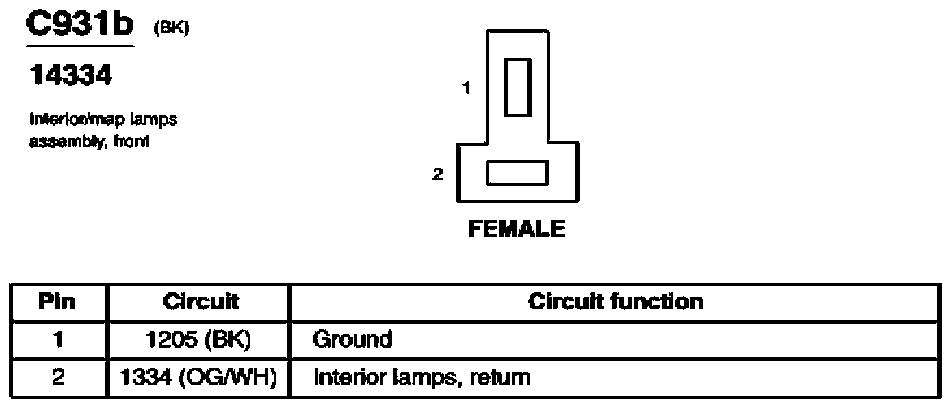

Fig 198: Interior/Map Lamps Assembly, Front Connector End View (C931b)
G07838509Courtesy of FORD MOTOR CO.
Fig 199: Interior/Map Lamps Assembly, Rear Connector End View (C932a)
G07838510Courtesy of FORD MOTOR CO.

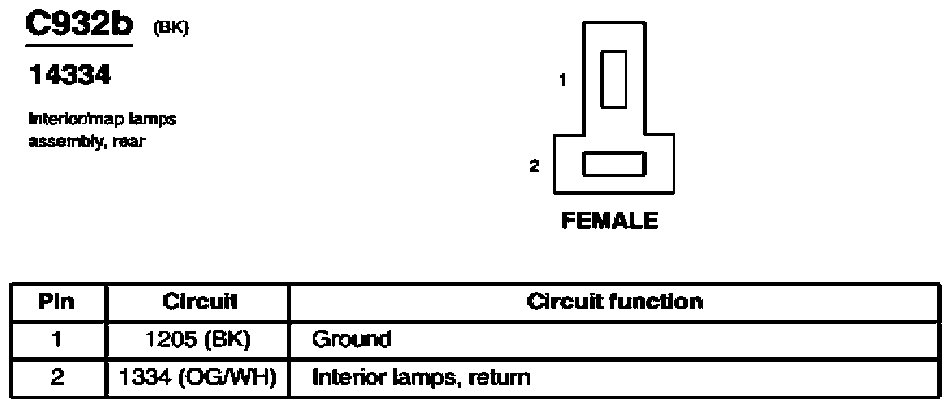

Fig 200: Interior/Map Lamps Assembly, Rear Connector End View (C932b)
G07838511Courtesy of FORD MOTOR CO.

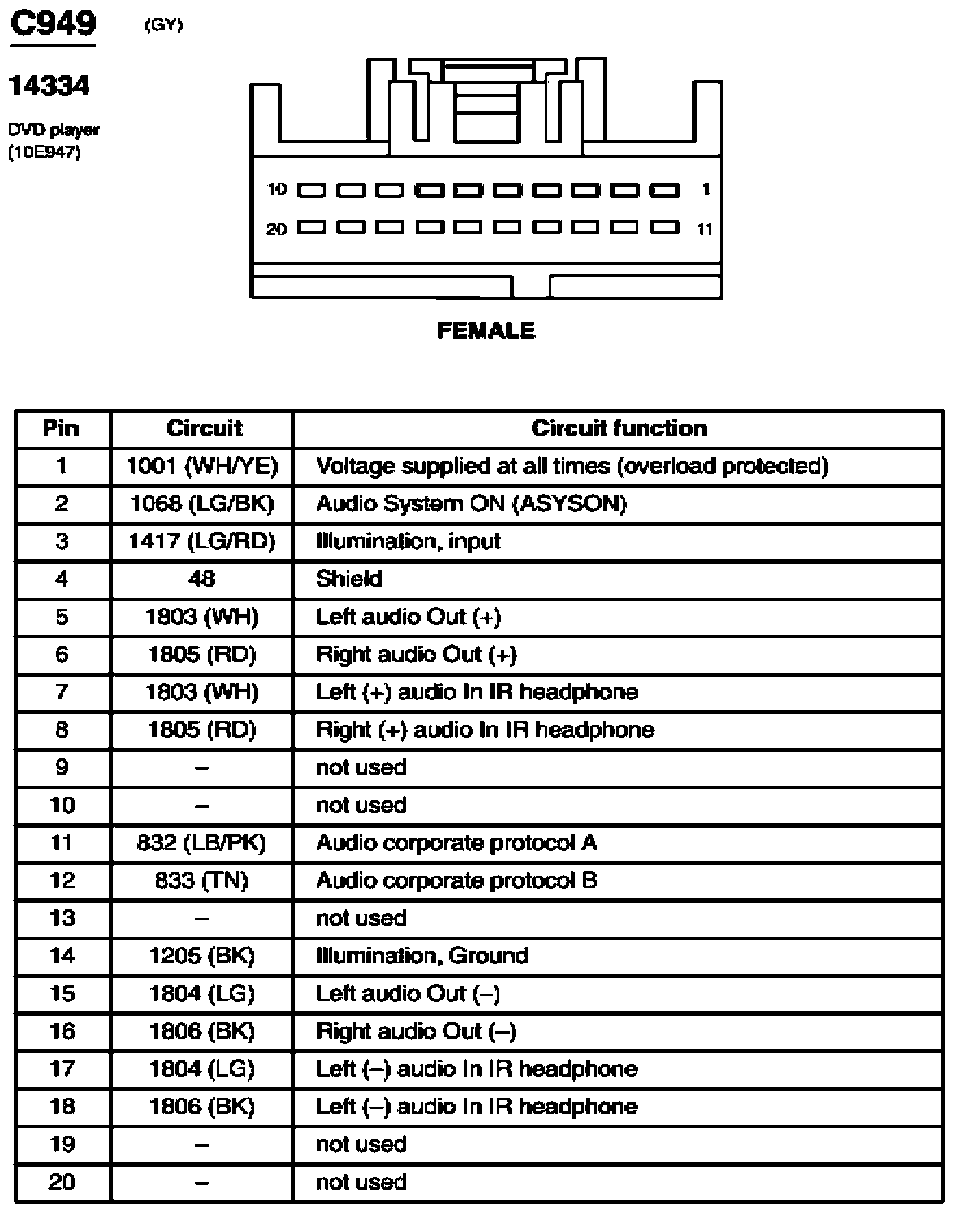

Fig 201: DVD Player Connector End View (C949)
G07838512Courtesy of FORD MOTOR CO.

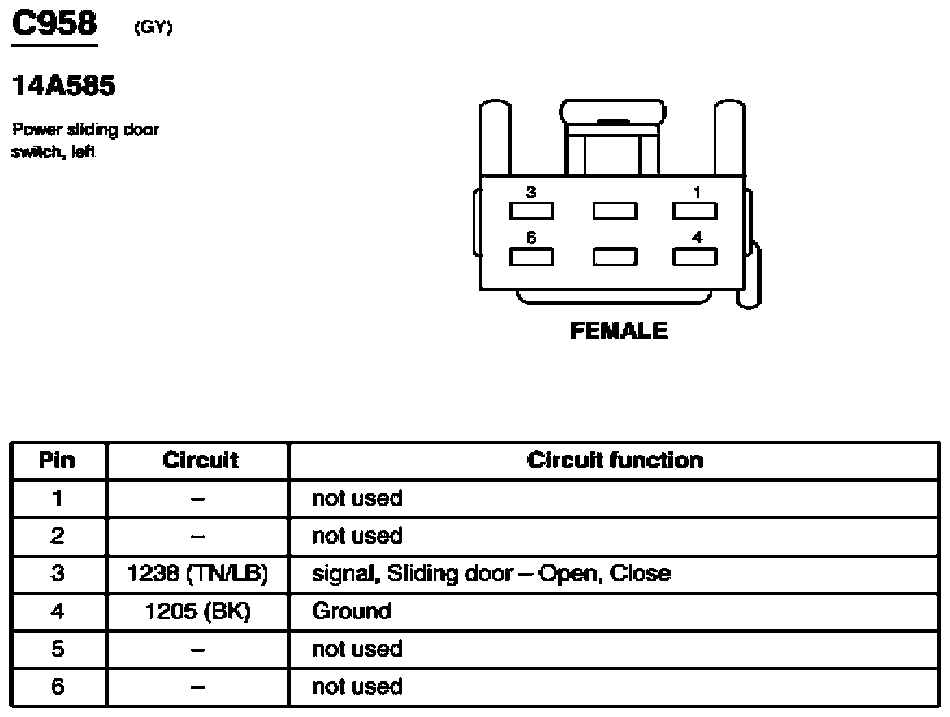

Fig 202: Power Sliding Door Switch, Left Connector End View (C958)
G07838513Courtesy of FORD MOTOR CO.

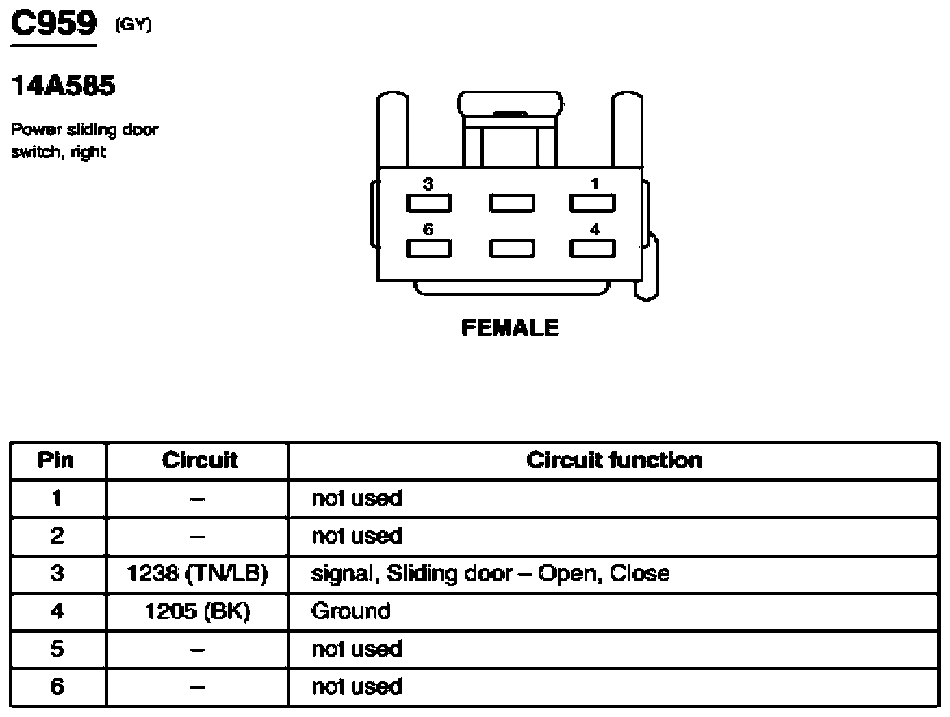

Fig 203: Power Sliding Door Switch, Right Connector End View (C959)
G07838514Courtesy of FORD MOTOR CO.

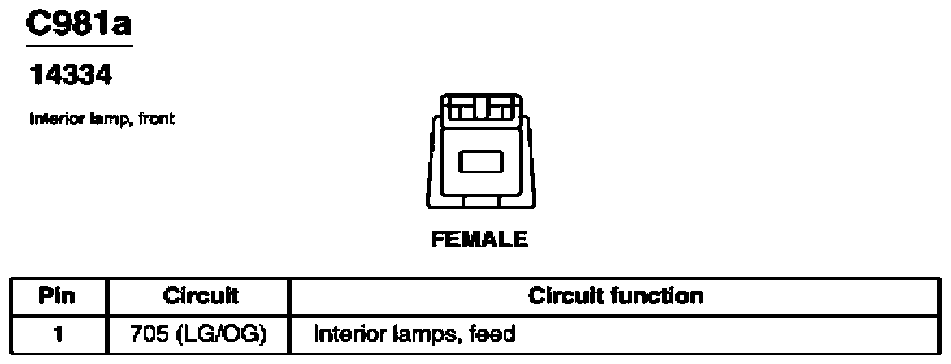

Fig 204: Interior Lamp, Front Connector End View (C981a)
G07838515Courtesy of FORD MOTOR CO.

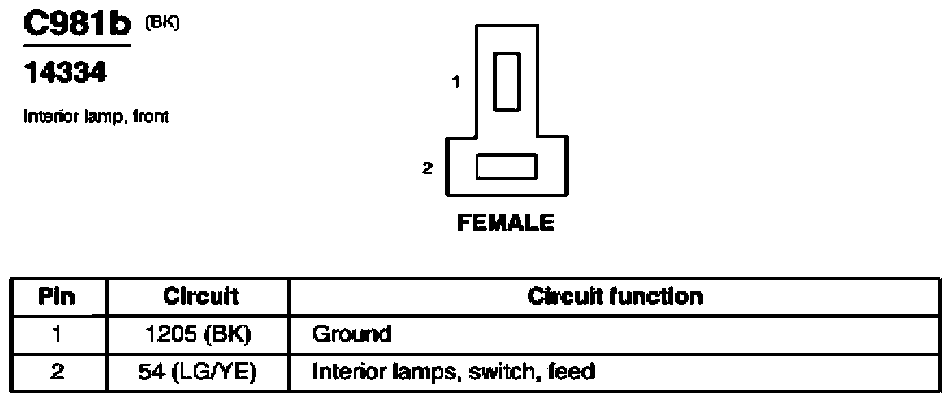

Fig 205: Interior Lamp, Front Connector End View (C981b)
G07838516Courtesy of FORD MOTOR CO.

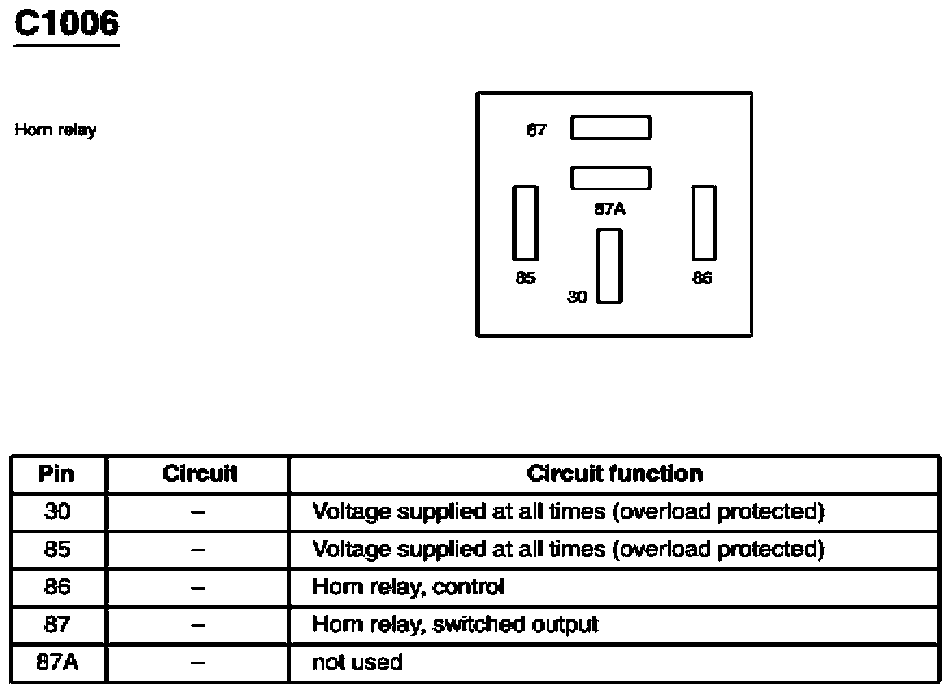

Fig 206: Horn Relay Connector End View (C1006)
G07838517Courtesy of FORD MOTOR CO.

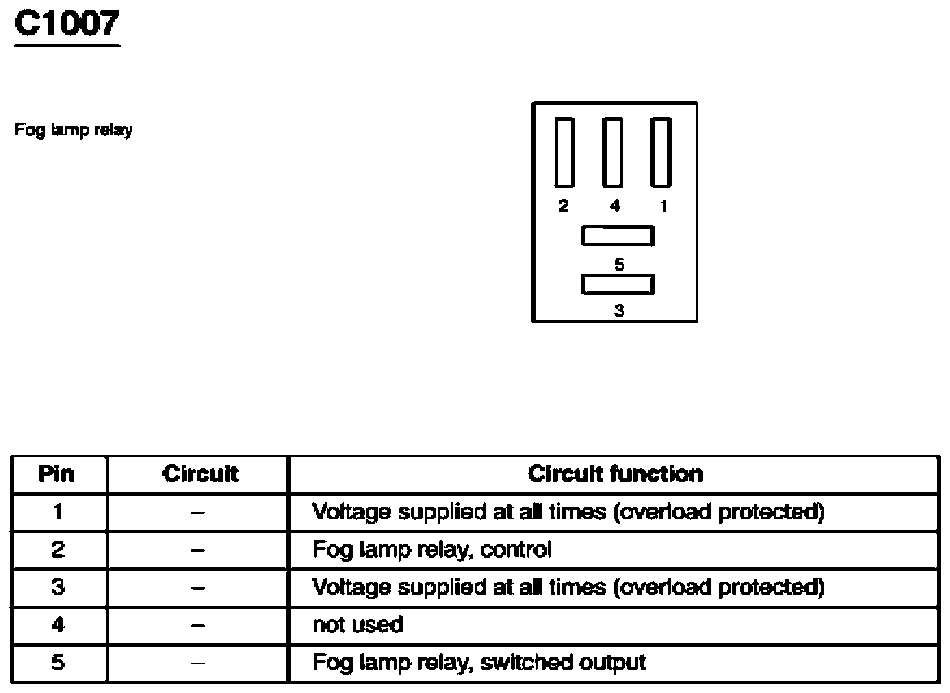

Fig 207: Fog Lamp Relay Connector End View (C1007)
G07838518Courtesy of FORD MOTOR CO.

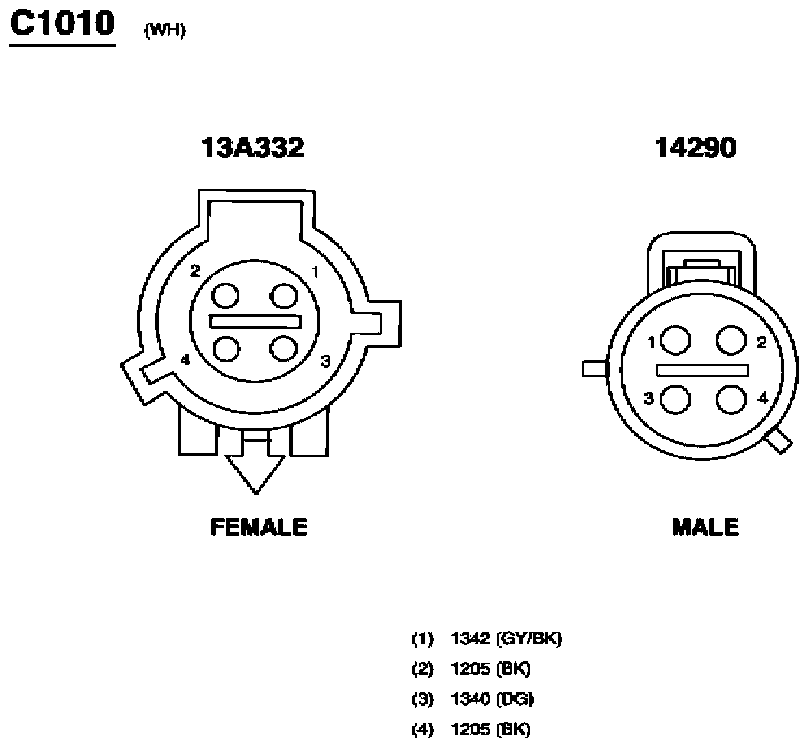

Fig 208: Inline Connector End View (C1010)
G07838519Courtesy of FORD MOTOR CO.

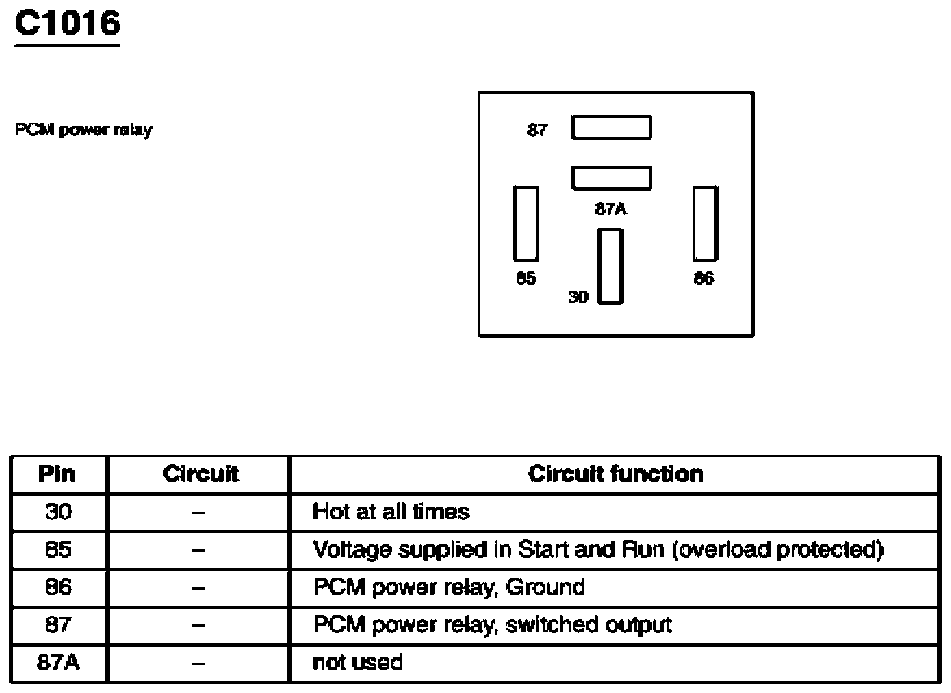

Fig 209: PCM Power Relay Connector End View (C1016)
G07838520Courtesy of FORD MOTOR CO.

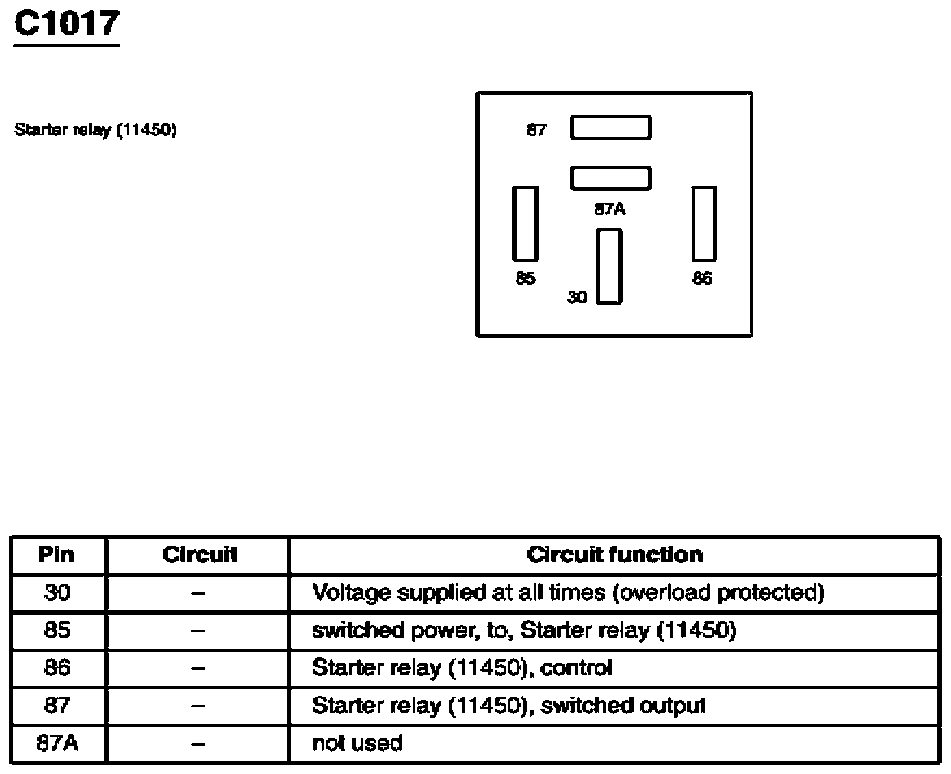

Fig 210: Starter Relay Connector End View (C1017)
G07838521Courtesy of FORD MOTOR CO.

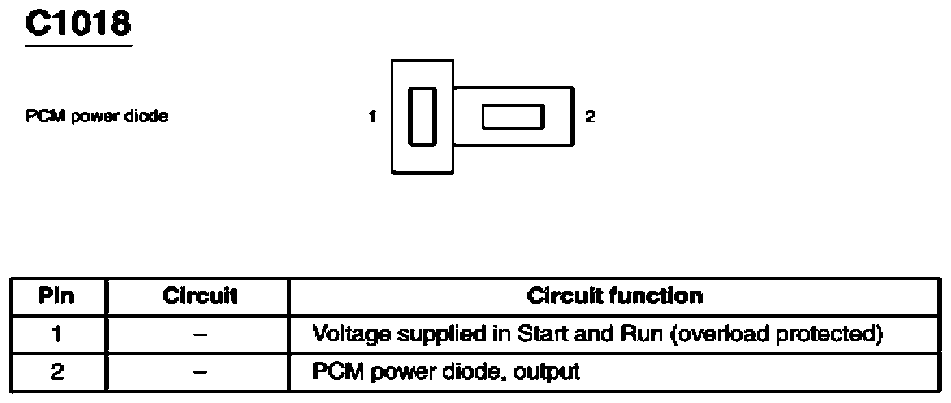

Fig 211: PCM Power Diode Connector End View (C1018)
G07838522Courtesy of FORD MOTOR CO.

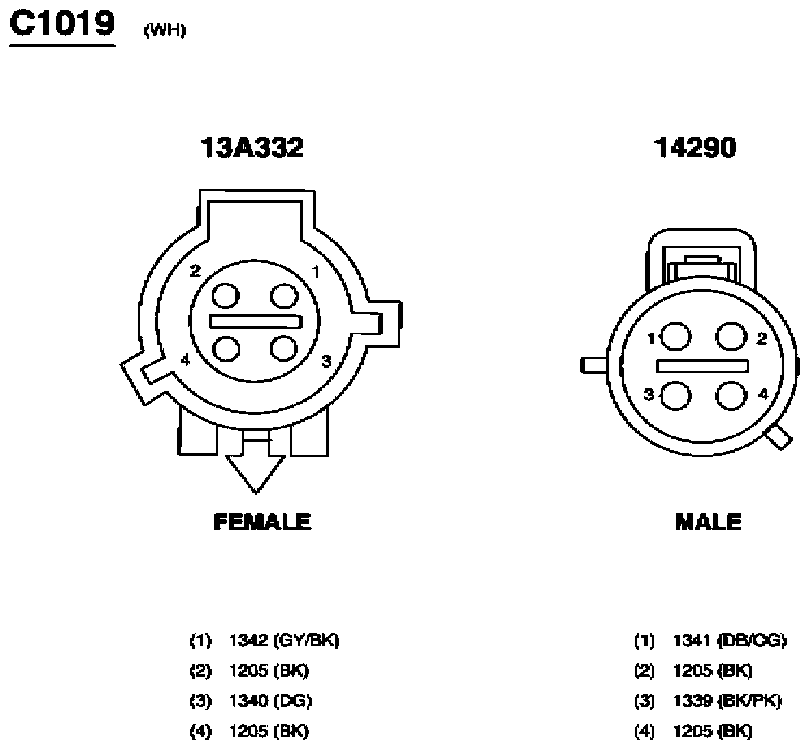

Fig 212: Inline Connector End View (C1019)
G07838523Courtesy of FORD MOTOR CO.

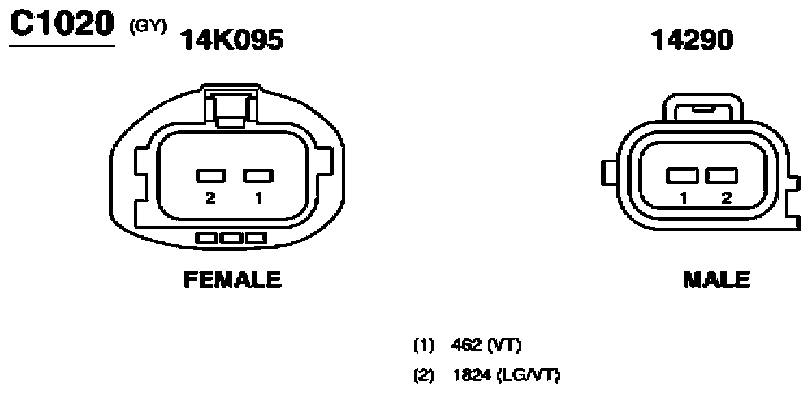

Fig 213: Inline Connector End View (C1020)
G07838524Courtesy of FORD MOTOR CO.

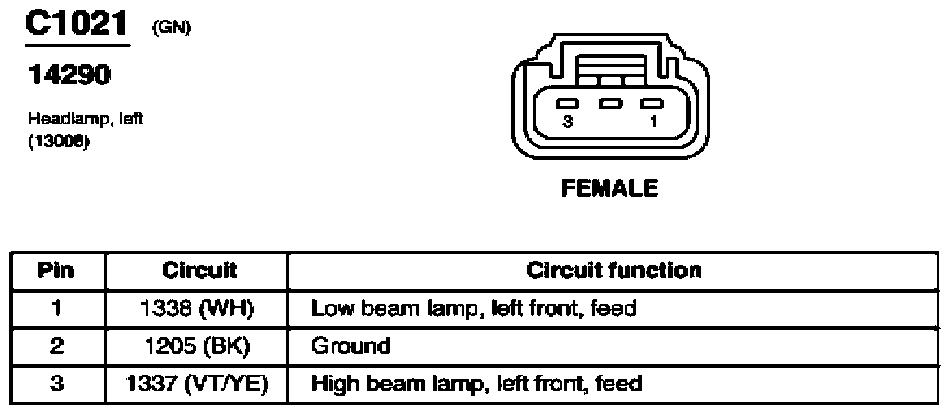

Fig 214: Headlamp, Left Connector End View (C1021)
G07838525Courtesy of FORD MOTOR CO.

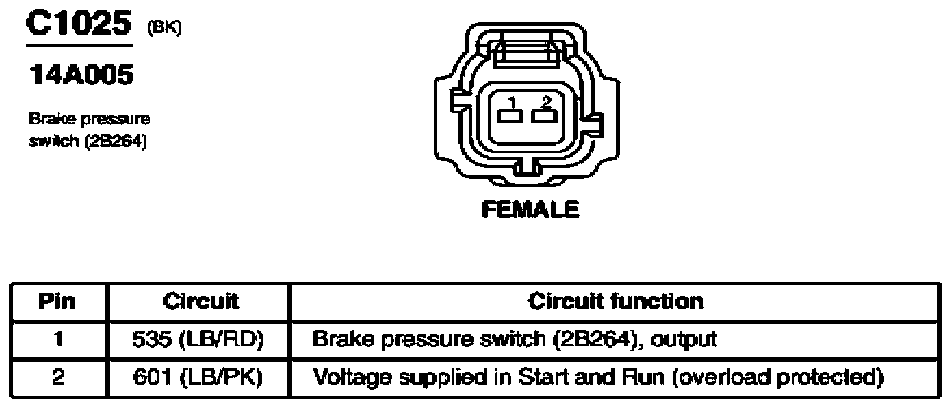

Fig 215: Brake Pressure Switch Connector End View (C1025)
G07838526Courtesy of FORD MOTOR CO.

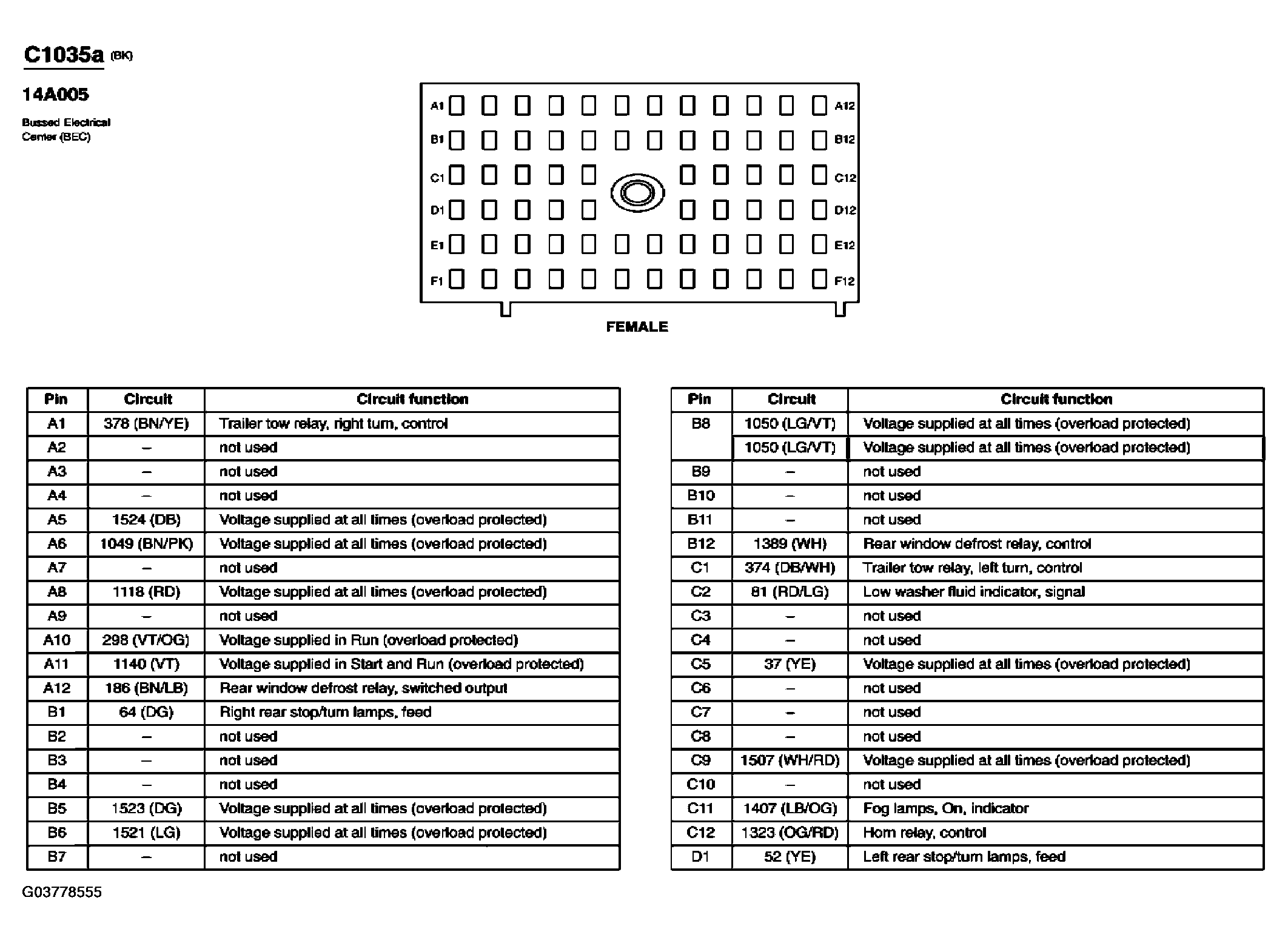

Fig 216: Restraints Control Module Connector End View (C310b) (2 Of 3)
G03778555Courtesy of FORD MOTOR CO.

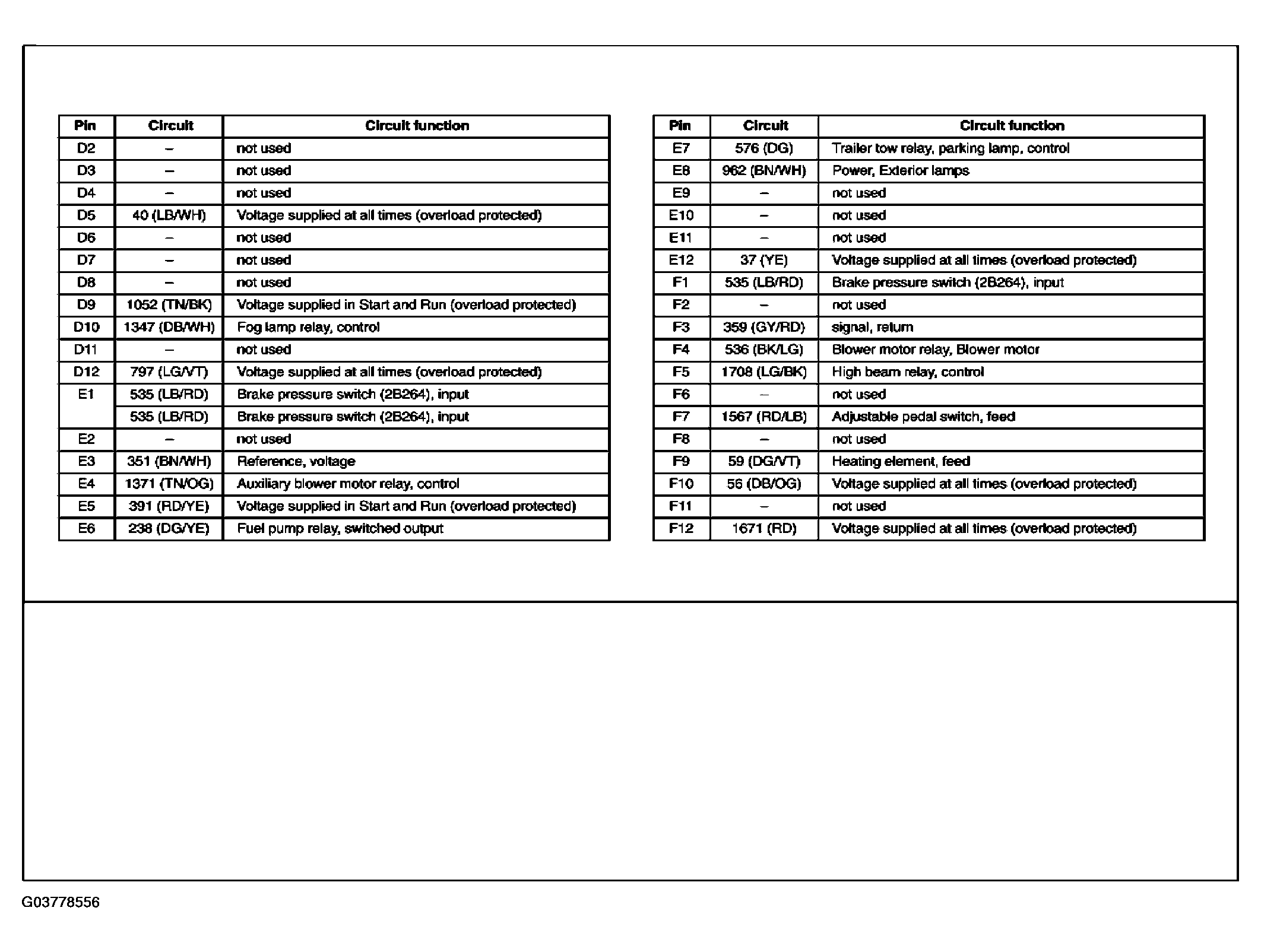

Fig 217: Restraints Control Module Connector End View (C310b) (3 Of 3)
G03778556Courtesy of FORD MOTOR CO.

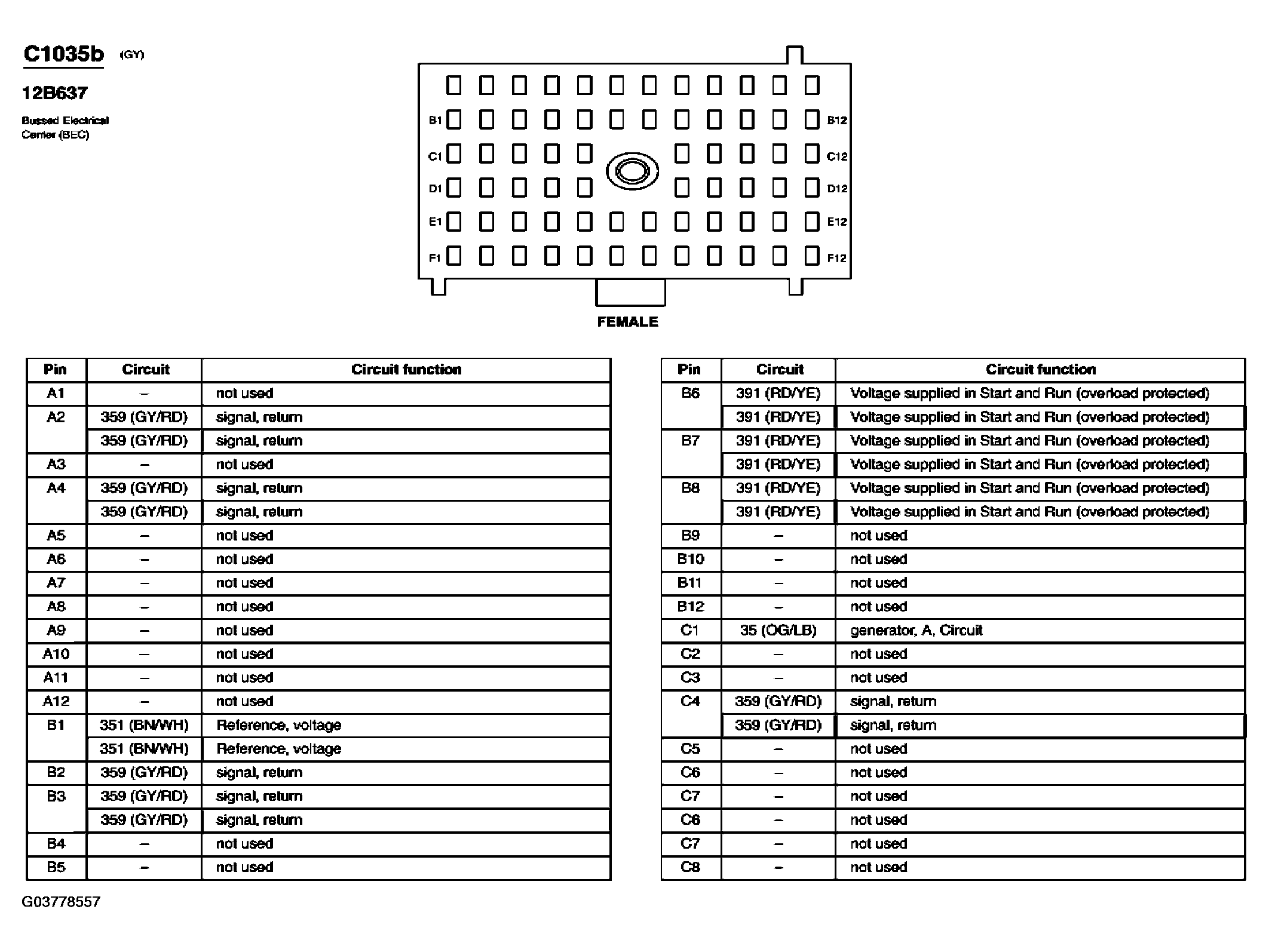

Fig 218: Bussed Electrical Center (BEC) Connector End View (C1035b) (1 Of 2)
G03778557Courtesy of FORD MOTOR CO.

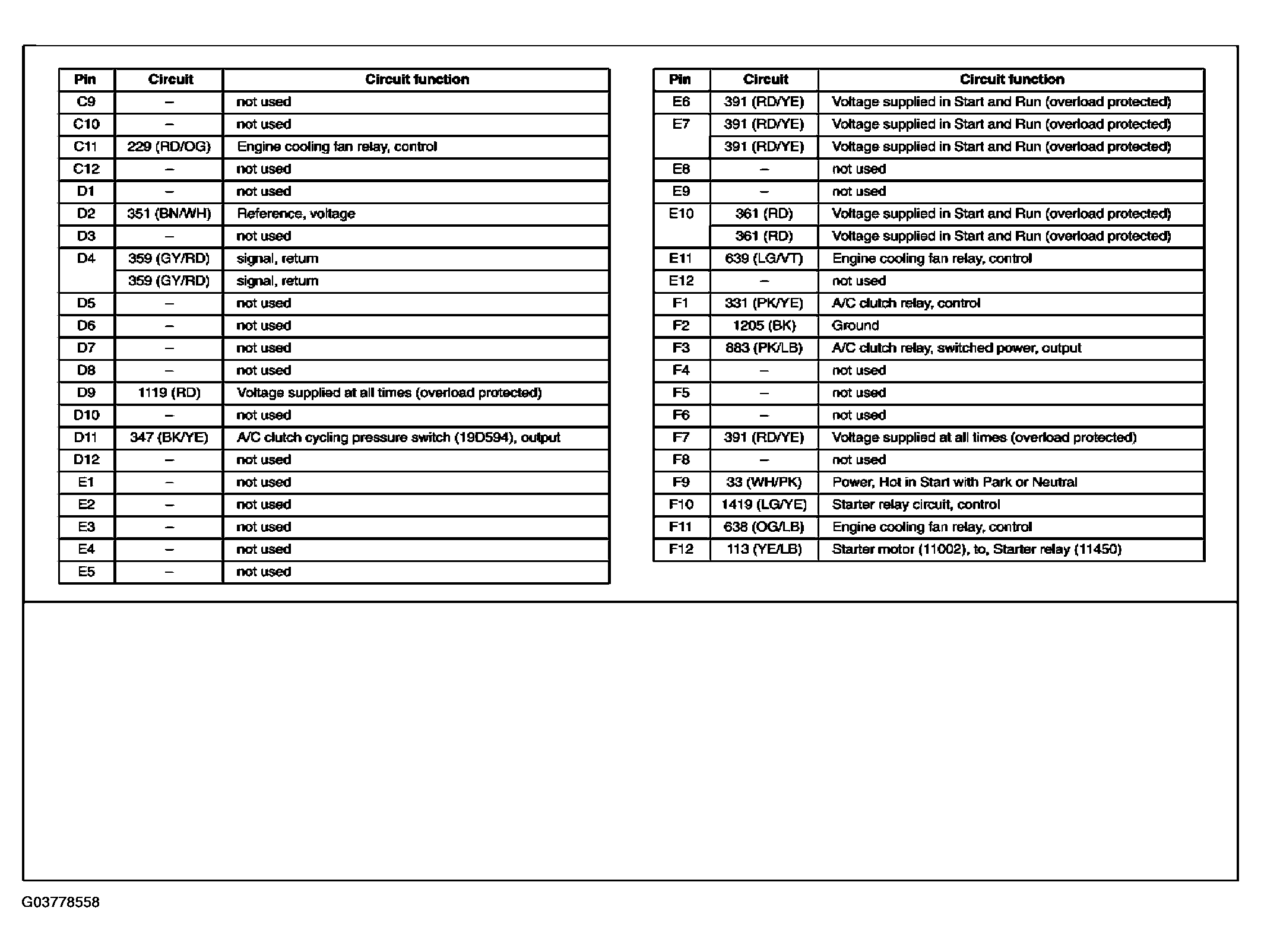

Fig 219: Bussed Electrical Center (BEC) Connector End View (C1035b) (2 Of 2)
G03778558Courtesy of FORD MOTOR CO.

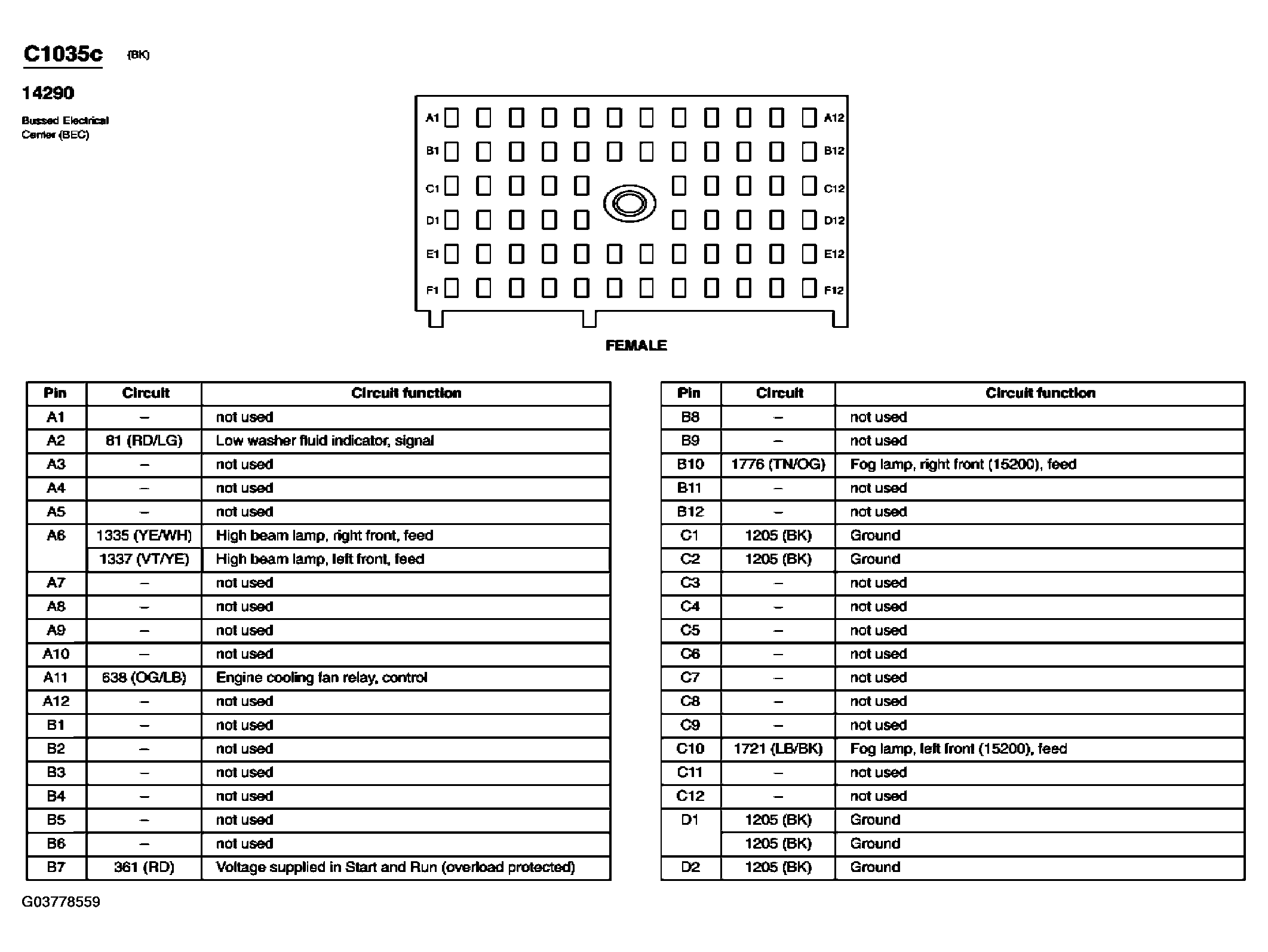

Fig 220: Bussed Electrical Center (BEC) Connector End View (C1035c) (1 Of 2)
G03778559Courtesy of FORD MOTOR CO.

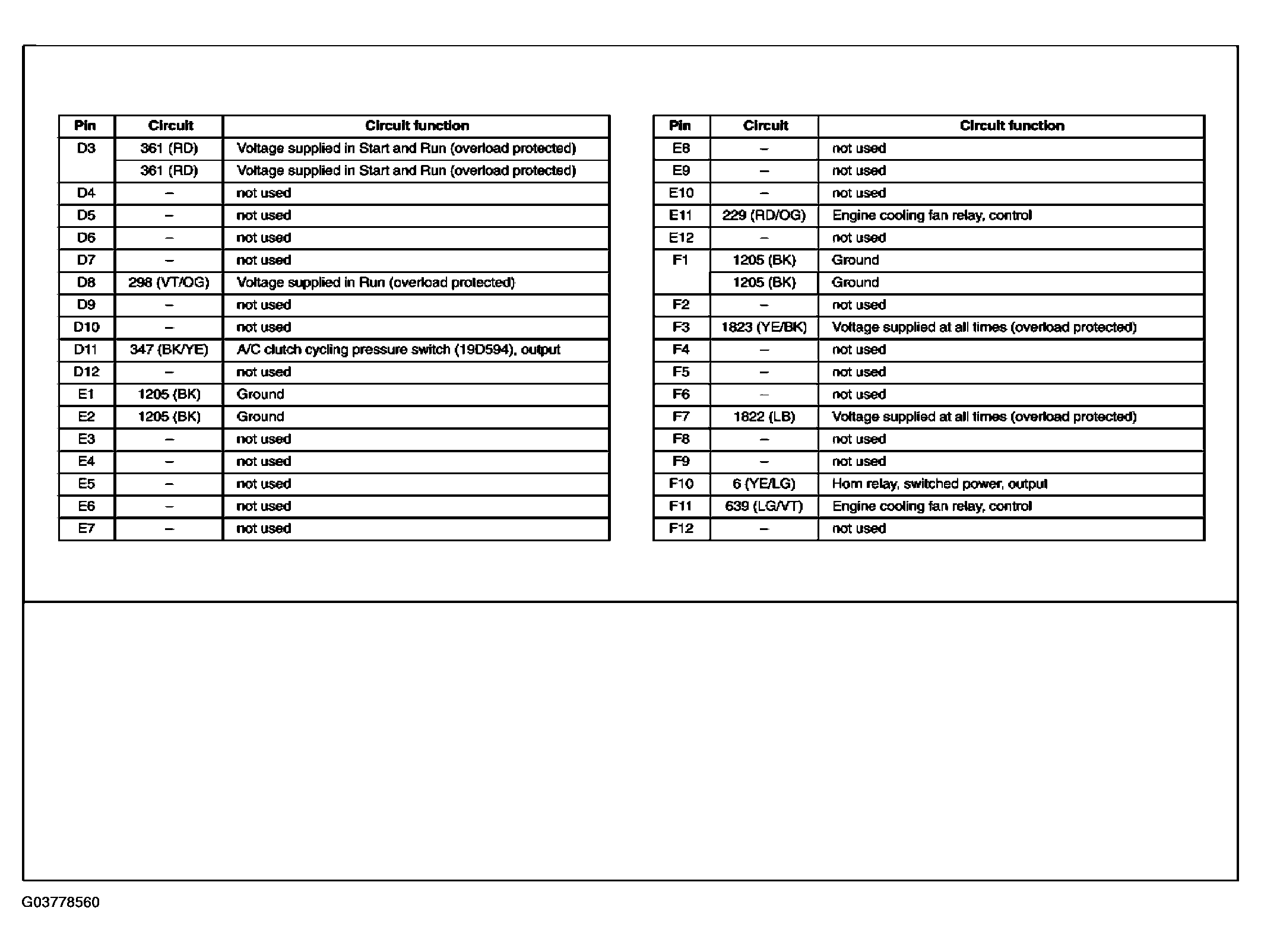

Fig 221: Bussed Electrical Center (BEC) Connector End View (C1035c) (2 Of 2)
G03778560Courtesy of FORD MOTOR CO.

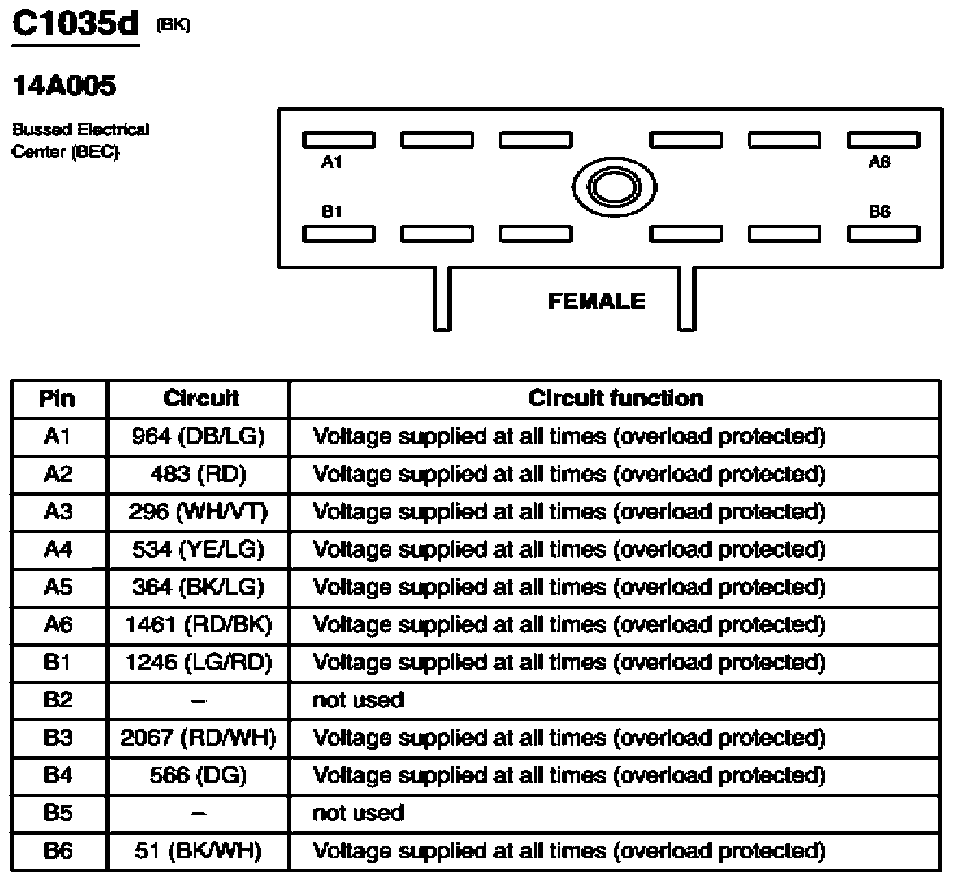

Fig 222: Bussed Electrical Center (BEC) Connector End View (C1035d)
G07838527Courtesy of FORD MOTOR CO.

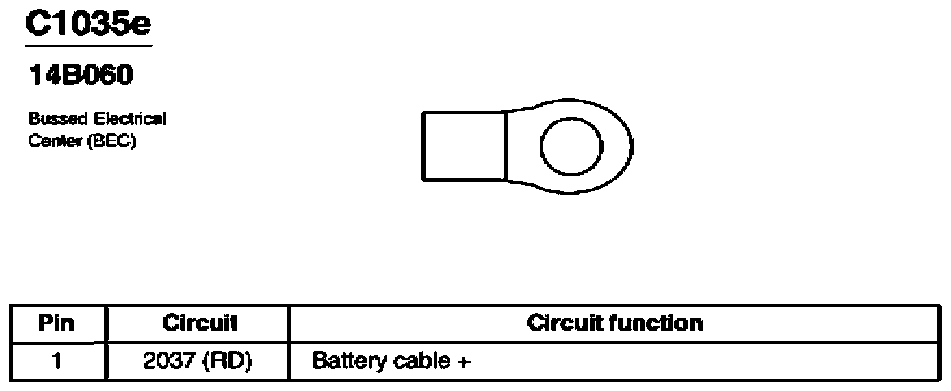

Fig 223: Bussed Electrical Center (BEC) Connector End View (C1035e)
G07838528Courtesy of FORD MOTOR CO.

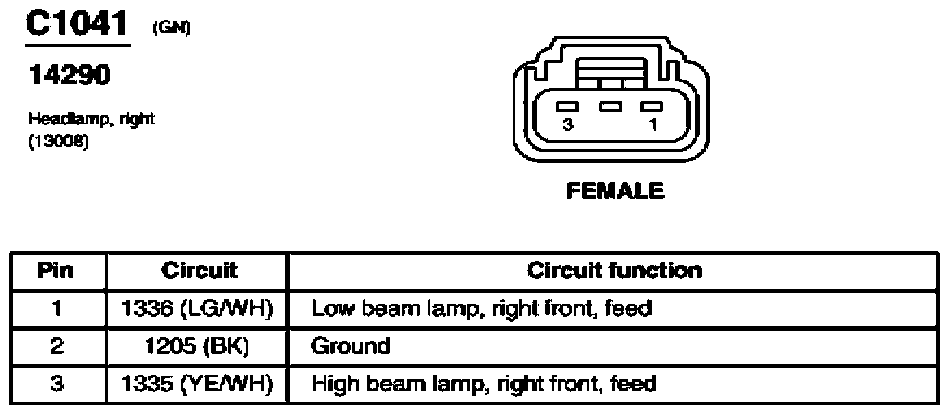

Fig 224: Headlamp, Right Connector End View (C1041)
G07838529Courtesy of FORD MOTOR CO.

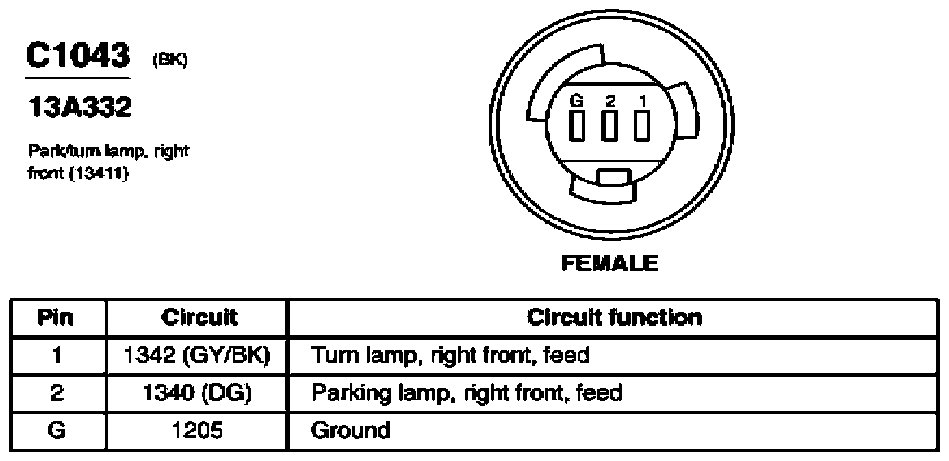

Fig 225: Park/Turn Lamp, Right Front Connector End View (C1043)
G07838530Courtesy of FORD MOTOR CO.

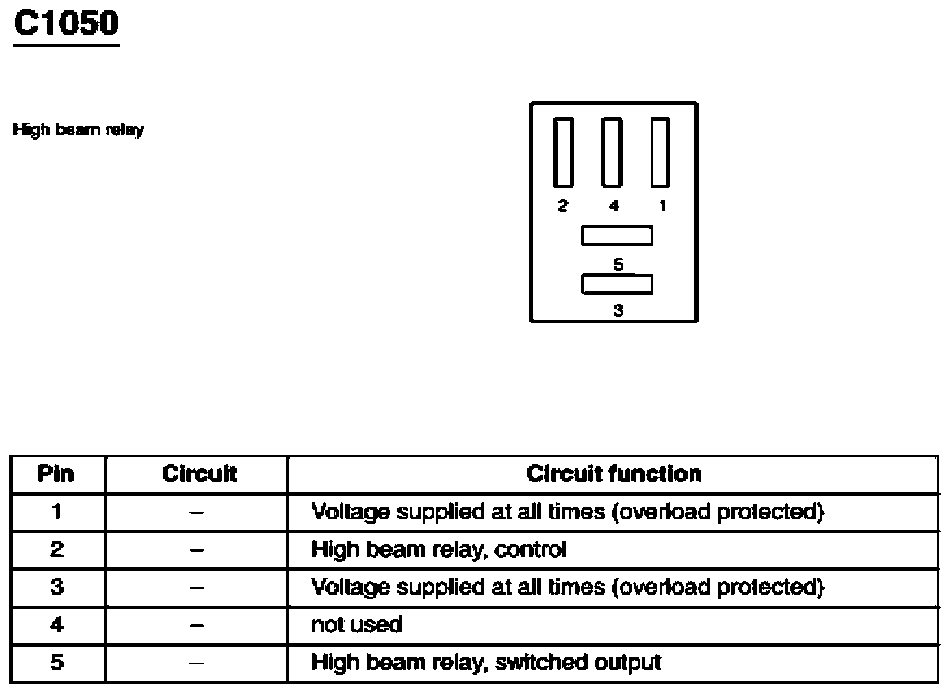

Fig 226: High Beam Relay Connector End View (C1050)
G07838531Courtesy of FORD MOTOR CO.

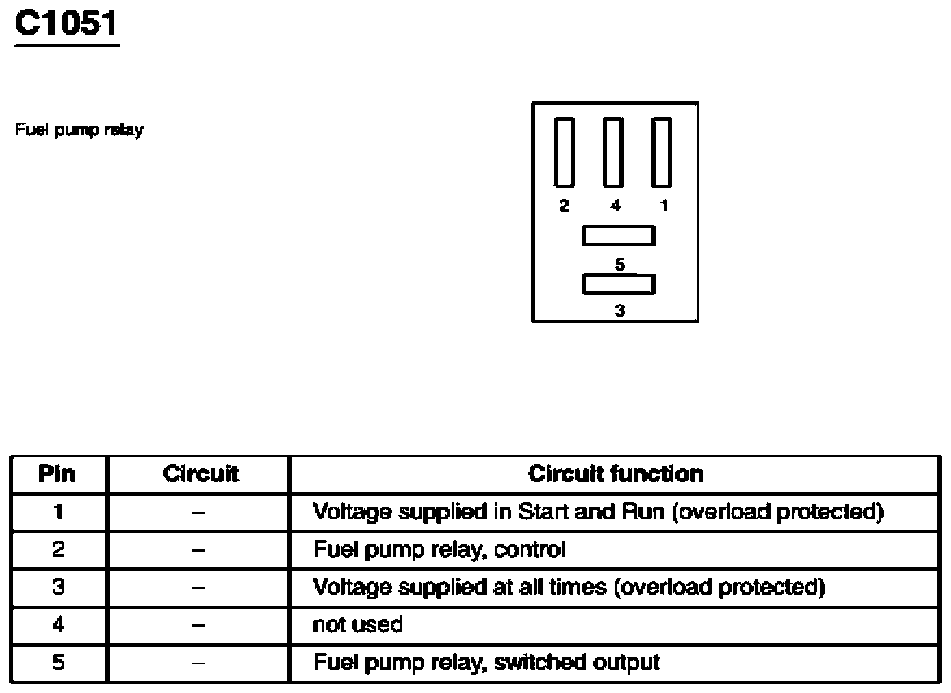

Fig 227: Fuel Pump Relay Connector End View (C1051)
G07838532Courtesy of FORD MOTOR CO.

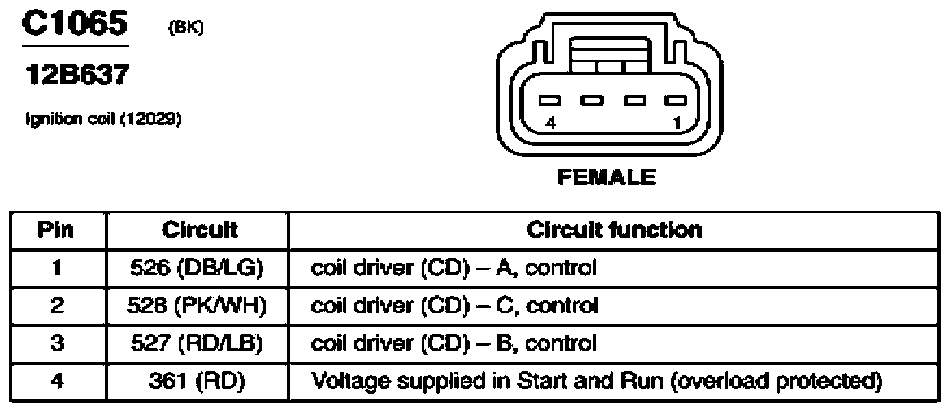

Fig 228: Ignition Coil Connector End View (C1065)
G07838533Courtesy of FORD MOTOR CO.

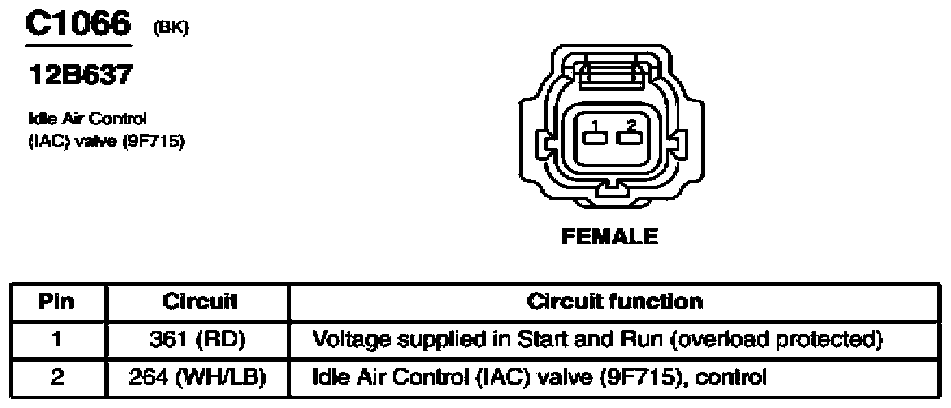

Fig 229: Idle Air Control (IAC) Valve Connector End View (C1066)
G07838534Courtesy of FORD MOTOR CO.

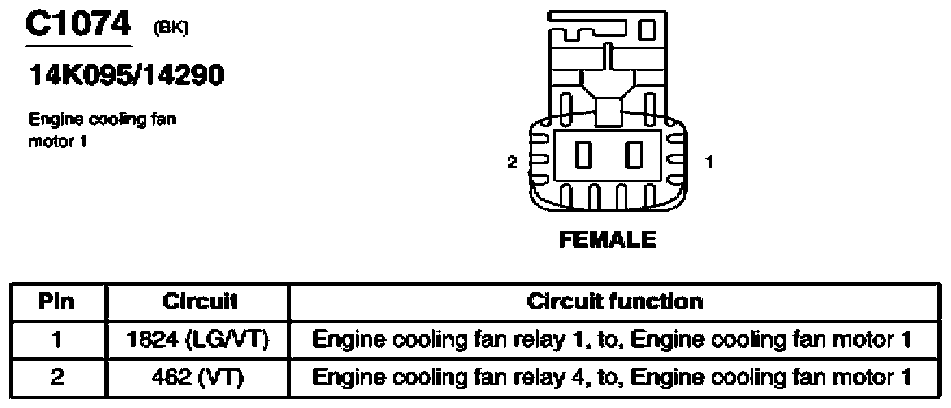

Fig 230: Engine Cooling Fan Motor 1 Connector End View (C1074)
G07838535Courtesy of FORD MOTOR CO.

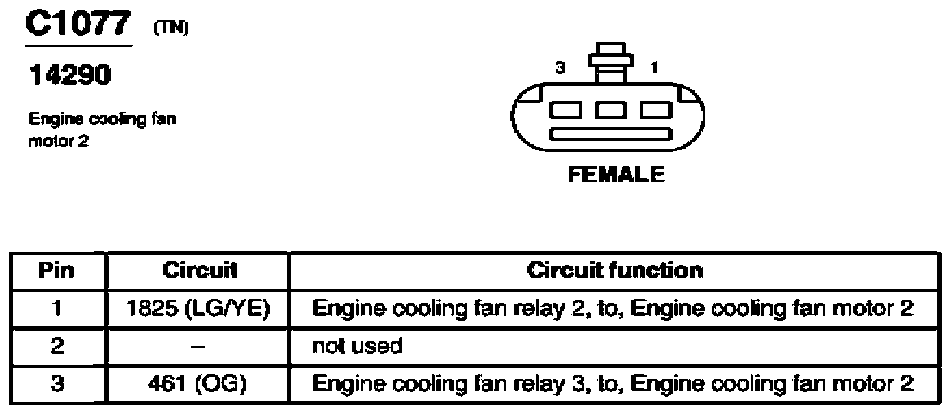

Fig 231: Engine Cooling Fan Motor 2 Connector End View (C1077)
G07838536Courtesy of FORD MOTOR CO.

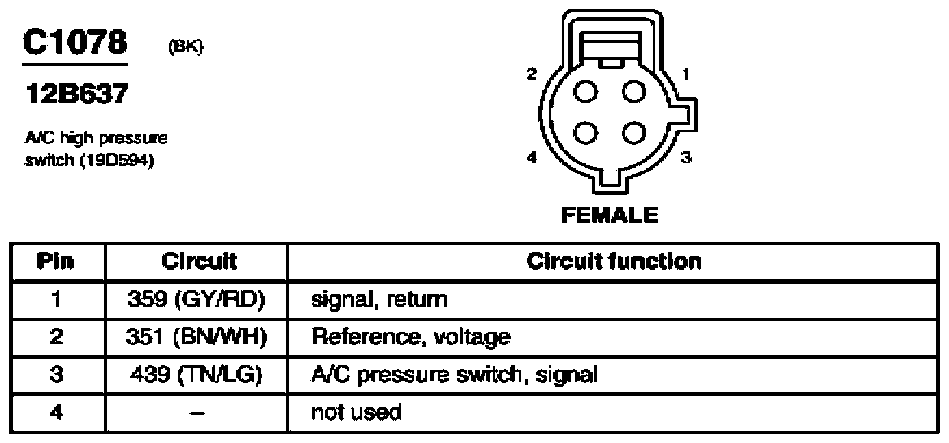

Fig 232: A/C High Pressure Switch Connector End View (C1078)
G07838537Courtesy of FORD MOTOR CO.

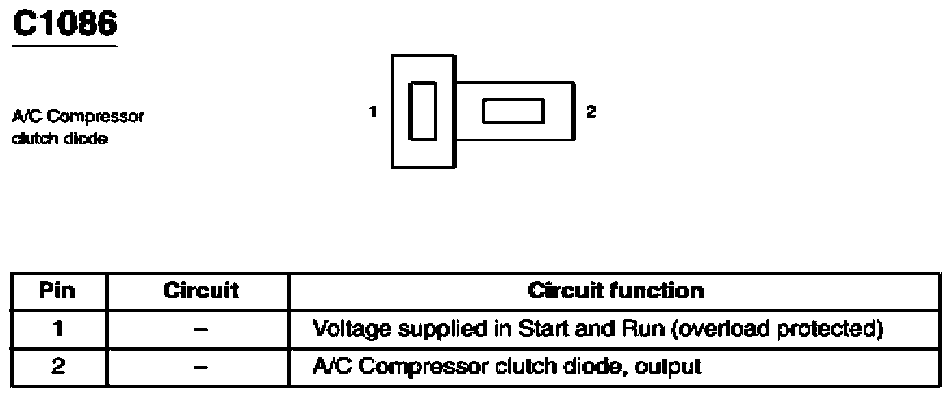

Fig 233: A/C Compressor Clutch Diode Connector End View (C1086)
G07838538Courtesy of FORD MOTOR CO.

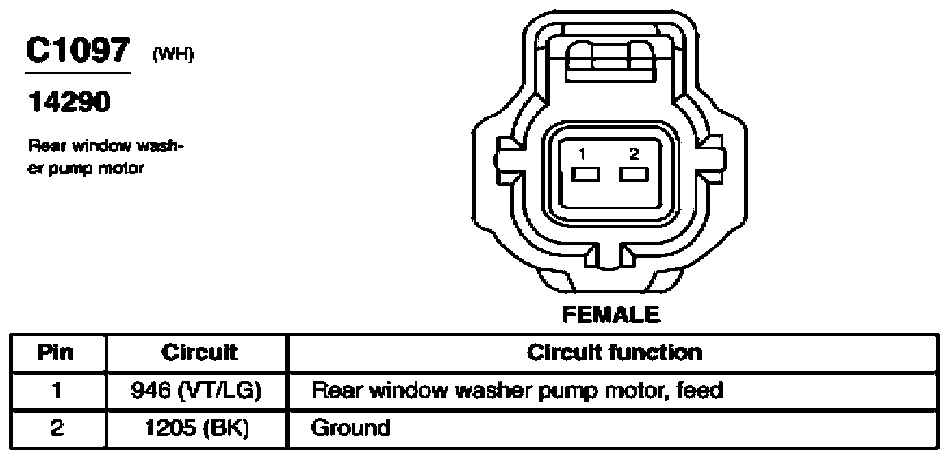

Fig 234: Rear Window Washer Pump Motor Connector End View (C1097)
G07838539Courtesy of FORD MOTOR CO.

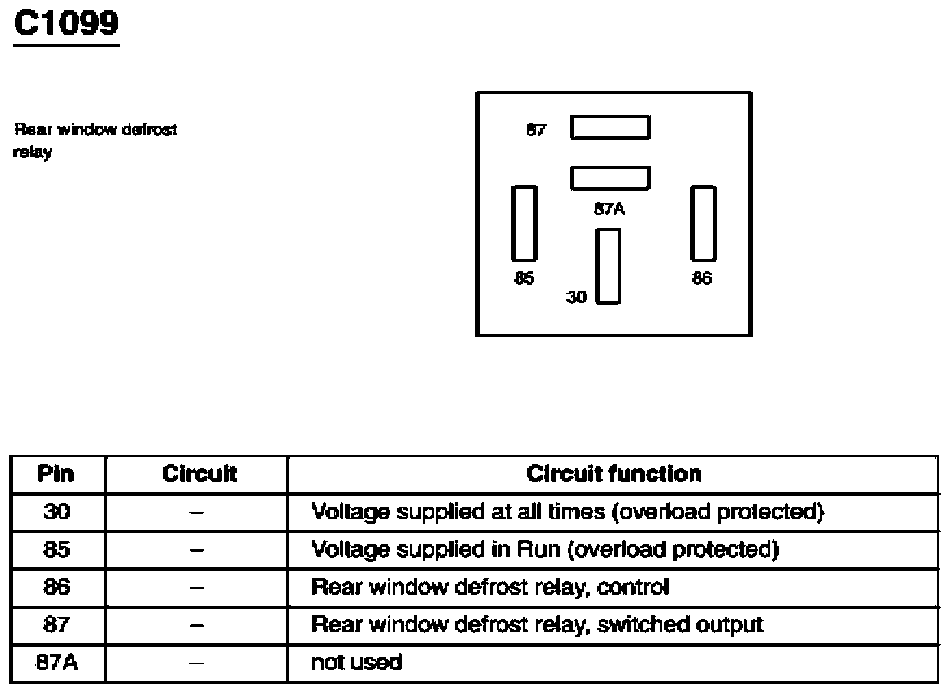

Fig 235: Rear Window Defrost Relay Connector End View (C1099)
G07838540Courtesy of FORD MOTOR CO.

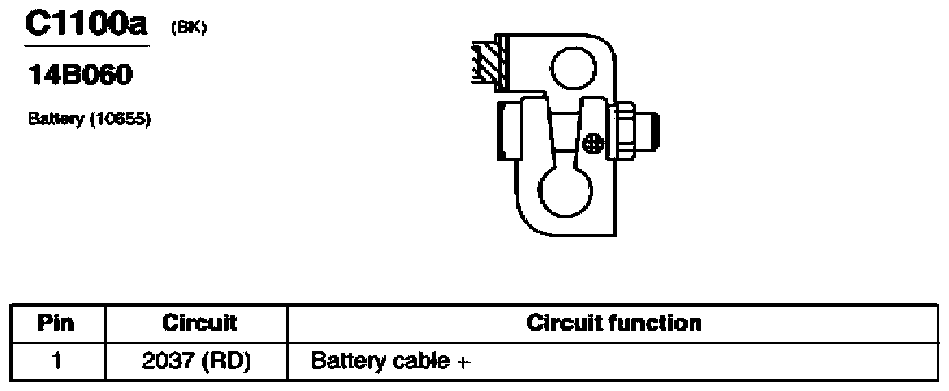

Fig 236: Battery Connector End View (C1100a)
G07838541Courtesy of FORD MOTOR CO.

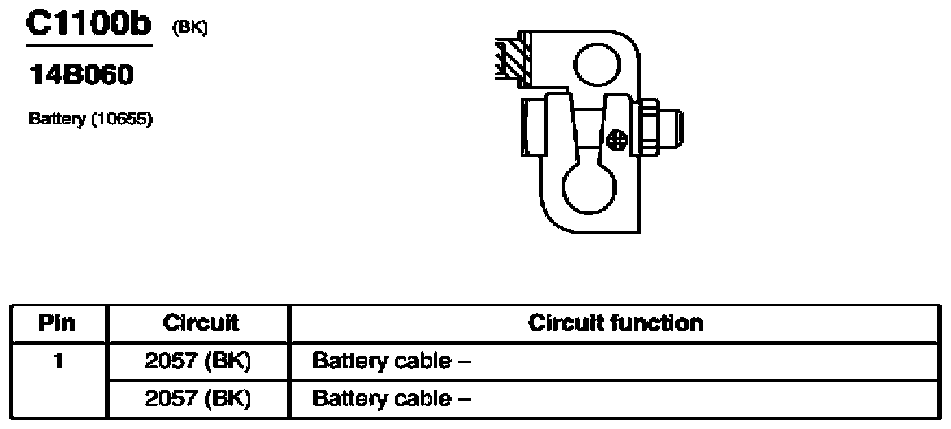

Fig 237: Battery Connector End View (C1100b)
G07838542Courtesy of FORD MOTOR CO.

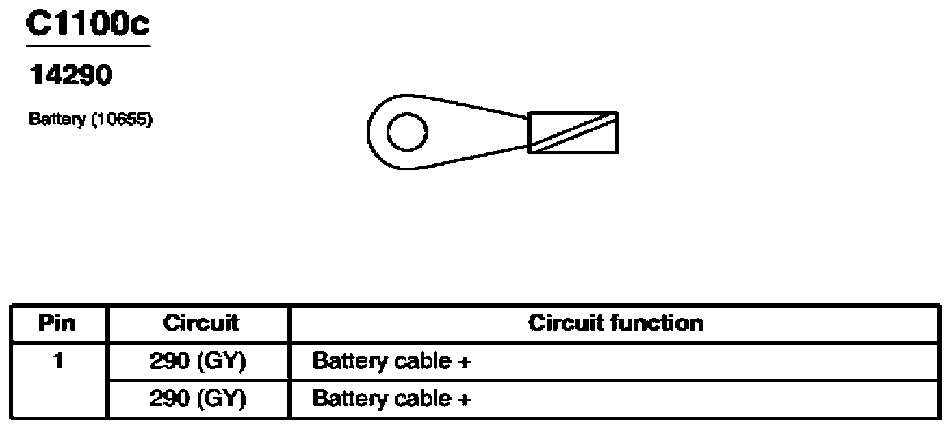

Fig 238: Battery Connector End View (C1100c)
G07838543Courtesy of FORD MOTOR CO.

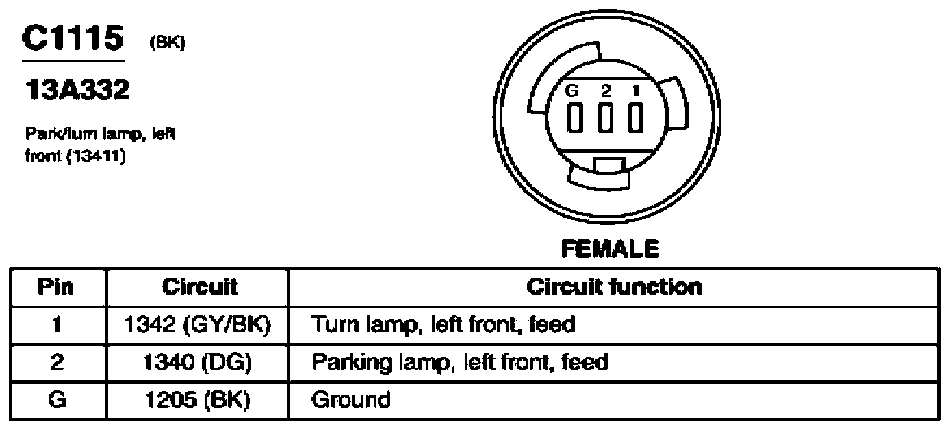

Fig 239: Park/Turn Lamp, Left Front Connector End View (C1115)
G07838544Courtesy of FORD MOTOR CO.

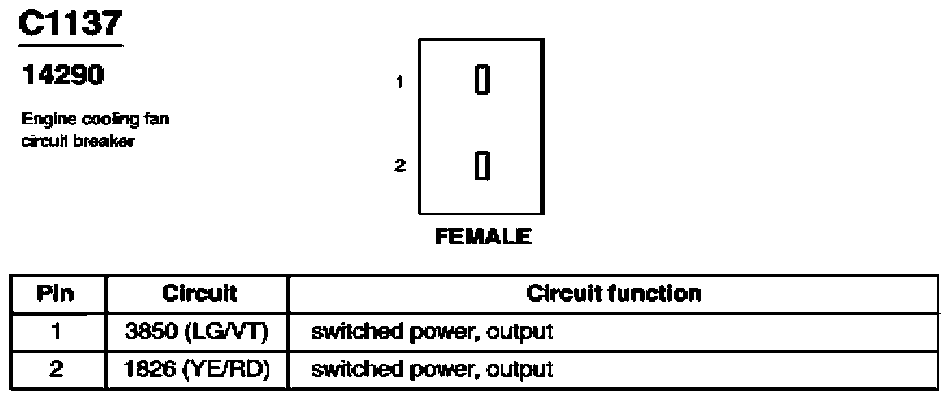

Fig 240: Engine Cooling Fan Circuit Breaker Connector End View (C1137)
G07838545Courtesy of FORD MOTOR CO.

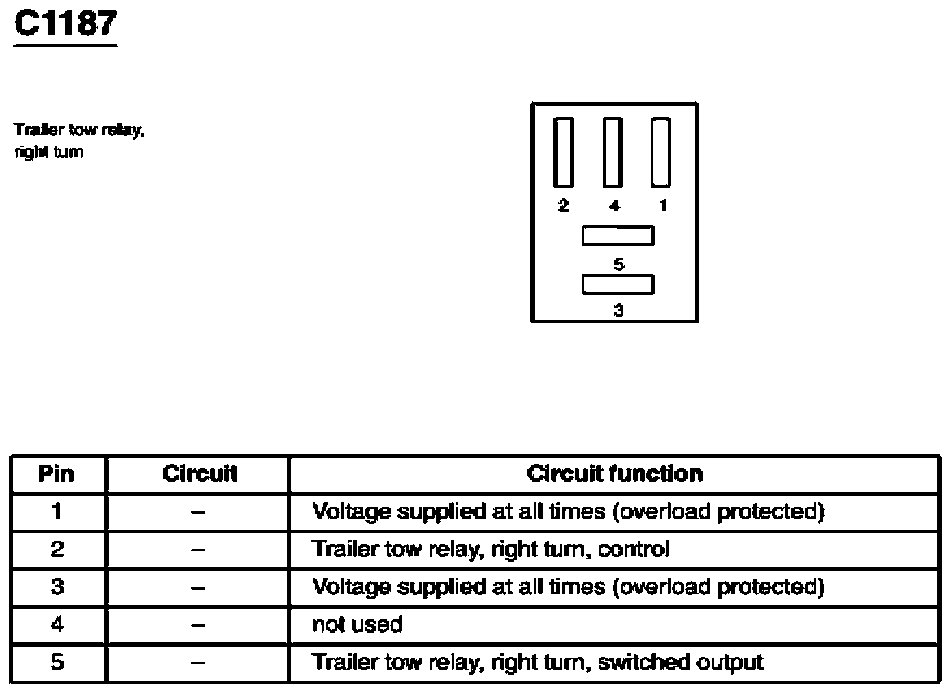

Fig 241: Trailer Tow Relay, Right Turn Connector End View (C1187)
G07838546Courtesy of FORD MOTOR CO.

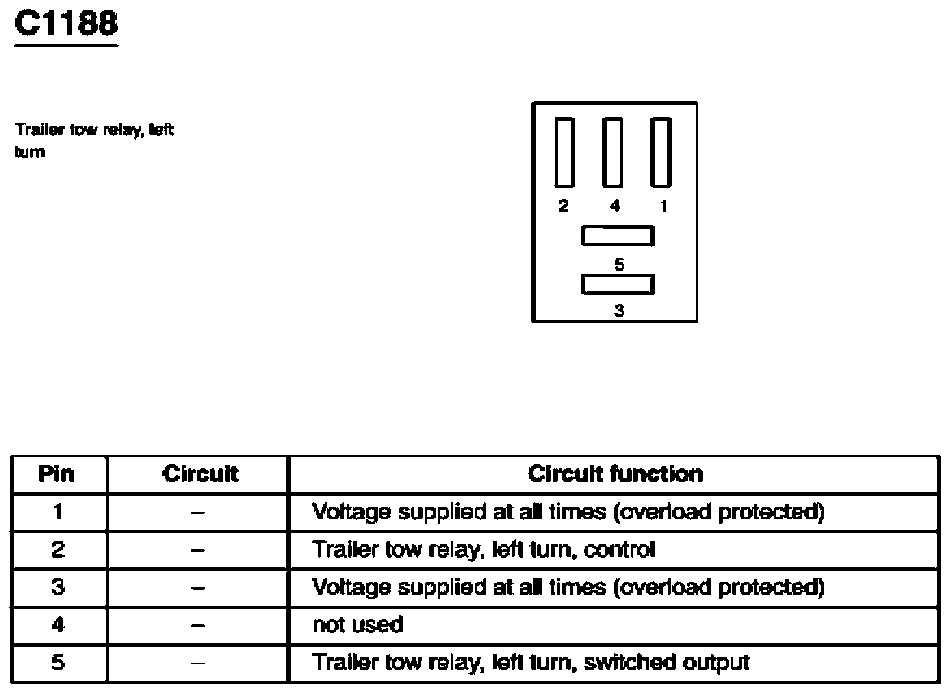

Fig 242: Trailer Tow Relay, Left Turn Connector End View (C1188)
G07838547Courtesy of FORD MOTOR CO.

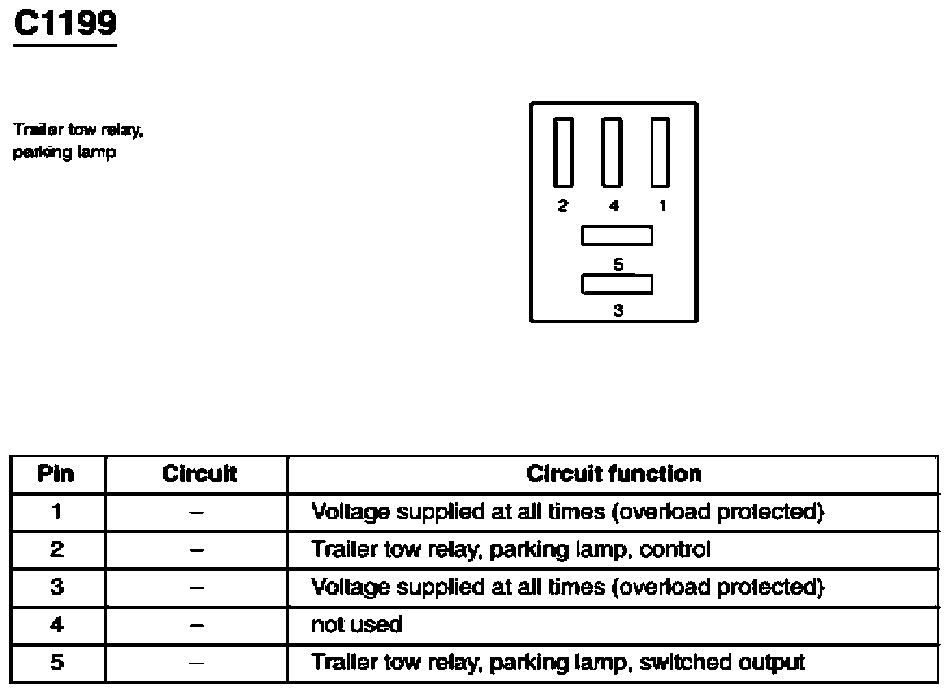

Fig 243: Trailer Tow Relay, Parking Lamp Connector End View (C1199)
G07838548Courtesy of FORD MOTOR CO.

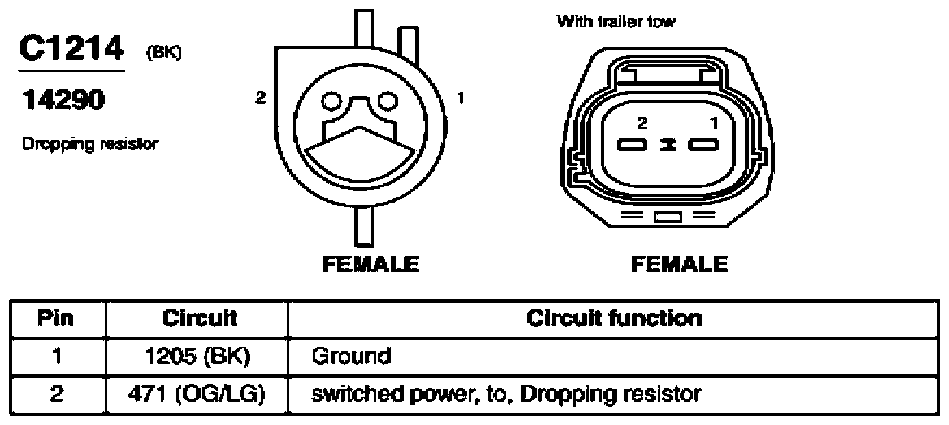

Fig 244: Dropping Resistor Connector End View (C1214)
G07838549Courtesy of FORD MOTOR CO.

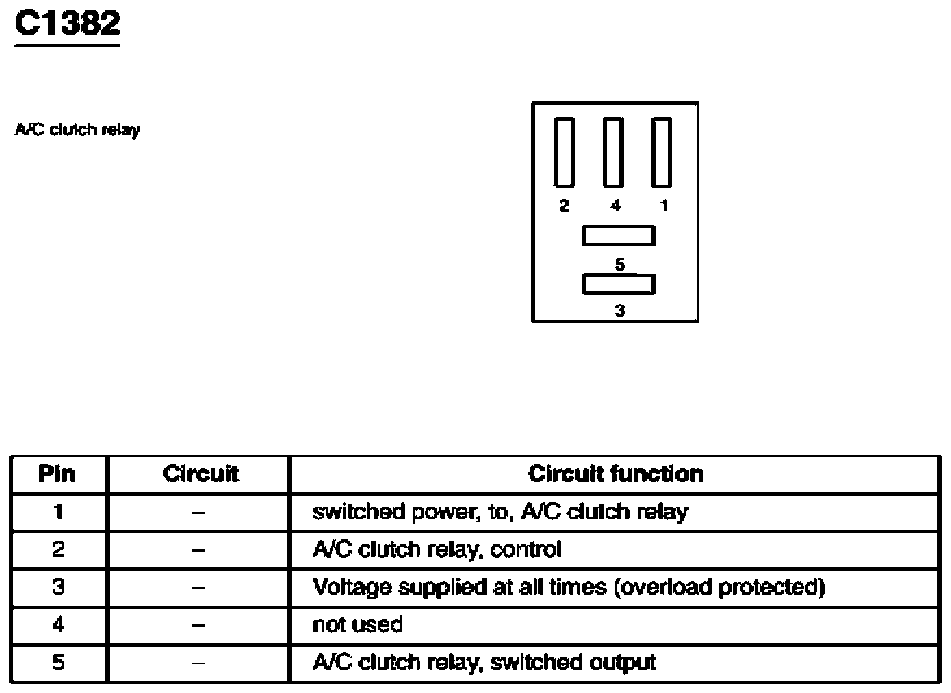

Fig 245: A/C Clutch Relay Connector End View (C1382)
G07838550Courtesy of FORD MOTOR CO.

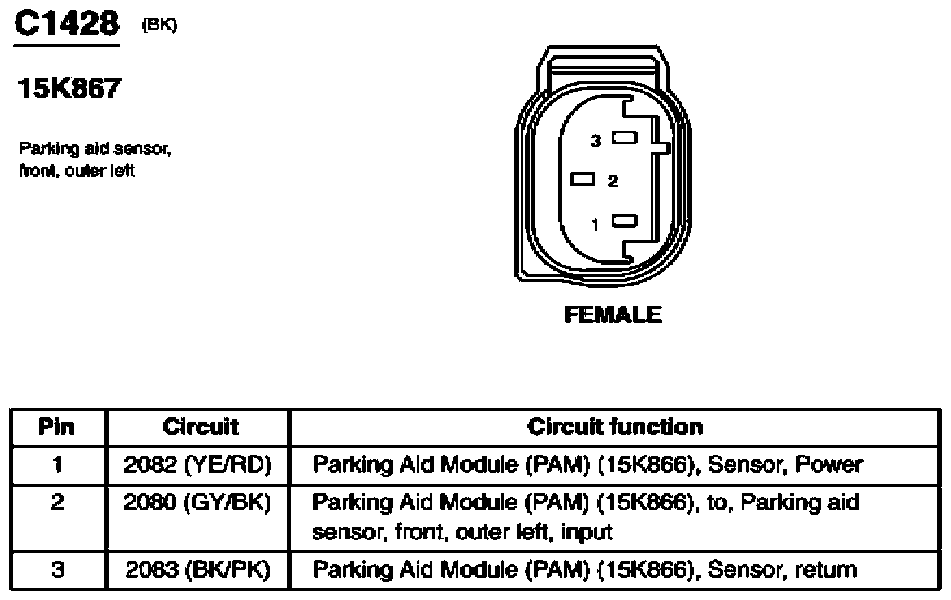

Fig 246: Parking Aid Sensor, Front Outer Left Connector End View (C1428)
G07838551Courtesy of FORD MOTOR CO.

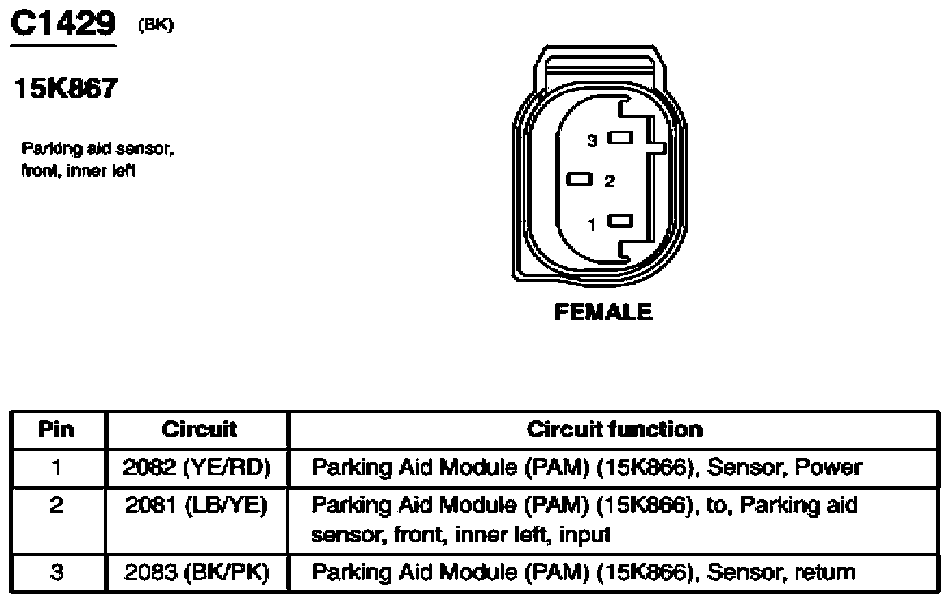

Fig 247: Parking Aid Sensor, Front, Inner Left Connector End View (C1429)
G07838552Courtesy of FORD MOTOR CO.

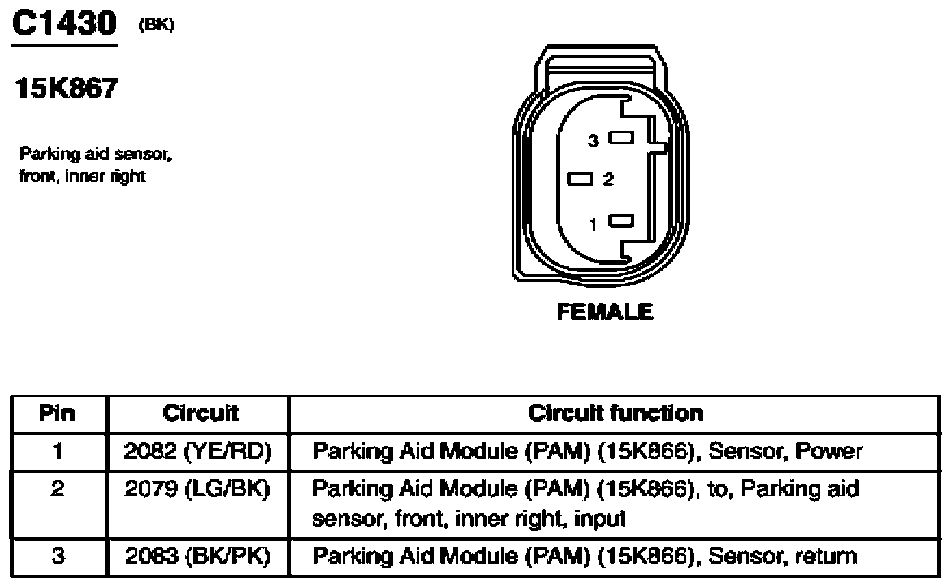

Fig 248: Parking Aid Sensor, Front Inner Right Connector End View (C1430)
G07838553Courtesy of FORD MOTOR CO.

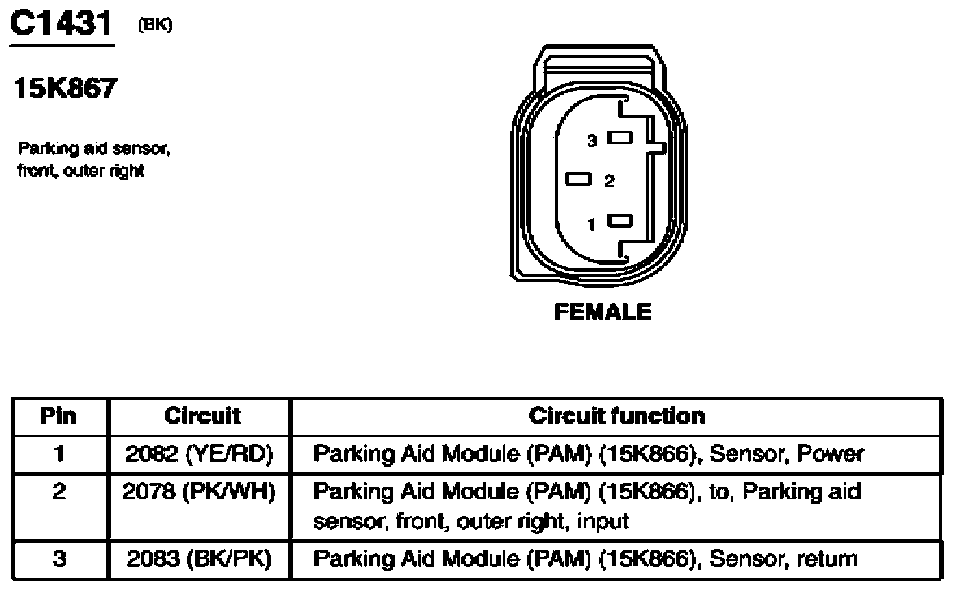

Fig 249: Parking Aid Sensor, Front, Outer Right Connector End View (C1431)
G07838554Courtesy of FORD MOTOR CO.

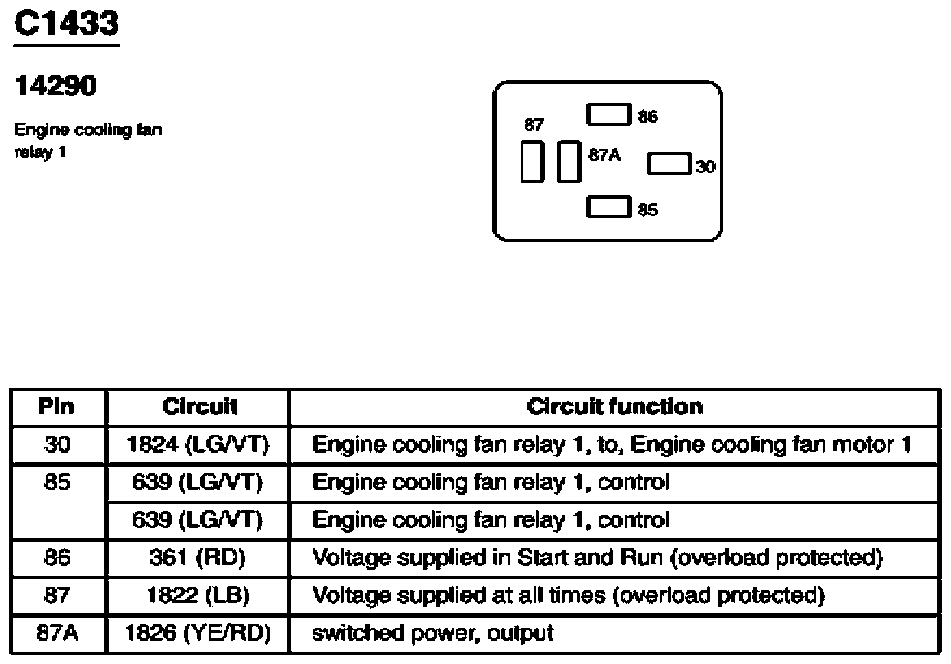

Fig 250: Engine Cooling Fan Relay 1 Connector End View (C1433)
G07838555Courtesy of FORD MOTOR CO.

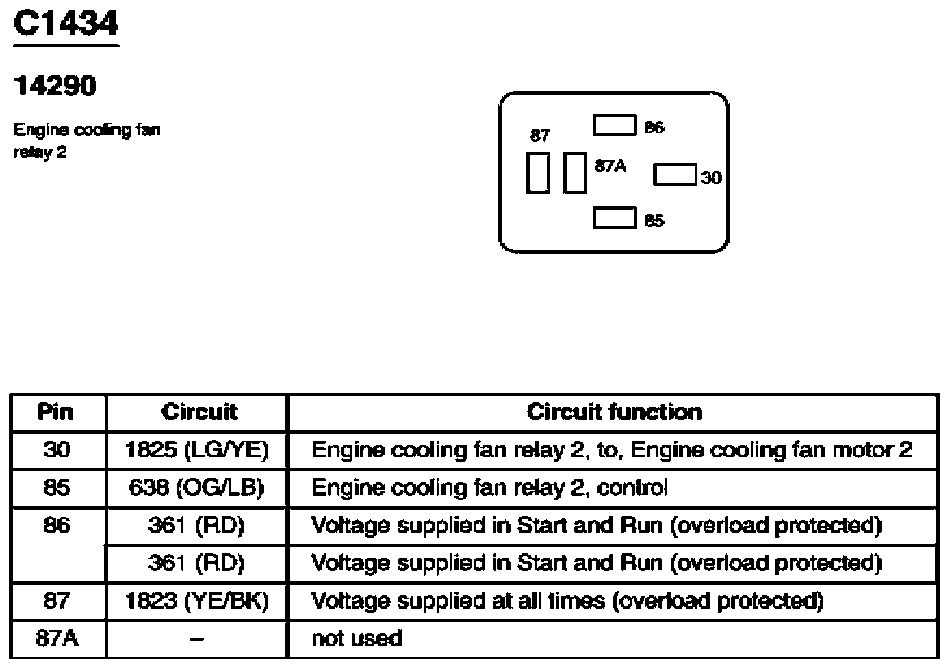

Fig 251: Engine Cooling Fan Relay 2 Connector End View (C1434)
G07838556Courtesy of FORD MOTOR CO.

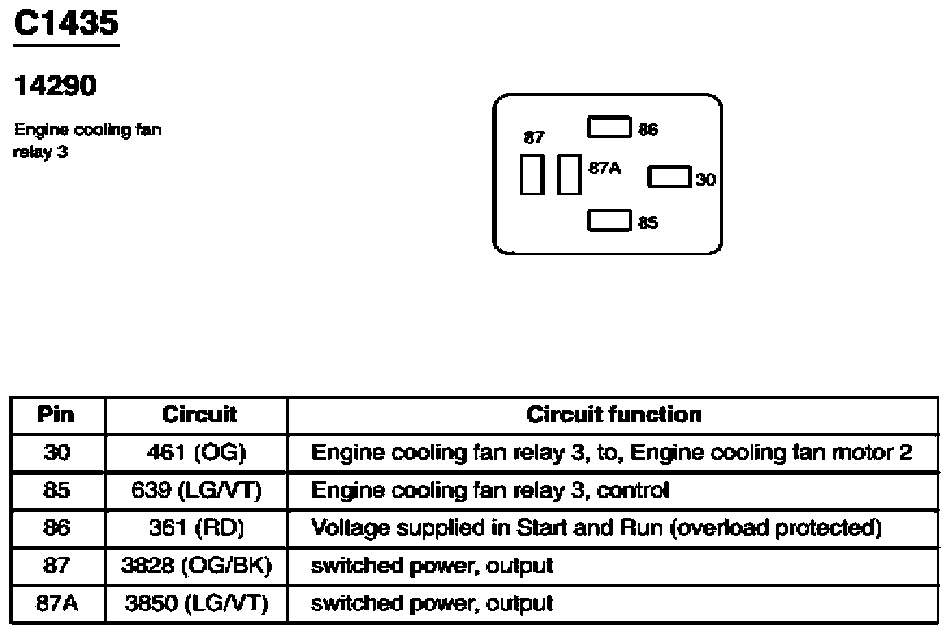

Fig 252: Engine Cooling Fan Relay 3 Connector End View (C1435)
G07838557Courtesy of FORD MOTOR CO.

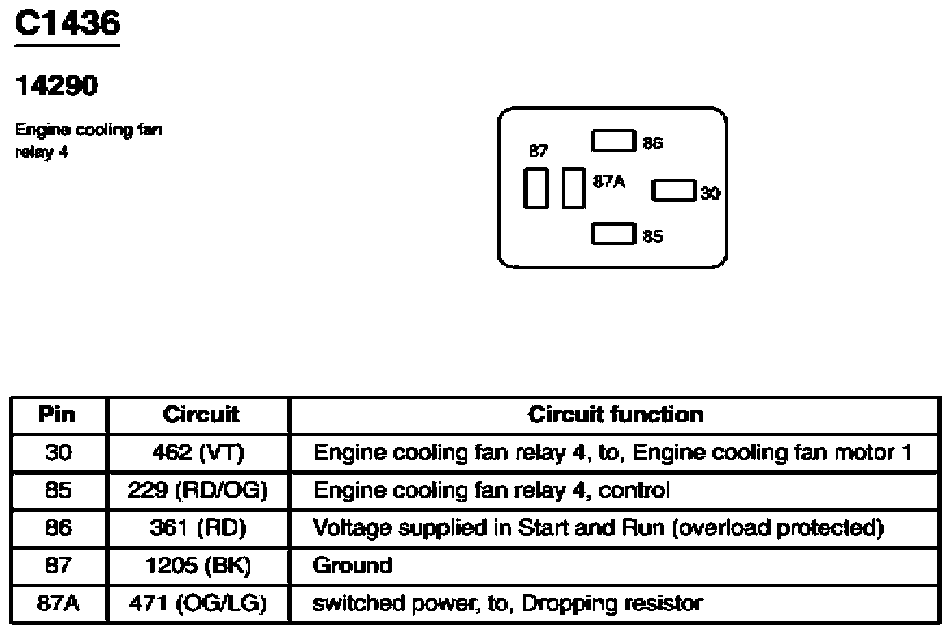

Fig 253: Engine Cooling Fan Relay 4 Connector End View (C1436)
G07838558Courtesy of FORD MOTOR CO.

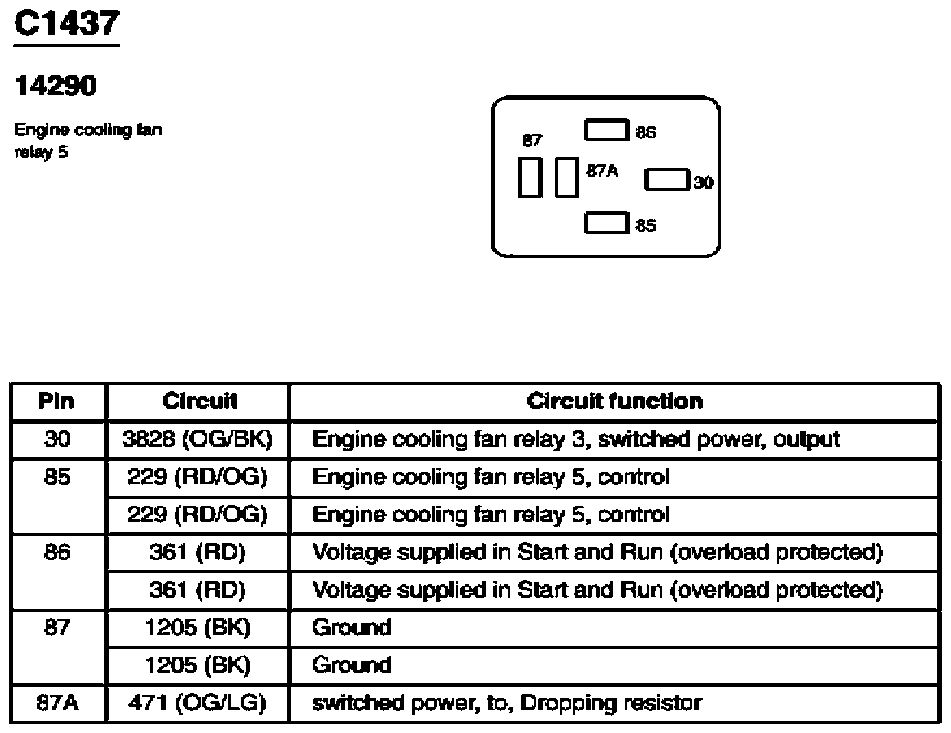

Fig 254: Engine Cooling Fan Relay 5 Connector End View (C1435)
G07838559Courtesy of FORD MOTOR CO.

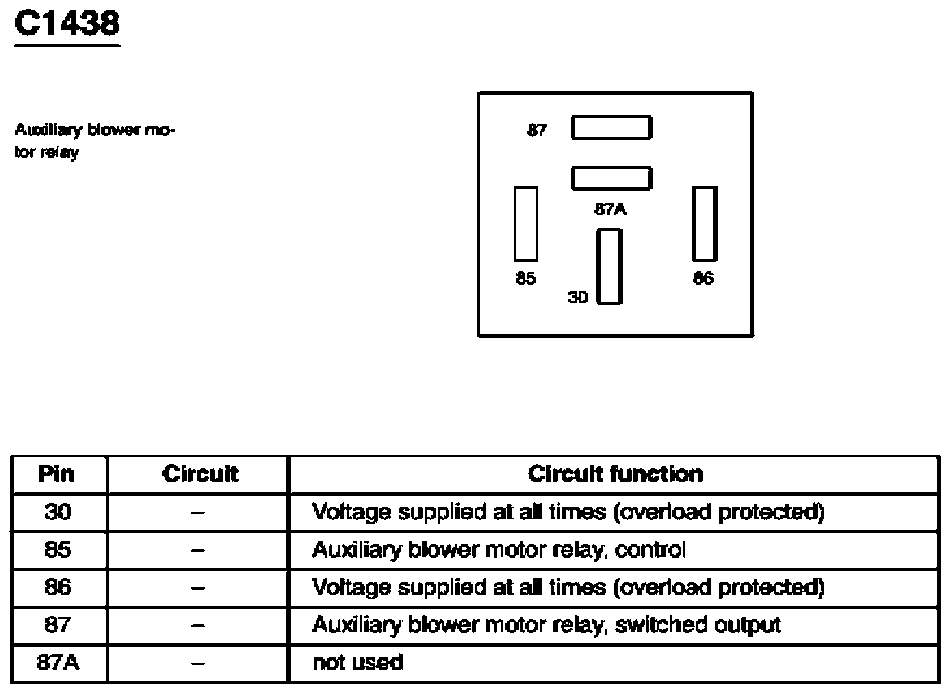

Fig 255: Auxiliary Blower Motor Relay Connector End View (C1438)
G07838560Courtesy of FORD MOTOR CO.

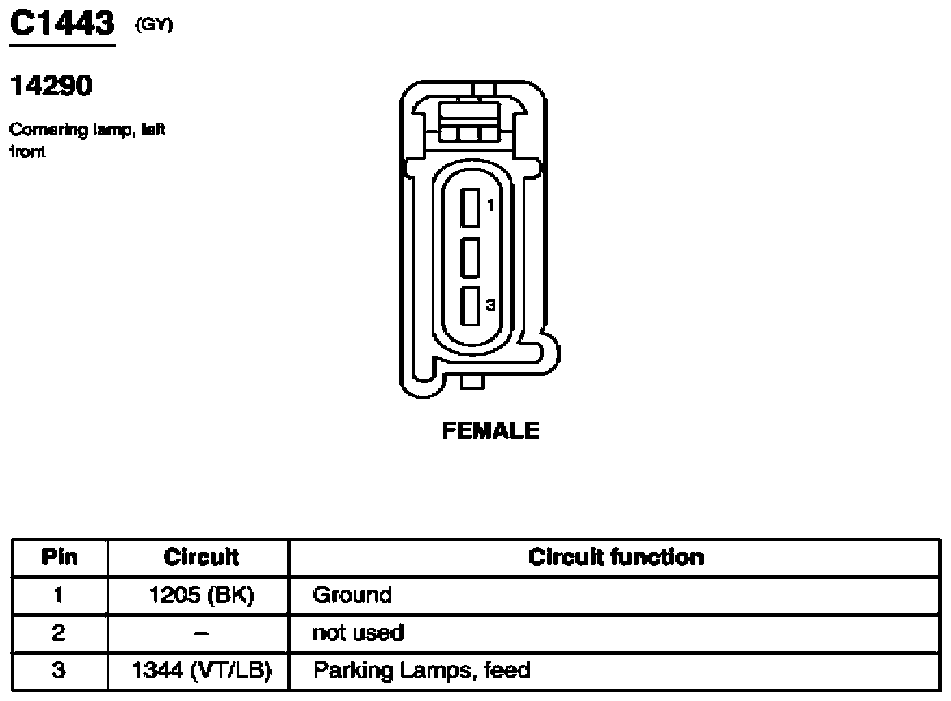

Fig 256: Cornering Lamp, Left Front Connector End View (C1443)
G07838561Courtesy of FORD MOTOR CO.

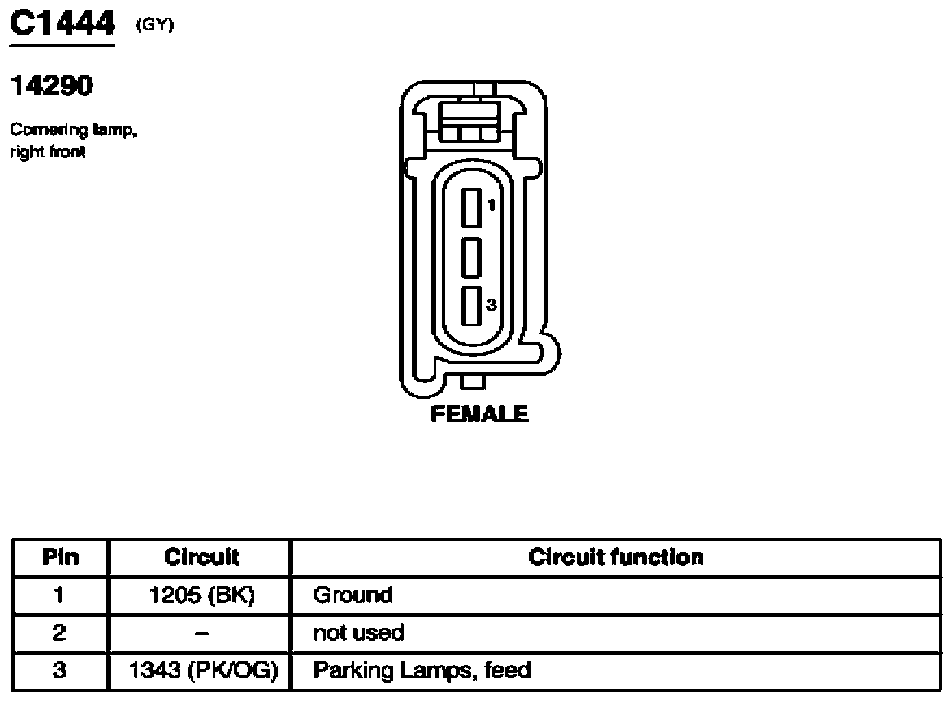

Fig 257: Cornering Lamp, Right Front Connector End View (C1444)
G07838562Courtesy of FORD MOTOR CO.

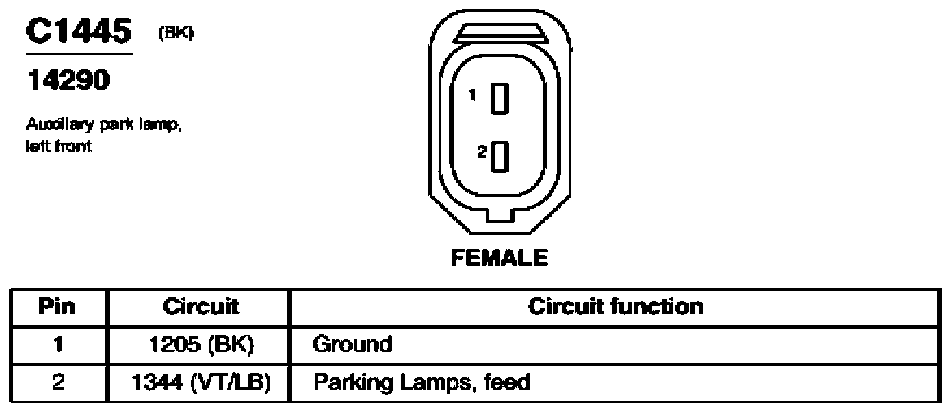

Fig 258: Auxiliary Park Lamp, Left Front Connector End View (C1445)
G07838563Courtesy of FORD MOTOR CO.

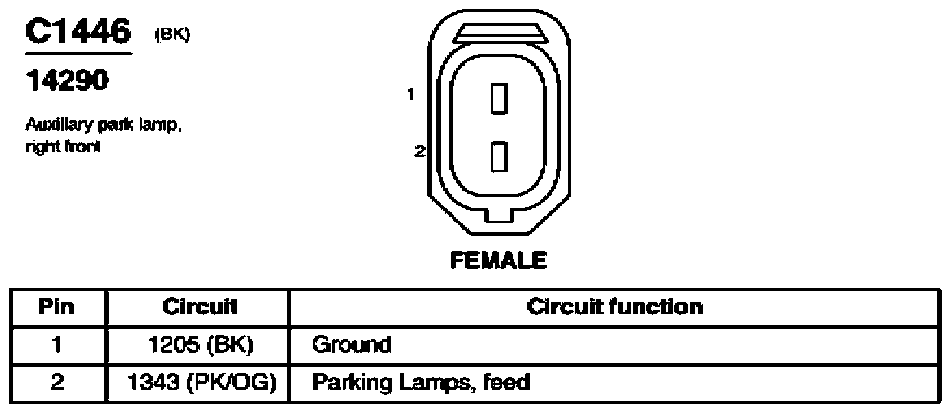

Fig 259: Auxiliary Park Lamp, Right Front Connector End View (C1446)
G07838564Courtesy of FORD MOTOR CO.

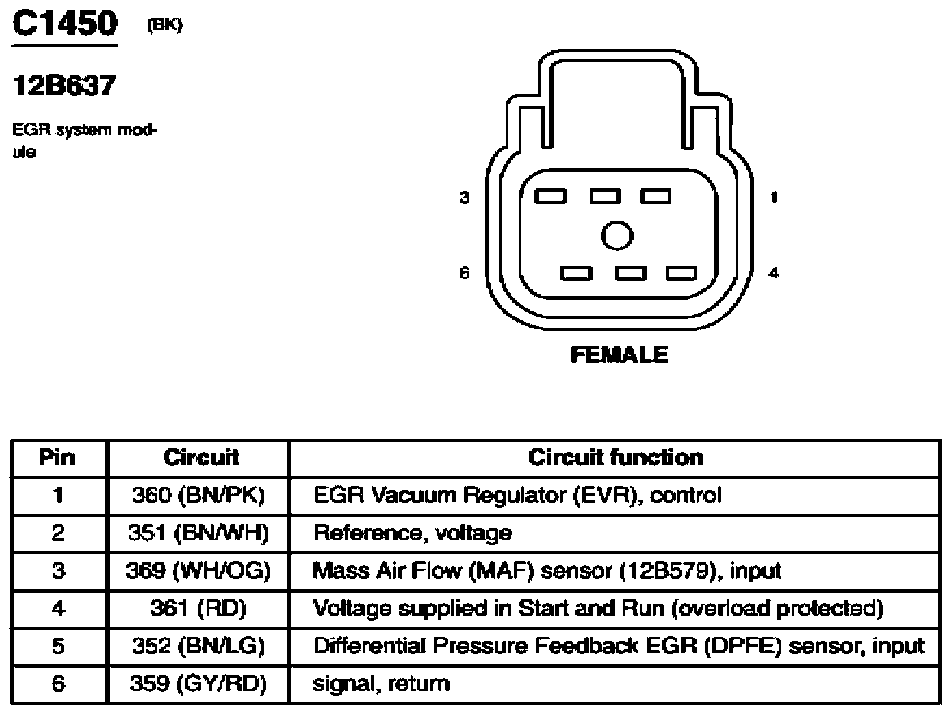

Fig 260: EGR System Module Connector End View (C1450)
G07838565Courtesy of FORD MOTOR CO.

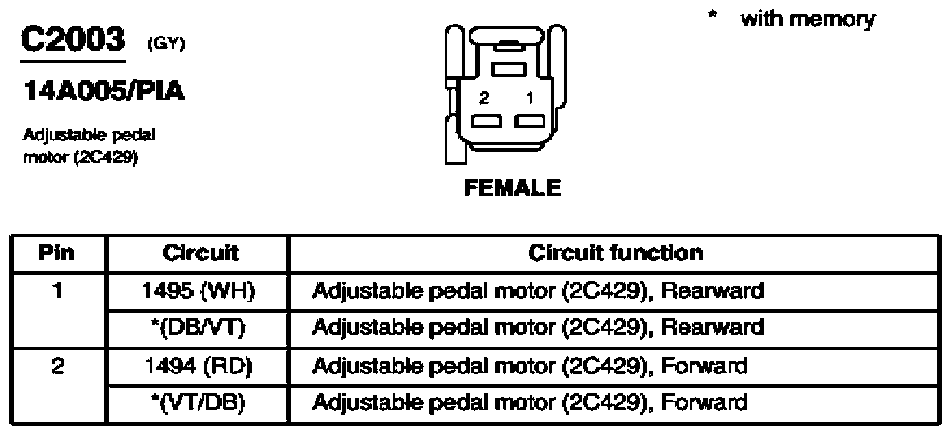

Fig 261: Adjustable Pedal Motor Connector End View (C2003)
G07838566Courtesy of FORD MOTOR CO.

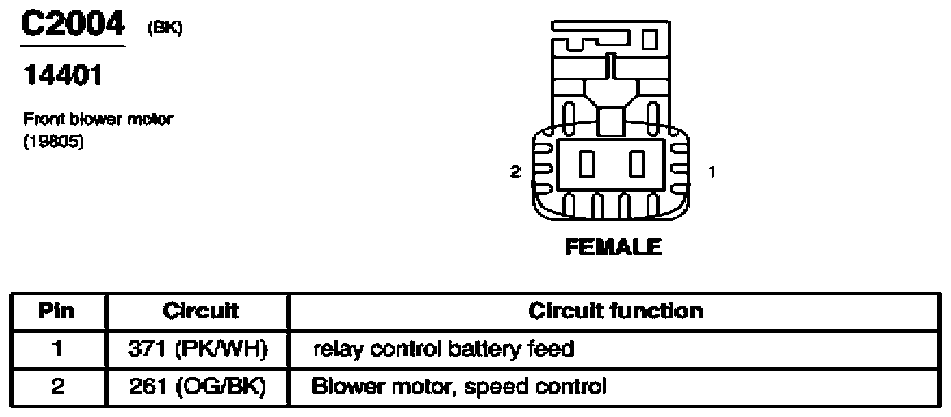

Fig 262: Front Blower Motor Connector End View (C2004)
G07838567Courtesy of FORD MOTOR CO.

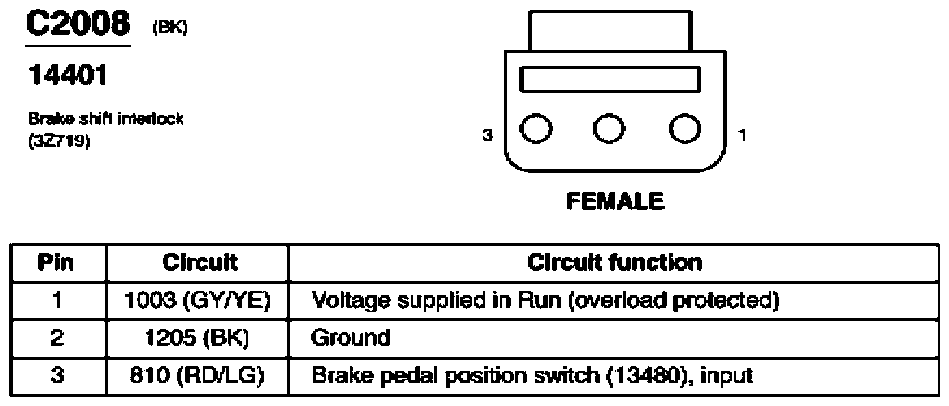

Fig 263: Brake Shift Interlock Connector End View (C2008)
G07838568Courtesy of FORD MOTOR CO.

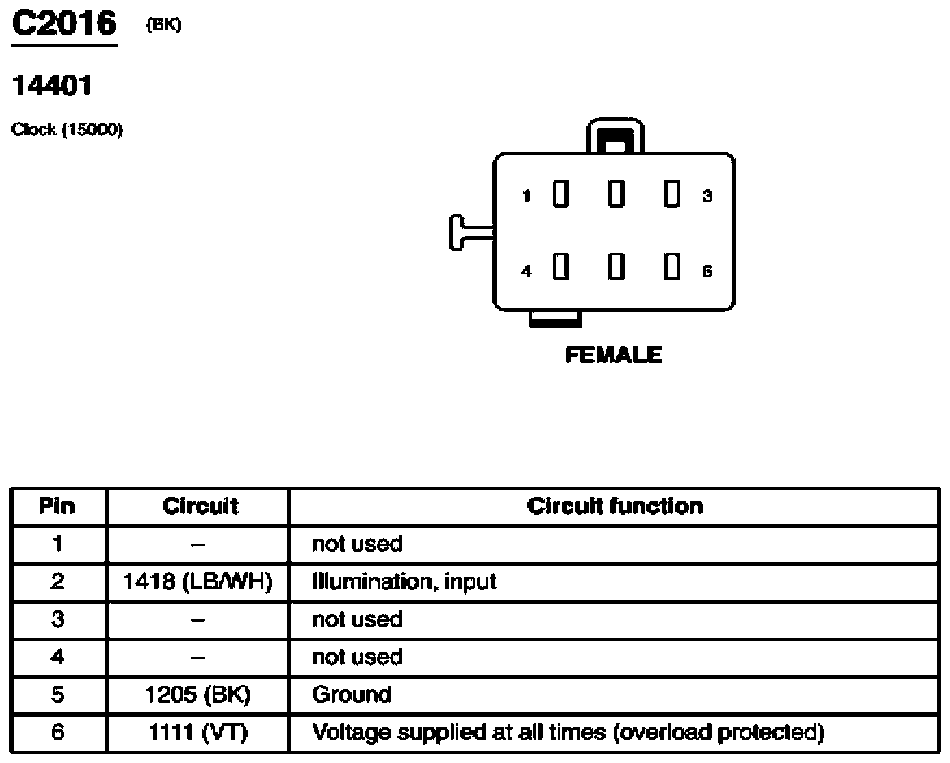

Fig 264: Clock Connector End View (C2016)
G07838569Courtesy of FORD MOTOR CO.

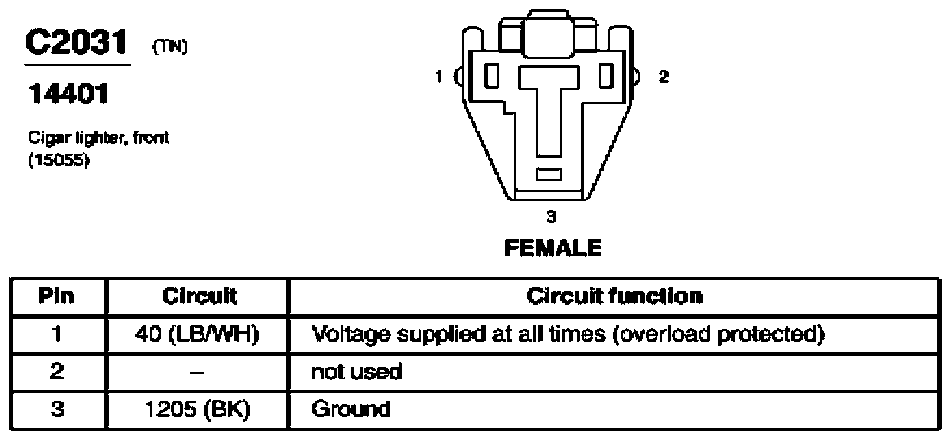

Fig 265: Cigar Lighter, Front Connector End View (C2031)
G07838570Courtesy of FORD MOTOR CO.

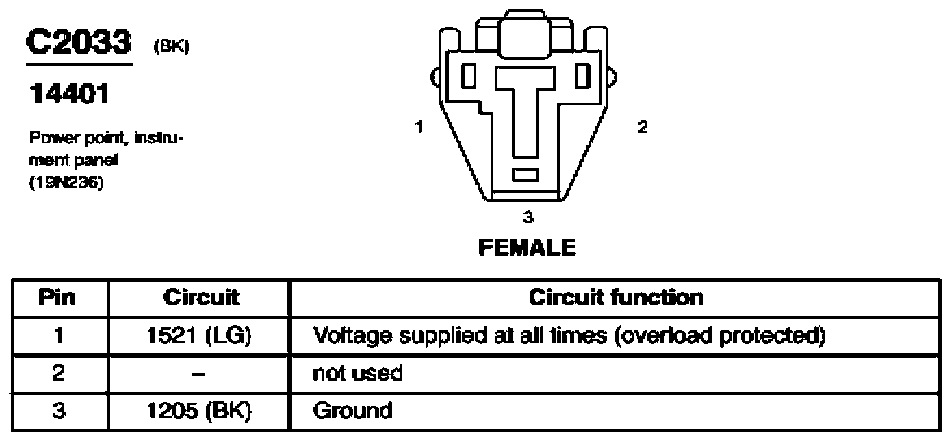

Fig 266: Power Point, Instrument Panel Connector End View (C2033)
G07838571Courtesy of FORD MOTOR CO.

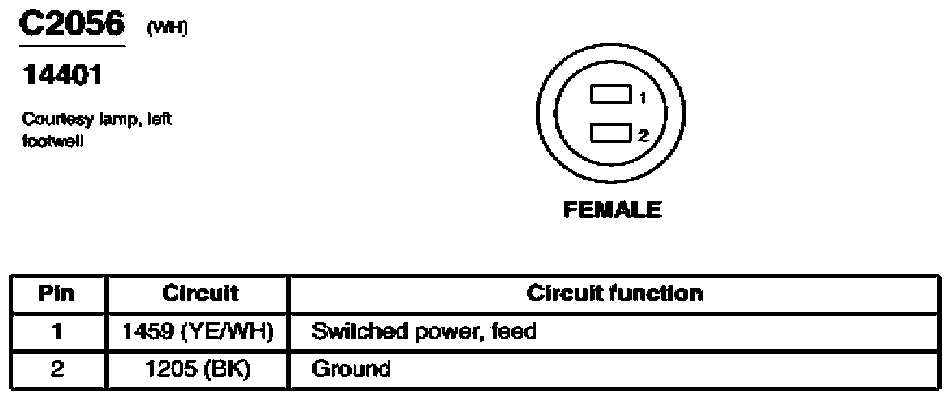

Fig 267: Courtesy Lamp, Left Footwell Connector End View (C2056)
G07838572Courtesy of FORD MOTOR CO.

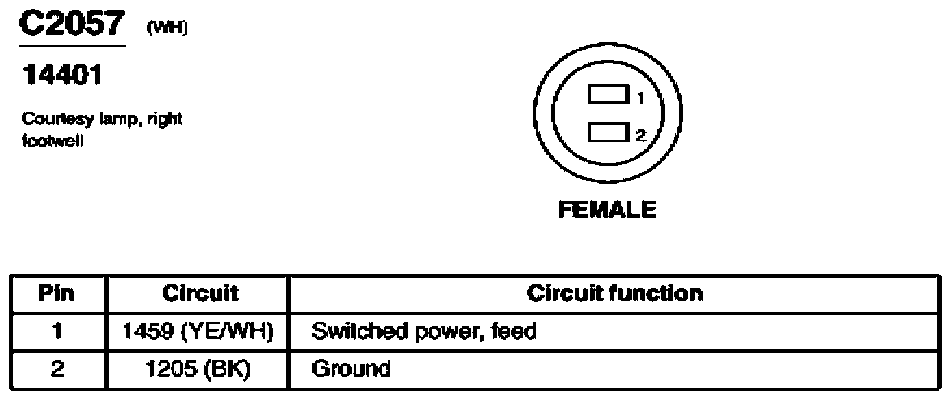

Fig 268: Courtesy Lamp, Right Footwell Connector End View (C2057)
G07838573Courtesy of FORD MOTOR CO.

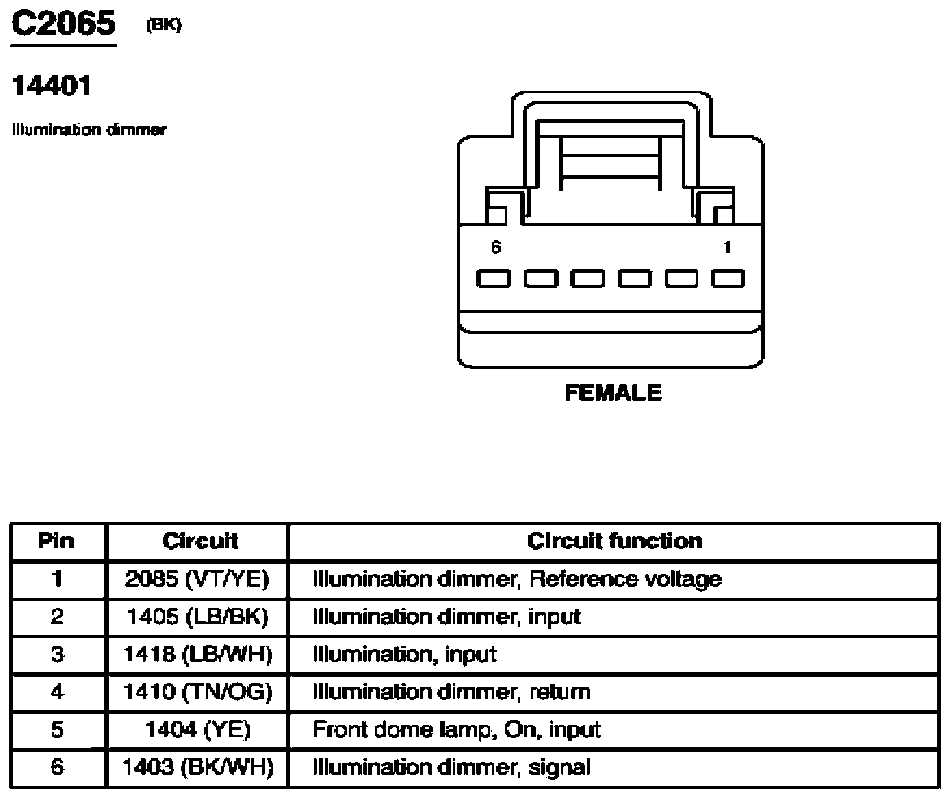

Fig 269: Illumination Dimmer Connector End View (C2065)
G07838574Courtesy of FORD MOTOR CO.

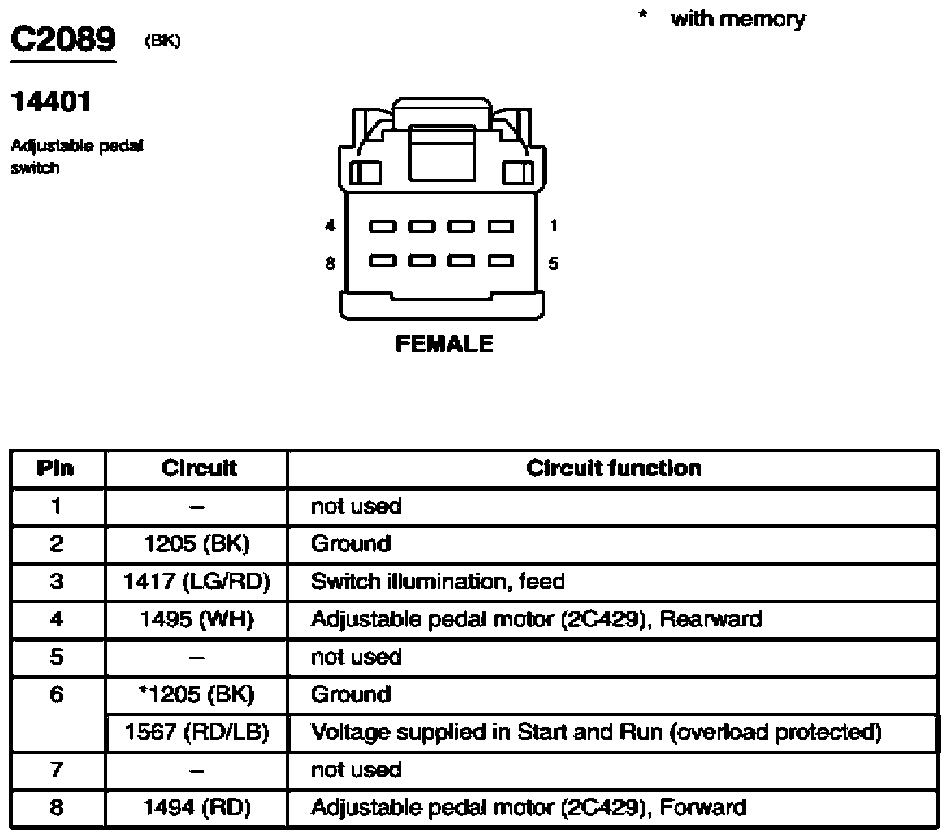

Fig 270: Adjustable Pedal Switch Connector End View (C2089)
G07838575Courtesy of FORD MOTOR CO.

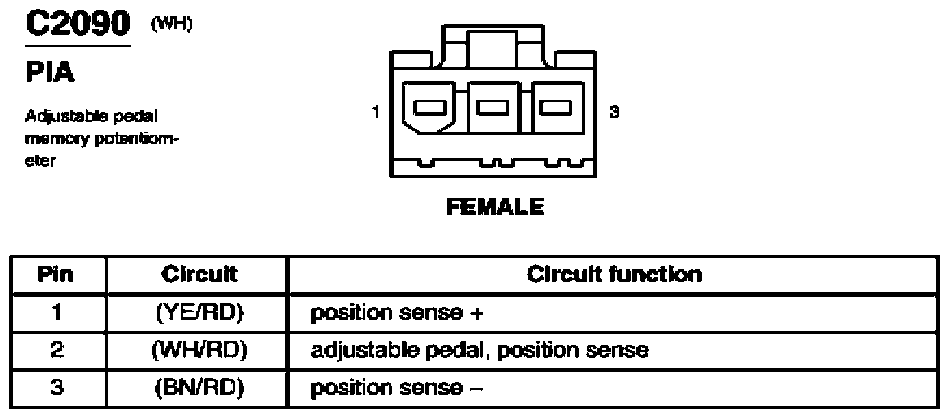

Fig 271: Adjustable Pedal Memory Potentiometer Connector End View (C2090)
G07838576Courtesy of FORD MOTOR CO.

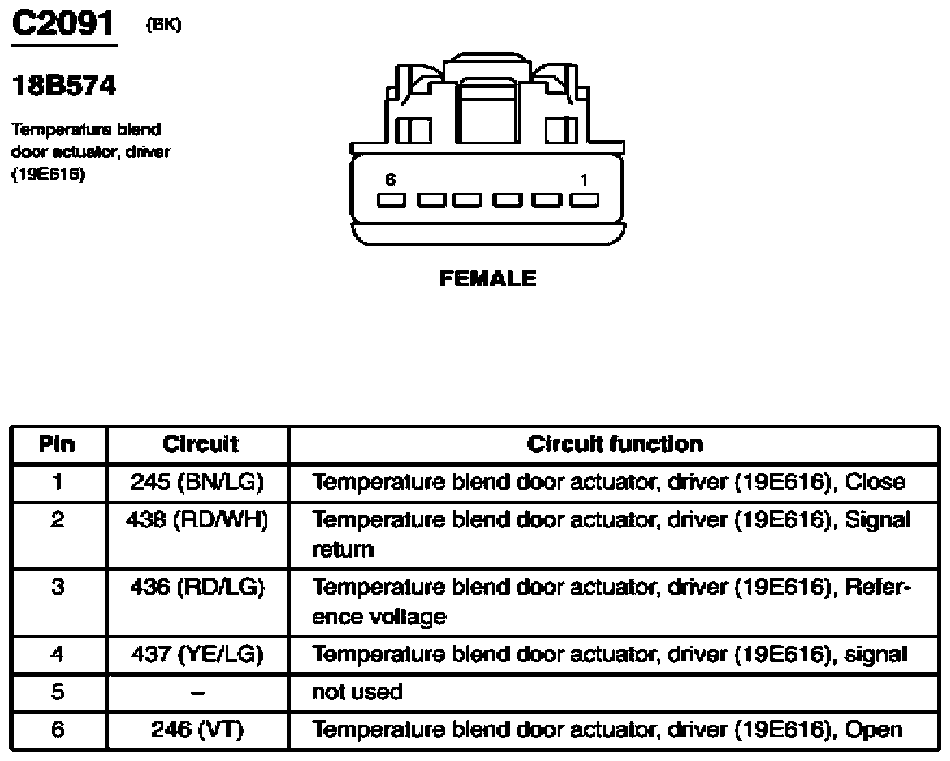

Fig 272: Temperature Blend Door Actuator, Driver Connector End View (C2091)
G07838577Courtesy of FORD MOTOR CO.

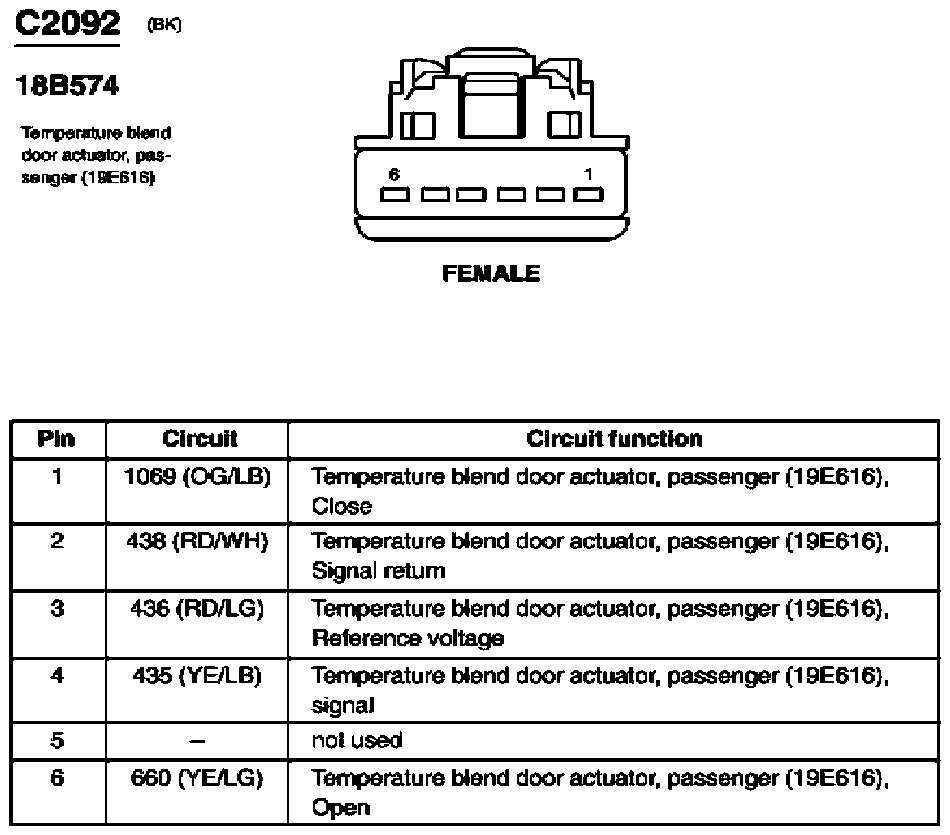

Fig 273: Temperature Blend Door Actuator, Passenger Connector End View (C2092)
G07838578Courtesy of FORD MOTOR CO.

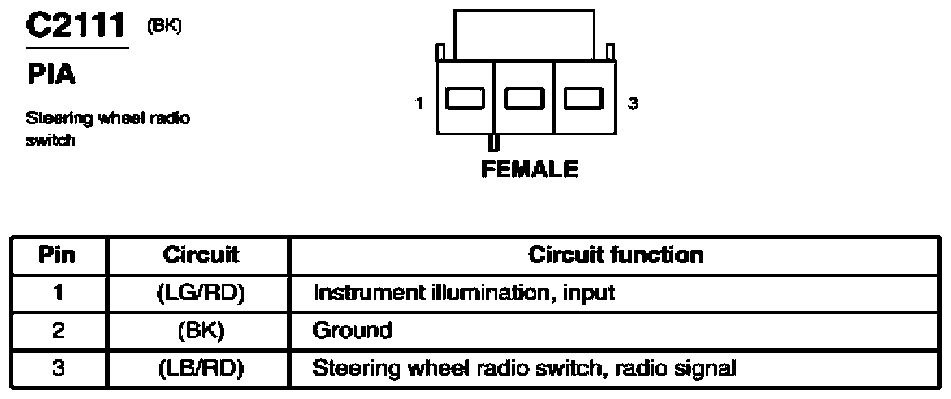

Fig 274: Steering Wheel Radio Switch Connector End View (C2111)
G07838579Courtesy of FORD MOTOR CO.

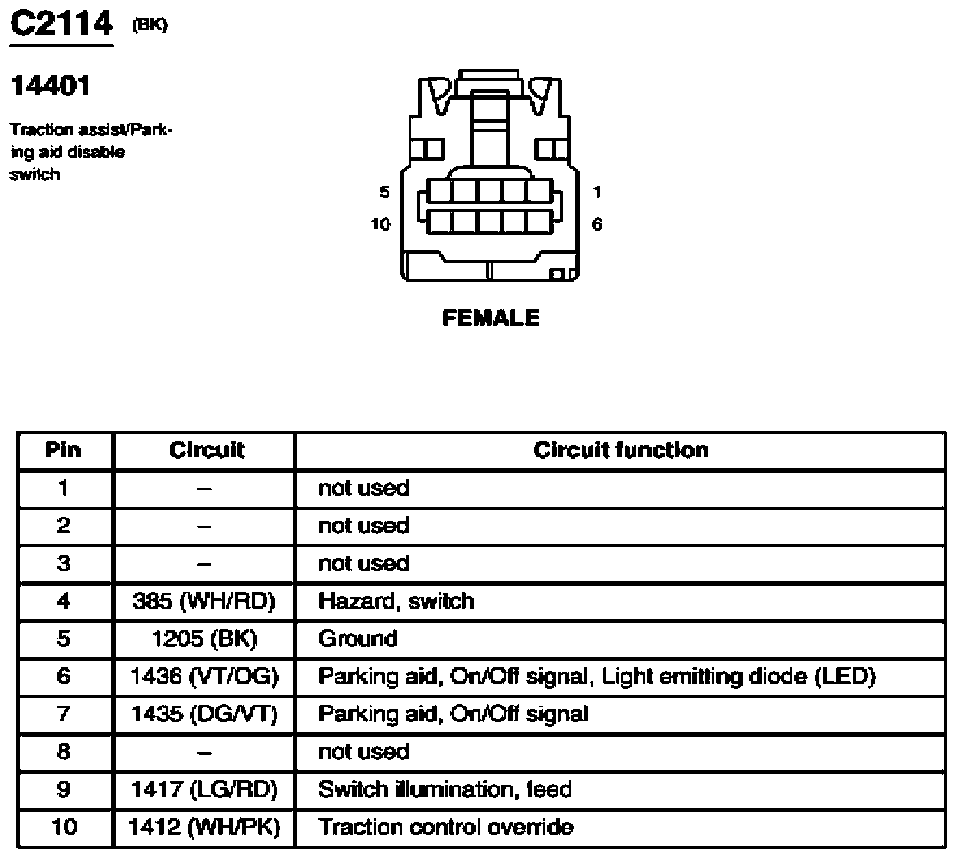

Fig 275: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)
G07838580Courtesy of FORD MOTOR CO.

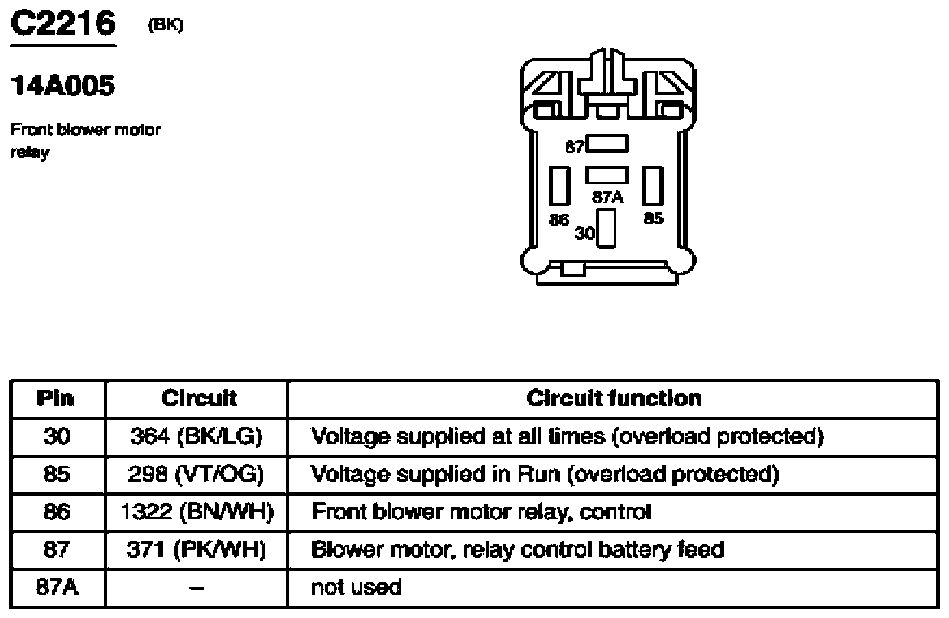

Fig 276: Front Blower Motor Relay Connector End View (C2216)
G07838581Courtesy of FORD MOTOR CO.

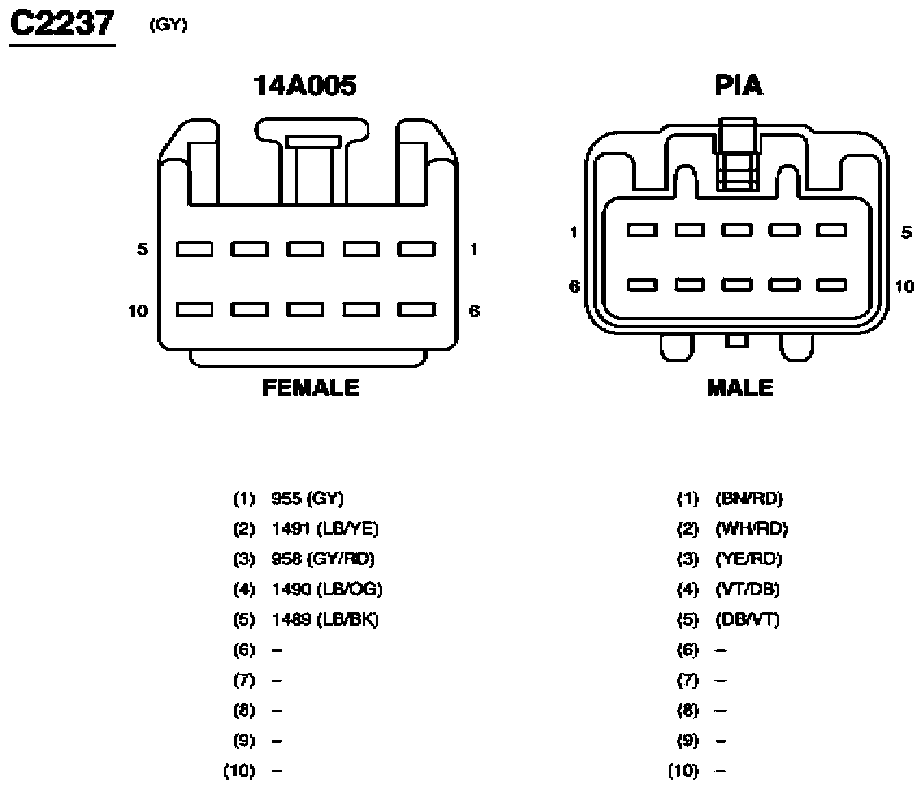

Fig 277: Inline Connector End View (C2237)
G07838582Courtesy of FORD MOTOR CO.

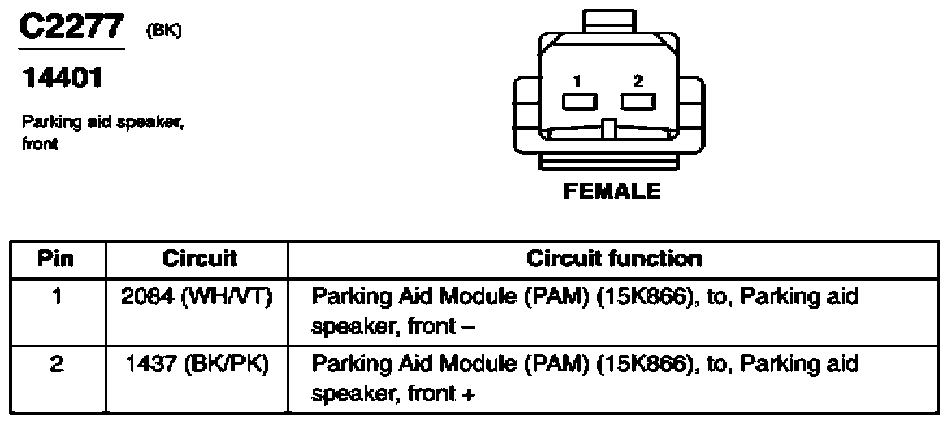

Fig 278: Parking Aid Speaker, Front Connector End View (C2277)
G07838583Courtesy of FORD MOTOR CO.

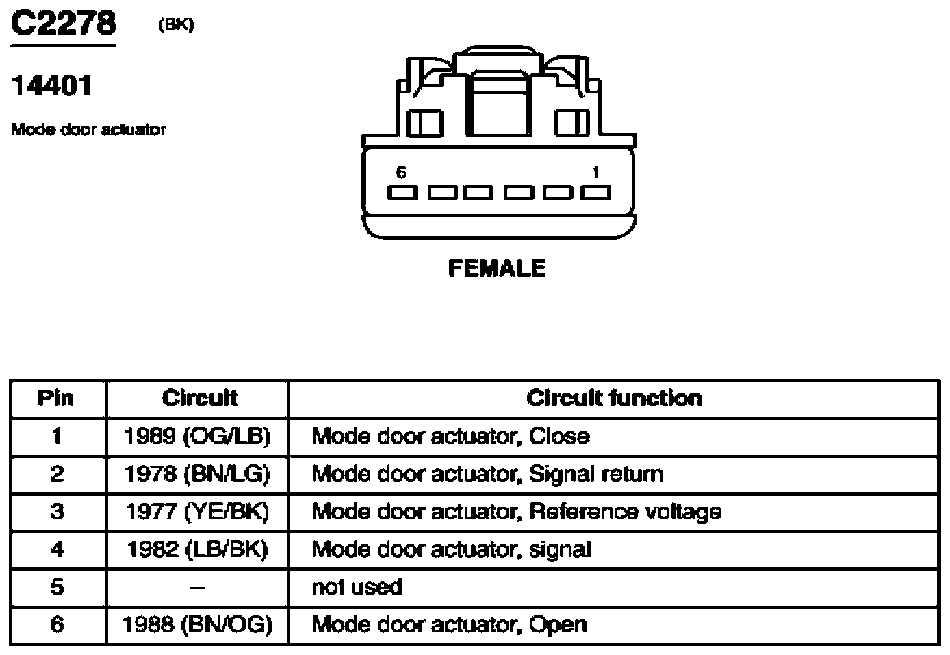

Fig 279: Mode Door Actuator Connector End View (C2278)
G07838584Courtesy of FORD MOTOR CO.

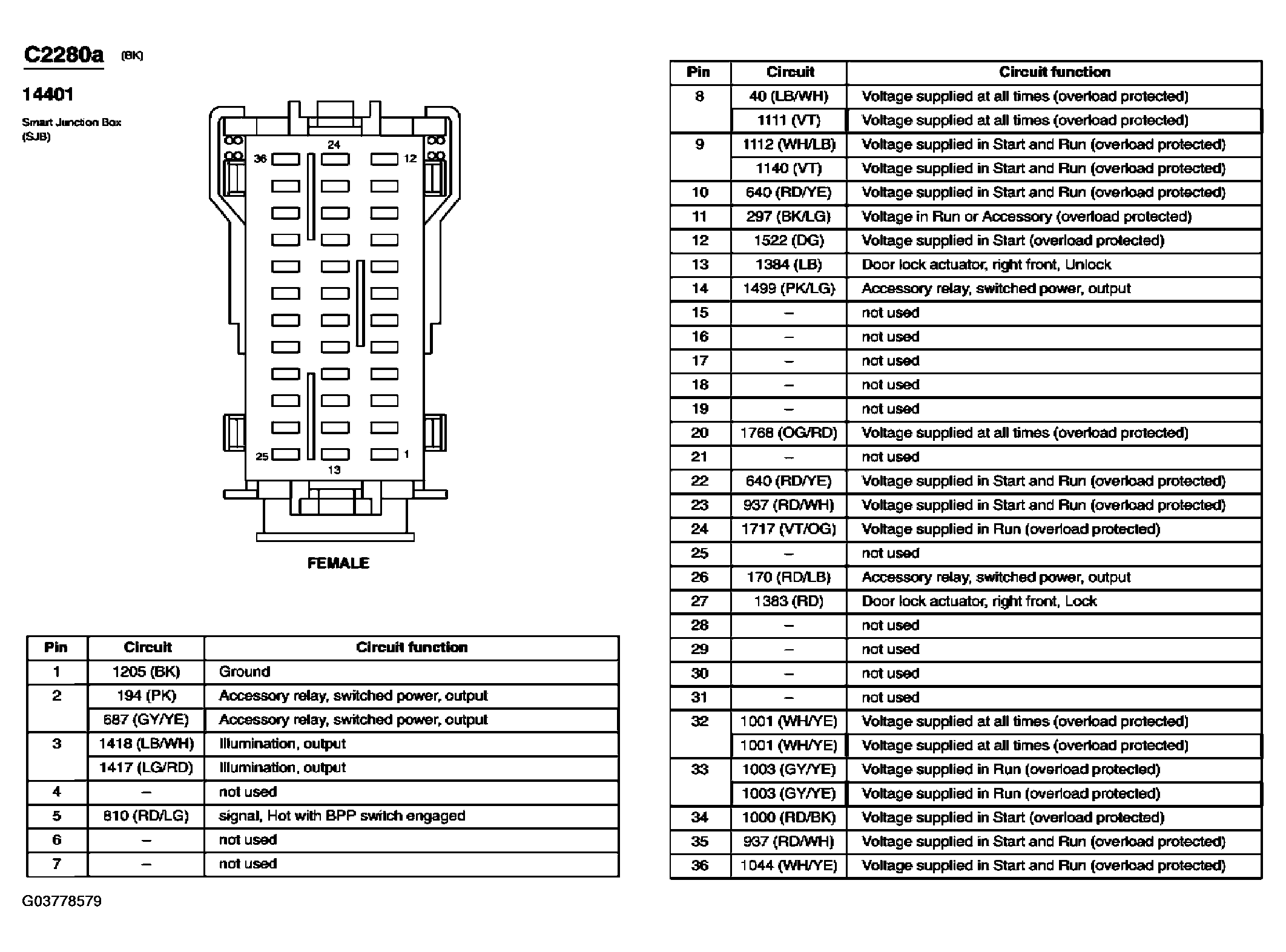

Fig 280: Smart Junction Box (SJB) Connector End View (C2280a)
G03778579Courtesy of FORD MOTOR CO.

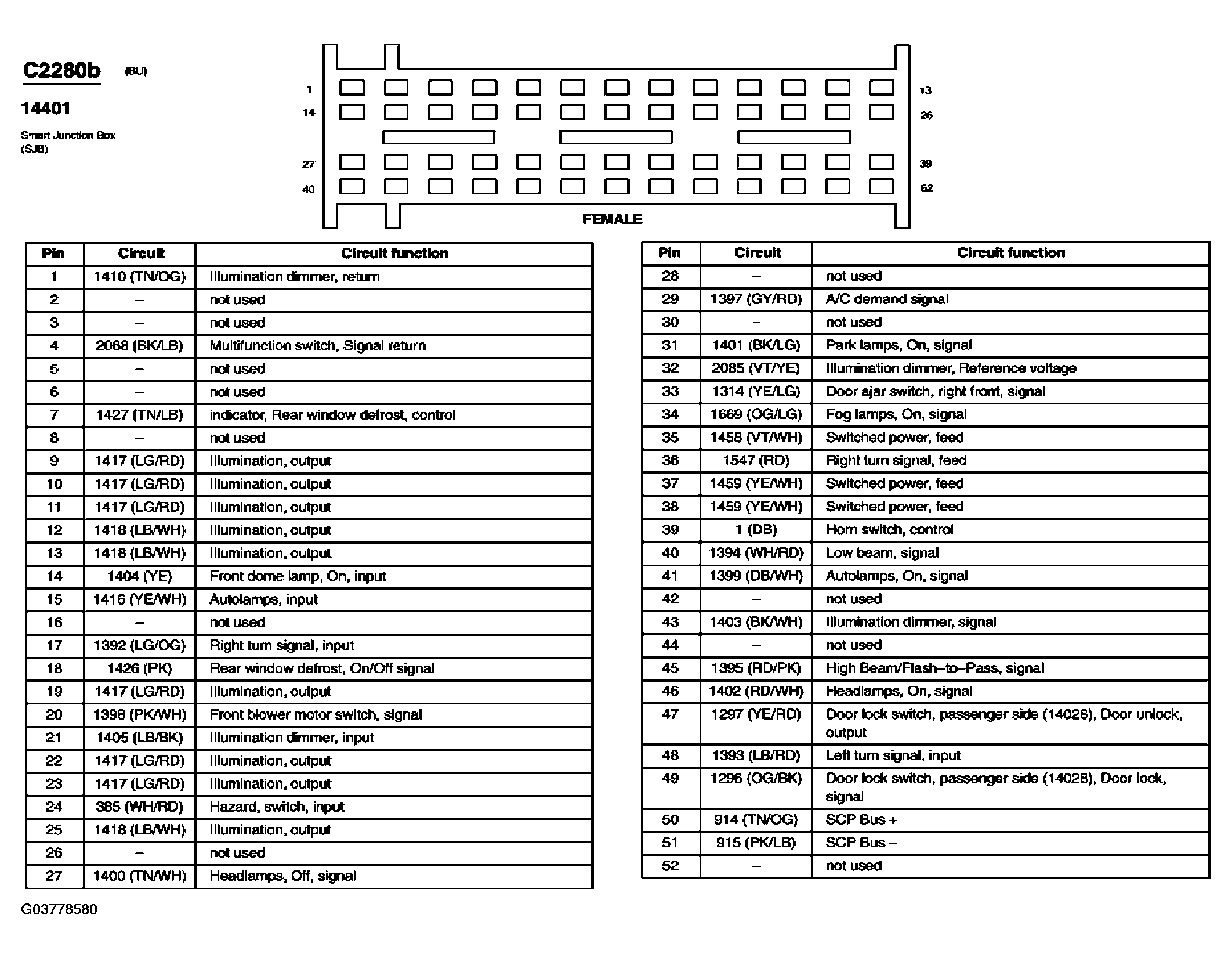

Fig 281: Smart Junction Box (SJB) Connector End View (C2280b)
G03778580Courtesy of FORD MOTOR CO.

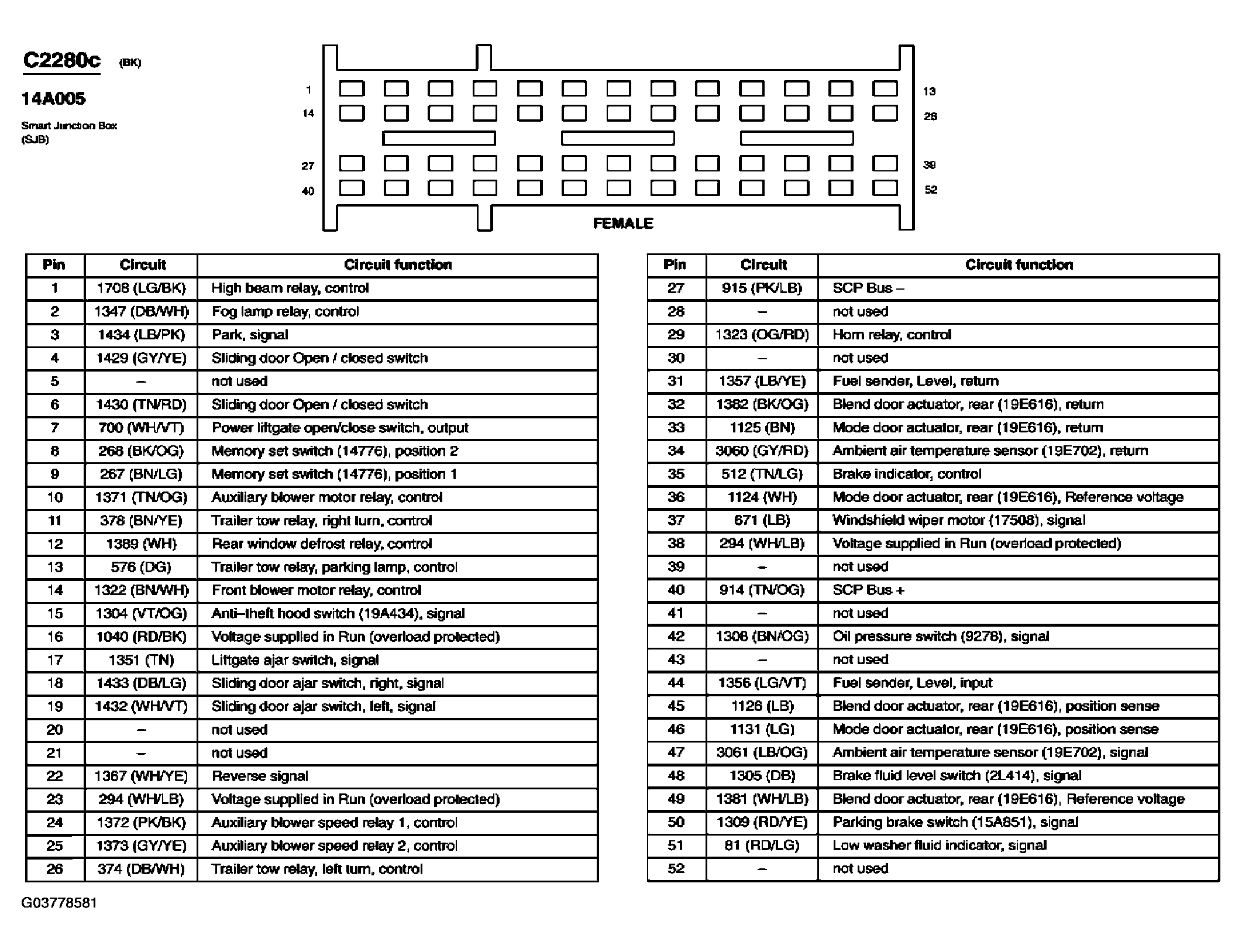

Fig 282: Smart Junction Box (SJB) Connector End View (C2280c)
G03778581Courtesy of FORD MOTOR CO.

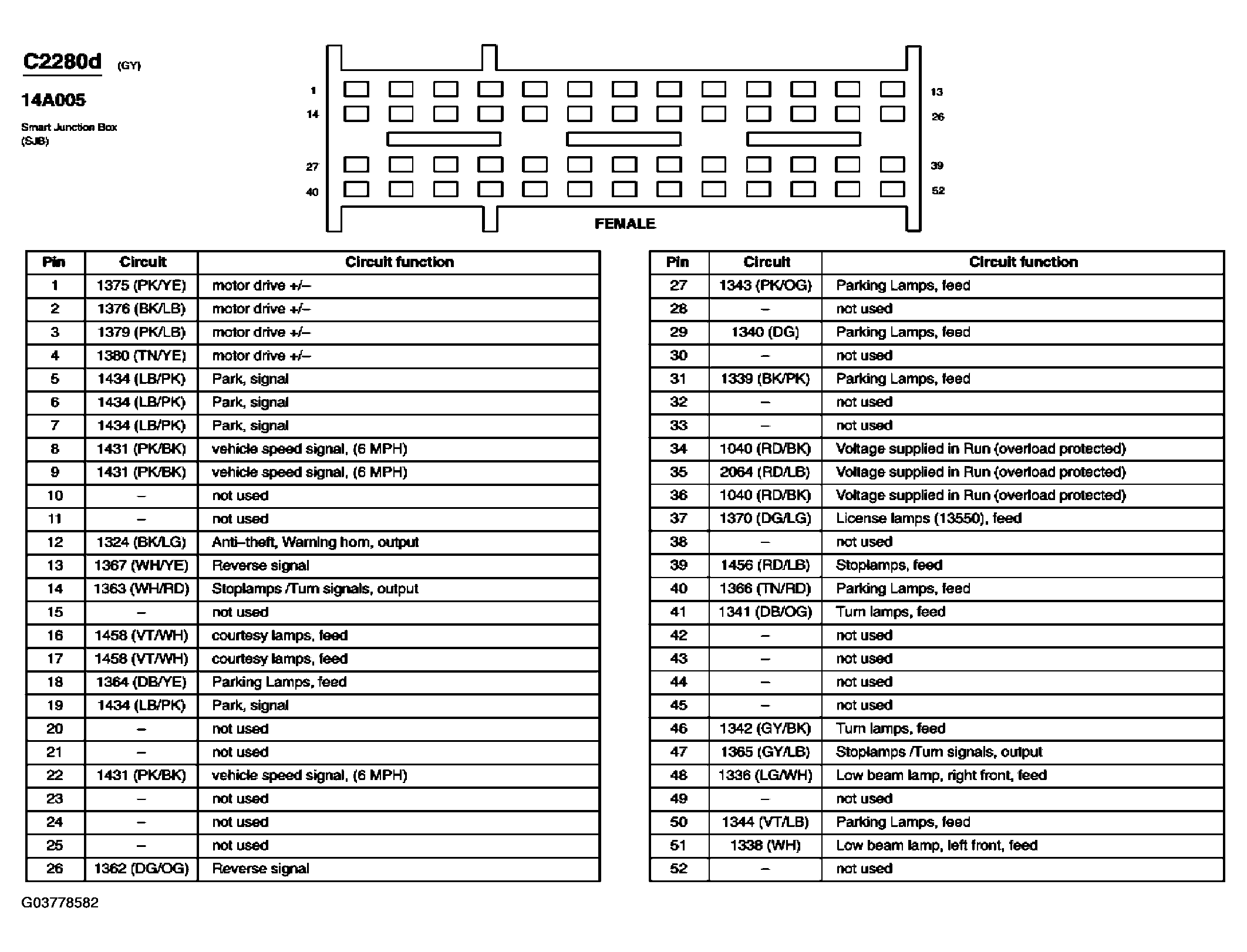

Fig 283: Smart Junction Box (SJB) Connector End View (C2280d)
G03778582Courtesy of FORD MOTOR CO.

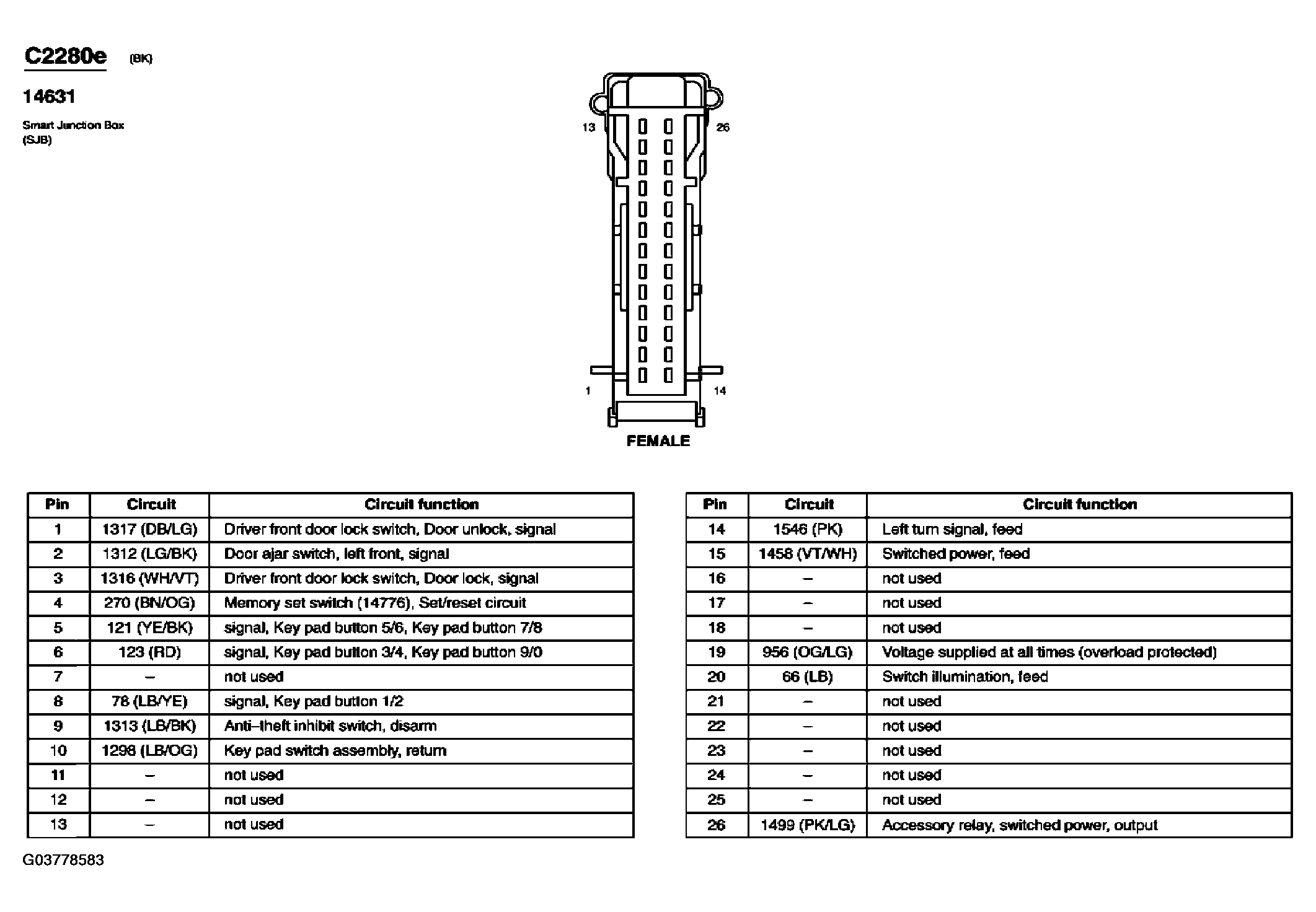

Fig 284: Smart Junction Box (SJB) Connector End View (C2280e)
G03778583Courtesy of FORD MOTOR CO.

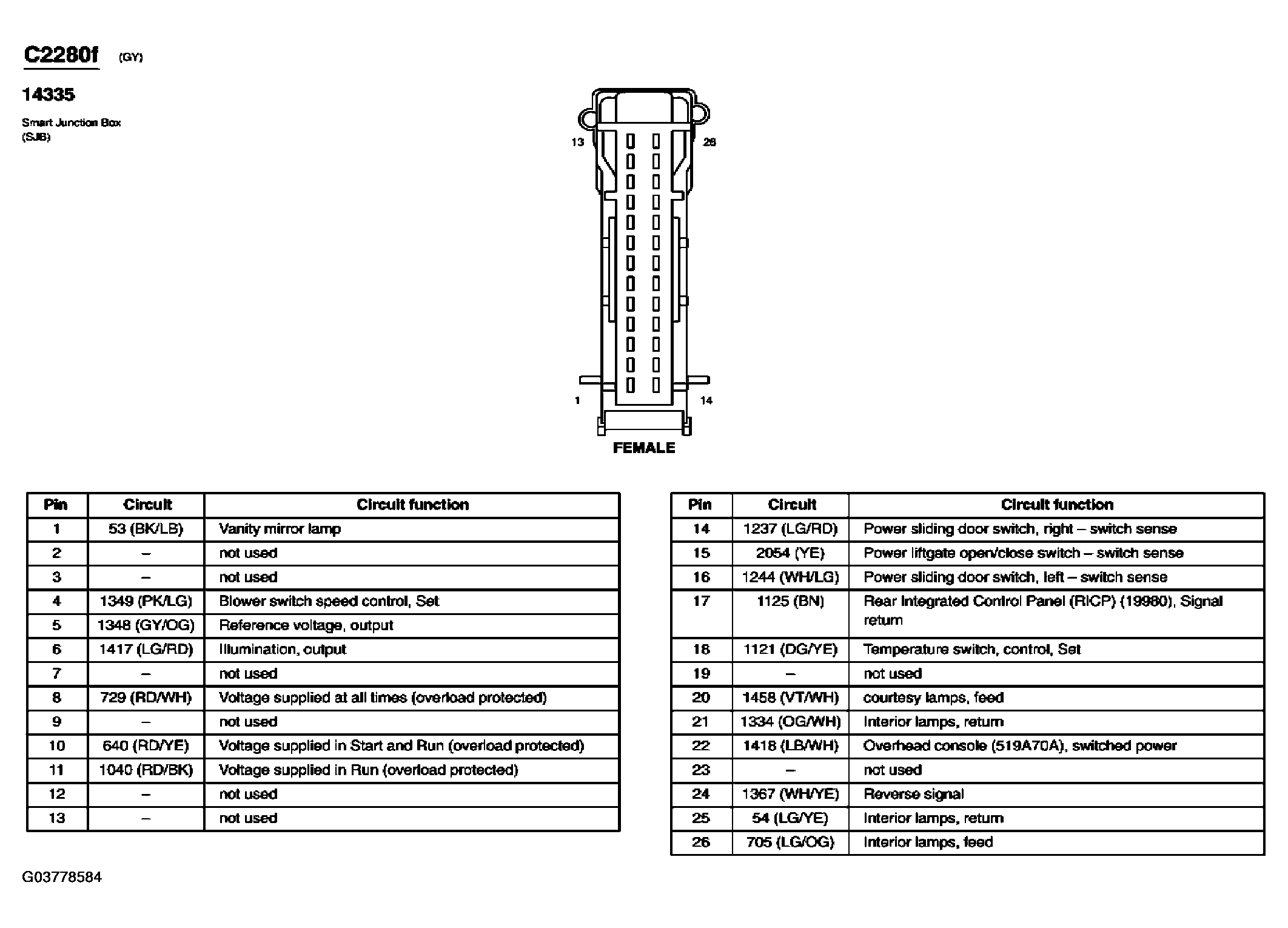

Fig 285: Smart Junction Box (SJB) Connector End View (C2280f)
G03778584Courtesy of FORD MOTOR CO.

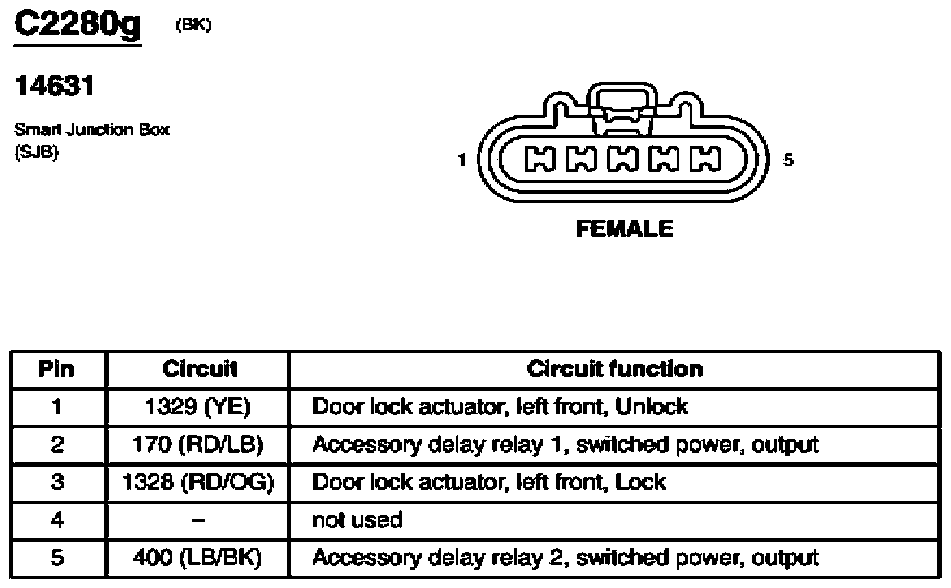

Fig 286: Smart Junction Box (SJB) Connector End View (C2280g)
G03778585Courtesy of FORD MOTOR CO.
Fig 287: Smart Junction Box (SJB) Connector End View (C2280h) (1 Of 2)
G03778586Courtesy of FORD MOTOR CO.

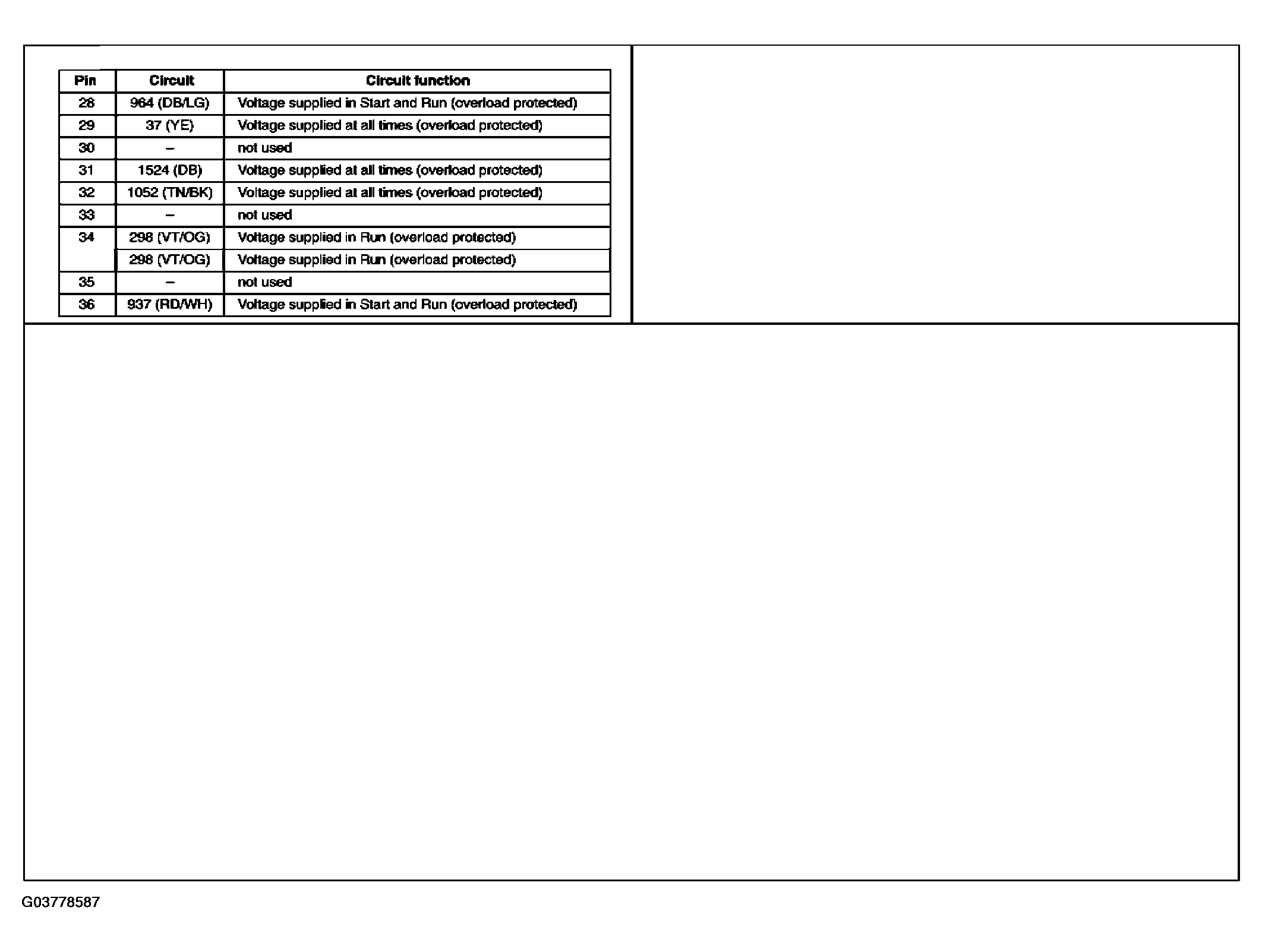

Fig 288: Smart Junction Box (SJB) Connector End View (C2280h) (2 Of 2)
G03778587Courtesy of FORD MOTOR CO.

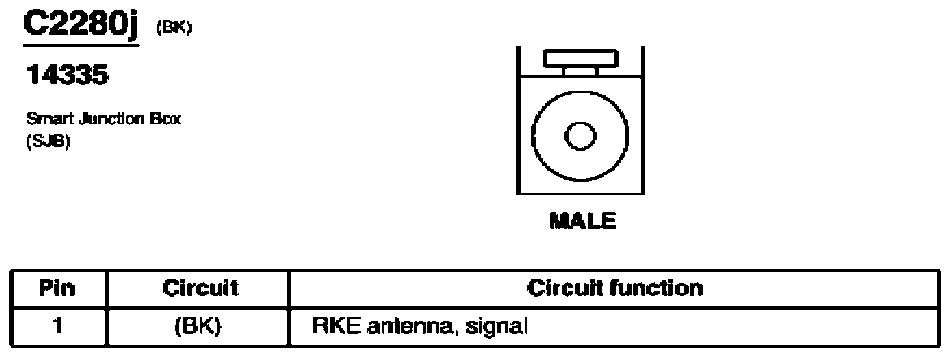

Fig 289: Smart Junction Box Connector End View (C2280j)
G07838585Courtesy of FORD MOTOR CO.

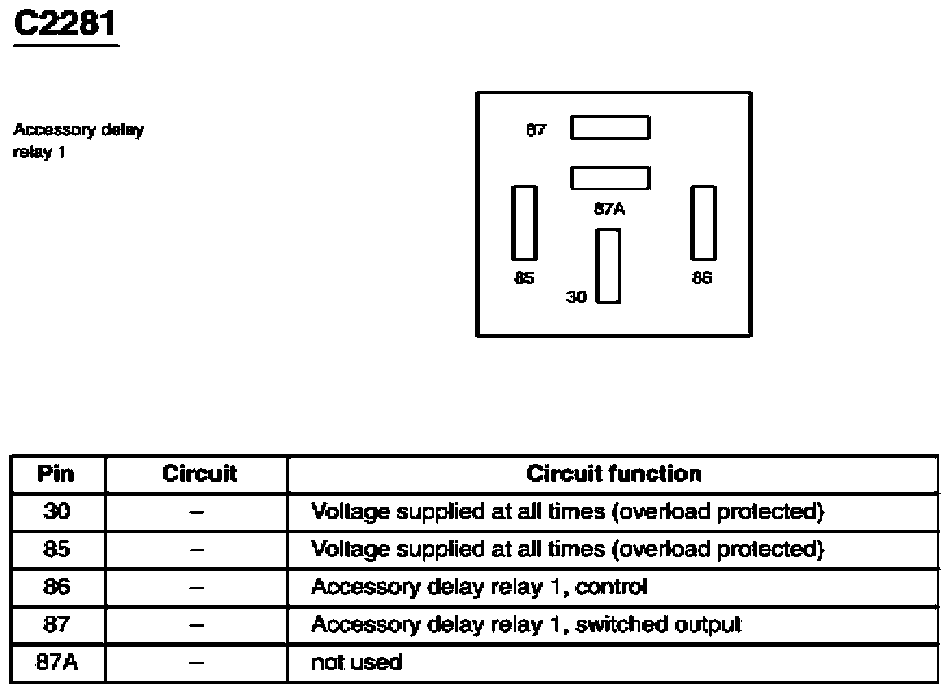

Fig 290: Accessory Delay Relay 1 Connector End View (C2281)
G07838586Courtesy of FORD MOTOR CO.

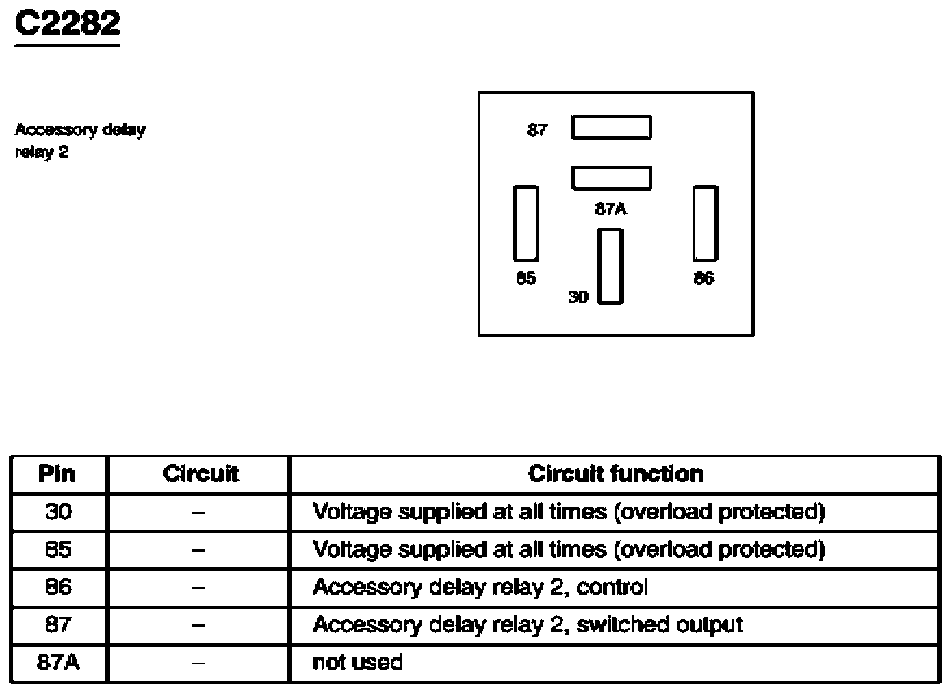

Fig 291: Accessory Delay Relay 2 Connector End View (C2282)
G07838587Courtesy of FORD MOTOR CO.

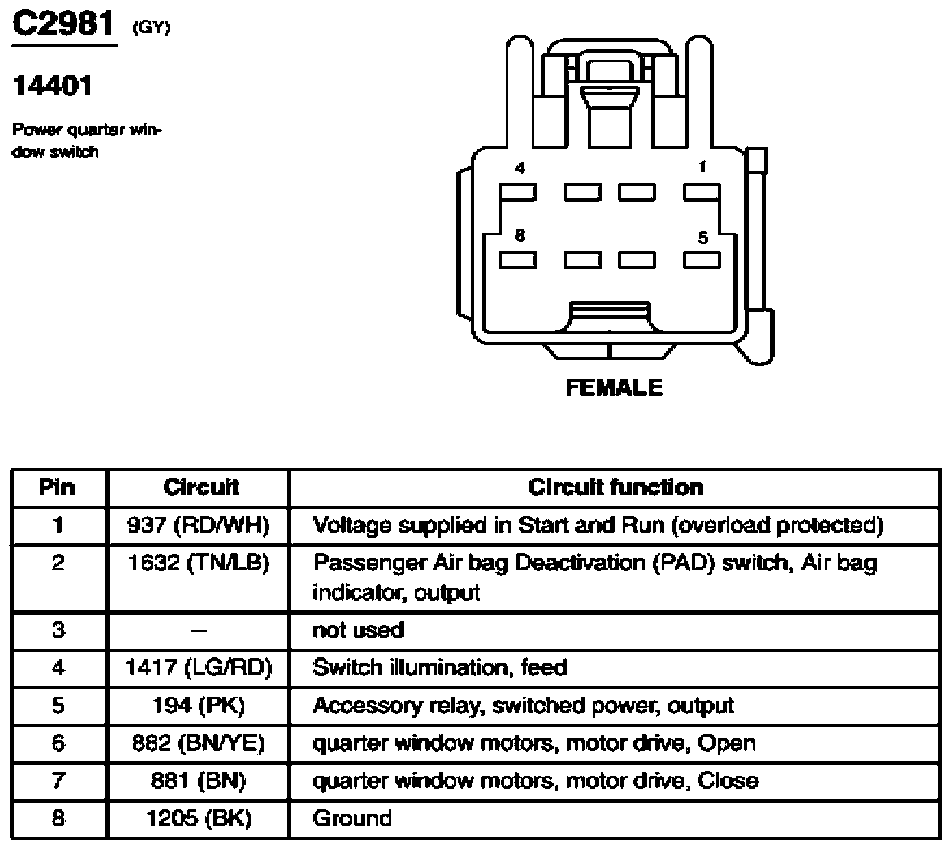

Fig 292: Power Quarter Window Switch Connector End View (C2981)
G07838588Courtesy of FORD MOTOR CO.

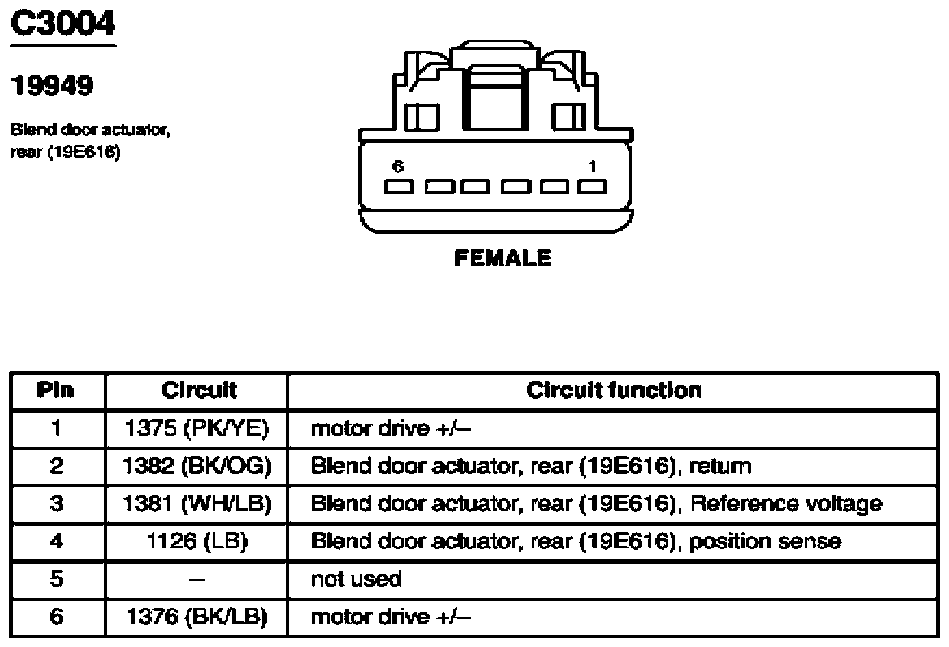

Fig 293: Blend Door Actuator, Rear Connector End View (C3004)
G07838589Courtesy of FORD MOTOR CO.

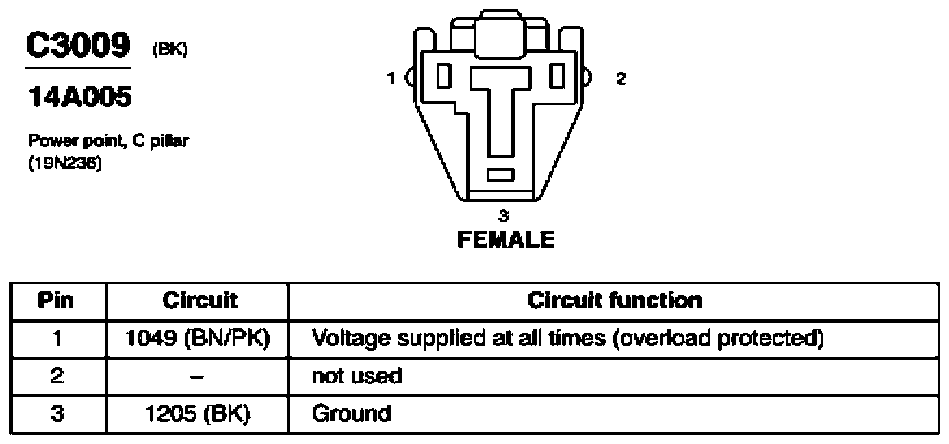

Fig 294: Power Point, C Pillar Connector End View (C3009)
G07838590Courtesy of FORD MOTOR CO.

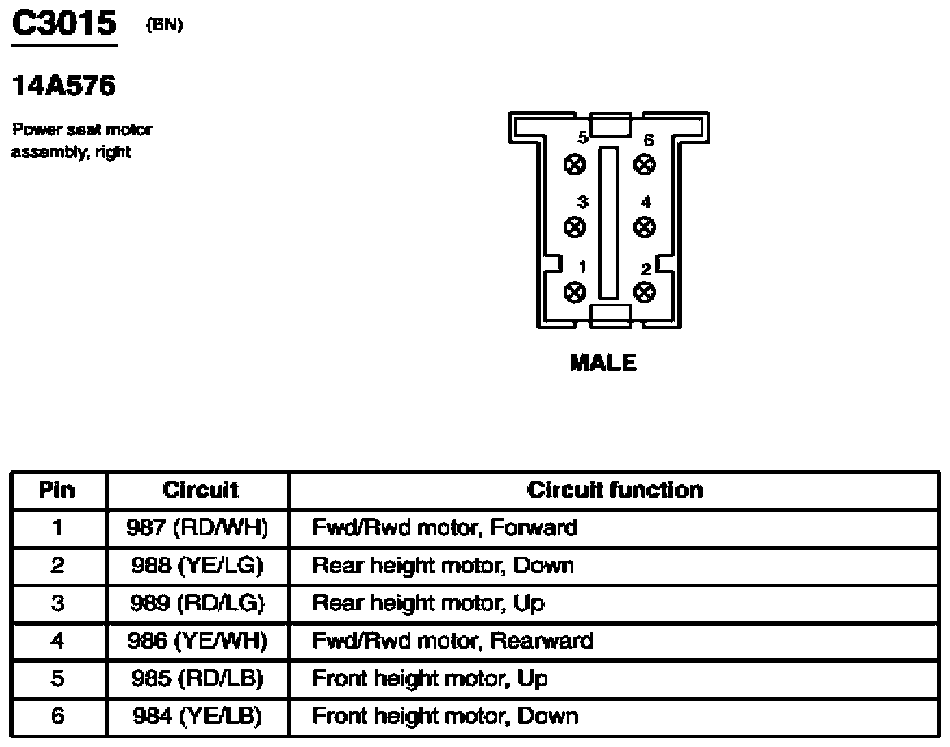

Fig 295: Power Seat Motor Assembly, Right Connector End View (C3015)
G07838591Courtesy of FORD MOTOR CO.
Fig 296: Auxiliary Blower Motor Connector End View (C3021)
G07838592Courtesy of FORD MOTOR CO.

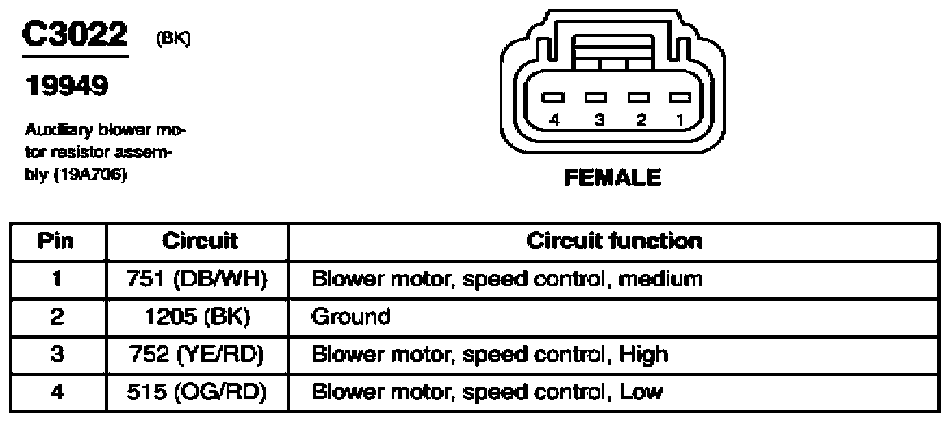

Fig 297: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)
G07838593Courtesy of FORD MOTOR CO.

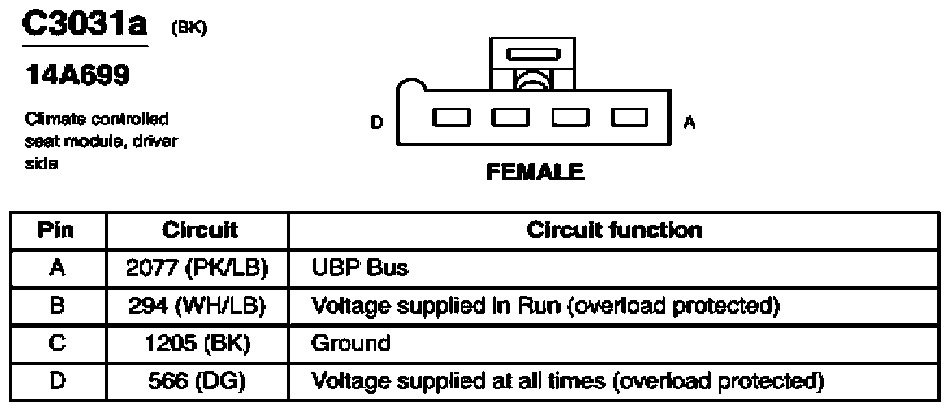

Fig 298: Climate Controlled Seat Module, Driver Side Connector End View (C3031a)
G07838594Courtesy of FORD MOTOR CO.

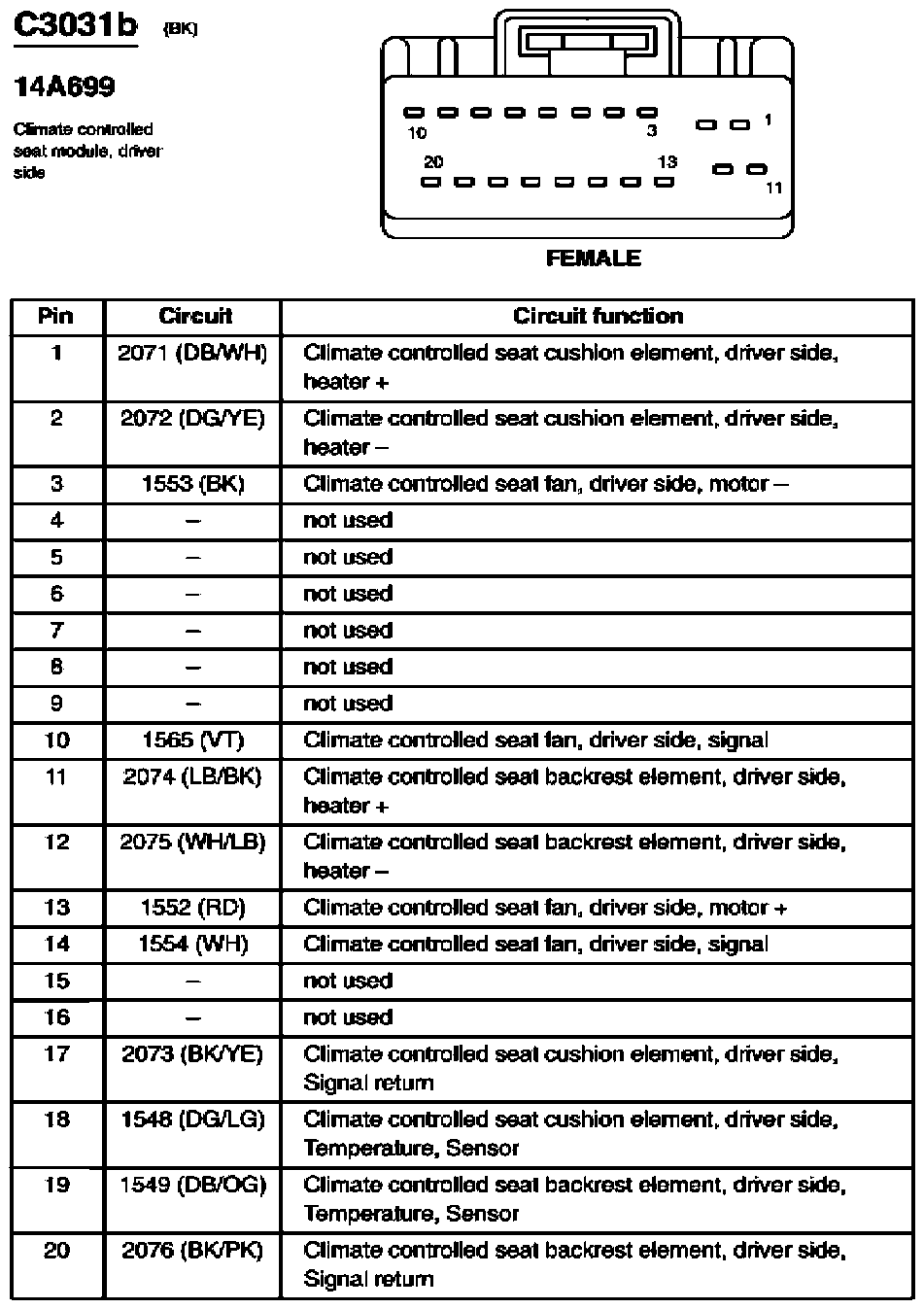

Fig 299: Climate Controlled Seat Module, Driver Side Connector End View (C3031b)
G07838595Courtesy of FORD MOTOR CO.
Fig 300: Climate Controlled Seat Fan, Driver Side Connector End View (C3033)
G07838596Courtesy of FORD MOTOR CO.

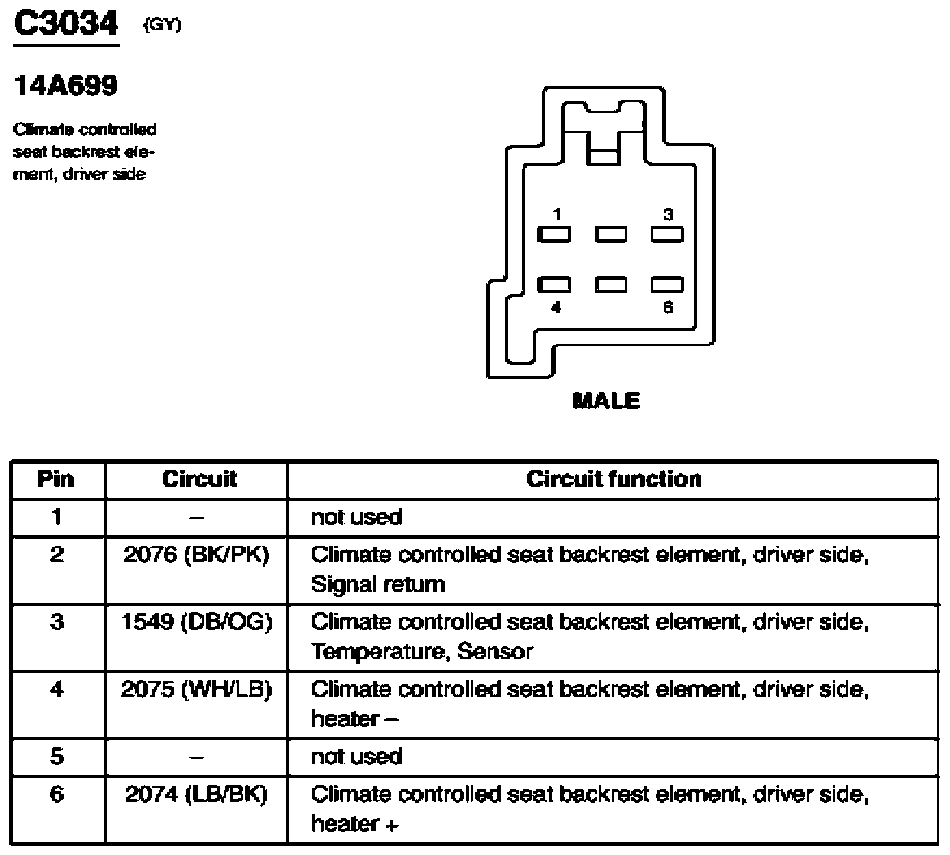

Fig 301: Climate Controlled Seat Backrest Element, Driver Side Connector End View (C3034)
G07838597Courtesy of FORD MOTOR CO.

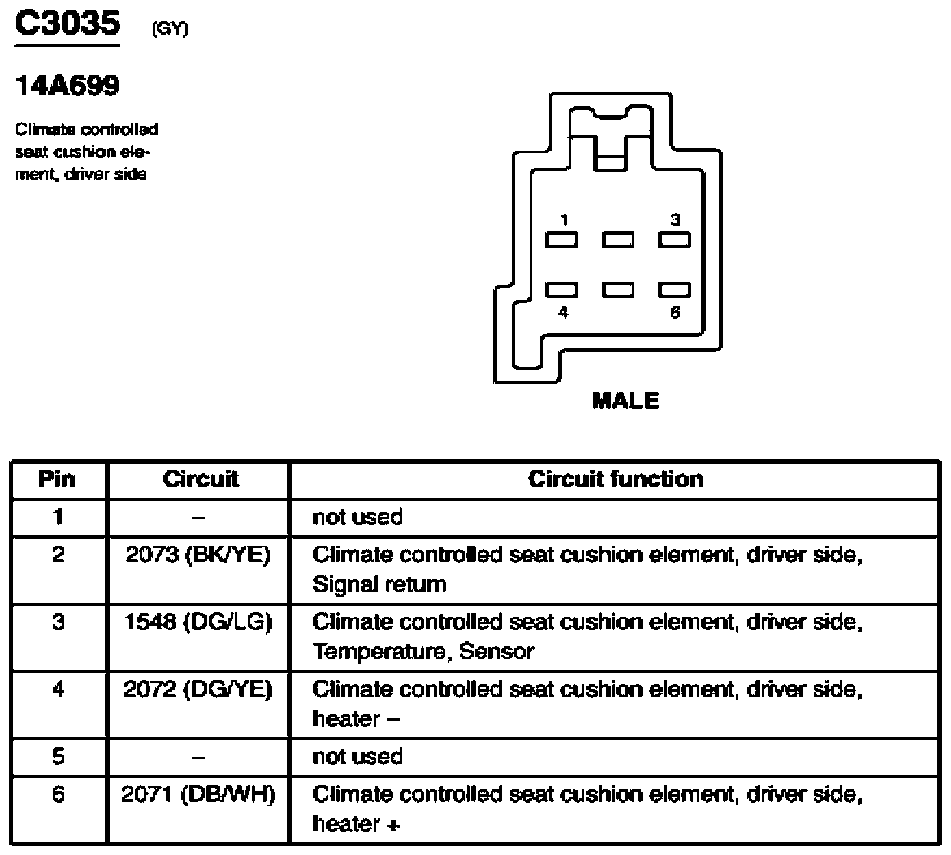

Fig 302: Climate Controlled Seat Cushion Element, Driver Side Connector End View (C3035)
G07838598Courtesy of FORD MOTOR CO.

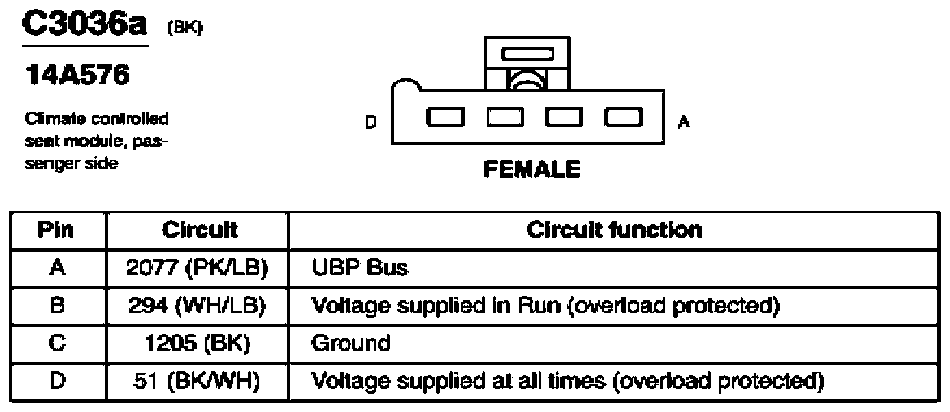

Fig 303: Climate Controlled Seat Module, Passenger Side Connector End View (C3036a)
G07838599Courtesy of FORD MOTOR CO.

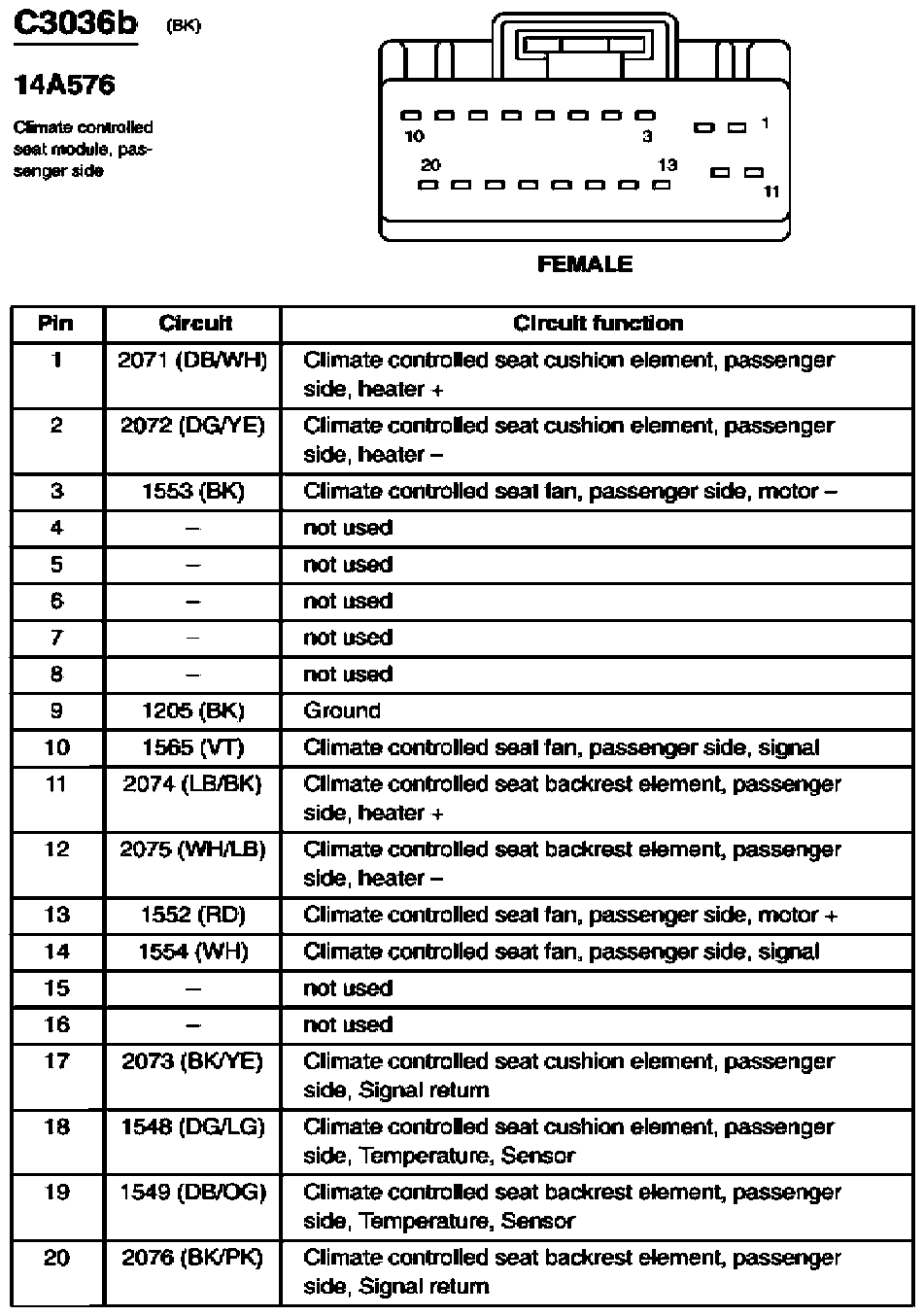

Fig 304: Climate Controlled Seat Module, Passenger Side Connector End View (C3036b)
G07838600Courtesy of FORD MOTOR CO.

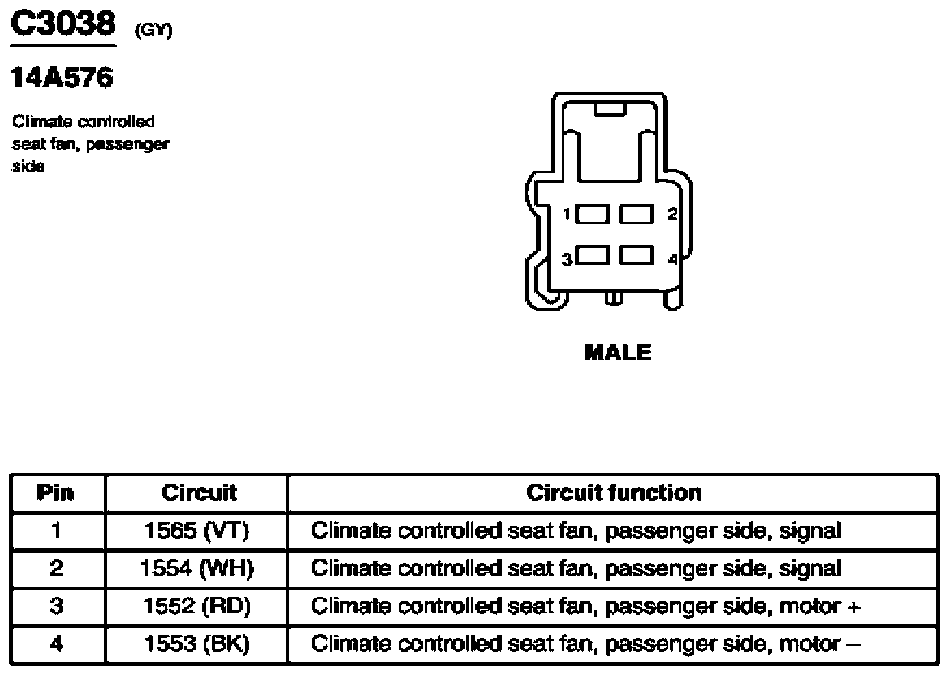

Fig 305: Climate Controlled Seat Fan, Passenger Side Connector End View (C3038)
G07838601Courtesy of FORD MOTOR CO.

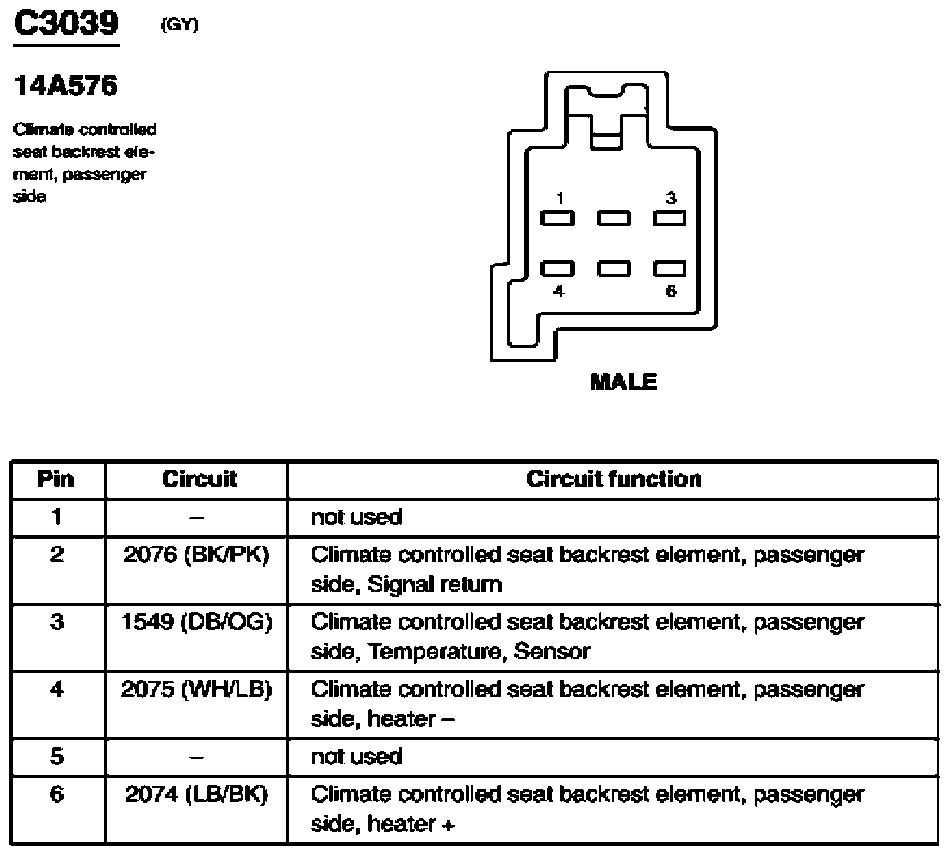

Fig 306: Climate Controlled Seat Backrest Element, Passenger Side Connector End View (C3039)
G07838602Courtesy of FORD MOTOR CO.

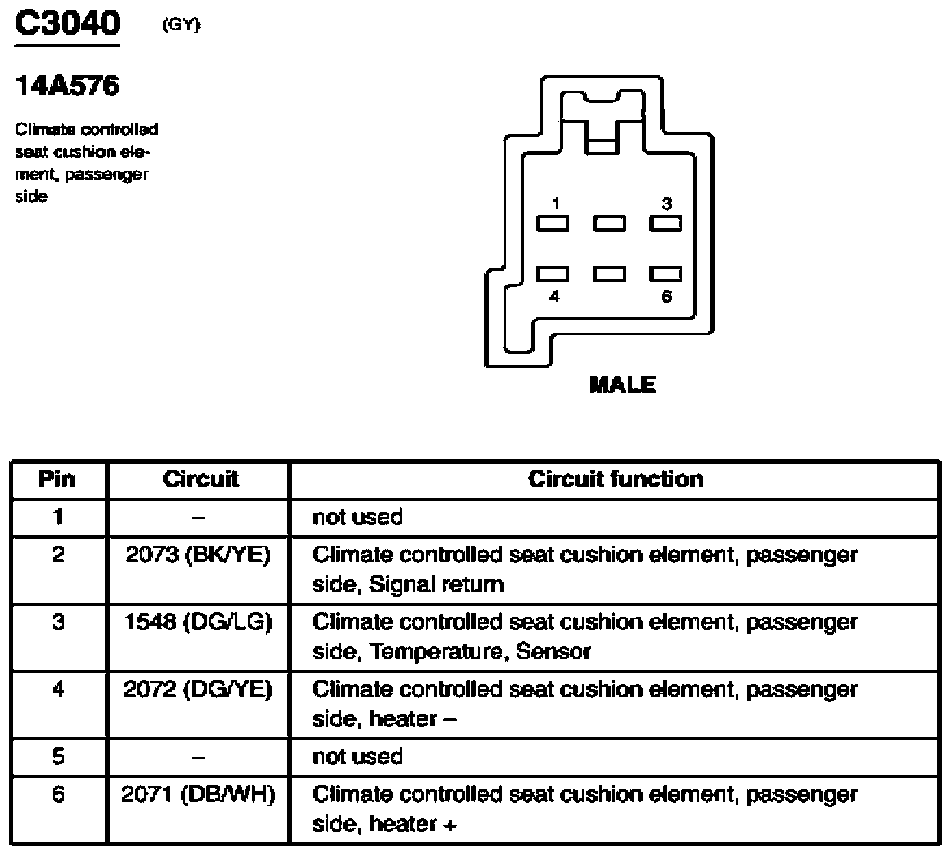

Fig 307: Climate Controlled Seat Cushion Element, Passenger Side Connector End View (C3040)
G07838603Courtesy of FORD MOTOR CO.

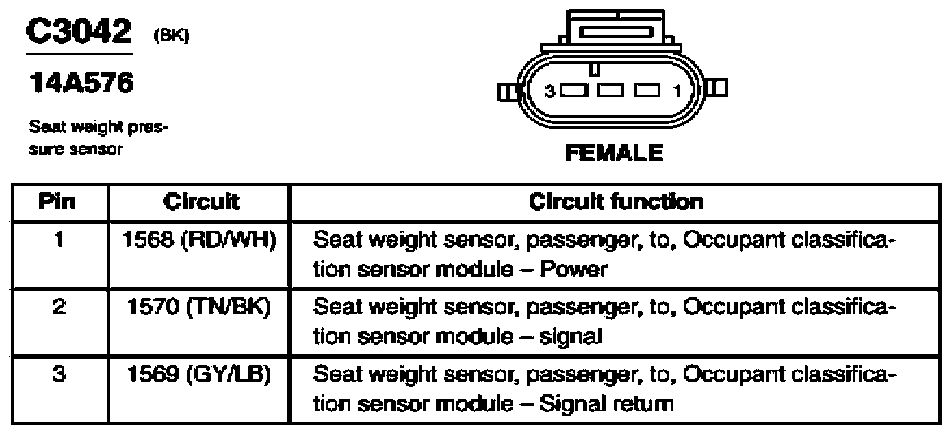

Fig 308: Seat Weight Pressure Sensor Connector End View (C3042)
G07838604Courtesy of FORD MOTOR CO.

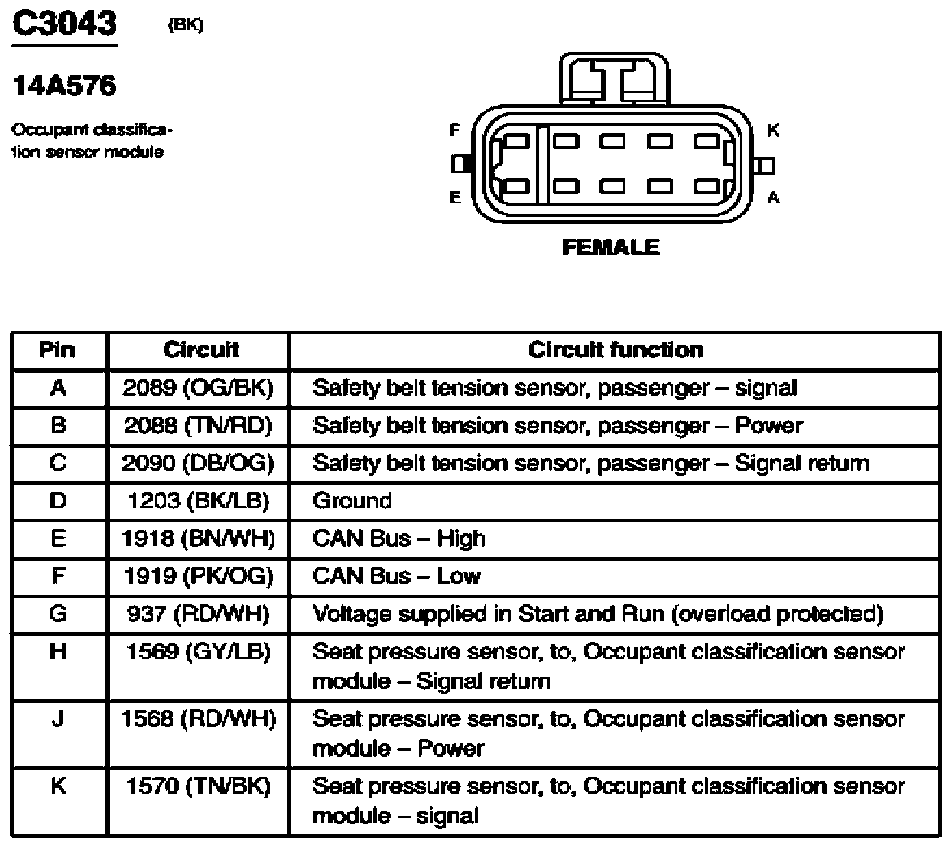

Fig 309: Occupant Classification Sensor Module Connector End View (C3043)
G07838605Courtesy of FORD MOTOR CO.

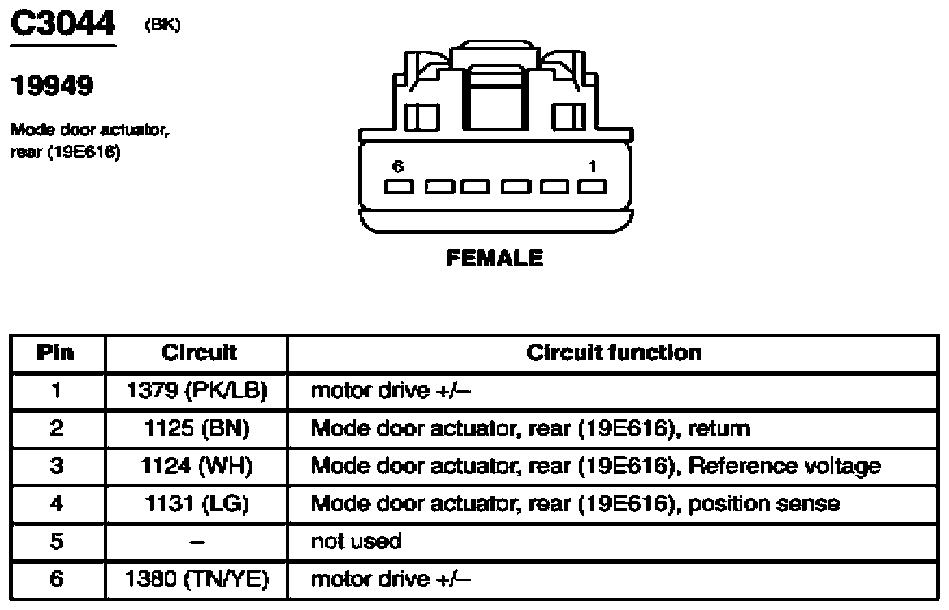

Fig 310: Mode Door Actuator, Rear Connector End View (C3044)
G07838606Courtesy of FORD MOTOR CO.

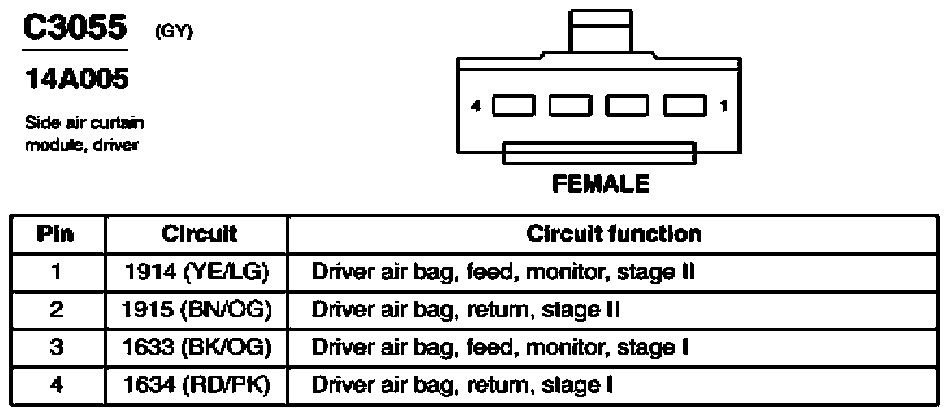

Fig 311: Side Air Curtain Module, Driver Connector End View (C3055)
G07838607Courtesy of FORD MOTOR CO.

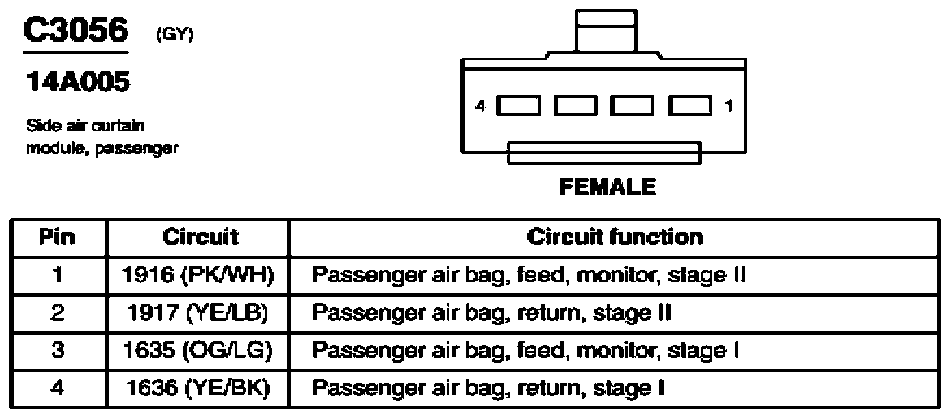

Fig 312: Side Air Curtain Module, Passenger Connector End View (C3056)
G07838608Courtesy of FORD MOTOR CO.

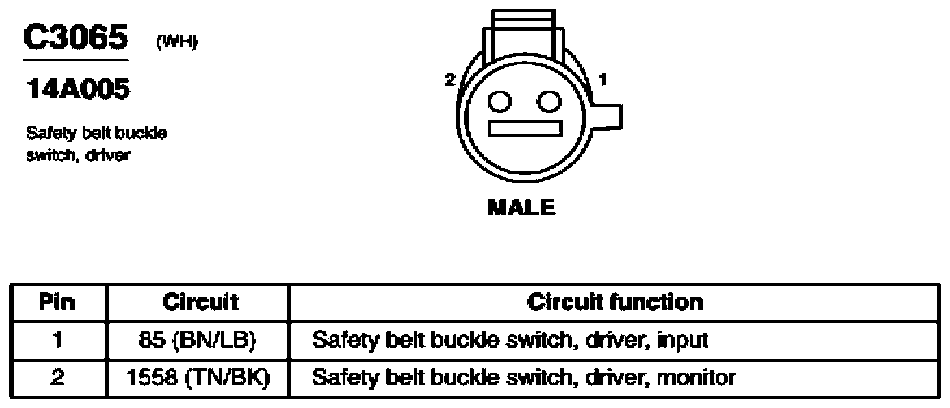

Fig 313: Safety Belt Buckle Switch, Driver Connector End View (C3065)
G07838609Courtesy of FORD MOTOR CO.

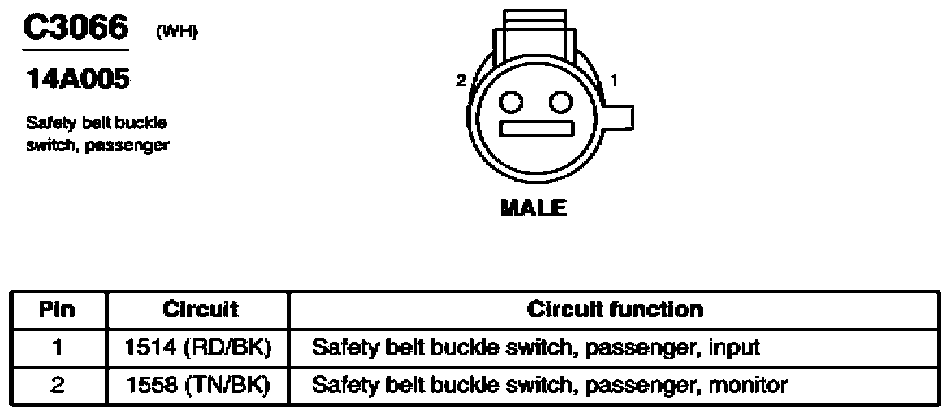

Fig 314: Safety Belt Buckle Switch, Passenger Connector End View (C3066)
G07838610Courtesy of FORD MOTOR CO.

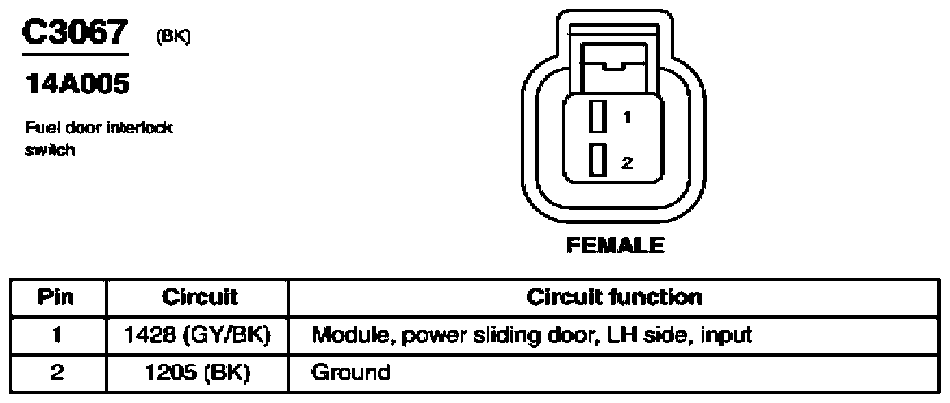

Fig 315: Fuel Door Interlock Switch Connector End View (C3067)
G07838611Courtesy of FORD MOTOR CO.

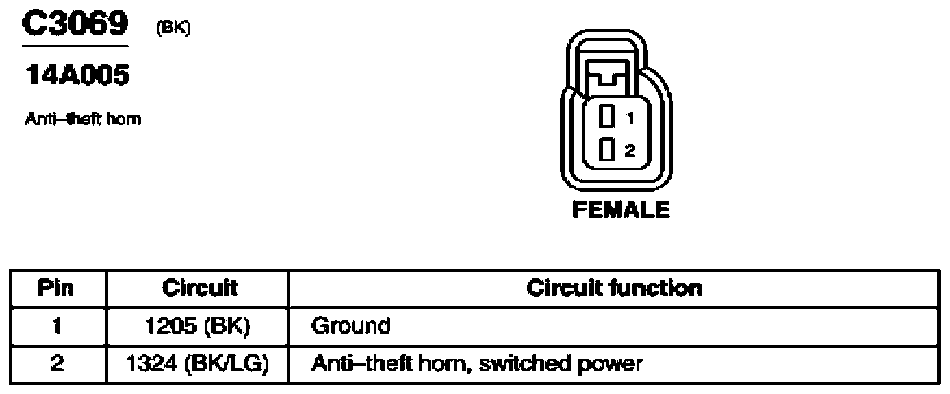

Fig 316: Anti-Theft Horn Connector End View (C3069)
G07838612Courtesy of FORD MOTOR CO.

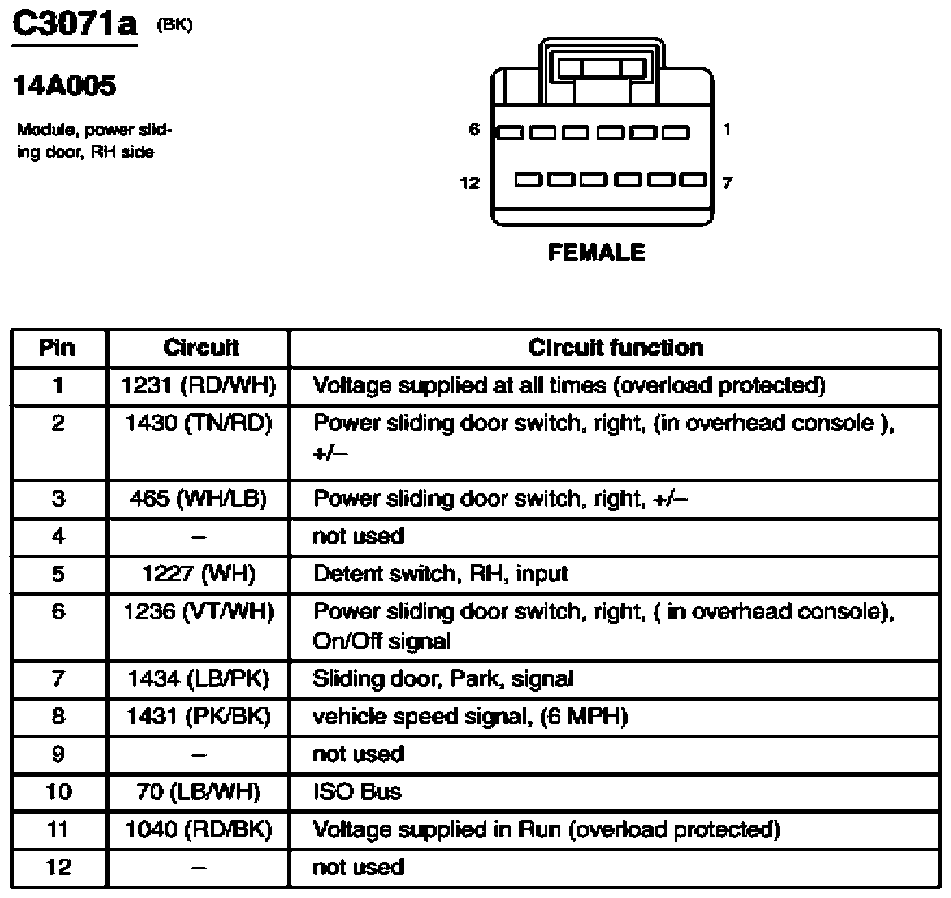

Fig 317: Module, Power Sliding Door, RH Side Connector End View (C3071a)
G07838613Courtesy of FORD MOTOR CO.

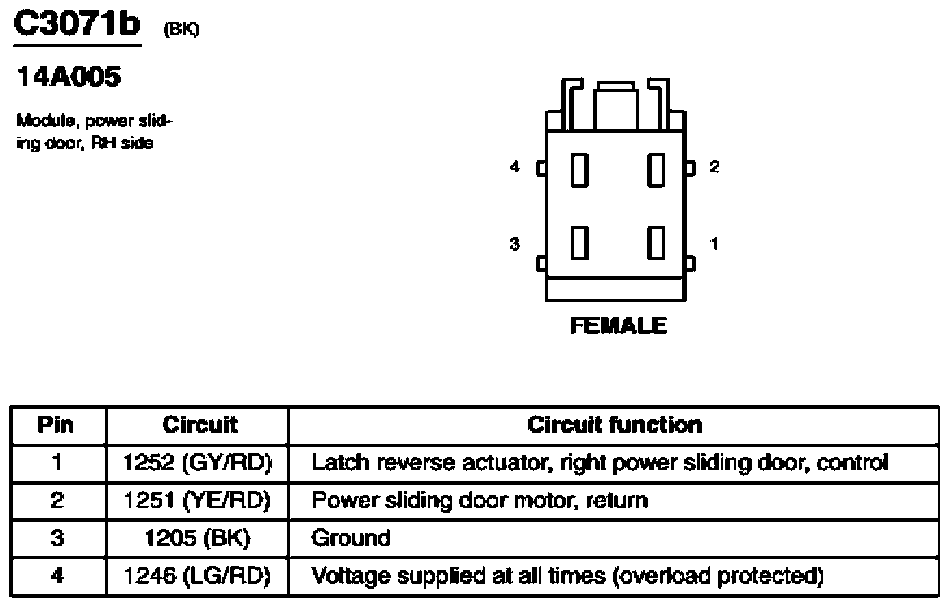

Fig 318: Module, Power Sliding Door, RH Side Connector End View (C3071b)
G07838614Courtesy of FORD MOTOR CO.

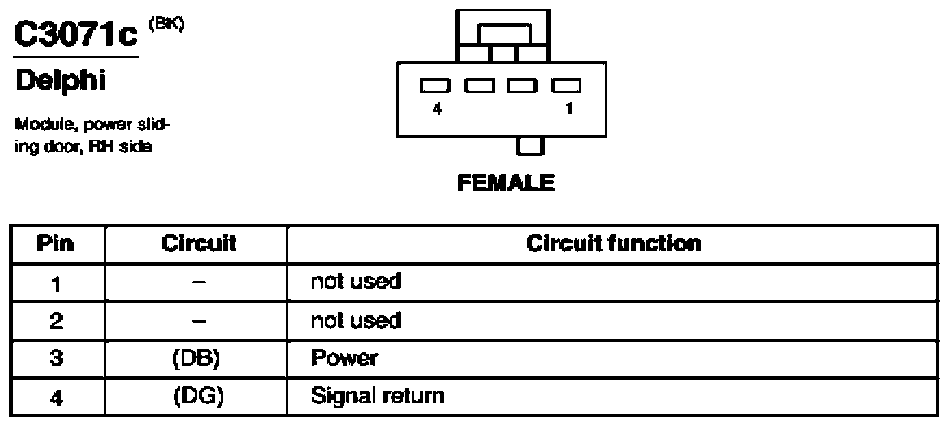

Fig 319: Module, Power Sliding Door, RH Side Connector End View (C3071c)
G07838615Courtesy of FORD MOTOR CO.

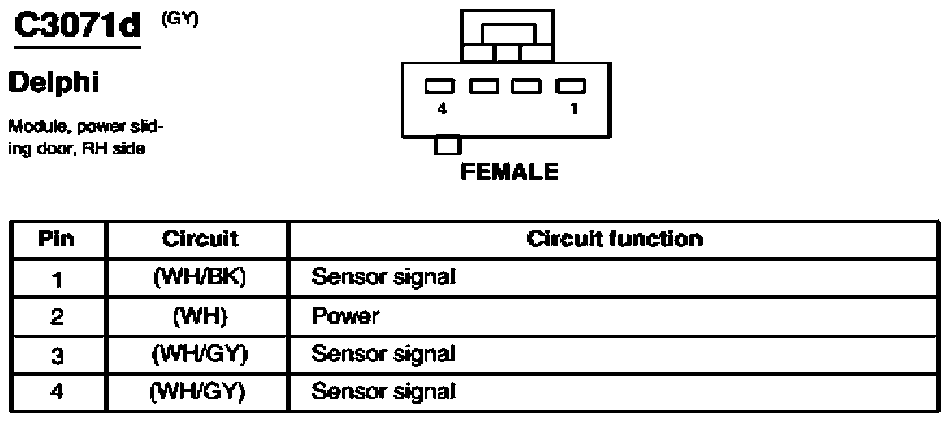

Fig 320: Module, Power Sliding Door, RH Side Connector End View (C3071d)
G07838616Courtesy of FORD MOTOR CO.

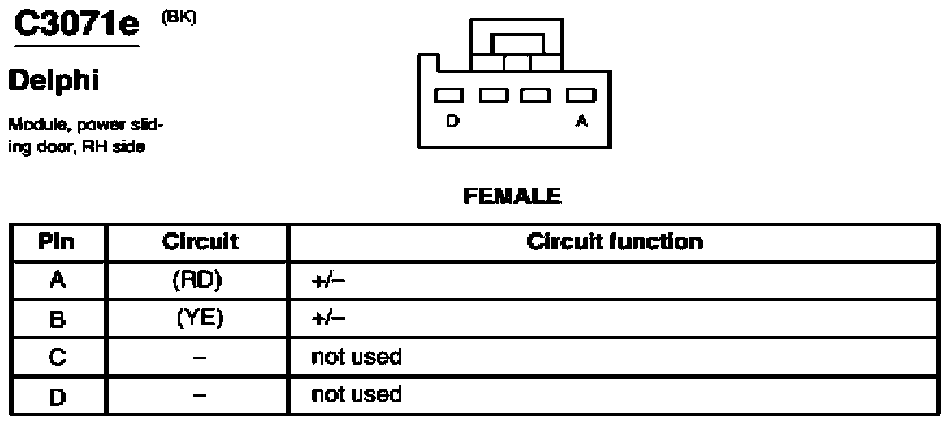

Fig 321: Module, Power Sliding Door, RH Side Connector End View (C3071e)
G07838617Courtesy of FORD MOTOR CO.

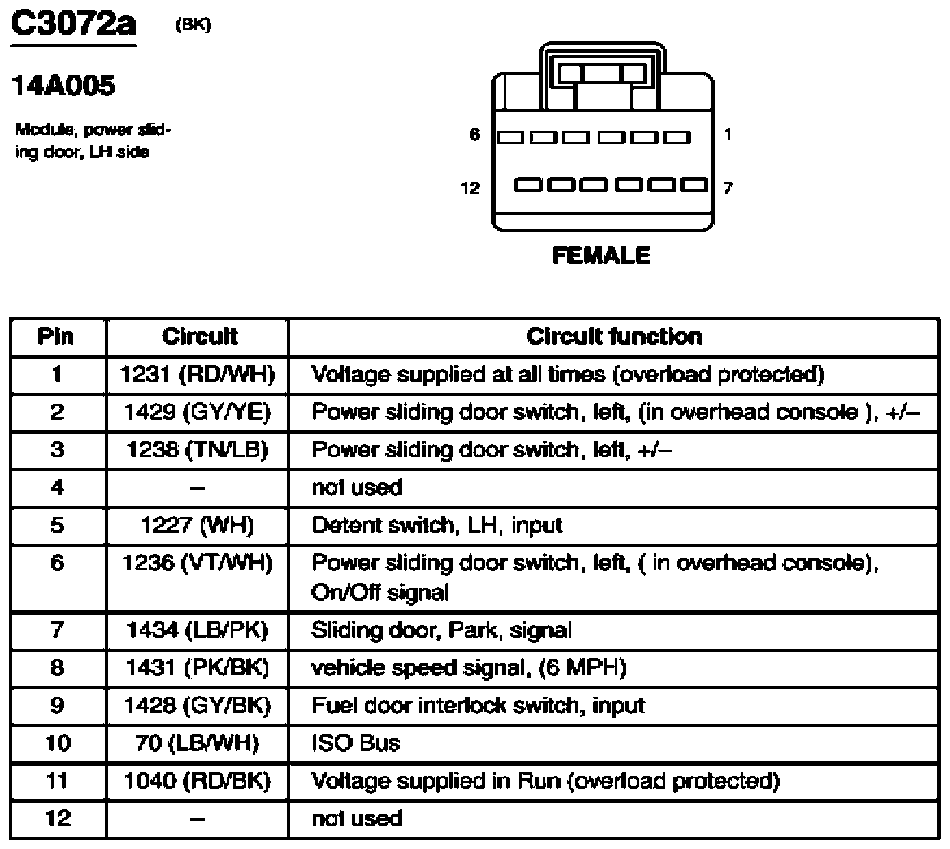

Fig 322: Module, Power Sliding Door, LH Side Connector End View (C3072a)
G07838618Courtesy of FORD MOTOR CO.

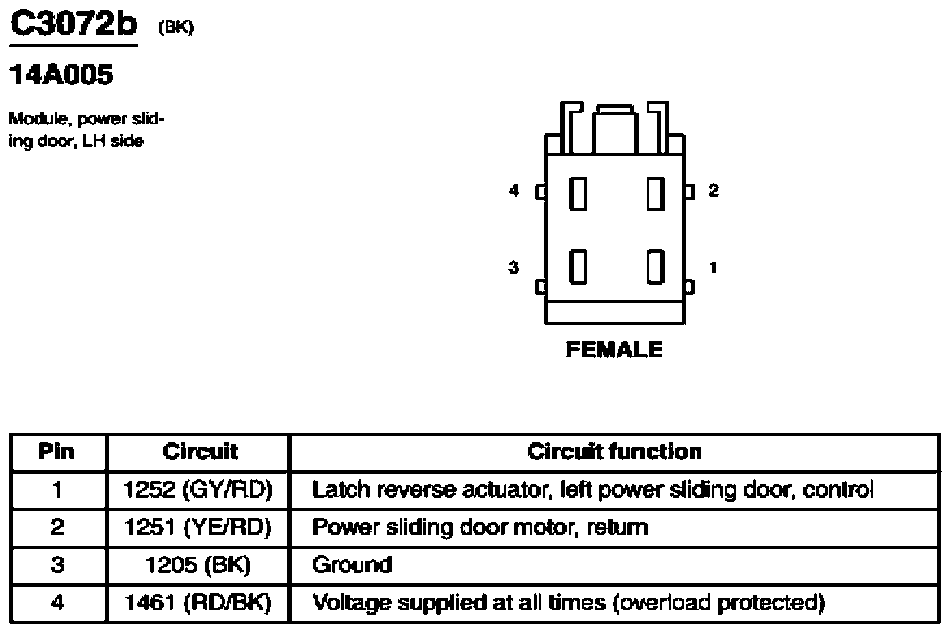

Fig 323: Module, Power Sliding Door, LH Side Connector End View (C3072b)
G07838619Courtesy of FORD MOTOR CO.

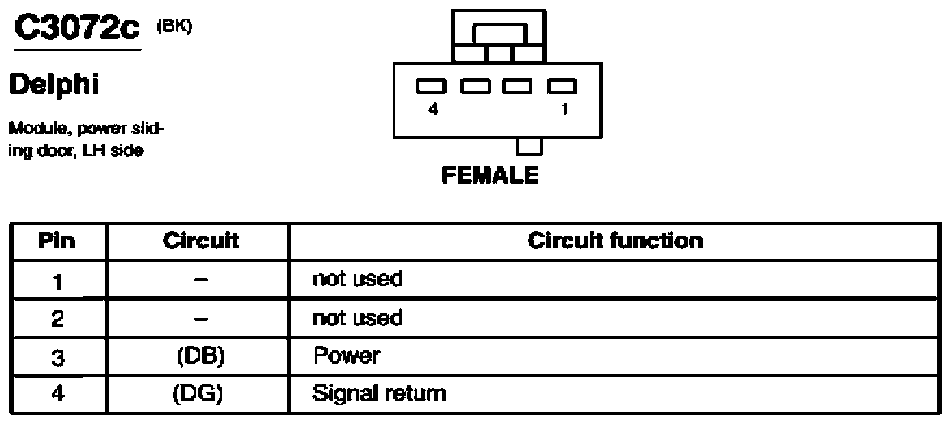

Fig 324: Module, Power Sliding Door, LH Side Connector End View (C3072c)
G07838620Courtesy of FORD MOTOR CO.

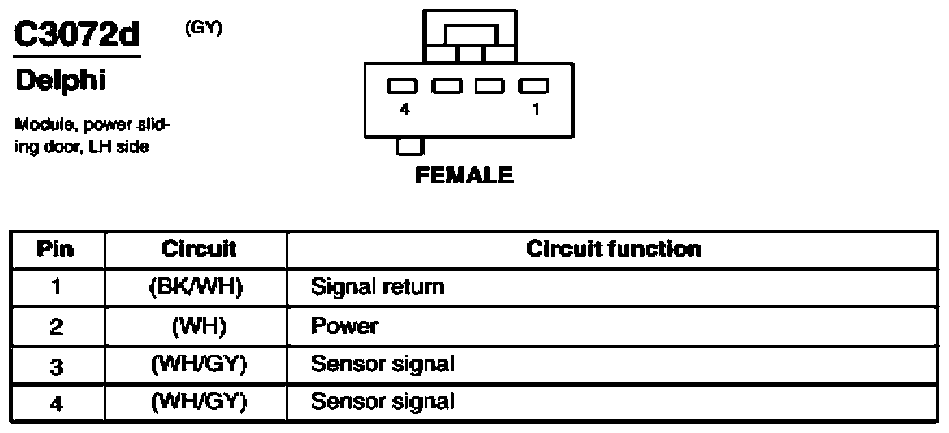

Fig 325: Module, Power Sliding Door, LH Side Connector End View (C3072d)
G07838621Courtesy of FORD MOTOR CO.

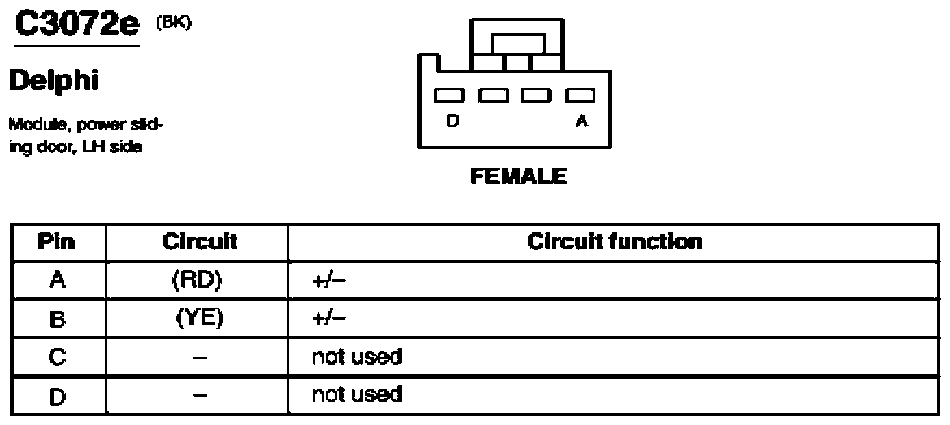

Fig 326: Module, Power Sliding Door, LH Side Connector End View (C3072e)
G07838622Courtesy of FORD MOTOR CO.

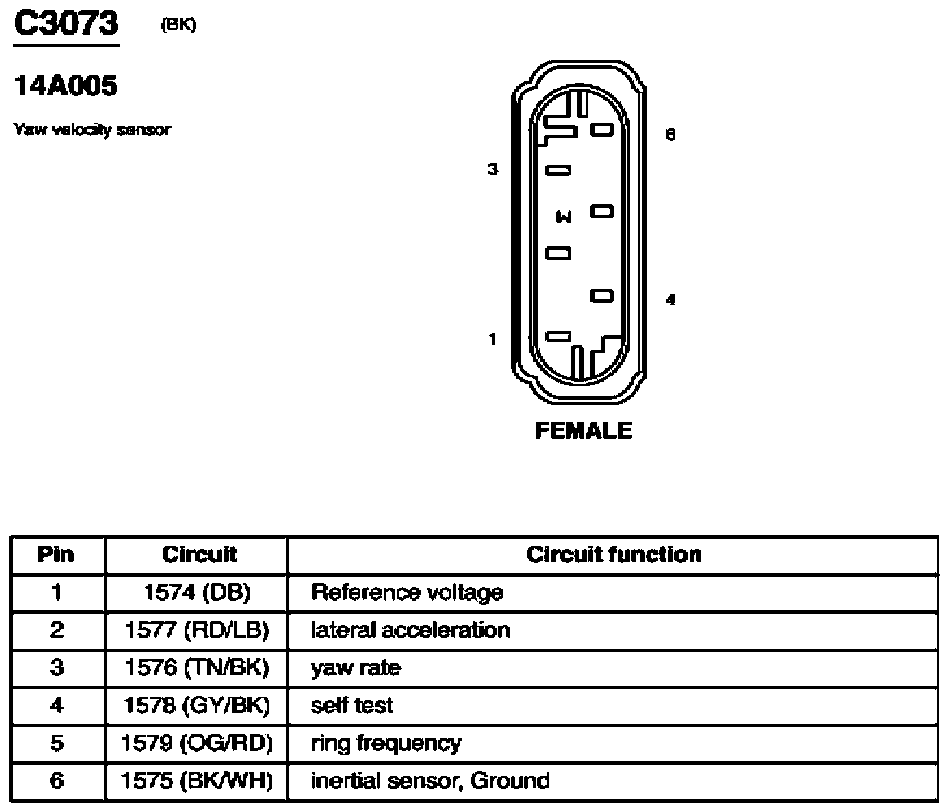

Fig 327: Yaw Velocity Sensor Connector End View (C3073)
G07838623Courtesy of FORD MOTOR CO.

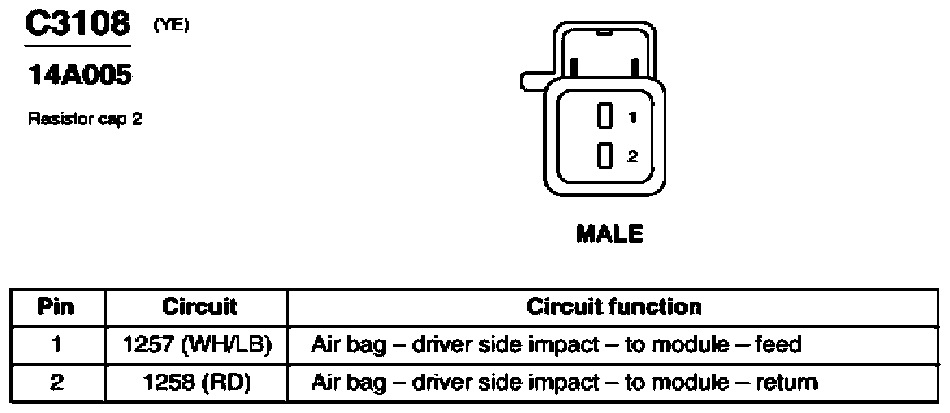

Fig 328: Resistor Cap 2 Connector End View (C3108)
G07838624Courtesy of FORD MOTOR CO.

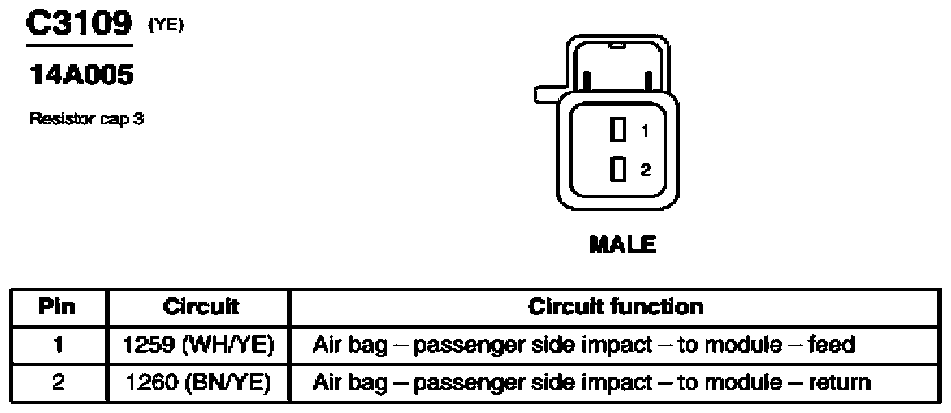

Fig 329: Resistor Cap 3 Connector End View (C3109)
G07838625Courtesy of FORD MOTOR CO.

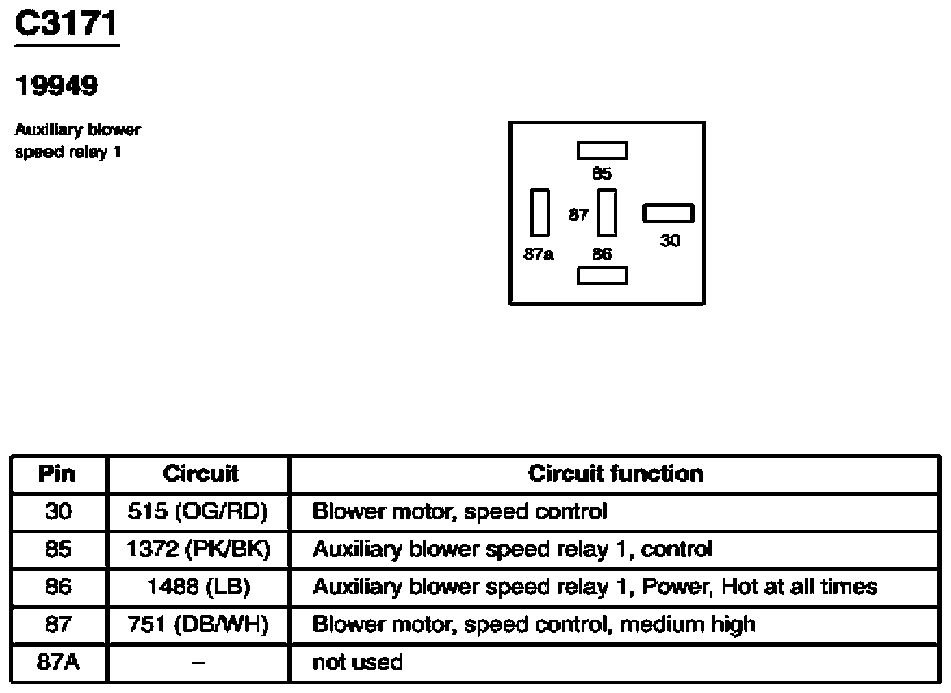

Fig 330: Auxiliary Blower Speed Relay 1 Connector End View (C3171)
G07838626Courtesy of FORD MOTOR CO.

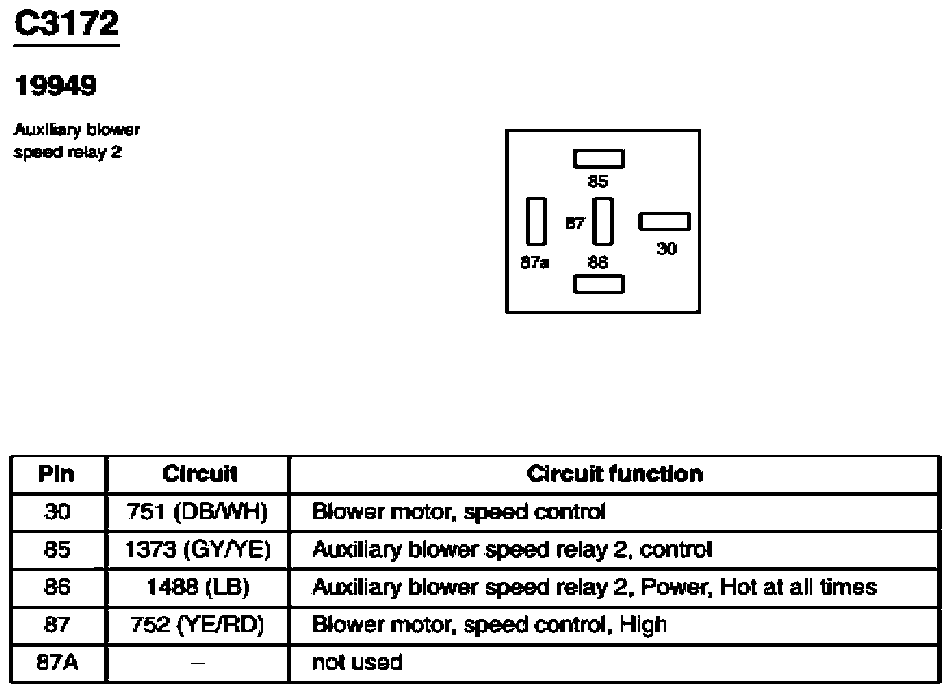

Fig 331: Auxiliary Blower Speed Relay 2 Connector End View (C3172)
G07838627Courtesy of FORD MOTOR CO.

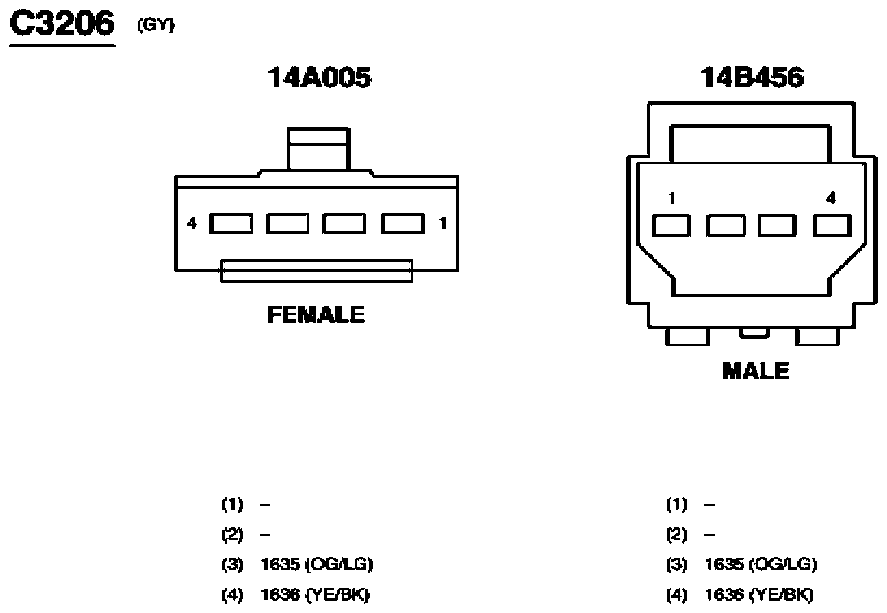

Fig 332: Inline Connector End View (C3206)
G07838628Courtesy of FORD MOTOR CO.

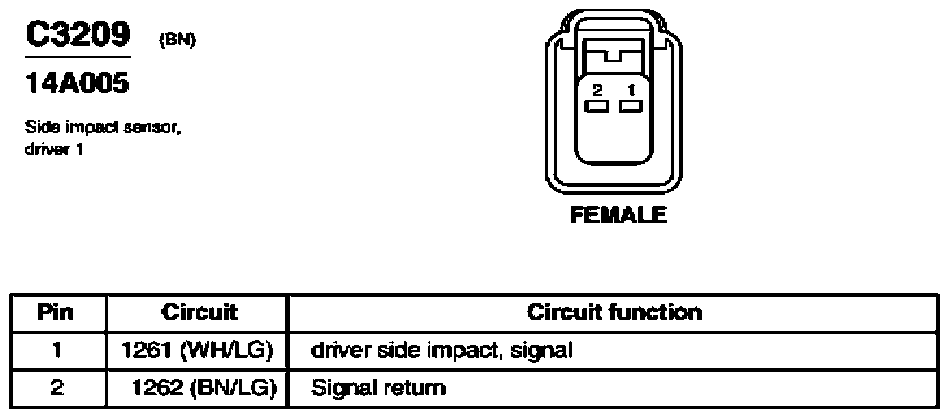

Fig 333: Side Impact Sensor, Driver 1 Connector End View (C3209)
G07838629Courtesy of FORD MOTOR CO.

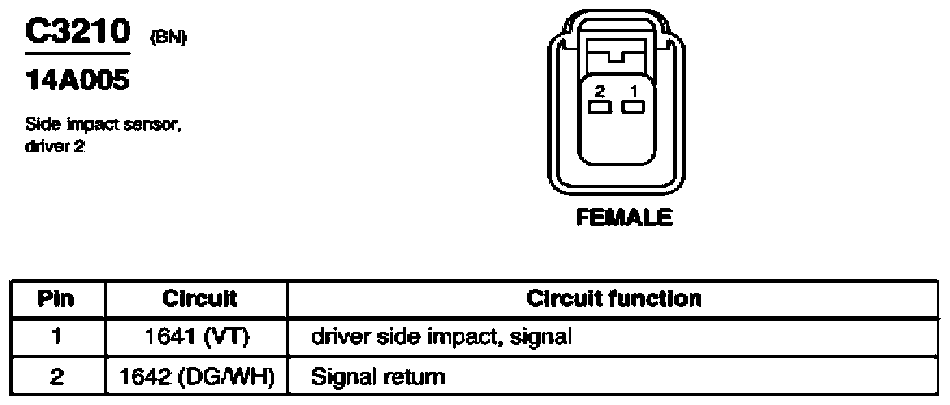

Fig 334: Side Impact Sensor, Driver 2 Connector End View (C3210)
G07838630Courtesy of FORD MOTOR CO.

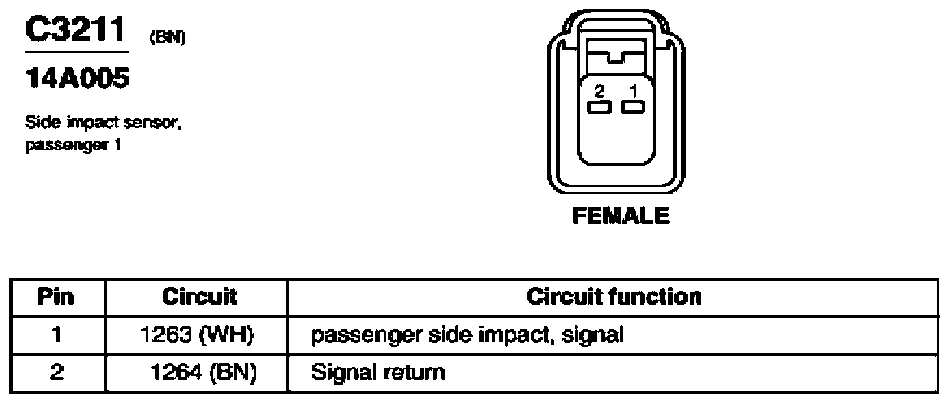

Fig 335: Side Impact Sensor, Passenger 1 Connector End View (C3211)
G07838631Courtesy of FORD MOTOR CO.

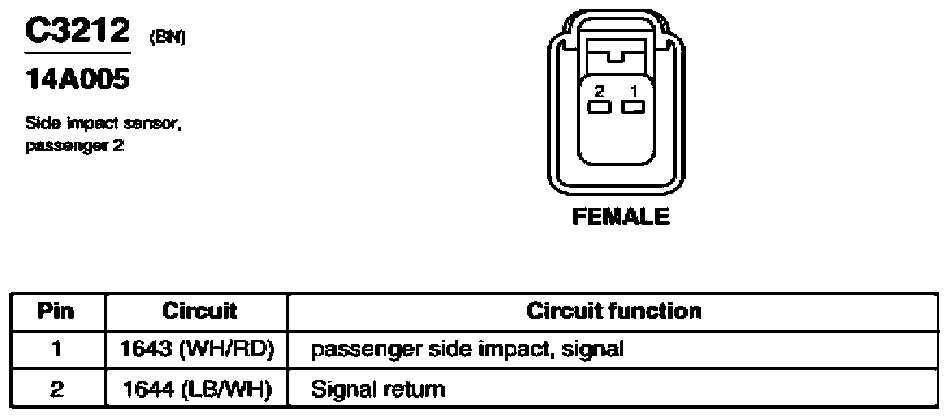

Fig 336: Side Impact Sensor, Passenger 2 Connector End View (C3212)
G07838632Courtesy of FORD MOTOR CO.

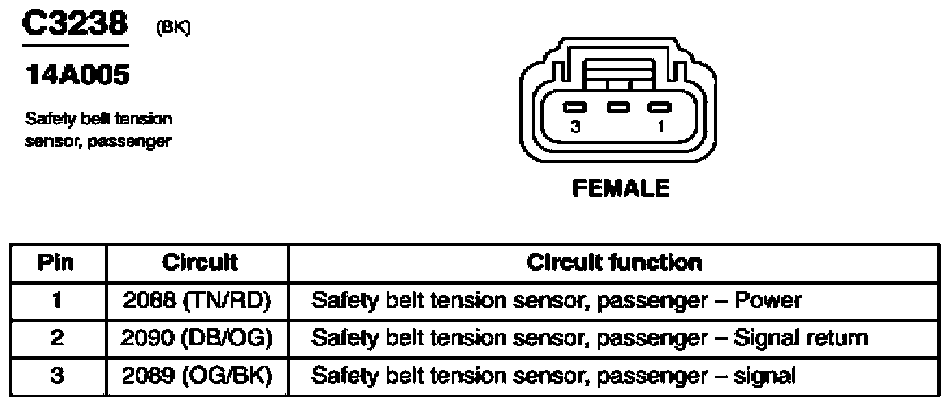

Fig 337: Safety Belt Tension Sensor, Passenger Connector End View (C3238)
G07838633Courtesy of FORD MOTOR CO.

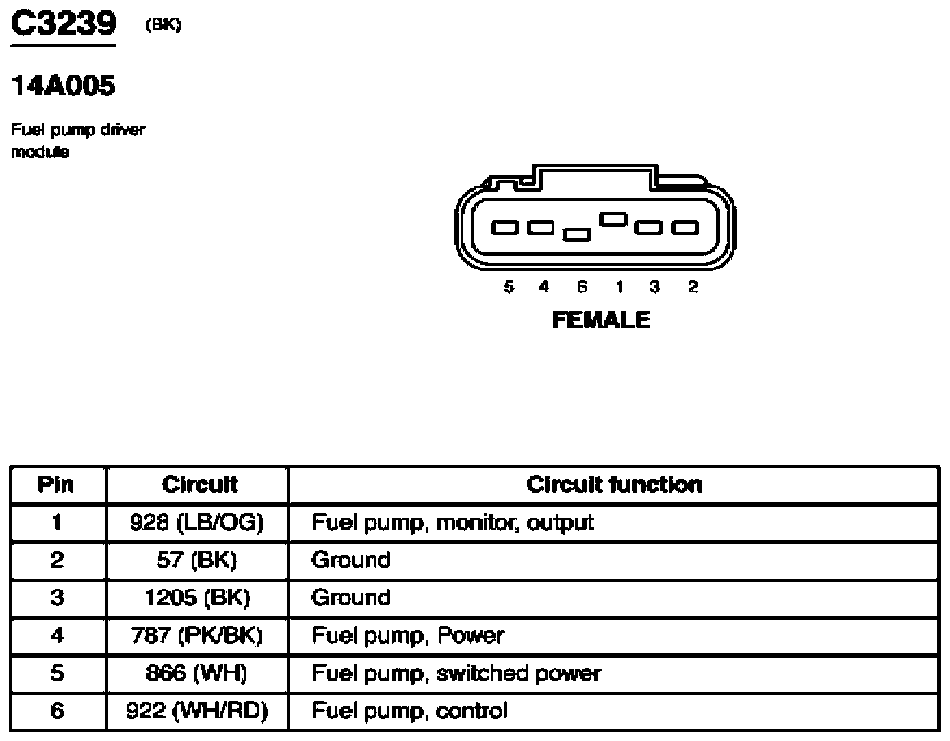

Fig 338: Fuel Pump Driver Module Connector End View (C3239)
G07838634Courtesy of FORD MOTOR CO.

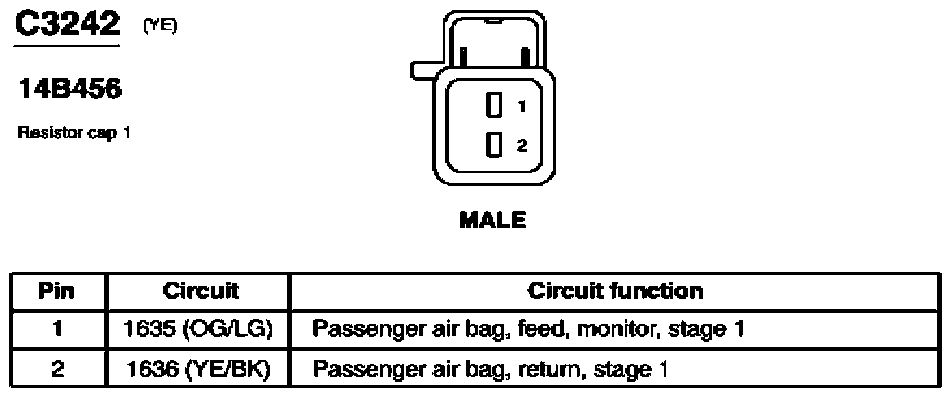

Fig 339: Resistor Cap 1 Connector End View (C3242)
G07838635Courtesy of FORD MOTOR CO.

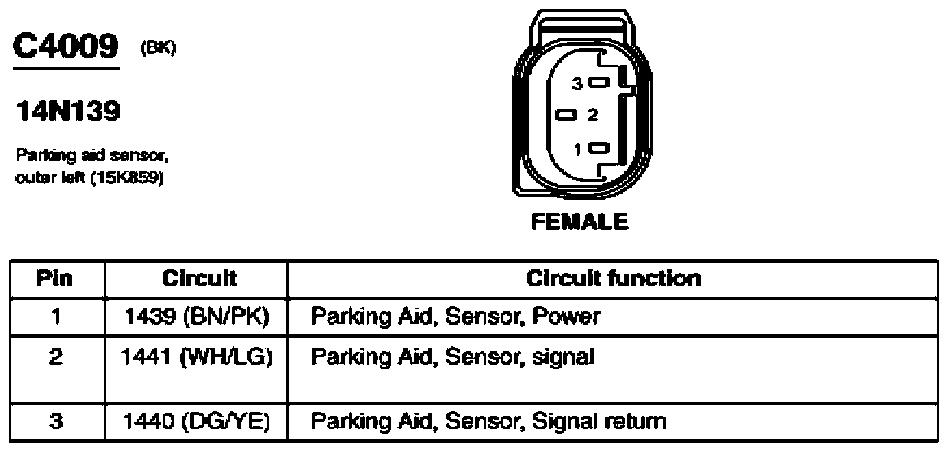

Fig 340: Parking Aid Sensor, Outer Left Connector End View (C4009)
G07838636Courtesy of FORD MOTOR CO.

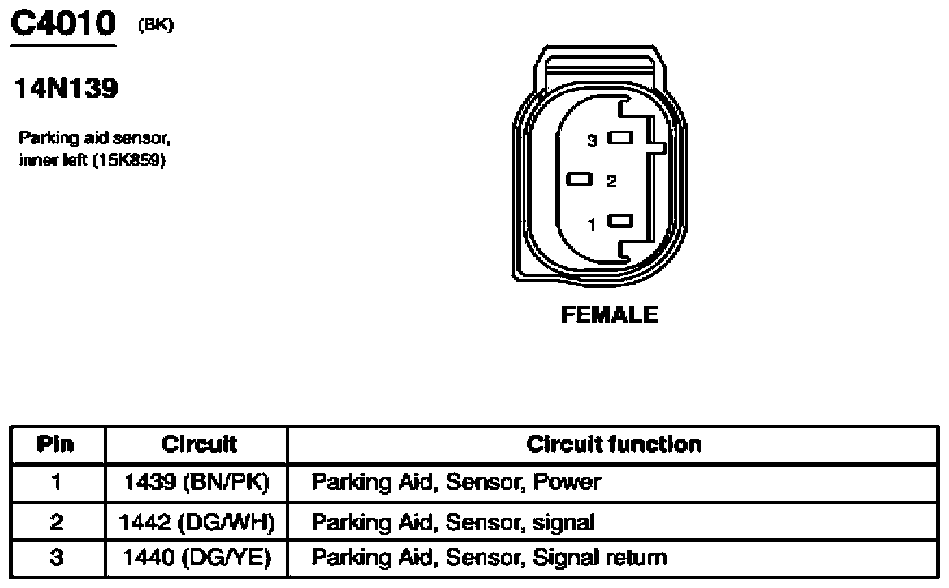

Fig 341: Parking Aid Sensor, Inner Left Connector End View (C4010)
G07838637Courtesy of FORD MOTOR CO.

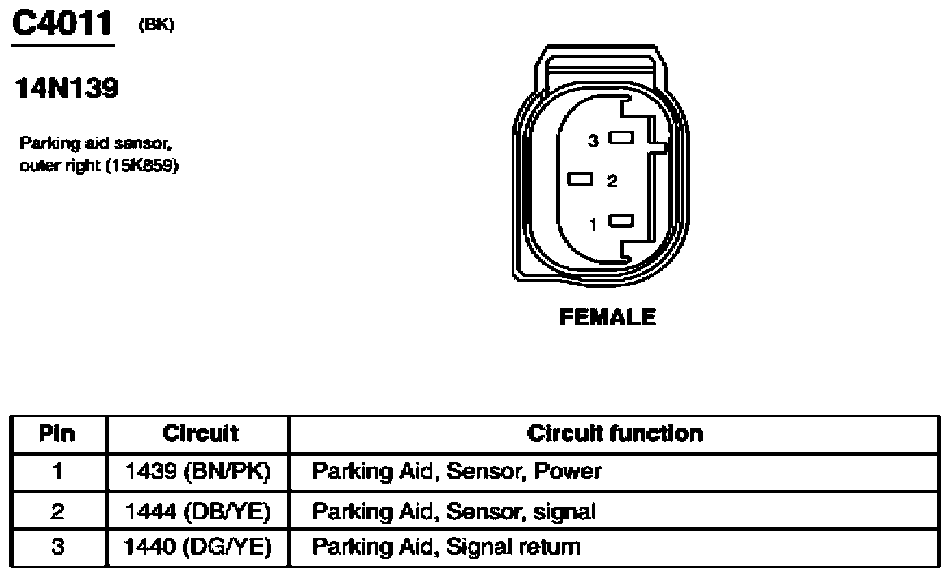

Fig 342: Parking Aid Sensor, Outer Right Connector End View (C4011)
G07838638Courtesy of FORD MOTOR CO.

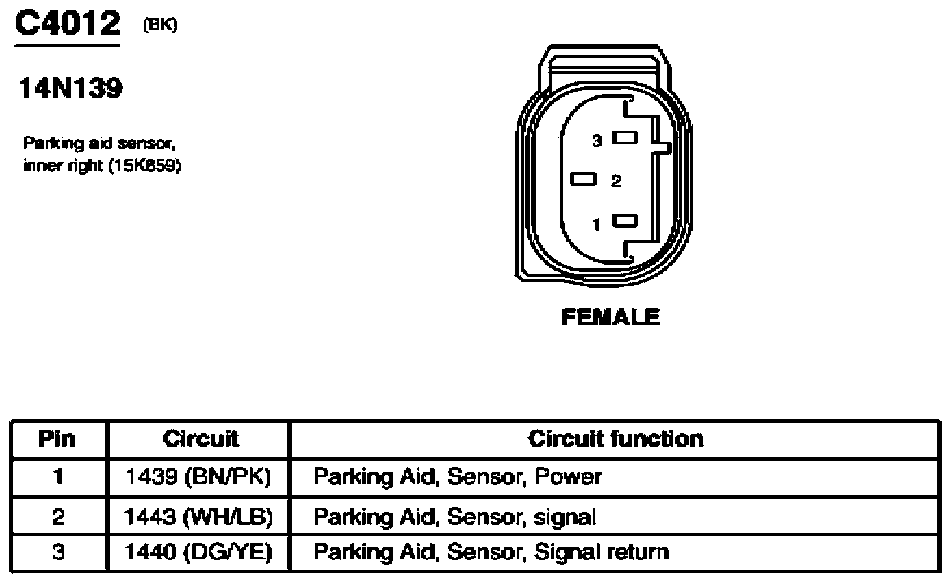

Fig 343: Parking Aid Sensor, Inner Right Connector End View (C4012)
G07838639Courtesy of FORD MOTOR CO.

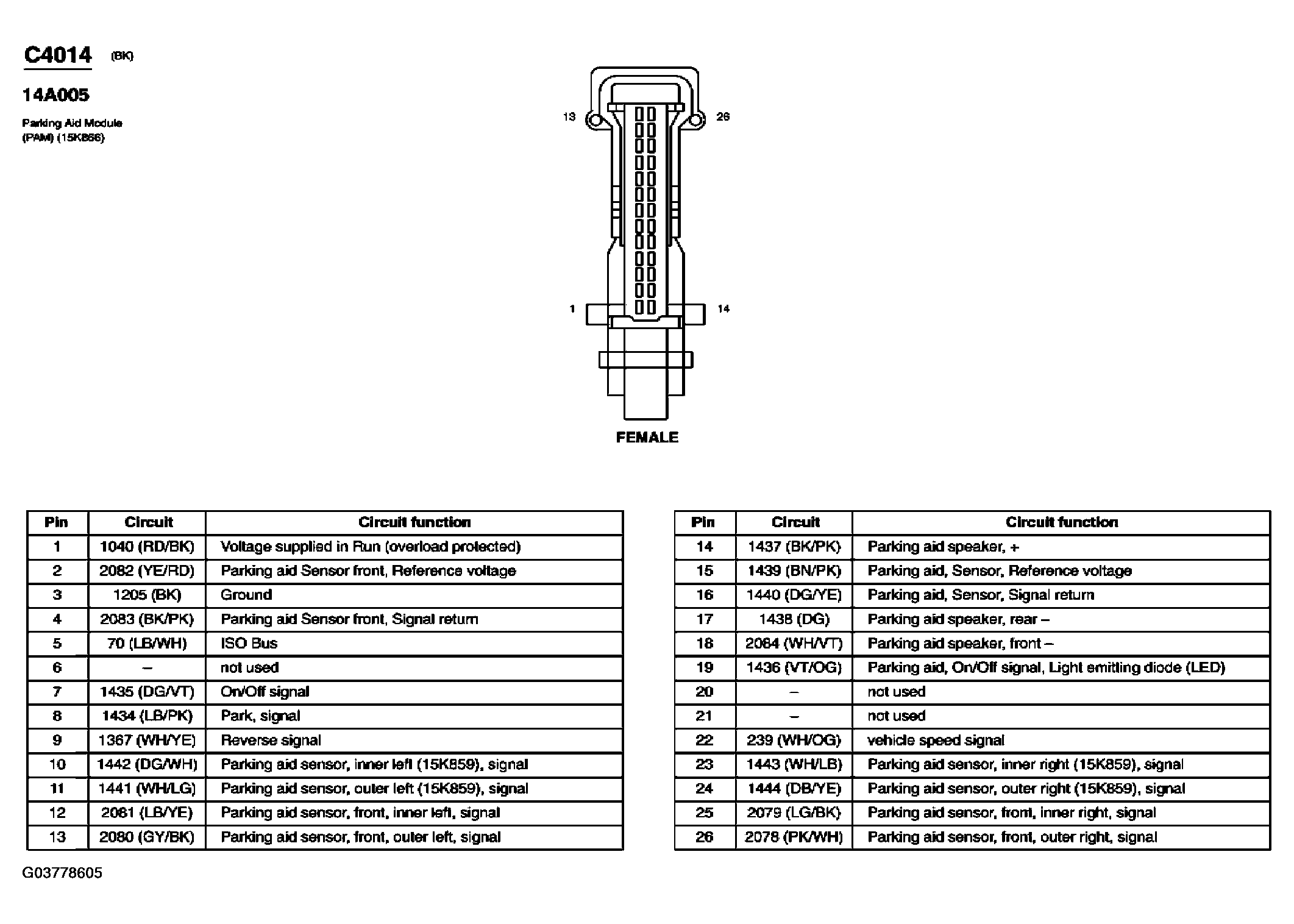

Fig 344: Parking Aid Module (PAM) Connector End View (C4014)
G03778605Courtesy of FORD MOTOR CO.

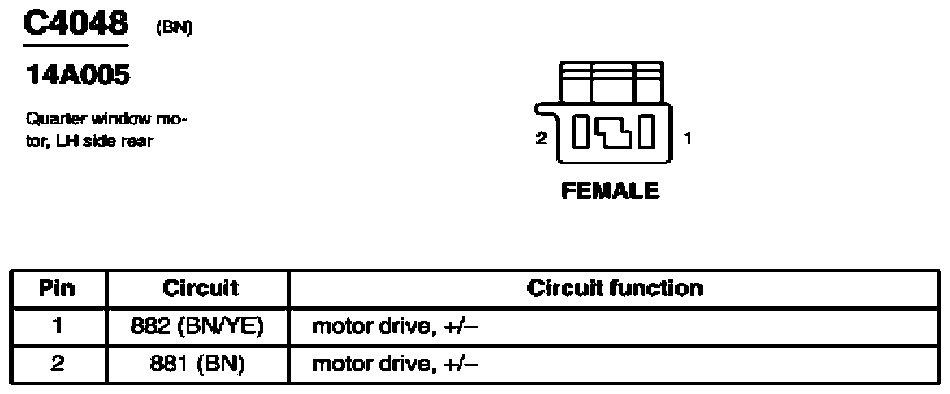

Fig 345: Quarter Window Motor, LH Side Rear Connector End View (C4048)
G07838640Courtesy of FORD MOTOR CO.

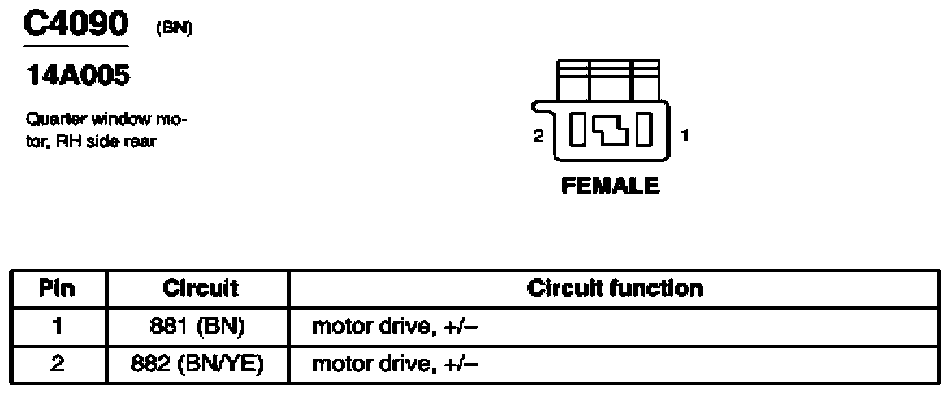

Fig 346: Quarter Window Motor, RH Side Rear Connector End View (C4090)
G07838641Courtesy of FORD MOTOR CO.

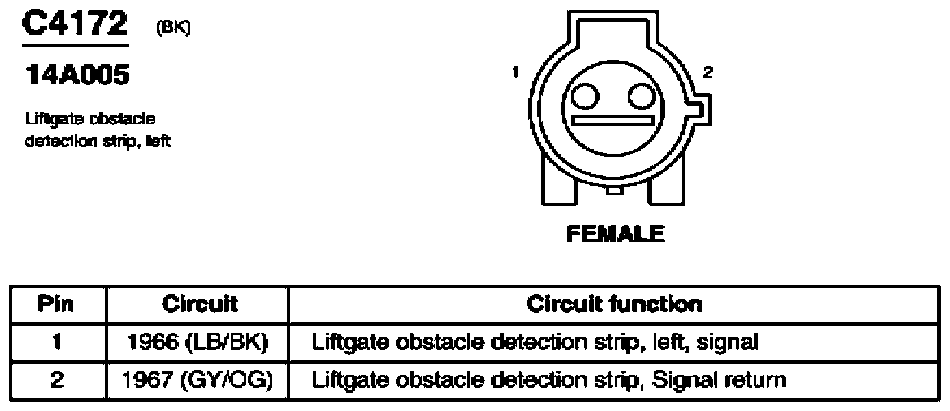

Fig 347: Liftgate Obstacle Detection Strip, Left Connector End View (C4172)
G07838642Courtesy of FORD MOTOR CO.

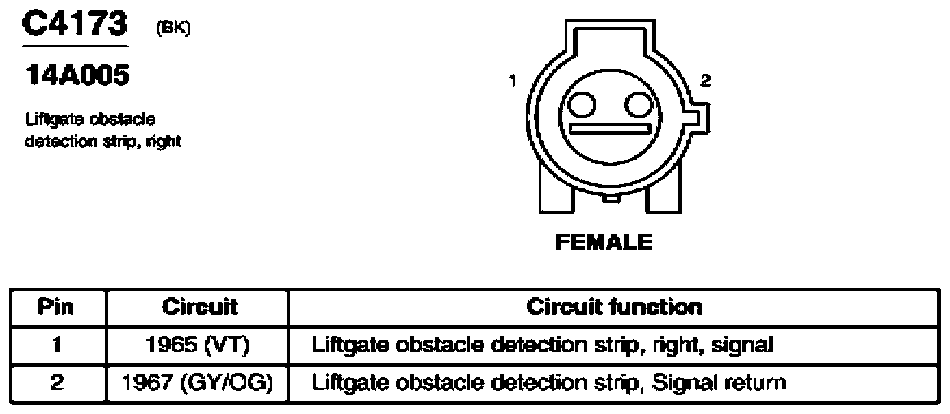

Fig 348: Liftgate Obstacle Detection Strip, Right Connector End View (C4173)
G07838643Courtesy of FORD MOTOR CO.

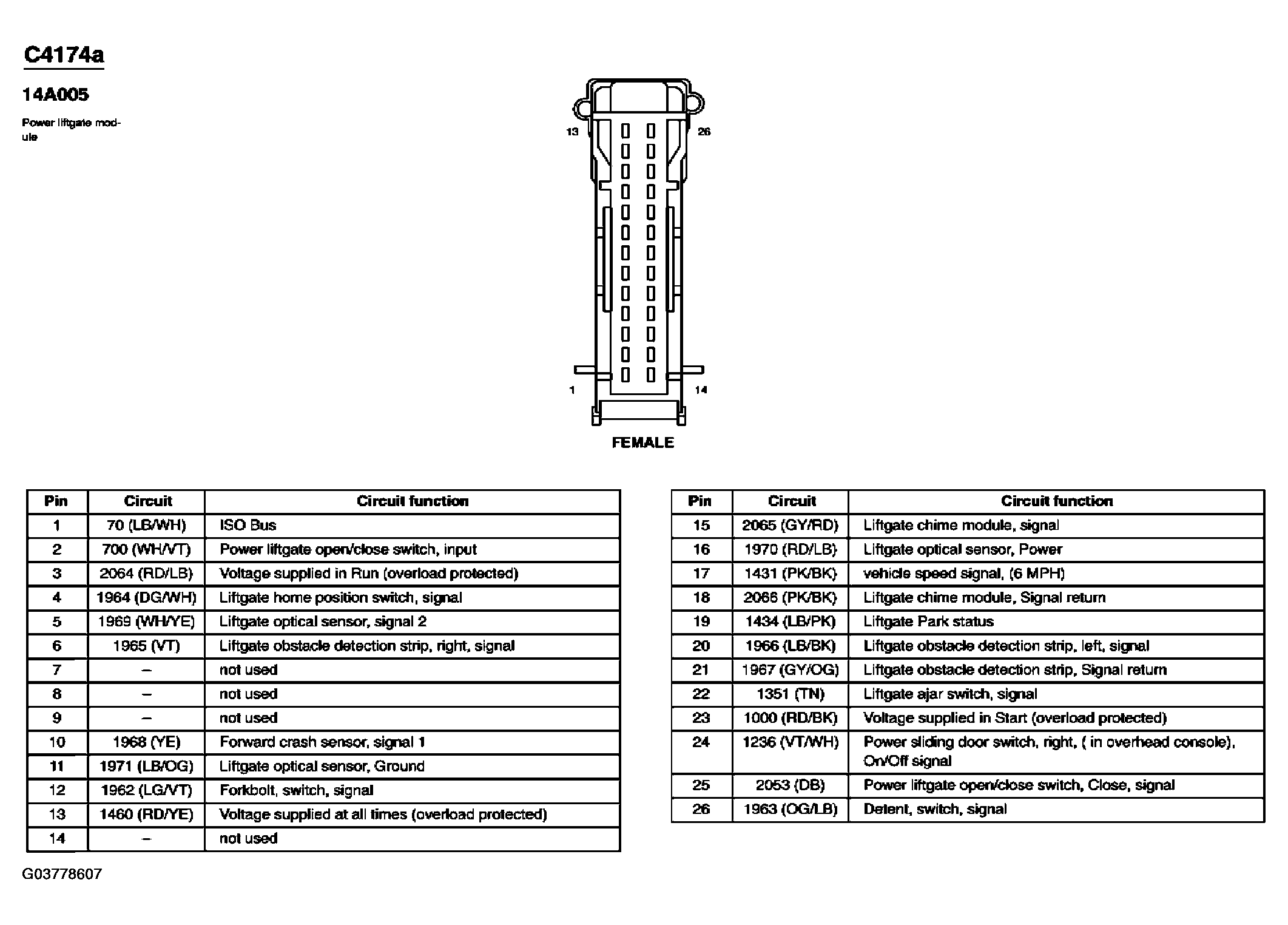

Fig 349: Power Liftgate Module Connector End View (C4174a)
G03778607Courtesy of FORD MOTOR CO.

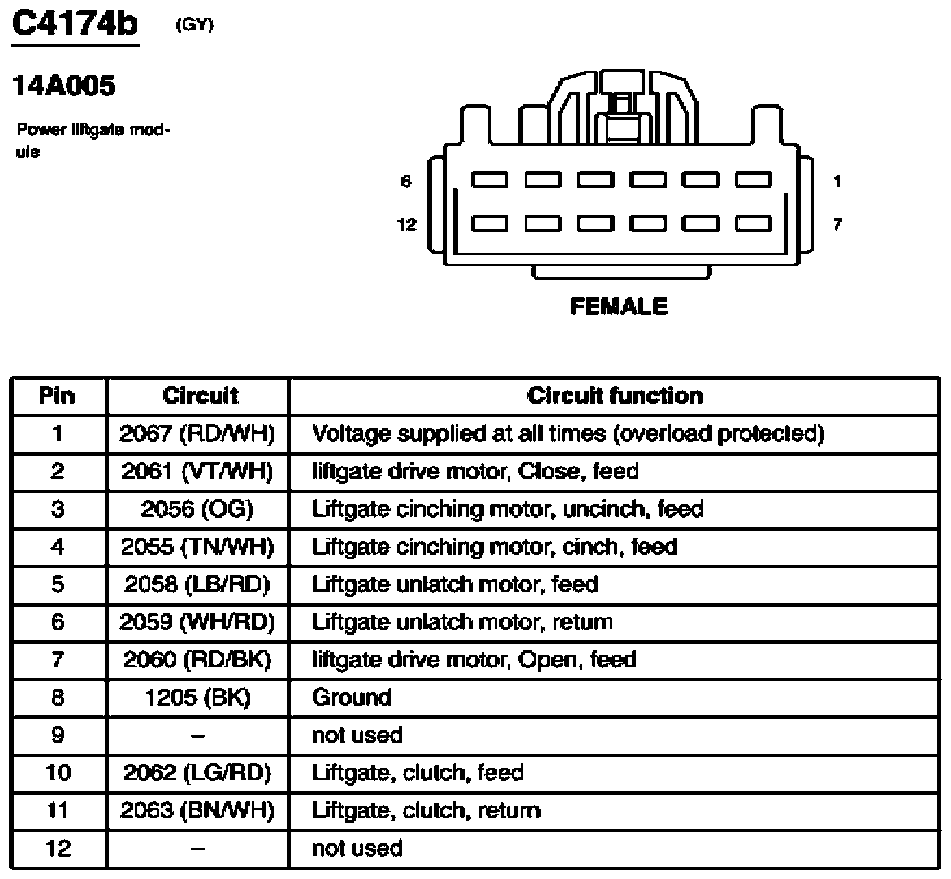

Fig 350: Power Liftgate Module Connector End View (C4174b)
G07838644Courtesy of FORD MOTOR CO.

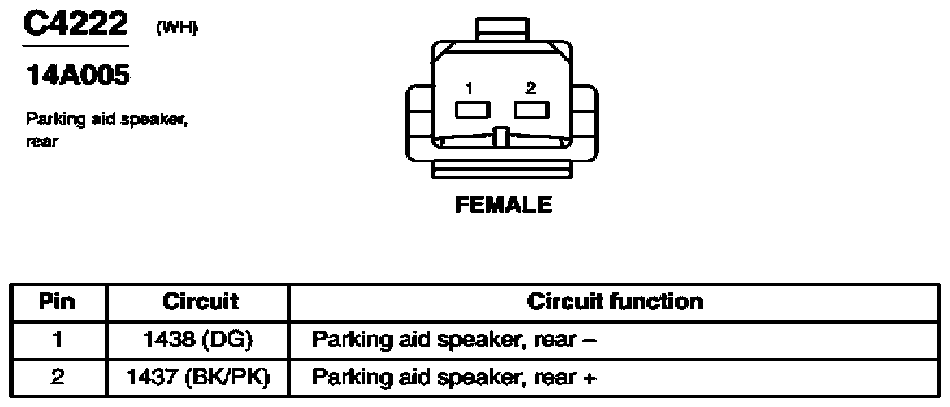

Fig 351: Parking Aid Speaker, Rear Connector End View (C4222)
G07838645Courtesy of FORD MOTOR CO.

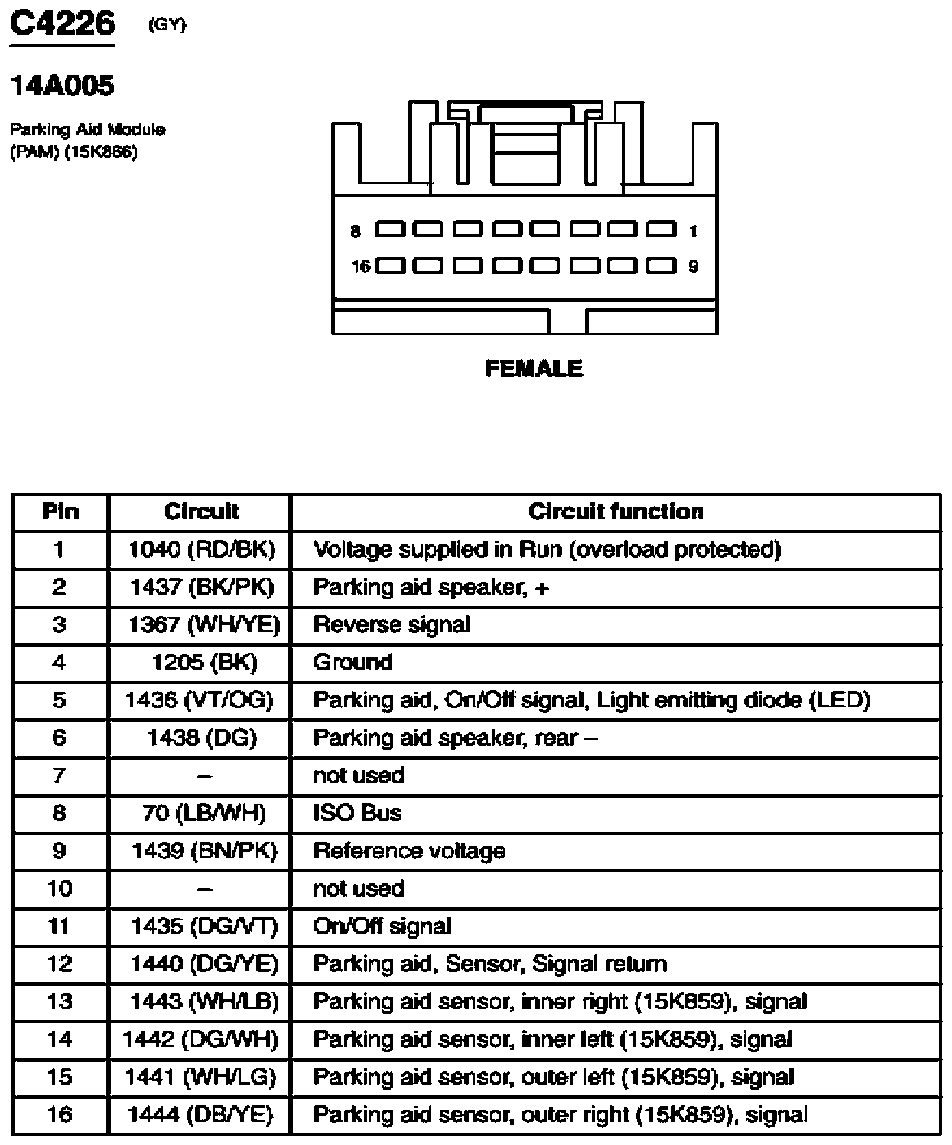

Fig 352: Parking Aid Module (PAM) Connector End View (C4226)
G07838646Courtesy of FORD MOTOR CO.

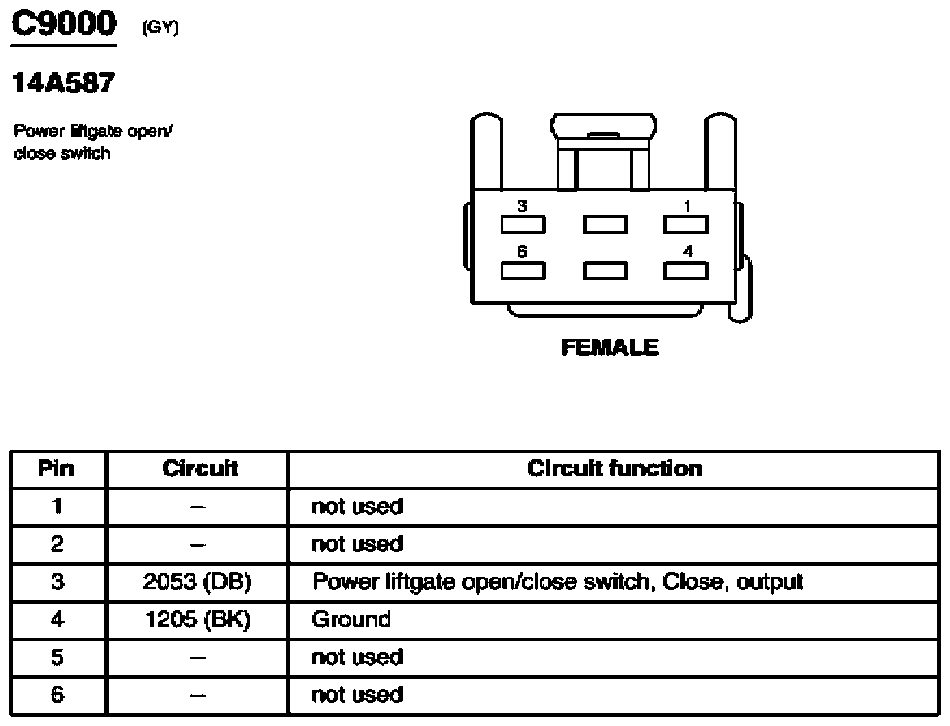

Fig 353: Power Liftgate Open/Close Switch Connector End View (C9000)
G07838647Courtesy of FORD MOTOR CO.

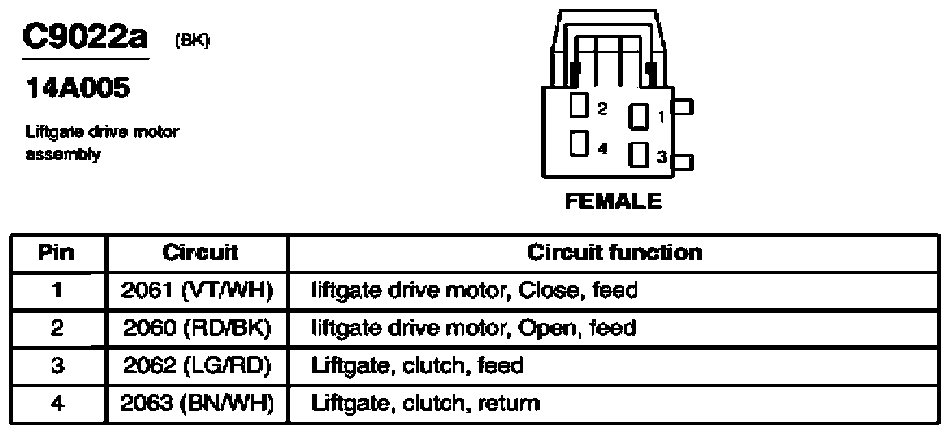

Fig 354: Liftgate Drive Motor Assembly Connector End View (C9022a)
G07838648Courtesy of FORD MOTOR CO.

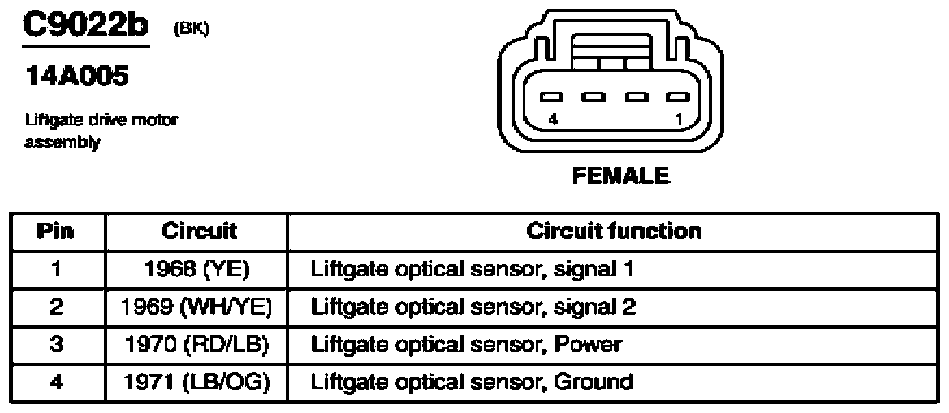

Fig 355: Liftgate Drive Motor Assembly Connector End View (C9022b)
G07838649Courtesy of FORD MOTOR CO.

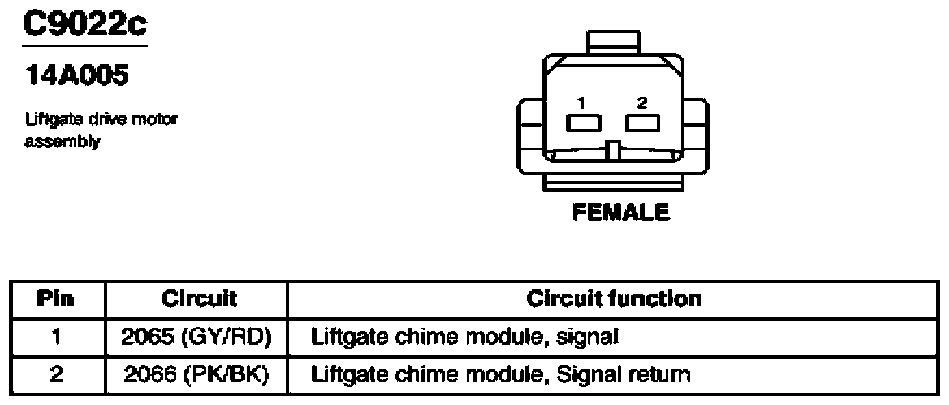

Fig 356: Liftgate Drive Motor Assembly Connector End View (C9022c)
G07838650Courtesy of FORD MOTOR CO.

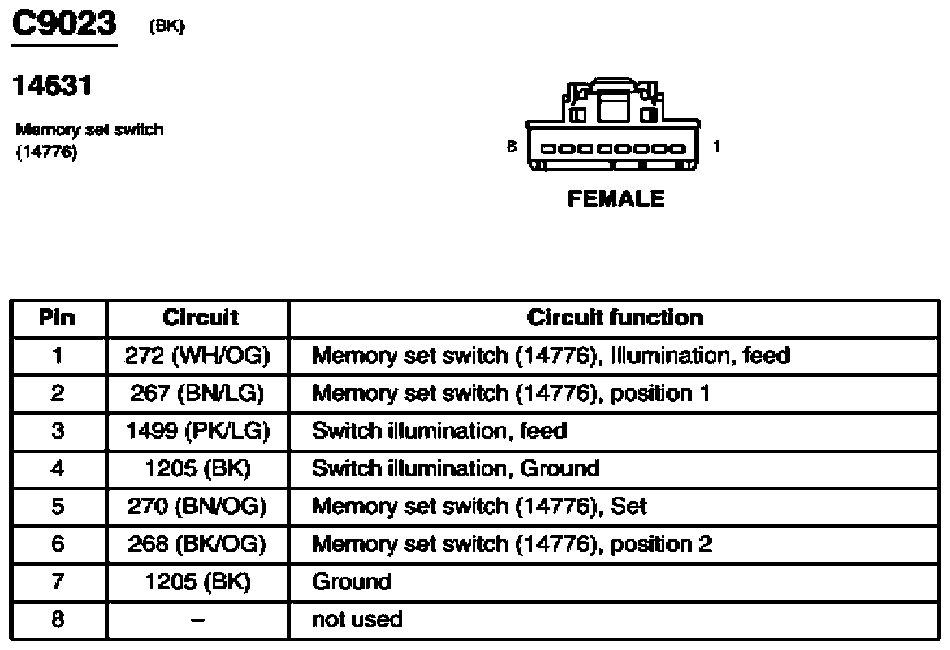

Fig 357: Memory Set Switch Connector End View (C9023)
G07838651Courtesy of FORD MOTOR CO.

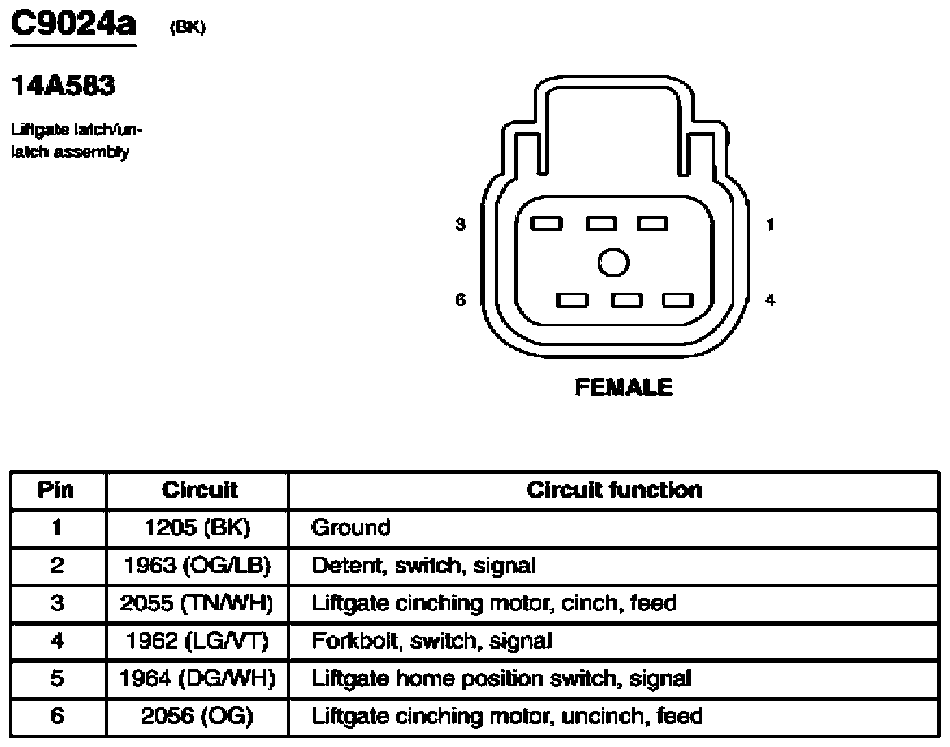

Fig 358: Liftgate Latch/Unlatch Assembly Connector End View (C9024a)
G07838652Courtesy of FORD MOTOR CO.

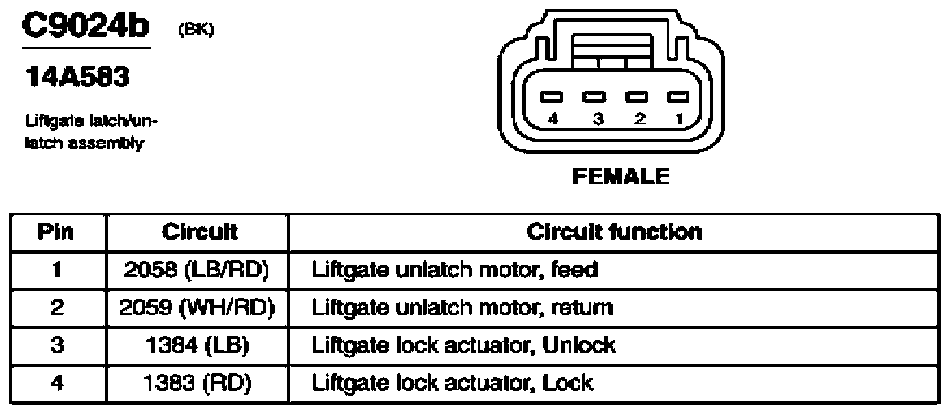

Fig 359: Liftgate Latch/Unlatch Assembly Connector End View (C9024b)
G07838653Courtesy of FORD MOTOR CO.

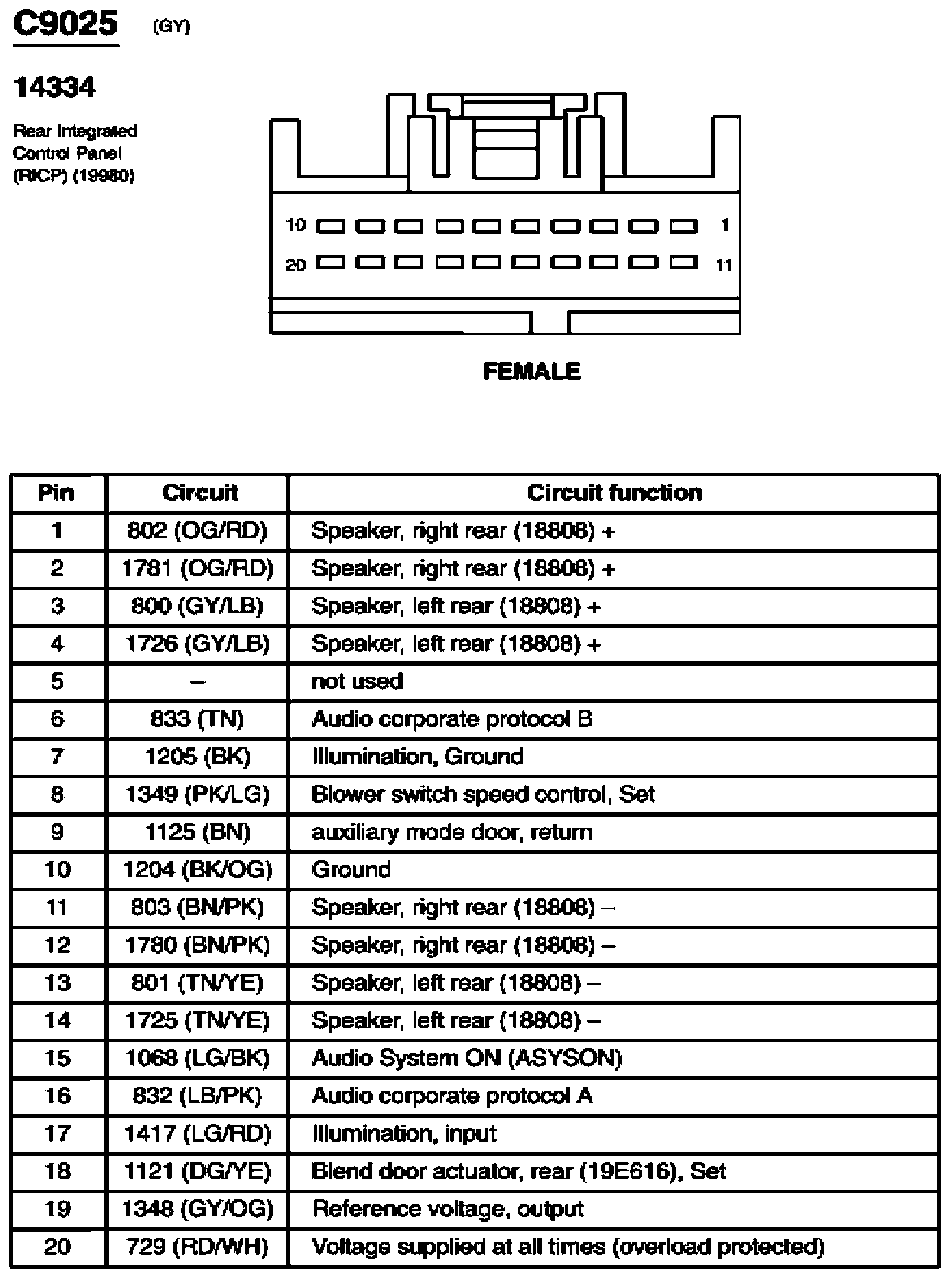

Fig 360: Rear Integrated Control Panel (RICP) Connector End View (C9025)
G07838654Courtesy of FORD MOTOR CO.

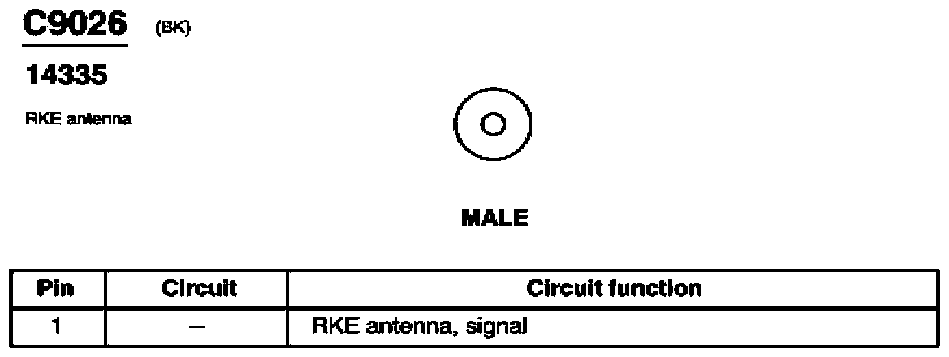

Fig 361: RKE Antenna Connector End View (C9026)
G07838655Courtesy of FORD MOTOR CO.
