Removal And Installation: Clock: Notes

  1. Remove the parts in the order indicated in the following illustration table.

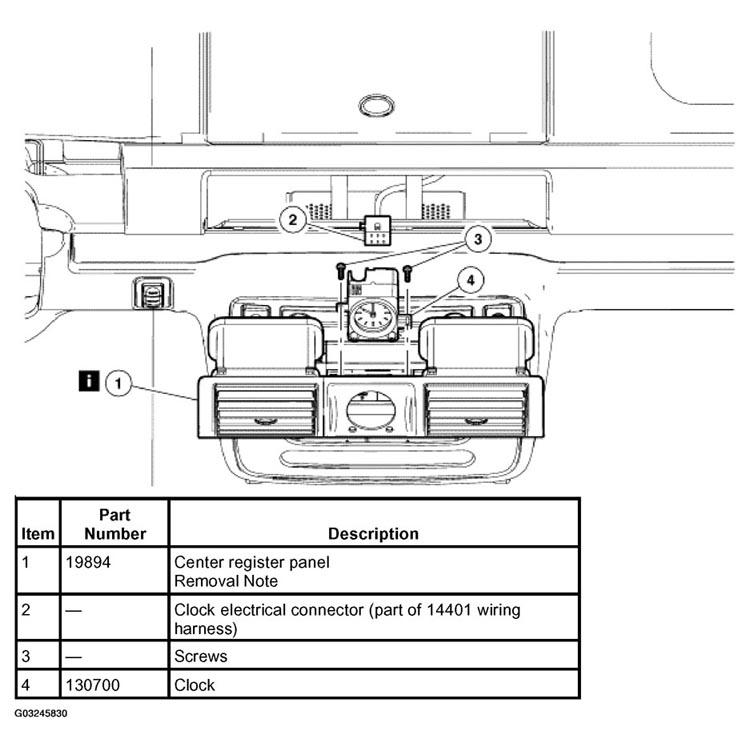

    Fig 1: Clock Components Removal Sequence
    G03245830Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
