Exhaust Gas Recirculation (EGR) Valve: Notes

With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .

Remove the parts in the order indicated in the following illustration.

To remove individual parts, only carry out the listed steps:

Part	Steps
EGR system module-to-exhaust manifold tube	1-3
EGR system module	1-8

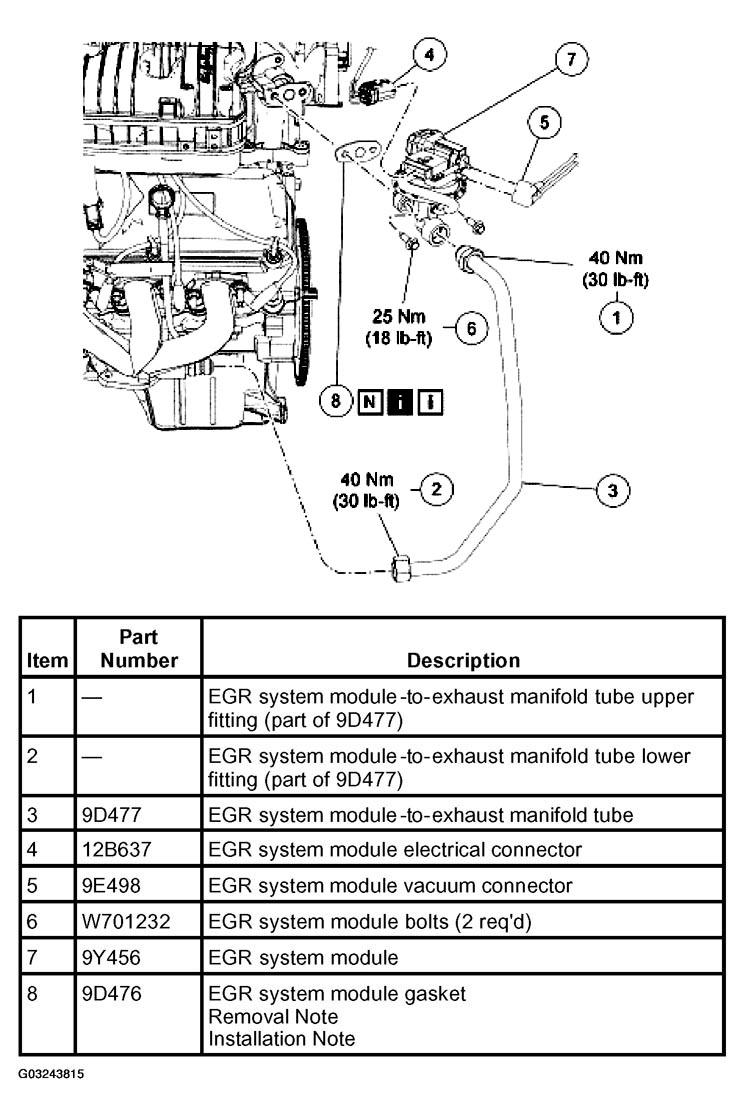

Fig 1: EGR Valve Parts Removal Sequence

Courtesy of FORD MOTOR CO.
