Oil Level Indicator And Tube

MATERIAL SPECIFICATION

Item Specification
Super Premium SAE 5W-20 XO 5W20-QSP or equivalent WSS-M2C153-H
  1. Remove the radiator and cooling fan assembly. For additional information, refer to ENGINE COOLING .
  2. Remove the parts in the order indicated in the following illustration.

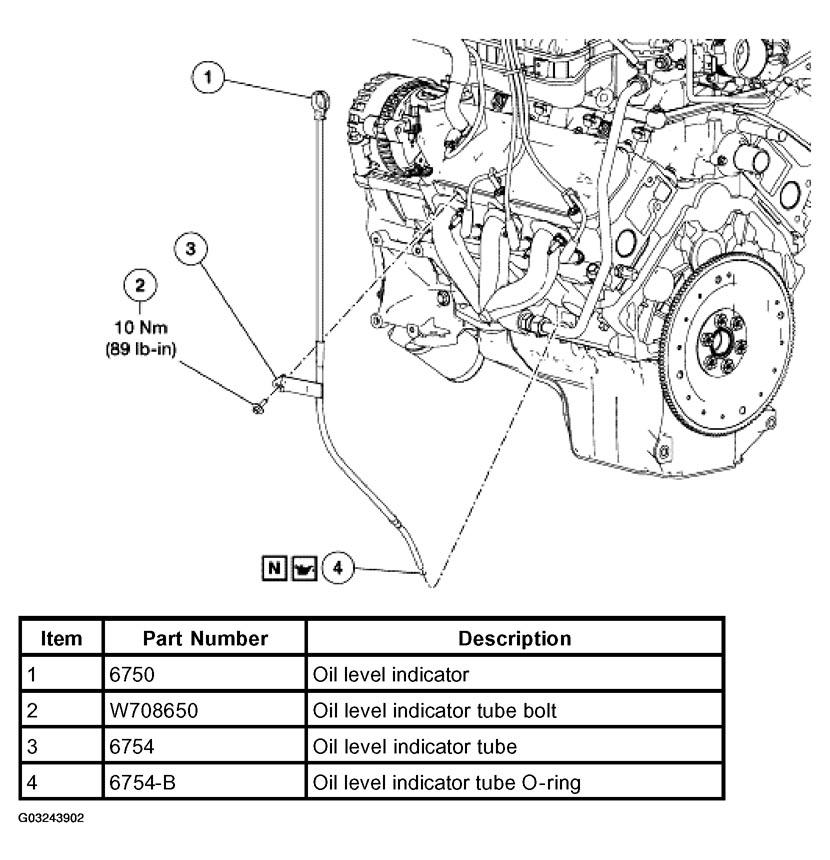

    Fig 1: Oil Level Indicator And Tube Parts Removal Sequence
    G03243902Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
