Fuel Pressure And Temperature Sensor
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| SAE 5W-20 Super Premium Motor Oil XO-5W20-QSP or equivalent | WSS-M2C153-H |
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited. Failure to follow these instructions can result in personal injury.
WARNING:
Fuel in the fuel system remains under high pressure even when the engine is not running. Before working on or disconnecting any of the fuel lines or fuel system components the fuel system pressure must be relieved. Failure to follow these instructions can result in personal injury.
- Release the fuel system pressure. For additional information, refer to FUEL SYSTEM
- Disconnect the battery ground cable. For additional information, refer to BATTERY & CHARGING SYSTEM

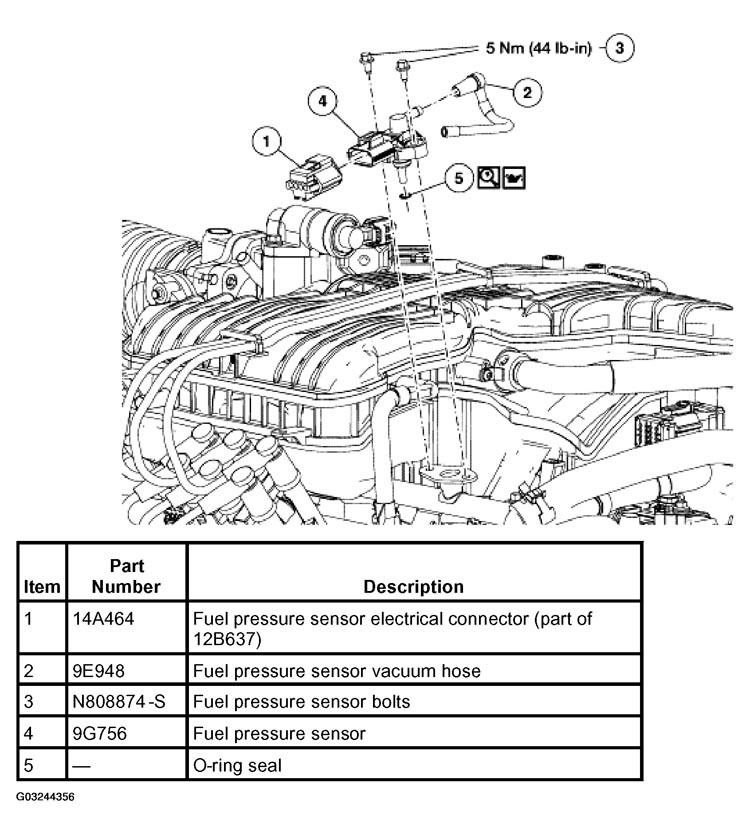

- Remove the parts in the order indicated in Fig 1.
- To install, reverse the removal procedure.
