Cover Seal: Notes
WARNING: This page is about a different car, the 2008 Mercury Mariner and 2008 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-224 (Handle) | 205-153 (T80T-4000-W) | |
| Bearing Cup Puller | 308-047 (T77F-1102-A) | |
| Installer, Halfshaft Oil Seal | 308-431 | |
| Installer, Rear Axle Oil Seal | 205-155 (T80T-4000-Y) | |
| Slide Hammer | 100-001 (T50T-100-A) |

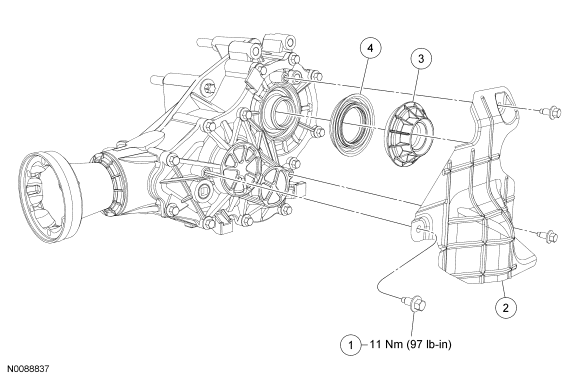

| Item | Part Number | Description |
|---|---|---|
| 1 | W500210 | Power Transfer Unit (PTU) heat shield bolt (3 required) |
| 2 | 7F496 | PTU heat shield |
| 3 | 7H426 | Deflector |
| 4 | 7H459 | Cover seal |
