Master Window Control Switch - Fusion/Milan: Schematic

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

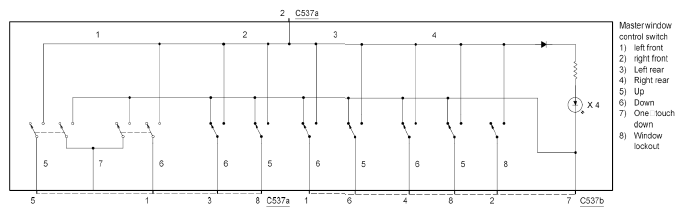

Fig 1: Identifying Master Window Control Switch (Fusion/Milan) Schematic
G06358016Courtesy of FORD MOTOR CO.
