Symptom Chart

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

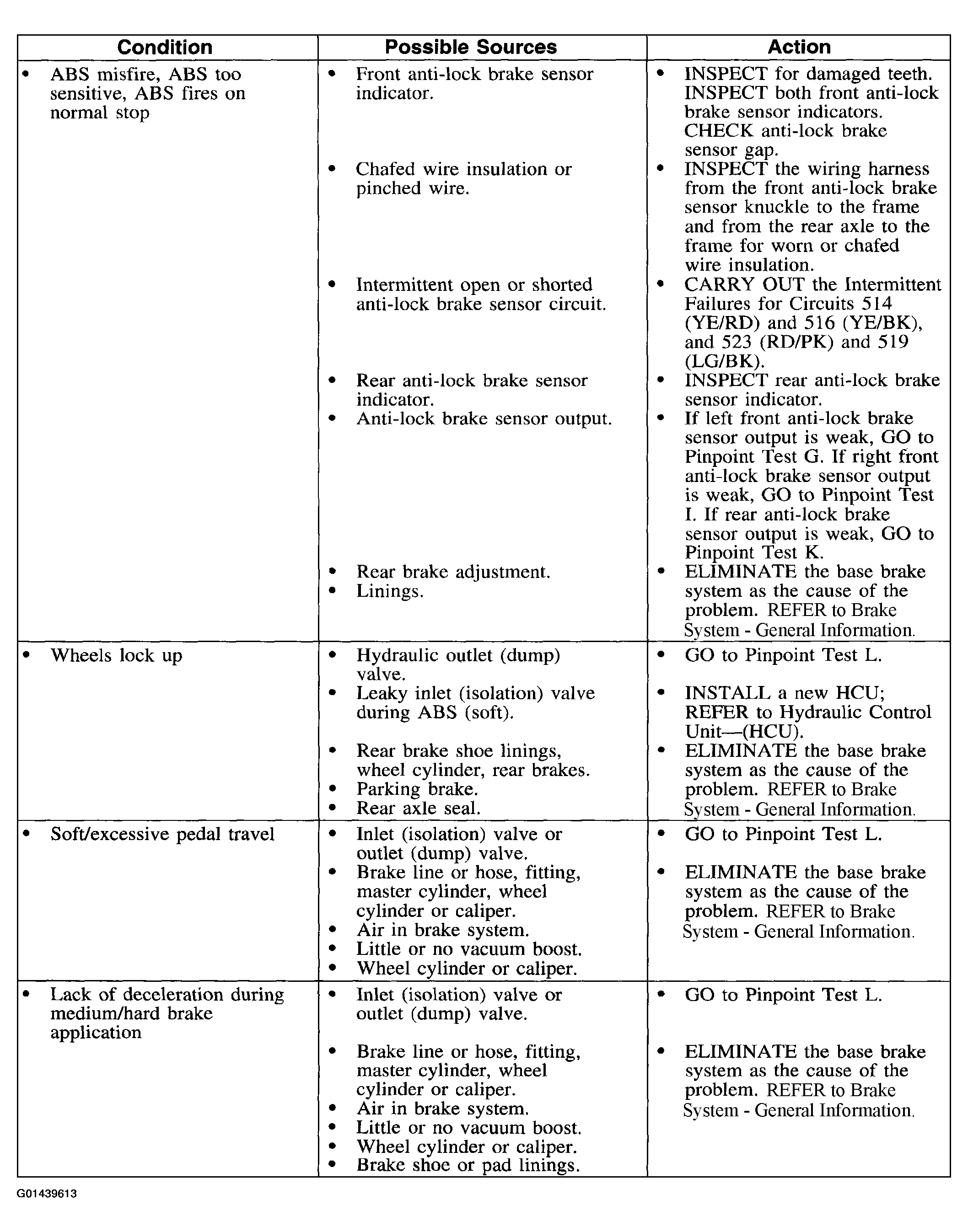

Fig 1: Problem Symptom Chart (1 Of 3)

Courtesy of FORD MOTOR CO.

NOTE: Refer to the WIRING DIAGRAMS for connector numbers stated in the Pinpoint Tests.

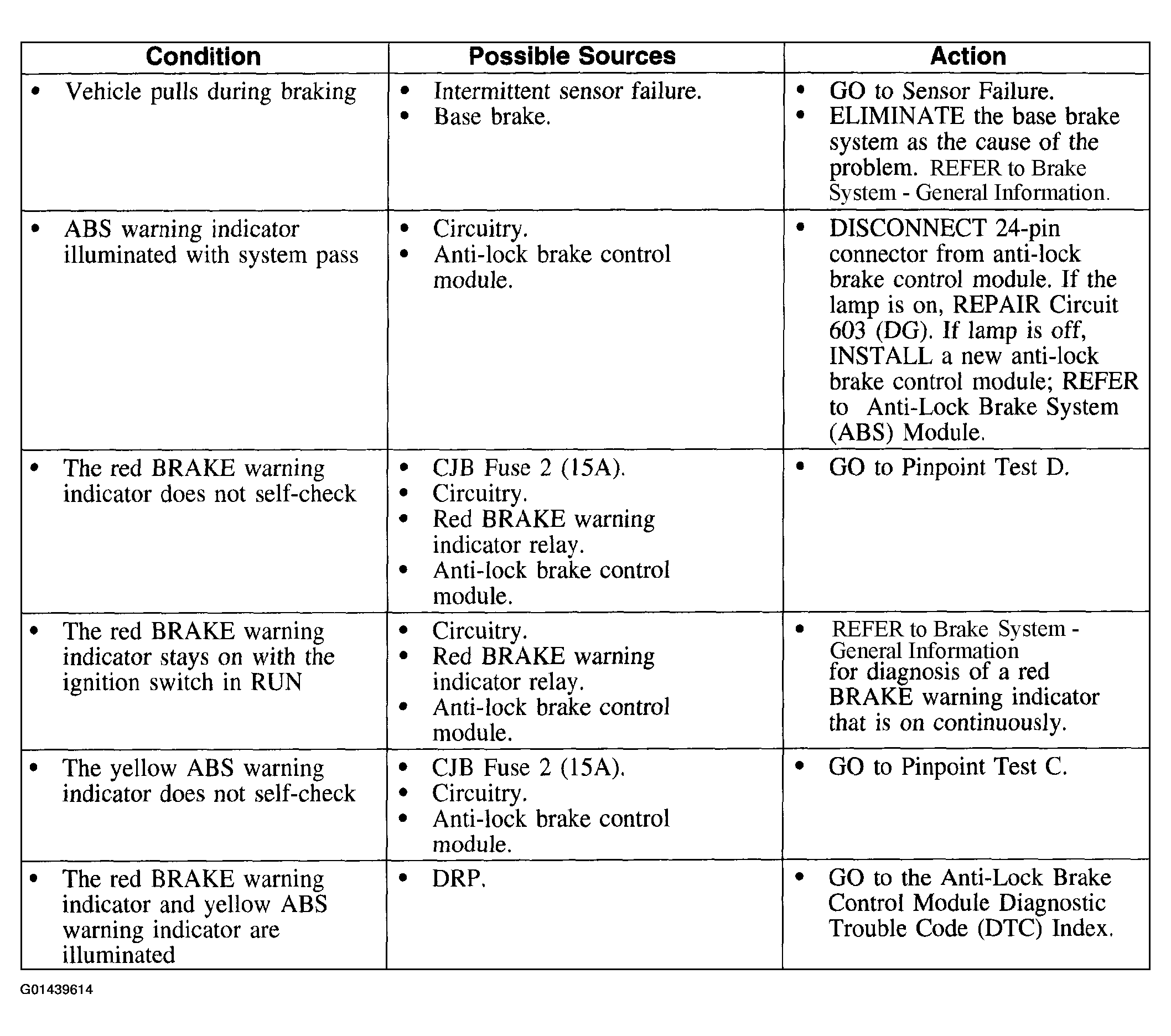

Fig 2: Problem Symptom Chart (2 Of 3)

Courtesy of FORD MOTOR CO.

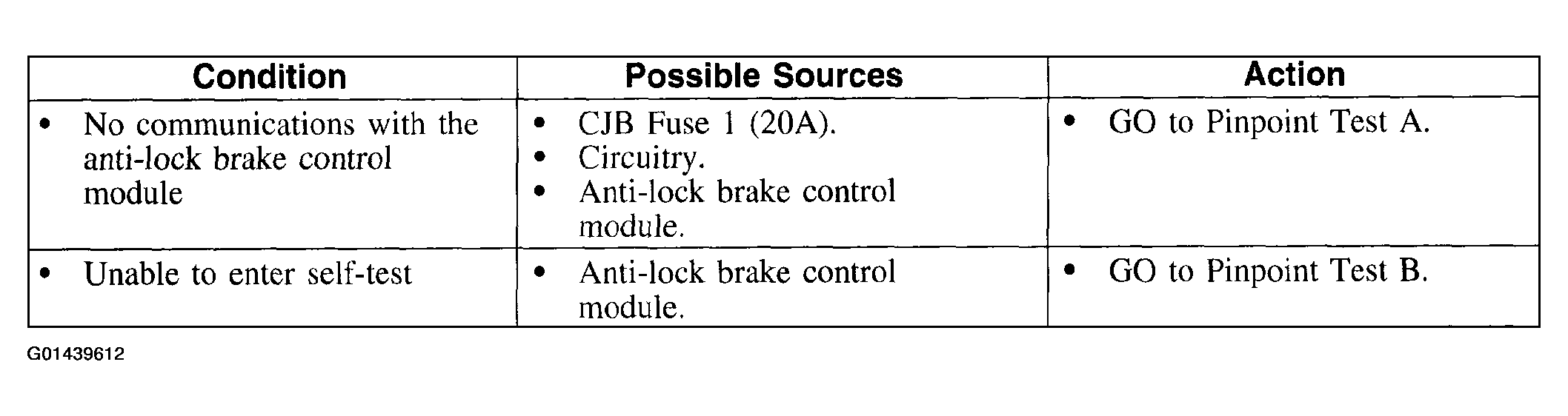

Fig 3: Problem Symptom Chart (3 Of 3)

Courtesy of FORD MOTOR CO.
