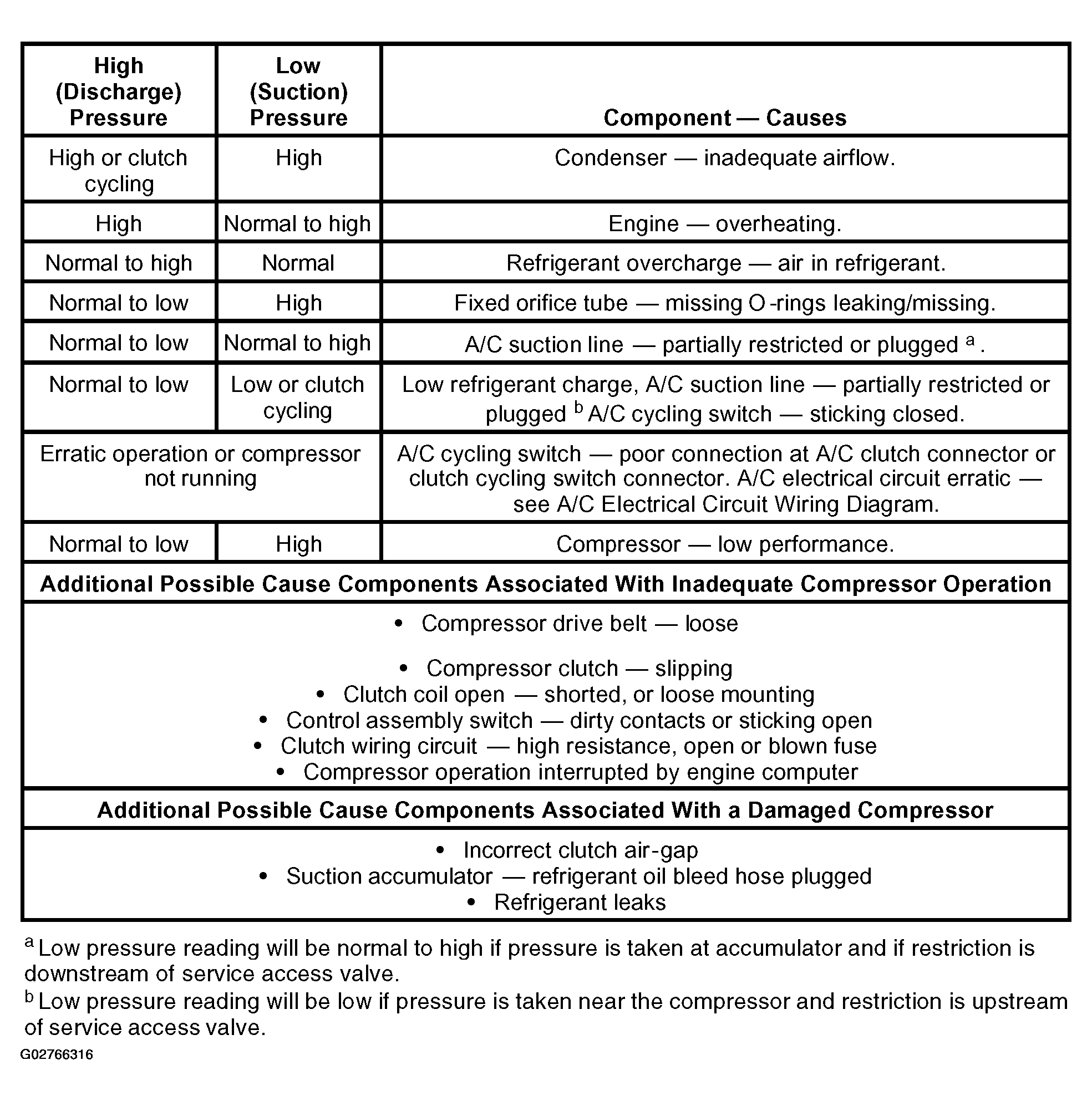

The following illustration is used to guide diagnosis of the refrigerant system if operating pressures are outside normal limits.
