Removal and Installation

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Position the radiator coolant reservoir aside.
1. Remove the bolts.

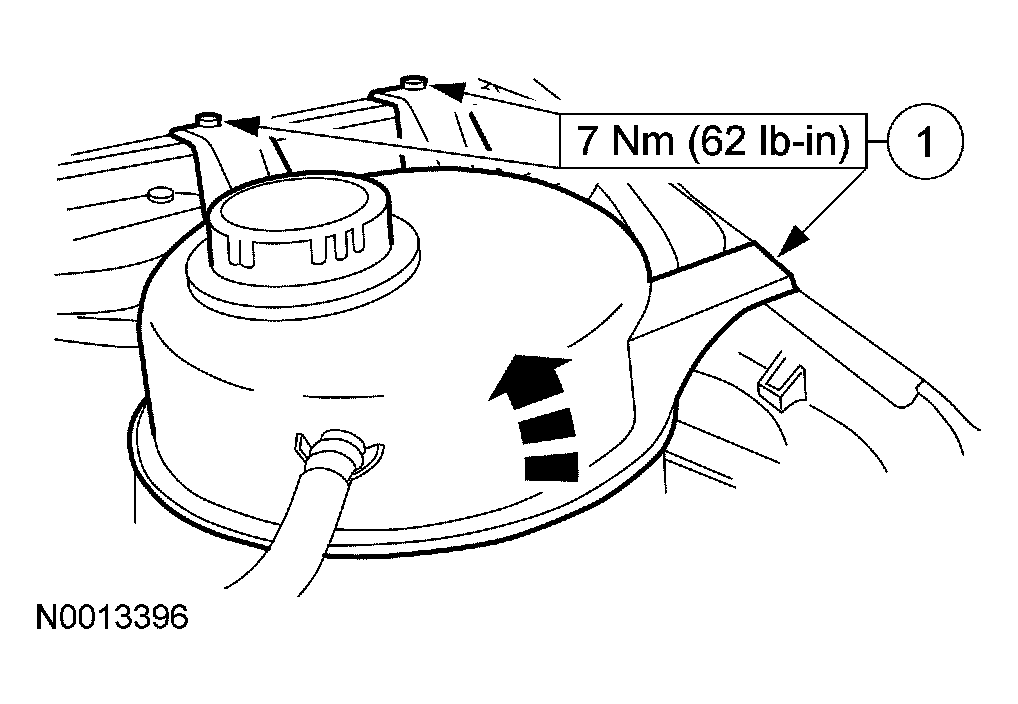

  Fig 1: Positioning Radiator Coolant Reservoir Aside
  Courtesy of FORD MOTOR CO.
Remove the 4 screws and position the ABS module to gain access to the electrical connector.

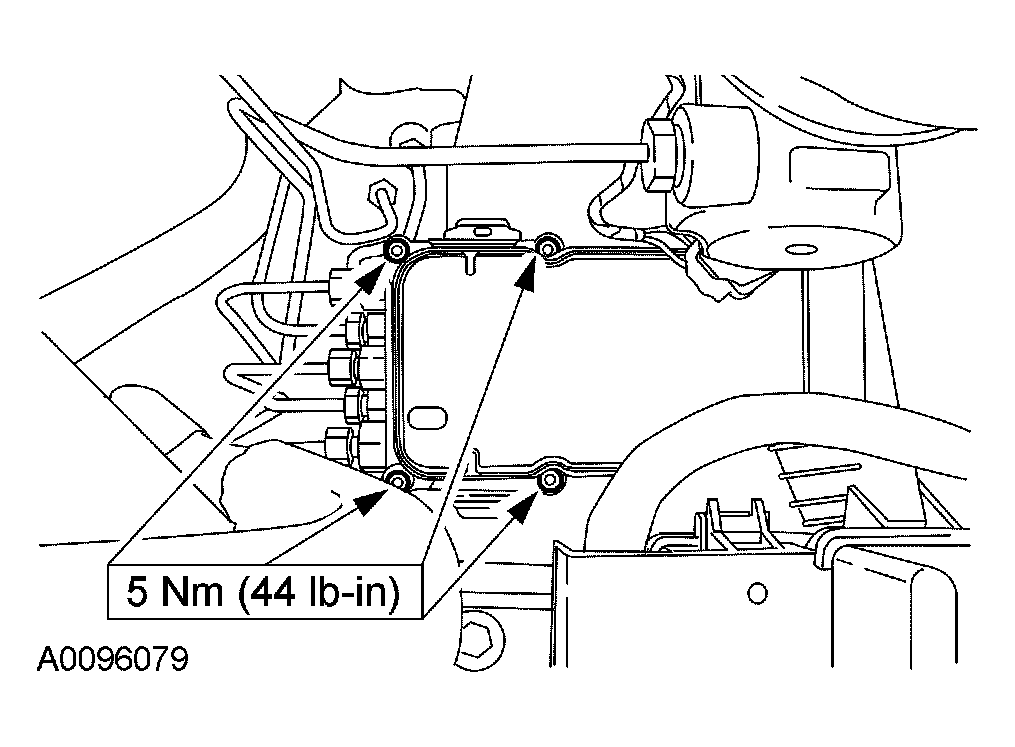

Fig 2: Removing Screws
Courtesy of FORD MOTOR CO.
Disconnect the ABS module electrical connector.
1. Release the lock tab.
2. Pull the connector from the module.

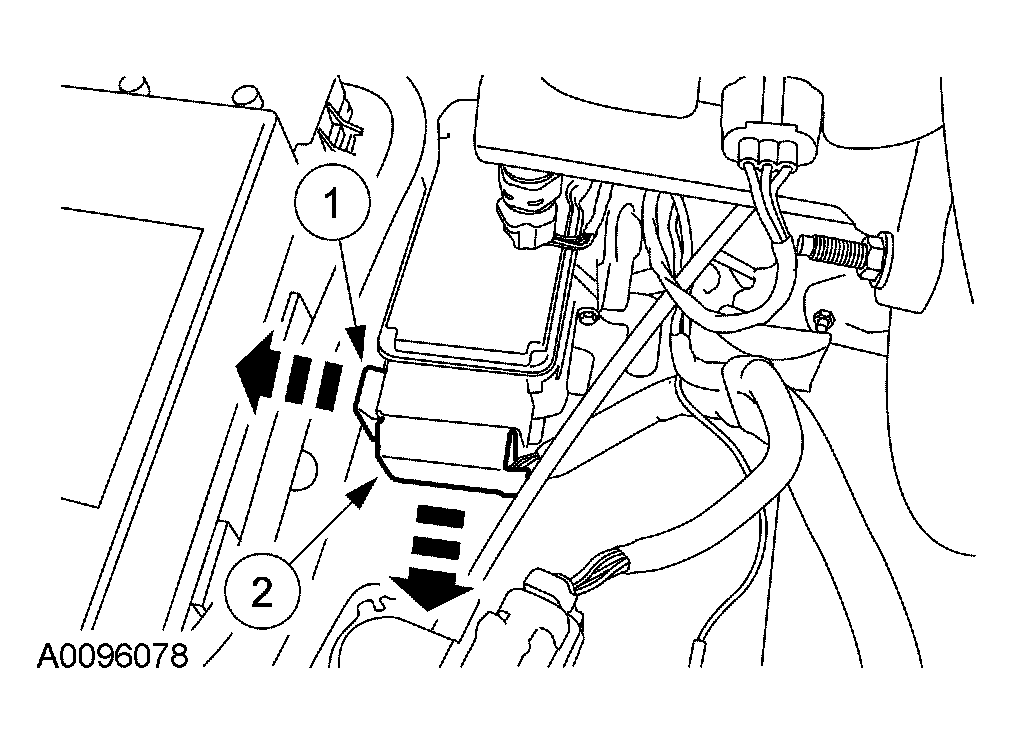

  Fig 3: Pulling Connector From Module
  Courtesy of FORD MOTOR CO.
Remove the ABS module.
1. Lift the ABS module slightly and disconnect the ABS pump motor electrical connector.
2. Remove the ABS module from the vehicle.

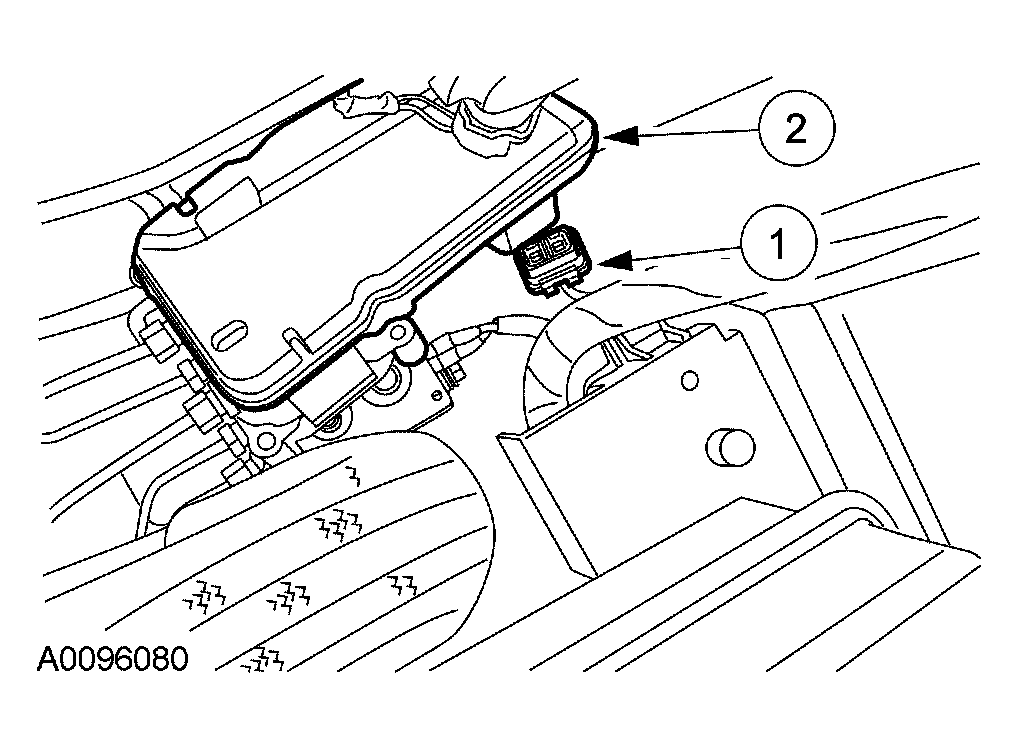

  Fig 4: Removing ABS Module From Vehicle
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
