Principles of Operation: Notes

WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

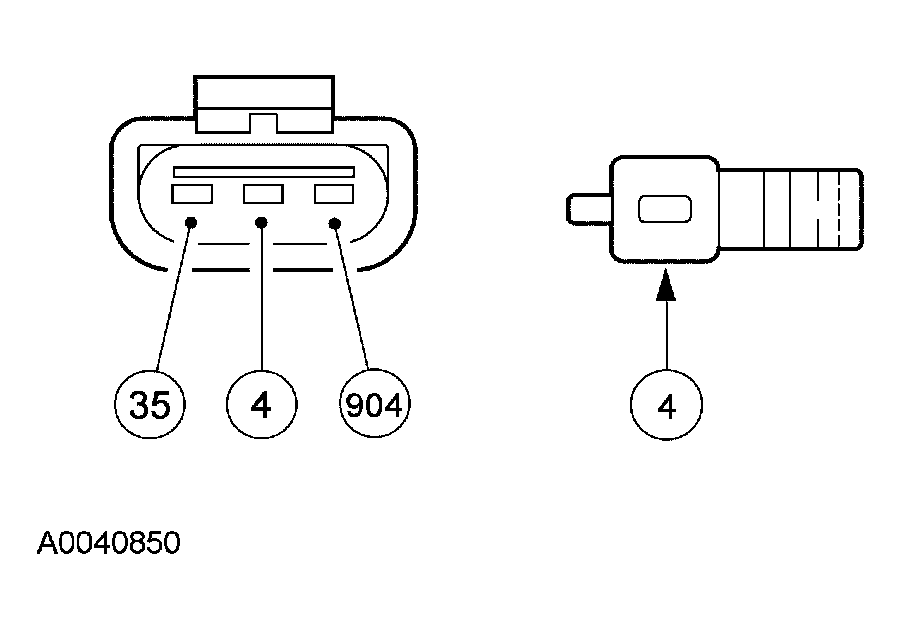

Fig 1: Identifying Connector C102A End View And C102B Side View

Courtesy of FORD MOTOR CO.

GASOLINE ENGINE CONNECTORS

Gasoline Engine
A Circuit 35 (OG/LB)
S Circuit 4 (WH/BK)
I Circuit 904 (LG/RD)

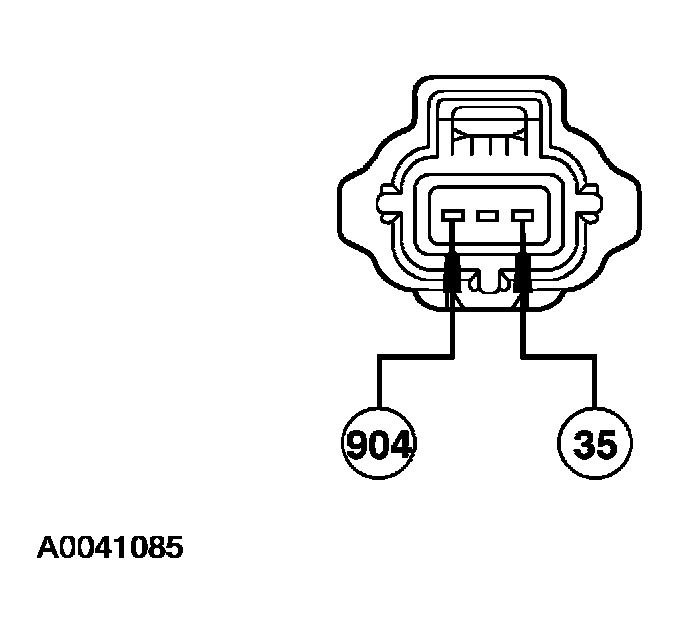

Fig 2: Identifying Connector C102A End View (Diesel Engine, Single Generator)

Courtesy of FORD MOTOR CO.

DIESEL ENGINE CONNECTOR

Diesel Engine
I Circuit 904 (LG/RD)
A Circuit 35 (OG/LB)
