Item 4: Subframe Bolt Installation Note

    CAUTION: Do not use power tools to install the subframe bolts.
  1. Install new subframe bolts using hand tools.
  2. Connect the flex pipe to the catalytic converter and install new nuts.

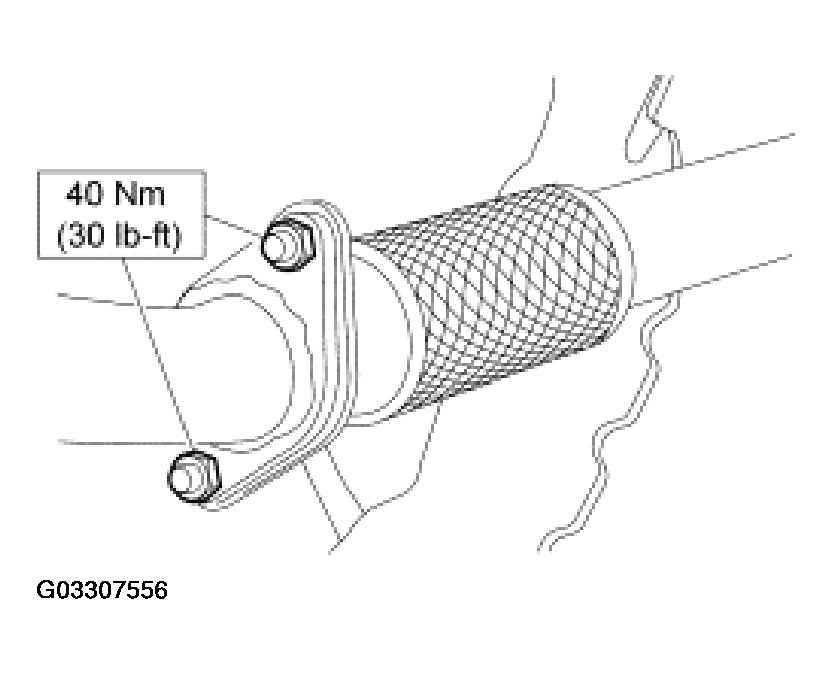

    Fig 1: Installing Flex Pipe To Catalytic Converter
    G03307556Courtesy of FORD MOTOR CO.
  3. Connect the steering shaft to the power steering gear and install the pinch bolt.

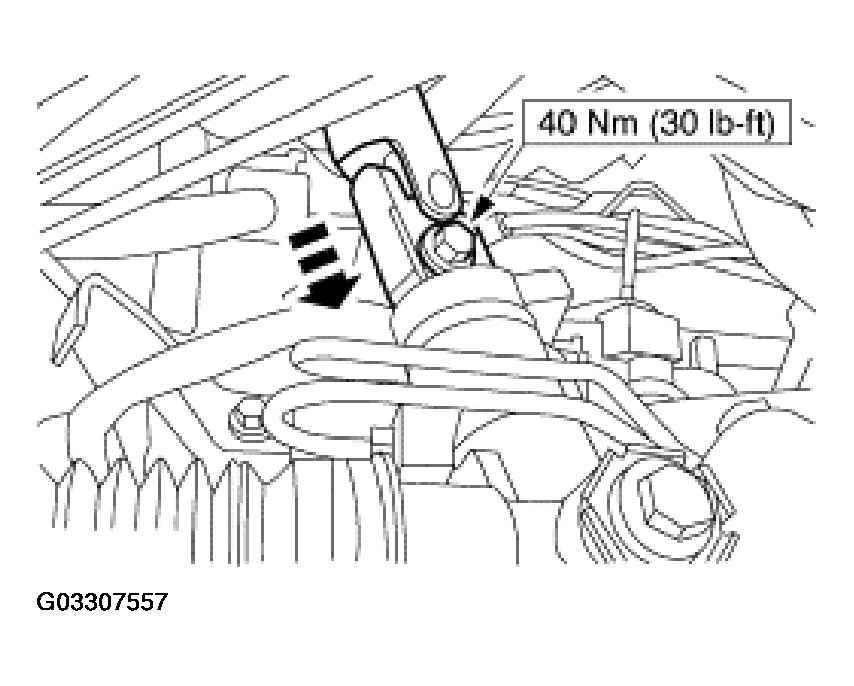

    Fig 2: Connecting Steering Shaft To Power Steering Gear
    G03307557Courtesy of FORD MOTOR CO.
