Direct Clutch Cylinder Component Locator

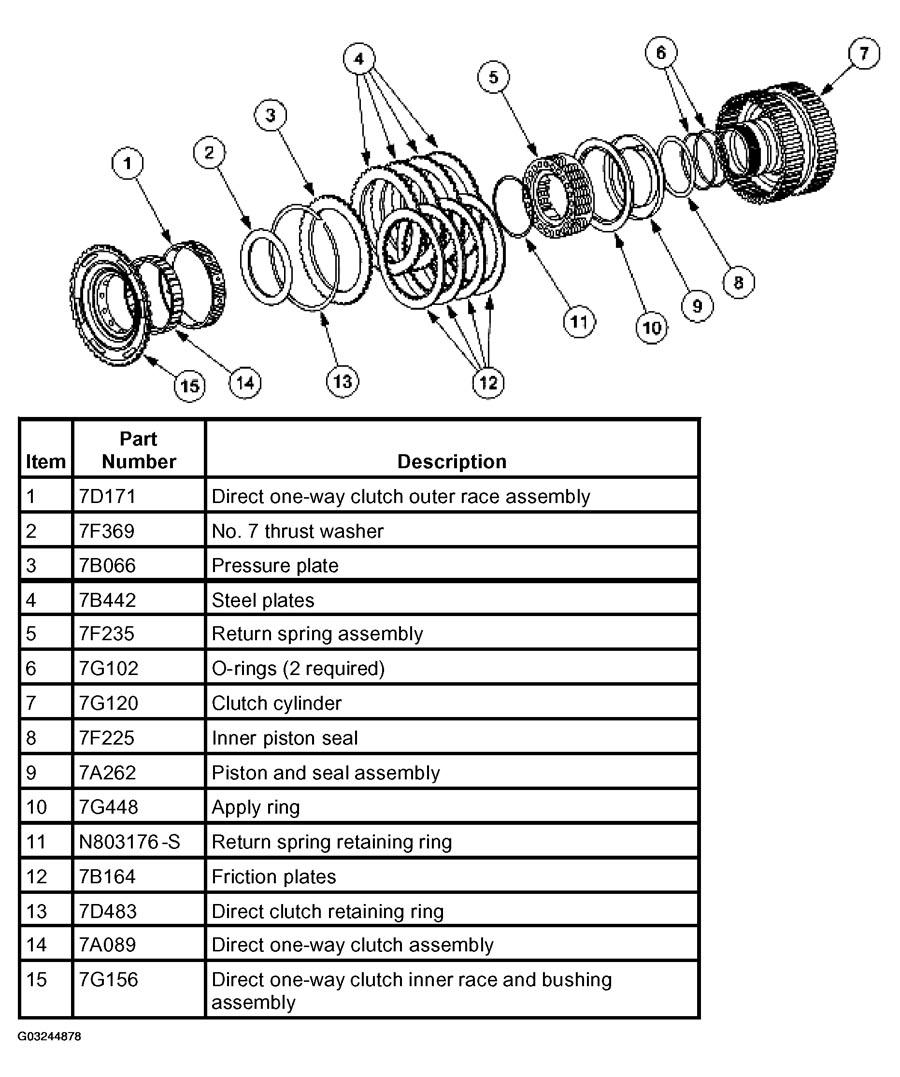

Fig 1: Identifying Direct Clutch Cylinder Components
G03244878Courtesy of FORD MOTOR CO.
