Driven Sprocket Support: Disassembly

  1. Remove the Teflon® seal rings and the No. 5 thrust washer.

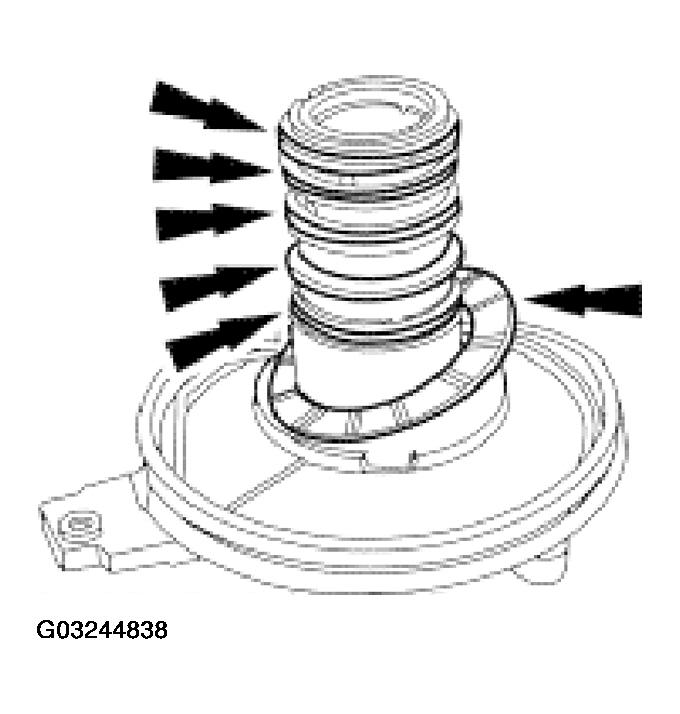

    Fig 1: Removing Teflon® Seal Rings And No. 5 Thrust Washer
    G03244838Courtesy of FORD MOTOR CO.
  2. Inspect the driven sprocket support bearing. If damage is found to the bearing, install a new driven sprocket support.

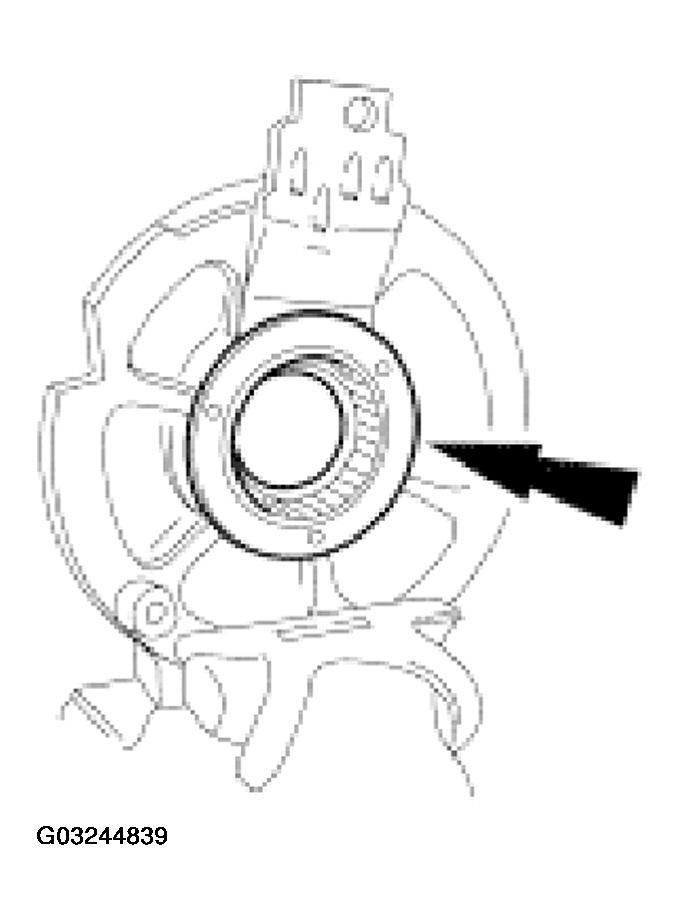

Fig 2: Inspecting Driven Sprocket Support Bearing
G03244839Courtesy of FORD MOTOR CO.
