Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

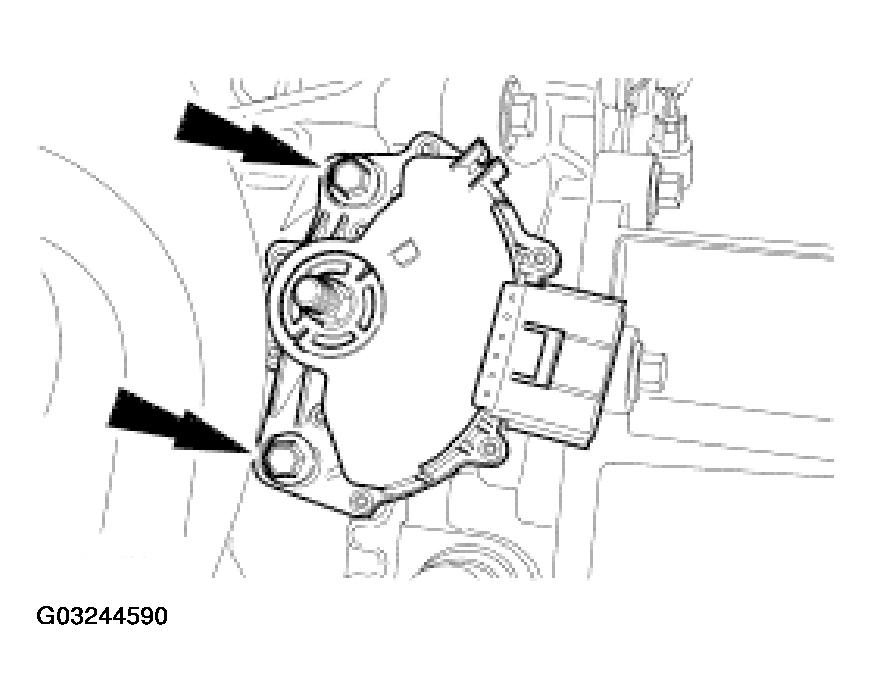

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.
Using the special tool, align the digital TR sensor and tighten the bolts.
- Tighten to 10 Nm (89 lb-in).

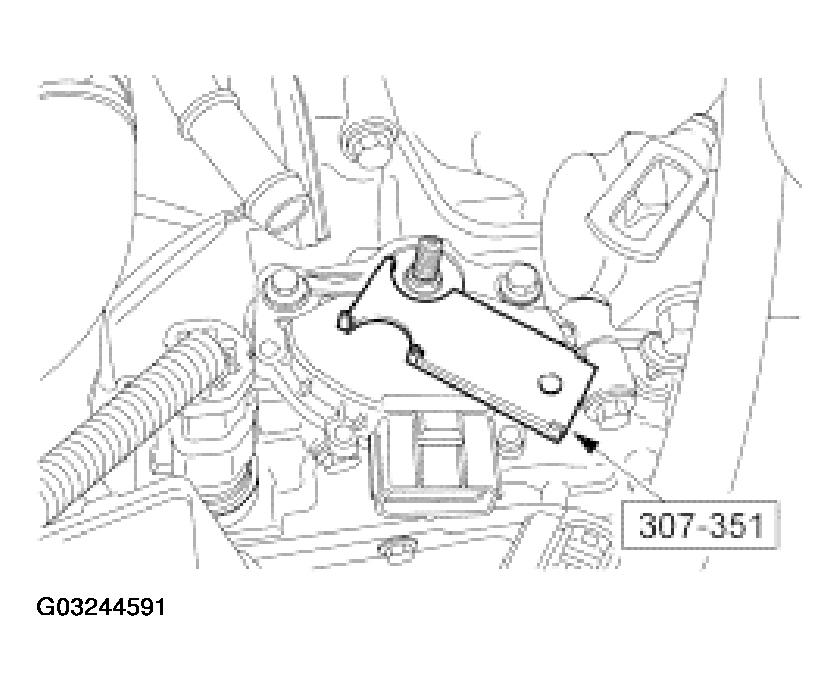

Fig 2: Aligning/Tightening Digital TR Sensor
Courtesy of FORD MOTOR CO.
Install the manual control lever and cable
1. Install the manual lever and nut.
  - Tighten to 13 Nm (10 lb-ft).
2. Install the cable.

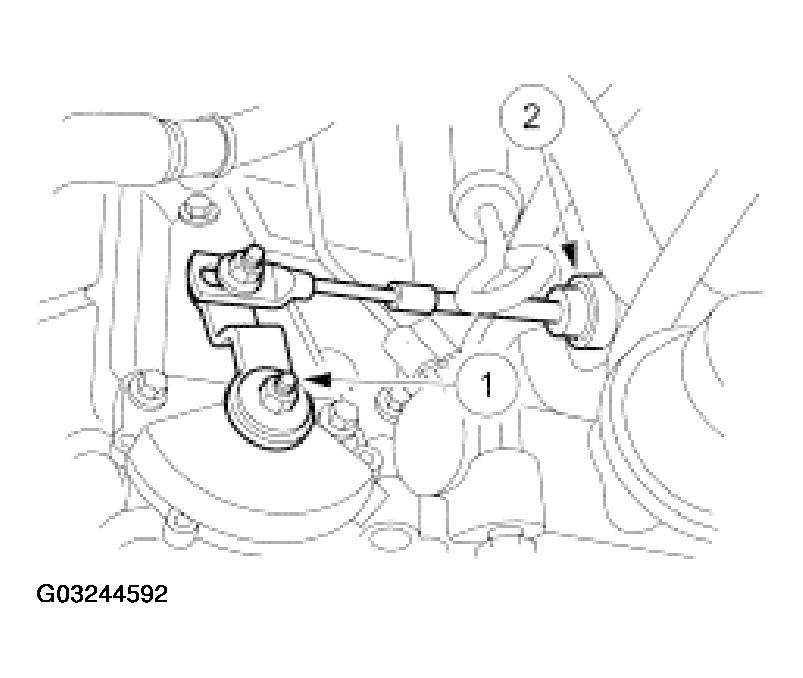

Fig 3: Installing Manual Control Lever And Cable
Courtesy of FORD MOTOR CO.
Install the air filter assembly.

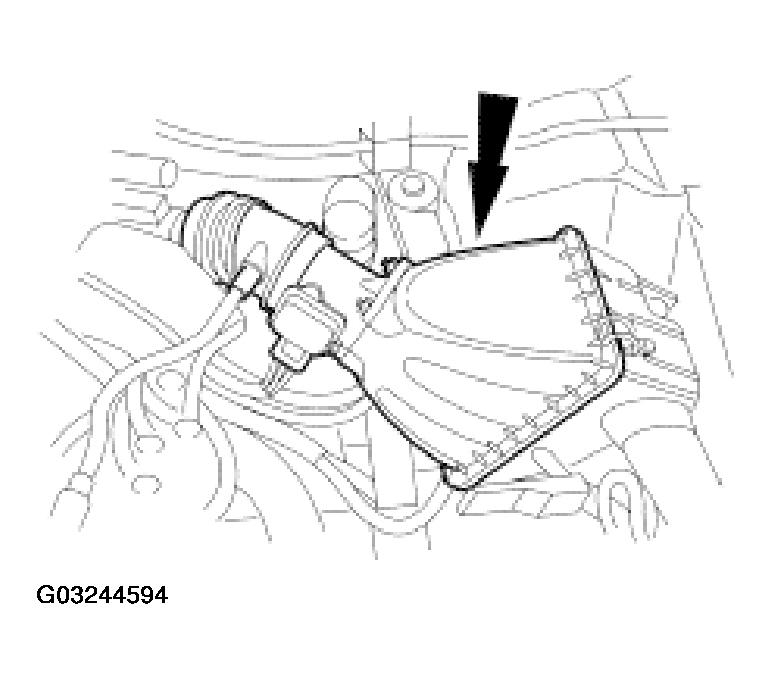

Fig 4: Installing Air Filter Assembly
Courtesy of FORD MOTOR CO.
Install the engine air cleaner lid.

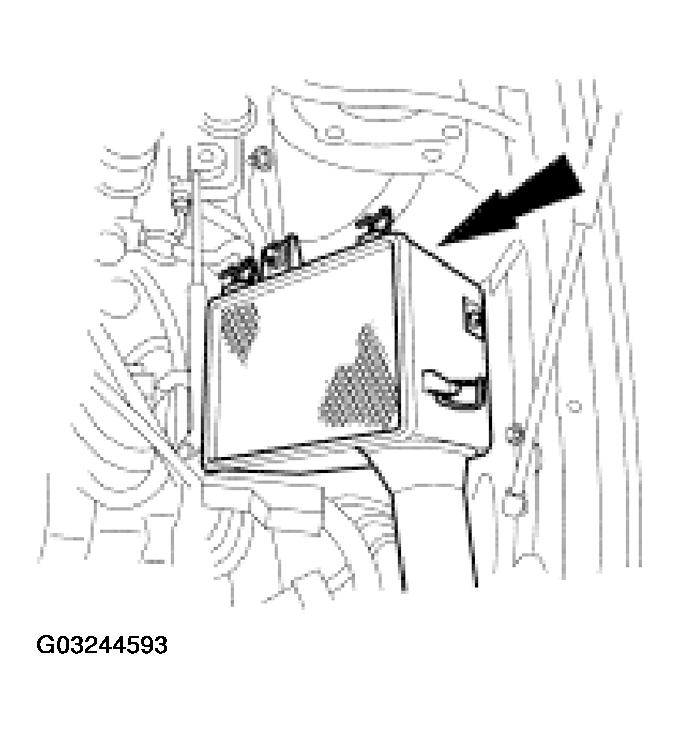

Fig 5: Installing Engine Air Cleaner Lid
Courtesy of FORD MOTOR CO.
Reconnect the mass air flow (MAF) sensor and the breather tubes.

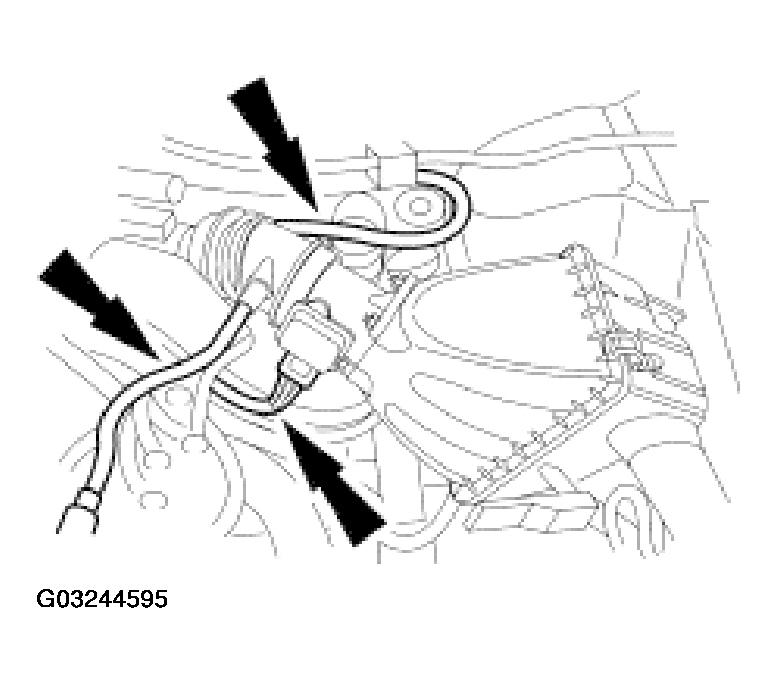

Fig 6: Installing Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Verify that the shift cable is correctly adjusted. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
