Digital Transmission Range (TR) Sensor: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .

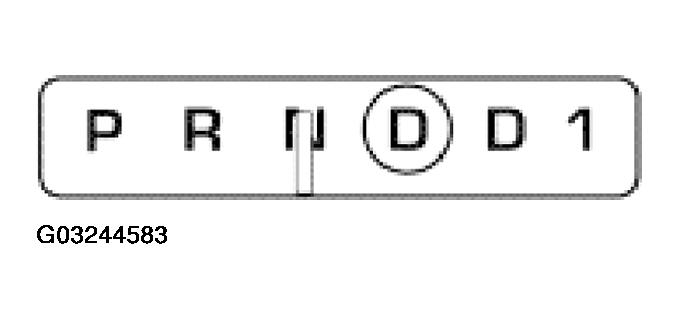

2. Place the transaxle range selector in NEUTRAL.
   Fig 1: Placing Transmission Range Selector In NEUTRAL

   Courtesy of FORD MOTOR CO.

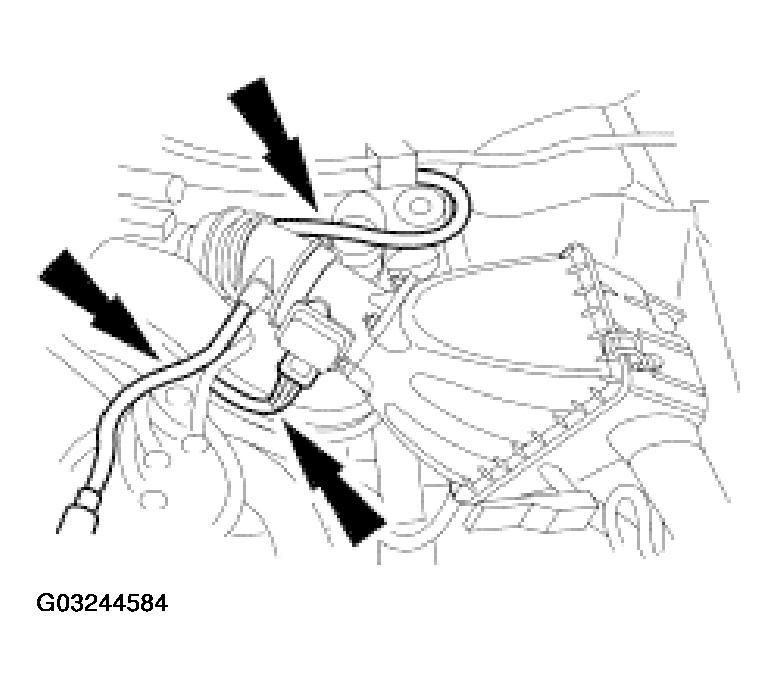

3. Disconnect the mass air flow (MAF) sensor and the breather tubes.
   Fig 2: Disconnecting Mass Air Flow (MAF) Sensor And Breather Tubes

   Courtesy of FORD MOTOR CO.

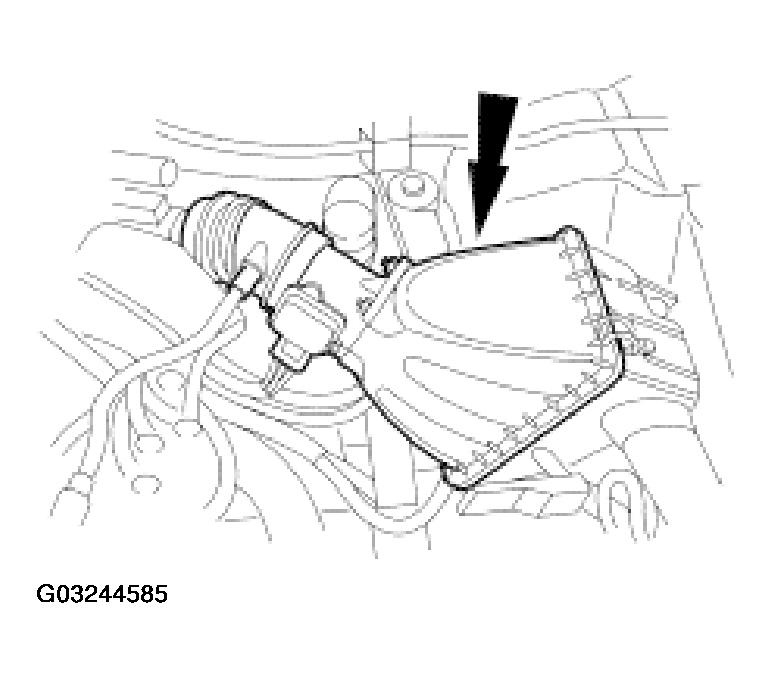

4. Remove the engine air cleaner lid.
   Fig 3: Removing Engine Air Cleaner Lid

   Courtesy of FORD MOTOR CO.

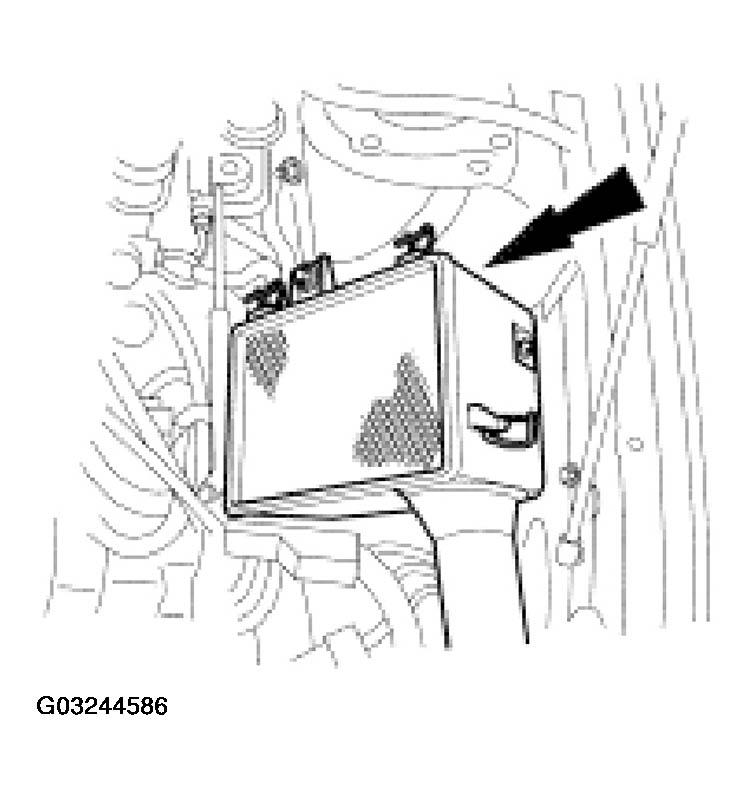

5. Remove the air filter assembly.
   Fig 4: Removing Air Filter Assembly

   Courtesy of FORD MOTOR CO.

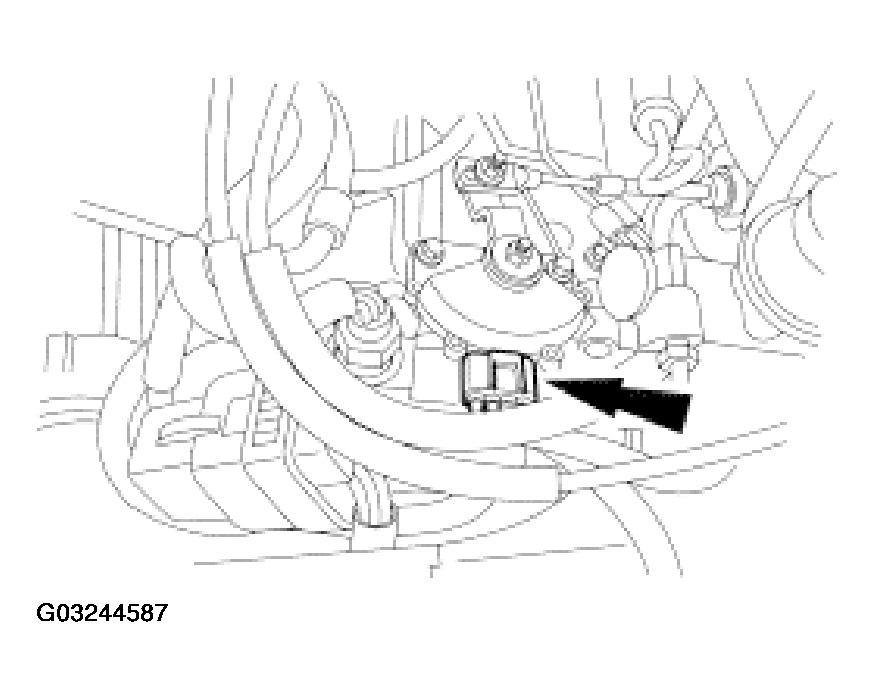

6. Disconnect the digital transmission range (TR) sensor electrical connector.
   Fig 5: Disconnecting Digital Transmission Range (TR) Sensor Electrical Connector

   Courtesy of FORD MOTOR CO.

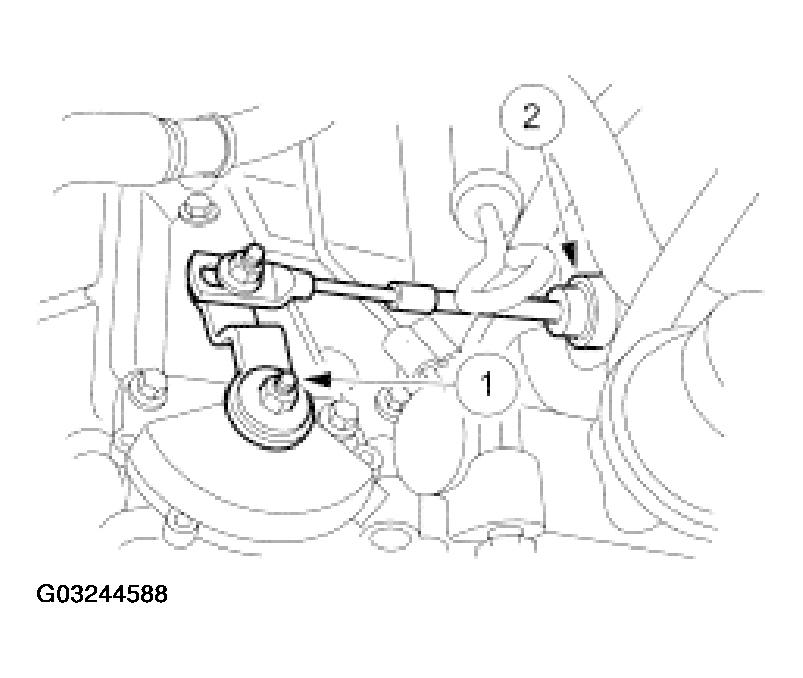

7. Remove the manual control lever and cable.
   1. Remove the nut.
   2. Remove the manual control lever and cable.
   Fig 6: Removing Manual Control Lever And Cable

   Courtesy of FORD MOTOR CO.

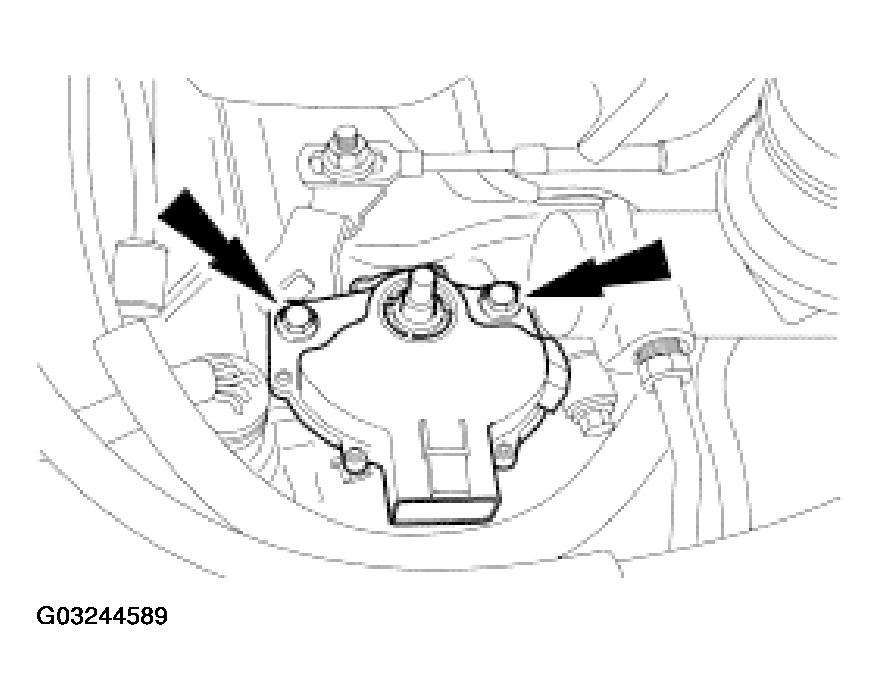

8. Remove the 2 bolts and the digital TR sensor.

Fig 7: Removing Digital TR Sensor

Courtesy of FORD MOTOR CO.
