Removal And Installation: Notes

NOTE: Vehicles that are not equipped with a trailer tow package will have this type of a cooling system.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the parts in the order indicated in the following illustration.

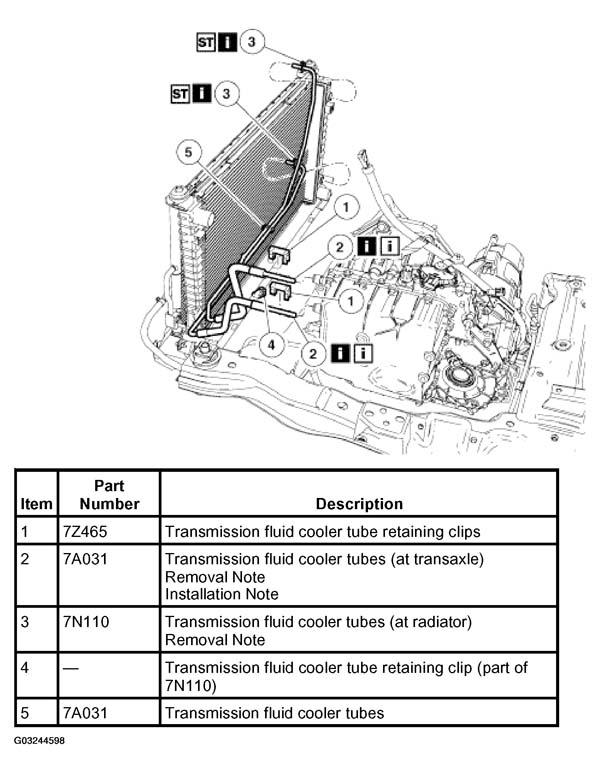

Fig 1: Transmission Fluid Cooler Removal Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
