Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit

Test Step

Result / Action to Take

1. D1 CHECK THE STOPLAMPS FOR CORRECT OPERATION
   • Apply the brake pedal while checking the stoplamps.
   • Do the stop lamps illuminate?
   1. Yes:  GO to D2.
   2. No:  REFER to EXTERIOR LIGHTING .
2. D2 CHECK THE BRAKE PEDAL INPUT TO THE ANTI-LOCK BRAKE SYSTEM (ABS) MODULE
   • Key in OFF position.
   • Disconnect: ABS Module C135.
   • Measure the voltage between the ABS module C135 pin 6, circuit 511 (LG), harness side and ground, while applying and releasing the brake pedal.

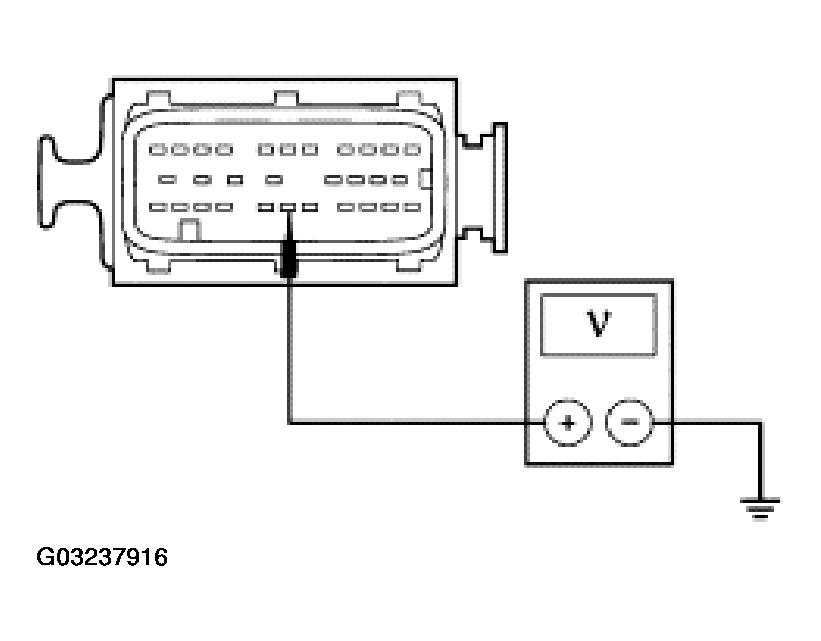

     Fig 1: Checking Brake Pedal Input To Anti-Lock Brake System (ABS) Module

     Courtesy of FORD MOTOR CO.
   • Is the voltage greater than 10 volts with the brake pedal applied and zero volts with the brake pedal released?
   1. Yes:  GO to D3.
   2. No:  REPAIR circuit 511 (LG) and circuit 810 (RD/LG) as necessary. CLEAR the DTCs. REPEAT the self-test.
3. D3 CHECK FOR CORRECT ABS MODULE OPERATION
   • Disconnect the ABS connector.
   • Check for:
     • corrosion
     • pushed-out pins
   • Connect the ABS connector and make sure it seats correctly.
   • Operate the system and verify the concern is still present.
   • Is the concern still present?
   1. Yes:  INSTALL a new ABS module. REFER to MODULE . TEST the system for normal operation.
   2. No:  The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
