WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

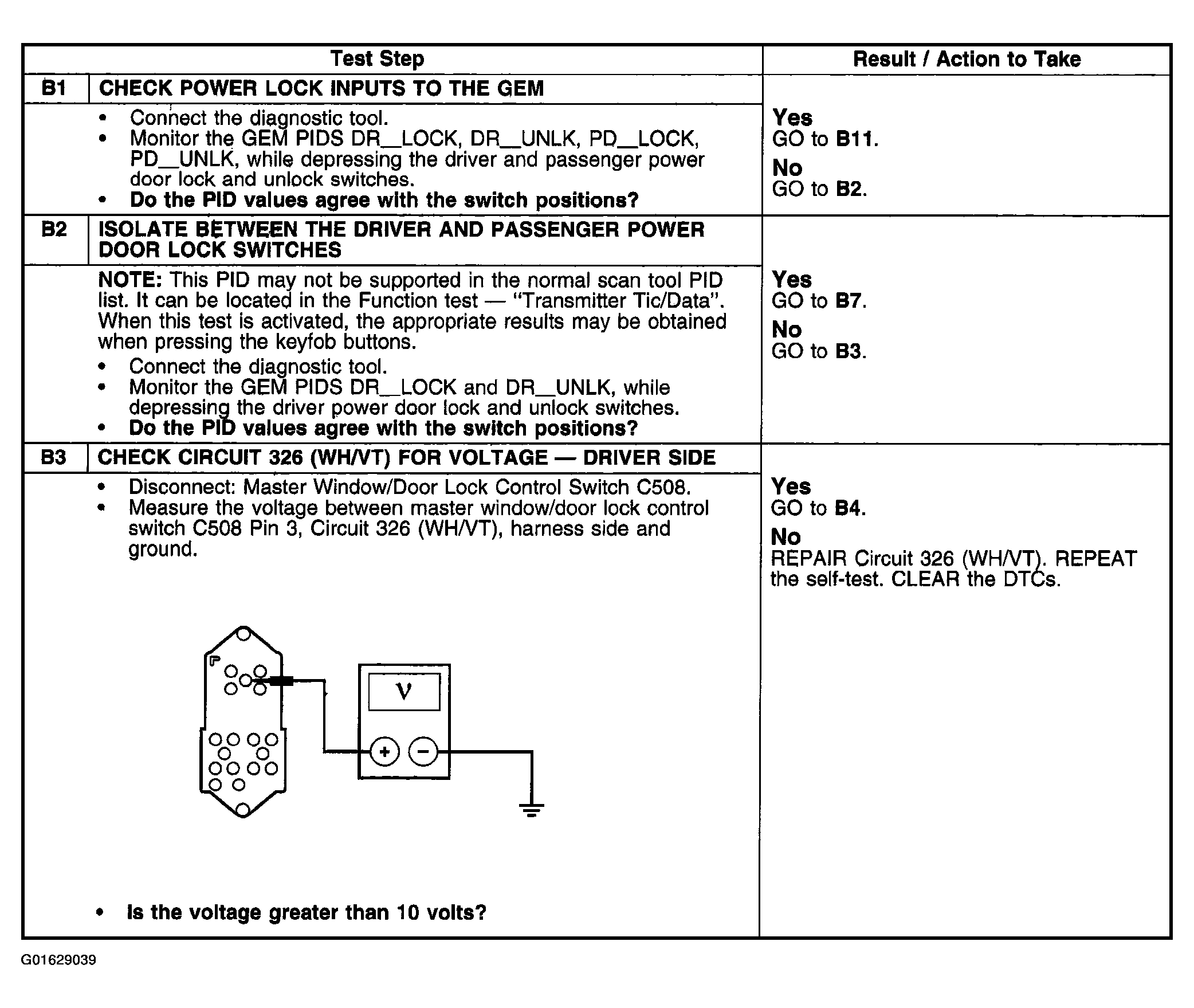

Fig 1: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B1-B3)
Courtesy of FORD MOTOR CO.

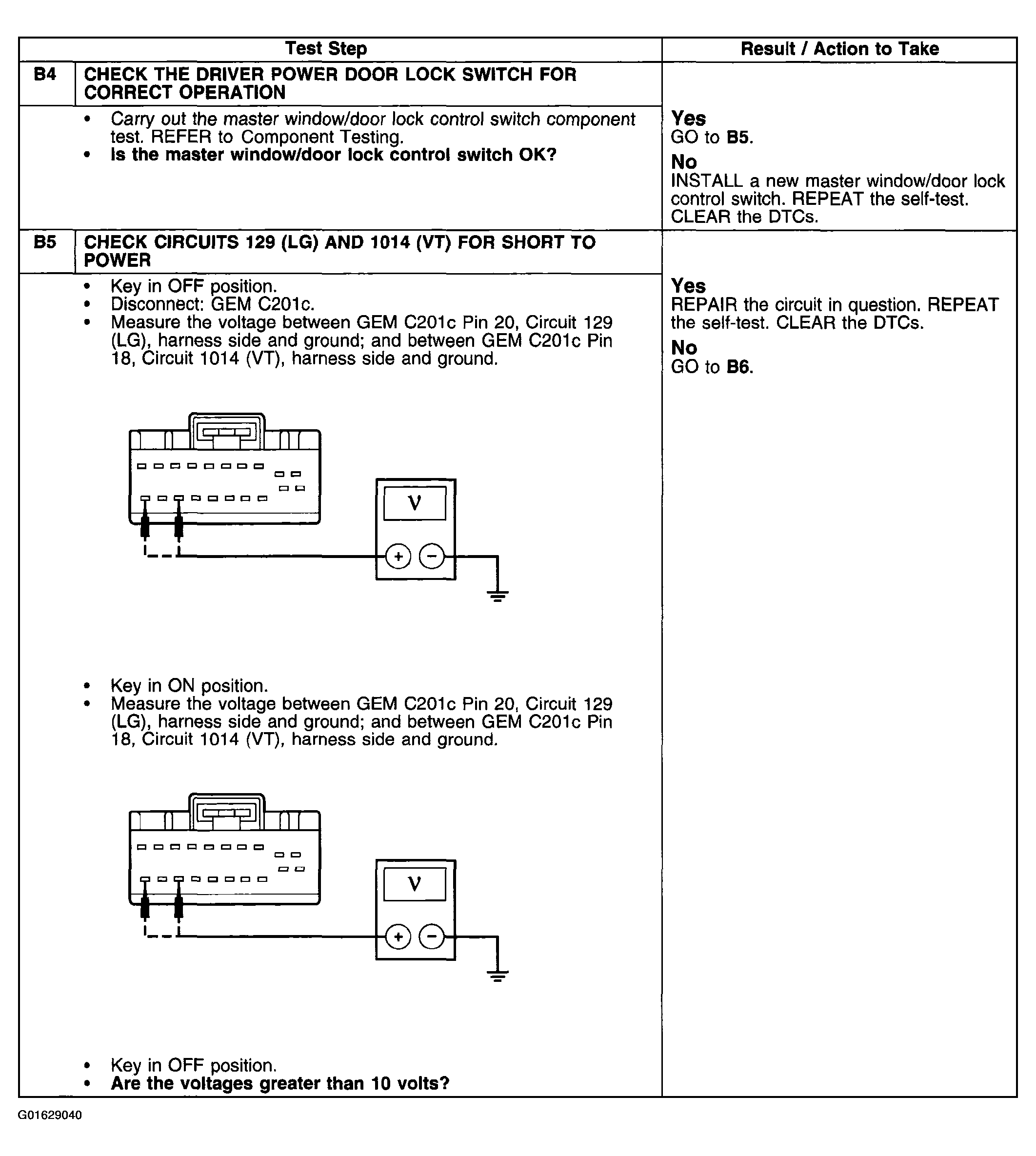

Fig 2: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B4 & B5)
Courtesy of FORD MOTOR CO.

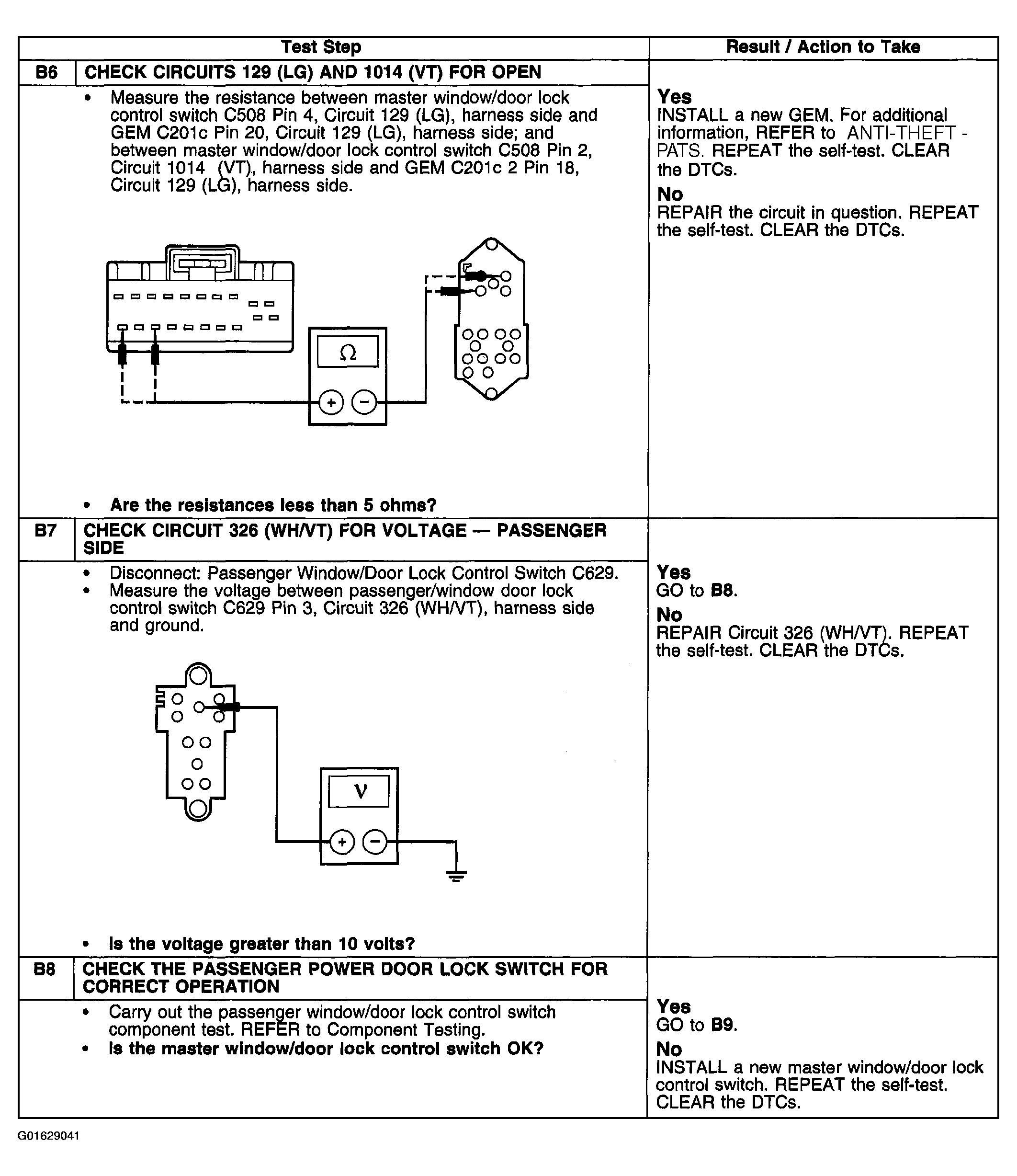

Fig 3: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B6-B8)
Courtesy of FORD MOTOR CO.

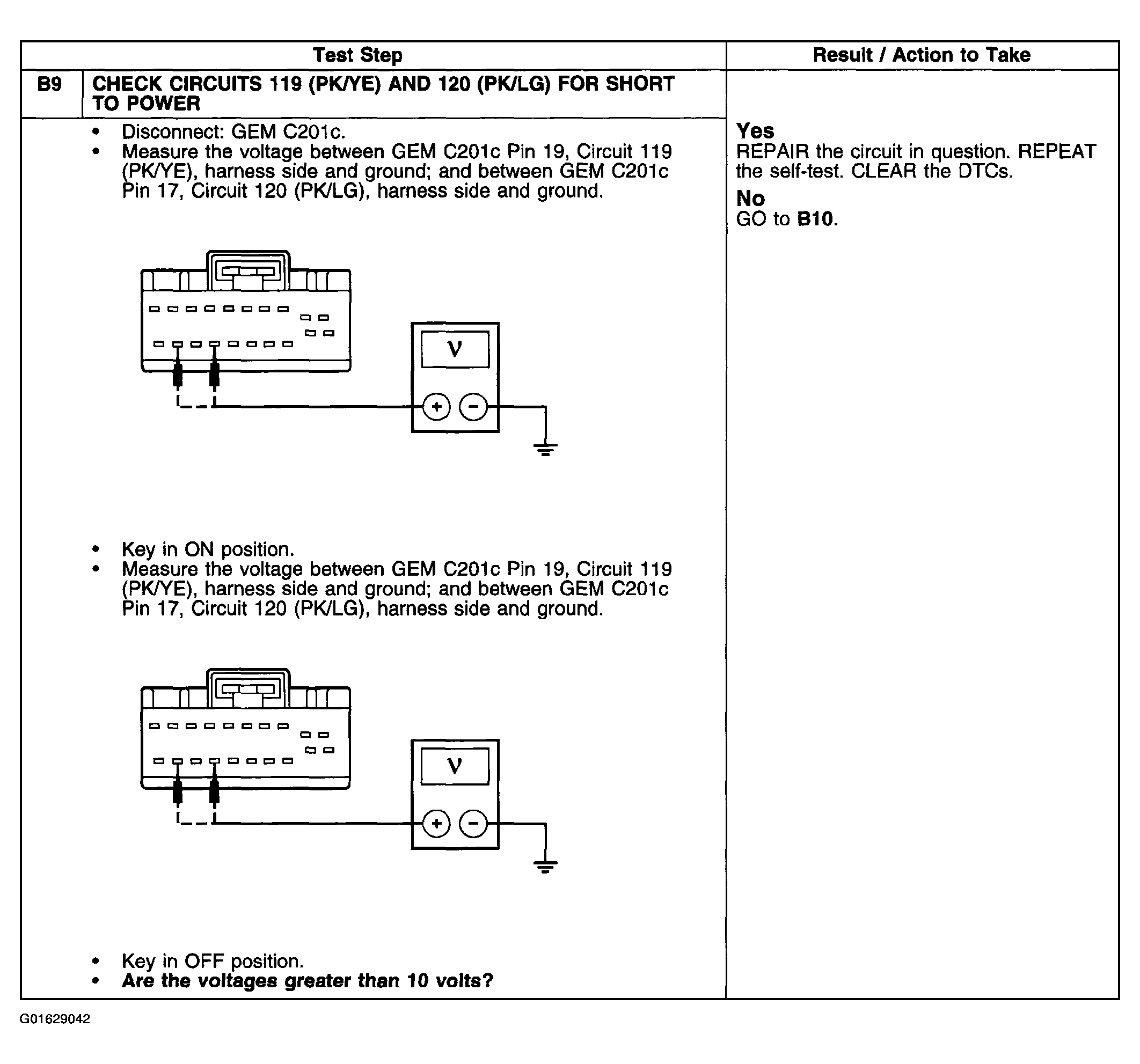

Fig 4: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B9)
Courtesy of FORD MOTOR CO.

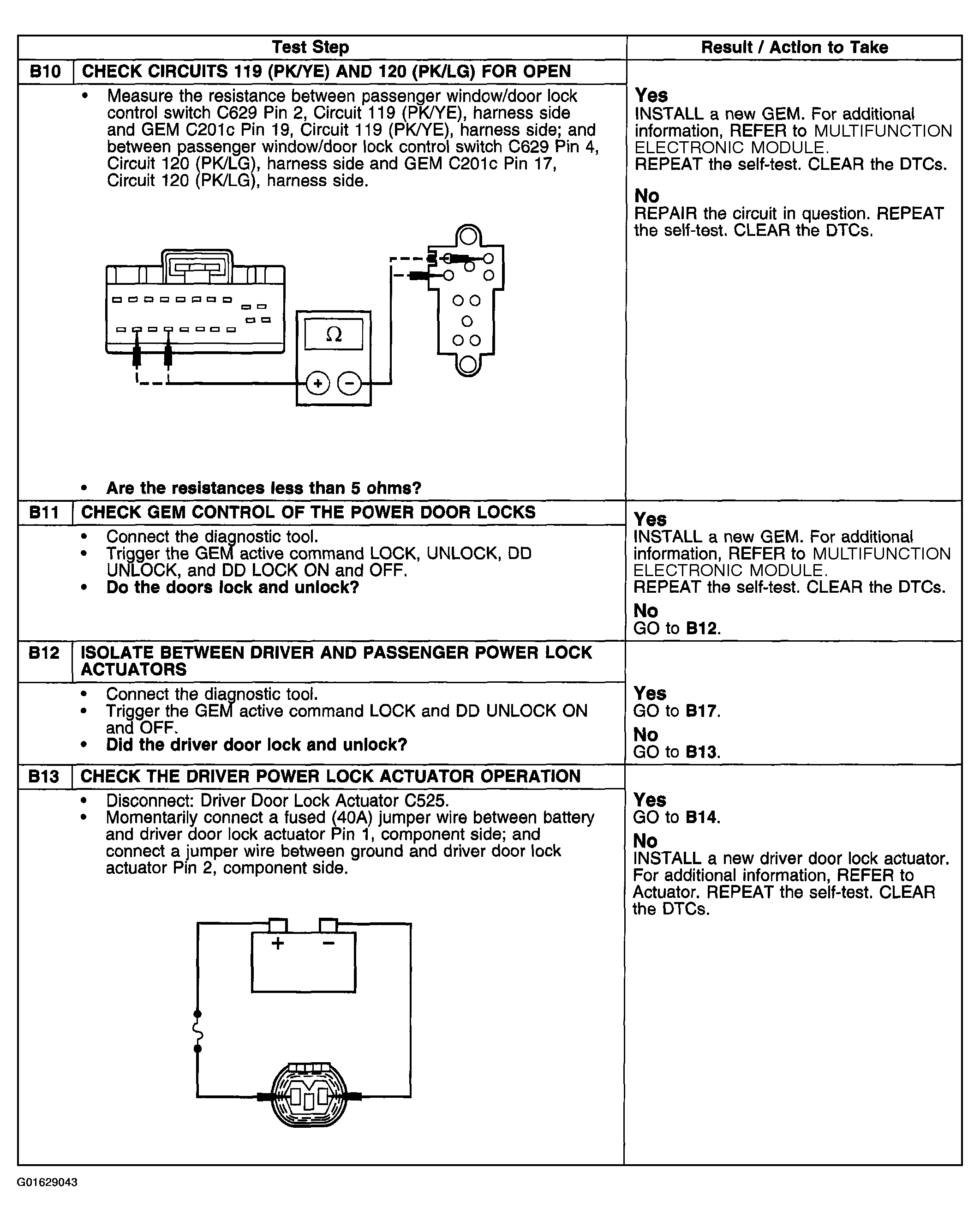

Fig 5: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B10-B13)
Courtesy of FORD MOTOR CO.
Fig 6: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B13-B15)
Courtesy of FORD MOTOR CO.
Fig 7: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B16 & B17)
Courtesy of FORD MOTOR CO.

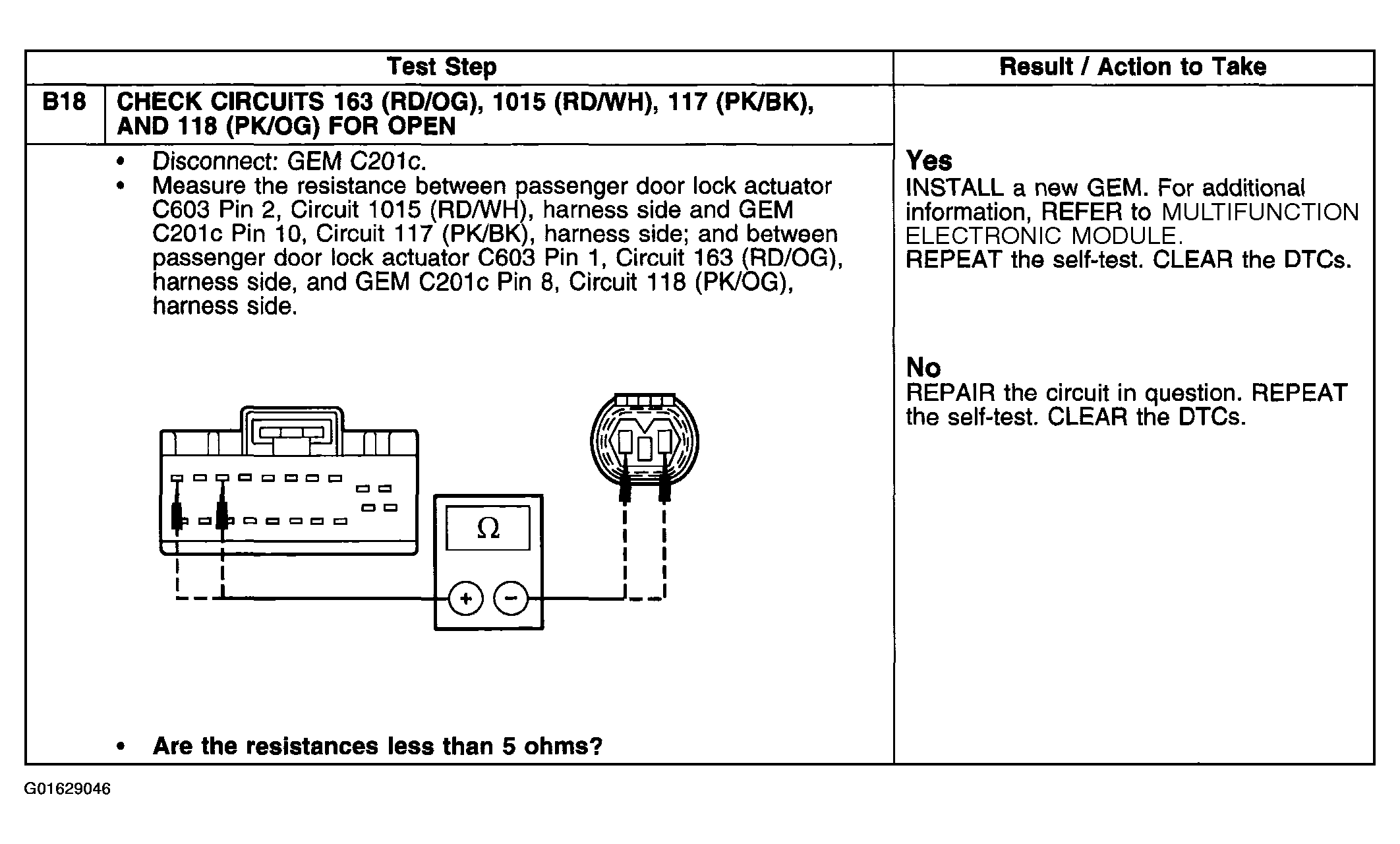

Fig 8: Identifying Pinpoint Test B: All Door Locks Are Inoperative (B18)
