Pinpoint Test D: The Luggage Compartment Door Is Inoperative Using Remote Transmitter

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

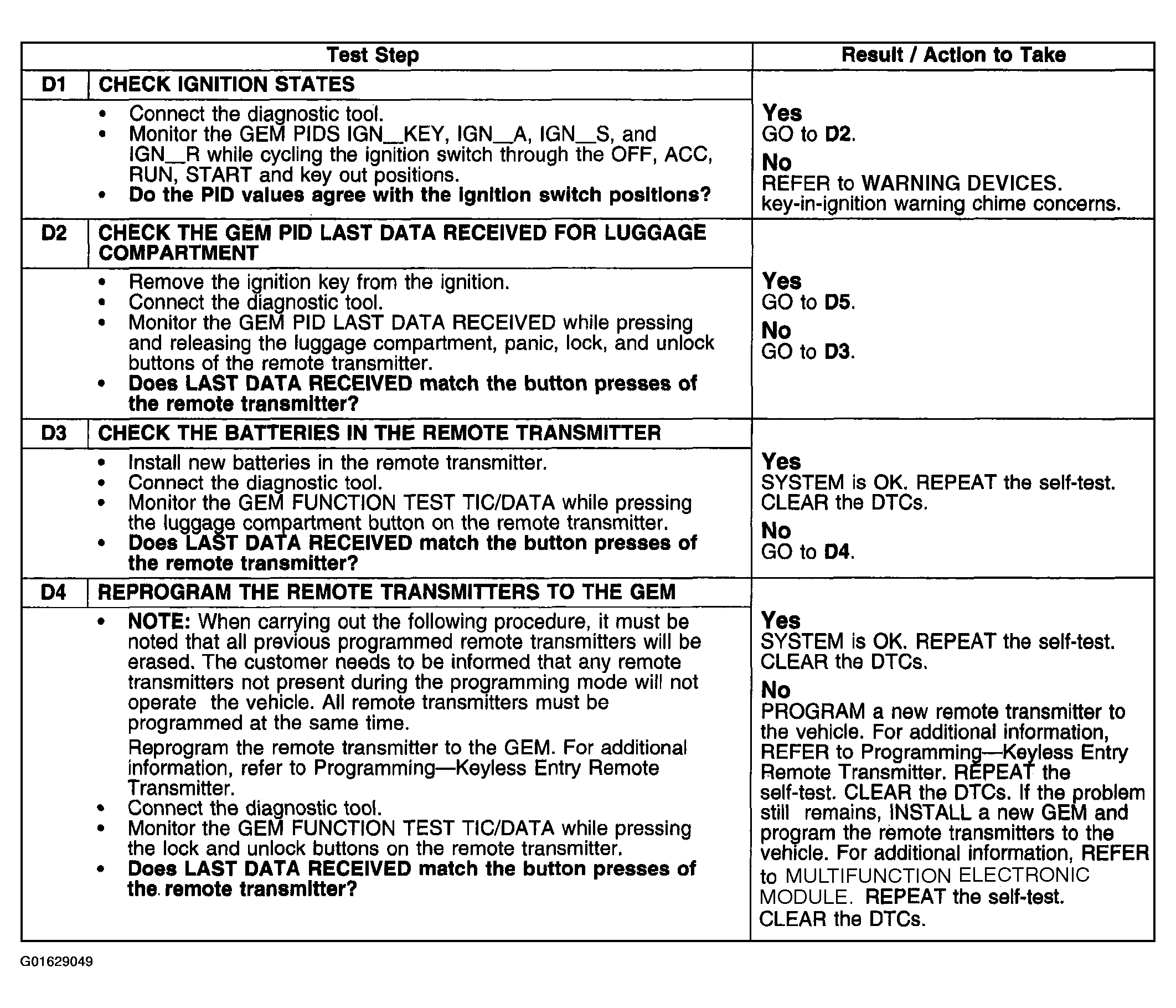

Fig 1: Identifying Pinpoint Test D: Luggage Compartment Door Is Inoperative Using Remote Transmitter (D1-D4)

Courtesy of FORD MOTOR CO.

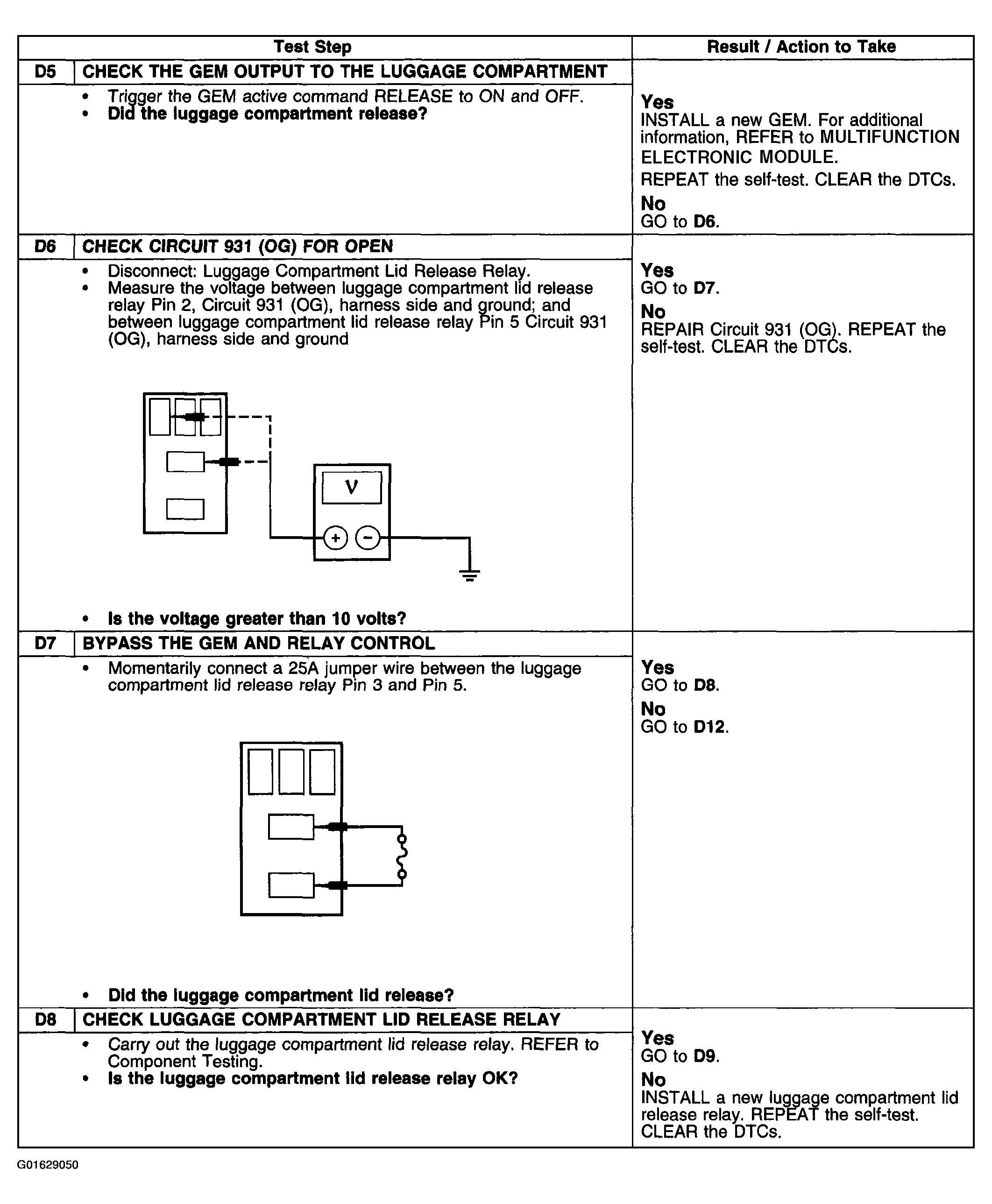

Fig 2: Identifying Pinpoint Test D: Luggage Compartment Door Is Inoperative Using Remote Transmitter (D5-D8)

Courtesy of FORD MOTOR CO.

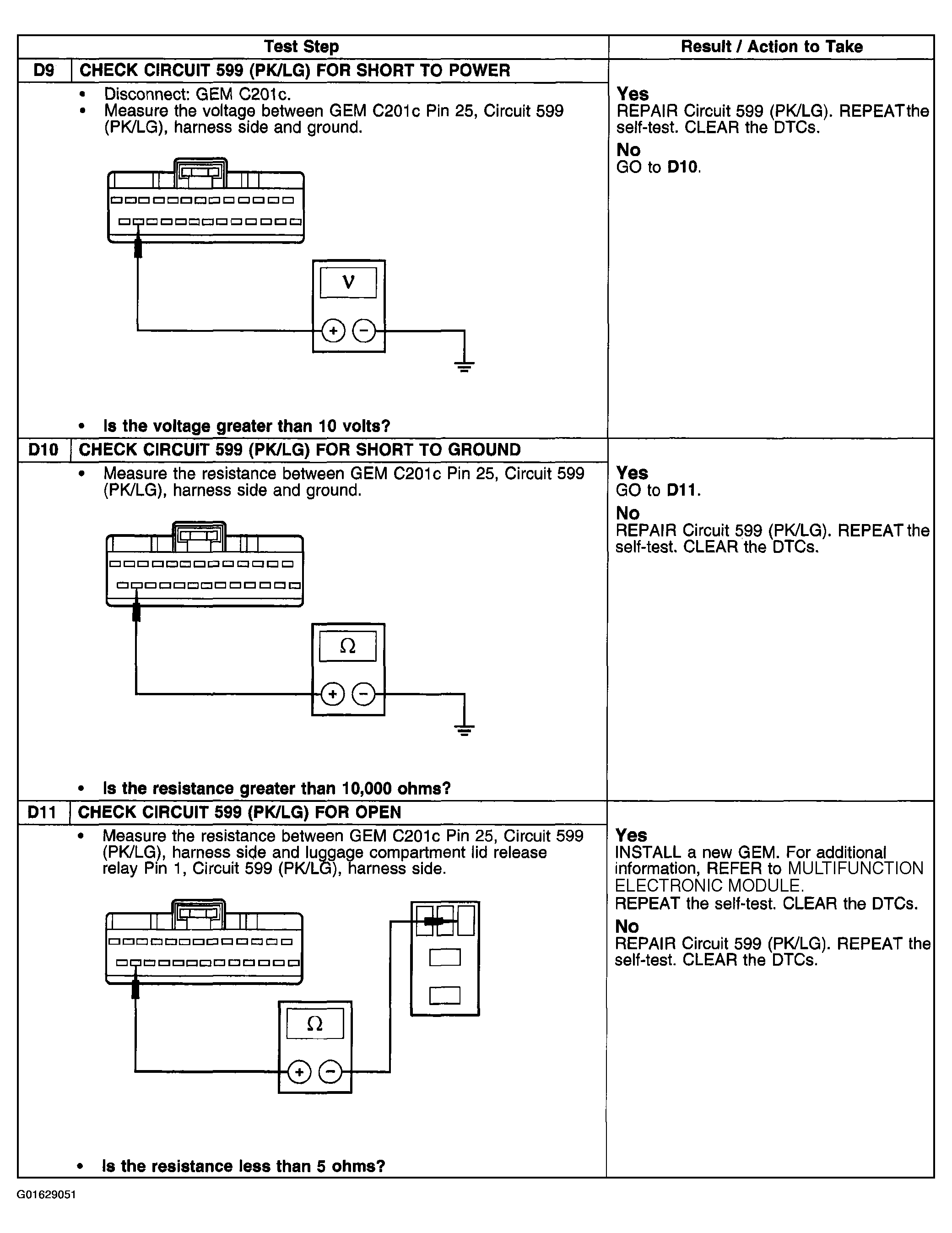

Fig 3: Identifying Pinpoint Test D: Luggage Compartment Door Is Inoperative Using Remote Transmitter (D9-D11)

Courtesy of FORD MOTOR CO.

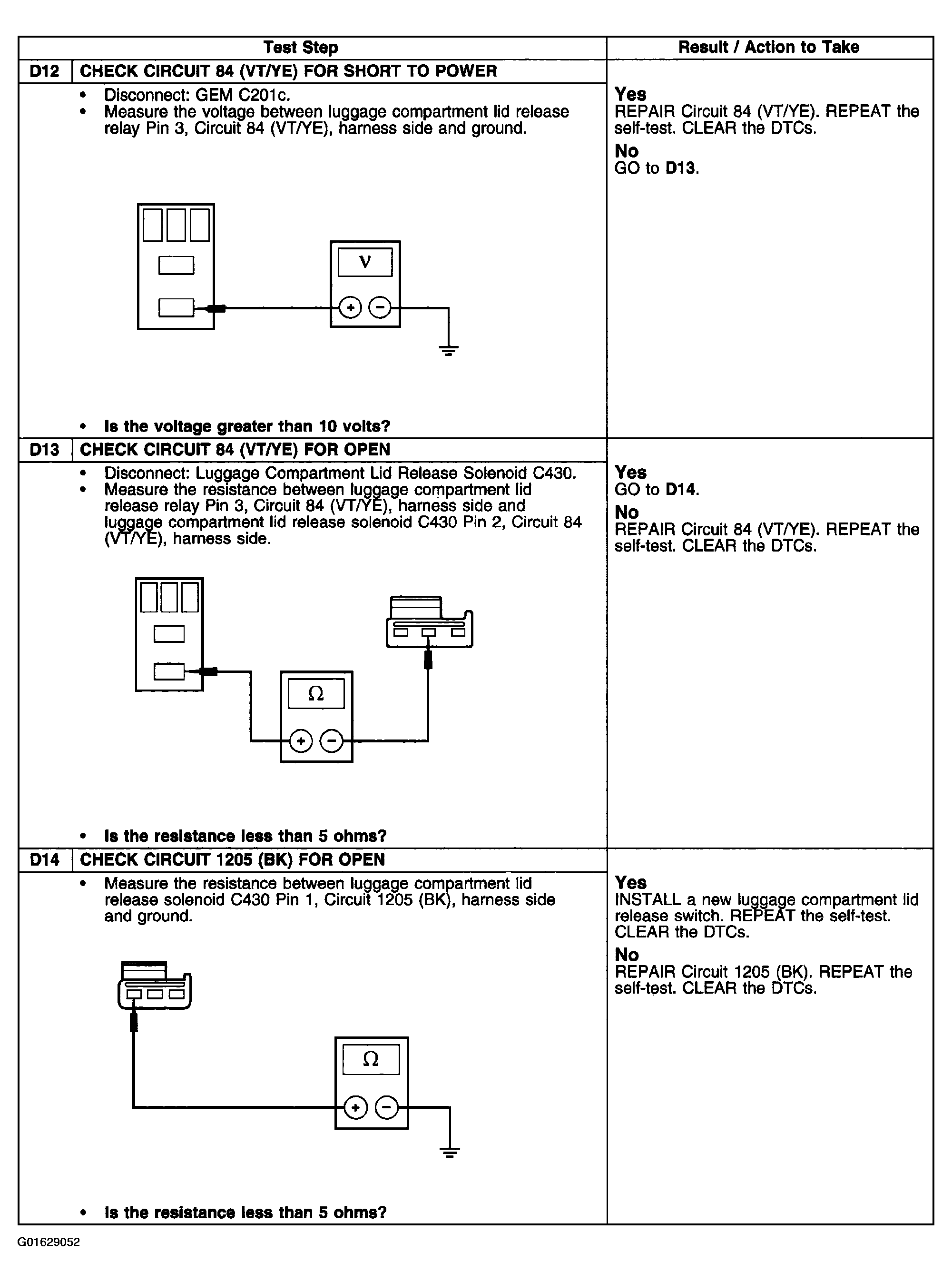

Fig 4: Identifying Pinpoint Test D: Luggage Compartment Door Is Inoperative Using Remote Transmitter (D12-D14)

Courtesy of FORD MOTOR CO.
