Pinpoint Test KE: Idle Air Control (IAC) Valve: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Idle Air Control (IAC) Valve (9F715).
• Harness circuits: IAC and VPWR.
• Powertrain control module (PCM) (12A650).

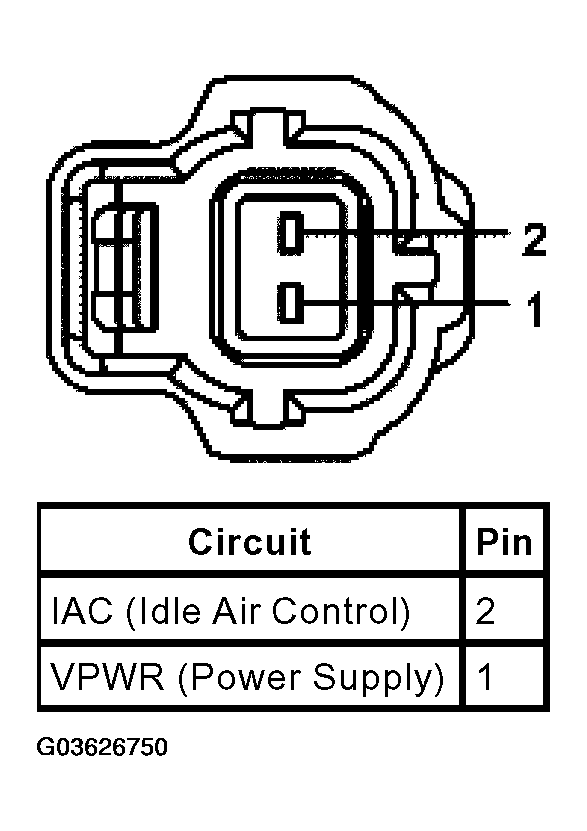

Fig 1: Identifying Idle Air Control (IAC) Actuator Connector

Courtesy of FORD MOTOR CO.
