Steering System Components - 4.6L Engine (CIII Power Steering Pump)

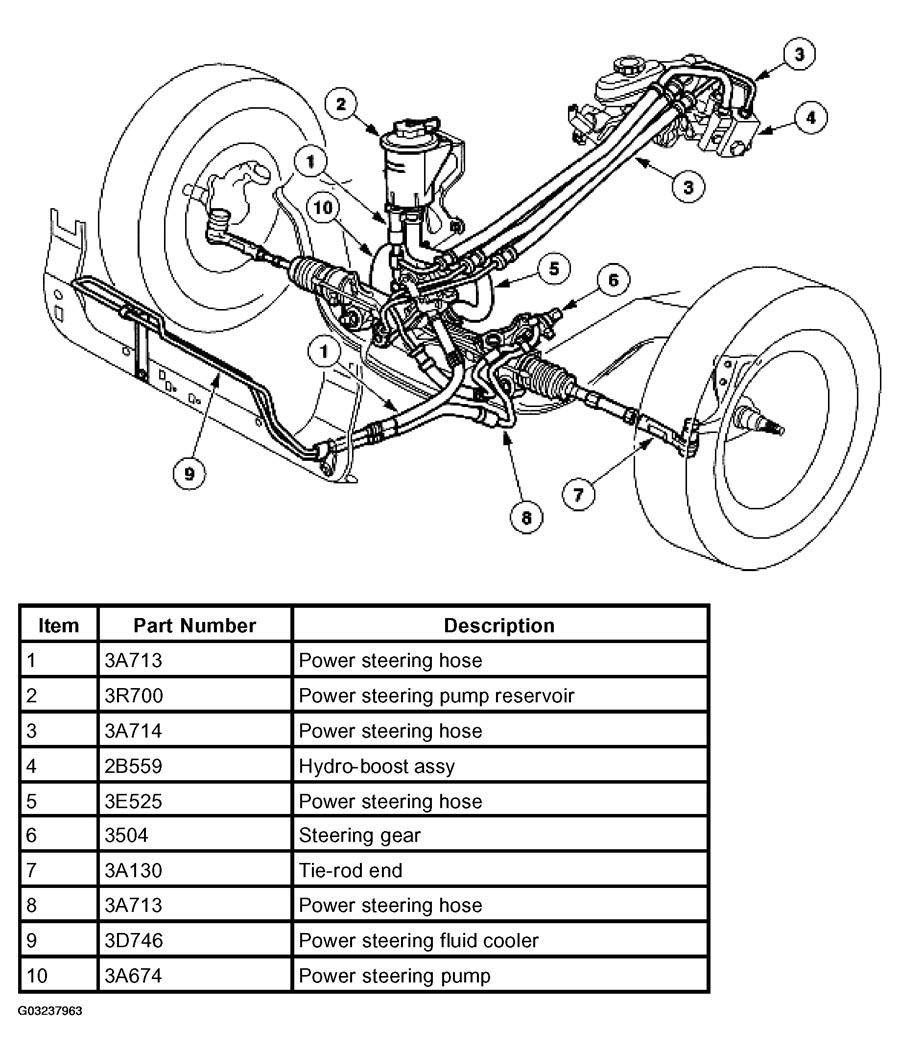

Fig 1: Identifying Steering System Components - 4.6L Engine - CIII Power Steering Pump

Courtesy of FORD MOTOR CO.

For information on the power steering oil reservoir (3A697), refer to POWER STEERING .

For information on the steering wheel and column assembly, refer to STEERING COLUMN .

For information on the power steering hoses, refer to POWER STEERING .

For information on the front wheel spindles, refer to FRONT in Suspension .

For information on the power steering fluid cooler, refer to POWER STEERING .

For information on the power steering pump, refer to POWER STEERING .

For information on the steering gear, refer to POWER STEERING .
