Module - Generic Electronic (GEM): Removal

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Depower the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
Remove the generic electronic module (GEM)(14B205).
1. Remove the five electrical connectors.
2. Release the locking tab and slide the module off the bracket.

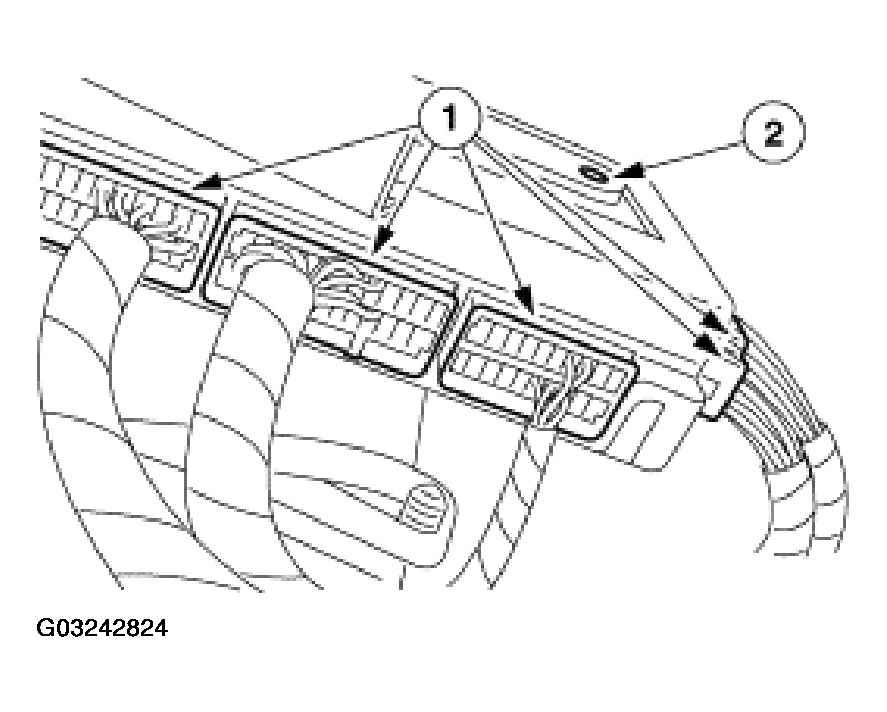

  Fig 1: Removing Generic Electronic Module (GEM)
  Courtesy of FORD MOTOR CO.
