Spring Codes

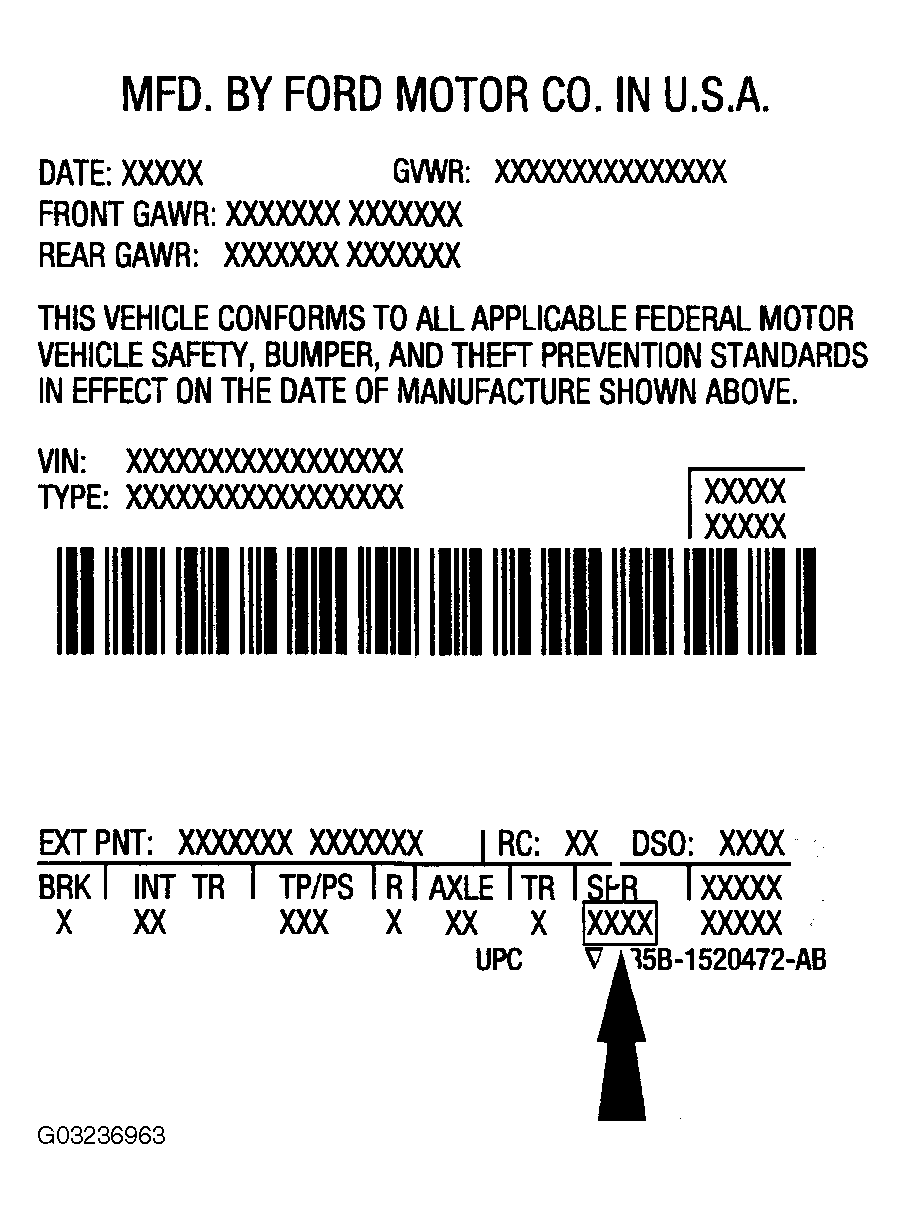

Fig 1: Locating Spring Codes
G03236963Courtesy of FORD MOTOR CO.

The spring code portion of the vehicle certification (VC) label identifies both the front and rear springs. The first letter/number indicates the front spring code. The second letter/number indicates the rear spring code.
