Main Light Switch (11654)

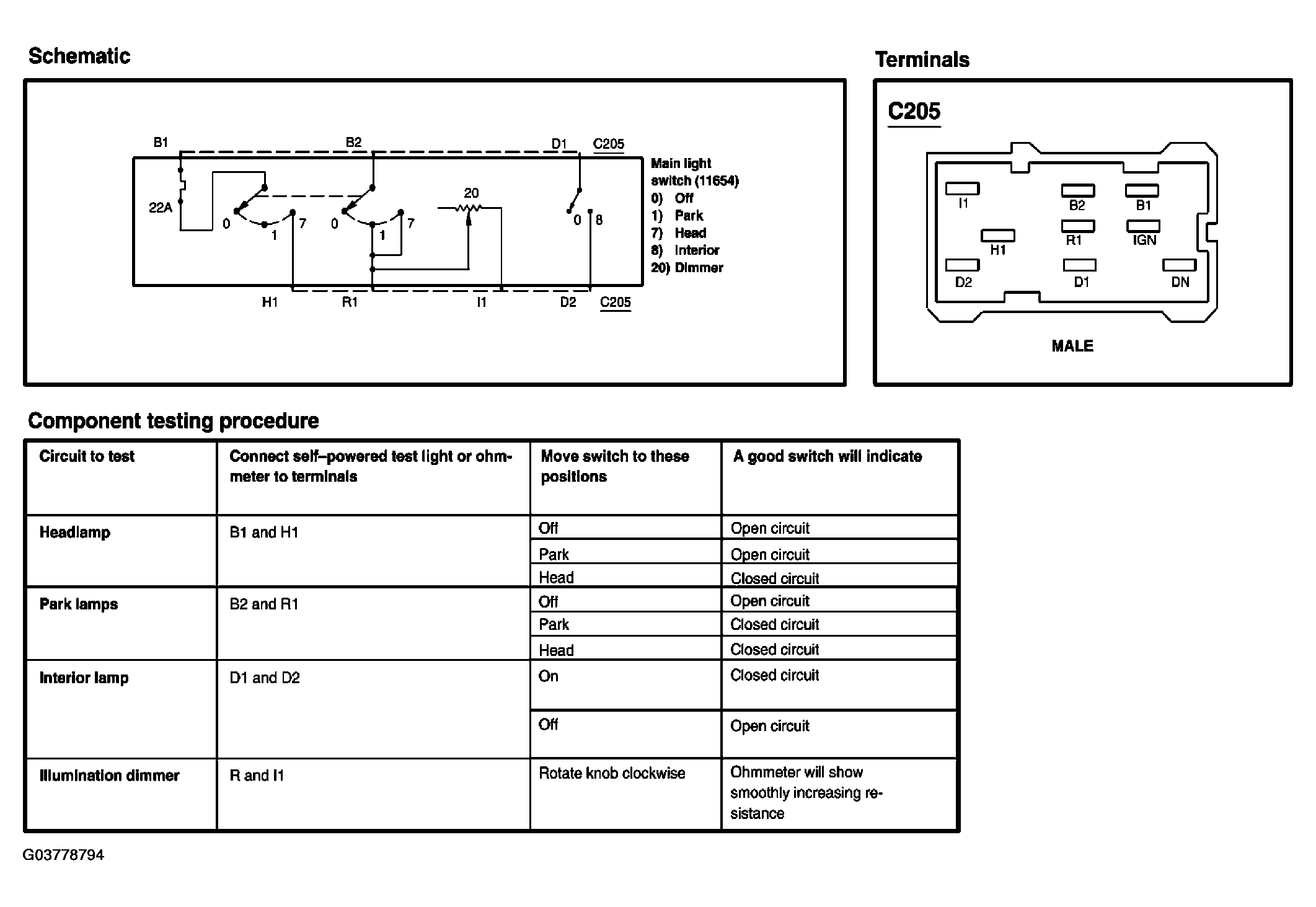

Fig 1: Testing Main Light Switch (11654)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
