Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

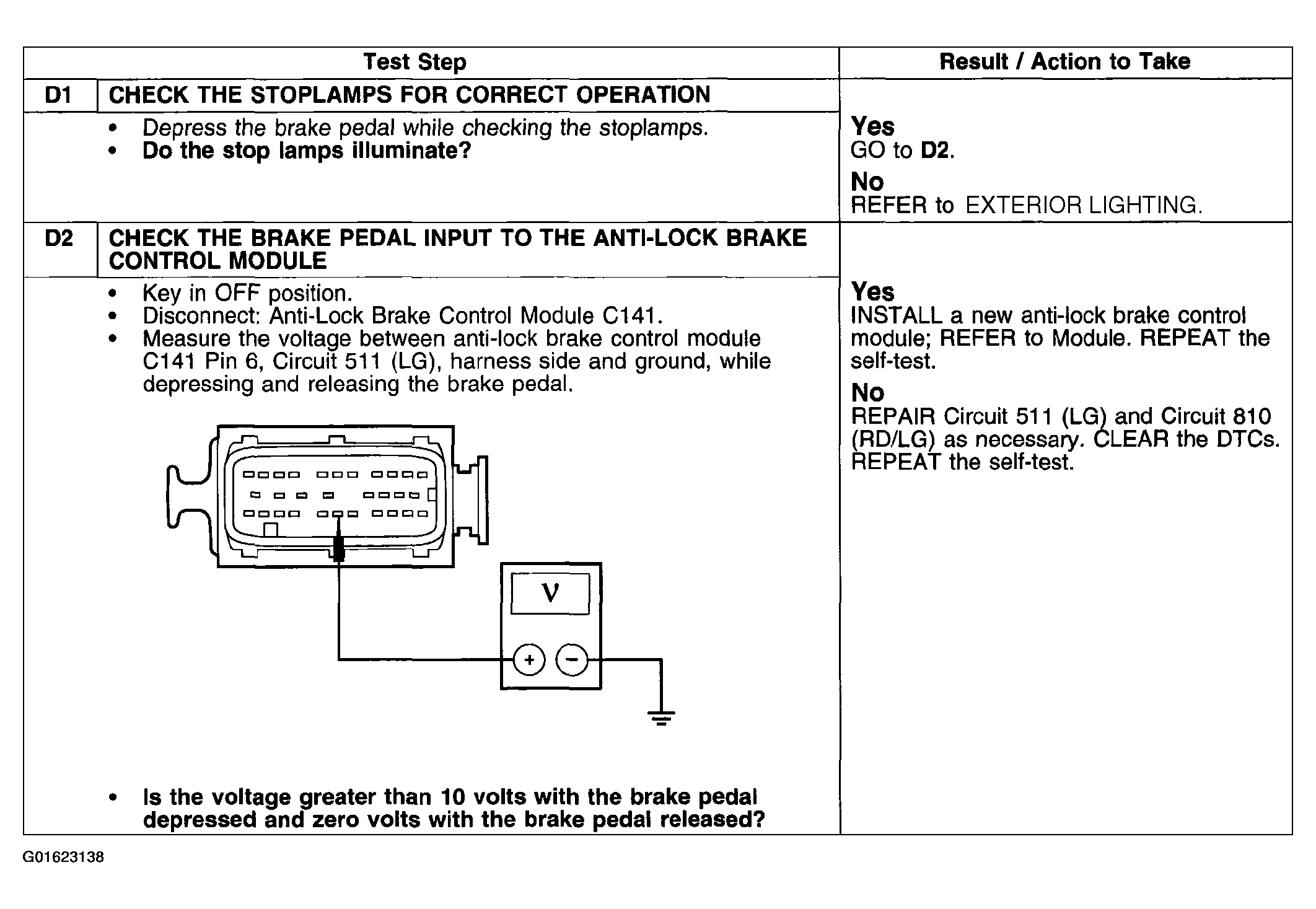

Fig 1: Pinpoint Test D: DTC B1484, Brake Pedal Input Open Circuit (D1 & D2)
G01623138Courtesy of FORD MOTOR CO.
