Pinpoint Test A: No Communication With The Generic Electronic Module

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

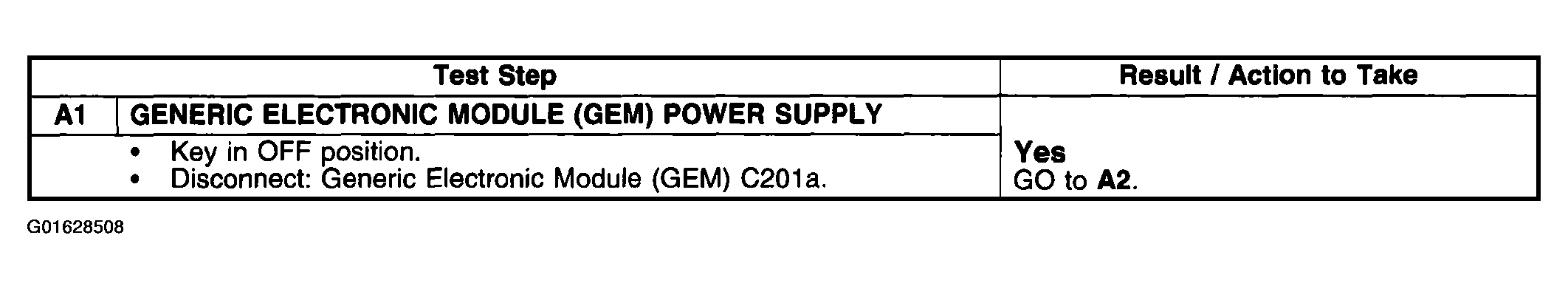

Fig 1: Pinpoint Test A Chart - No Communication With Generic Electronic Module (A1)

Courtesy of FORD MOTOR CO.

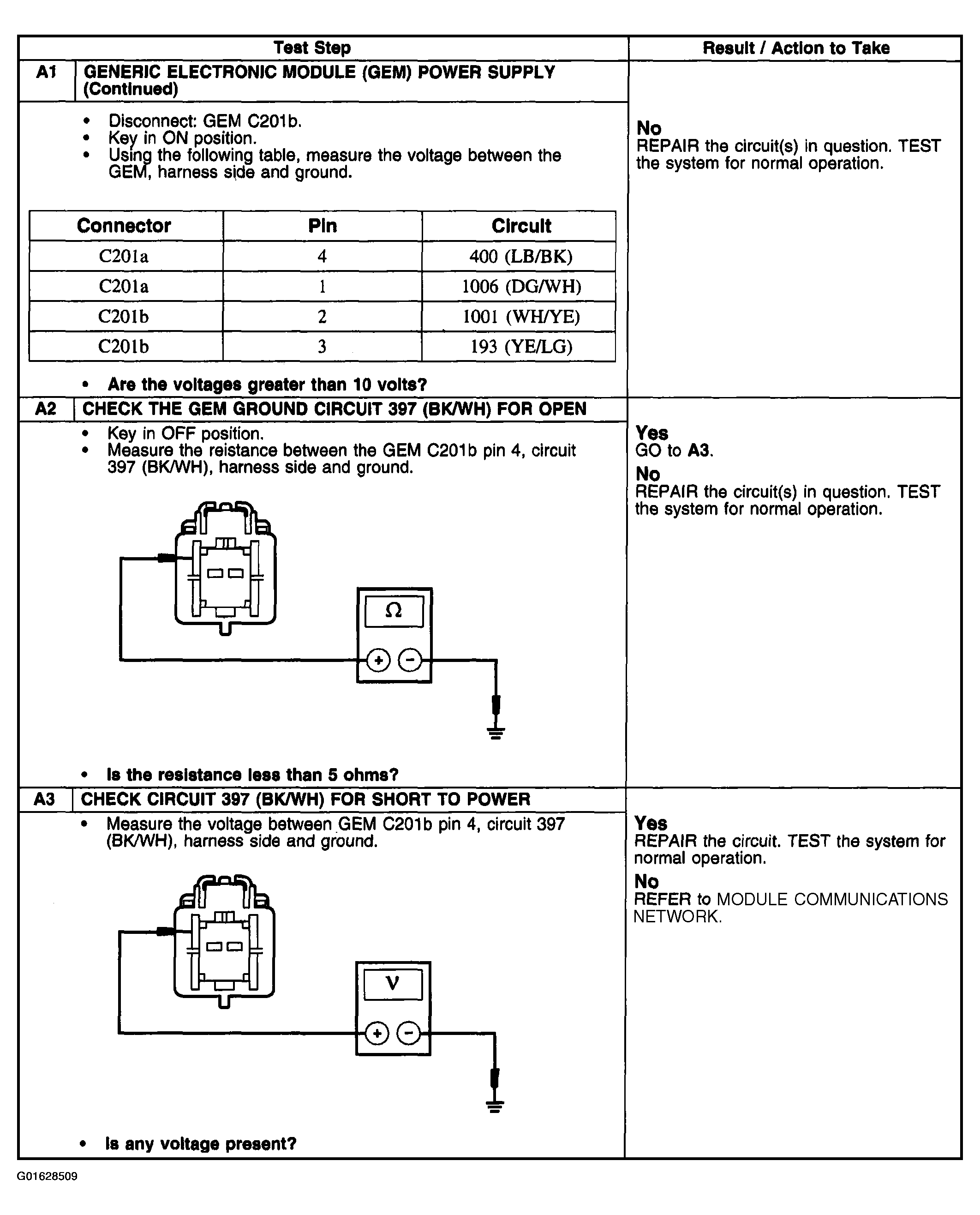

Fig 2: Pinpoint Test A Chart - No Communication With Generic Electronic Module (A1-A3)

Courtesy of FORD MOTOR CO.
