Pinpoint Test D: The Illuminated Entry Is Inoperative When Using The Remote Transmitter

WARNING: This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

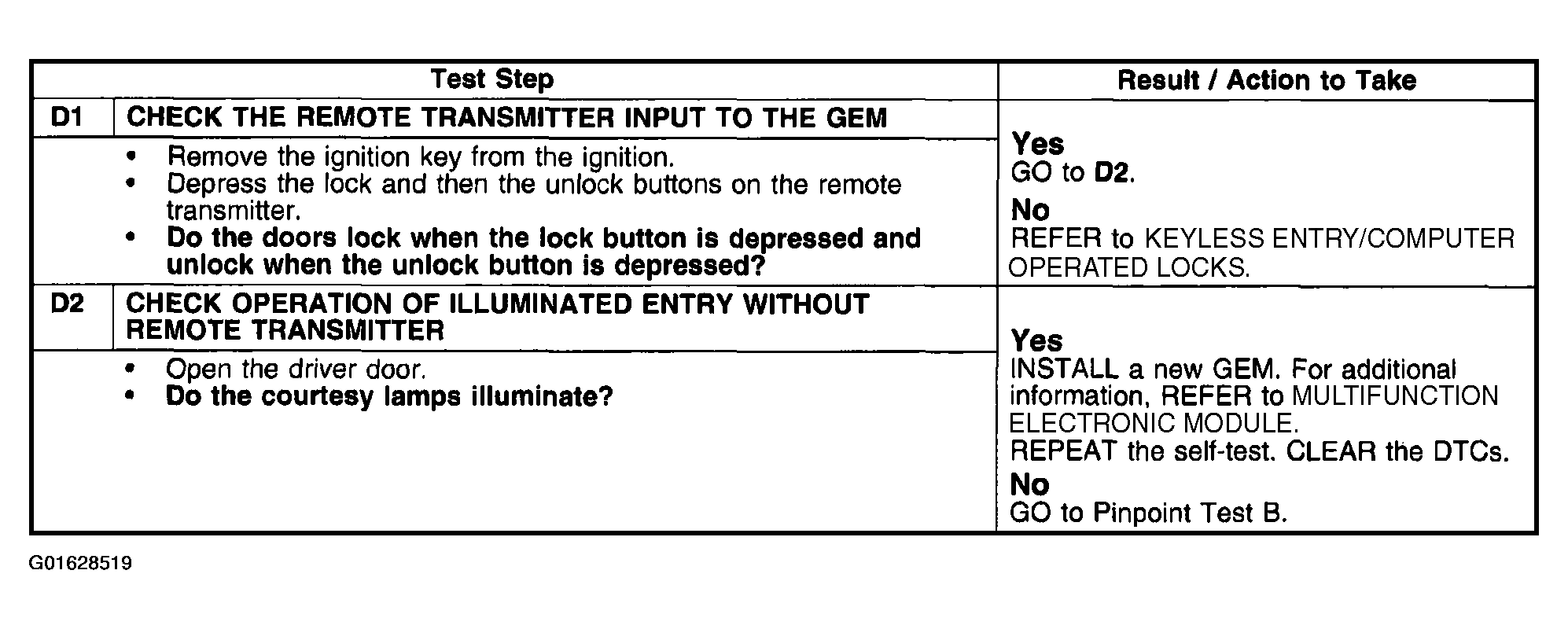

Fig 1: Pinpoint Test D Chart - Illuminated Entry Inoperative When Using Remote Transmitter
G01628519Courtesy of FORD MOTOR CO.
