Master window/door lock/unlock switch, Convertible
WARNING:
This page is about a different car, the 2003 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.

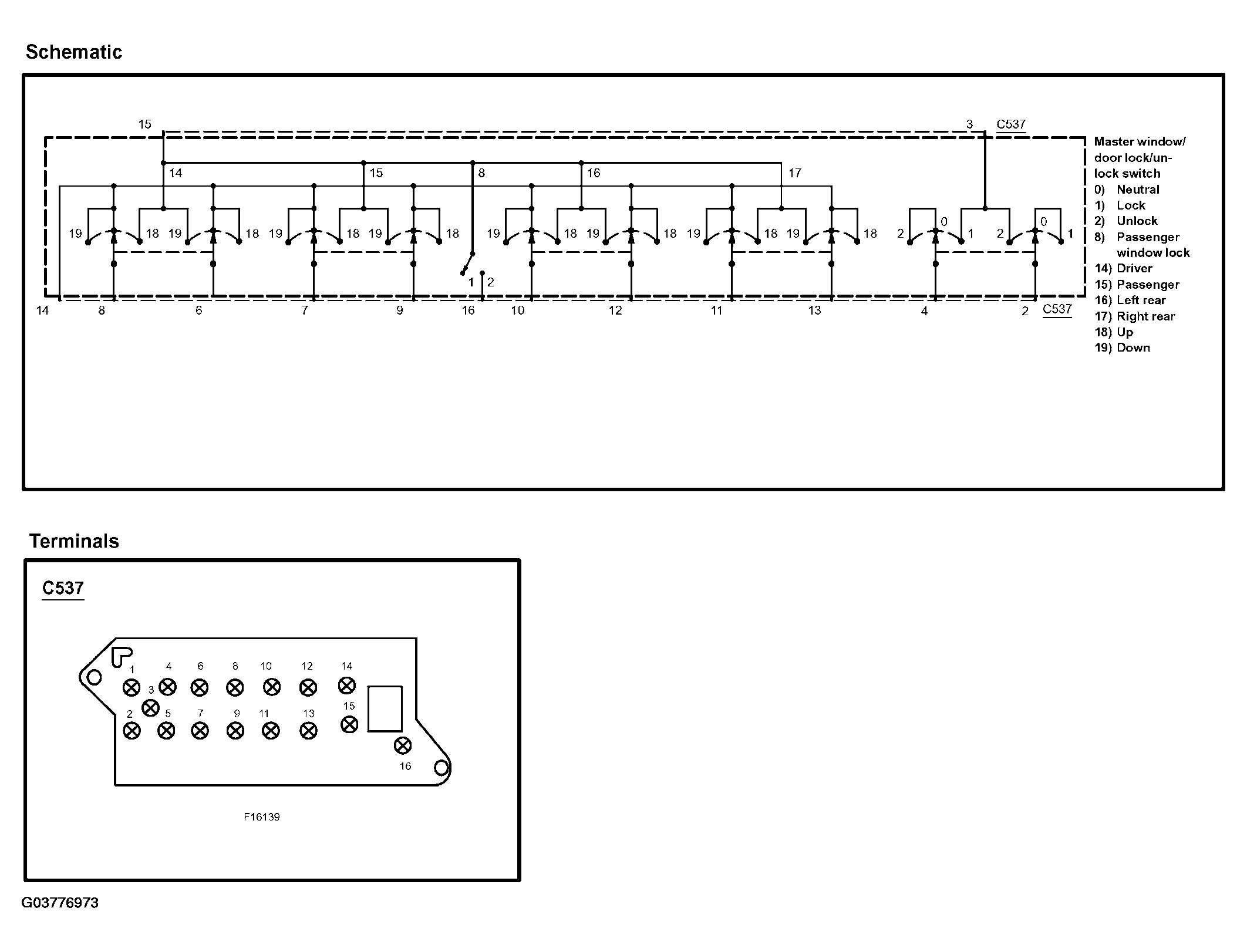

Fig 1: Testing Master Window/Door Lock/Unlock Switch, Convertible (1 Of 2)
Courtesy of FORD MOTOR CO.

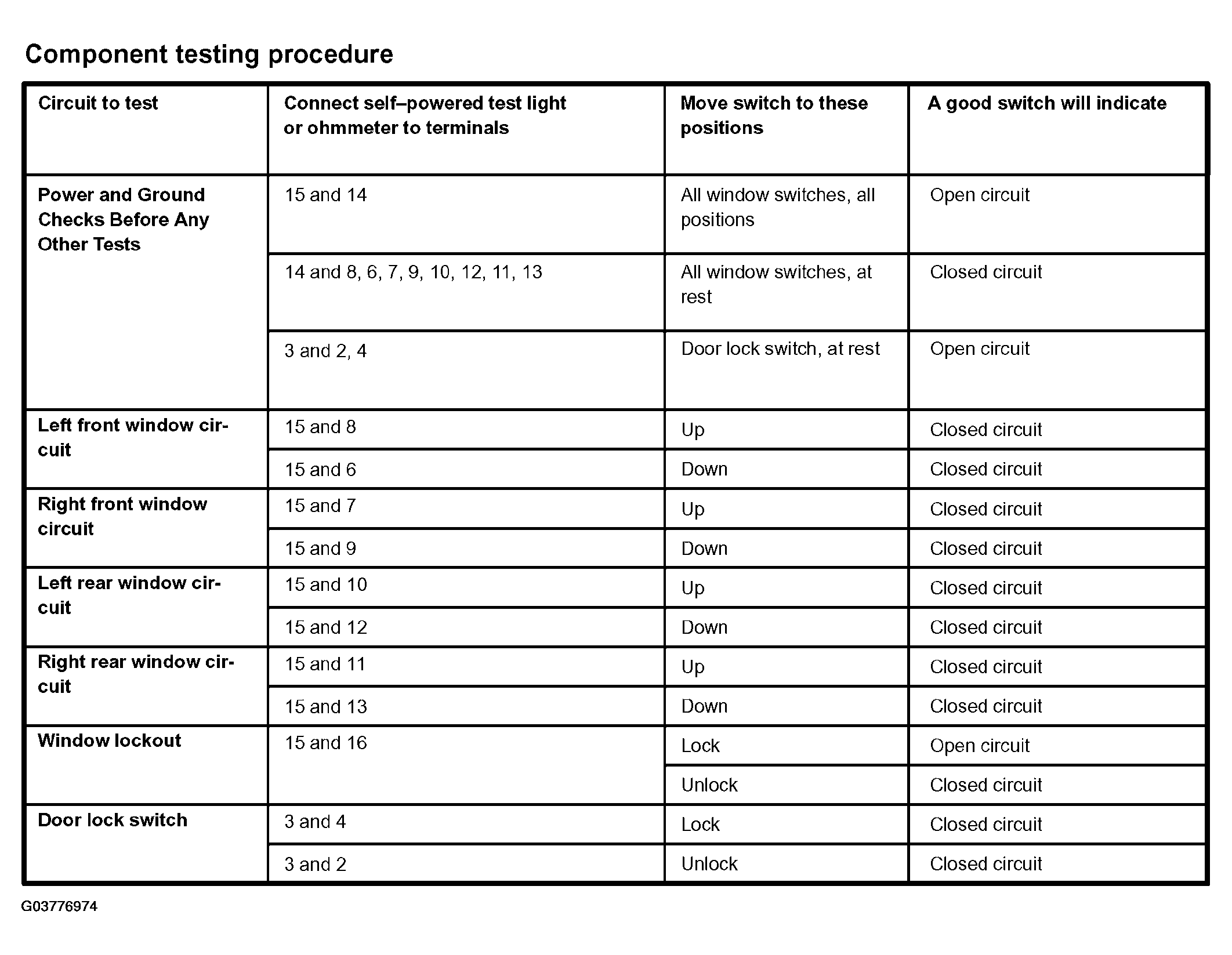

Fig 2: Testing Master Window/Door Lock/Unlock Switch, Convertible (2 Of 2)
Courtesy of FORD MOTOR CO.
