Toe-In Adjustment: Rear

To prevent damage to the ball joints, hold the tie-rod ends while loosening the nuts. See Fig 1 . Rotate tie rod to obtain correct toe-in. See WHEEL ALIGNMENT SPECIFICATIONS  . Tighten locking nut to specification. See TORQUE SPECIFICATIONS  . Recheck toe-in.

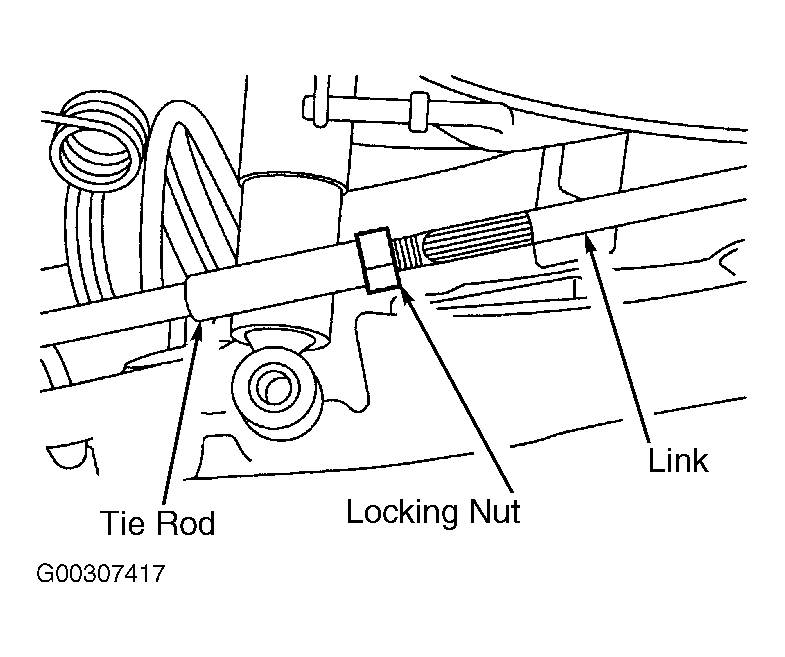

Fig 1: Adjusting Rear Toe

Courtesy of FORD MOTOR CO.
