Cable Adjustment

    NOTE: Make sure that the range selector lever is tight against the rearward overdrive stop.
  1. Place the transmission range selector lever in the overdrive position.
  2. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
  3. Loosen the manual control lever nut.
    Fig 1: Loosing Manual Control Lever Nut
    G03241948Courtesy of FORD MOTOR CO.
  4. Place the transmission manual control lever in the overdrive position.
  5. Tighten the nut on the manual control lever.

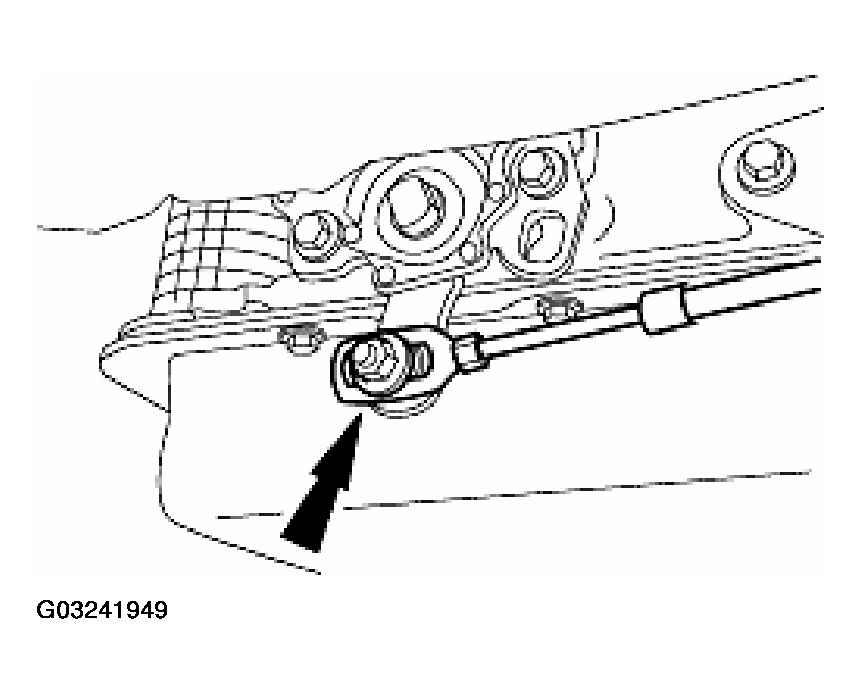

    Fig 2: Tightening Nut On Manual Control Lever
    G03241949Courtesy of FORD MOTOR CO.
