Switch Adjustment - Deactivator

  1. Adjust the deactivator switch.
    1. Disconnect the switch hook from the brake pedal.
    2. Depress the switch hook and plunger into the deactivator switch body until the adjustment locking tab snaps into place within the hook.
    3. Depress the brake pedal and reattach the switch hook.

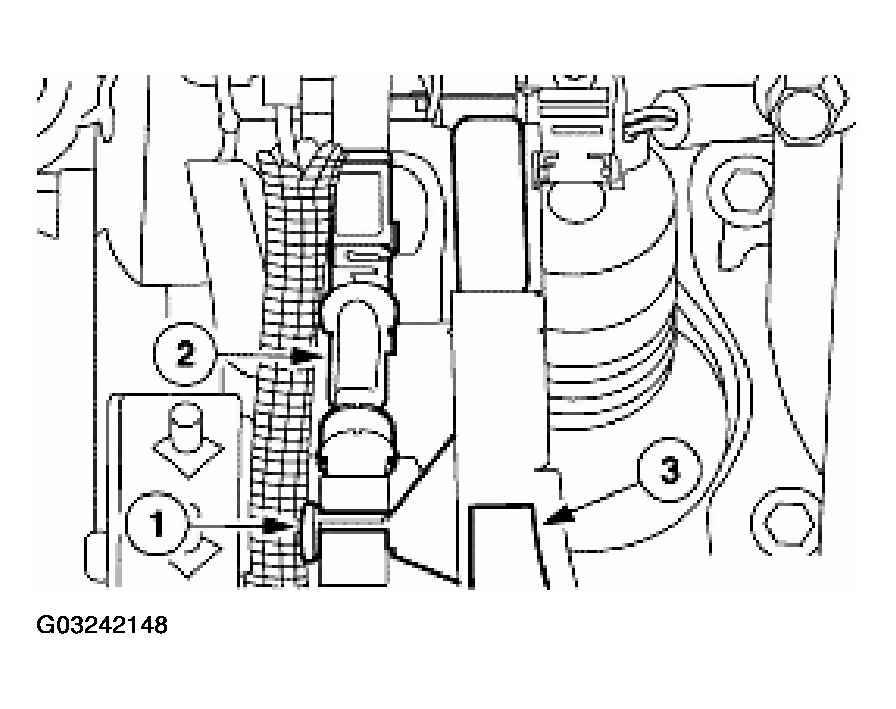

      Fig 1: Adjusting Deactivator Switch
      G03242148Courtesy of FORD MOTOR CO.
