Connector Views

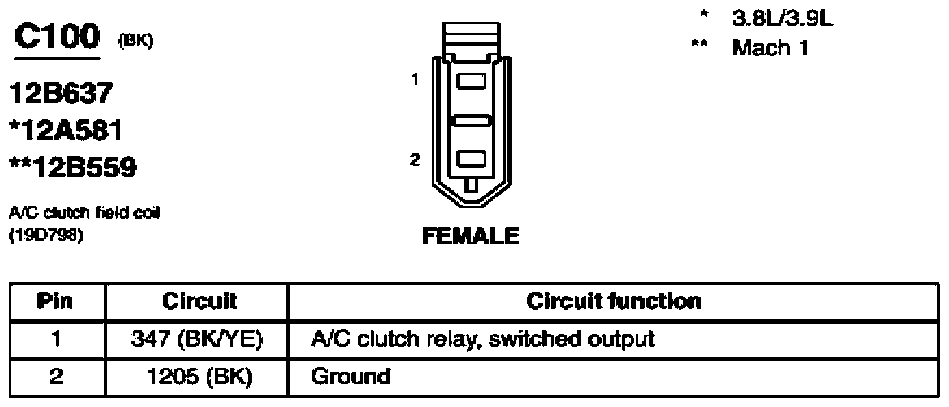

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07839013

Courtesy of FORD MOTOR CO.

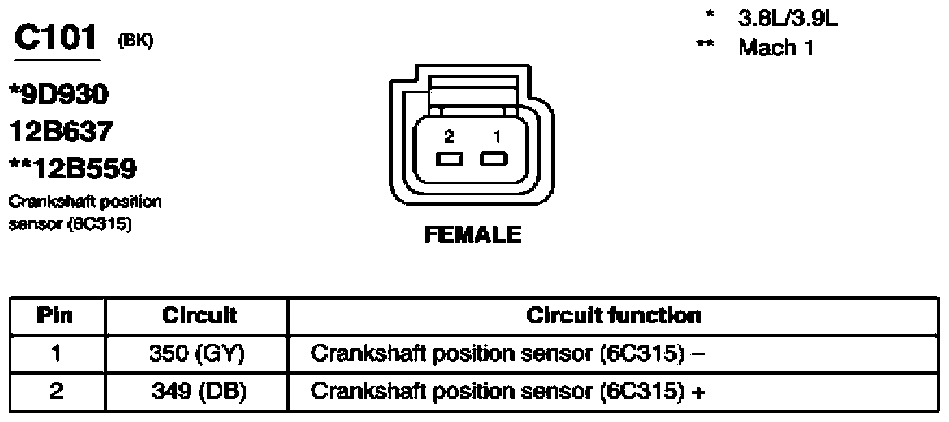

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07839014

Courtesy of FORD MOTOR CO.

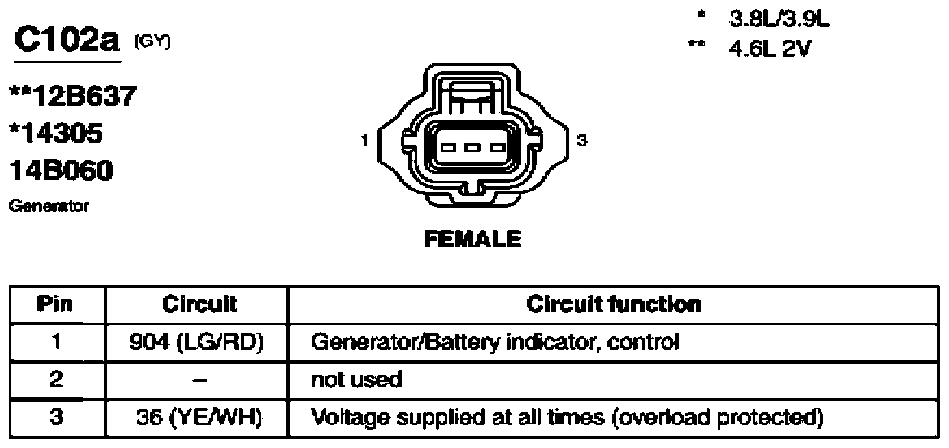

Fig 3: Generator Connector End View (C102a)

G07839015

Courtesy of FORD MOTOR CO.

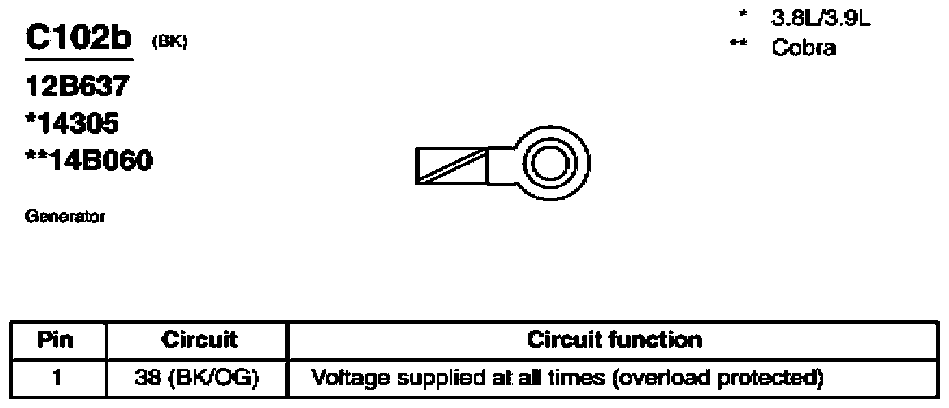

Fig 4: Generator Connector End View (C102b)

G07839016

Courtesy of FORD MOTOR CO.

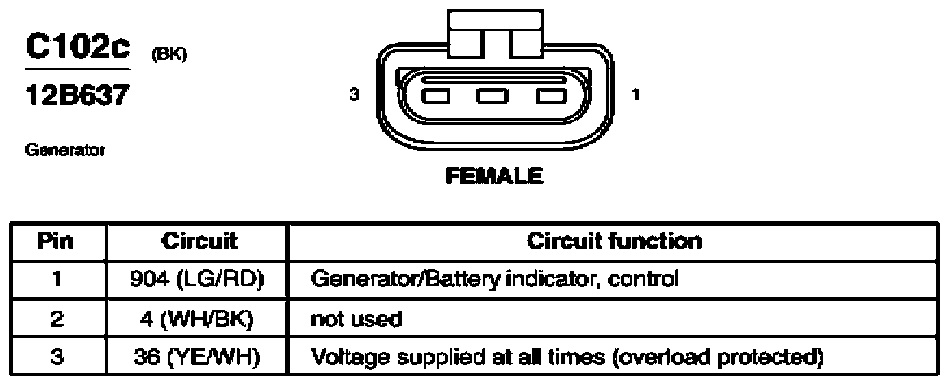

Fig 5: Generator Connector End View (C102c)

G07839017

Courtesy of FORD MOTOR CO.

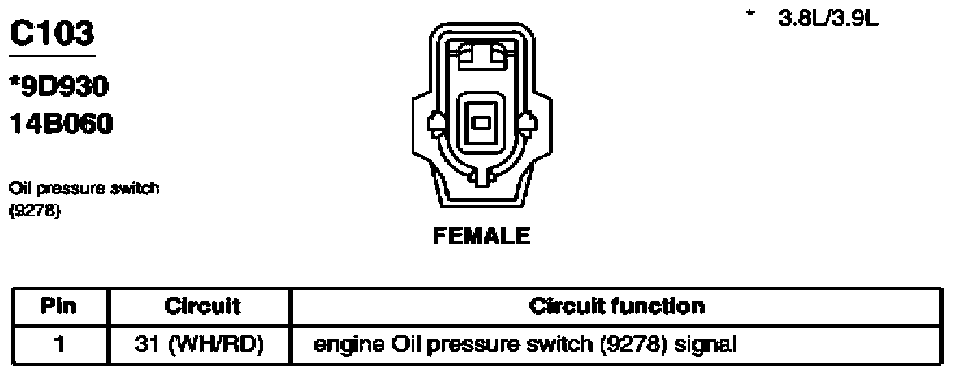

Fig 6: Oil Pressure Switch Connector End View (C103)

G07839018

Courtesy of FORD MOTOR CO.

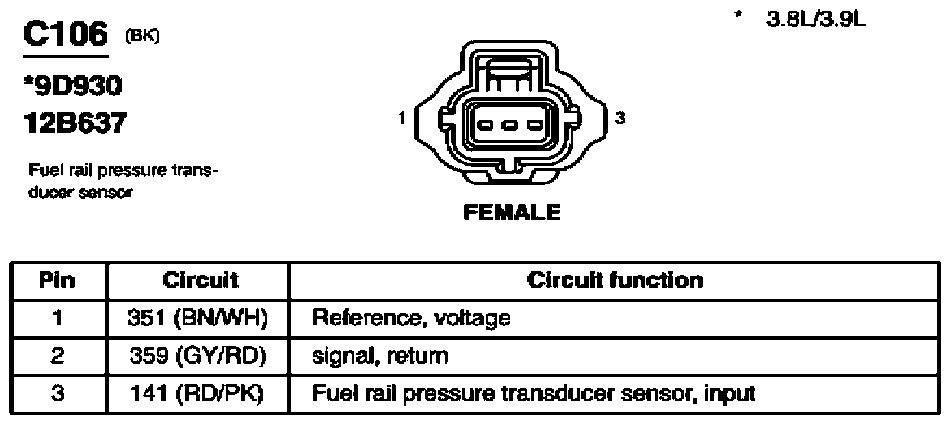

Fig 7: Fuel Rail Pressure Transducer Sensor Connector End View (C106)

G07839019

Courtesy of FORD MOTOR CO.

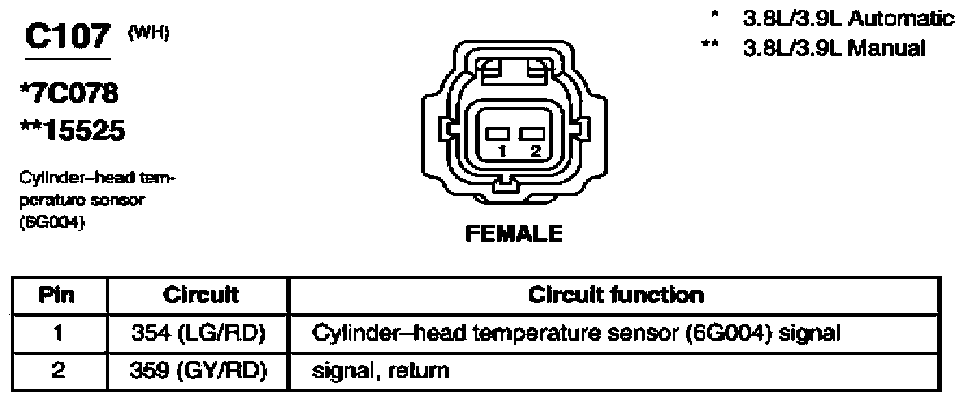

Fig 8: Cylinder-Head Temperature Sensor Connector End View (C107)

G07839020

Courtesy of FORD MOTOR CO.

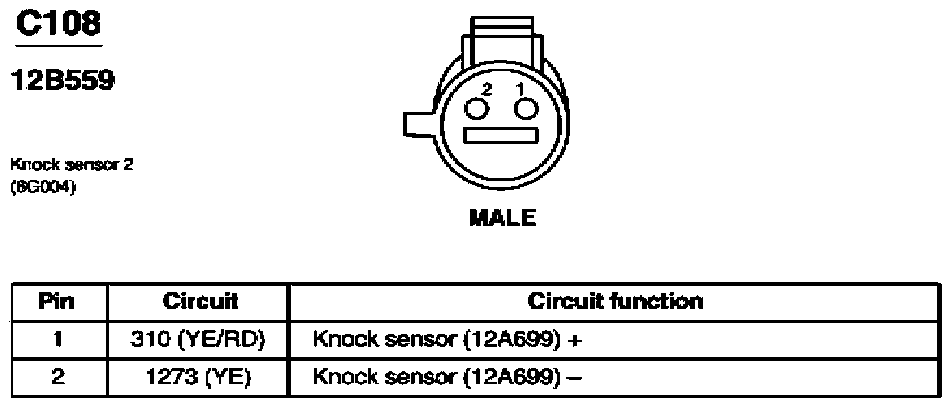

Fig 9: Knock Sensor 2 Connector End View (C108)

G07839021

Courtesy of FORD MOTOR CO.

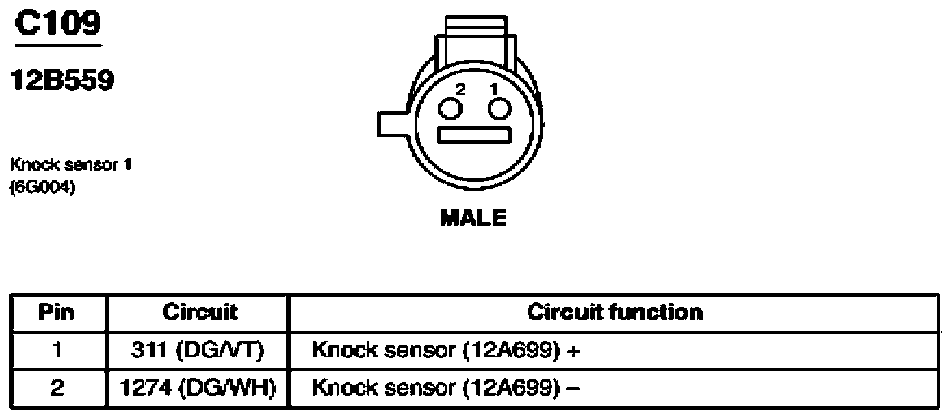

Fig 10: Knock Sensor 1 Connector End View (C109)

G07839022

Courtesy of FORD MOTOR CO.

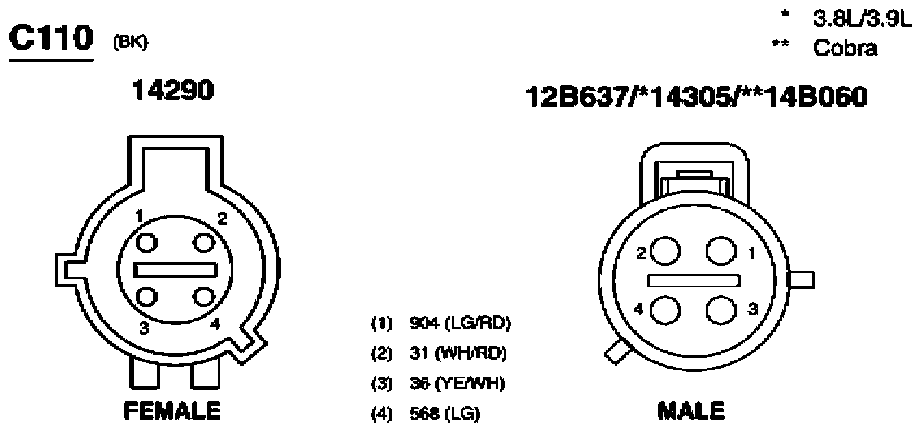

Fig 11: Inline Connector End View (C110)

G07839023

Courtesy of FORD MOTOR CO.

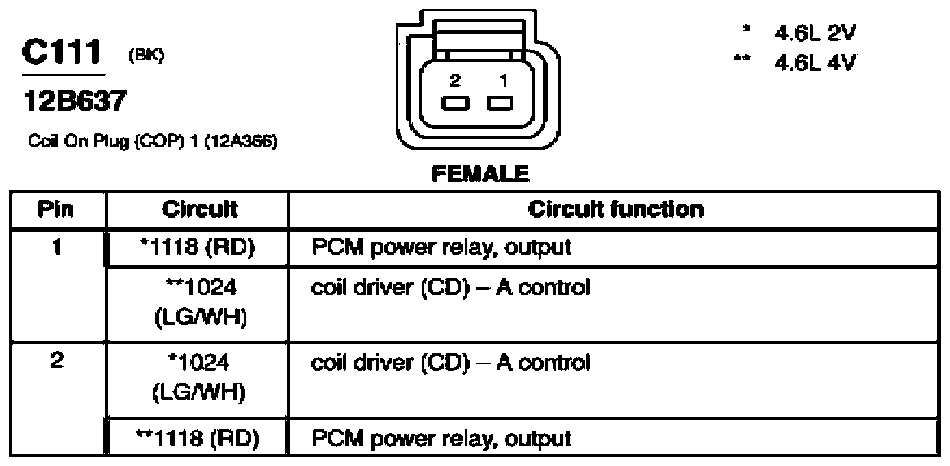

Fig 12: Coil On Plug (COP) 1 Connector End View (C111)

G07839024

Courtesy of FORD MOTOR CO.

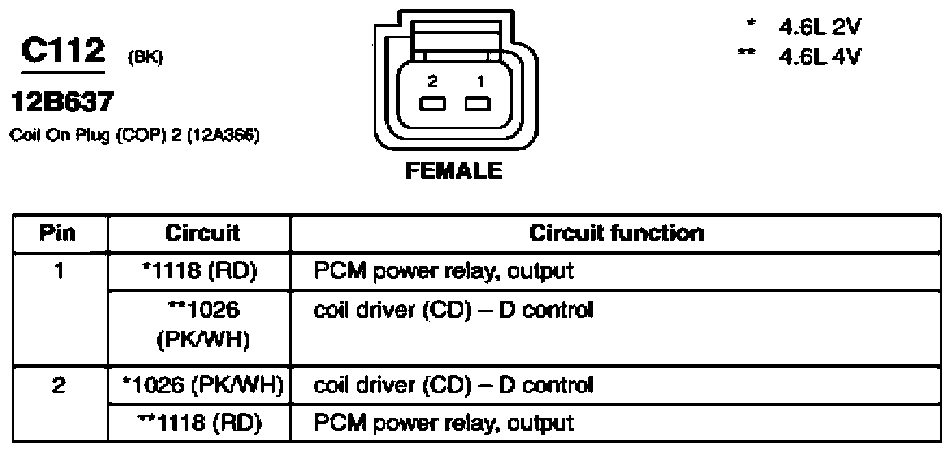

Fig 13: Coil On Plug (COP) 2 Connector End View (C112)

G07839025

Courtesy of FORD MOTOR CO.

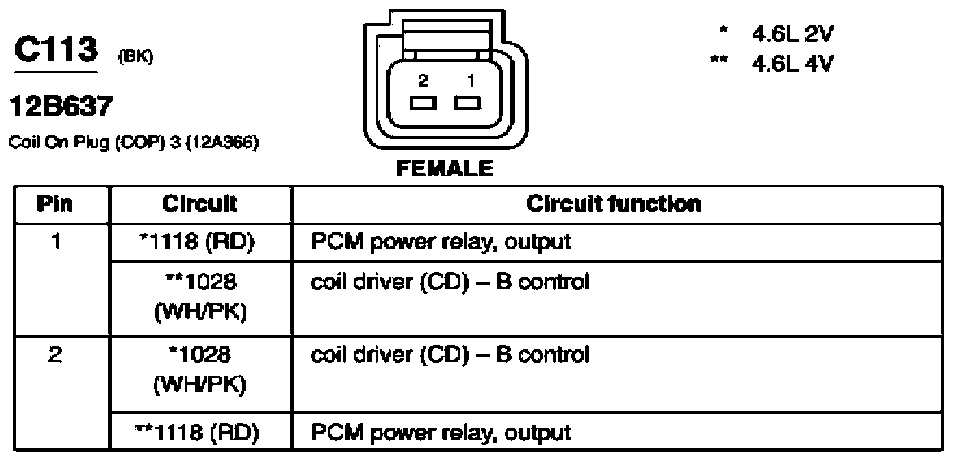

Fig 14: Coil On Plug (COP) 3 Connector End View (C113)

G07839026

Courtesy of FORD MOTOR CO.

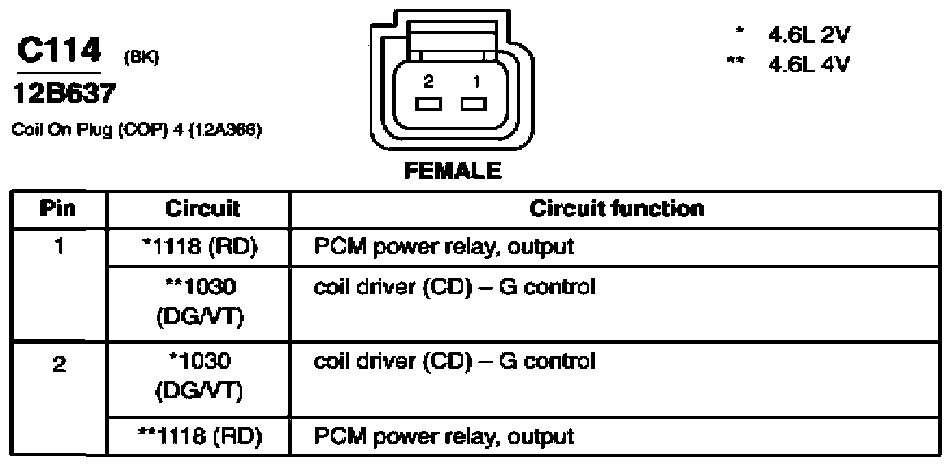

Fig 15: Coil On Plug (COP) 4 Connector End View (C114)

G07839027

Courtesy of FORD MOTOR CO.

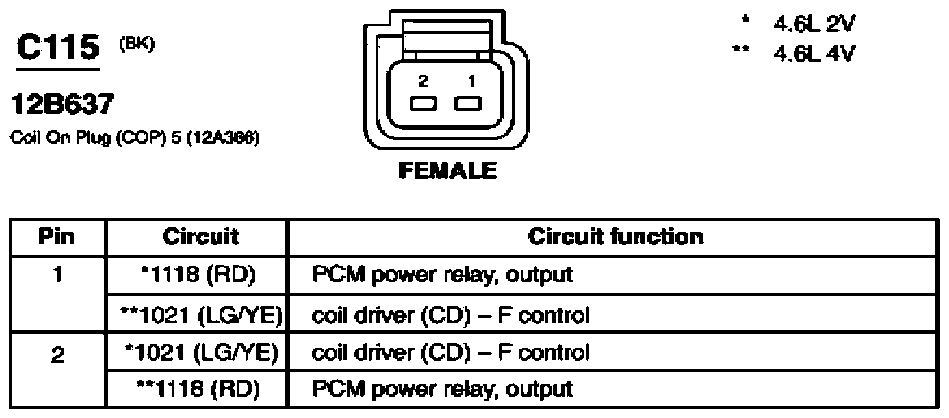

Fig 16: Coil On Plug (COP) 5 Connector End View (C115)

G07839028

Courtesy of FORD MOTOR CO.

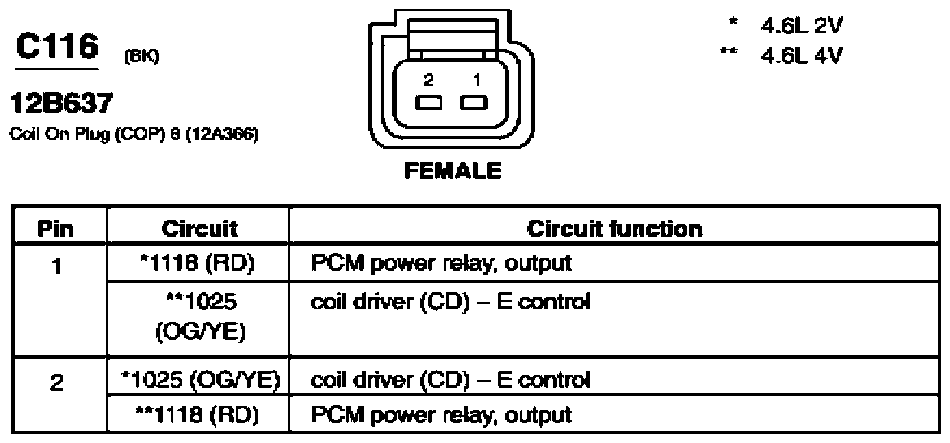

Fig 17: Coil On Plug (COP) 6 Connector End View (C116)

G07839029

Courtesy of FORD MOTOR CO.

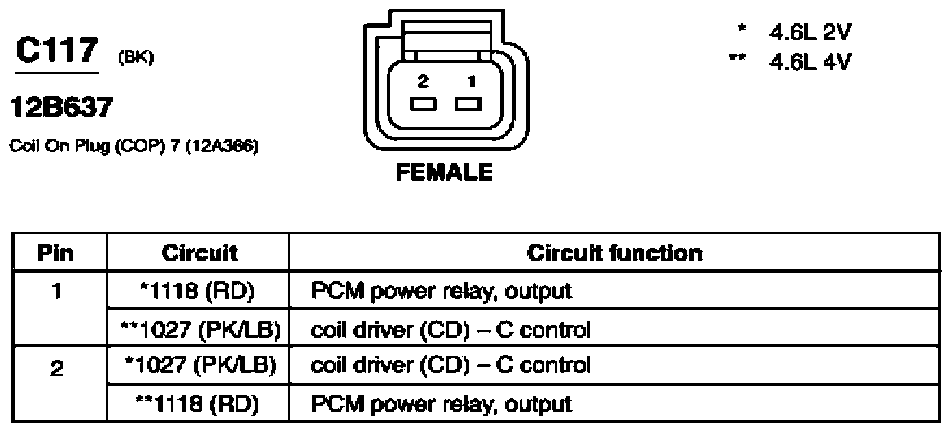

Fig 18: Coil On Plug (COP) 7 Connector End View (C117)

G07839030

Courtesy of FORD MOTOR CO.

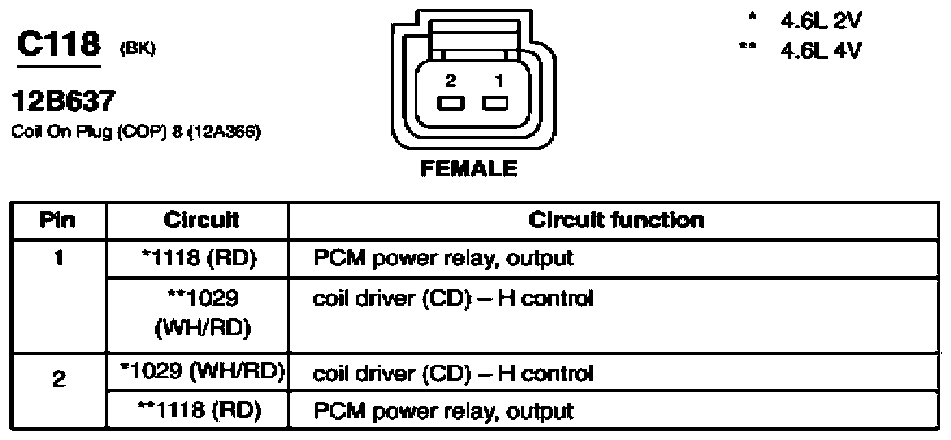

Fig 19: Coil On Plug (COP) 8 Connector End View (C118)

G07839031

Courtesy of FORD MOTOR CO.

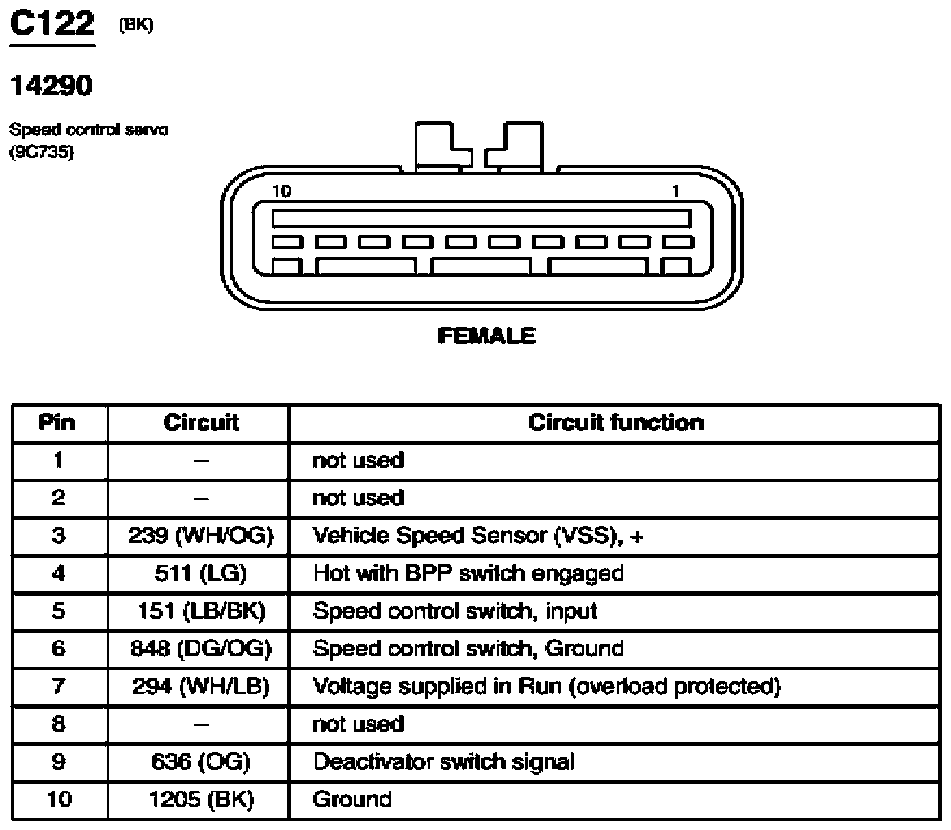

Fig 20: Speed Control Servo Connector End View (C122)

G07839032

Courtesy of FORD MOTOR CO.

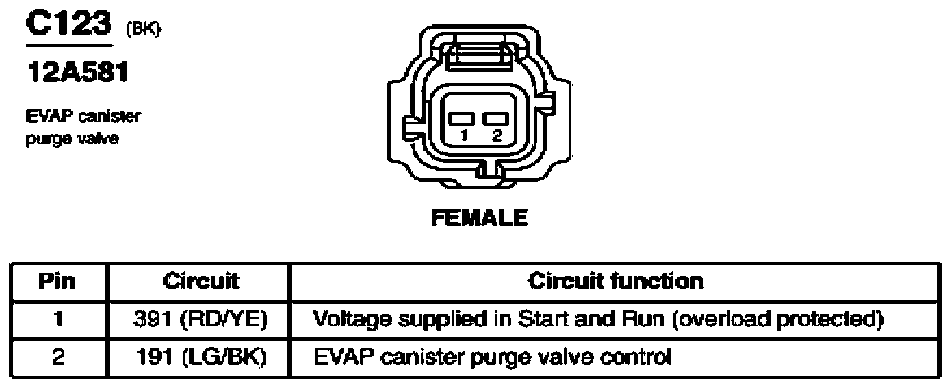

Fig 21: EVAP Canister Purge Valve Connector End View (C123)

G07839033

Courtesy of FORD MOTOR CO.

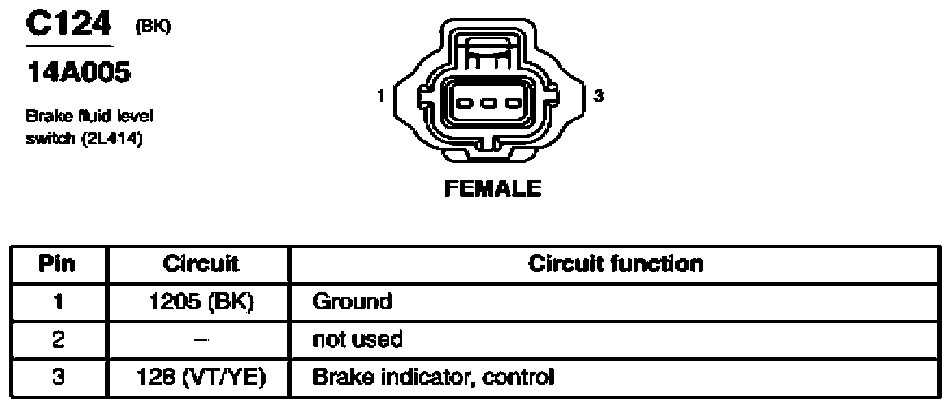

Fig 22: Brake Fluid Level Switch Connector End View (C124)

G07839034

Courtesy of FORD MOTOR CO.

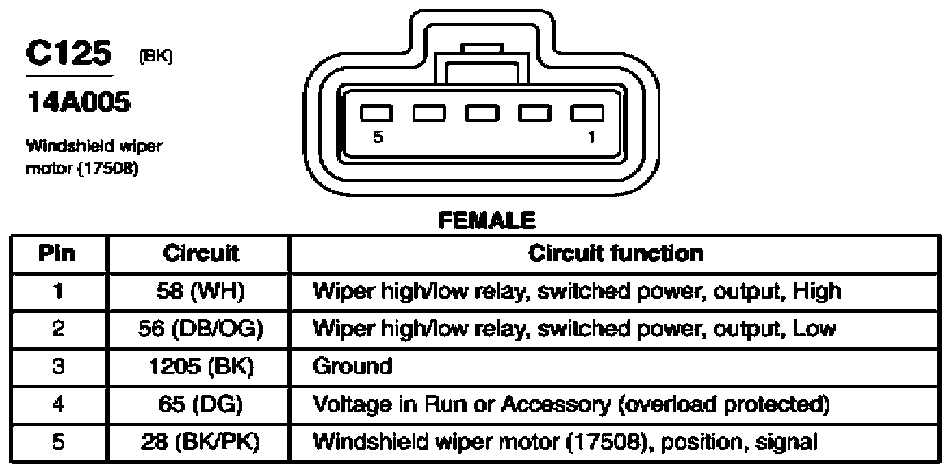

Fig 23: Windshield Wiper Motor Connector End View (C125)

G07839035

Courtesy of FORD MOTOR CO.

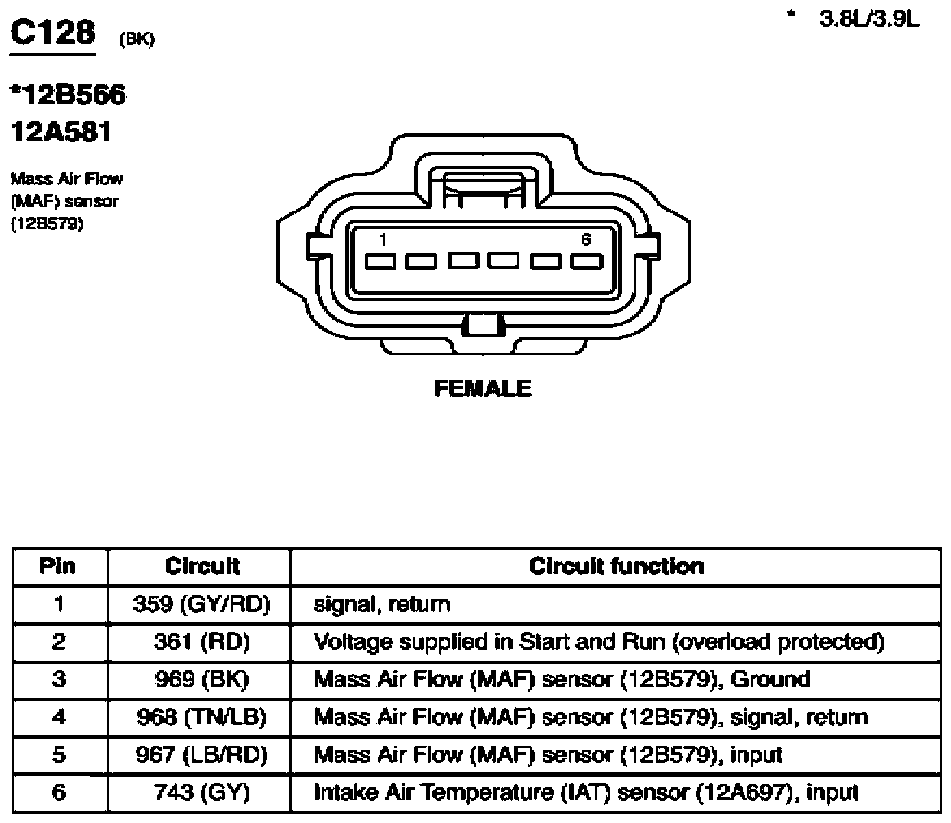

Fig 24: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07839036

Courtesy of FORD MOTOR CO.

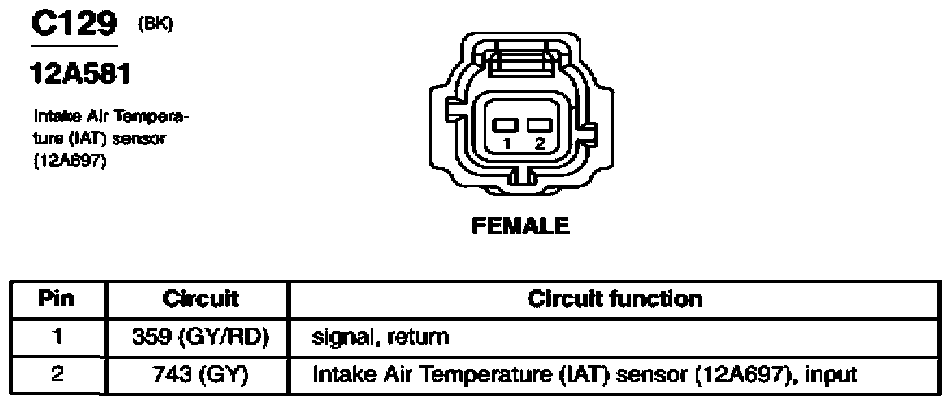

Fig 25: Intake Air Temperature (IAT) Sensor Connector End View (C129)

G07839037

Courtesy of FORD MOTOR CO.

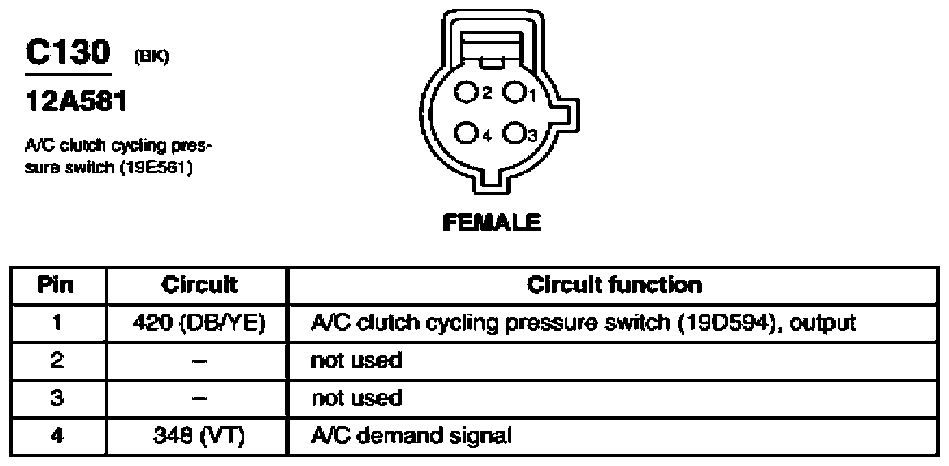

Fig 26: A/C Clutch Cylinder Pressure Switch Connector End View (C130)

G07839038

Courtesy of FORD MOTOR CO.

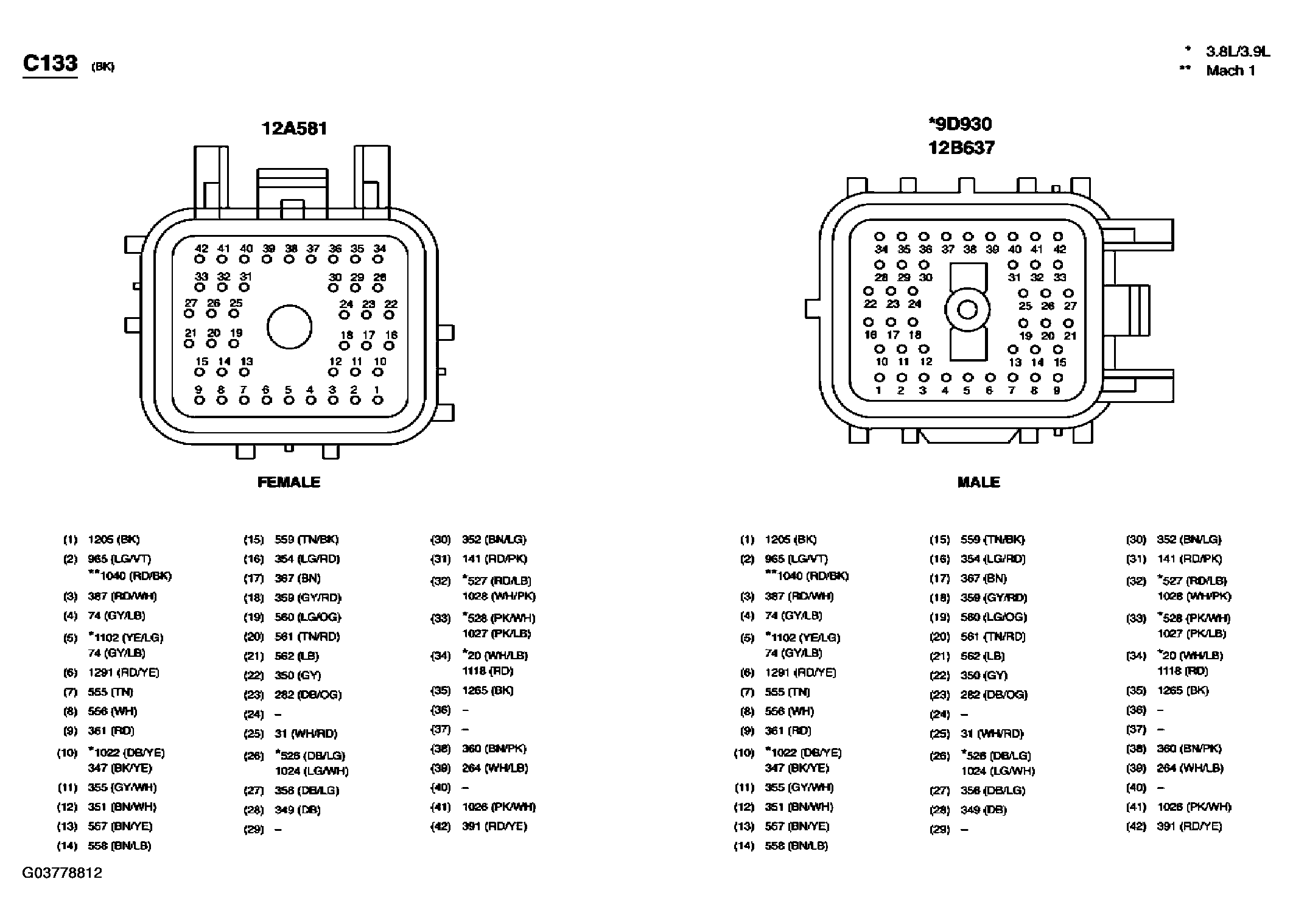

Fig 27: Inline Connector End View (C133)

G03778812

Courtesy of FORD MOTOR CO.

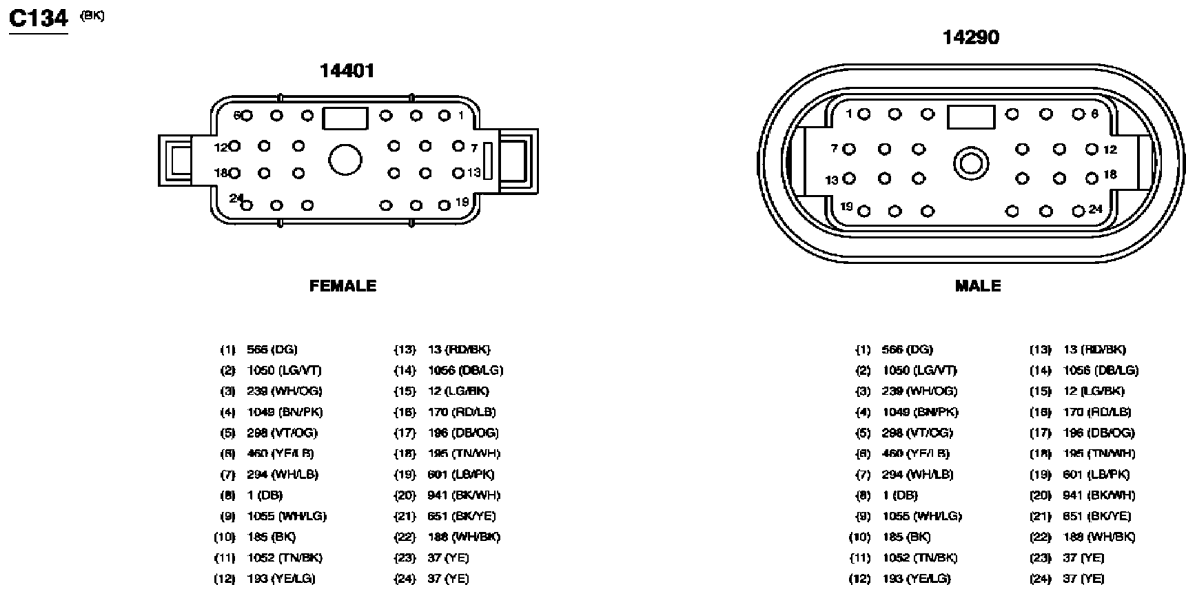

Fig 28: Inline Connector End View (C134)

G03778813

Courtesy of FORD MOTOR CO.

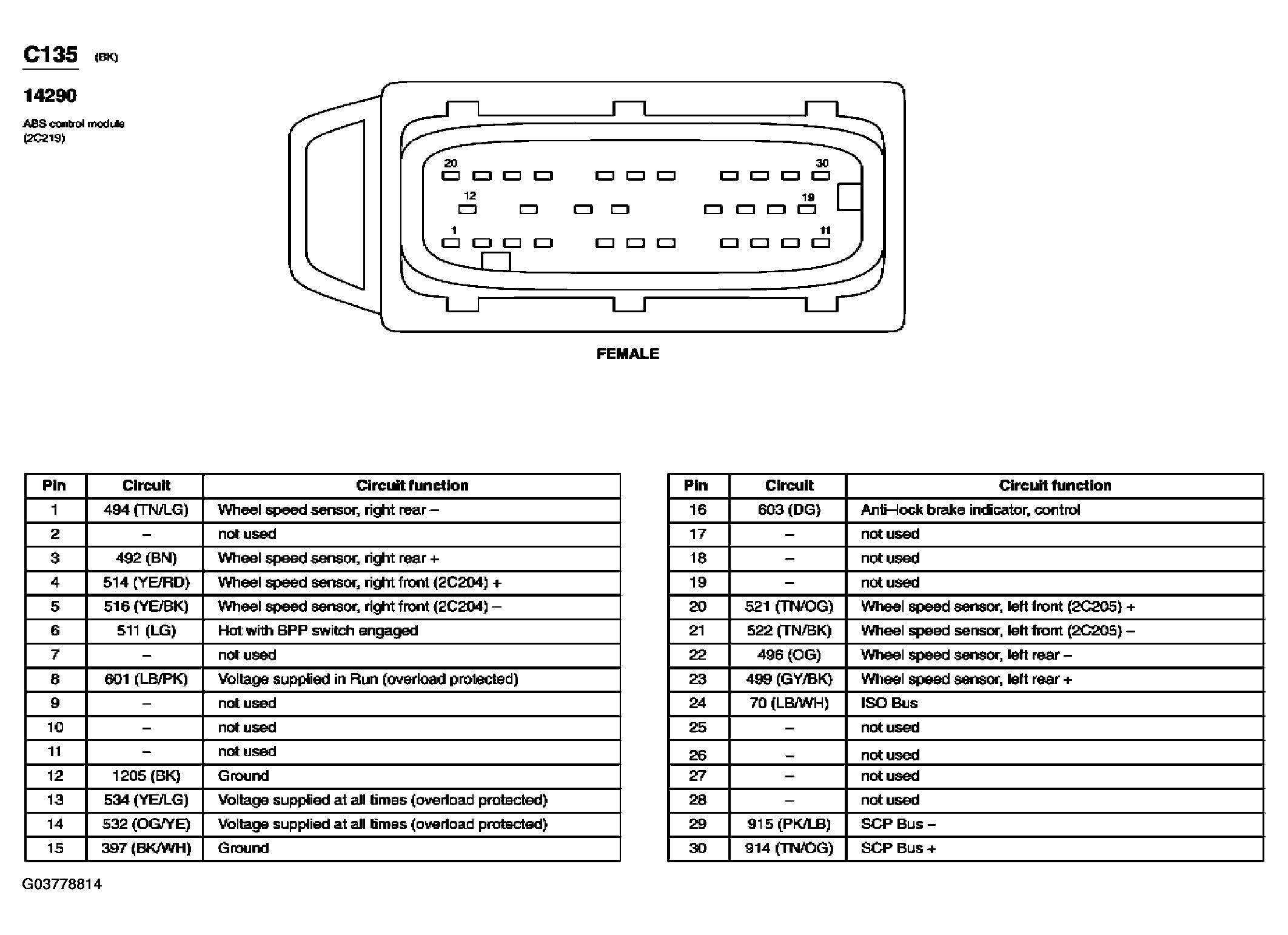

Fig 29: ABS Control Module Connector End View (C135)

G03778814

Courtesy of FORD MOTOR CO.

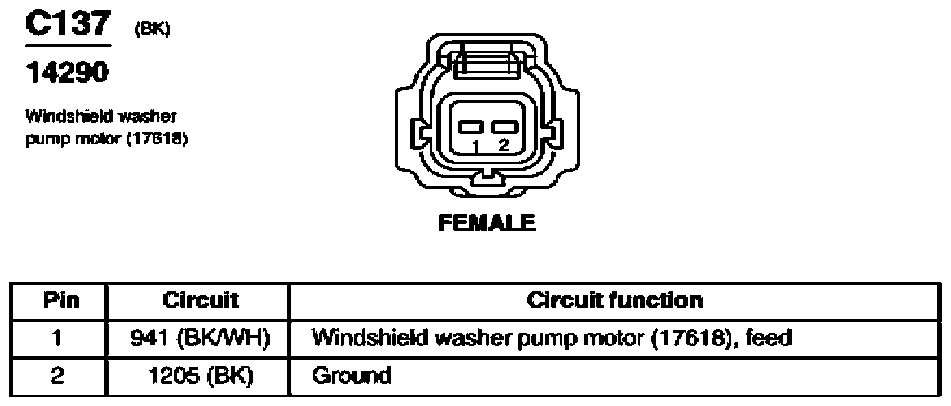

Fig 30: Windshield Washer Pump Motor Connector End View (C137)

G07839039

Courtesy of FORD MOTOR CO.

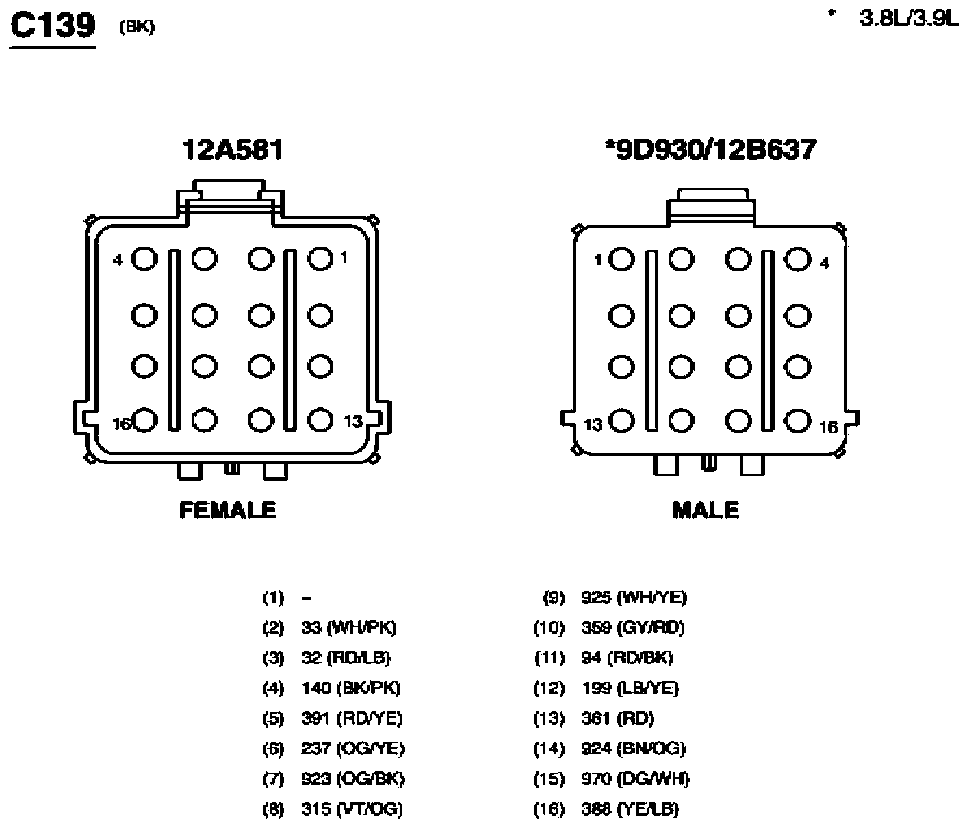

Fig 31: Inline Connector End View (C139)

G07839040

Courtesy of FORD MOTOR CO.

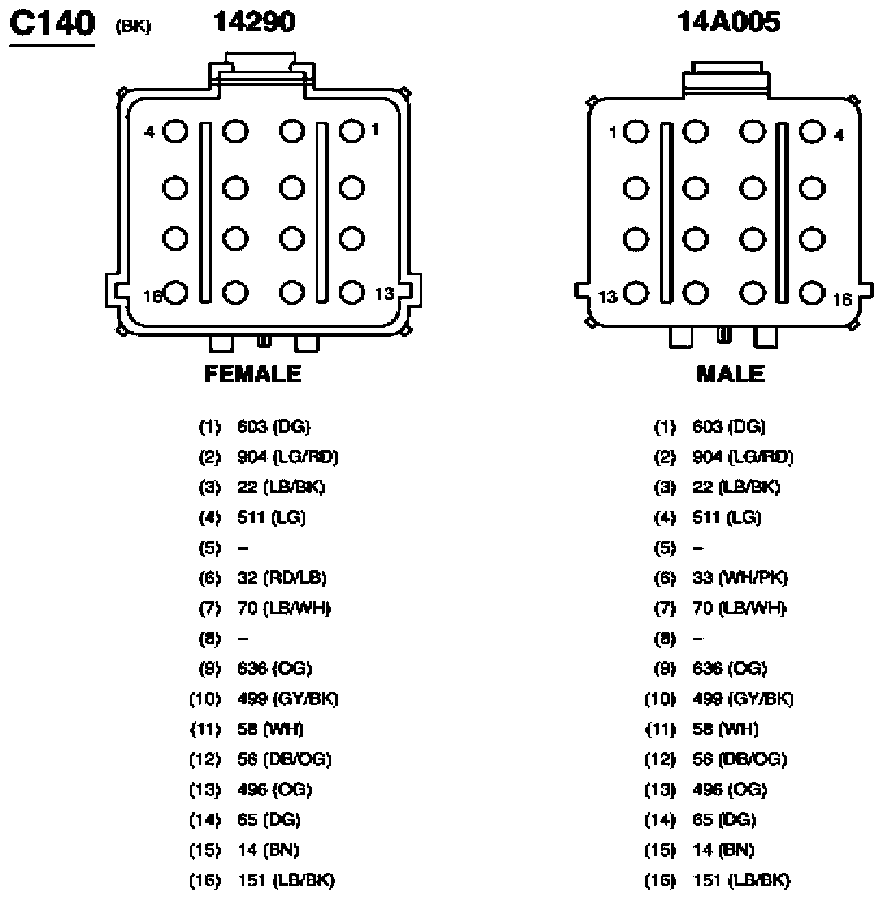

Fig 32: Inline Connector End View (C140)

G07839041

Courtesy of FORD MOTOR CO.

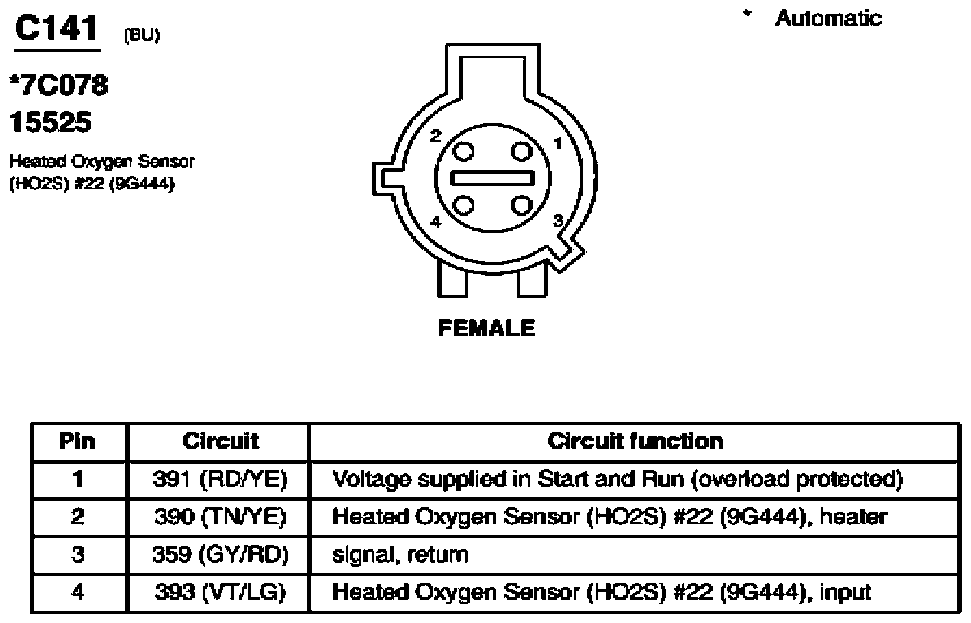

Fig 33: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07839042

Courtesy of FORD MOTOR CO.

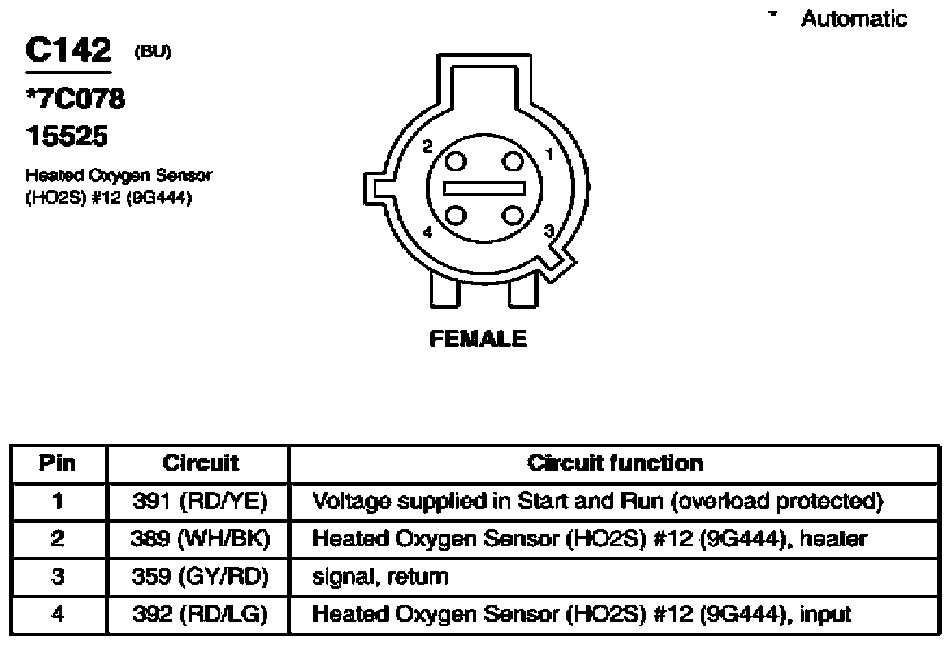

Fig 34: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07839043

Courtesy of FORD MOTOR CO.

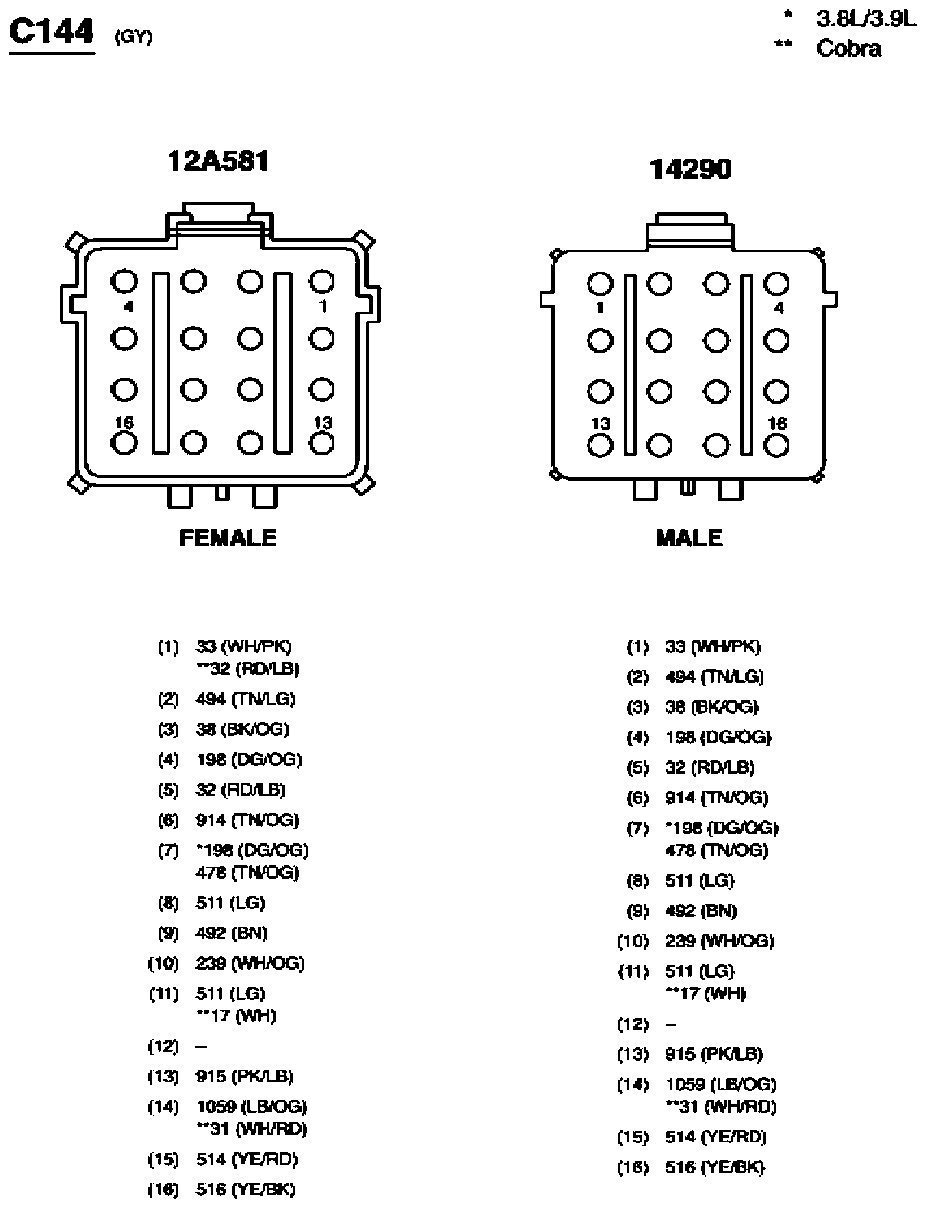

Fig 35: Inline Connector End View (C144)

G07839044

Courtesy of FORD MOTOR CO.

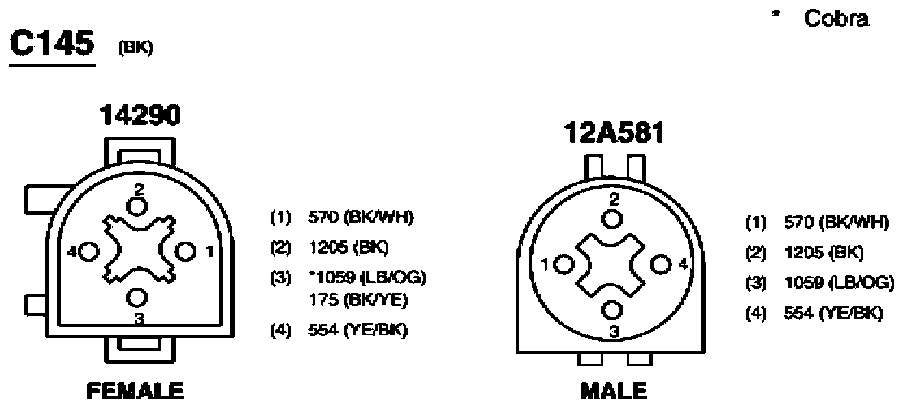

Fig 36: Inline Connector End View (C145)

G07839045

Courtesy of FORD MOTOR CO.

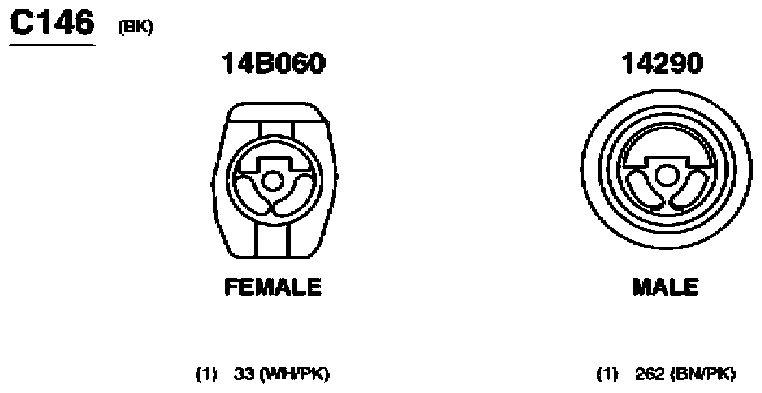

Fig 37: Inline Connector End View (C146)

G07839046

Courtesy of FORD MOTOR CO.

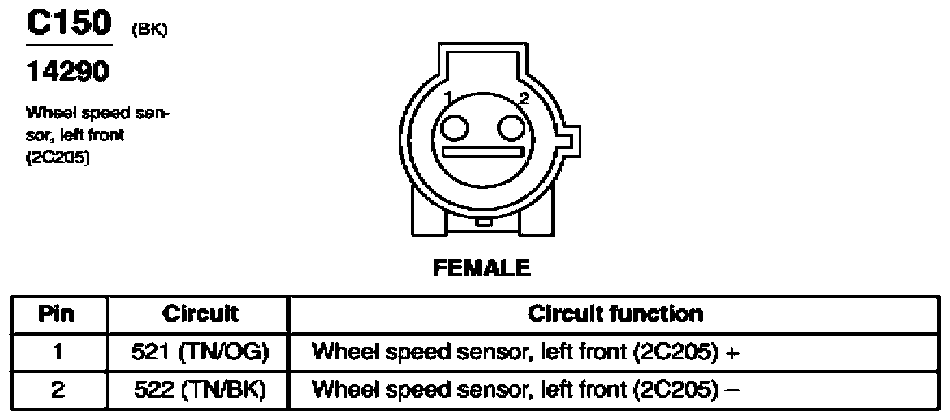

Fig 38: Wheel Speed Sensor, Left Front Connector End View (C150)

G07839047

Courtesy of FORD MOTOR CO.

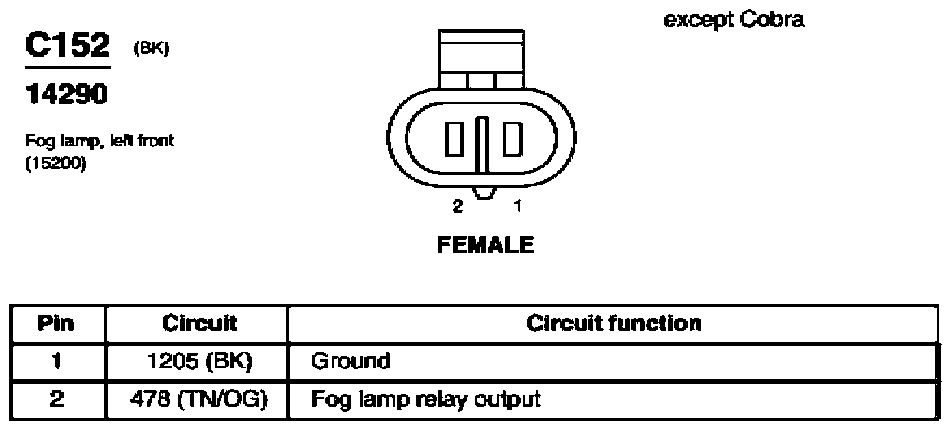

Fig 39: Fog Lamp, Left Front Connector End View (C152)

G07839048

Courtesy of FORD MOTOR CO.

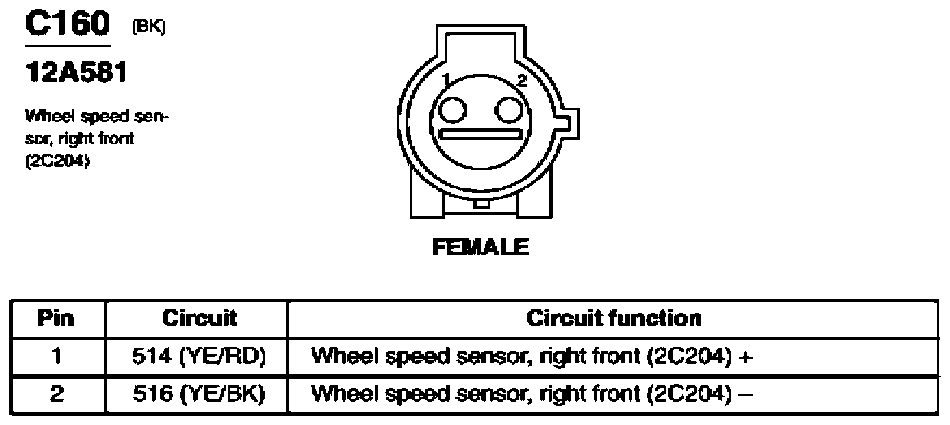

Fig 40: Wheel Speed Sensor, Right Front Connector End View (C160)

G07839049

Courtesy of FORD MOTOR CO.

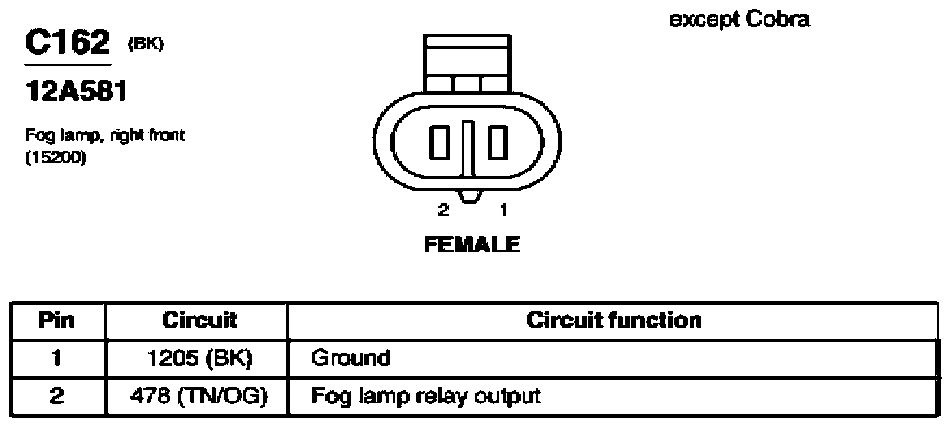

Fig 41: Fog Lamp, Right Front Connector End View (C162)

G07839050

Courtesy of FORD MOTOR CO.

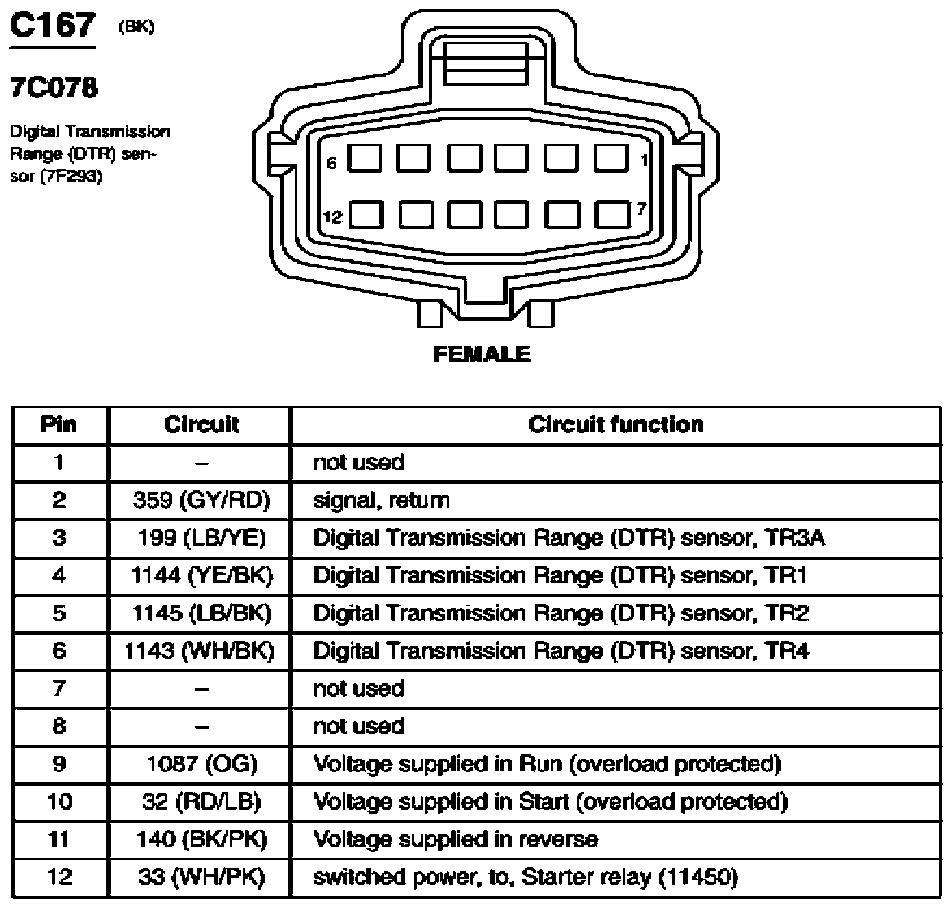

Fig 42: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07839051

Courtesy of FORD MOTOR CO.

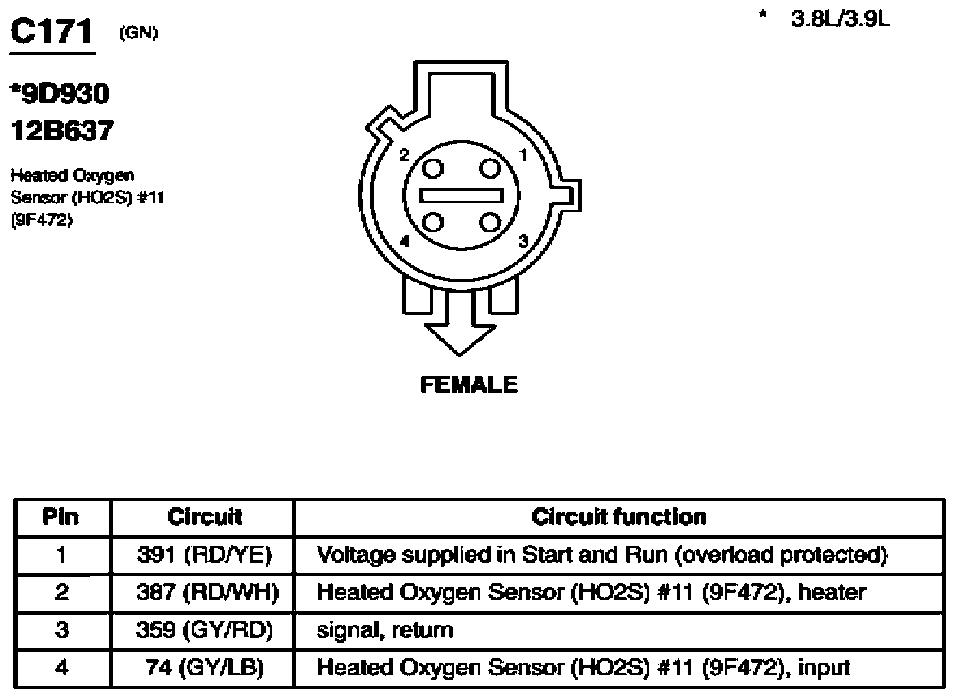

Fig 43: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07839052

Courtesy of FORD MOTOR CO.

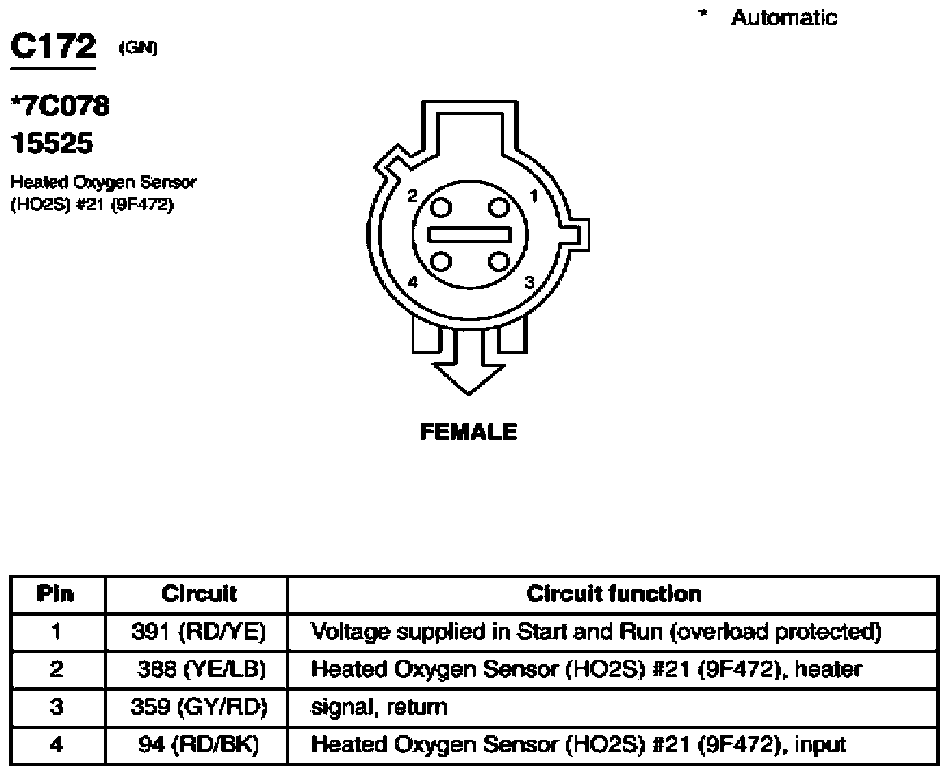

Fig 44: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07839053

Courtesy of FORD MOTOR CO.

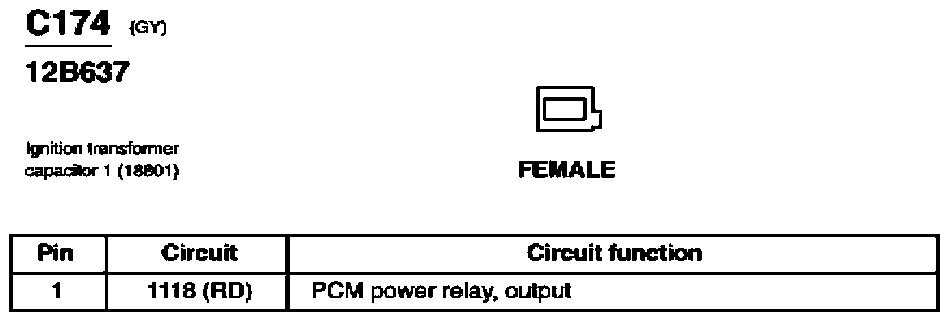

Fig 45: Ignition Transformer Capacitor 1 Connector End View (C174)

G07839054

Courtesy of FORD MOTOR CO.

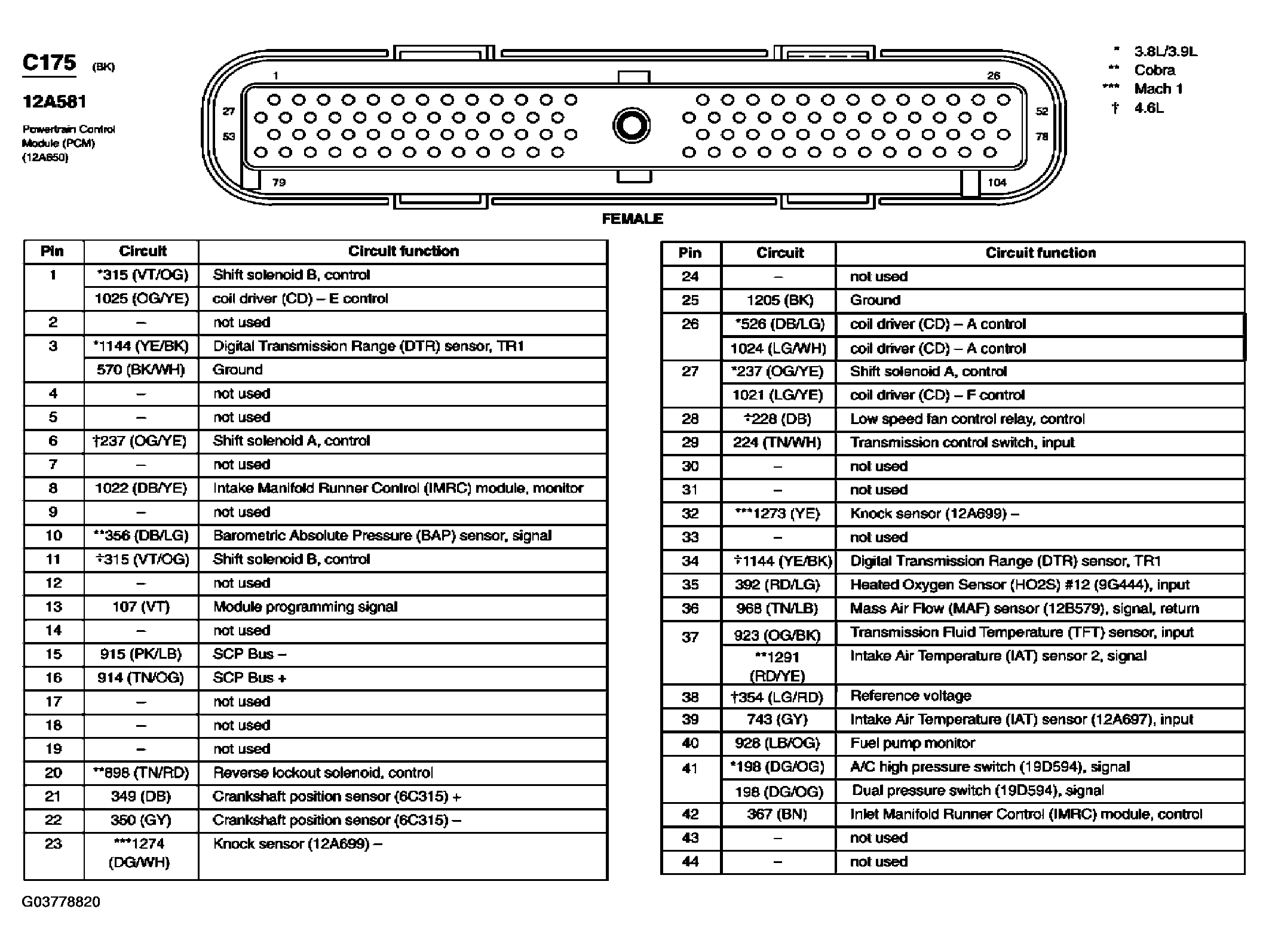

Fig 46: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03778820

Courtesy of FORD MOTOR CO.

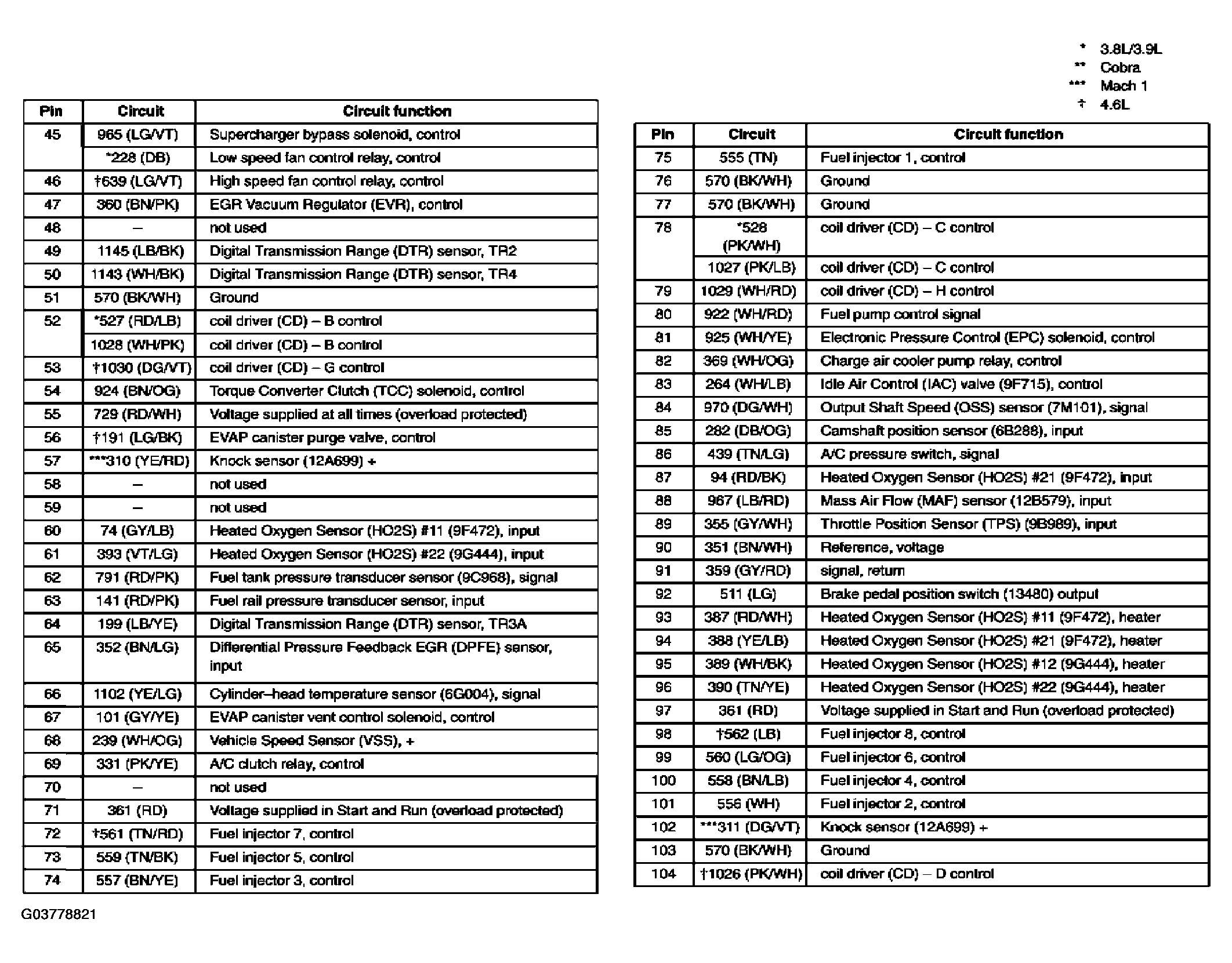

Fig 47: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03778821

Courtesy of FORD MOTOR CO.

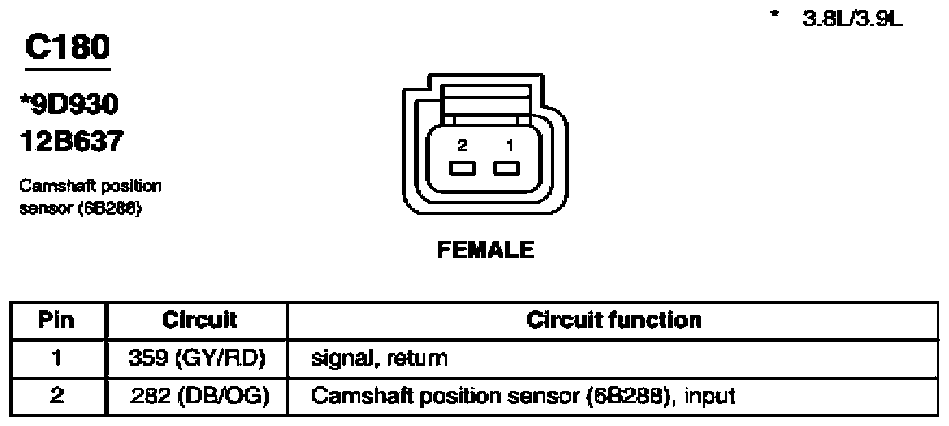

Fig 48: Camshaft Position Sensor Connector End View (C180)

G07839055

Courtesy of FORD MOTOR CO.

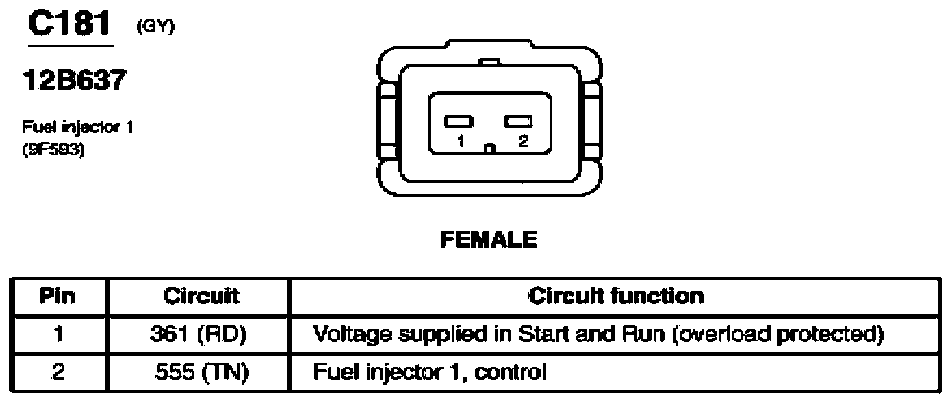

Fig 49: Fuel Injector 1 Connector End View (C181)

G07839056

Courtesy of FORD MOTOR CO.

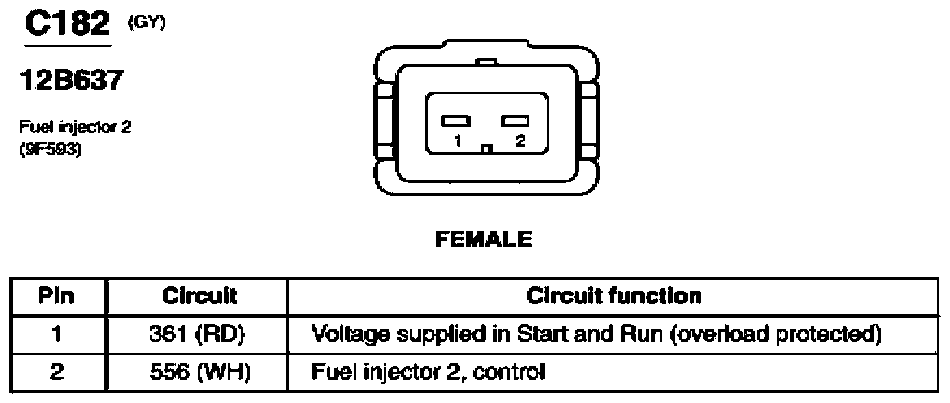

Fig 50: Fuel Injector 2 Connector End View (C182)

G07839057

Courtesy of FORD MOTOR CO.

Fig 51: Fuel Injector 3 Connector End View (C183)

G07839058

Courtesy of FORD MOTOR CO.

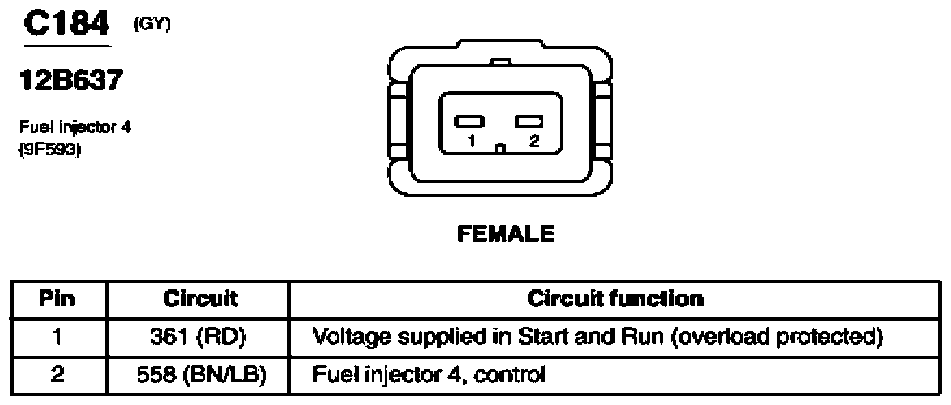

Fig 52: Fuel Injector 4 Connector End View (C184)

G07839059

Courtesy of FORD MOTOR CO.

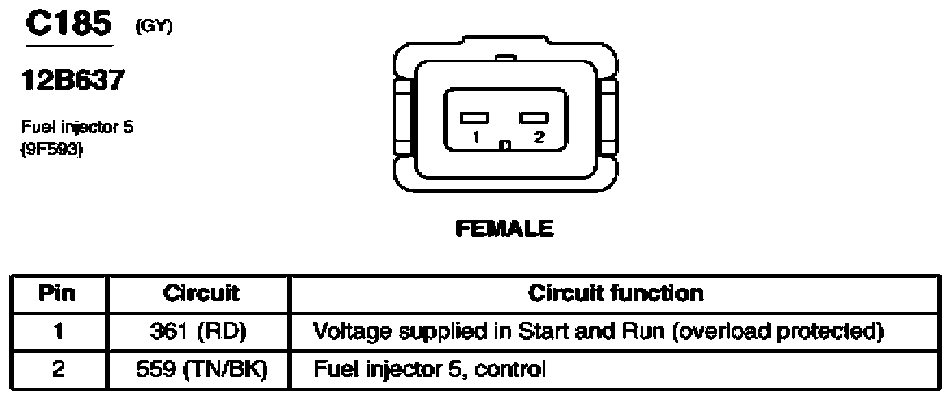

Fig 53: Fuel Injector 5 Connector End View (C185)

G07839060

Courtesy of FORD MOTOR CO.

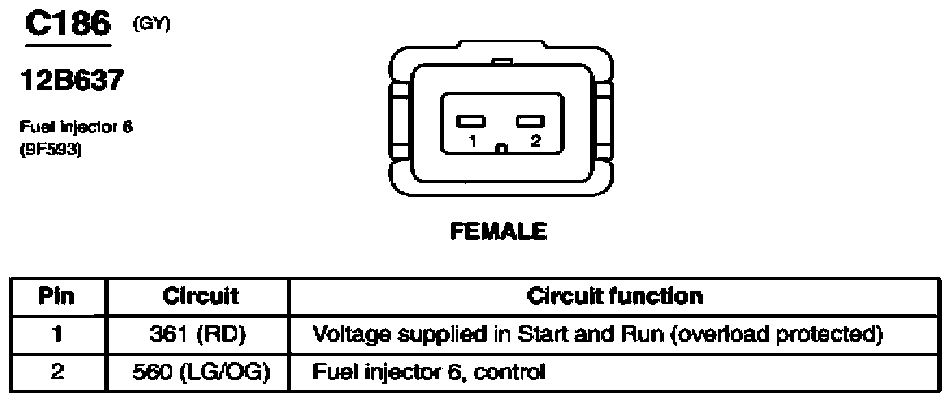

Fig 54: Fuel Injector 6 Connector End View (C186)

G07839061

Courtesy of FORD MOTOR CO.

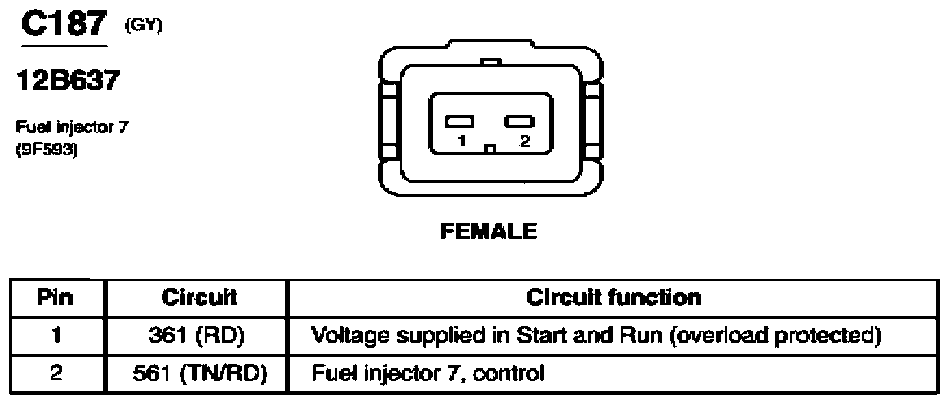

Fig 55: Fuel Injector 7 Connector End View (C187)

G07839062

Courtesy of FORD MOTOR CO.

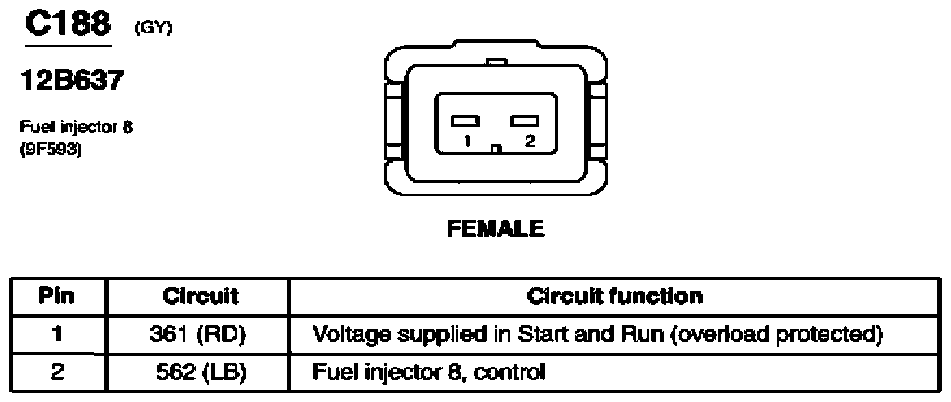

Fig 56: Fuel Injector 8 Connector End View (C188)

G07839063

Courtesy of FORD MOTOR CO.

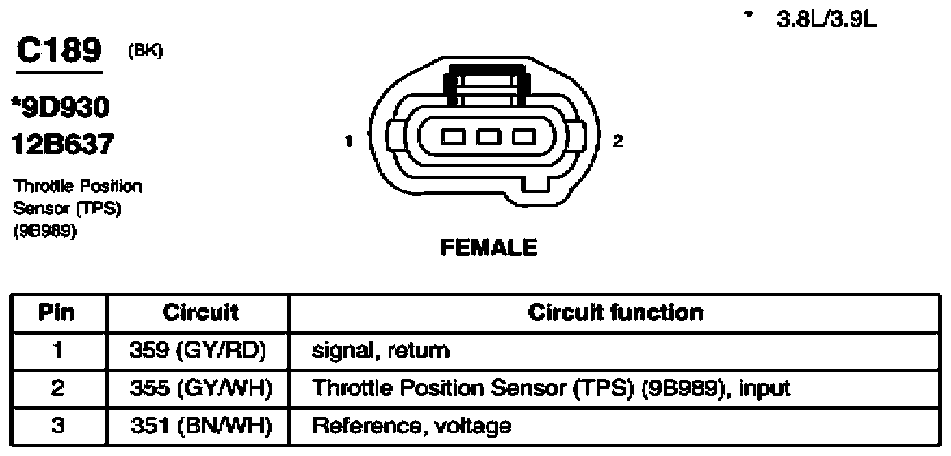

Fig 57: Throttle Position Sensor (TPS) Connector End View (C189)

G07839064

Courtesy of FORD MOTOR CO.

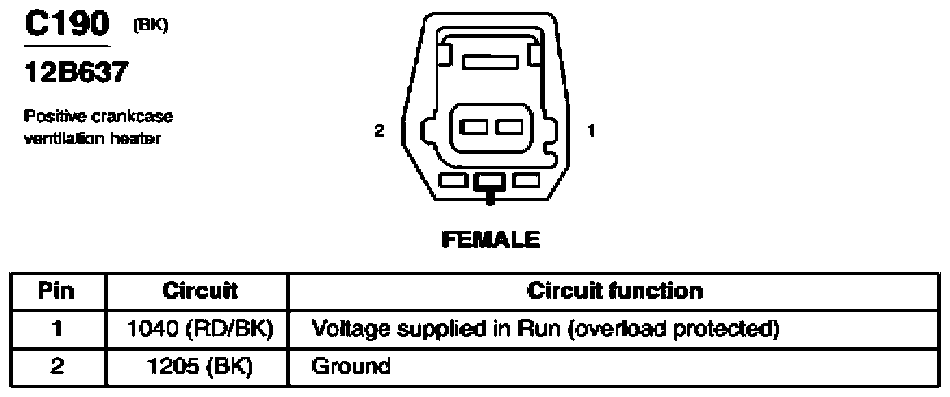

Fig 58: Positive Crankcase Ventilation Heater Connector End View (C190)

G07839065

Courtesy of FORD MOTOR CO.

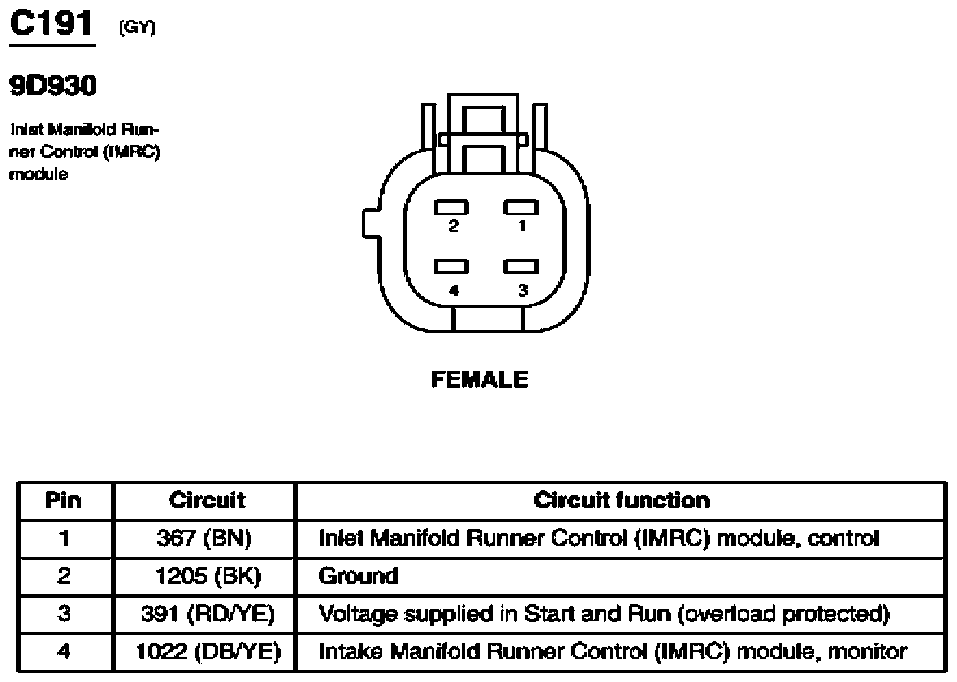

Fig 59: Inlet Manifold Runner Control (IMRC) Module Connector End View (C191)

G07839066

Courtesy of FORD MOTOR CO.

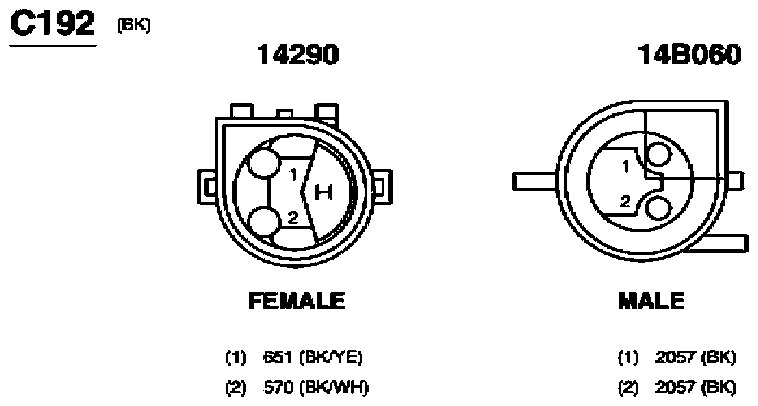

Fig 60: Inline Connector End View (C192)

G07839067

Courtesy of FORD MOTOR CO.

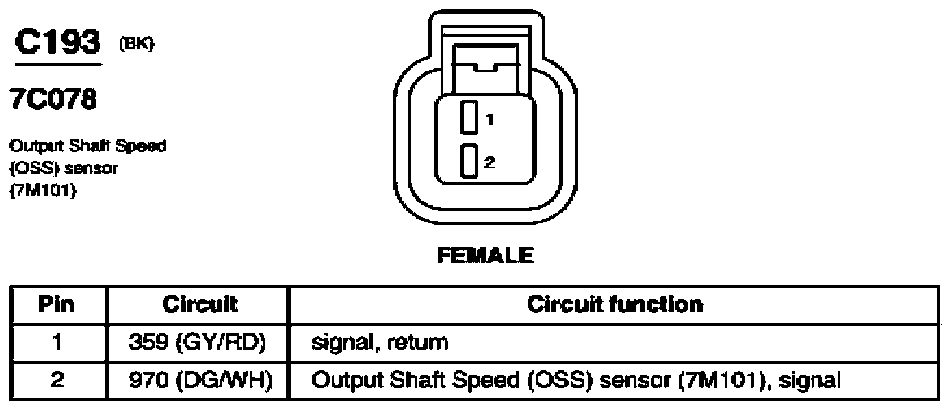

Fig 61: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07839068

Courtesy of FORD MOTOR CO.

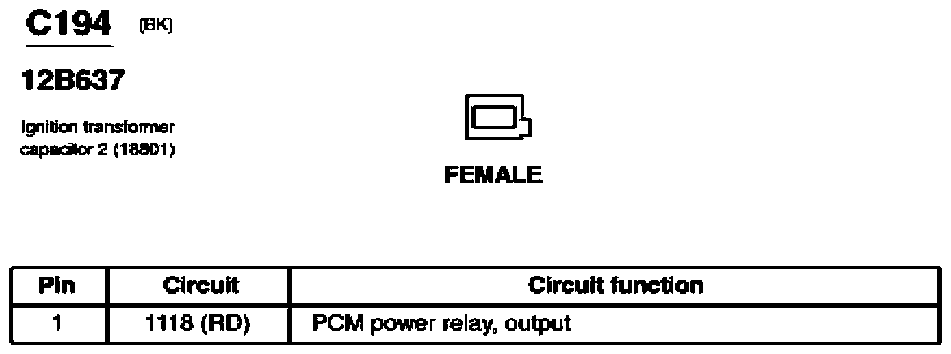

Fig 62: Ignition Transformer Capacitor 2 Connector End View (C194)

G07839069

Courtesy of FORD MOTOR CO.

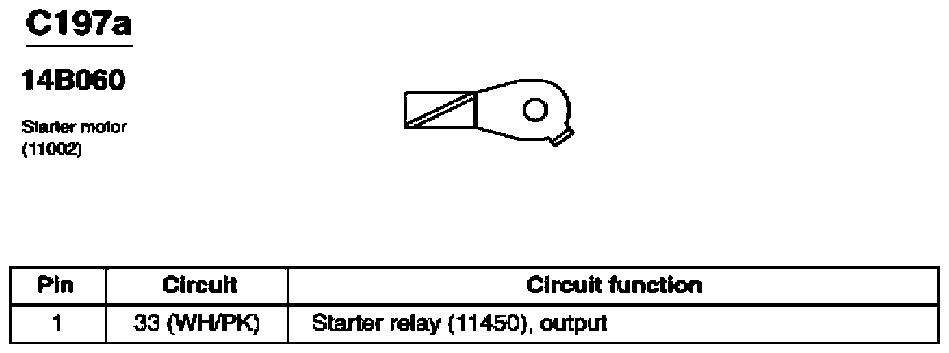

Fig 63: Starter Motor Connector End View (C197a)

G07839070

Courtesy of FORD MOTOR CO.

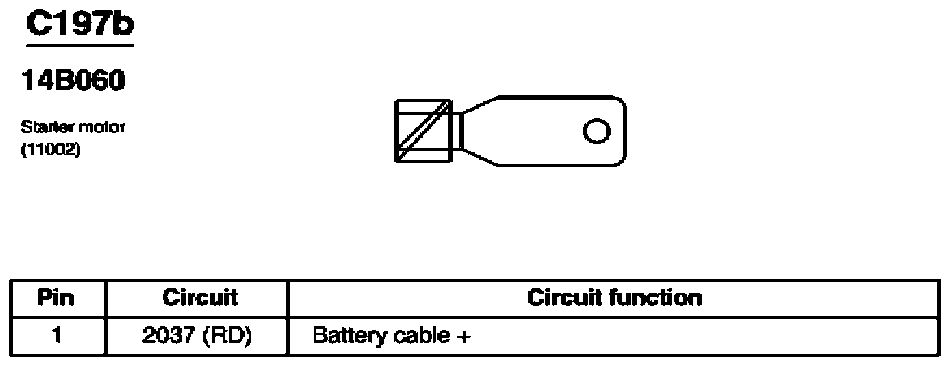

Fig 64: Starter Motor Connector End View (C197b)

G07839071

Courtesy of FORD MOTOR CO.

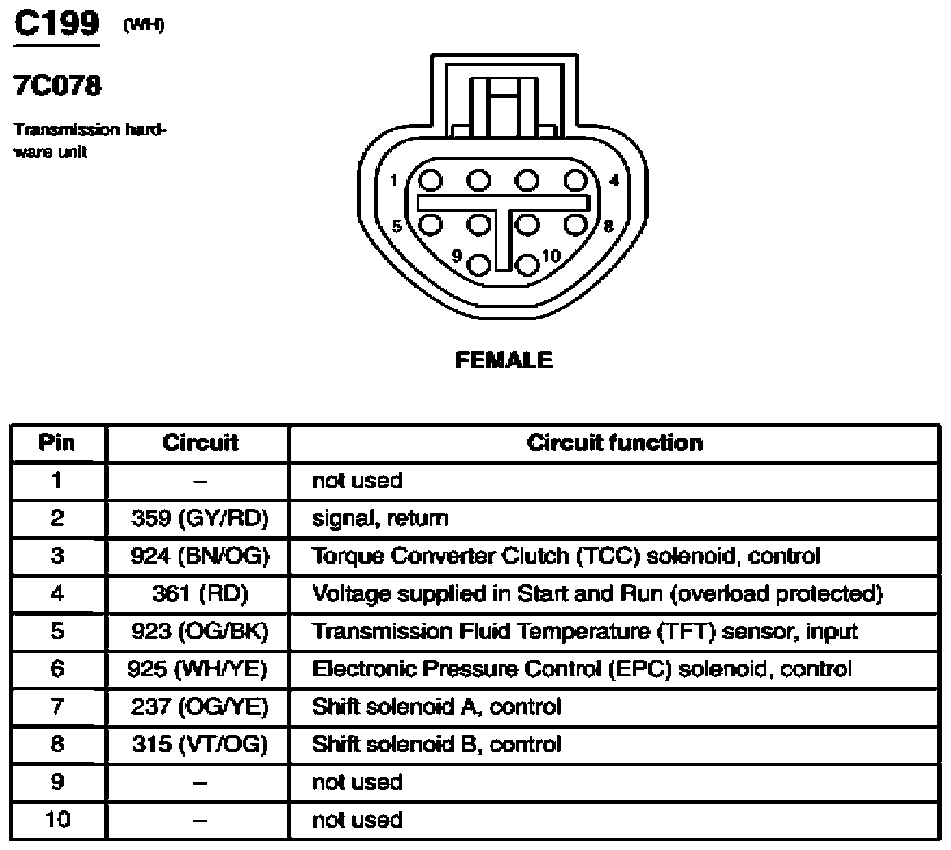

Fig 65: Transmission Hardware Unit Connector End View (C199)

G07839072

Courtesy of FORD MOTOR CO.

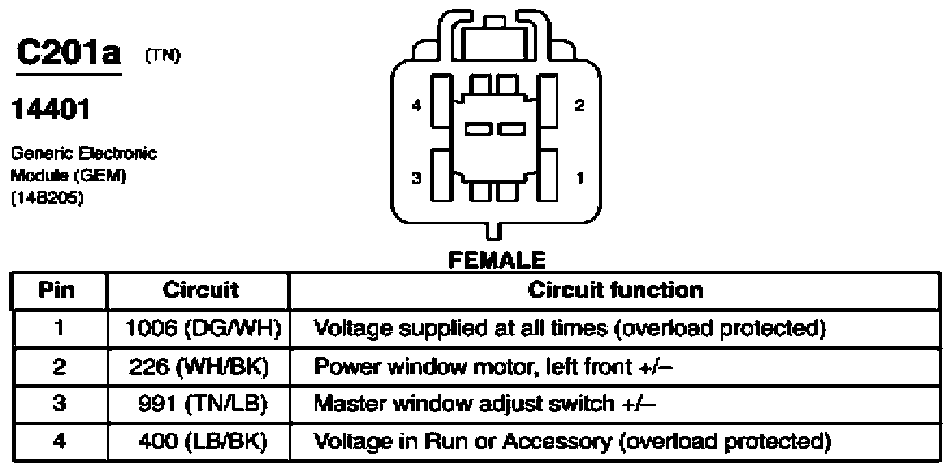

Fig 66: Generic Electronic Module (GEM) Connector End View (C201a)

G07839073

Courtesy of FORD MOTOR CO.

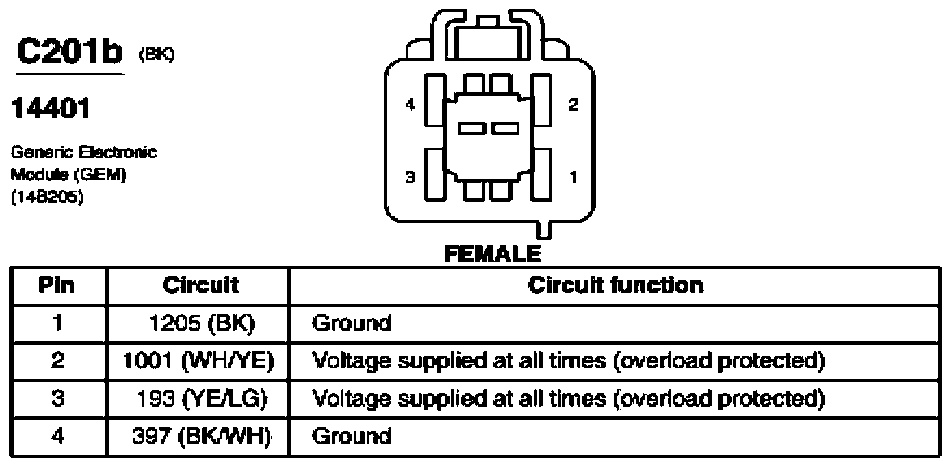

Fig 67: Generic Electronic Module (GEM) Connector End View (C201b)

G07839074

Courtesy of FORD MOTOR CO.

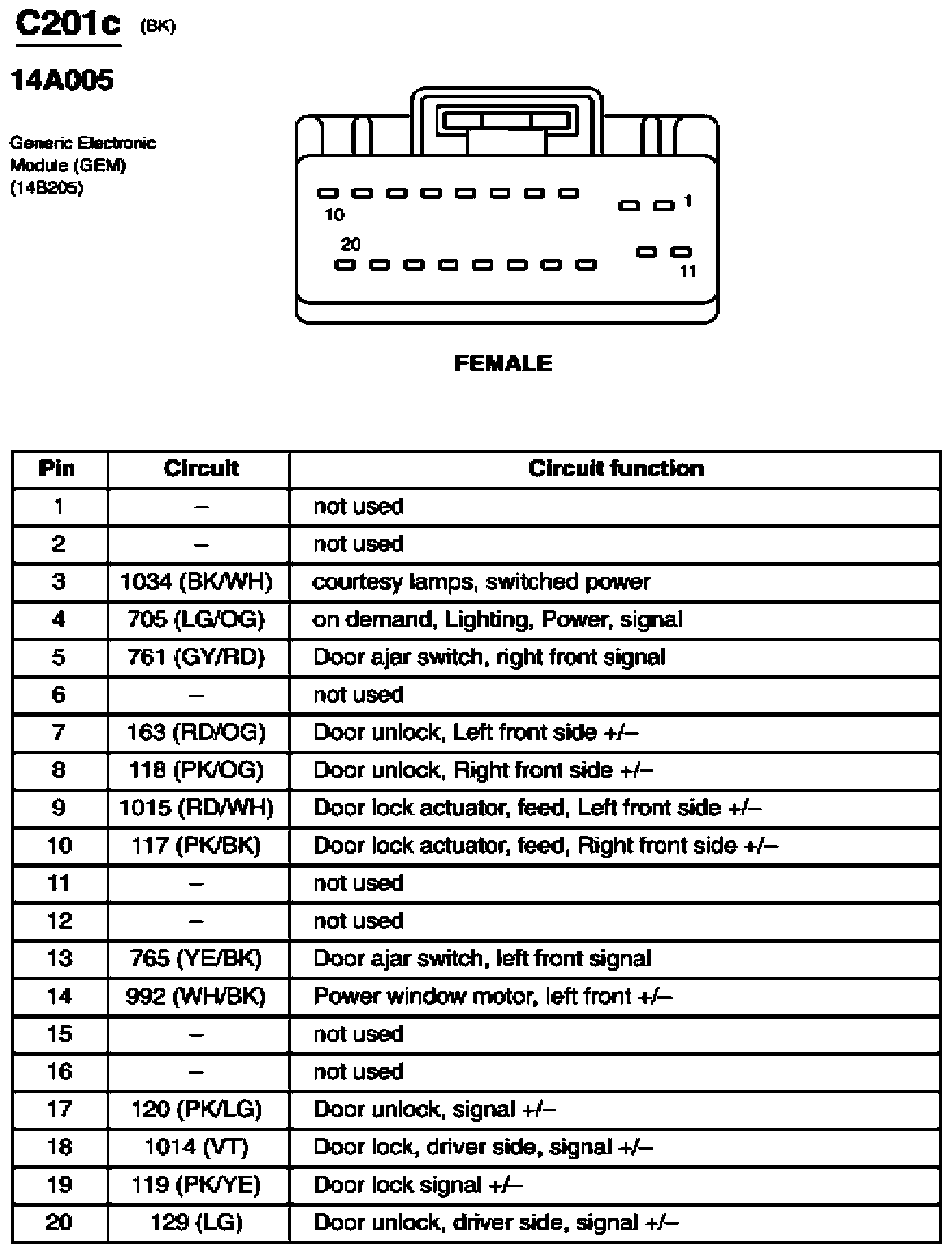

Fig 68: Generic Electronic Module (GEM) Connector End View (C201c)

G07839075

Courtesy of FORD MOTOR CO.

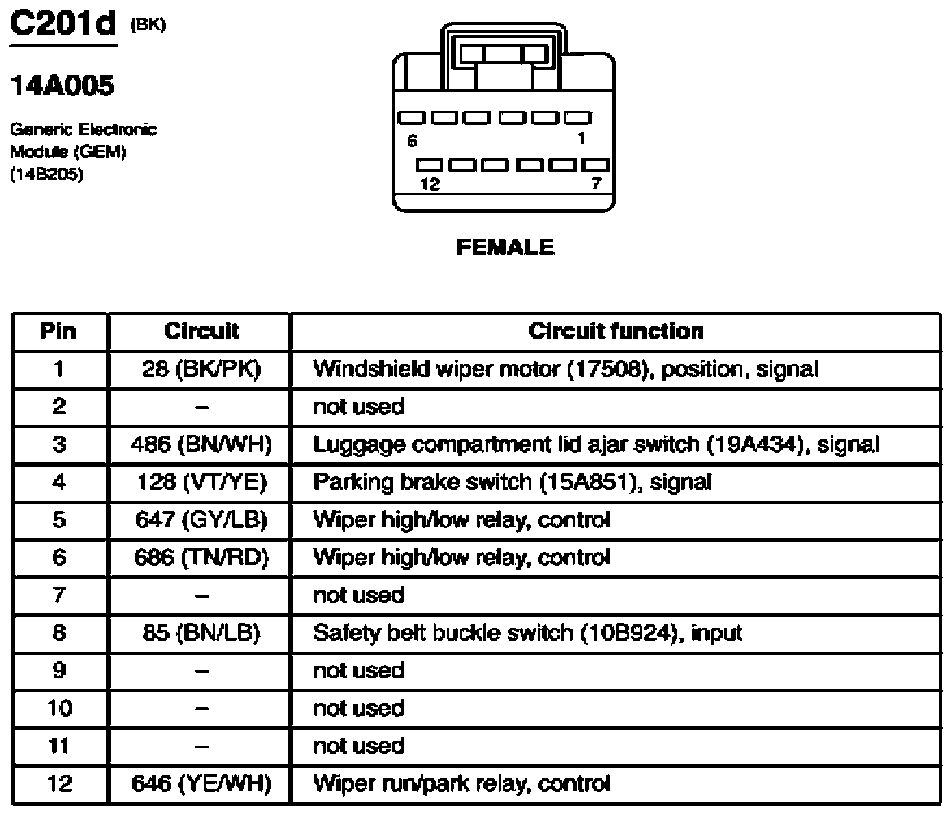

Fig 69: Generic Electronic Module (GEM) Connector End View (C201d)

G07839076

Courtesy of FORD MOTOR CO.

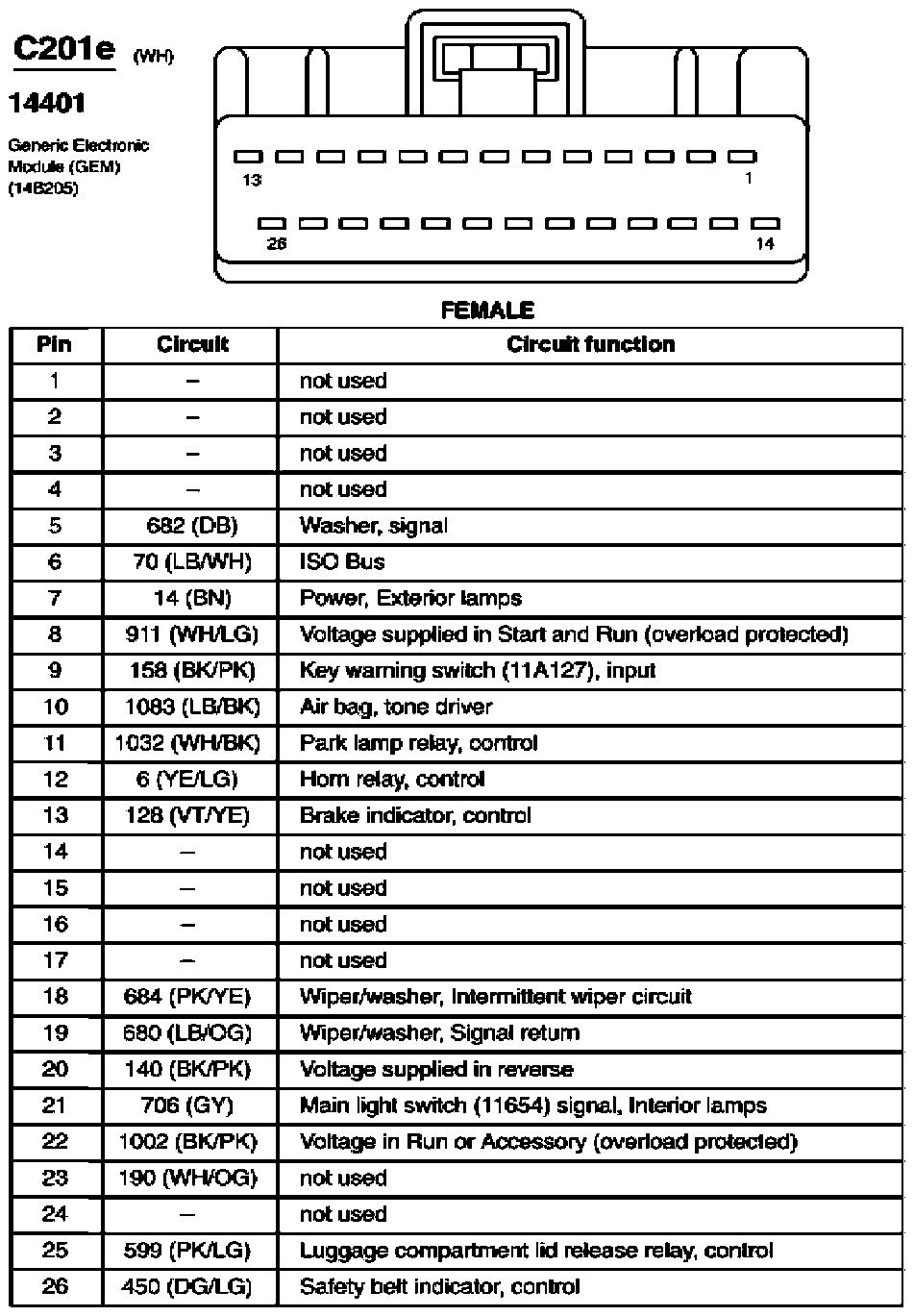

Fig 70: Generic Electronic Module (GEM) Connector End View (C201e)

G07839077

Courtesy of FORD MOTOR CO.

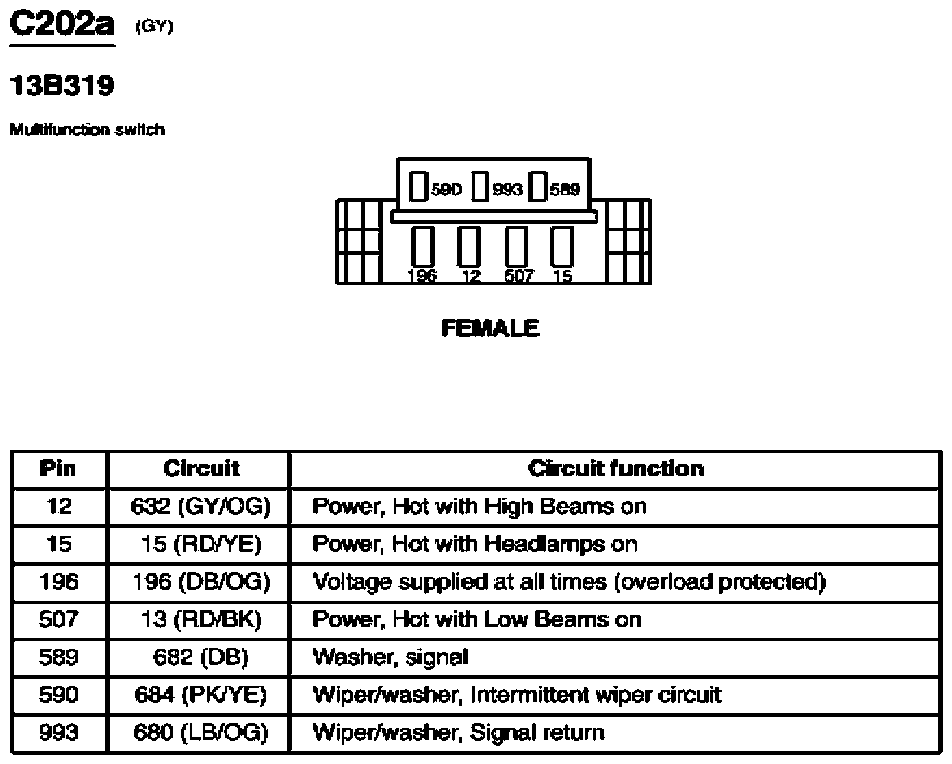

Fig 71: Multifunction Switch Connector End View (C202a)

G07839078

Courtesy of FORD MOTOR CO.

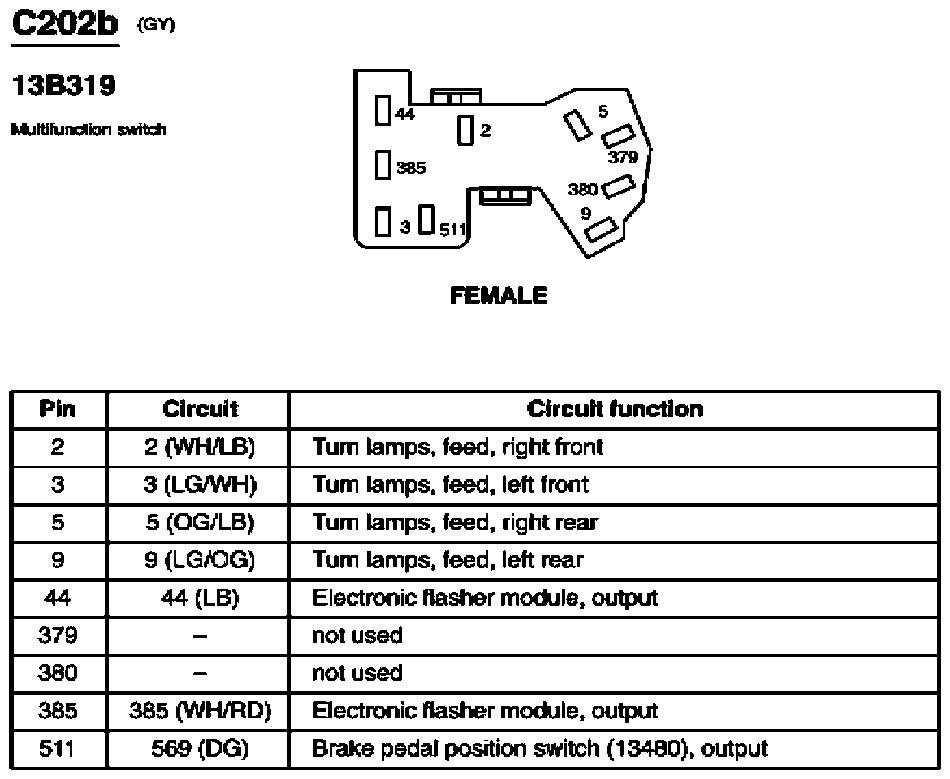

Fig 72: Multifunction Switch Connector End View (C202b)

G07839079

Courtesy of FORD MOTOR CO.

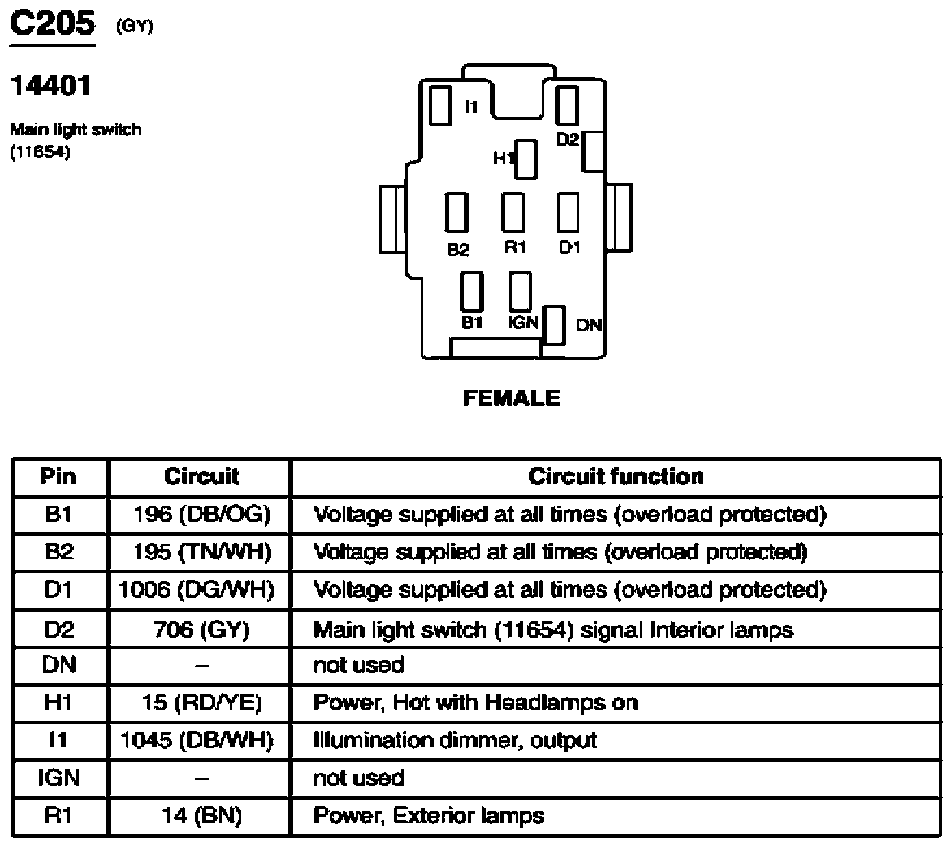

Fig 73: Main Light Switch Connector End View (C205)

G07839080

Courtesy of FORD MOTOR CO.

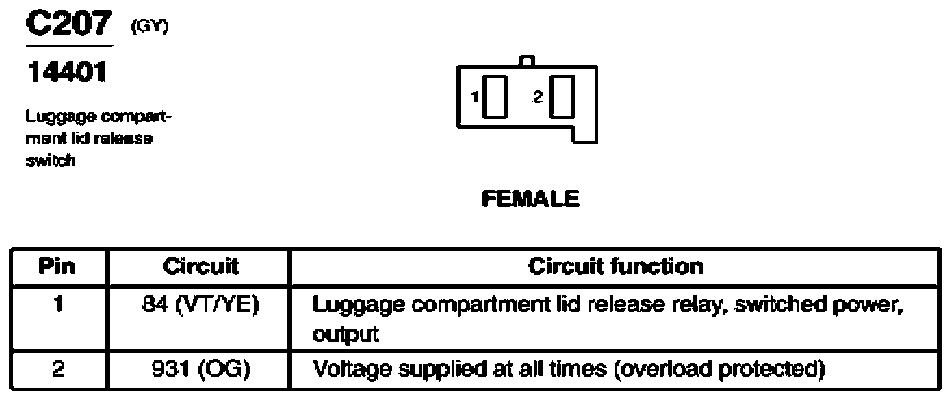

Fig 74: Luggage Compartment Lid Release Switch Connector End View (C207)

G07839081

Courtesy of FORD MOTOR CO.

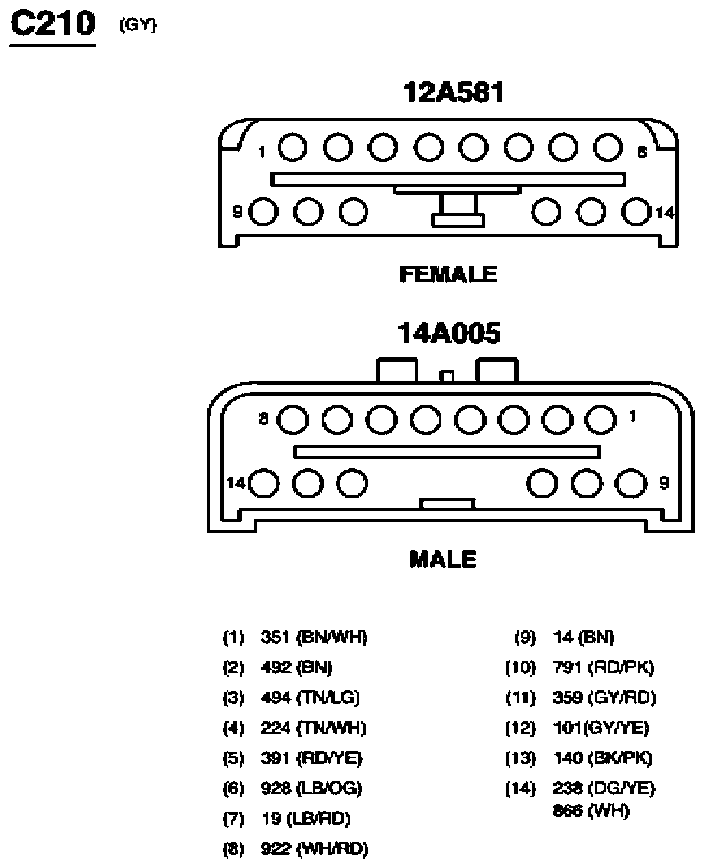

Fig 75: Inline Connector End View (C210)

G07839082

Courtesy of FORD MOTOR CO.

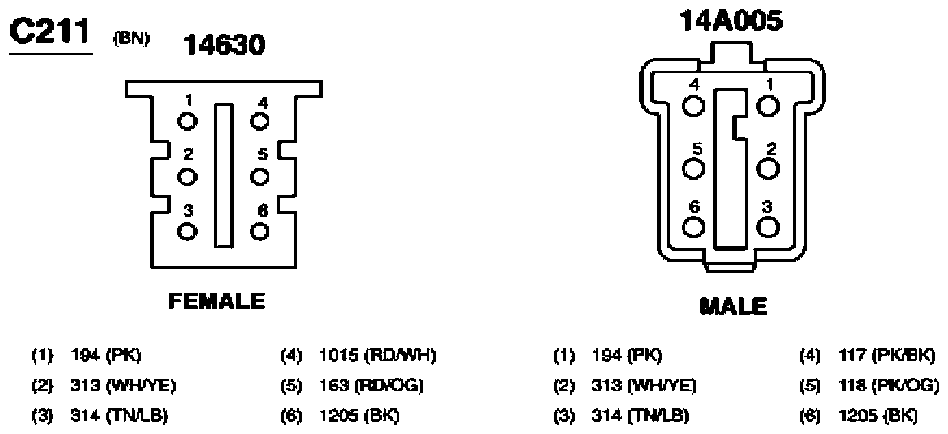

Fig 76: Inline Connector End View (C211)

G07839083

Courtesy of FORD MOTOR CO.

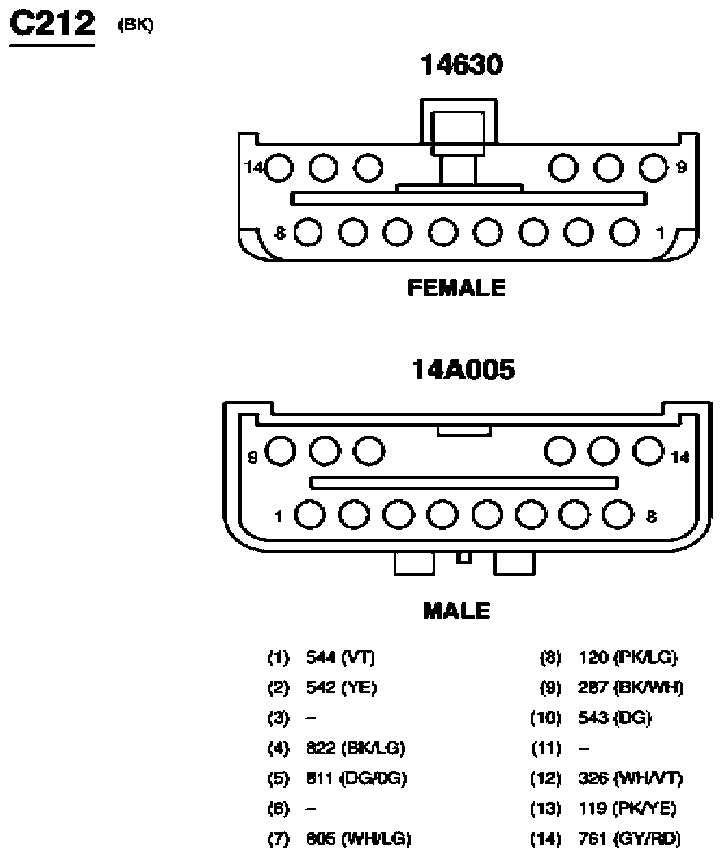

Fig 77: Inline Connector End View (C212)

G07839084

Courtesy of FORD MOTOR CO.

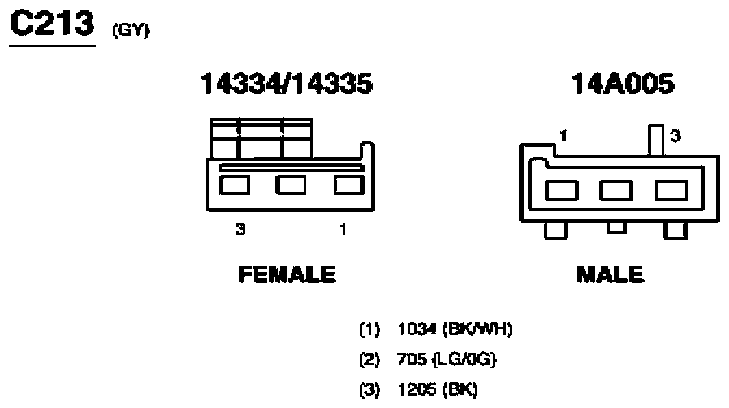

Fig 78: Inline Connector End View (C213)

G07839085

Courtesy of FORD MOTOR CO.

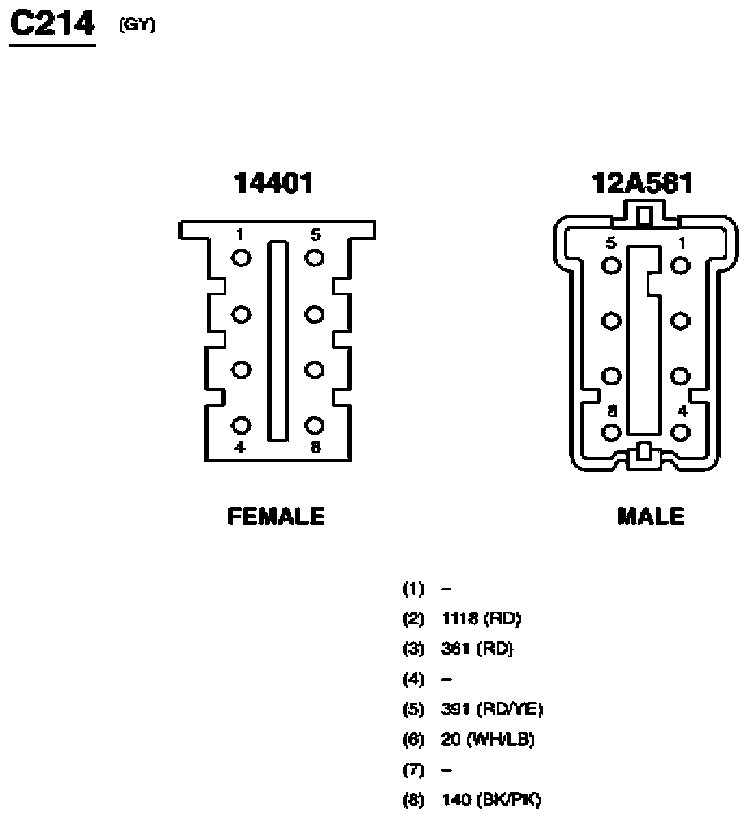

Fig 79: Inline Connector End View (C214)

G07839086

Courtesy of FORD MOTOR CO.

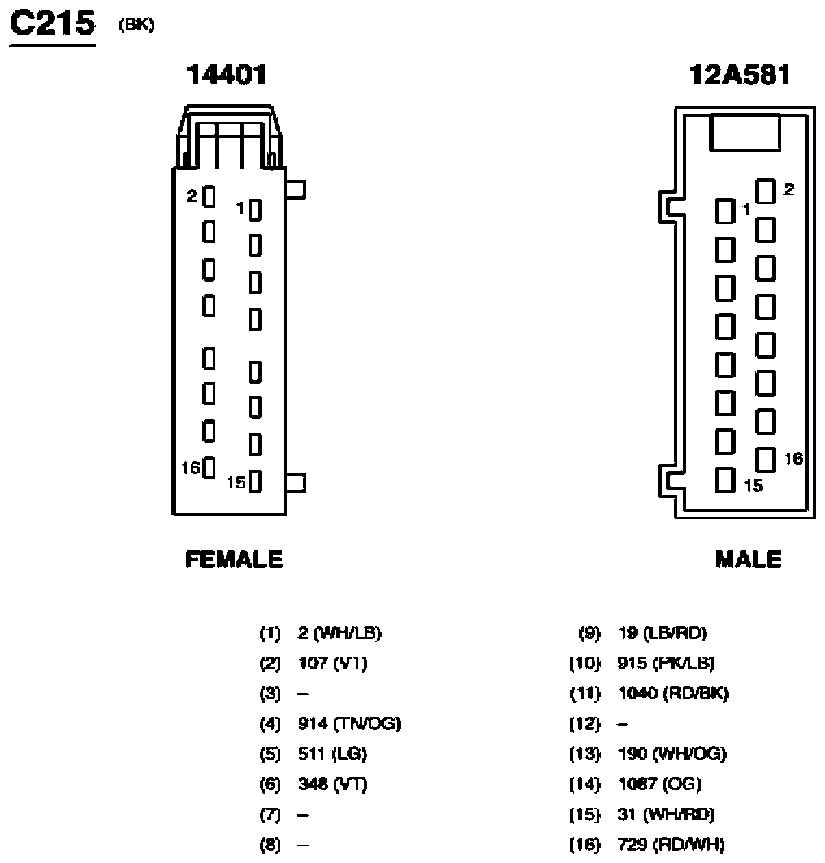

Fig 80: Inline Connector End View (C215)

G07839087

Courtesy of FORD MOTOR CO.

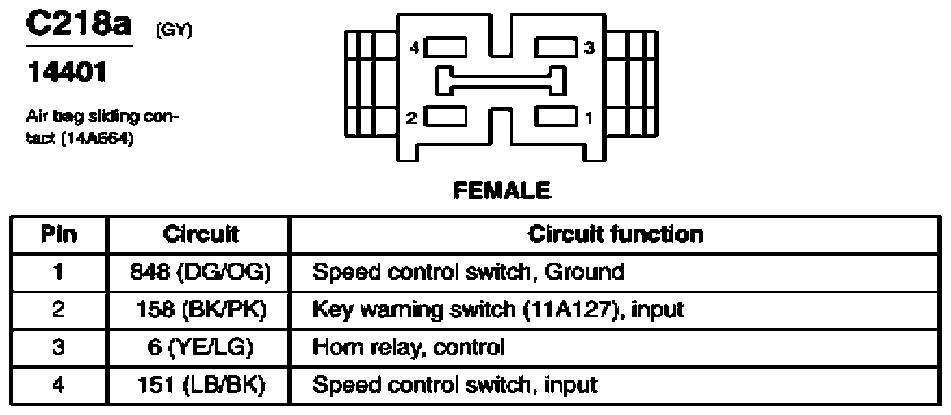

Fig 81: Air Bag Sliding Contact Connector End View (C218a)

G07839088

Courtesy of FORD MOTOR CO.

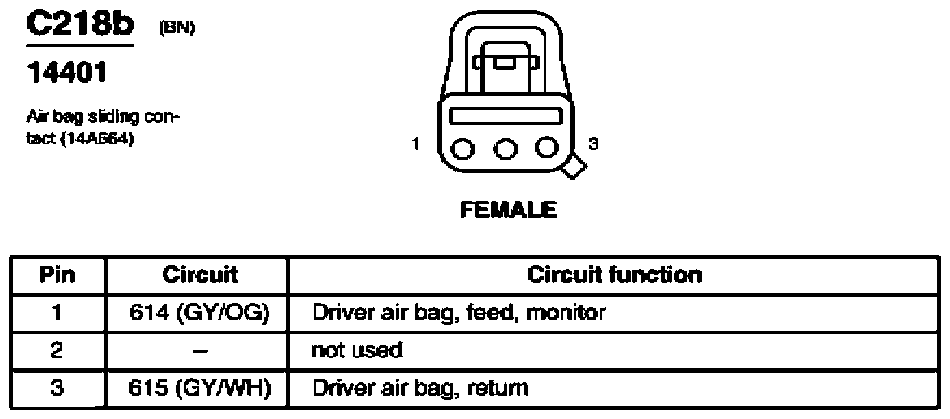

Fig 82: Air Bag Sliding Contact Connector End View (C218b)

G07839089

Courtesy of FORD MOTOR CO.

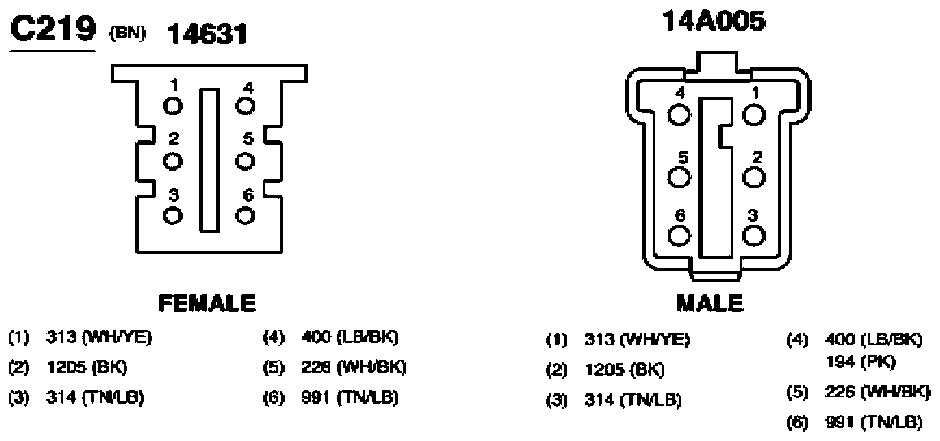

Fig 83: Inline Connector End View (C219)

G07839090

Courtesy of FORD MOTOR CO.

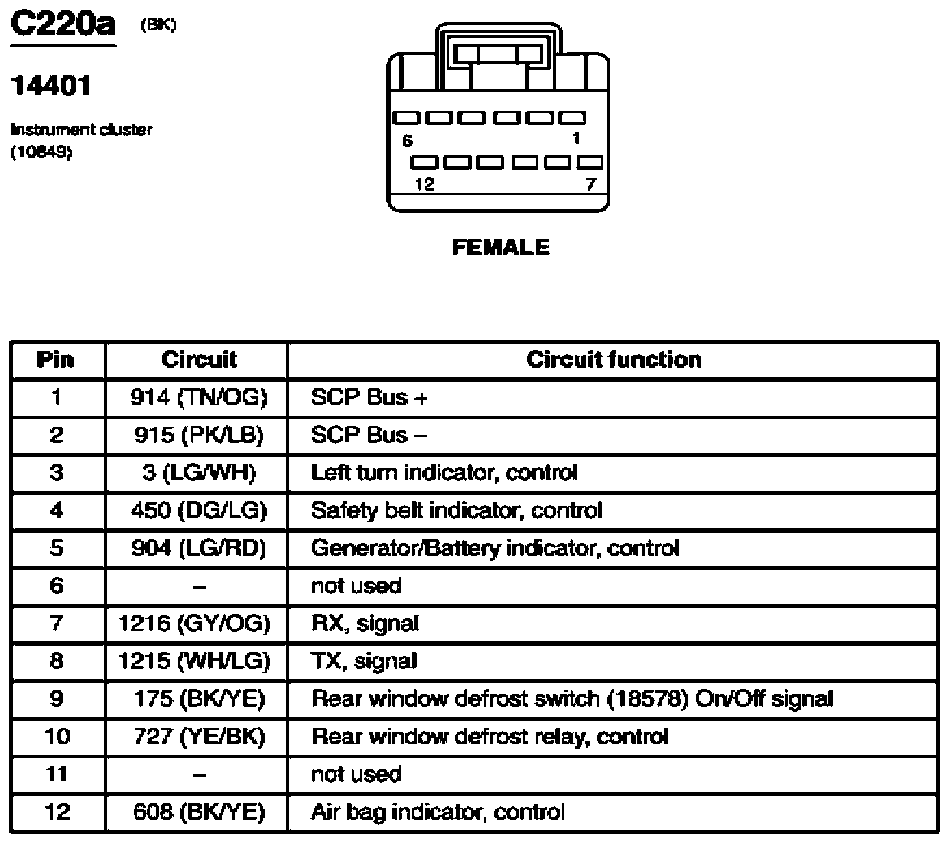

Fig 84: Instrument Cluster Connector End View (C220a)

G07839091

Courtesy of FORD MOTOR CO.

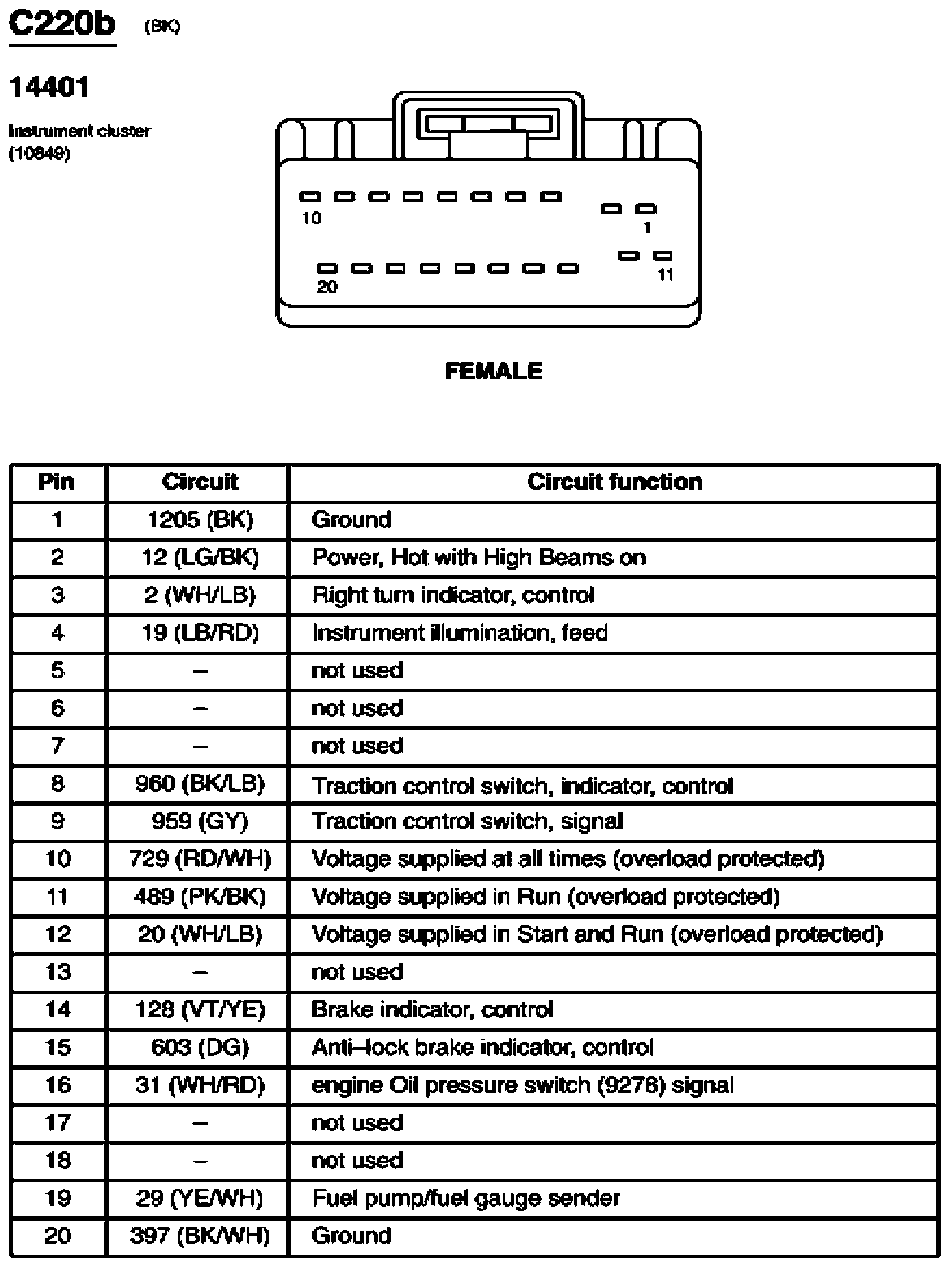

Fig 85: Instrument Cluster Connector End View (C220b)

G07839092

Courtesy of FORD MOTOR CO.

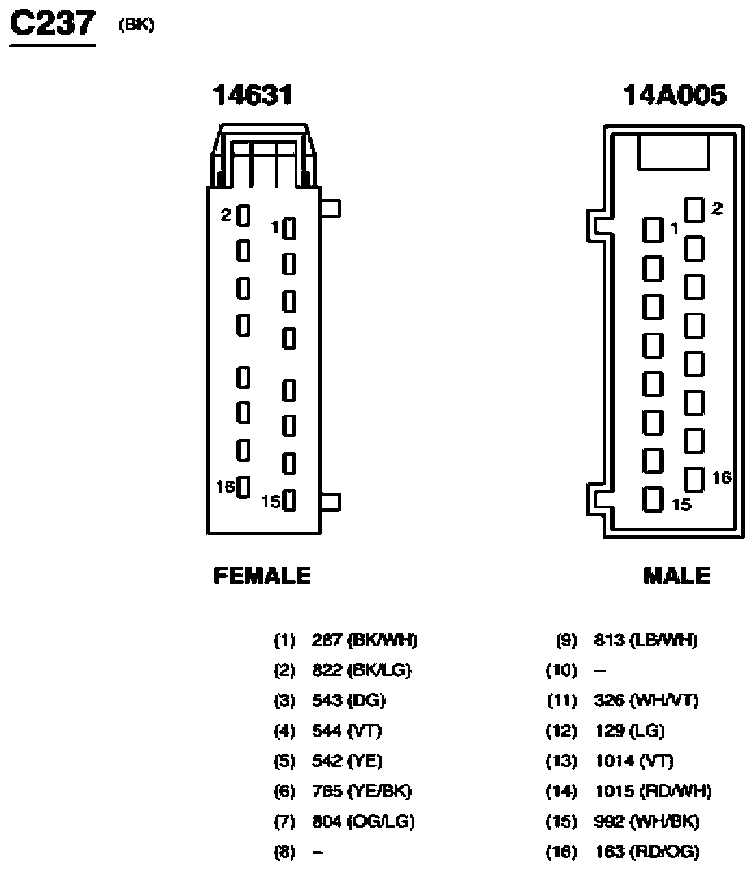

Fig 86: Inline Connector End View (C237)

G07839093

Courtesy of FORD MOTOR CO.

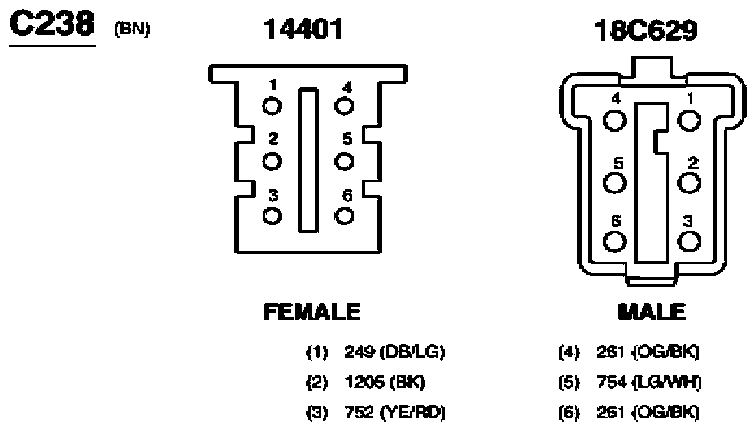

Fig 87: Inline Connector End View (C238)

G07839094

Courtesy of FORD MOTOR CO.

Fig 88: Fog Lamp Switch Connector End View (C240)

G07839095

Courtesy of FORD MOTOR CO.

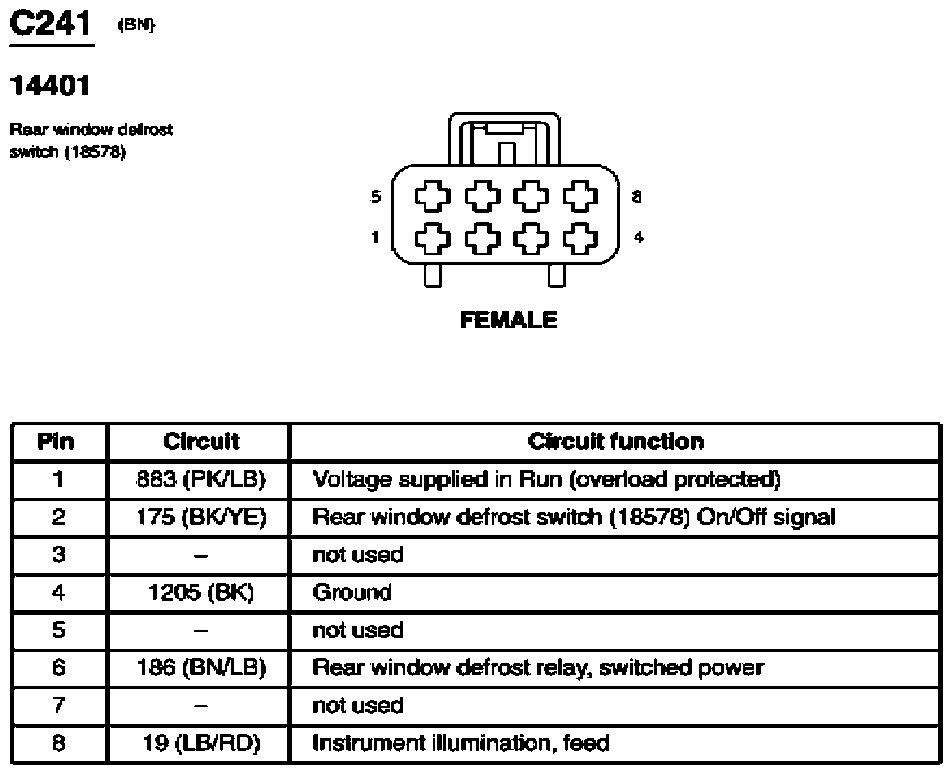

Fig 89: Rear Window Defrost Switch Connector End View (C241)

G07839096

Courtesy of FORD MOTOR CO.

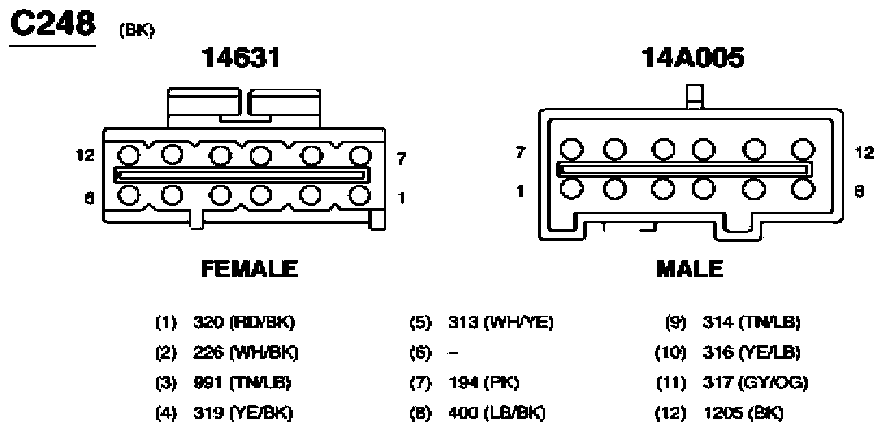

Fig 90: Inline Connector End View (C248)

G07839097

Courtesy of FORD MOTOR CO.

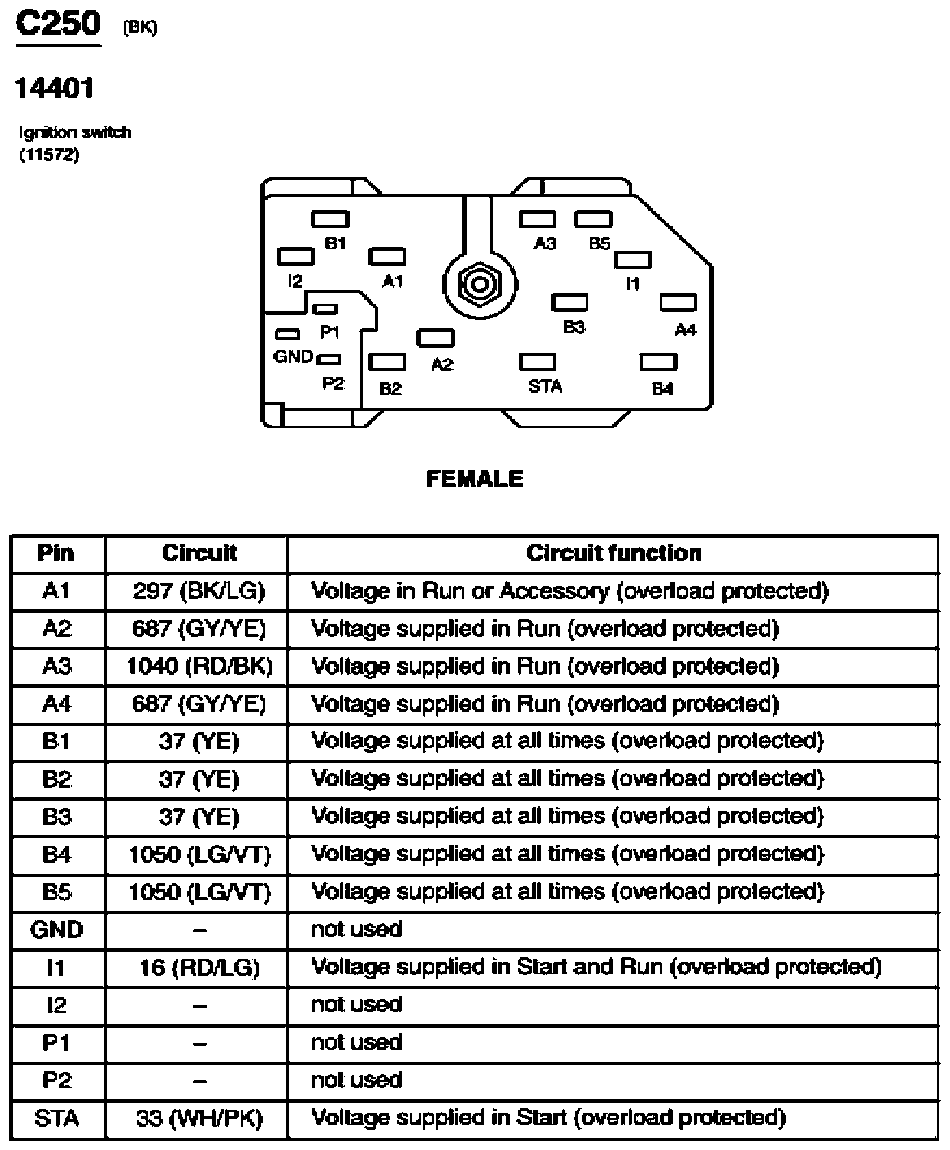

Fig 91: Ignition Switch Connector End View (C250)

G07839098

Courtesy of FORD MOTOR CO.

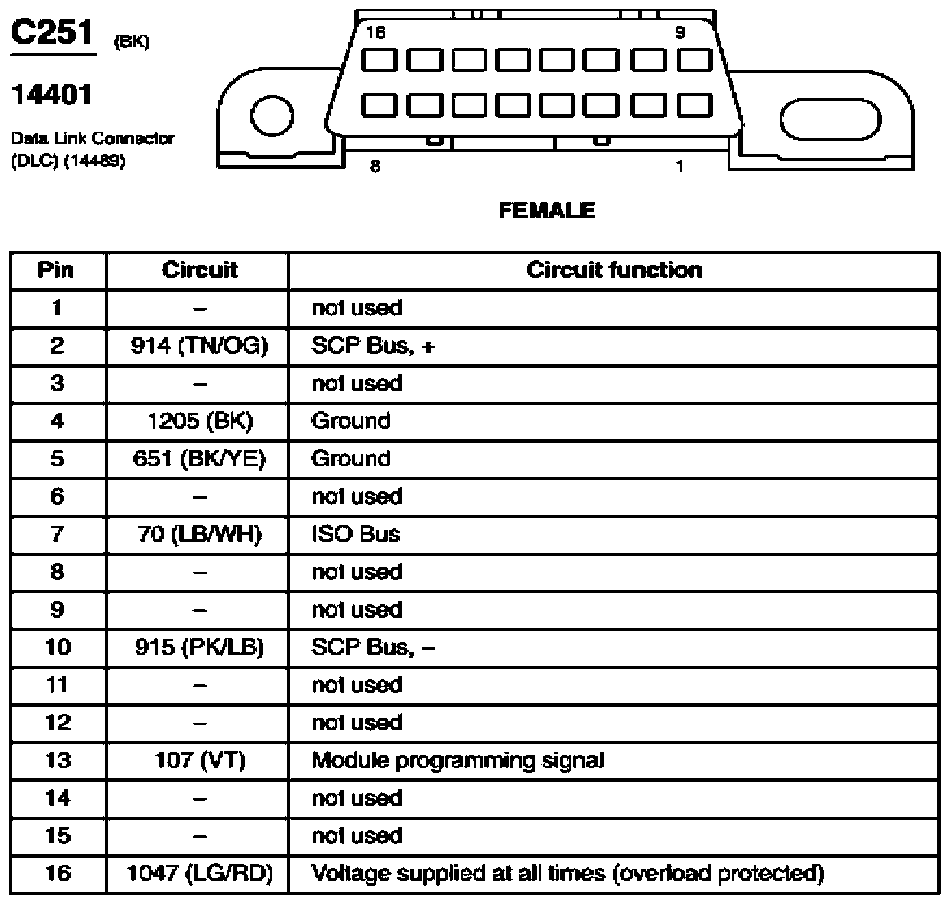

Fig 92: Data Link Connector (DLC) Connector End View (C251)

G07839099

Courtesy of FORD MOTOR CO.

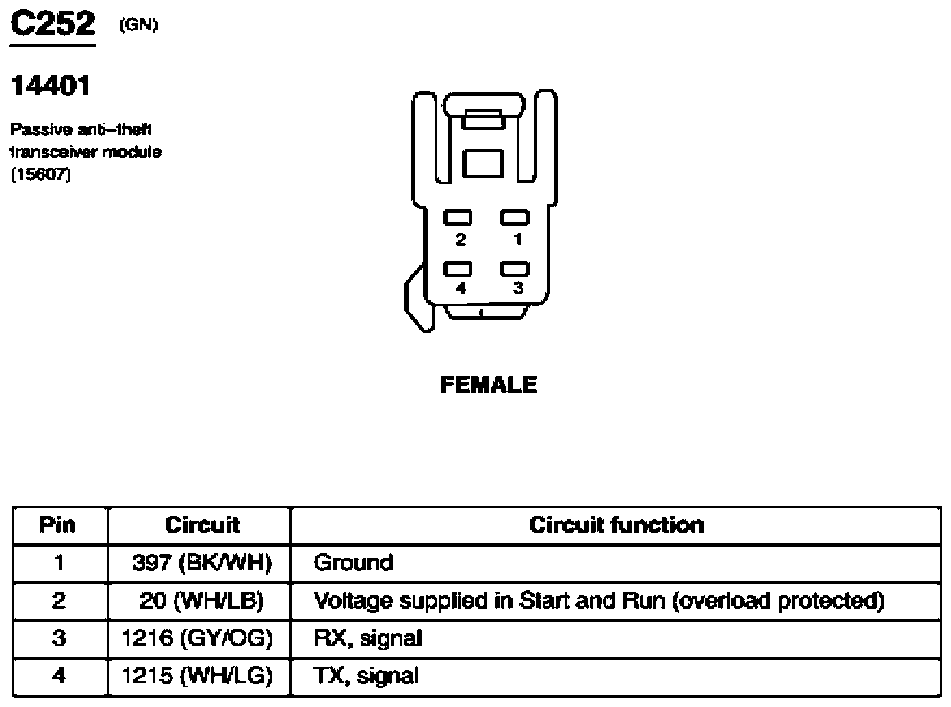

Fig 93: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07839100

Courtesy of FORD MOTOR CO.

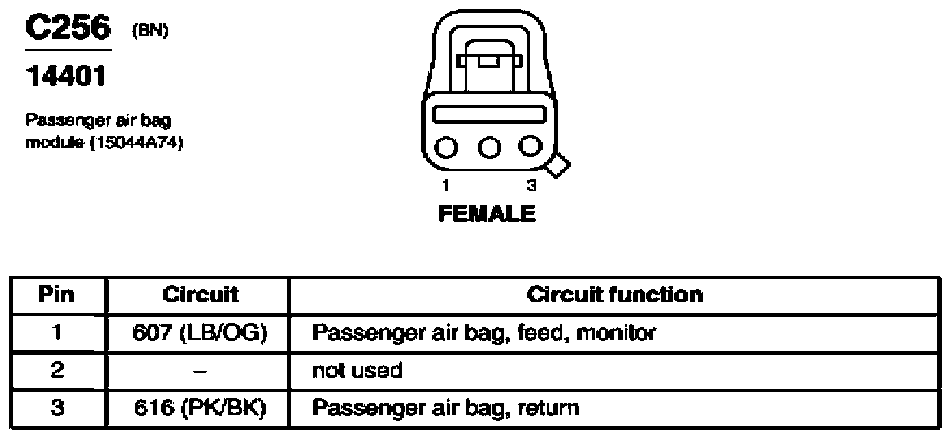

Fig 94: Passenger Air Bag Module Connector End View (C256)

G07839101

Courtesy of FORD MOTOR CO.

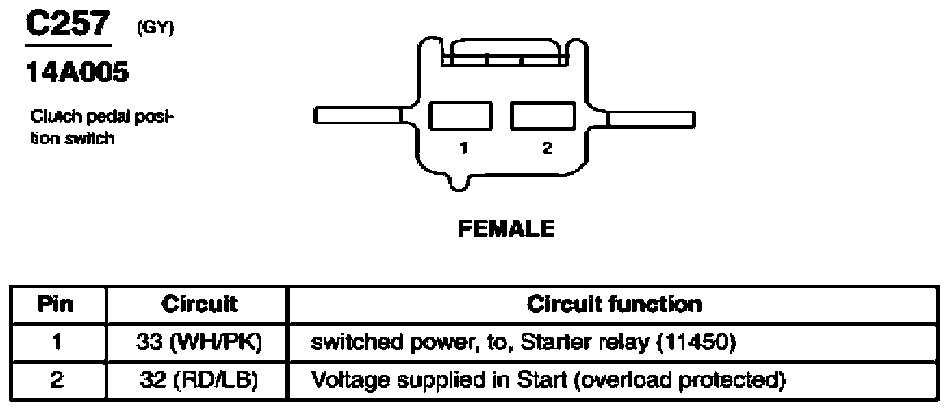

Fig 95: Clutch Pedal Position Switch Connector End View (C257)

G07839102

Courtesy of FORD MOTOR CO.

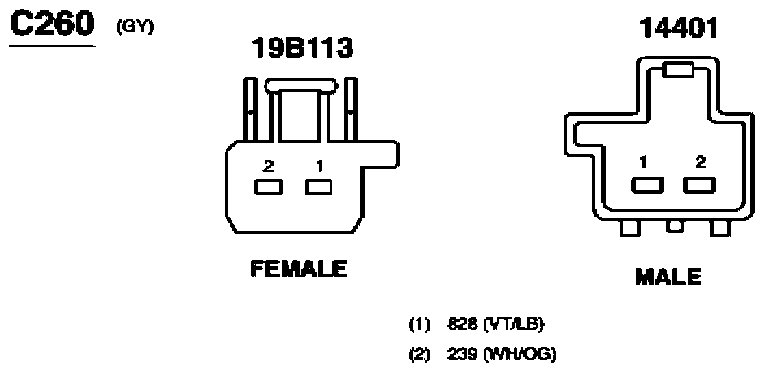

Fig 96: Inline Connector End View (C260)

G07839103

Courtesy of FORD MOTOR CO.

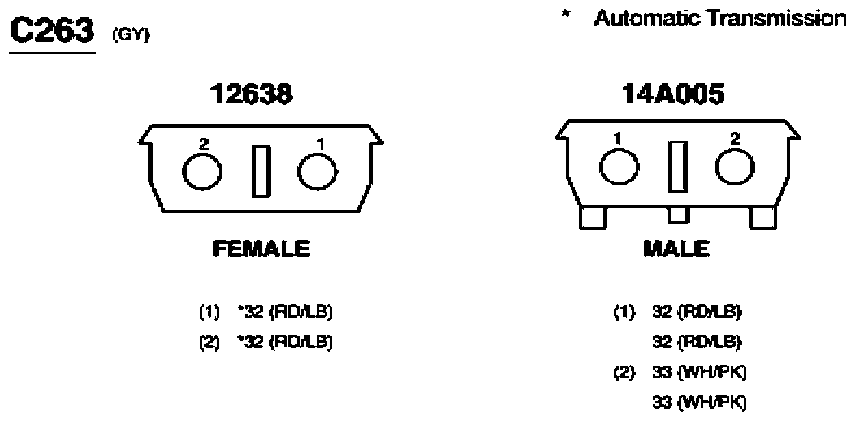

Fig 97: Inline Connector End View (C263)

G07839104

Courtesy of FORD MOTOR CO.

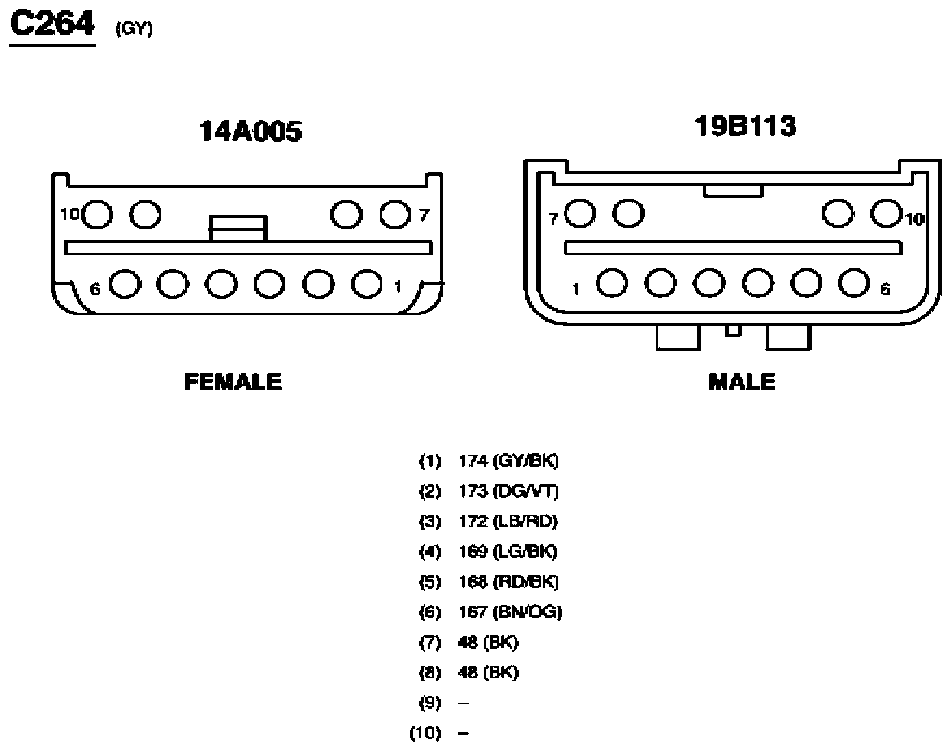

Fig 98: Inline Connector End View (C264)

G07839105

Courtesy of FORD MOTOR CO.

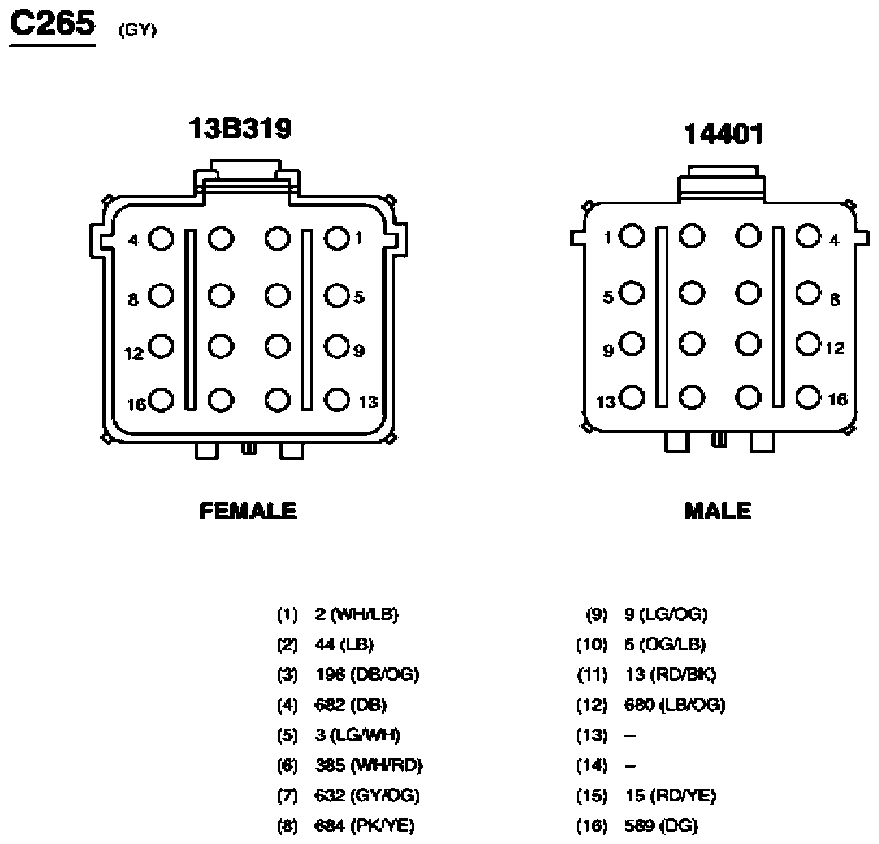

Fig 99: Inline Connector End View (C265)

G07839106

Courtesy of FORD MOTOR CO.

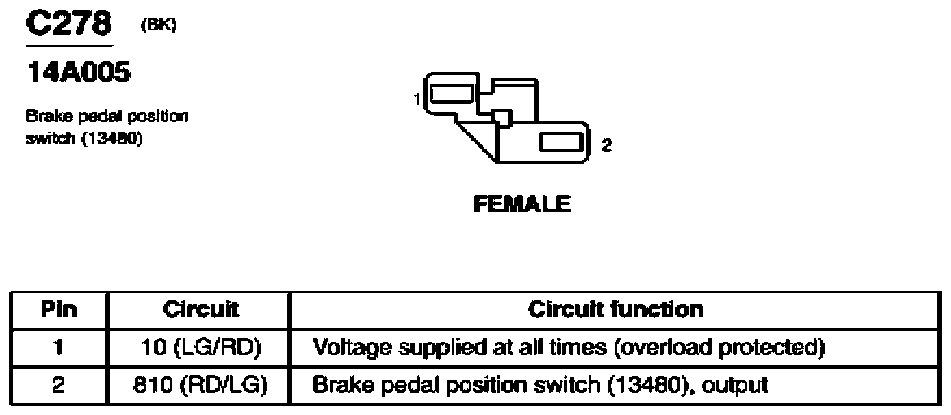

Fig 100: Brake Pedal Position Switch Connector End View (C278)

G07839107

Courtesy of FORD MOTOR CO.

Fig 101: Transmission Control Switch Connector End View (C279)

G07839108

Courtesy of FORD MOTOR CO.

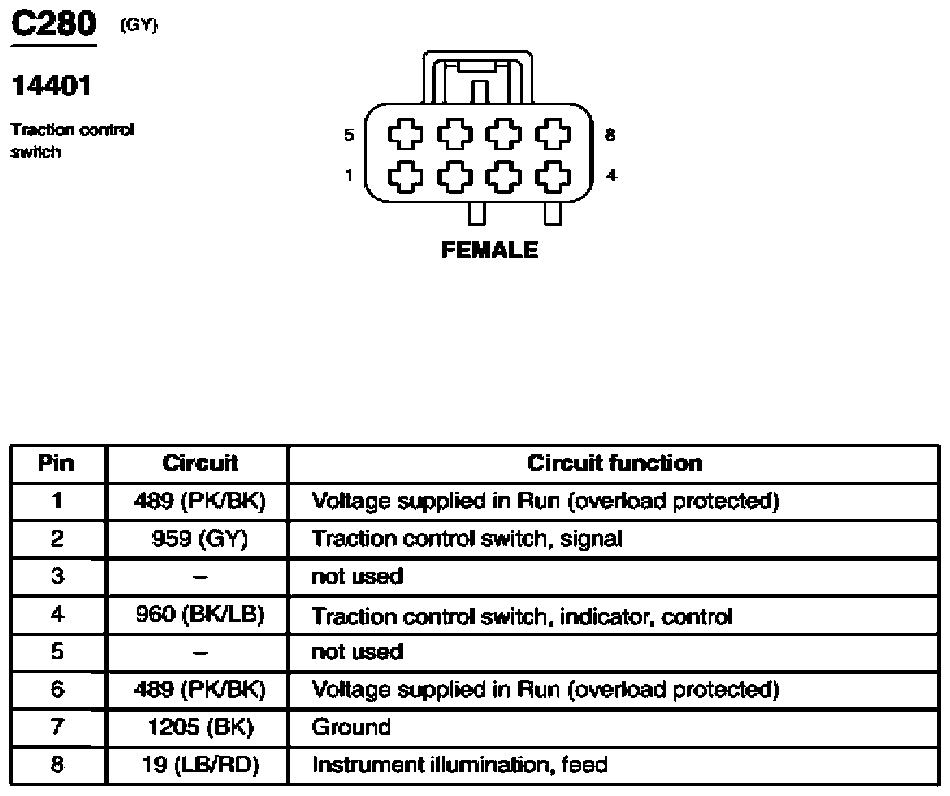

Fig 102: Traction Control Switch Connector End View (C280)

G07839109

Courtesy of FORD MOTOR CO.

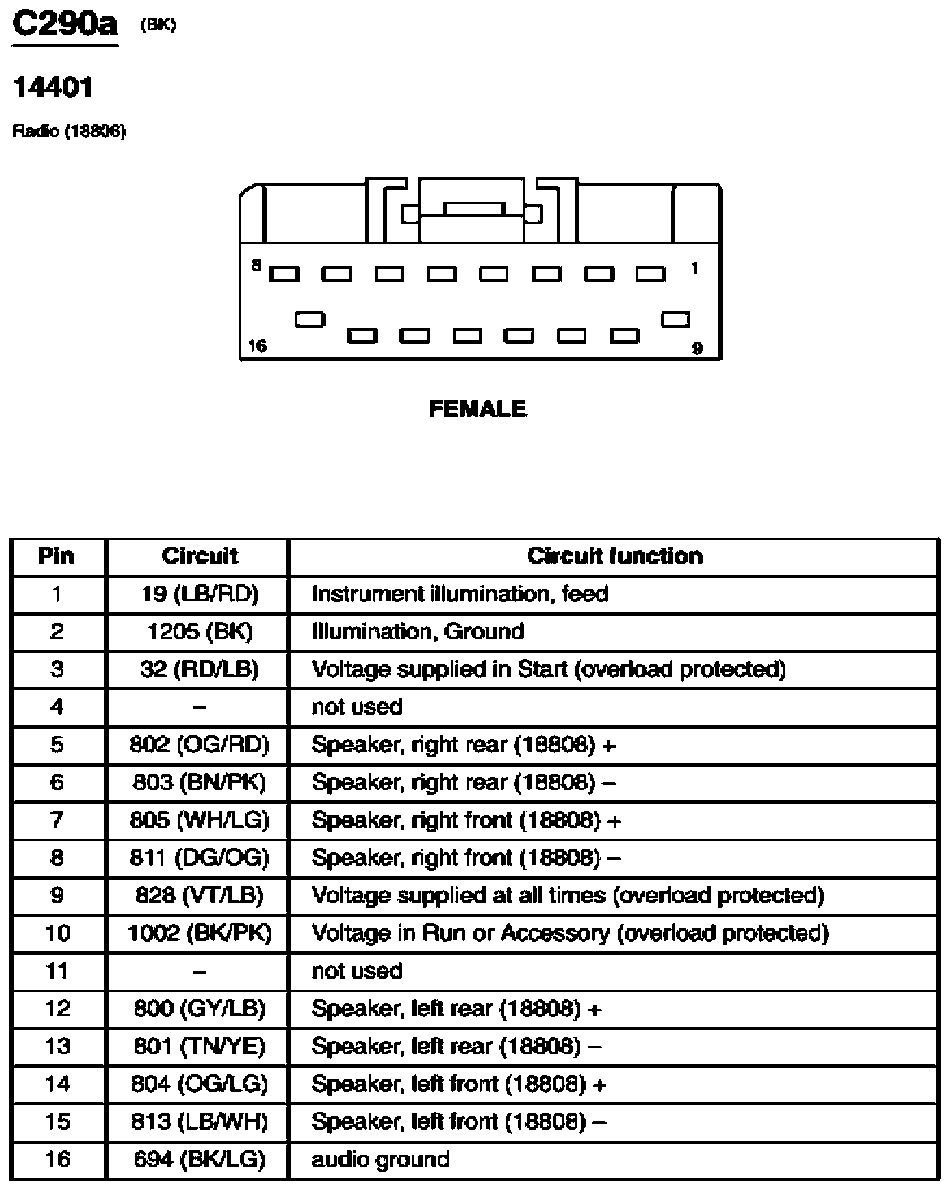

Fig 103: Radio Connector End View (C290a)

G07839110

Courtesy of FORD MOTOR CO.

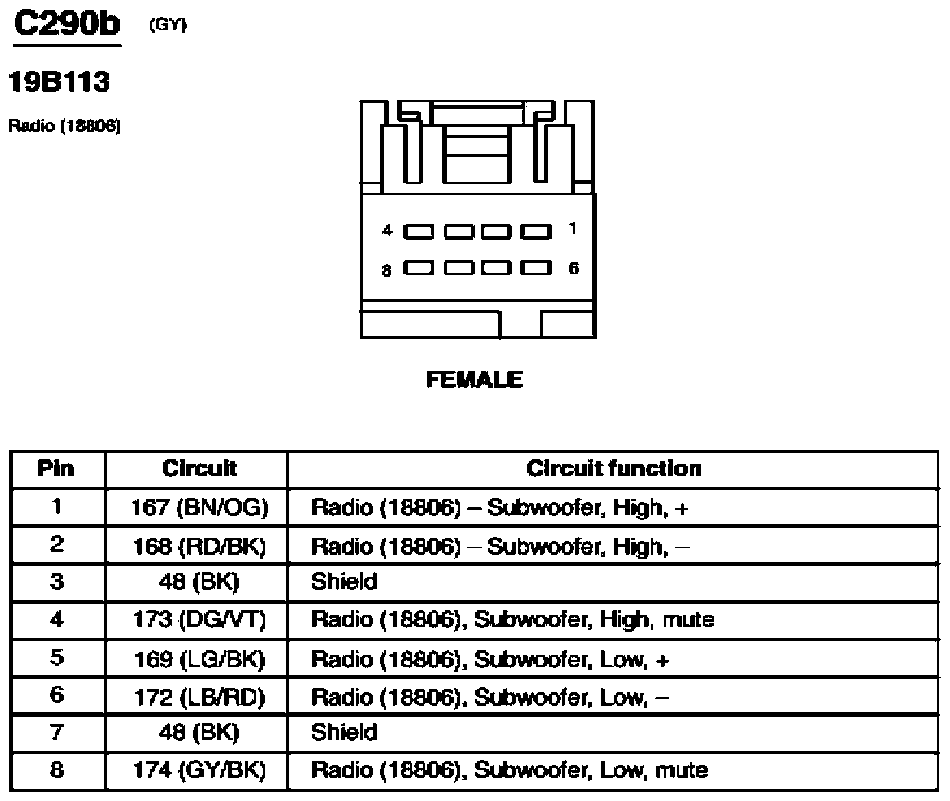

Fig 104: Radio Connector End View (C290b)

G07839111

Courtesy of FORD MOTOR CO.

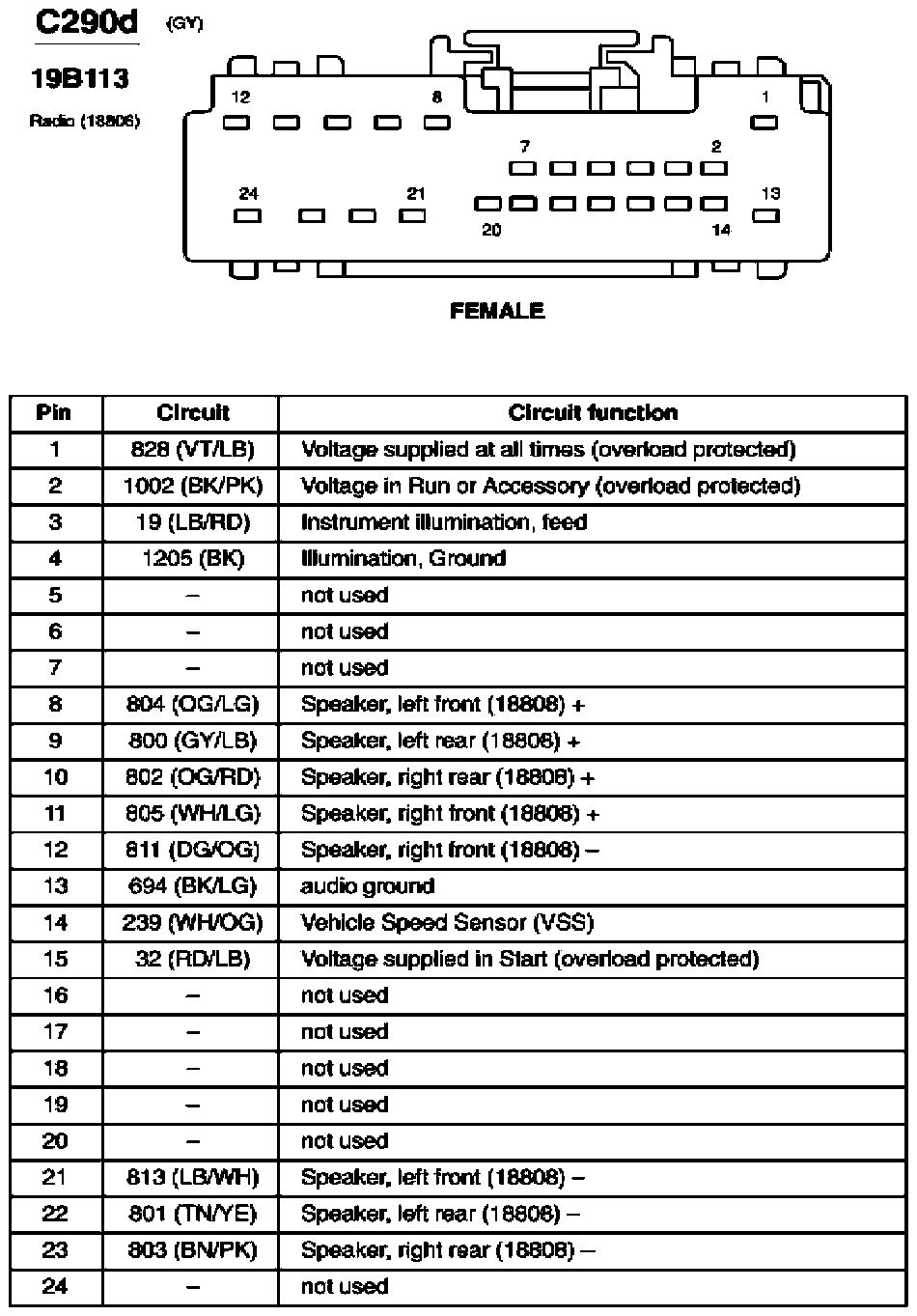

Fig 105: Radio Connector End View (C290d)

G07839112

Courtesy of FORD MOTOR CO.

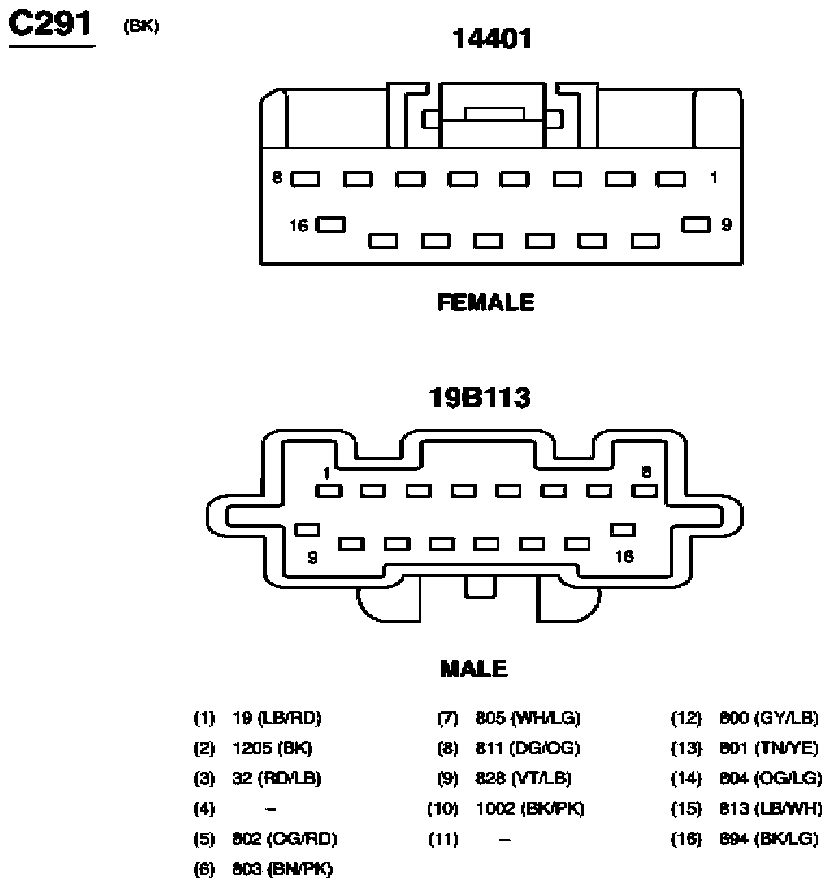

Fig 106: Inline Connector End View (C291)

G07839113

Courtesy of FORD MOTOR CO.

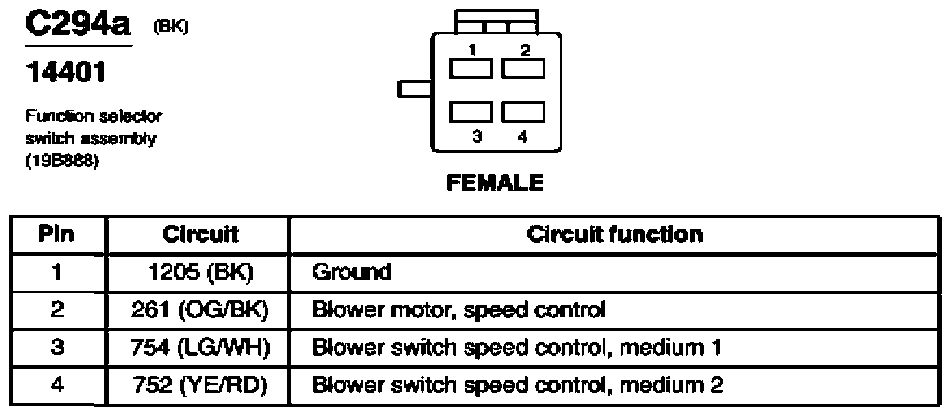

Fig 107: Function Selector Switch Assembly Connector End View (C294a)

G07839114

Courtesy of FORD MOTOR CO.

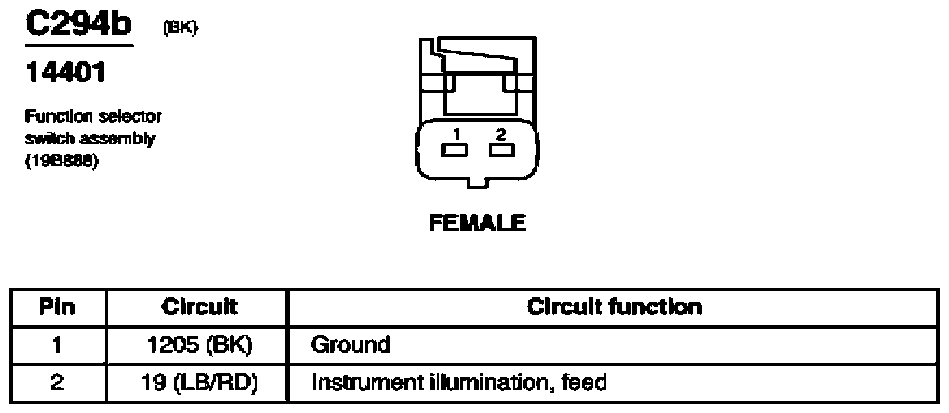

Fig 108: Function Selector Switch Assembly Connector End View (C294b)

G07839115

Courtesy of FORD MOTOR CO.

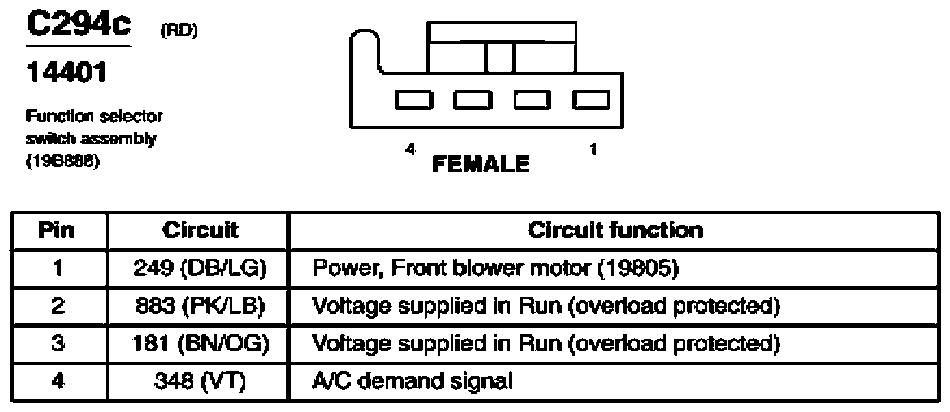

Fig 109: Function Selector Switch Assembly Connector End View (C294c)

G07839116

Courtesy of FORD MOTOR CO.

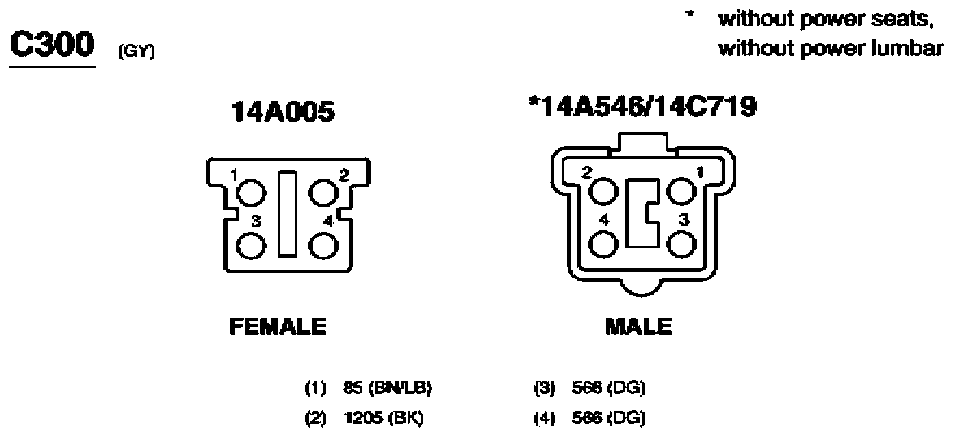

Fig 110: Inline Connector End View (C300)

G07839117

Courtesy of FORD MOTOR CO.

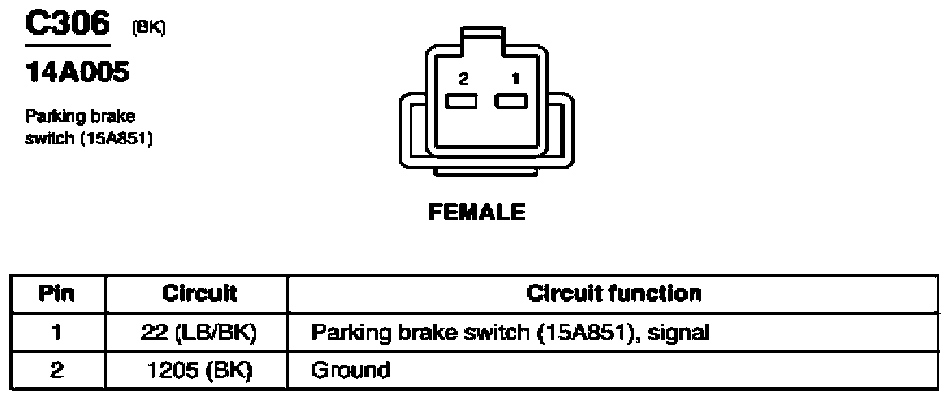

Fig 111: Parking Brake Switch Connector End View (C306)

G07839118

Courtesy of FORD MOTOR CO.

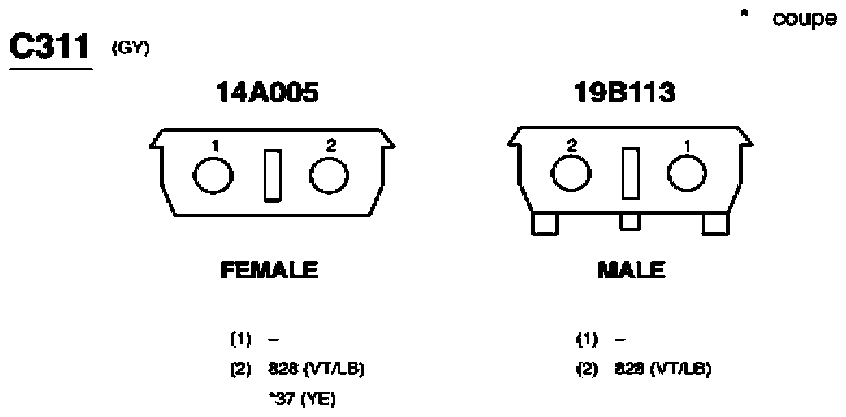

Fig 112: Inline Connector End View (C311)

G07839119

Courtesy of FORD MOTOR CO.

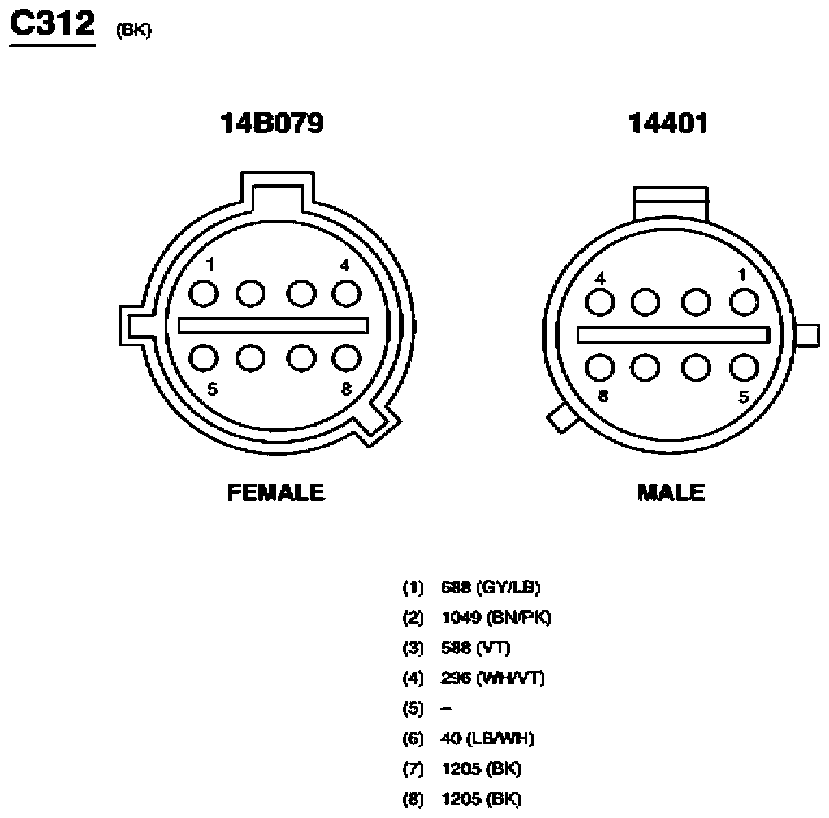

Fig 113: Inline Connector End View (C312)

G07839120

Courtesy of FORD MOTOR CO.

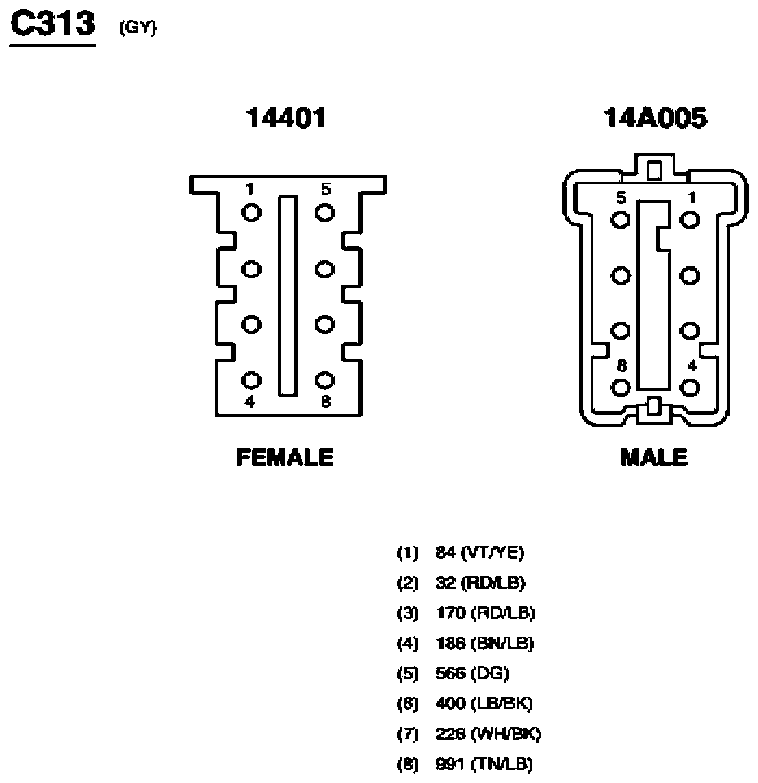

Fig 114: Inline Connector End View (C313)

G07839121

Courtesy of FORD MOTOR CO.

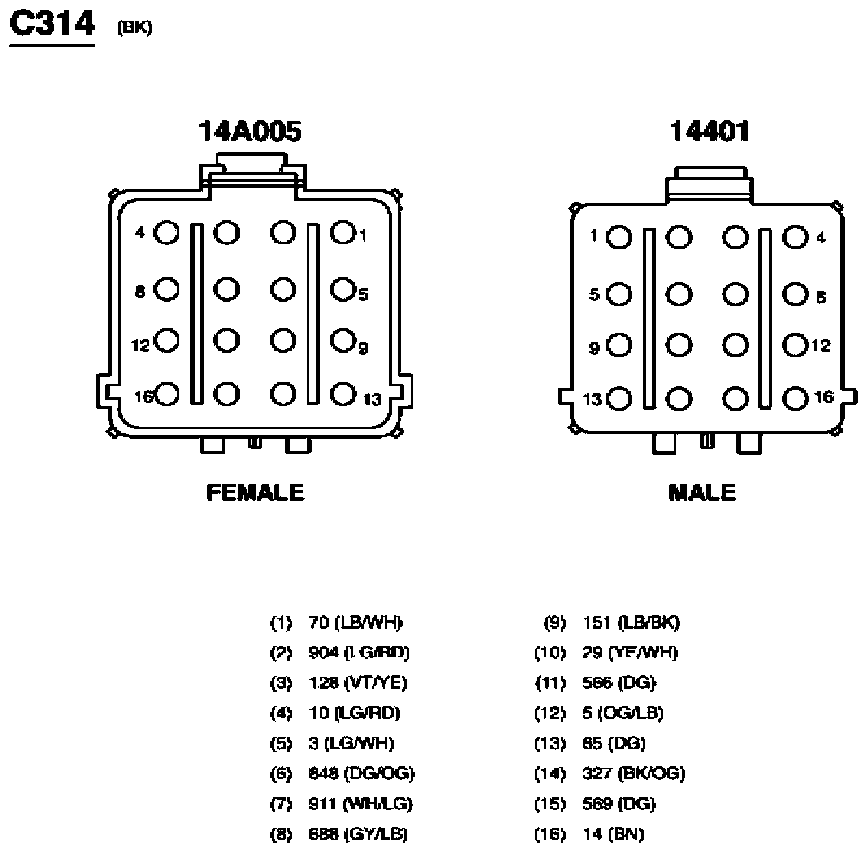

Fig 115: Inline Connector End View (C314)

G07839122

Courtesy of FORD MOTOR CO.

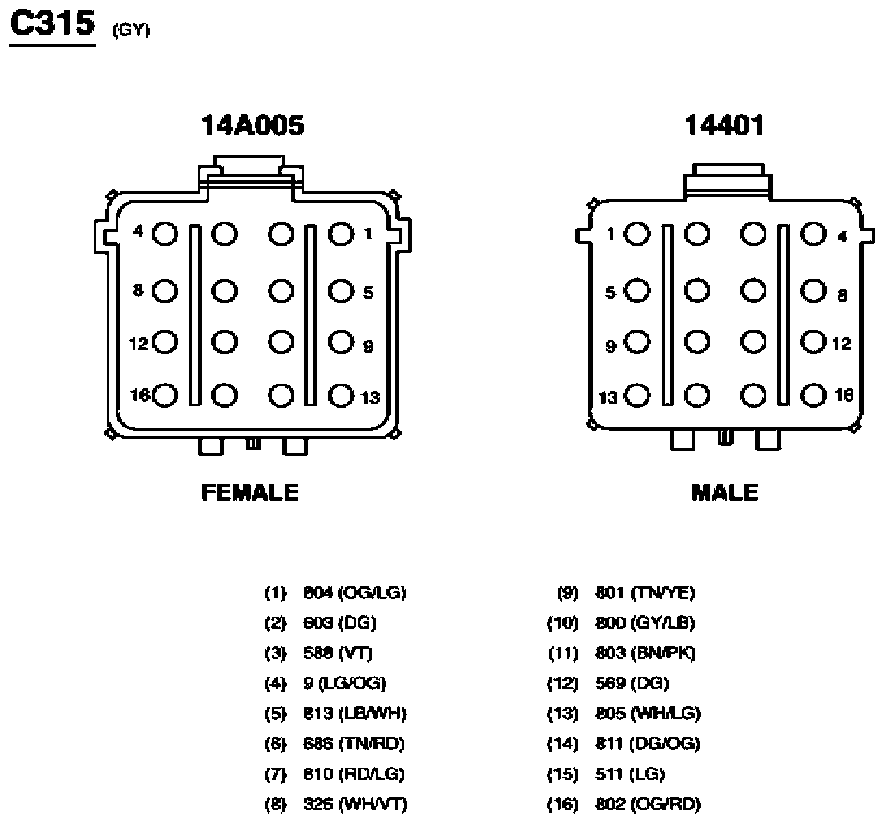

Fig 116: Inline Connector End View (C315)

G07839123

Courtesy of FORD MOTOR CO.

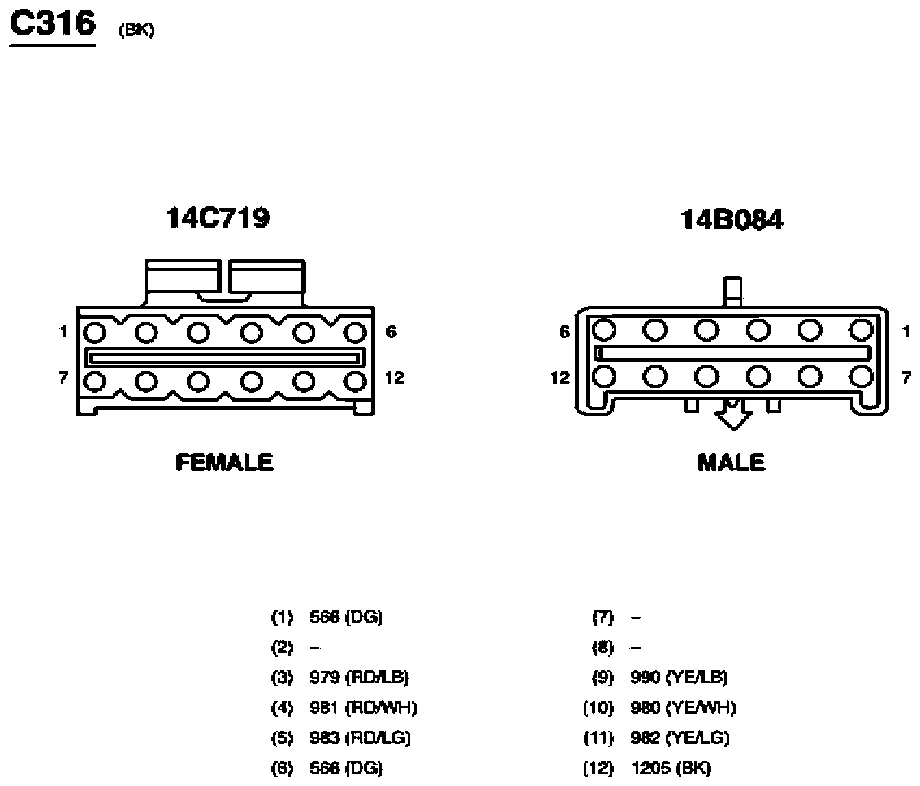

Fig 117: Inline Connector End View (C316)

G07839124

Courtesy of FORD MOTOR CO.

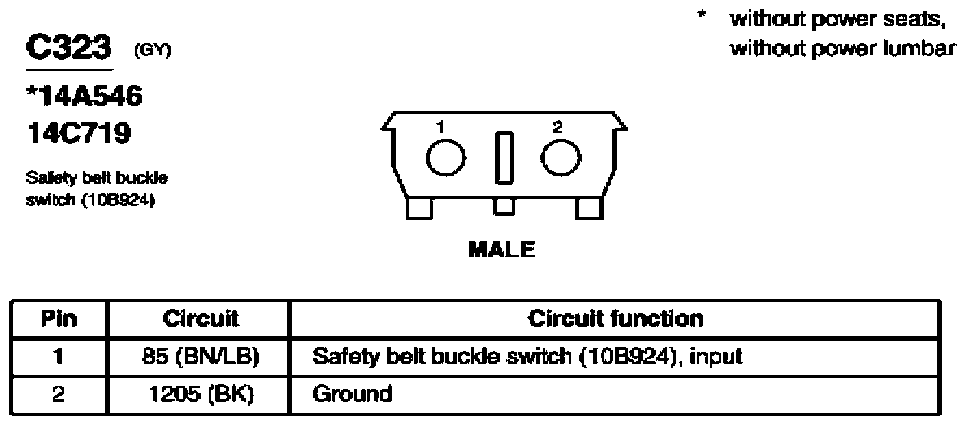

Fig 118: Safety Belt Buckle Switch Connector End View (C323)

G07839125

Courtesy of FORD MOTOR CO.

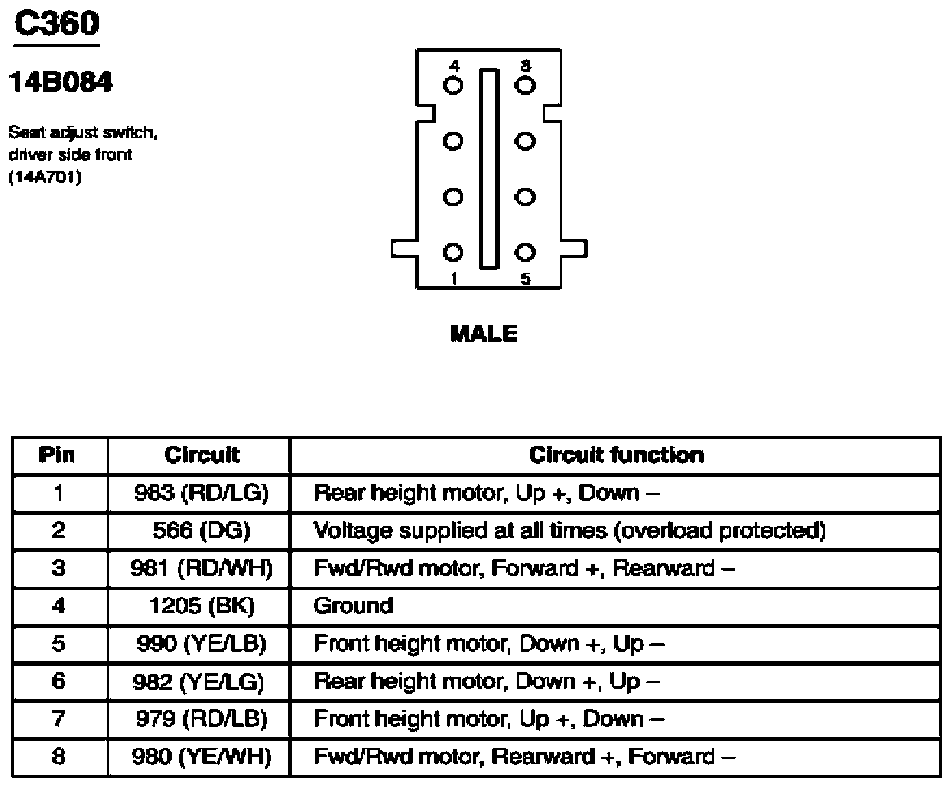

Fig 119: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07839126

Courtesy of FORD MOTOR CO.

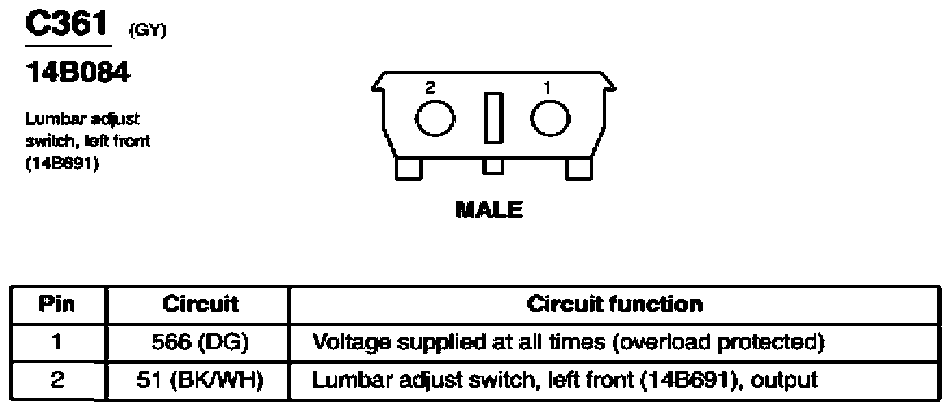

Fig 120: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07839127

Courtesy of FORD MOTOR CO.

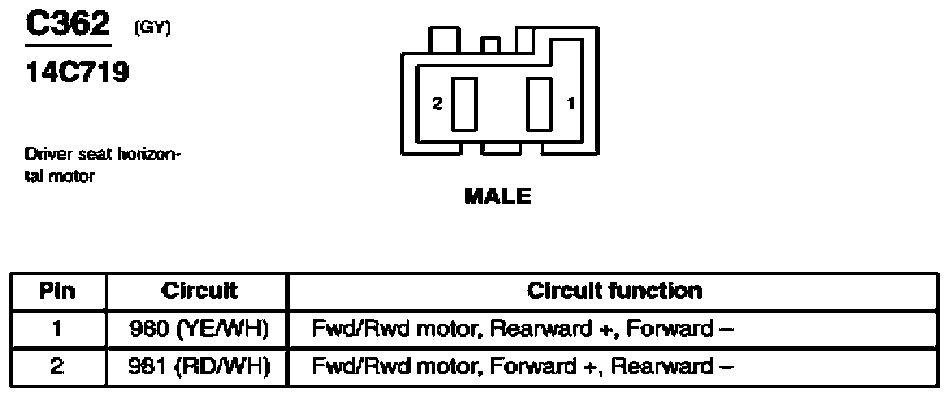

Fig 121: Driver Seat Horizontal Motor Connector End View (C362)

G07839128

Courtesy of FORD MOTOR CO.

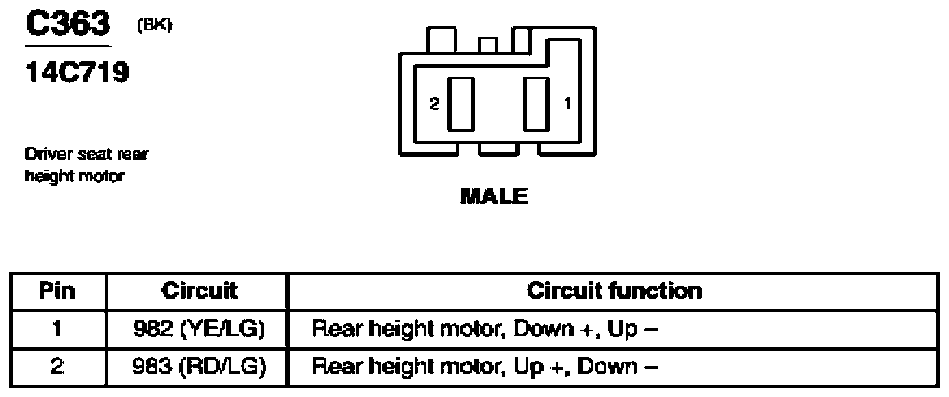

Fig 122: Driver Seat Rear Height Motor Connector End View (C363)

G07839129

Courtesy of FORD MOTOR CO.

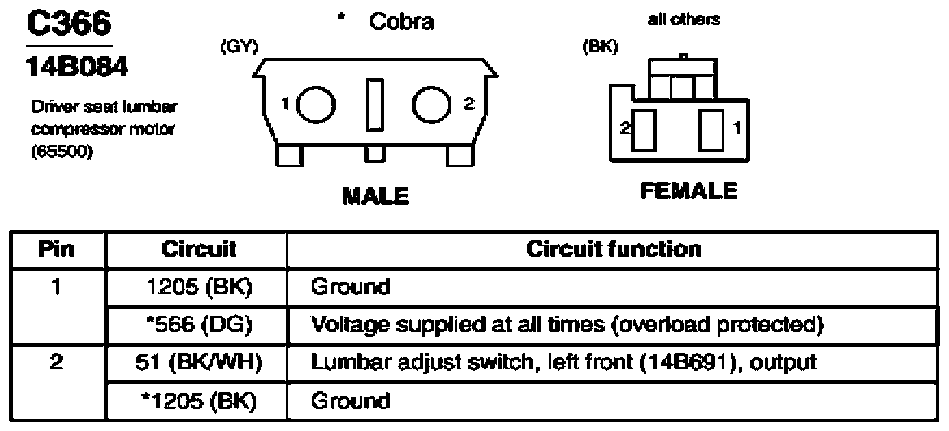

Fig 123: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07839130

Courtesy of FORD MOTOR CO.

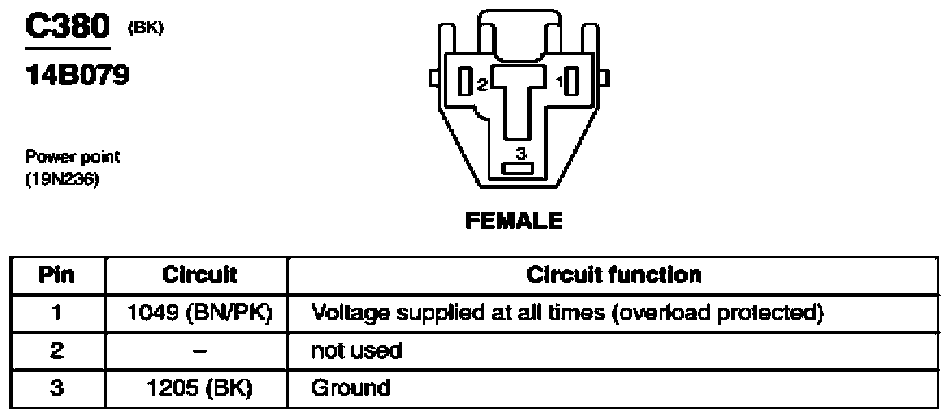

Fig 124: Power Point Connector End View (C380)

G07839131

Courtesy of FORD MOTOR CO.

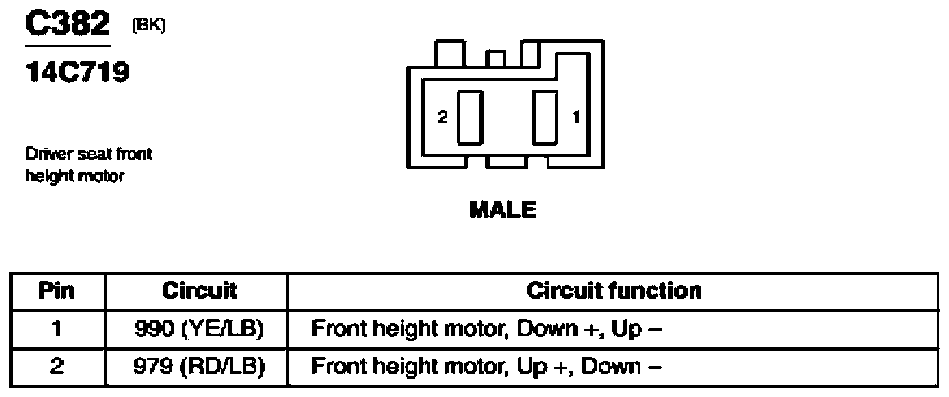

Fig 125: Driver Seat Front Height Motor Connector End View (C382)

G07839132

Courtesy of FORD MOTOR CO.

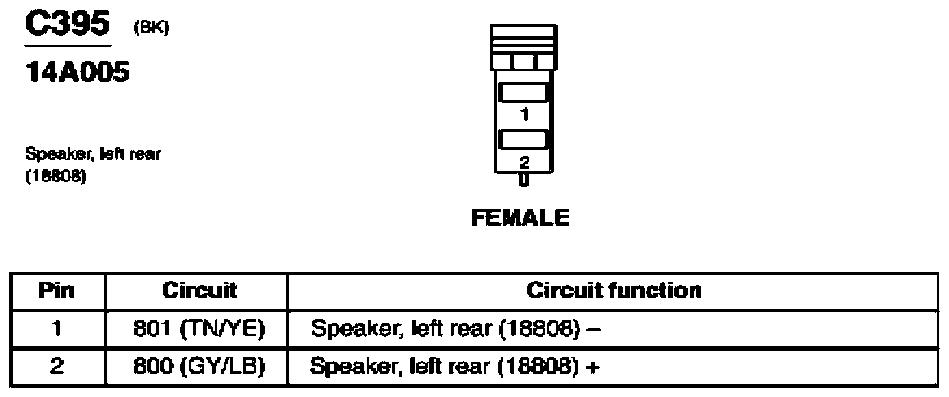

Fig 126: Speaker, Left Rear Connector End View (C395)

G07839133

Courtesy of FORD MOTOR CO.

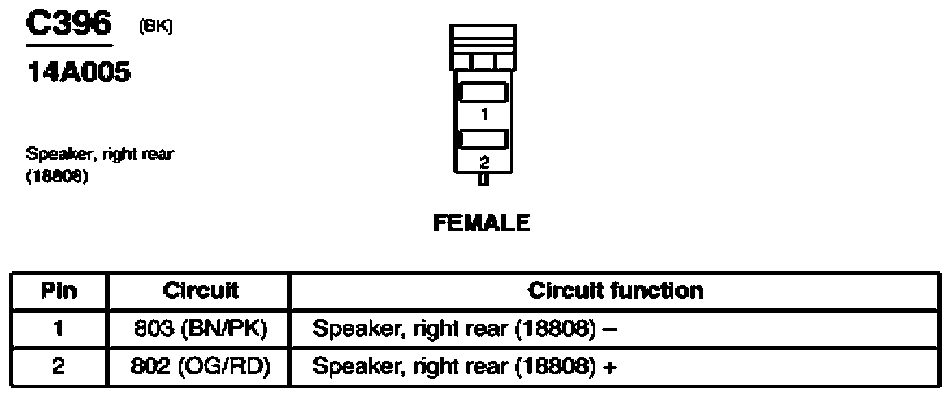

Fig 127: Speaker, Right Rear Connector End View (C396)

G07839134

Courtesy of FORD MOTOR CO.

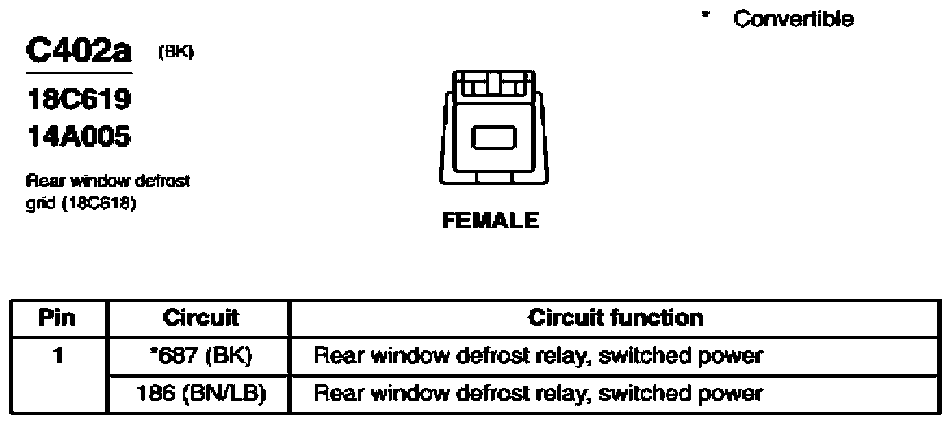

Fig 128: Rear Window Defrost Grid Connector End View (C402a)

G07839135

Courtesy of FORD MOTOR CO.

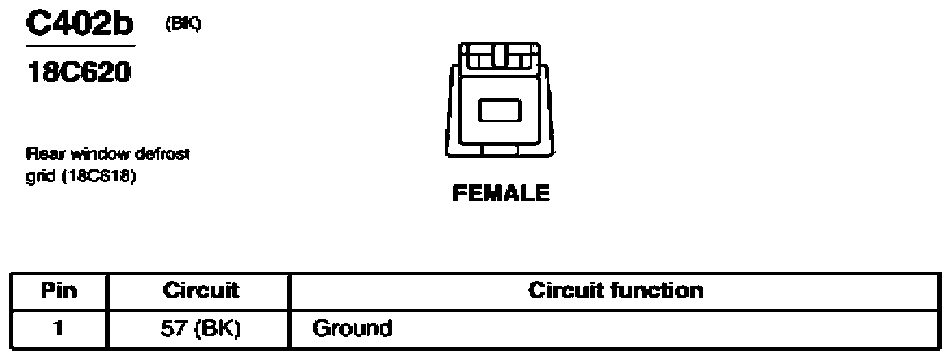

Fig 129: Rear Window Defrost Grid Connector End View (C402b)

G07839136

Courtesy of FORD MOTOR CO.

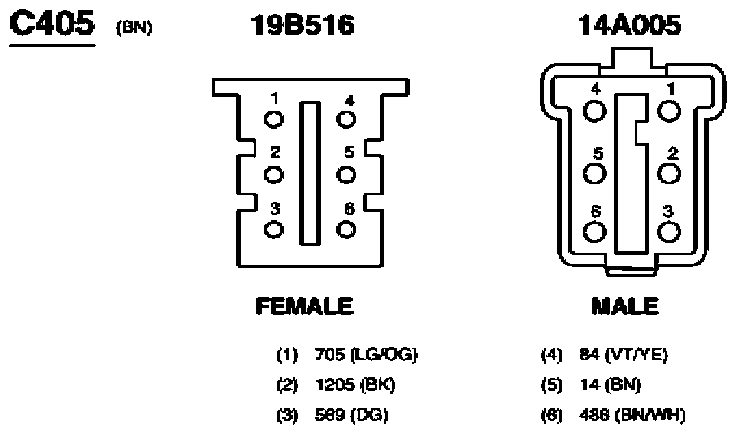

Fig 130: Inline Connector End View (C405)

G07839137

Courtesy of FORD MOTOR CO.

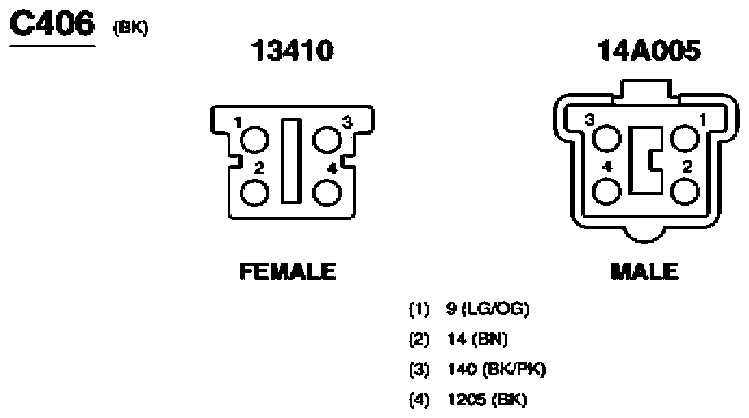

Fig 131: Inline Connector End View (C406)

G07839138

Courtesy of FORD MOTOR CO.

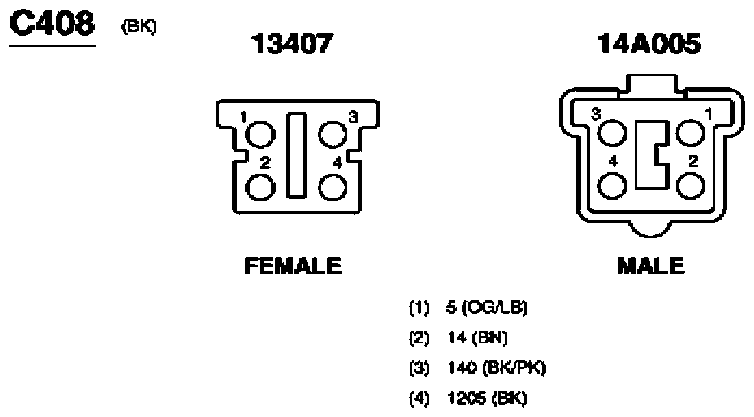

Fig 132: Inline Connector End View (C408)

G07839139

Courtesy of FORD MOTOR CO.

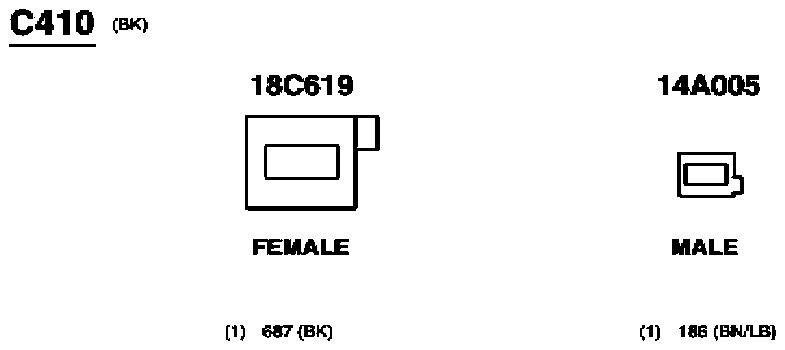

Fig 133: Inline Connector End View (C410)

G07839140

Courtesy of FORD MOTOR CO.

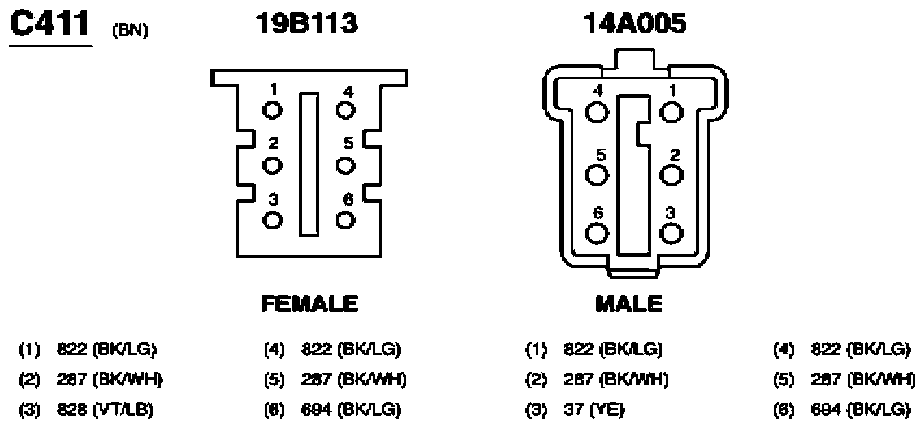

Fig 134: Inline Connector End View (C411)

G07839141

Courtesy of FORD MOTOR CO.

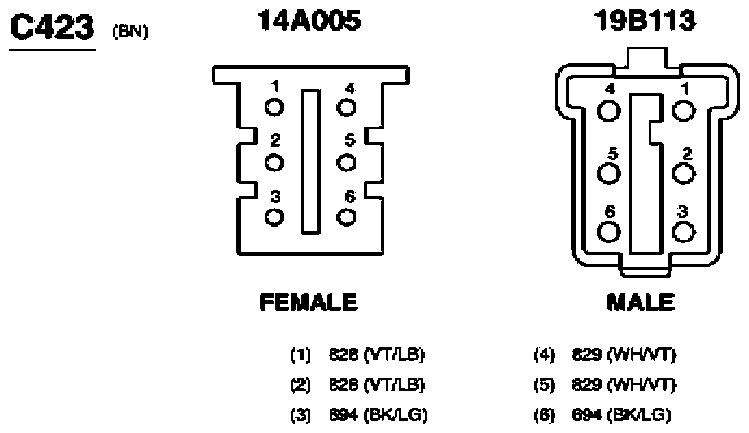

Fig 135: Inline Connector End View (C423)

G07839142

Courtesy of FORD MOTOR CO.

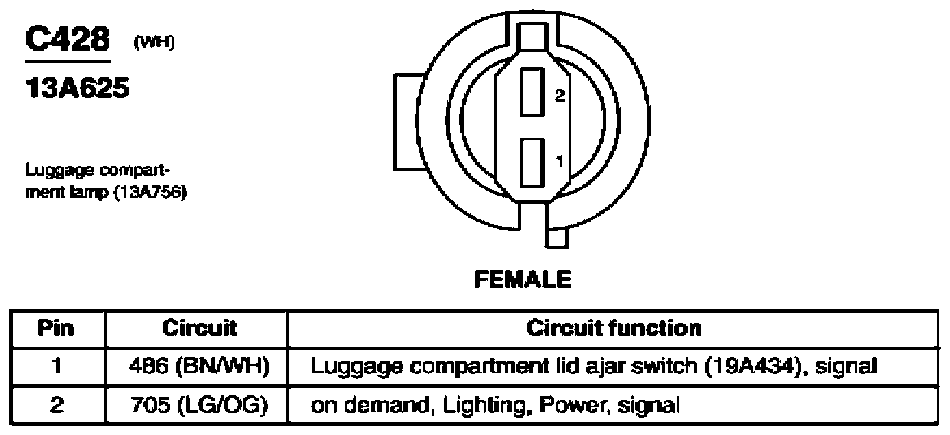

Fig 136: Luggage Compartment Lamp Connector End View (C428)

G07839143

Courtesy of FORD MOTOR CO.

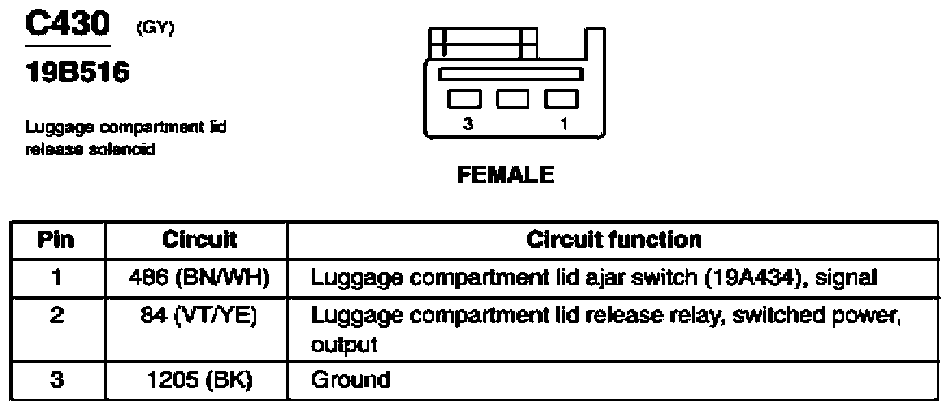

Fig 137: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07839144

Courtesy of FORD MOTOR CO.

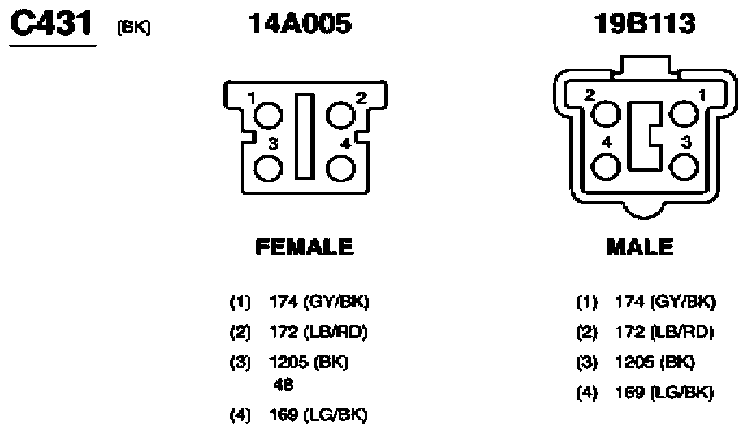

Fig 138: Inline Connector End View (C431)

G07839145

Courtesy of FORD MOTOR CO.

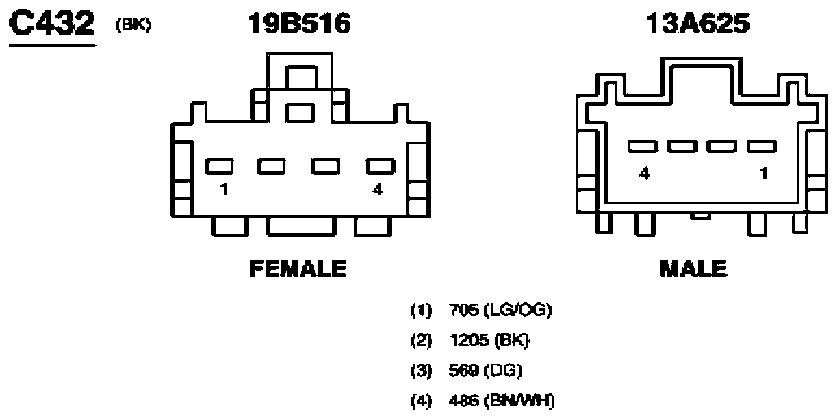

Fig 139: Inline Connector End View (C432)

G07839146

Courtesy of FORD MOTOR CO.

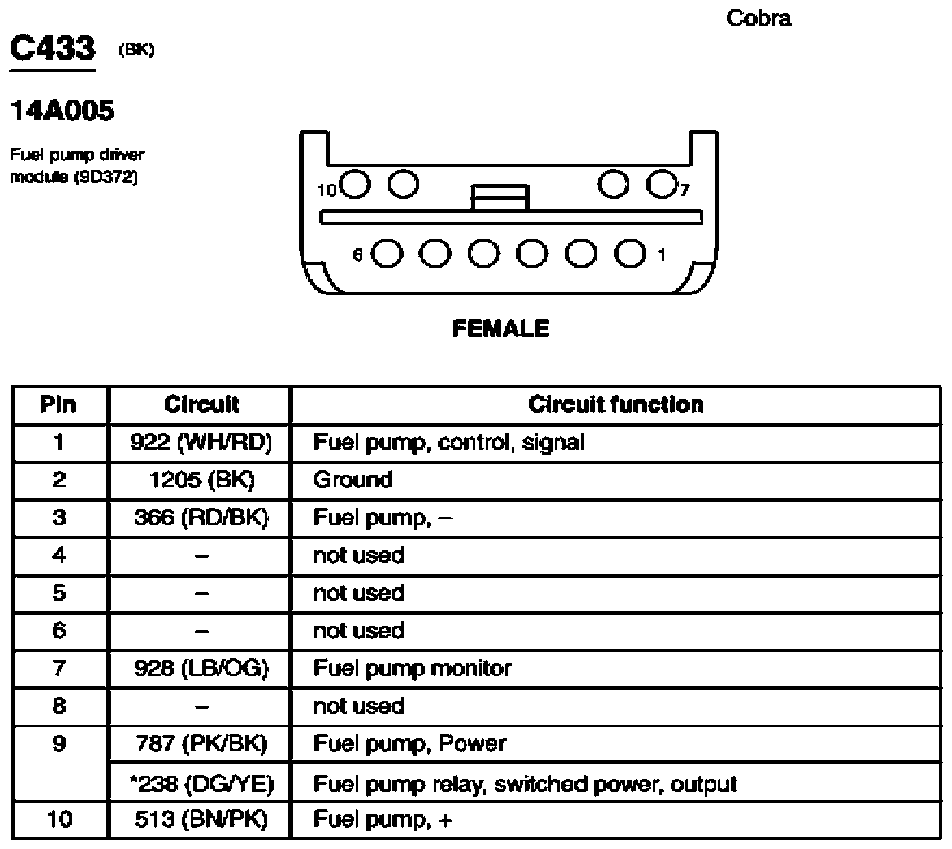

Fig 140: Fuel Pump Driver Module Connector End View (C433)

G07839147

Courtesy of FORD MOTOR CO.

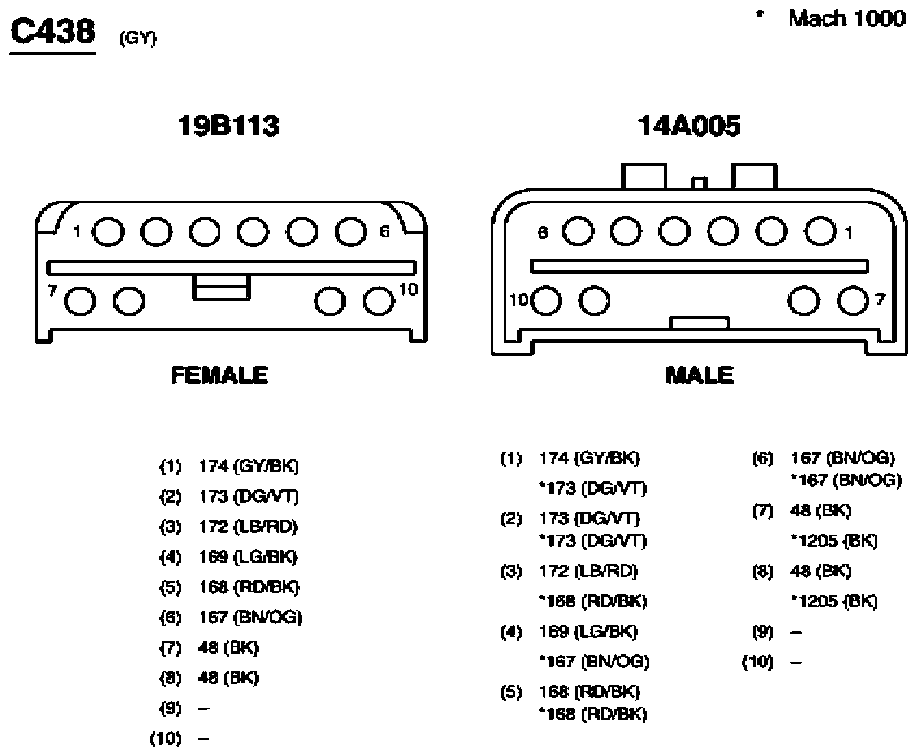

Fig 141: Inline Connector End View (C438)

G07839148

Courtesy of FORD MOTOR CO.

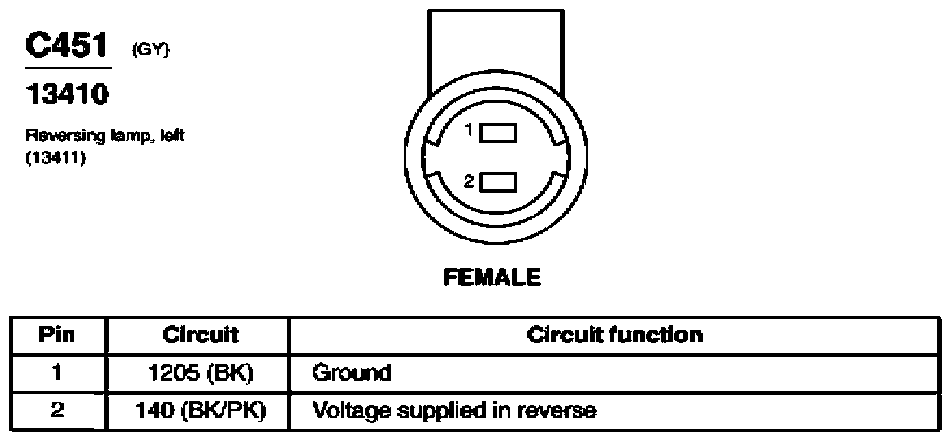

Fig 142: Reversing Lamp, Left Connector End View (C451)

G07839149

Courtesy of FORD MOTOR CO.

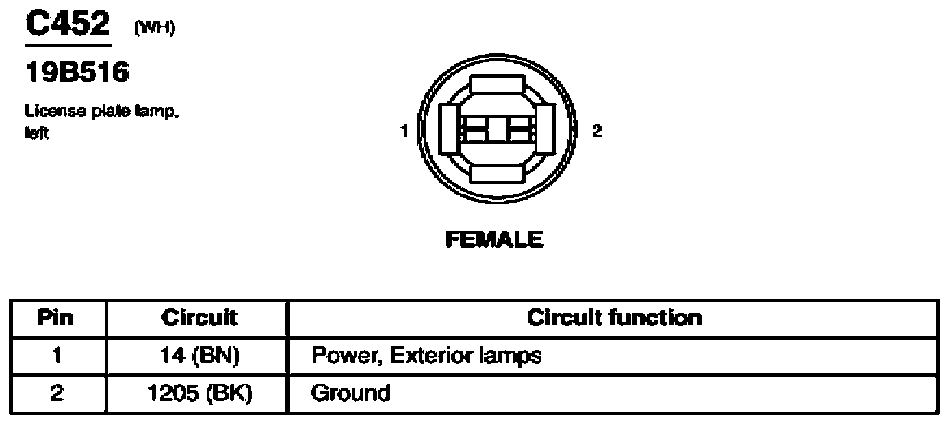

Fig 143: License Plate Lamp, Left Connector End View (C452)

G07839150

Courtesy of FORD MOTOR CO.

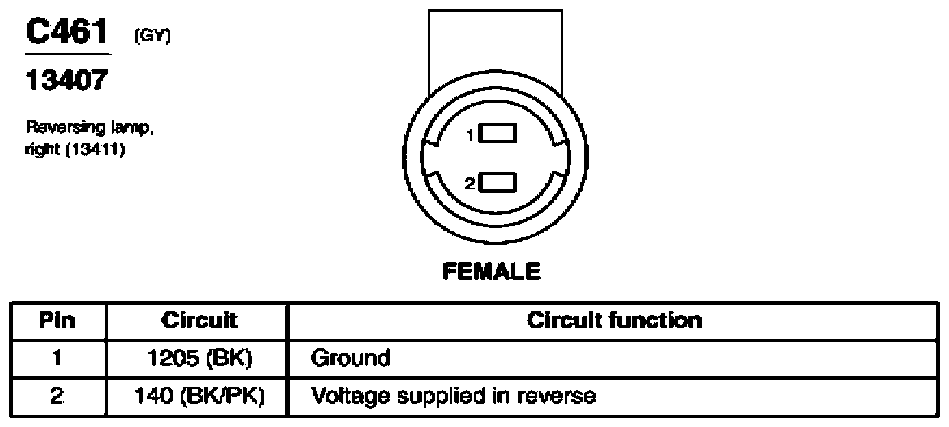

Fig 144: Reversing Lamp, Right Connector End View (C461)

G07839151

Courtesy of FORD MOTOR CO.

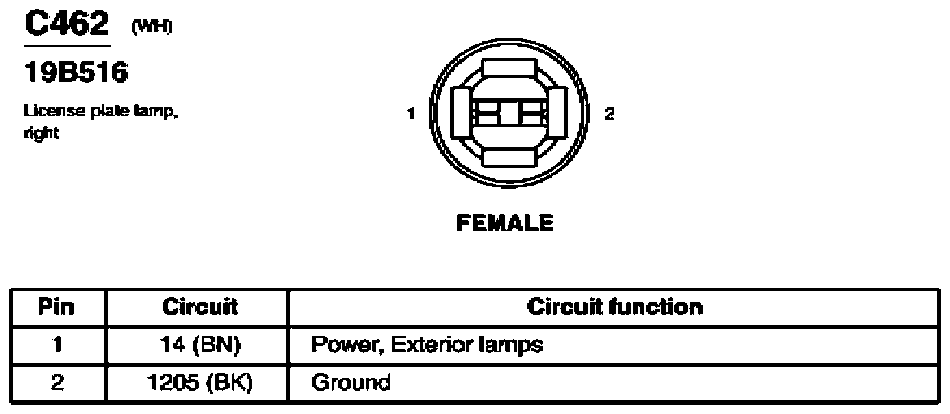

Fig 145: License Plate Lamp, Right Connector End View (C462)

G07839152

Courtesy of FORD MOTOR CO.

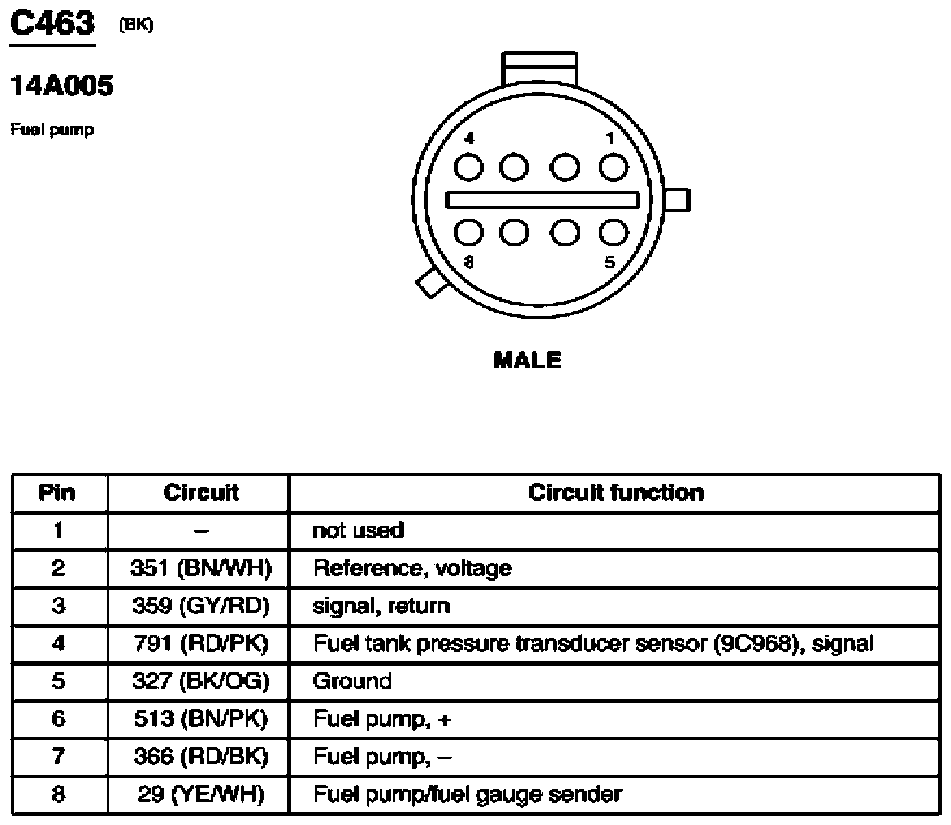

Fig 146: Fuel Pump Connector End View (C463)

G07839153

Courtesy of FORD MOTOR CO.

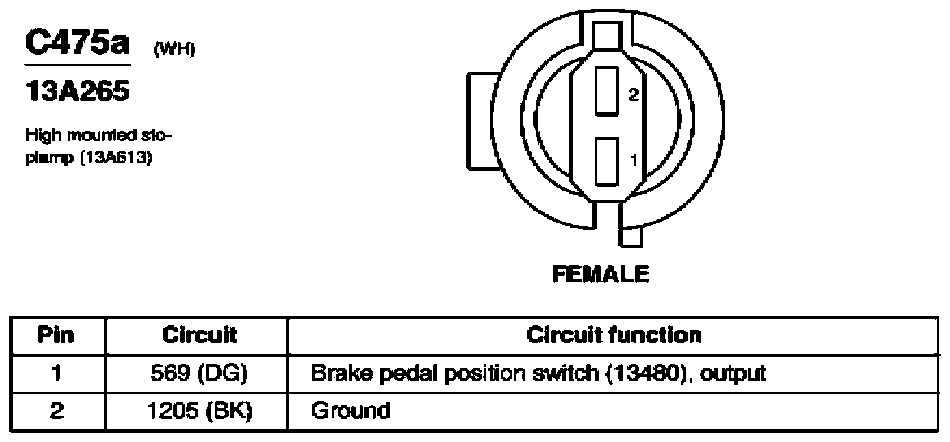

Fig 147: High Mounted Stoplamp Connector End View (C475a)

G07839154

Courtesy of FORD MOTOR CO.

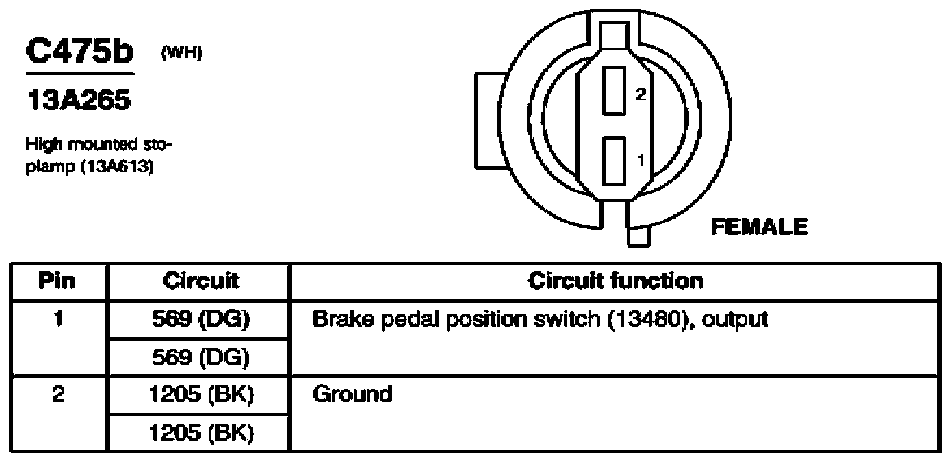

Fig 148: High Mounted Stoplamp Connector End View (C475b)

G07839155

Courtesy of FORD MOTOR CO.

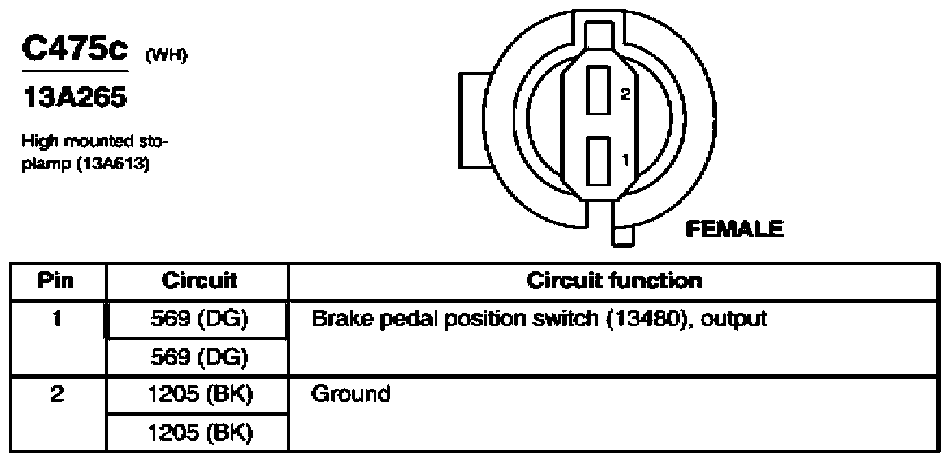

Fig 149: High Mounted Stoplamp Connector End View (C475c)

G07839156

Courtesy of FORD MOTOR CO.

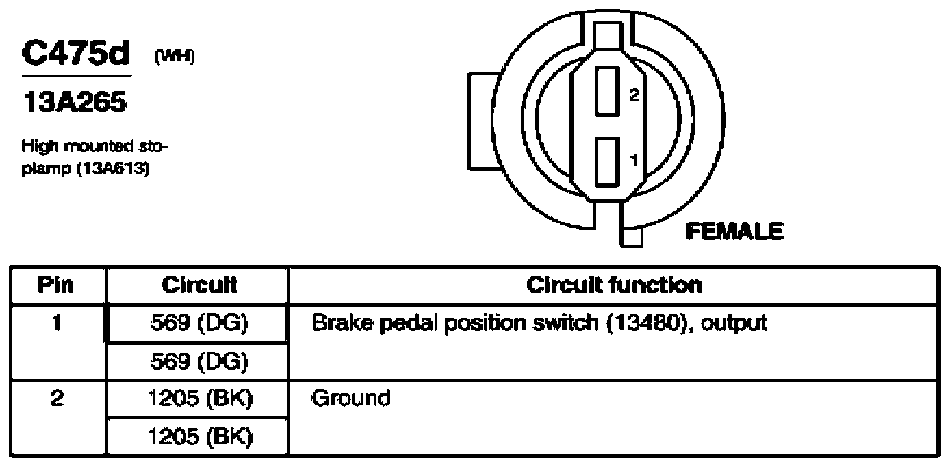

Fig 150: High Mounted Stoplamp Connector End View (C475d)

G07839157

Courtesy of FORD MOTOR CO.

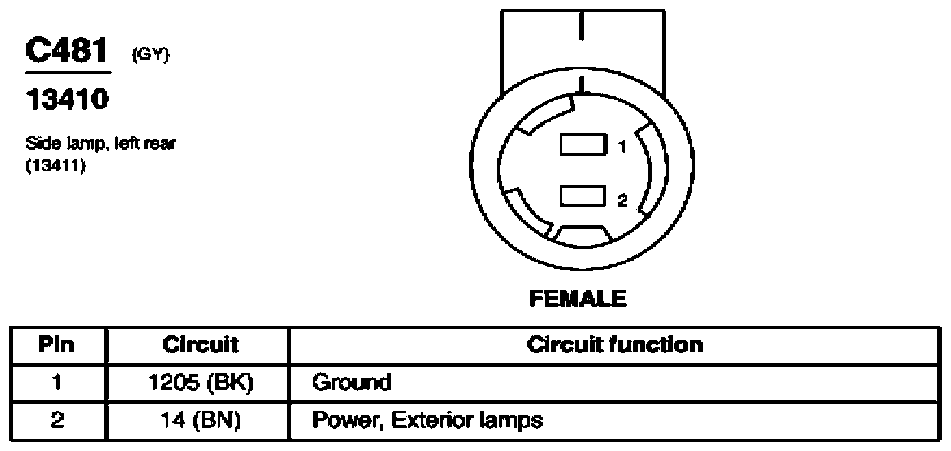

Fig 151: Side Lamp, Left Rear Connector End View (C481)

G07839158

Courtesy of FORD MOTOR CO.

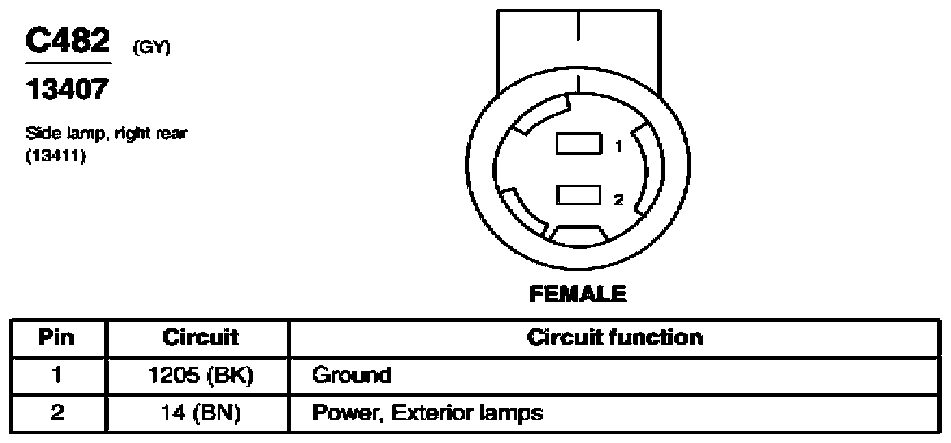

Fig 152: Side Lamp, Right Rear Connector End View (C482)

G07839159

Courtesy of FORD MOTOR CO.

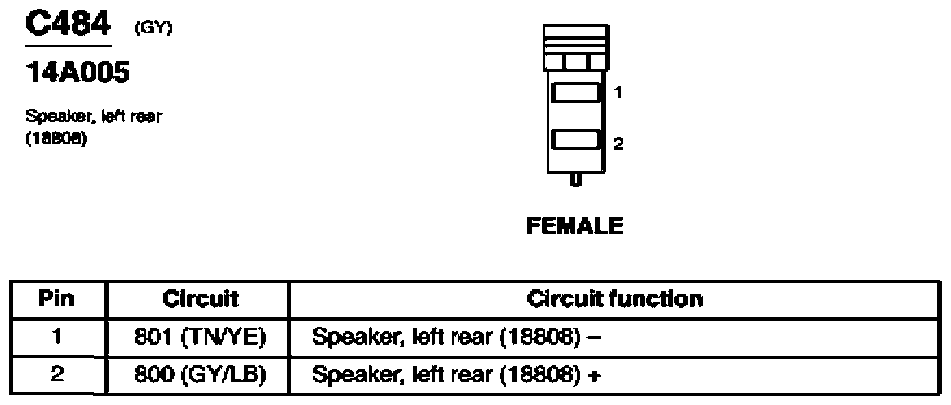

Fig 153: Speaker, Left Rear Connector End View (C484)

G07839160

Courtesy of FORD MOTOR CO.

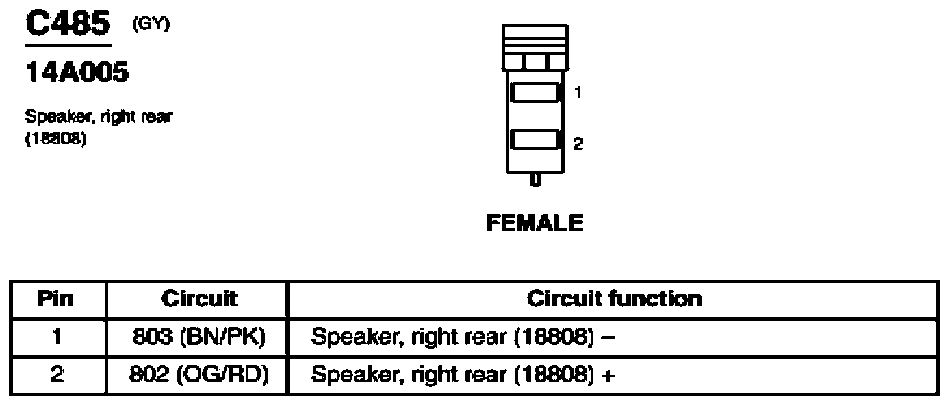

Fig 154: Speaker, Right Rear Connector End View (C485)

G07839161

Courtesy of FORD MOTOR CO.

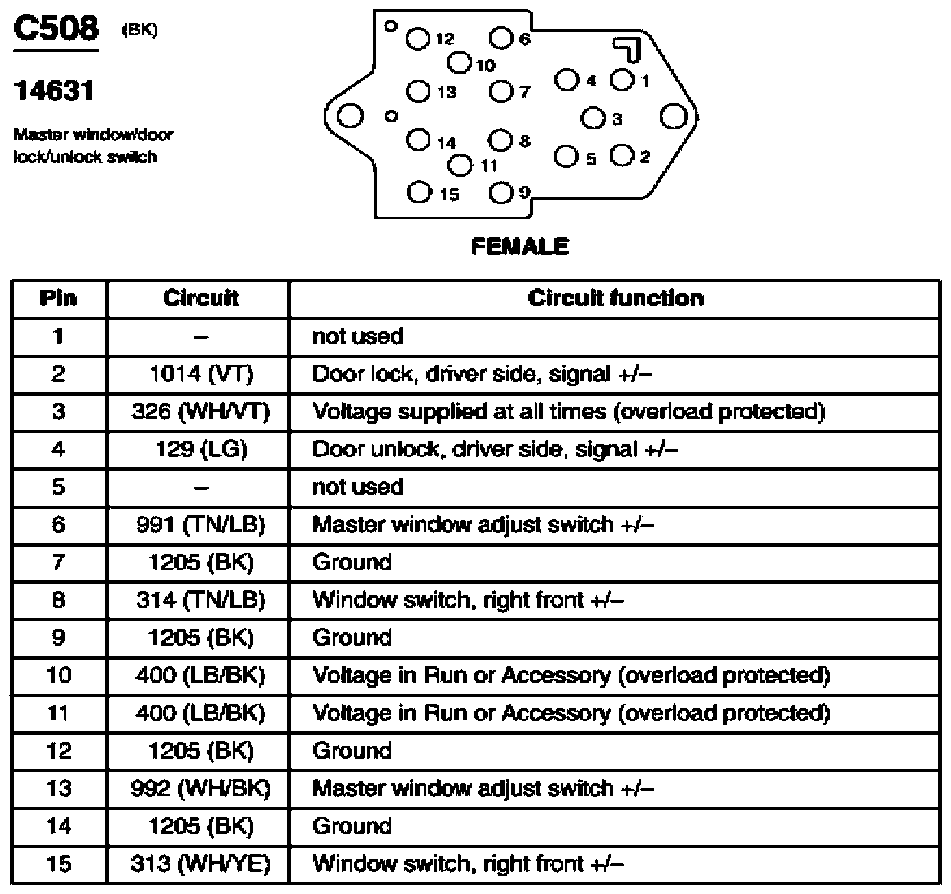

Fig 155: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G07839162

Courtesy of FORD MOTOR CO.

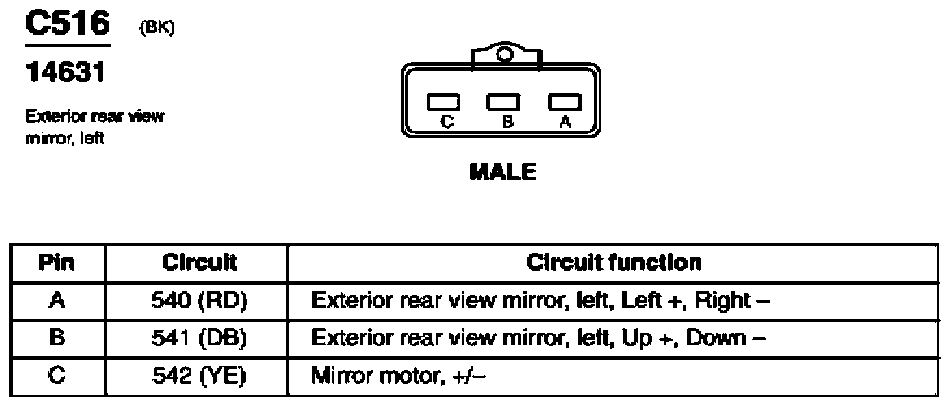

Fig 156: Exterior Rear View Mirror, Left Connector End View (C516)

G07839163

Courtesy of FORD MOTOR CO.

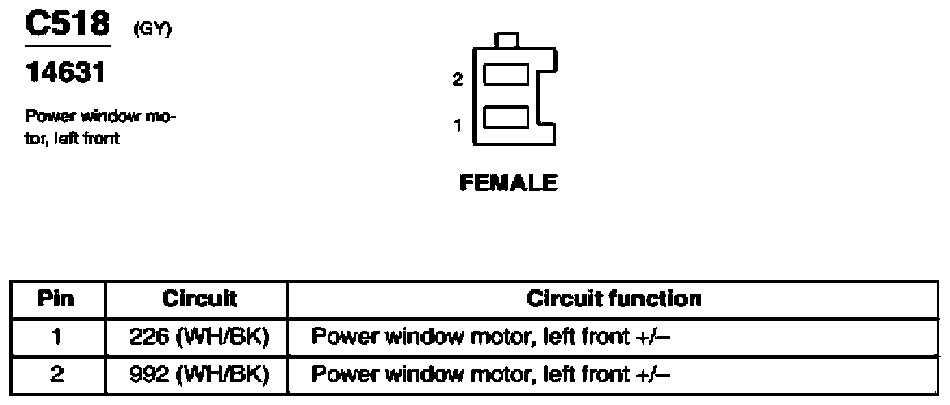

Fig 157: Power Window Motor, Left Front Connector End View (C518)

G07839164

Courtesy of FORD MOTOR CO.

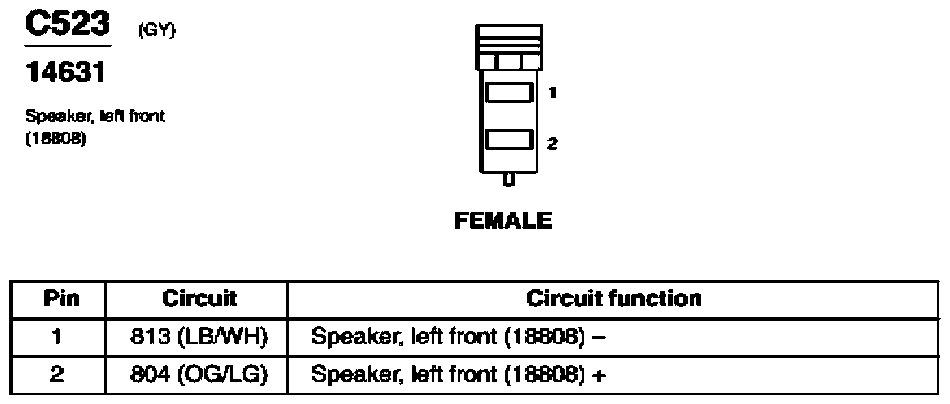

Fig 158: Speaker, Left Front Connector End View (C523)

G07839165

Courtesy of FORD MOTOR CO.

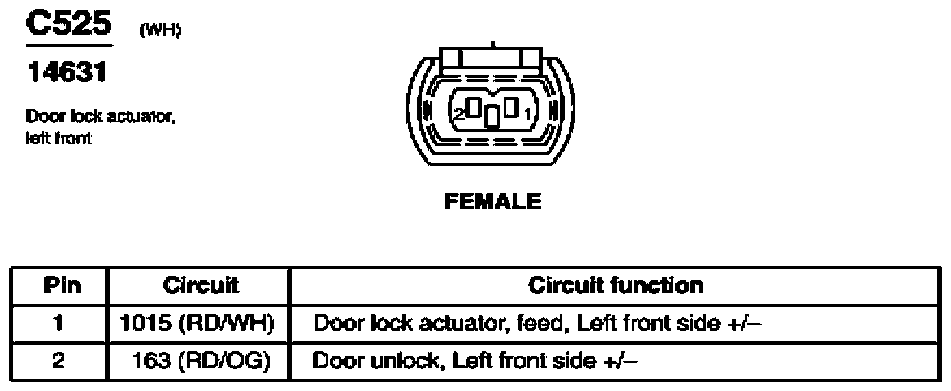

Fig 159: Door Lock Actuator, Left Front Connector End View (C525)

G07839166

Courtesy of FORD MOTOR CO.

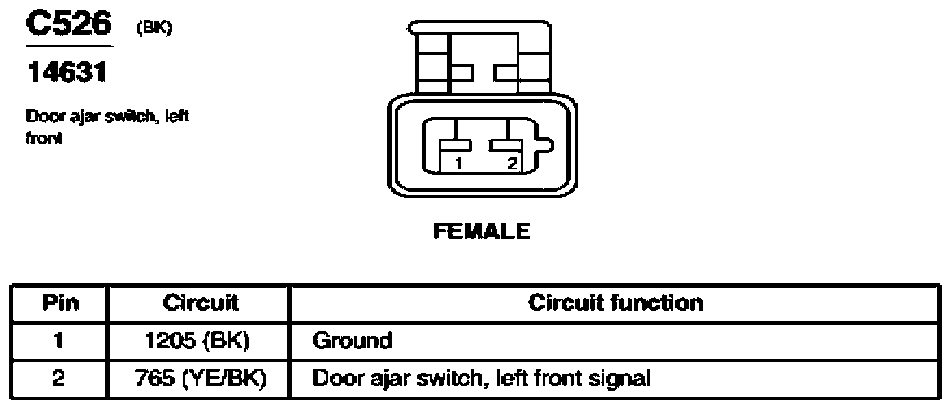

Fig 160: Door Ajar Switch, Left Front Connector End View (C526)

G07839167

Courtesy of FORD MOTOR CO.

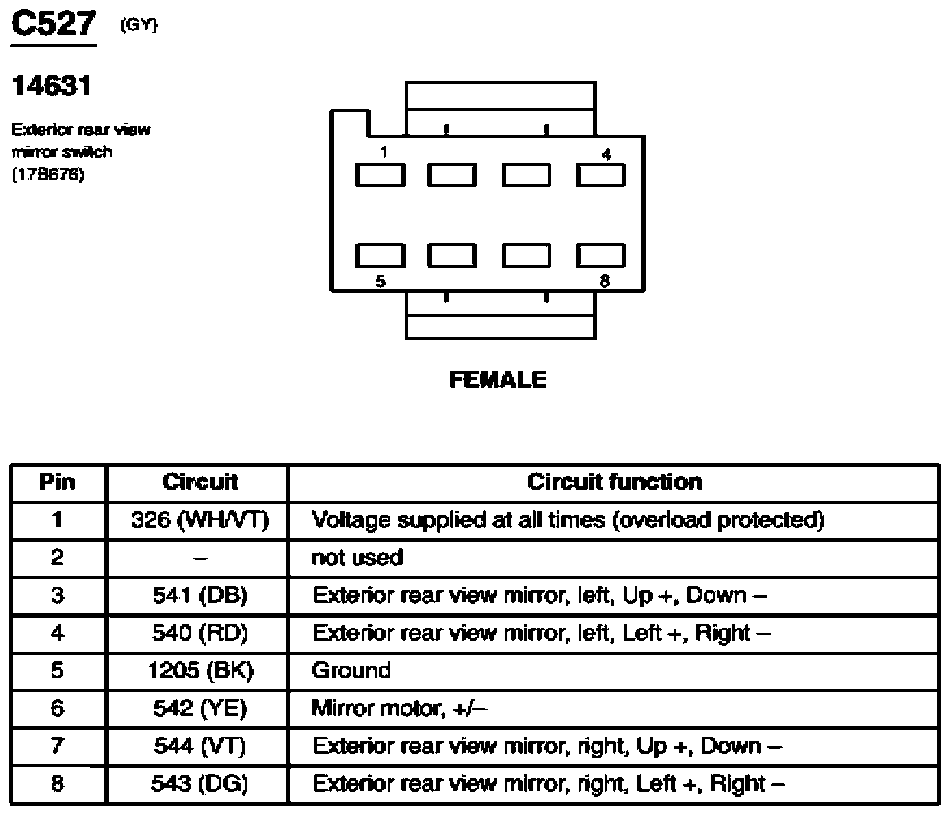

Fig 161: Exterior Rear View Mirror Switch Connector End View (C527)

G07839168

Courtesy of FORD MOTOR CO.

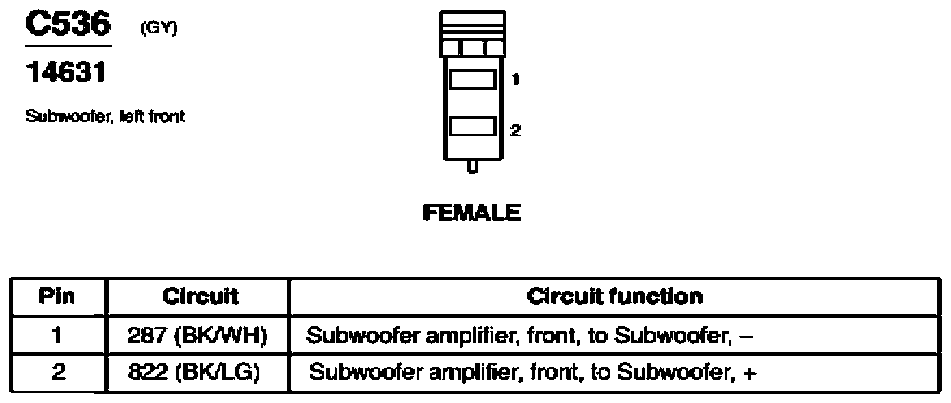

Fig 162: Subwoofer, Left Front Connector End View (C536)

G07839169

Courtesy of FORD MOTOR CO.

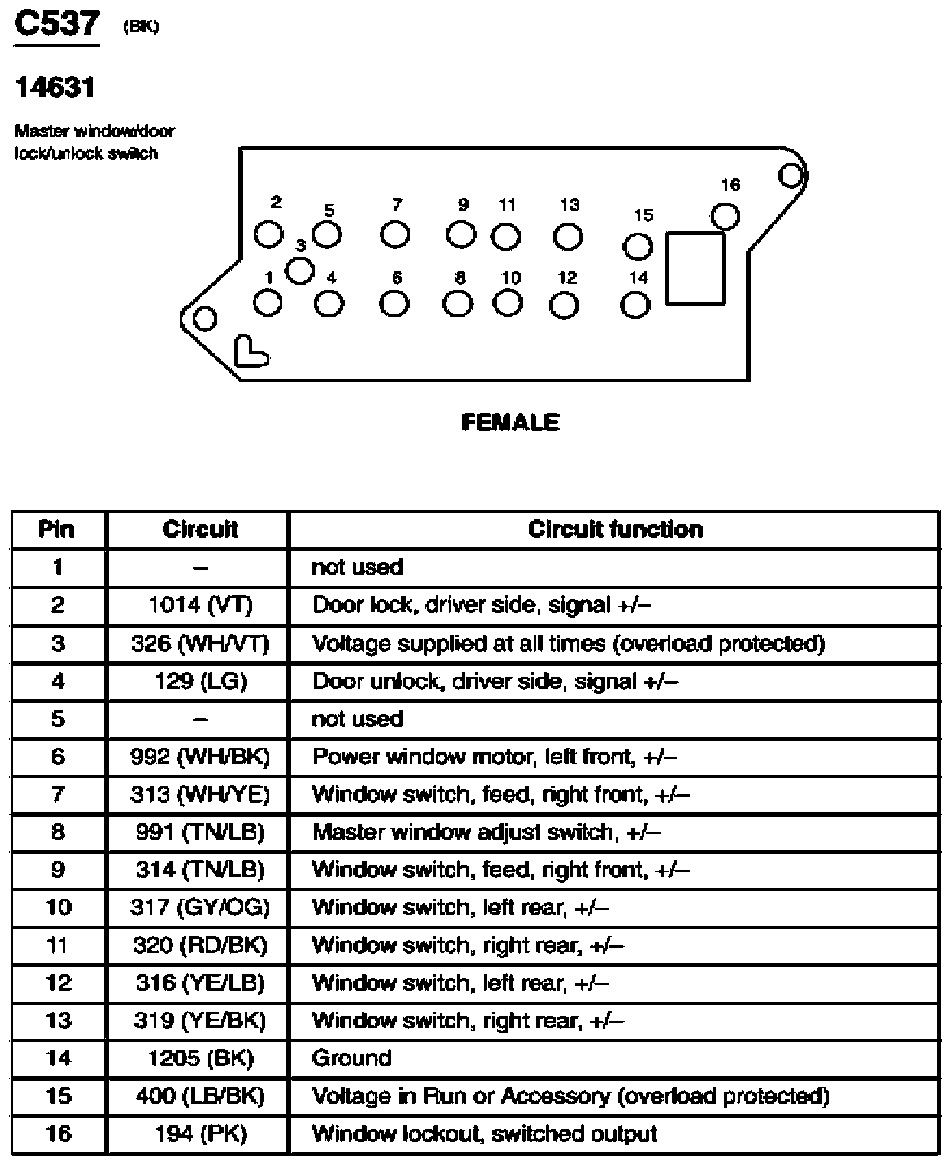

Fig 163: Master Window/Door Lock/Unlock Switch Connector End View (C537)

G07839170

Courtesy of FORD MOTOR CO.

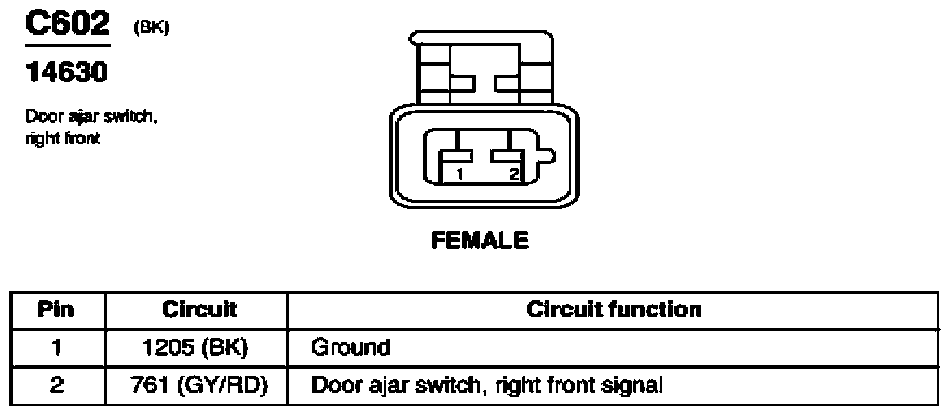

Fig 164: Door Ajar Switch, Right Front Connector End View (C602)

G07839171

Courtesy of FORD MOTOR CO.

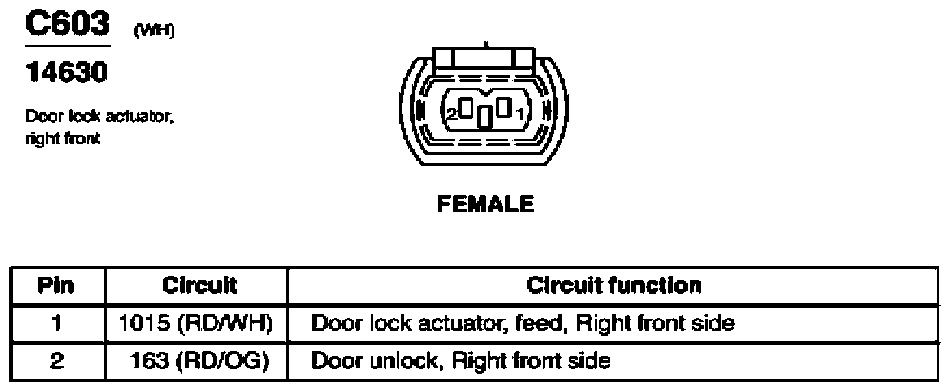

Fig 165: Door Lock Actuator, Right Front Connector End View (C603)

G07839172

Courtesy of FORD MOTOR CO.

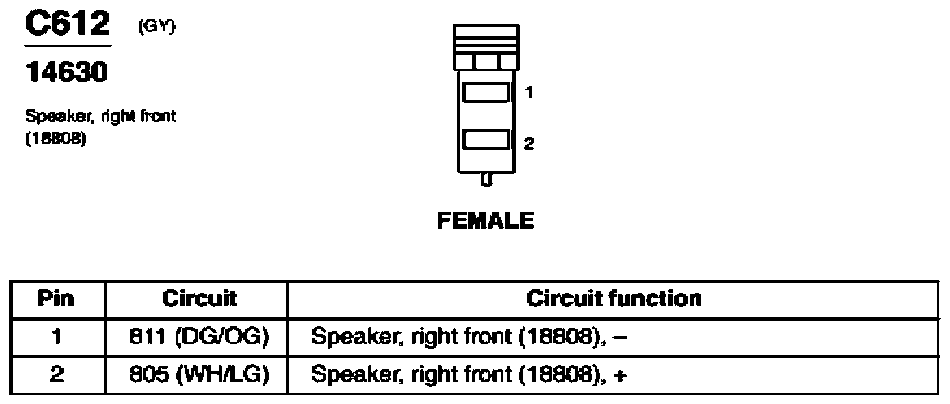

Fig 166: Speaker, Right Front Connector End View (C612)

G07839173

Courtesy of FORD MOTOR CO.

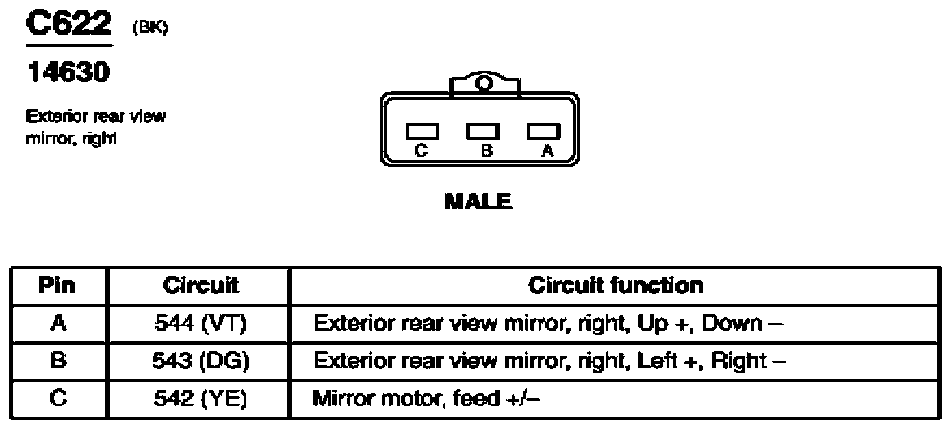

Fig 167: Exterior Rear View Mirror, Right Connector End View (C622)

G07839174

Courtesy of FORD MOTOR CO.

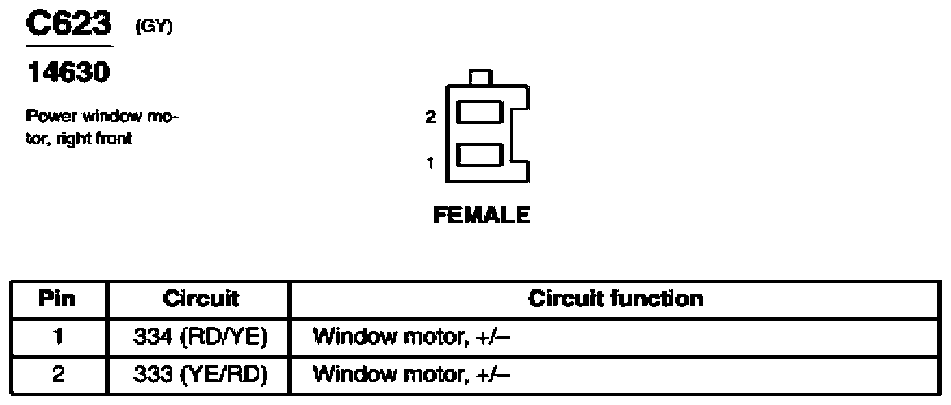

Fig 168: Power Window Motor, Right Front Connector End View (C623)

G07839175

Courtesy of FORD MOTOR CO.

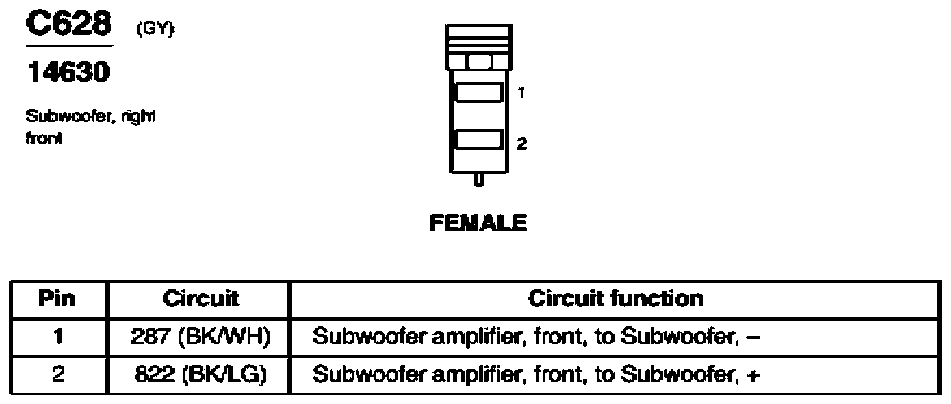

Fig 169: Subwoofer, Right Front Connector End View (C628)

G07839176

Courtesy of FORD MOTOR CO.

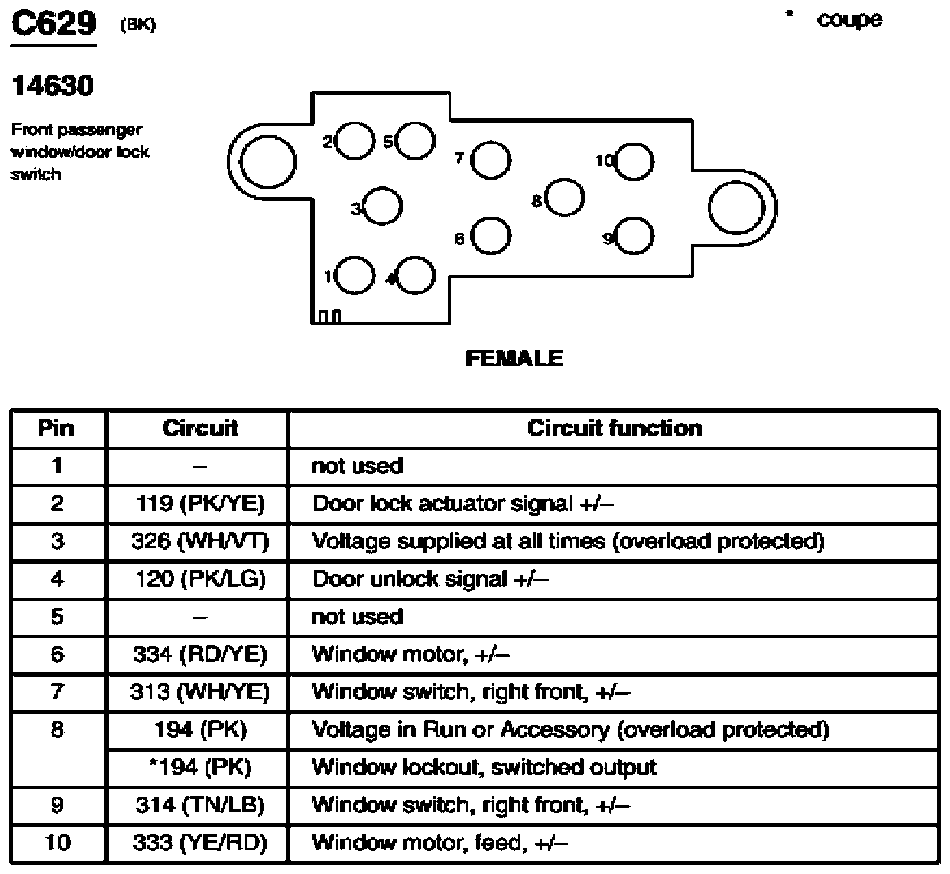

Fig 170: Front Passenger Window/Door Lock Switch Connector End View (C629)

G07839177

Courtesy of FORD MOTOR CO.

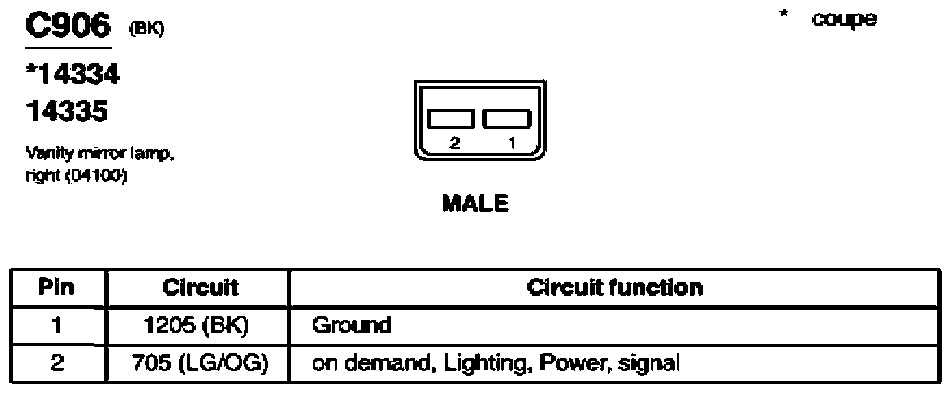

Fig 171: Vanity Mirror Lamp, Right Connector End View (C906)

G07839178

Courtesy of FORD MOTOR CO.

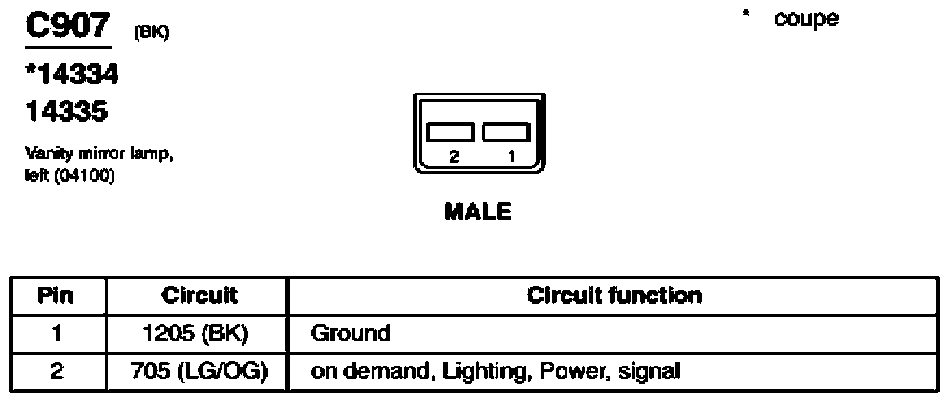

Fig 172: Vanity Mirror Lamp, Left Connector End View (C907)

G07839179

Courtesy of FORD MOTOR CO.

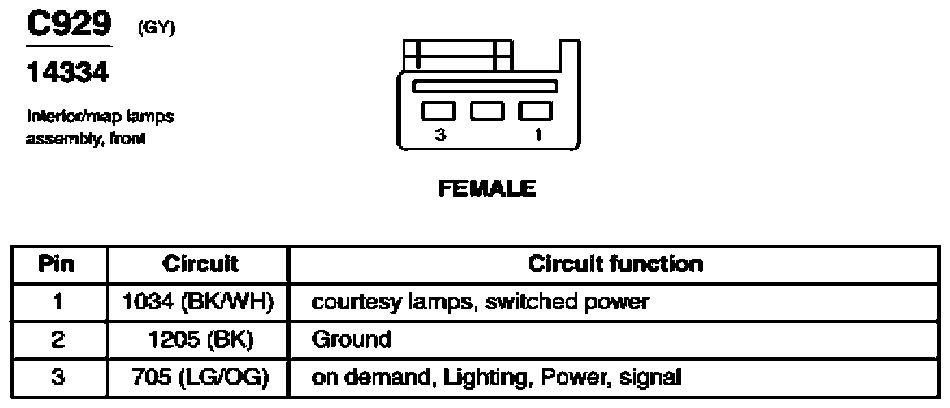

Fig 173: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07839180

Courtesy of FORD MOTOR CO.

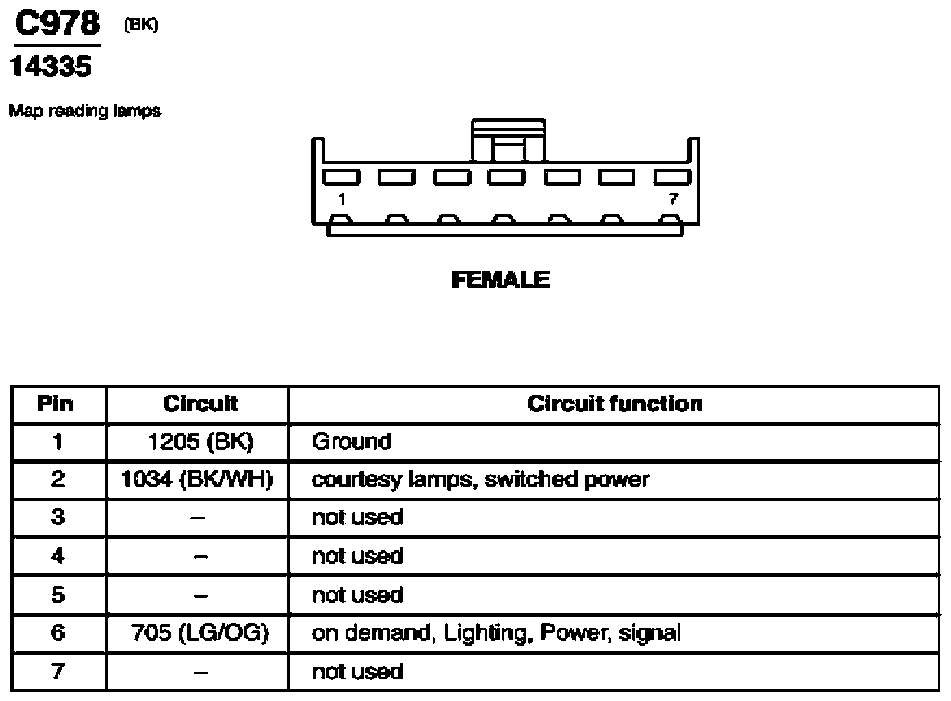

Fig 174: Map Reading Lamps Connector End View (C978)

G07839181

Courtesy of FORD MOTOR CO.

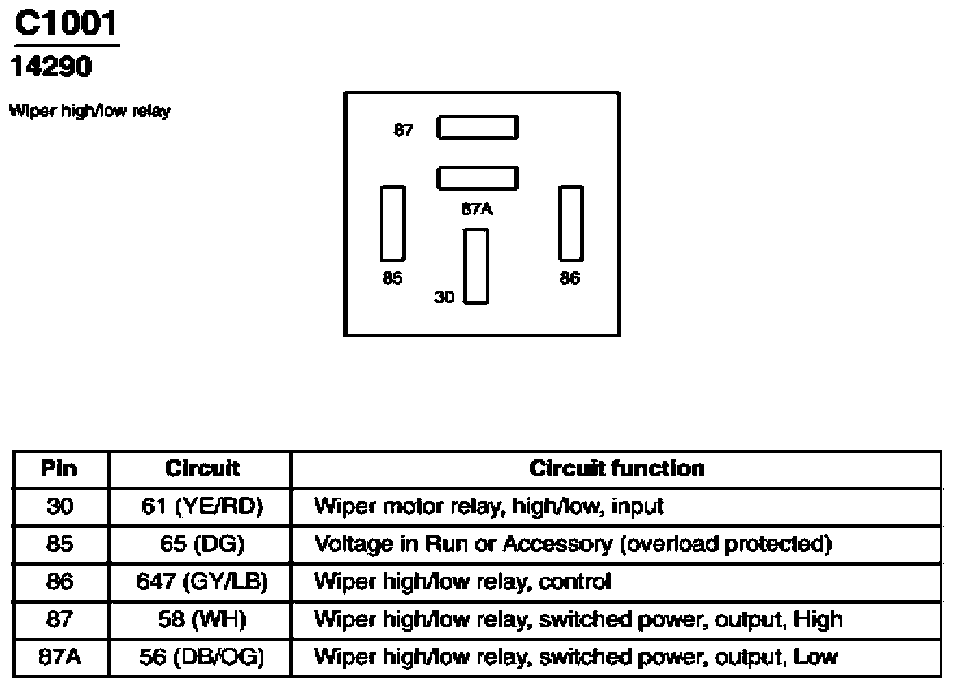

Fig 175: Wiper High/Low Relay Connector End View (C1001)

G07839182

Courtesy of FORD MOTOR CO.

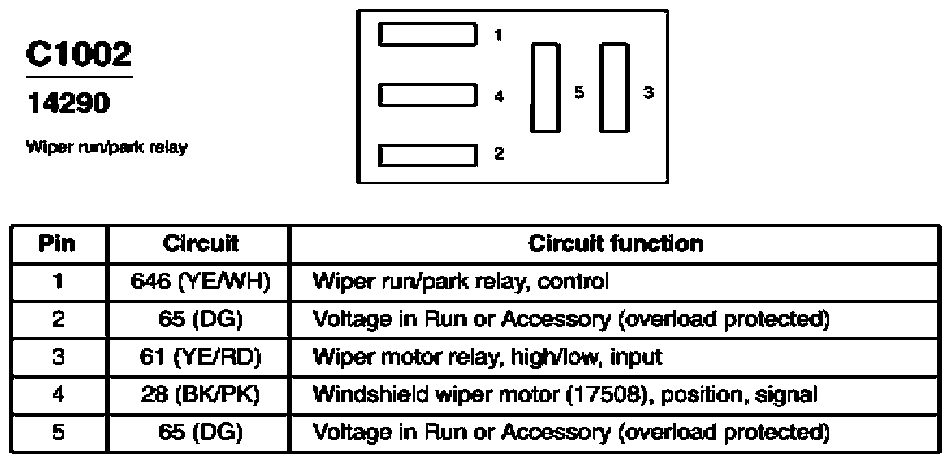

Fig 176: Wiper Run/Park Relay Connector End View (C1002)

G07839183

Courtesy of FORD MOTOR CO.

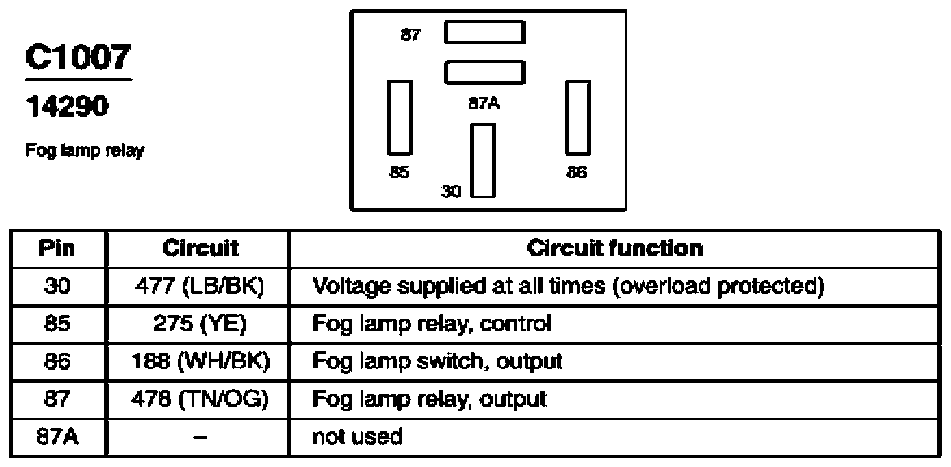

Fig 177: Fog Lamp Relay Connector End View (C1007)

G07839184

Courtesy of FORD MOTOR CO.

Fig 178: Inline Connector End View (C1010)

G07839185

Courtesy of FORD MOTOR CO.

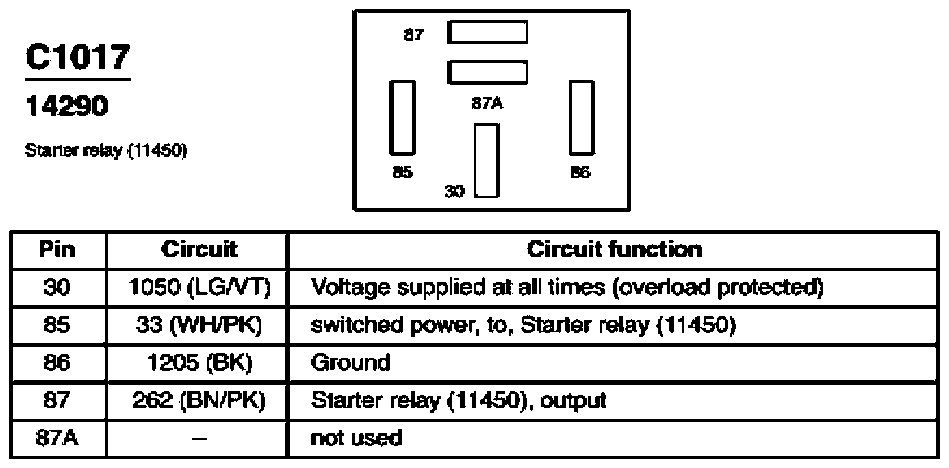

Fig 179: Starter Relay Connector End View (C1017)

G07839186

Courtesy of FORD MOTOR CO.

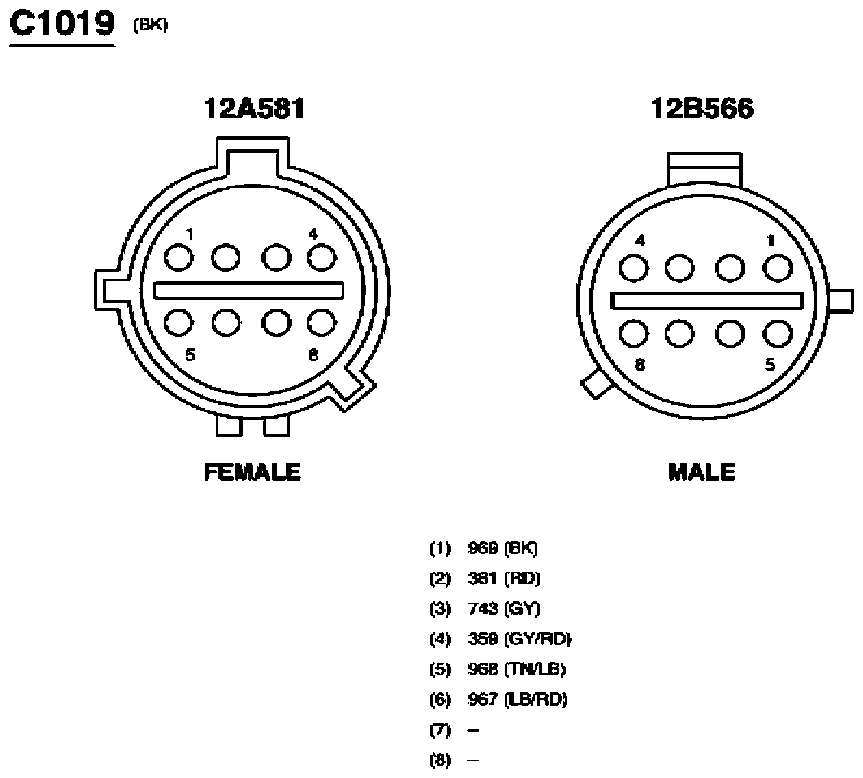

Fig 180: Inline Connector End View (C1019)

G07839187

Courtesy of FORD MOTOR CO.

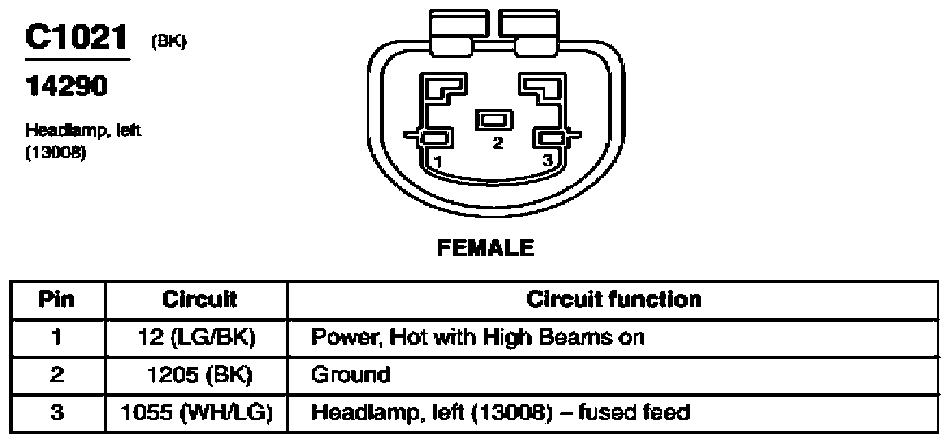

Fig 181: Headlamp, Left Connector End View (C1021)

G07839188

Courtesy of FORD MOTOR CO.

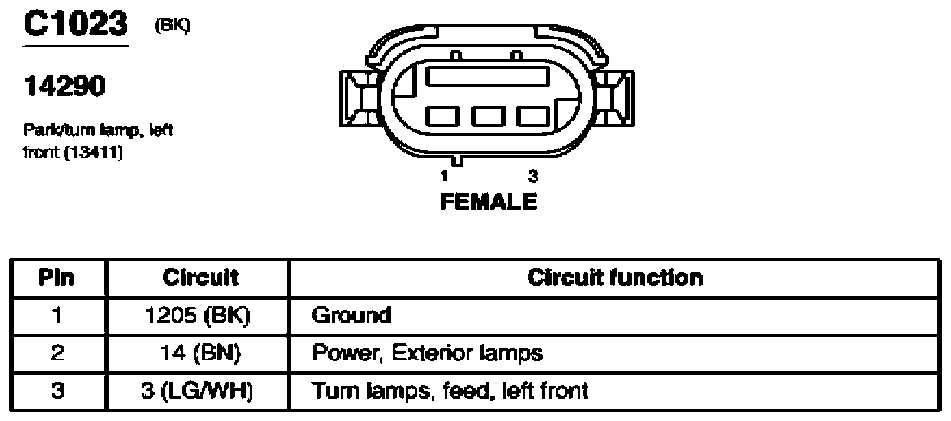

Fig 182: Park/Turn Lamp, Left Front Connector End View (C1023)

G07839189

Courtesy of FORD MOTOR CO.

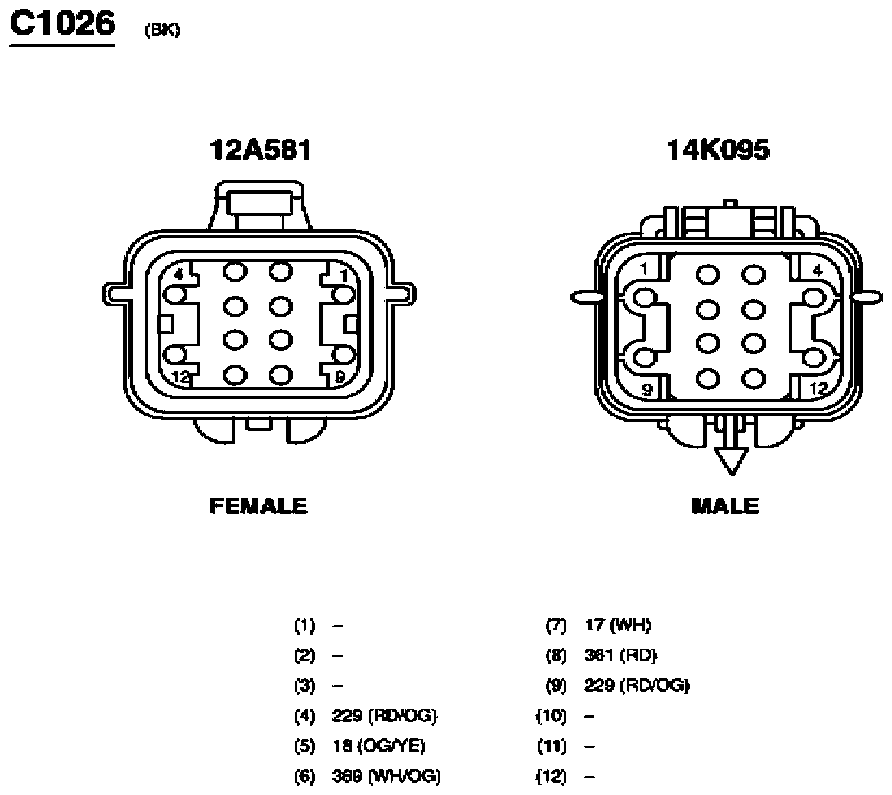

Fig 183: Inline Connector End View (C1026)

G07839190

Courtesy of FORD MOTOR CO.

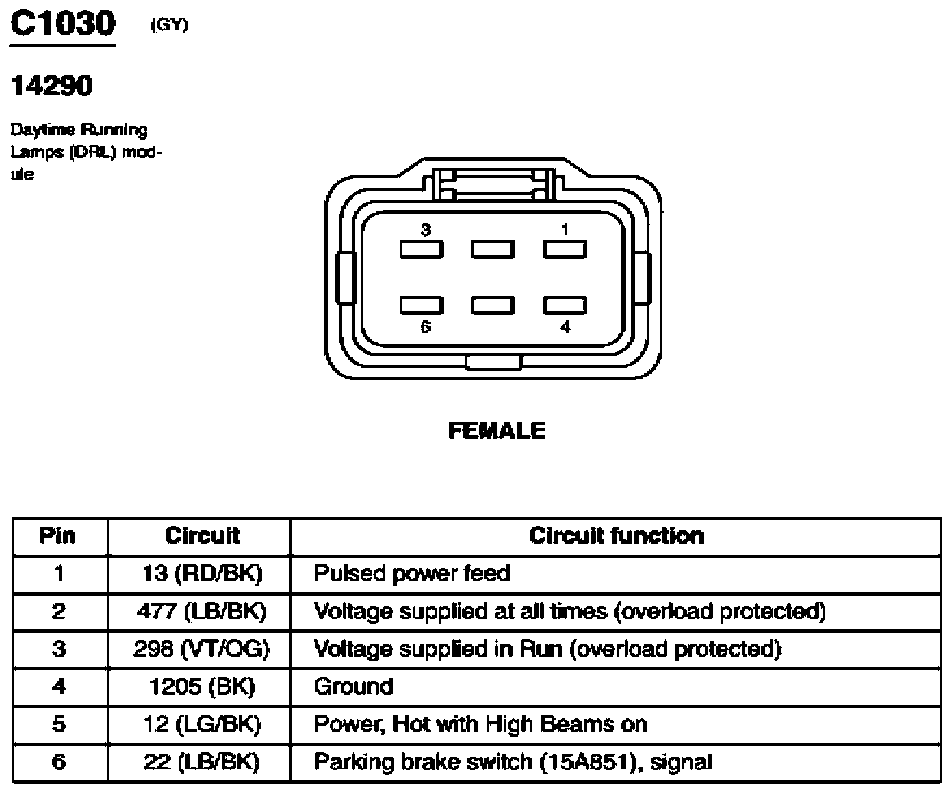

Fig 184: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07839191

Courtesy of FORD MOTOR CO.

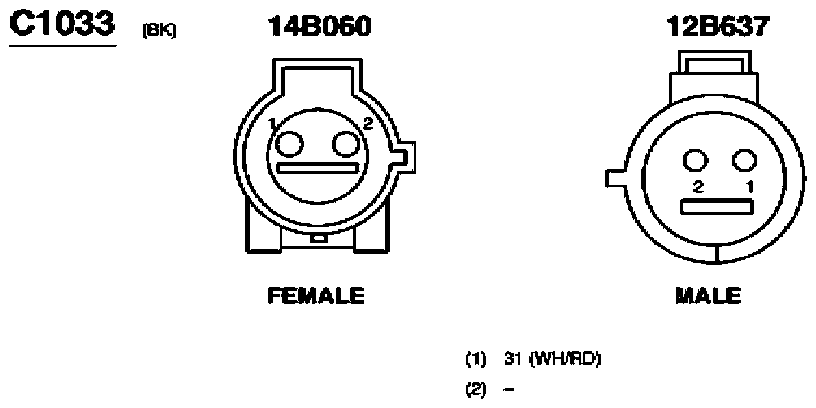

Fig 185: Inline Connector End View (C1033)

G07839192

Courtesy of FORD MOTOR CO.

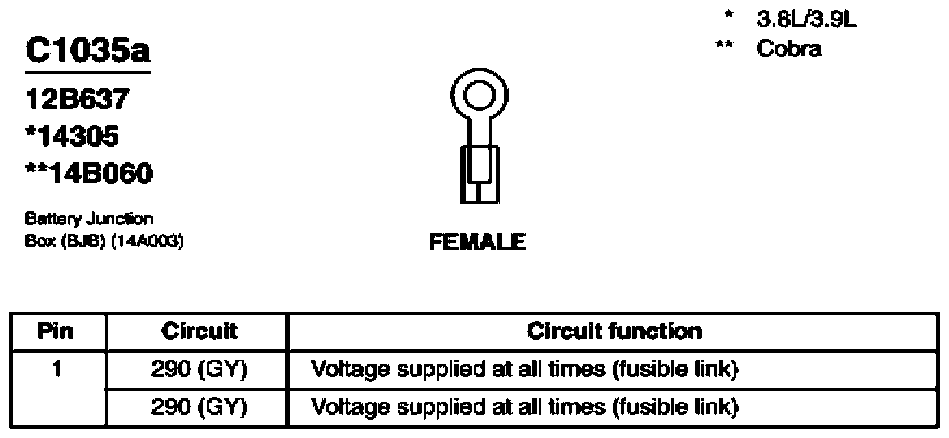

Fig 186: Battery Junction Box (BJB) Connector End View (C1035a)

G07839193

Courtesy of FORD MOTOR CO.

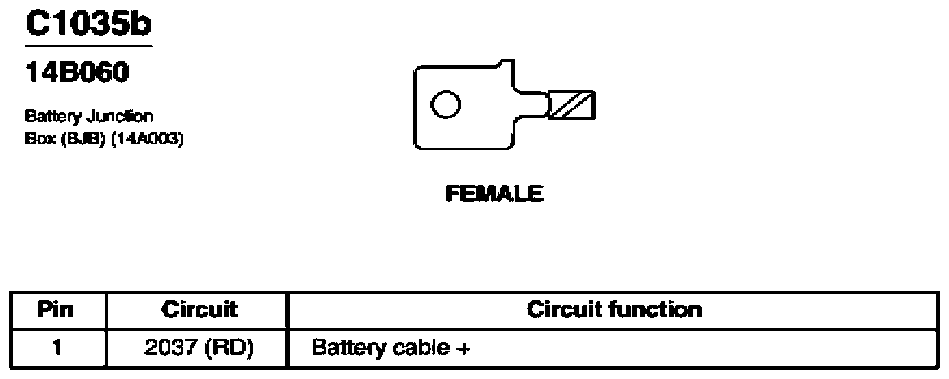

Fig 187: Battery Junction Box (BJB) Connector End View (C1035b)

G07839194

Courtesy of FORD MOTOR CO.

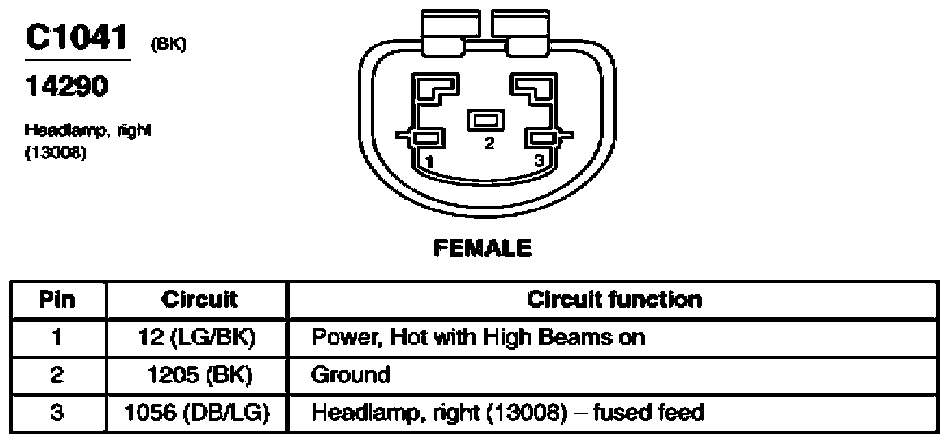

Fig 188: Headlamp, Right Connector End View (C1041)

G07839195

Courtesy of FORD MOTOR CO.

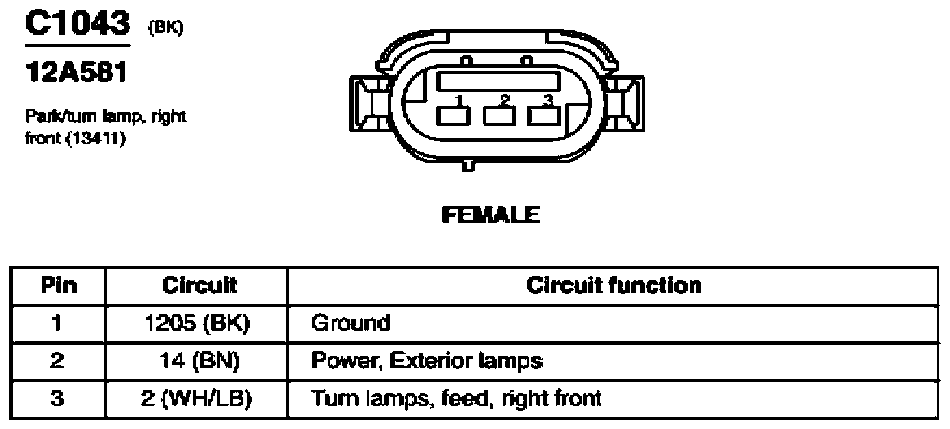

Fig 189: Park/Turn Lamp, Right Front Connector End View (C1043)

G07839196

Courtesy of FORD MOTOR CO.

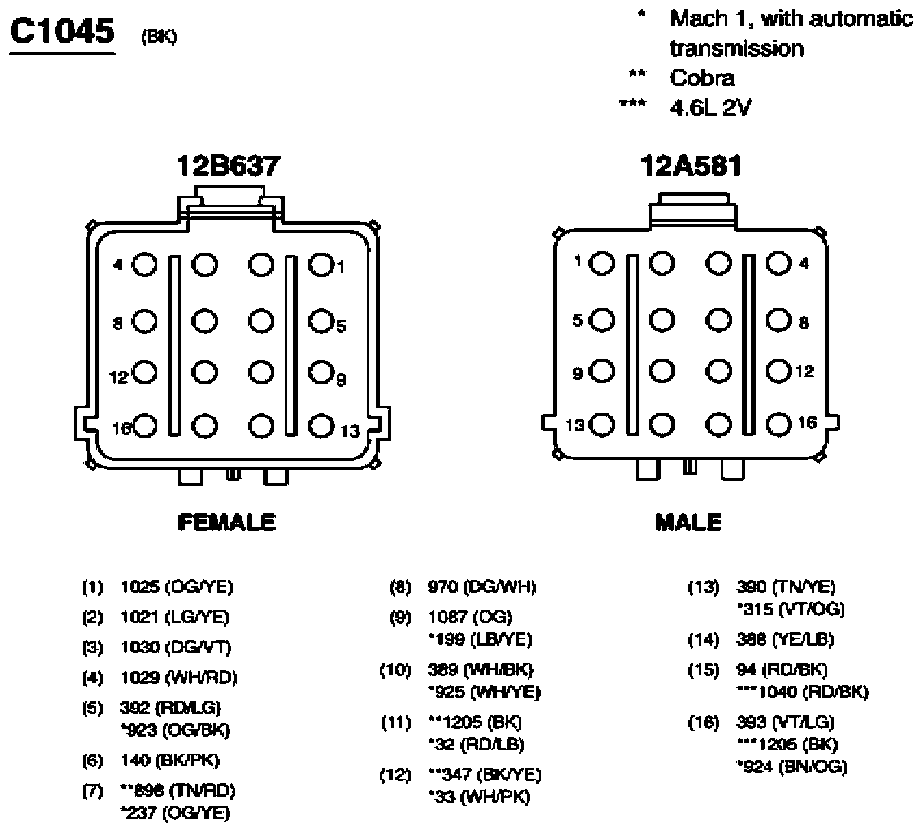

Fig 190: Inline Connector End View (C1045)

G07839197

Courtesy of FORD MOTOR CO.

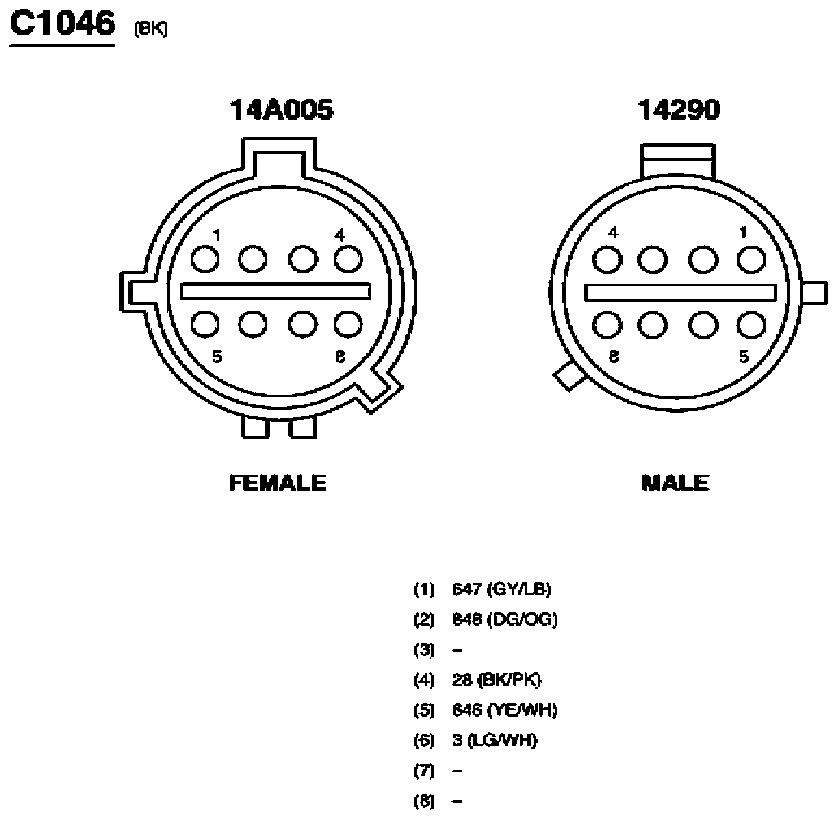

Fig 191: Inline Connector End View (C1046)

G07839198

Courtesy of FORD MOTOR CO.

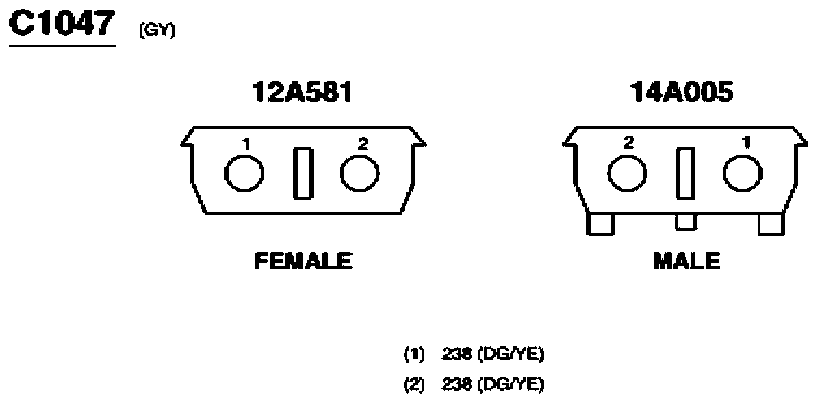

Fig 192: Inline Connector End View (C1047)

G07839199

Courtesy of FORD MOTOR CO.

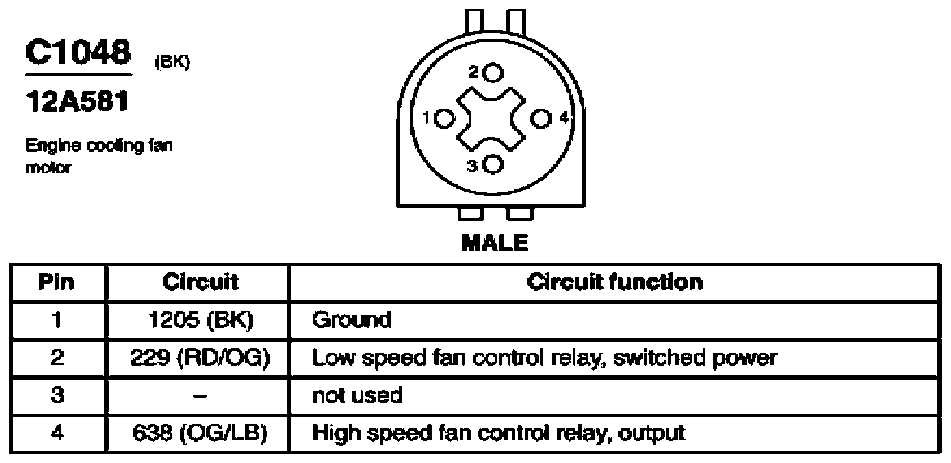

Fig 193: Engine Cooling Fan Motor Connector End View (C1048)

G07839200

Courtesy of FORD MOTOR CO.

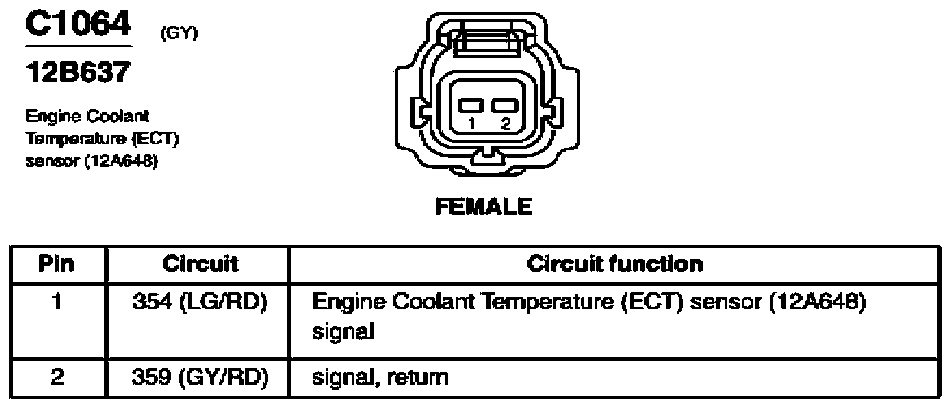

Fig 194: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07839201

Courtesy of FORD MOTOR CO.

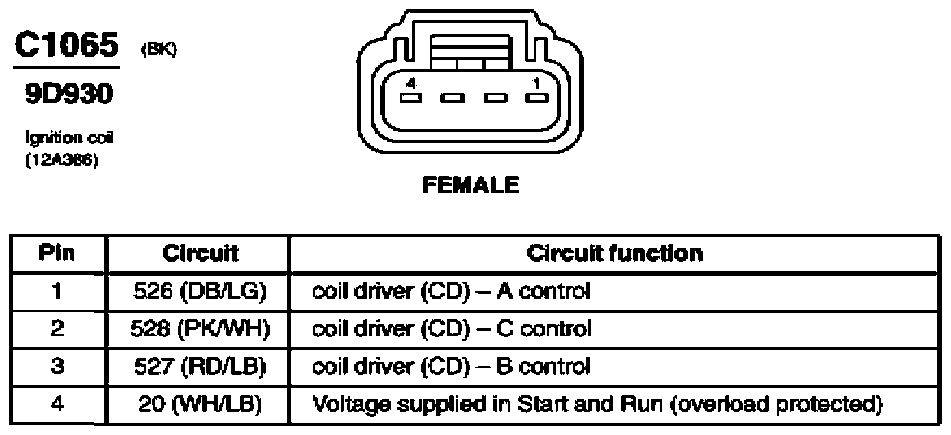

Fig 195: Ignition Coil Connector End View (C1065)

G07839202

Courtesy of FORD MOTOR CO.

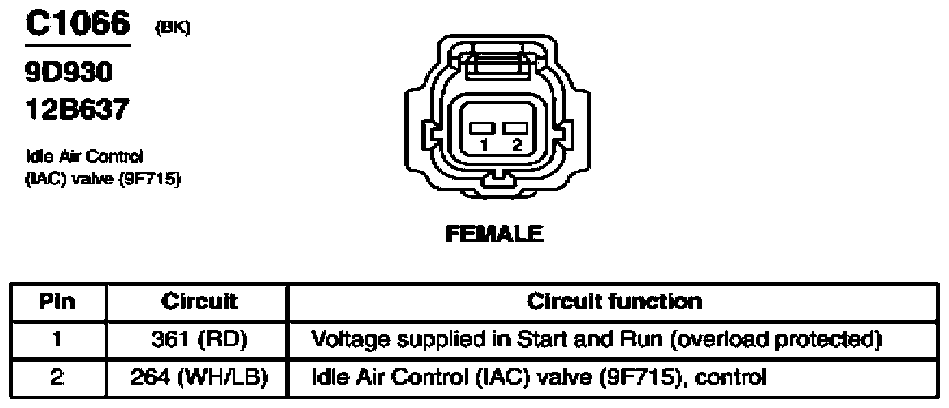

Fig 196: Idle Air Control (IAC) Valve Connector End View (C1066)

G07839203

Courtesy of FORD MOTOR CO.

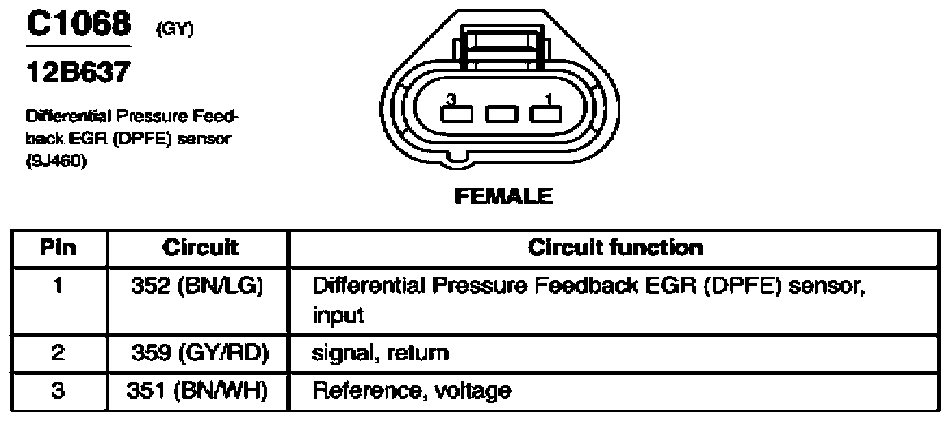

Fig 197: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07839204

Courtesy of FORD MOTOR CO.

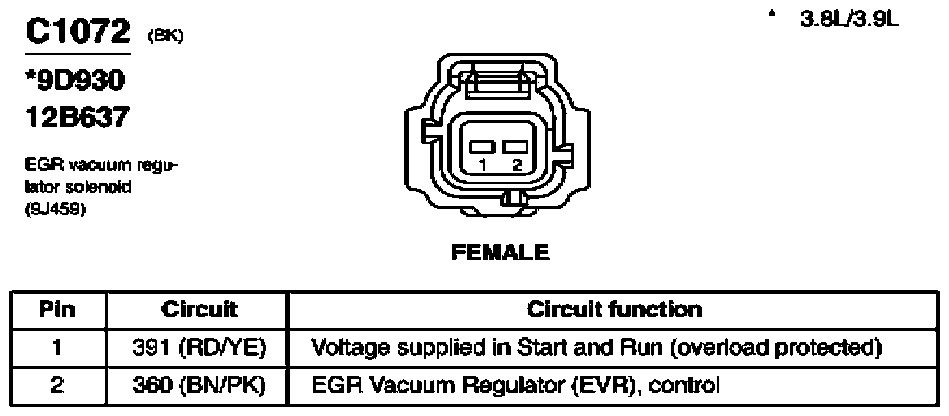

Fig 198: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07839205

Courtesy of FORD MOTOR CO.

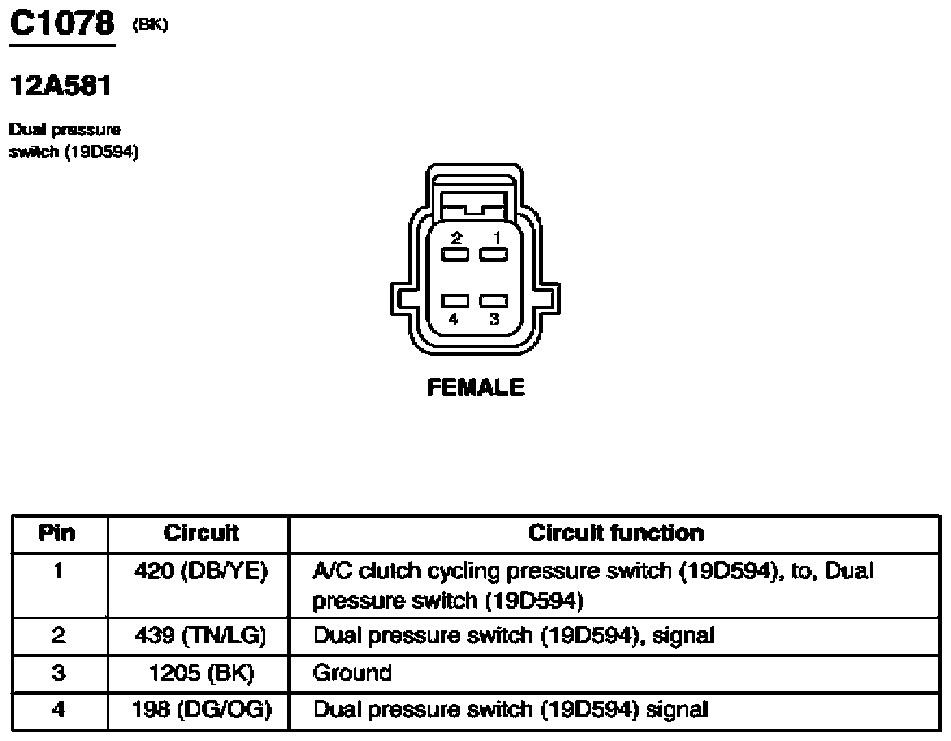

Fig 199: Dual Pressure Switch Connector End View (C1078)

G07839206

Courtesy of FORD MOTOR CO.

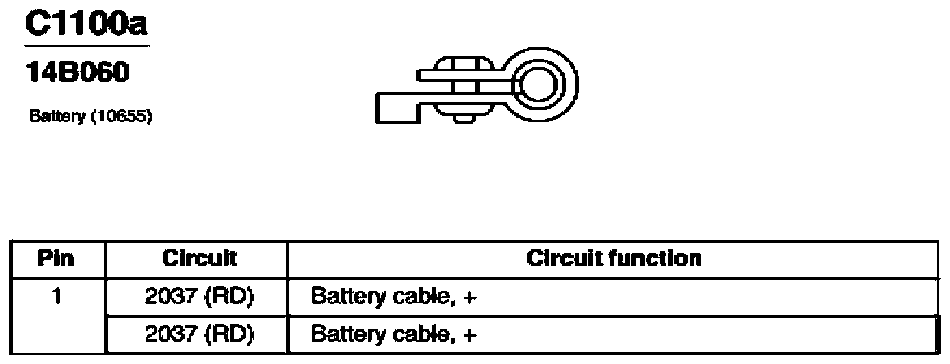

Fig 200: Battery Connector End View (C1100a)

G07839207

Courtesy of FORD MOTOR CO.

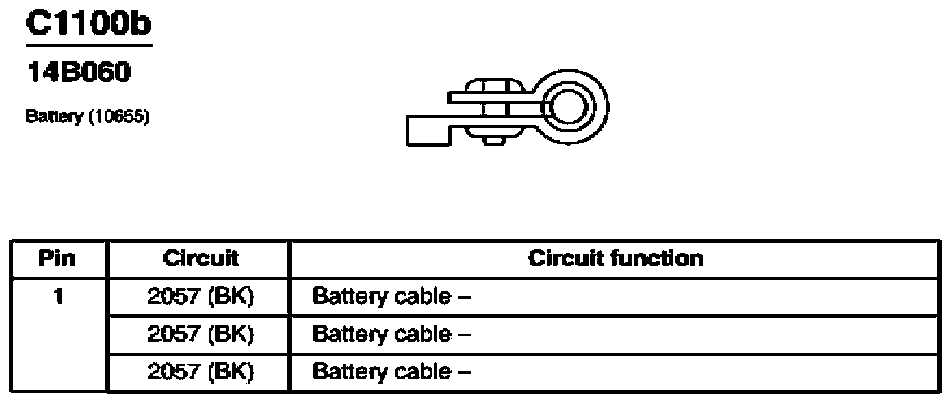

Fig 201: Battery Connector End View (C1100b)

G07839208

Courtesy of FORD MOTOR CO.

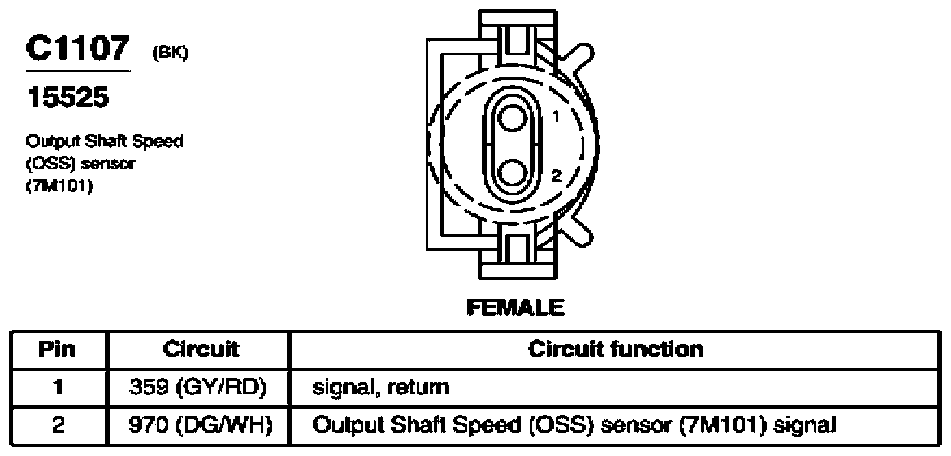

Fig 202: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07839209

Courtesy of FORD MOTOR CO.

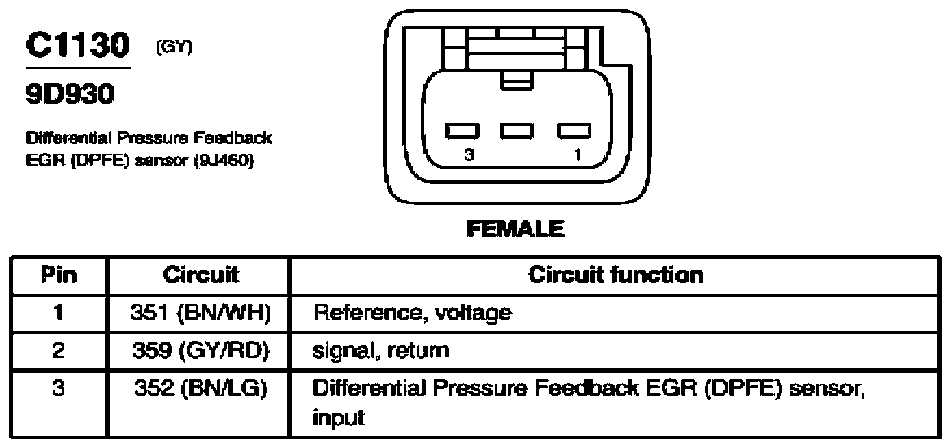

Fig 203: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1130)

G07839210

Courtesy of FORD MOTOR CO.

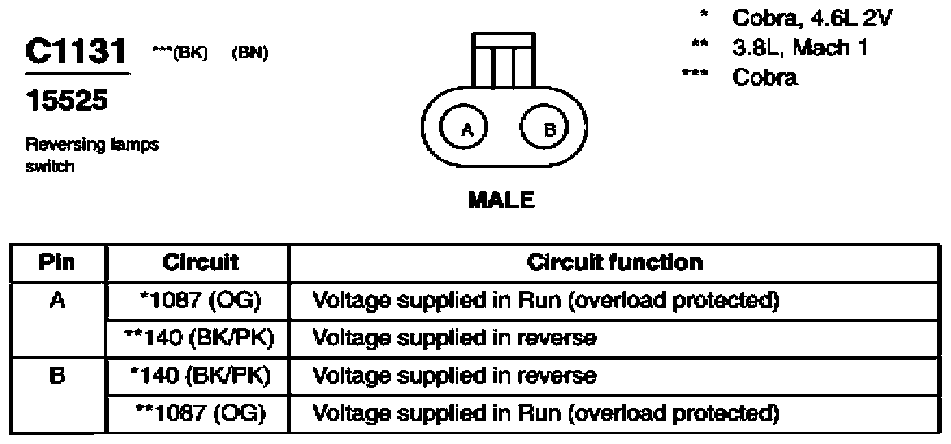

Fig 204: Reversing Lamps Switch Connector End View (C1131)

G07839211

Courtesy of FORD MOTOR CO.

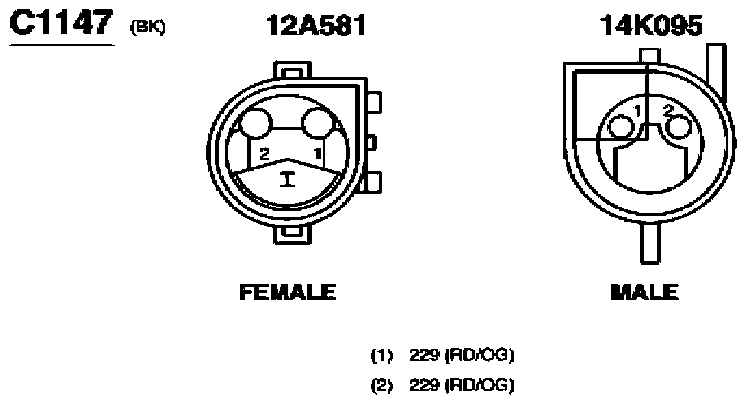

Fig 205: Inline Connector End View (C1147)

G07839212

Courtesy of FORD MOTOR CO.

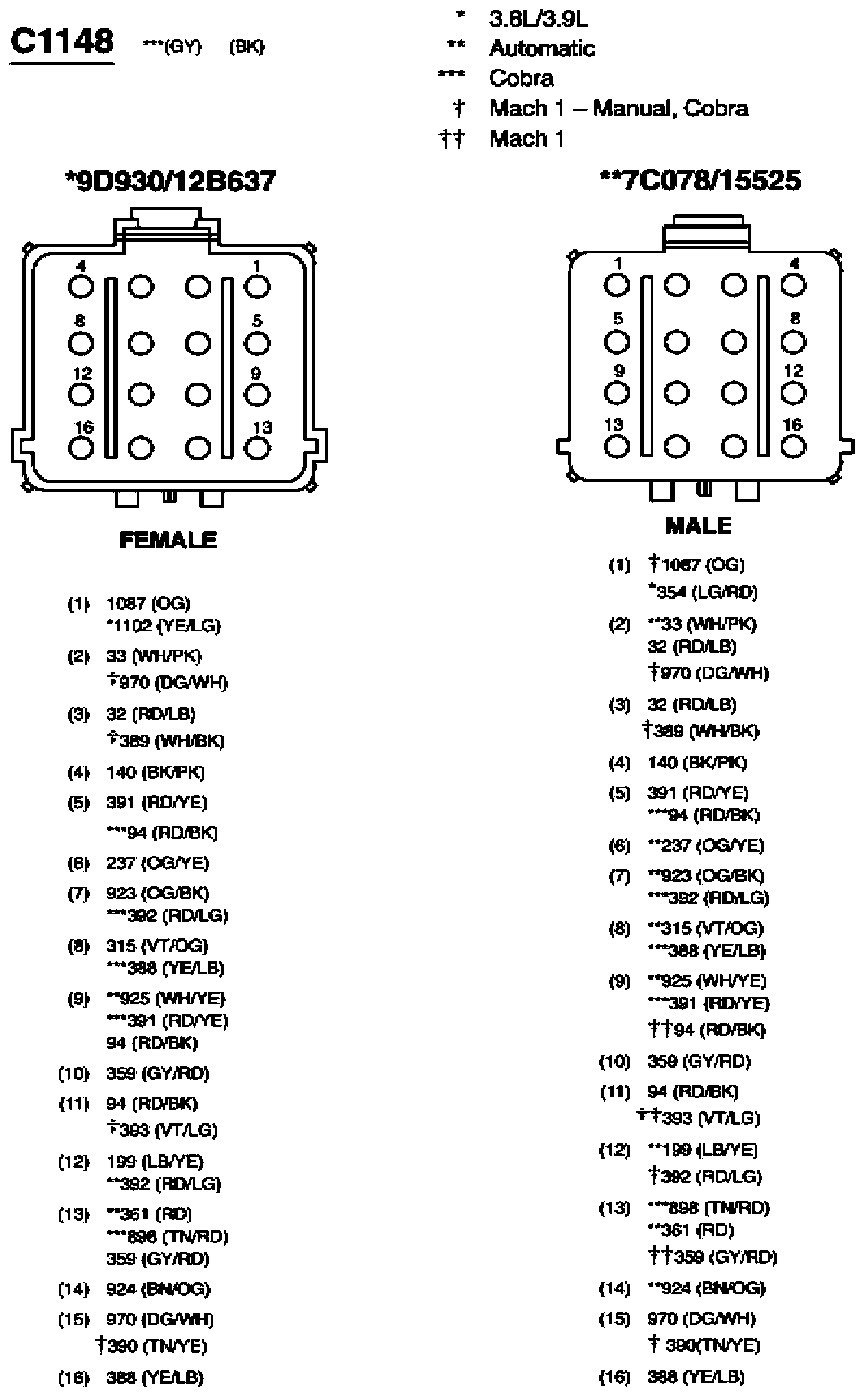

Fig 206: Inline Connector End View (C1148)

G07839213

Courtesy of FORD MOTOR CO.

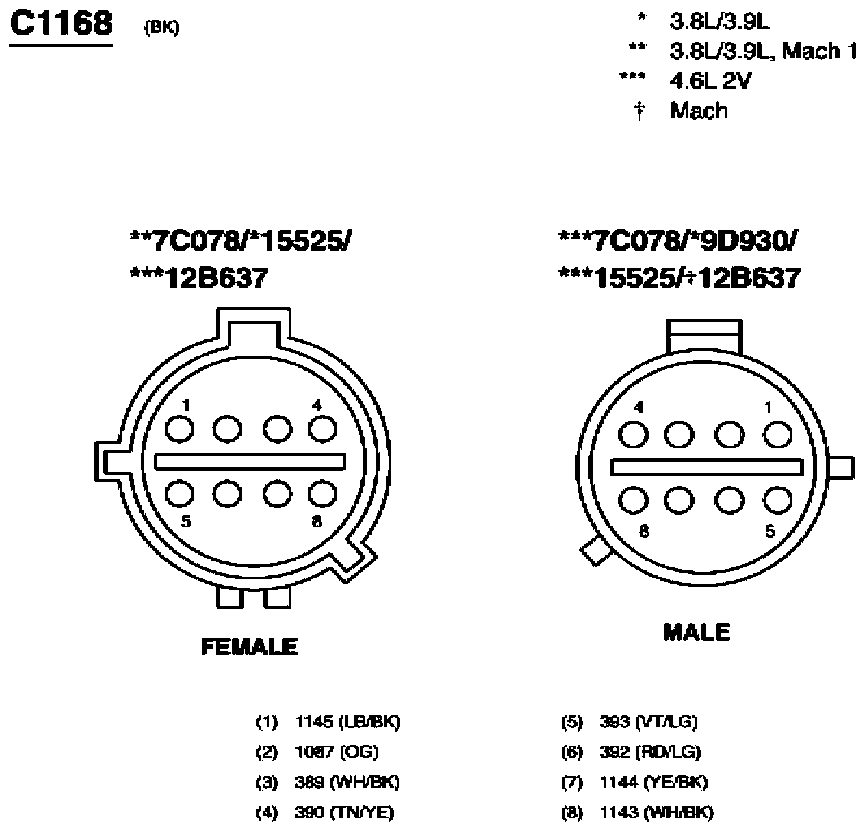

Fig 207: Inline Connector End View (C1168)

G07839214

Courtesy of FORD MOTOR CO.

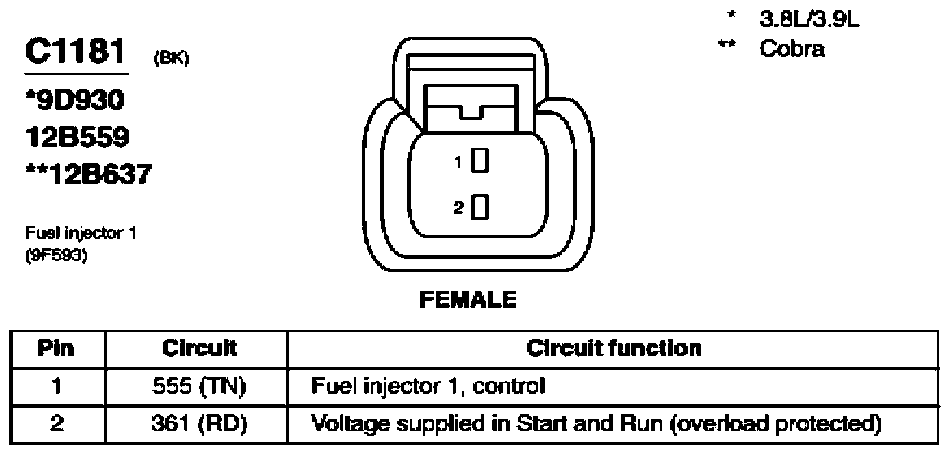

Fig 208: Fuel Injector 1 Connector End View (C1181)

G07839215

Courtesy of FORD MOTOR CO.

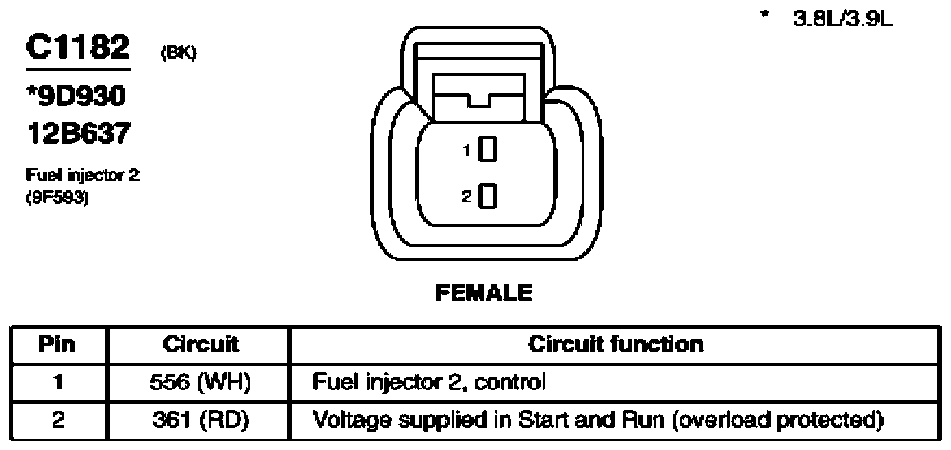

Fig 209: Fuel Injector 2 Connector End View (C1182)

G07839216

Courtesy of FORD MOTOR CO.

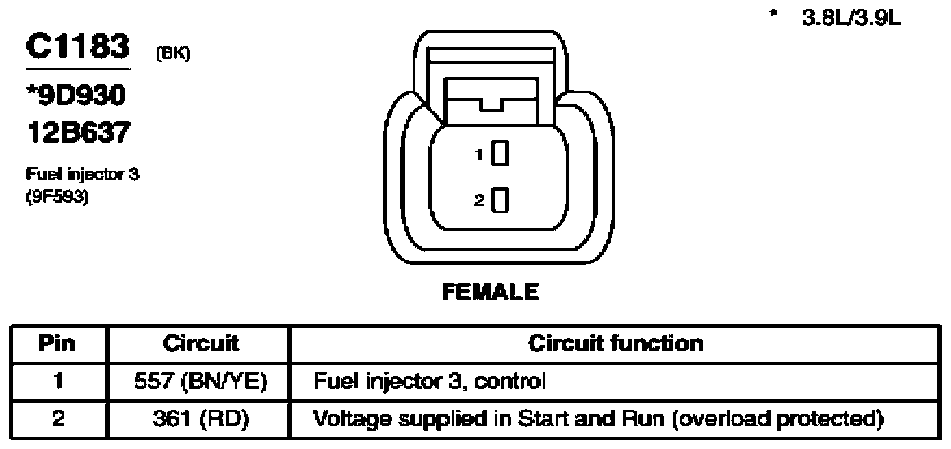

Fig 210: Fuel Injector 3 Connector End View (C1183)

G07839217

Courtesy of FORD MOTOR CO.

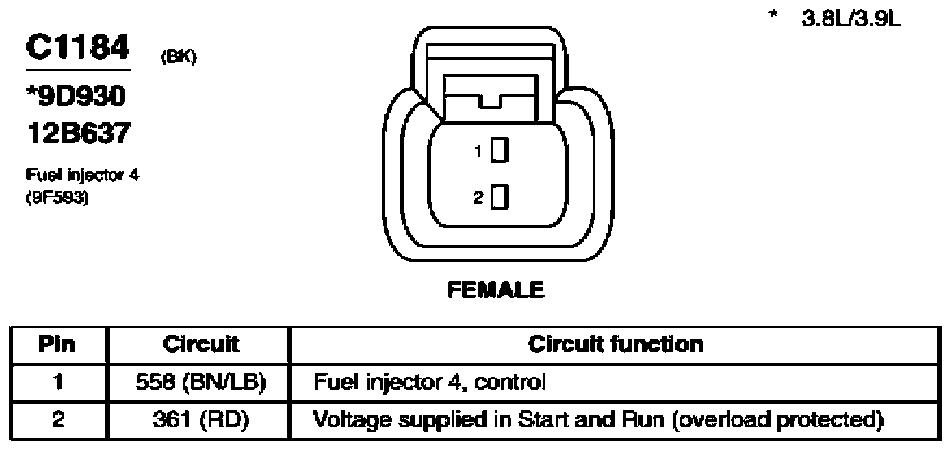

Fig 211: Fuel Injector 4 Connector End View (C1184)

G07839218

Courtesy of FORD MOTOR CO.

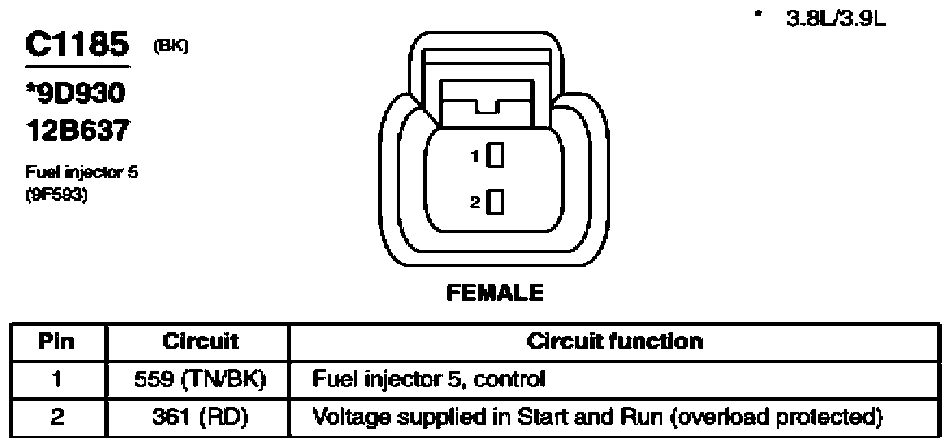

Fig 212: Fuel Injector 5 Connector End View (C1185)

G07839219

Courtesy of FORD MOTOR CO.

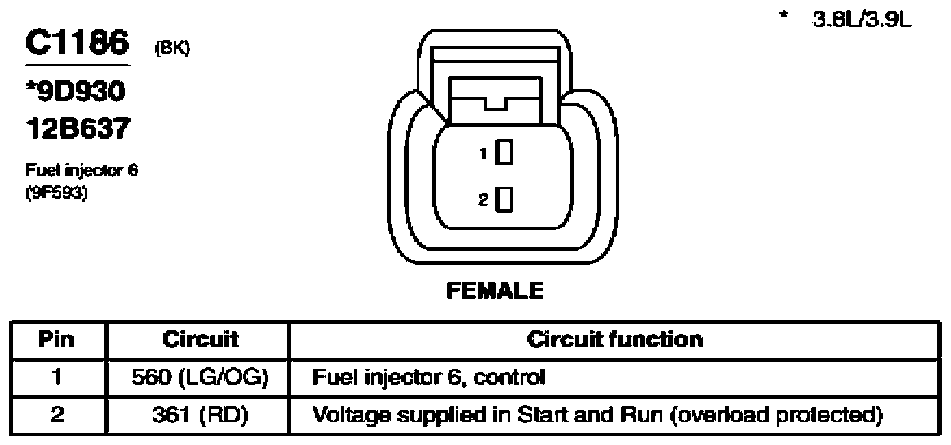

Fig 213: Fuel Injector 6 Connector End View (C1186)

G07839220

Courtesy of FORD MOTOR CO.

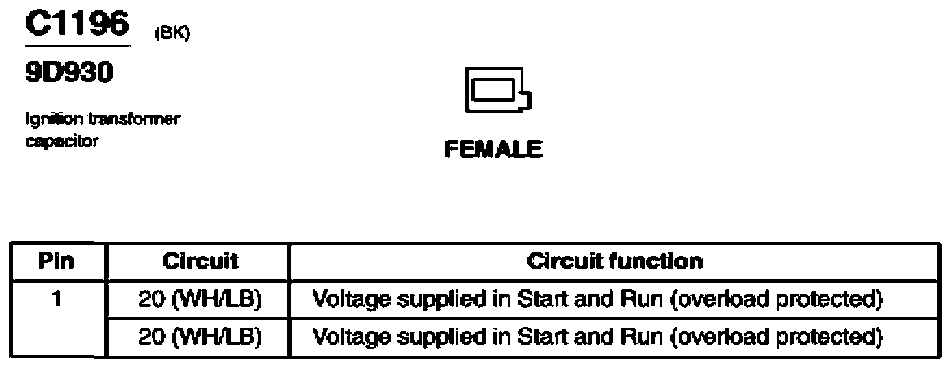

Fig 214: Ignition Transformer Capacitor Connector End View (C1196)

G07839221

Courtesy of FORD MOTOR CO.

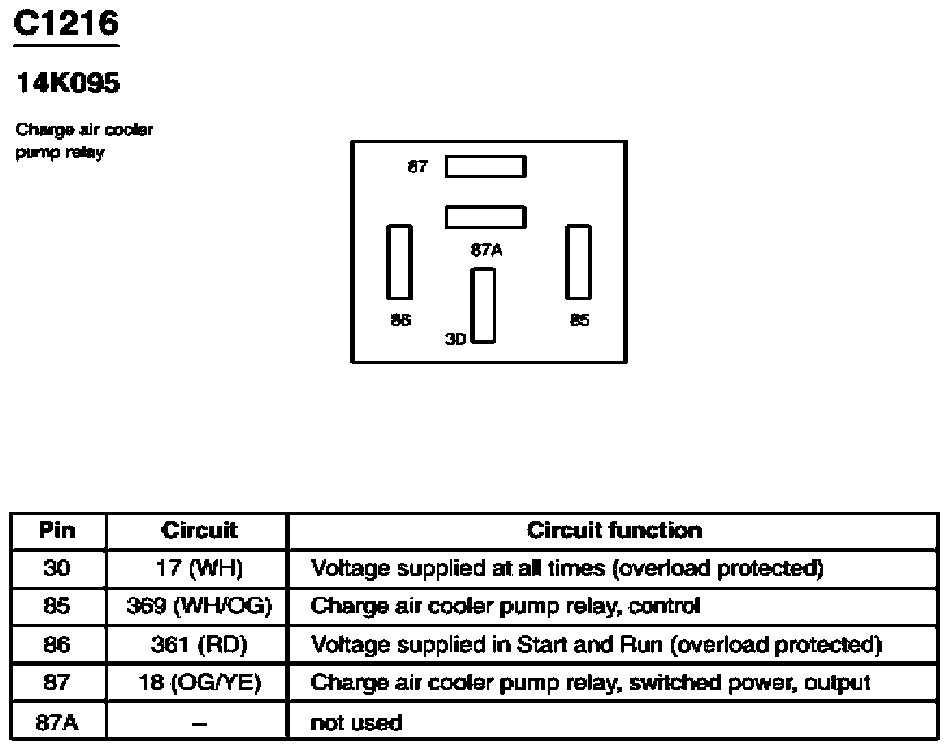

Fig 215: Charge Air Cooler Pump Relay Connector End View (C1216)

G07839222

Courtesy of FORD MOTOR CO.

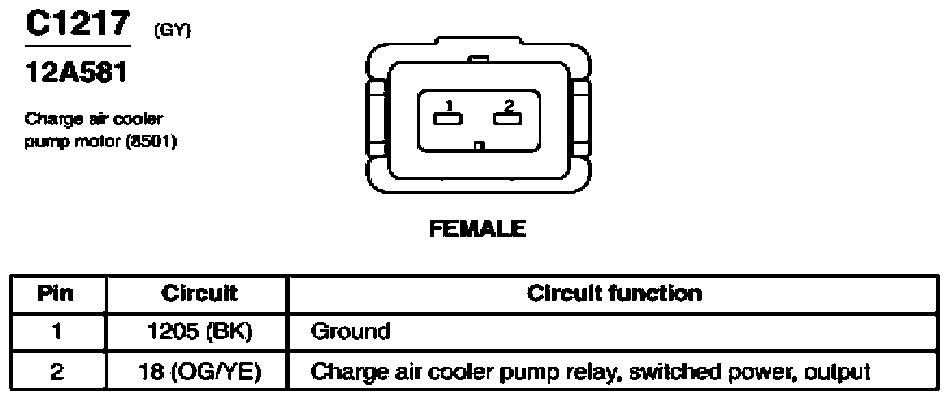

Fig 216: Charge Air Cooler Pump Motor Connector End View (C1217)

G07839223

Courtesy of FORD MOTOR CO.

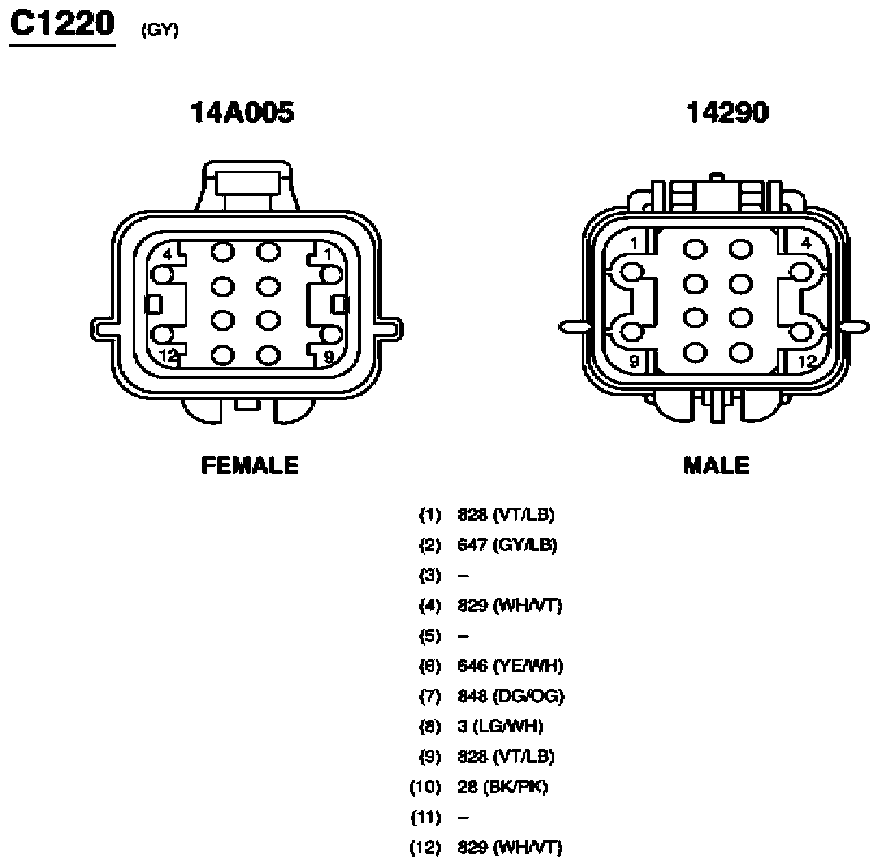

Fig 217: Inline Connector End View (C1220)

G07839224

Courtesy of FORD MOTOR CO.

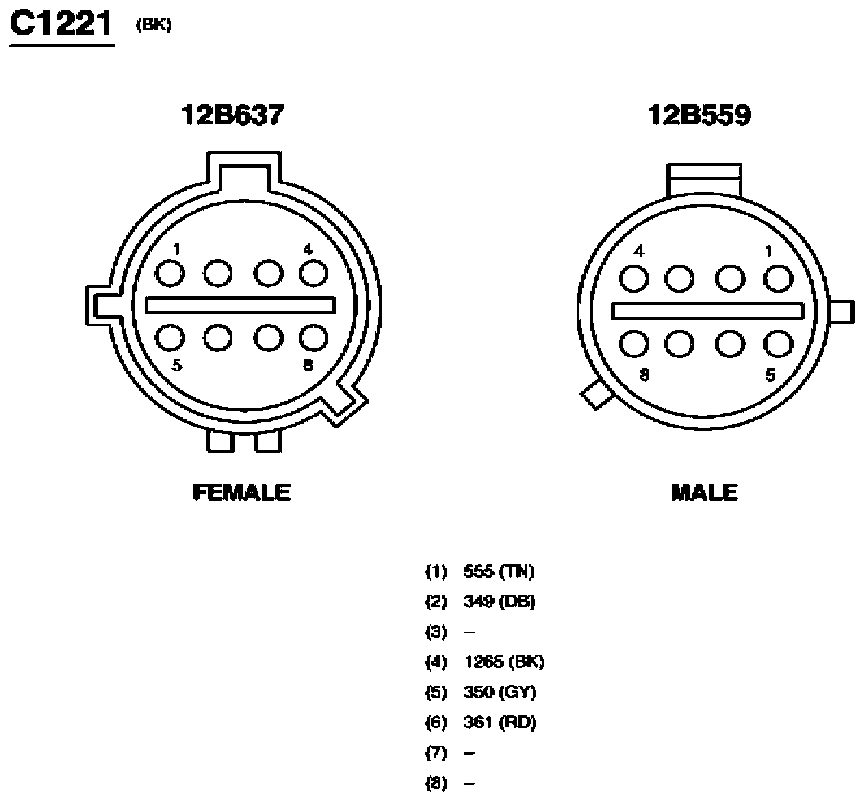

Fig 218: Inline Connector End View (C1221)

G07839225

Courtesy of FORD MOTOR CO.

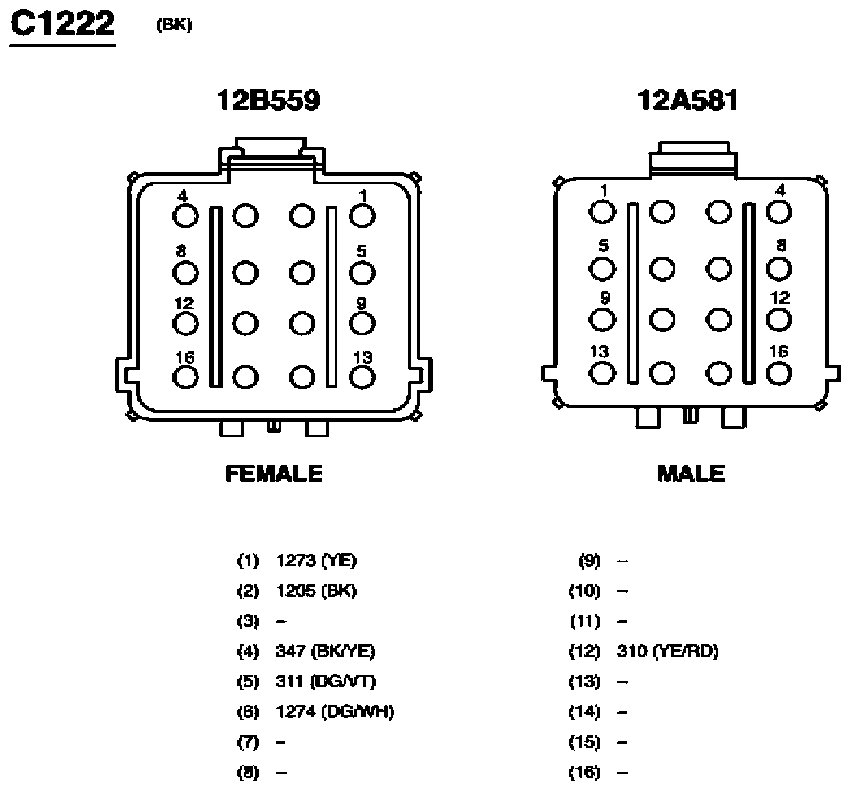

Fig 219: Inline Connector End View (C1222)

G07839226

Courtesy of FORD MOTOR CO.

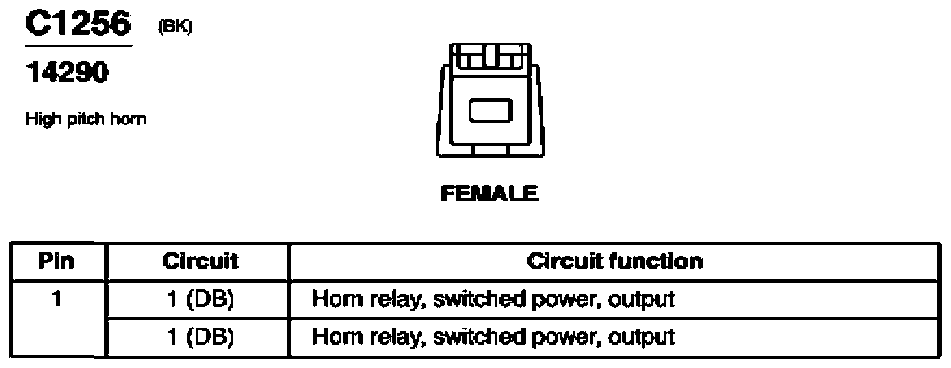

Fig 220: High Pitch Horn Connector End View (C1256)

G07839227

Courtesy of FORD MOTOR CO.

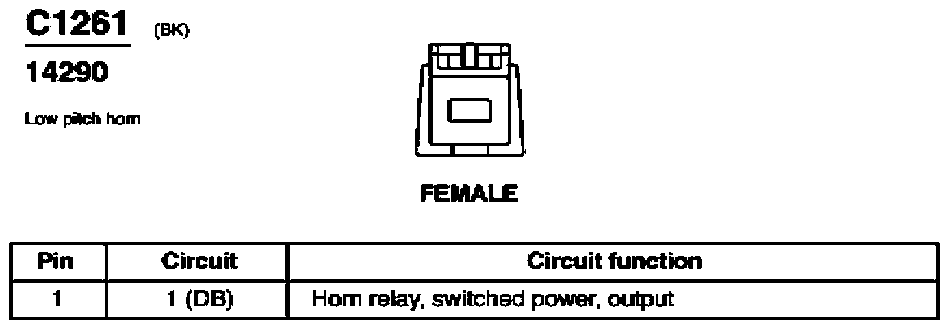

Fig 221: Low Pitch Horn Connector End View (C1261)

G07839228

Courtesy of FORD MOTOR CO.

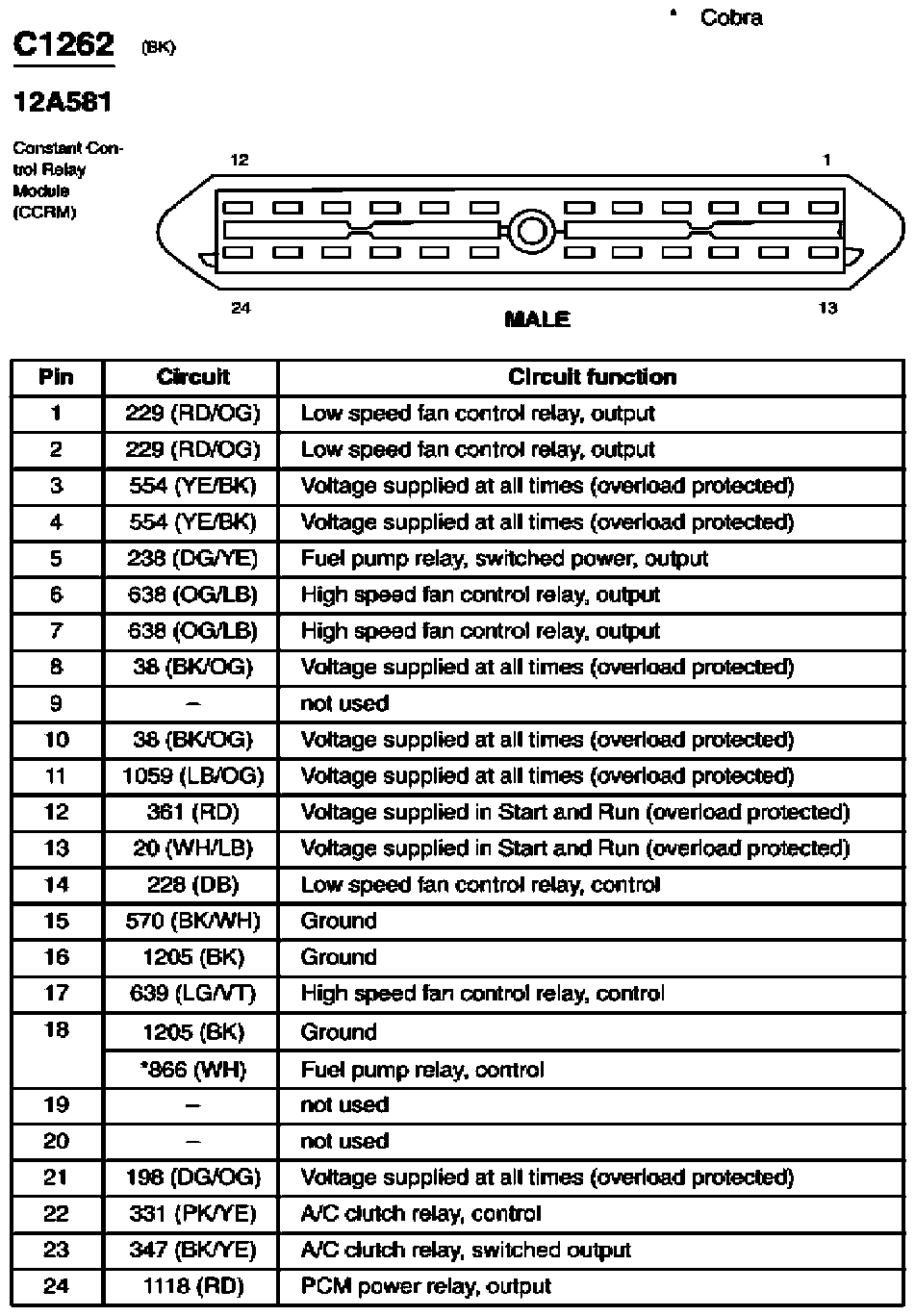

Fig 222: Constant Control Relay Module (CCRM) Connector End View (C1262)

G07839229

Courtesy of FORD MOTOR CO.

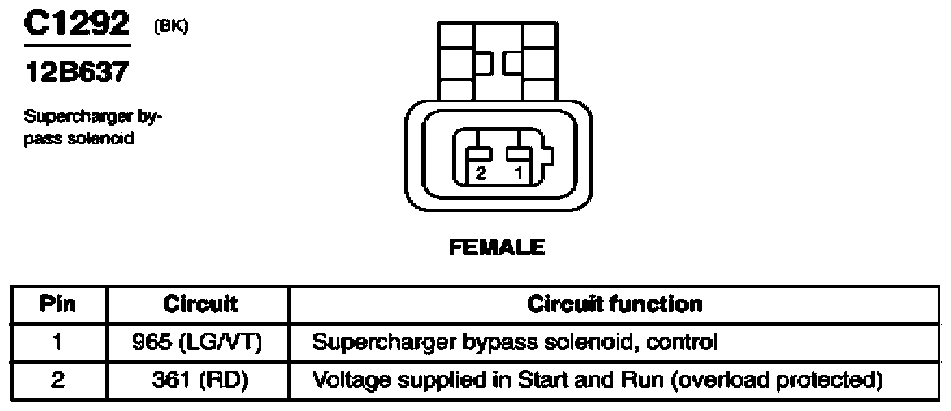

Fig 223: Supercharger Bypass Solenoid Connector End View (C1292)

G07839230

Courtesy of FORD MOTOR CO.

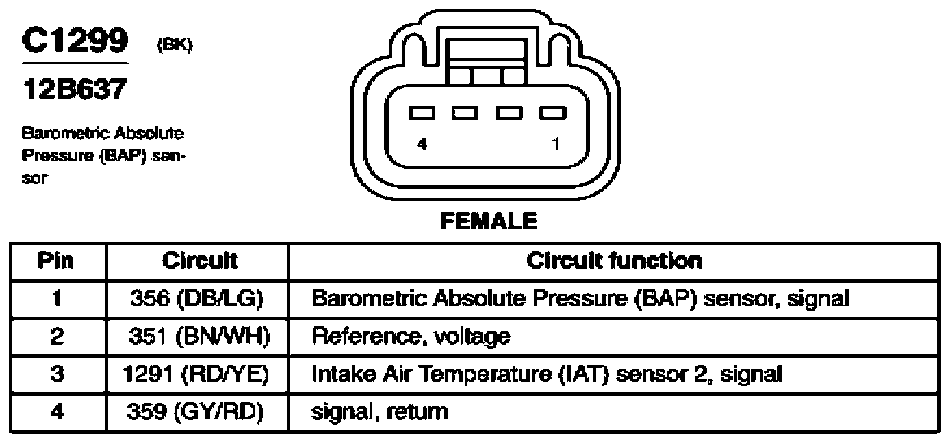

Fig 224: Barometric Absolute Pressure (BAP) Sensor Connector End View (C1299)

G07839231

Courtesy of FORD MOTOR CO.

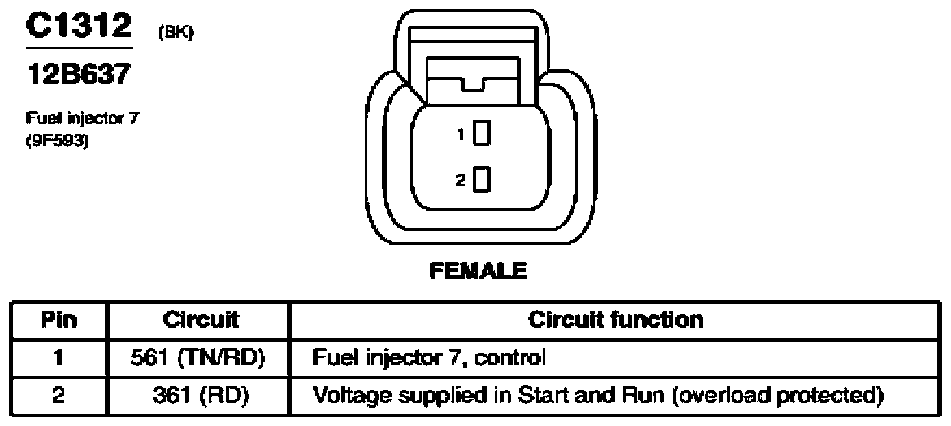

Fig 225: Fuel Injector 7 Connector End View (C1312)

G07839232

Courtesy of FORD MOTOR CO.

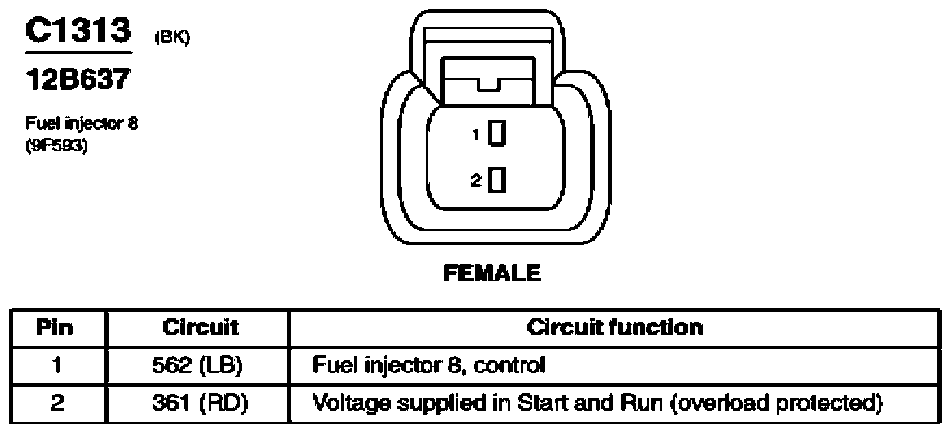

Fig 226: Fuel Injector 8 Connector End View (C1313)

G07839233

Courtesy of FORD MOTOR CO.

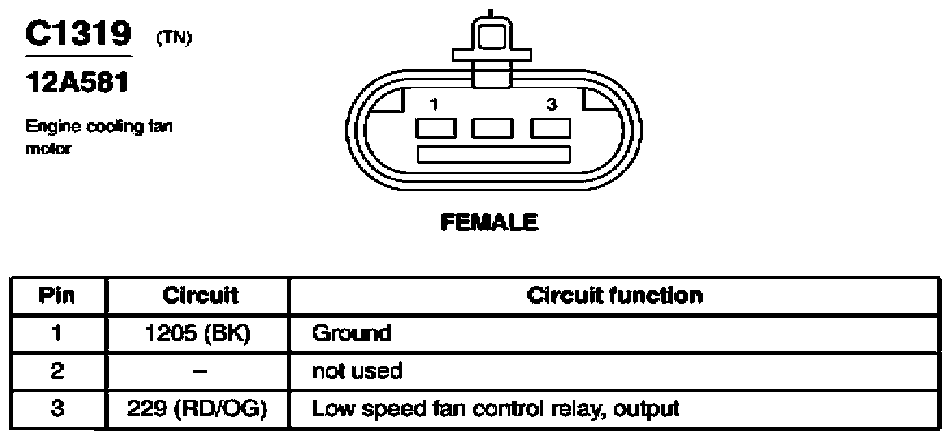

Fig 227: Engine Cooling Fan Motor Connector End View (C1319)

G07839234

Courtesy of FORD MOTOR CO.

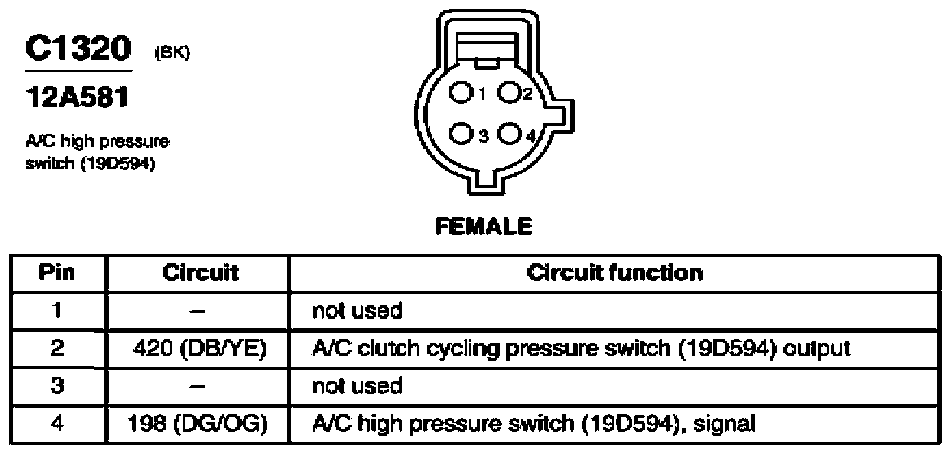

Fig 228: A/C High Pressure Switch Connector End View (C1320)

G07839235

Courtesy of FORD MOTOR CO.

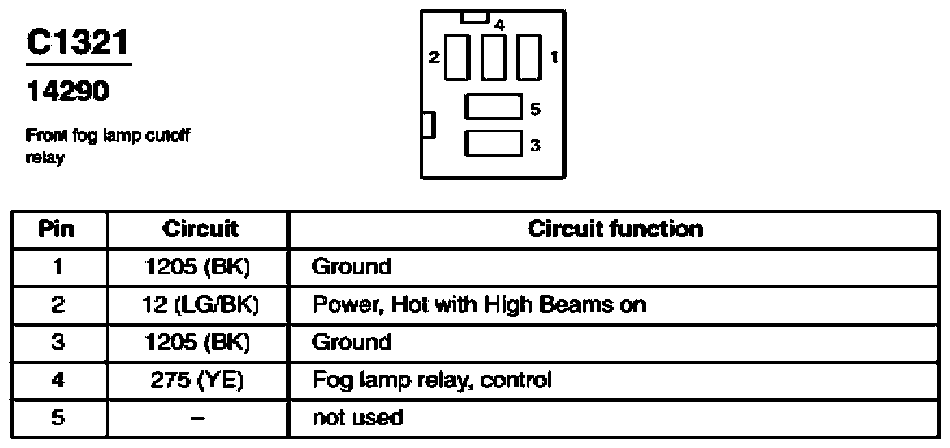

Fig 229: Front Fog Lamp Cutoff Relay Connector End View (C1321)

G07839236

Courtesy of FORD MOTOR CO.

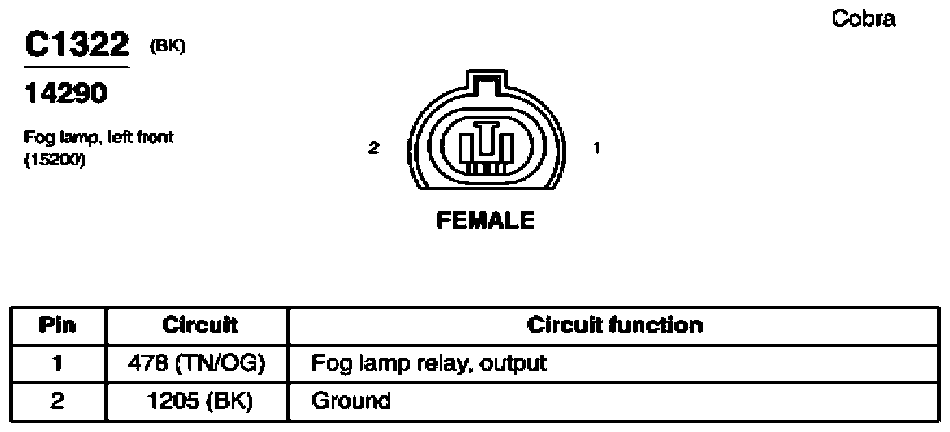

Fig 230: Fog Lamp, Left Front Connector End View (C1322)

G07839237

Courtesy of FORD MOTOR CO.

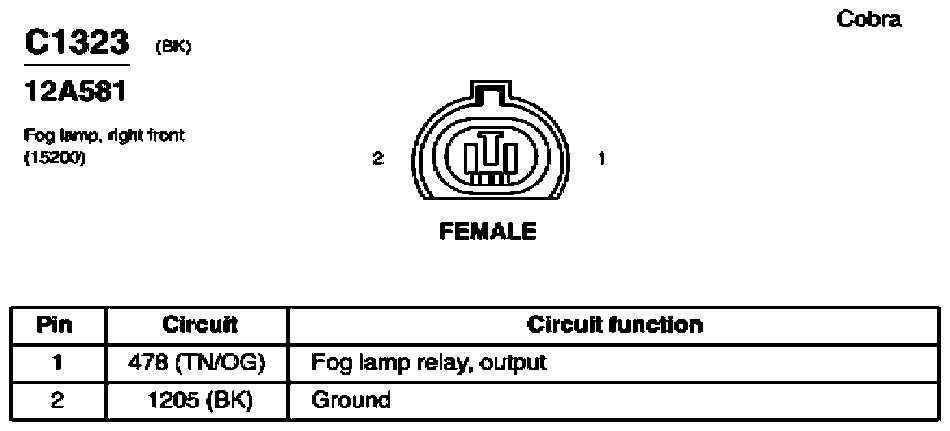

Fig 231: Fog Lamp, Right Front Connector End View (C1323)

G07839238

Courtesy of FORD MOTOR CO.

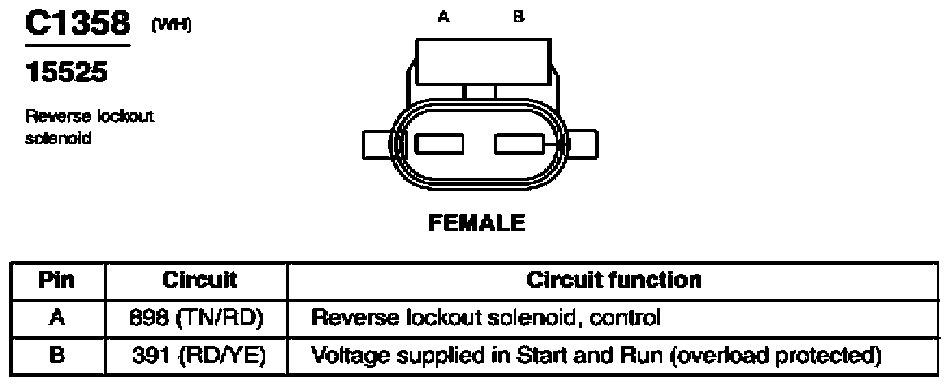

Fig 232: Reverse Lockout Solenoid Connector End View (C1358)

G07839239

Courtesy of FORD MOTOR CO.

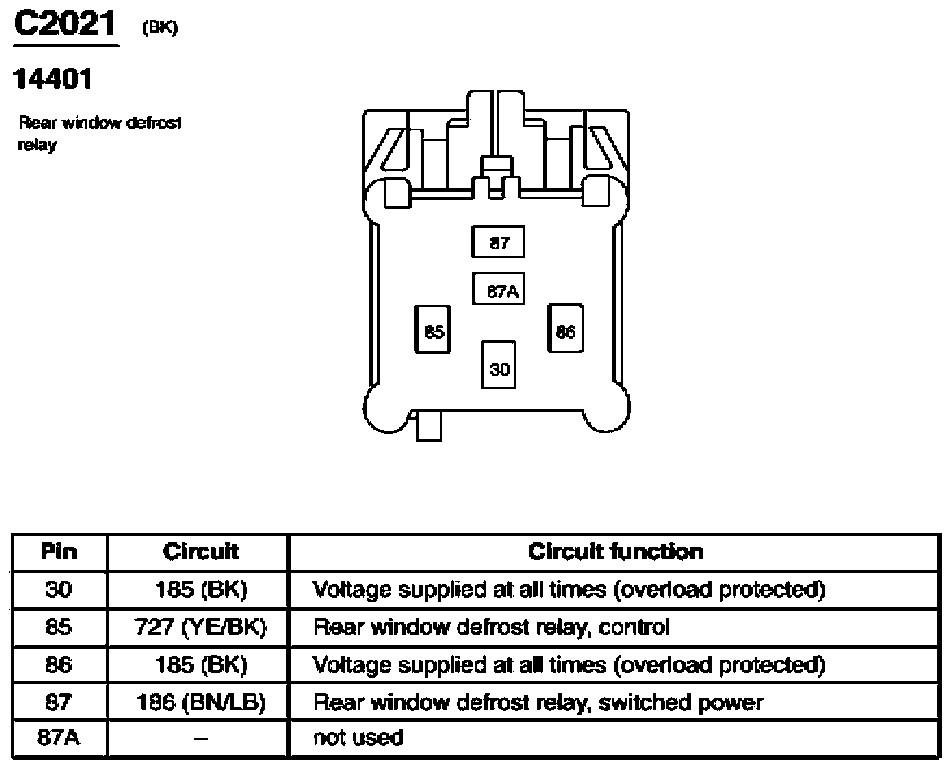

Fig 233: Rear Window Defrost Relay Connector End View (C2021)

G07839240

Courtesy of FORD MOTOR CO.

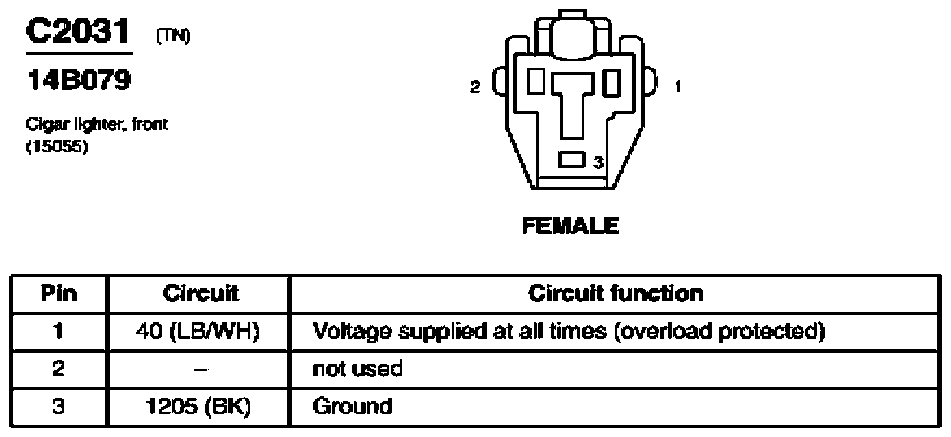

Fig 234: Cigar Lighter, Front Connector End View (C2031)

G07839241

Courtesy of FORD MOTOR CO.

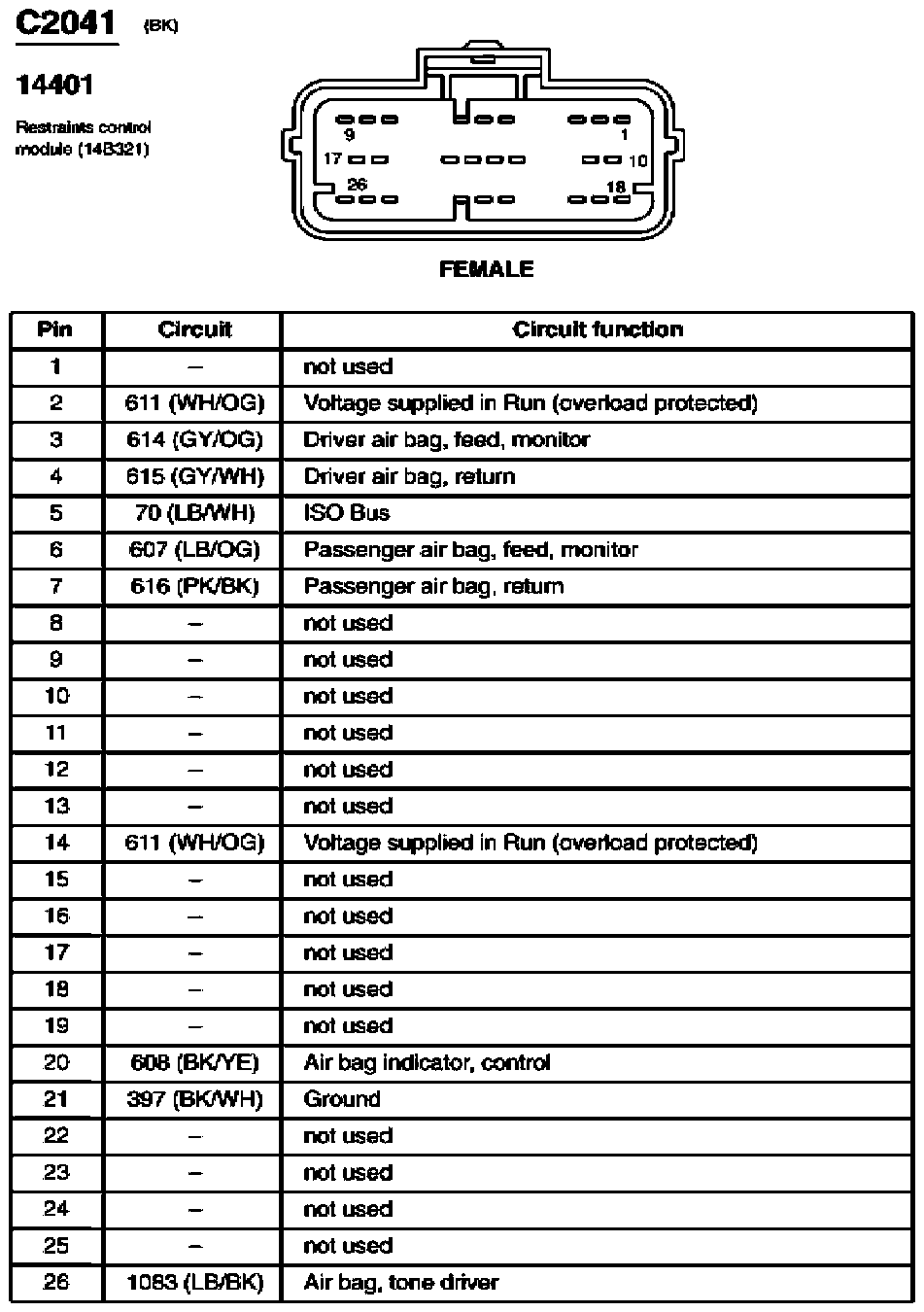

Fig 235: Restraints Control Module Connector End View (C2041)

G07839242

Courtesy of FORD MOTOR CO.

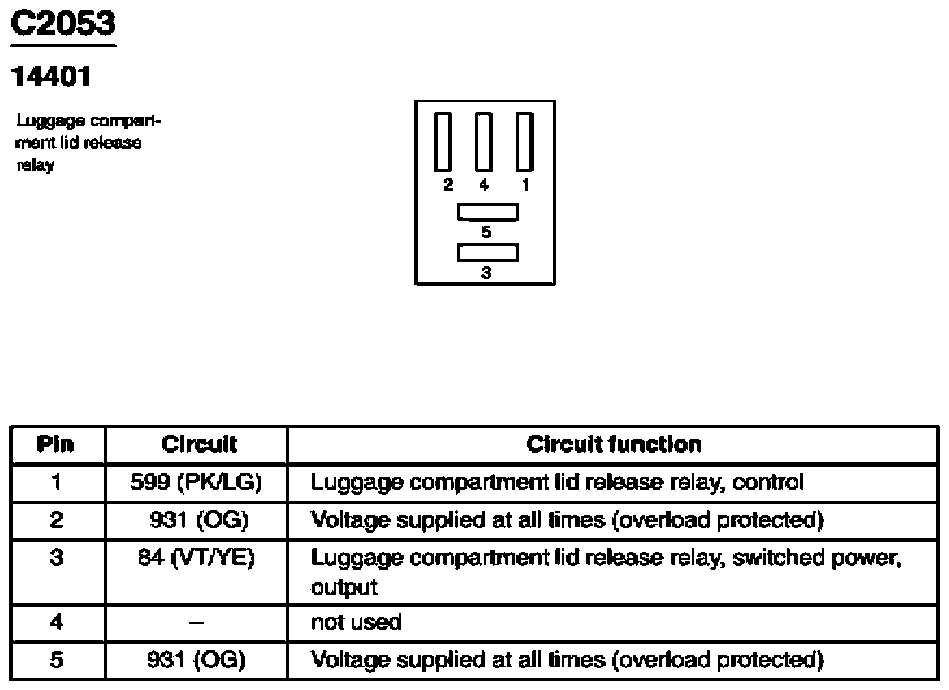

Fig 236: Luggage Compartment Lid Release Relay Connector End View (C2053)

G07839243

Courtesy of FORD MOTOR CO.

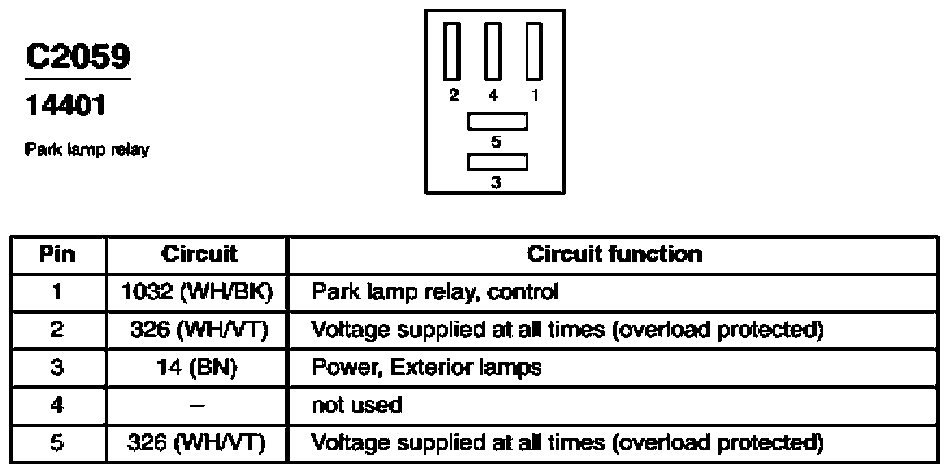

Fig 237: Park Lamp Relay Connector End View (C2059)

G07839244

Courtesy of FORD MOTOR CO.

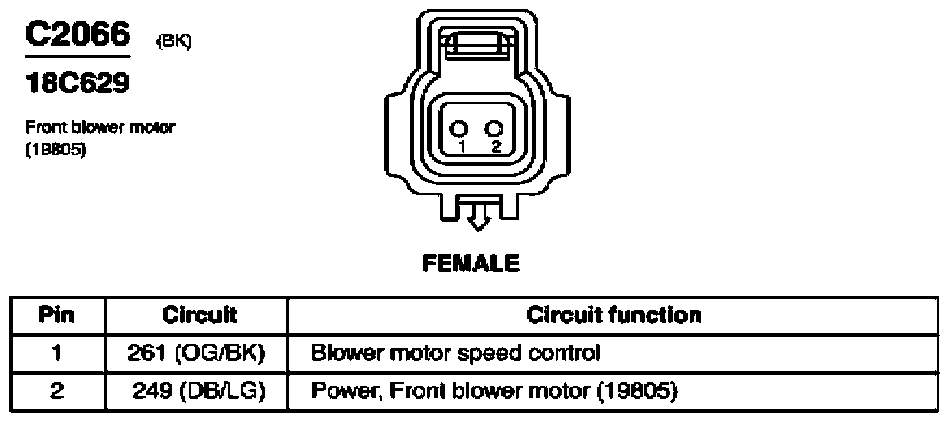

Fig 238: Front Blower Motor Connector End View (C2066)

G07839245

Courtesy of FORD MOTOR CO.

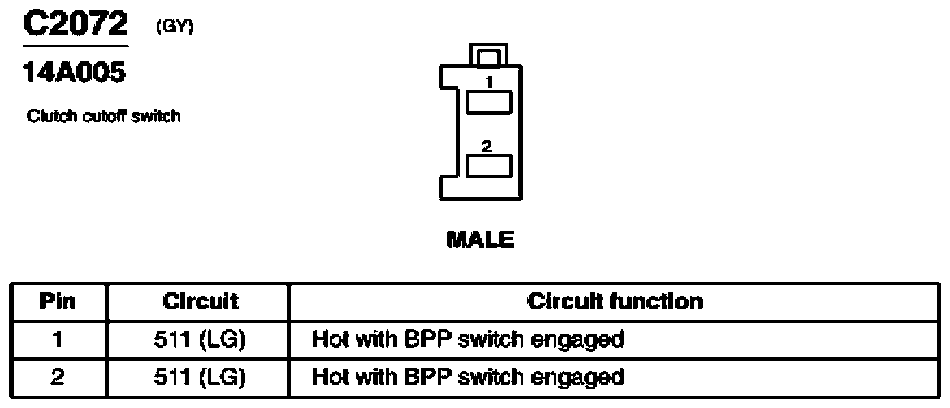

Fig 239: Clutch Cutoff Switch Connector End View (C2072)

G07839246

Courtesy of FORD MOTOR CO.

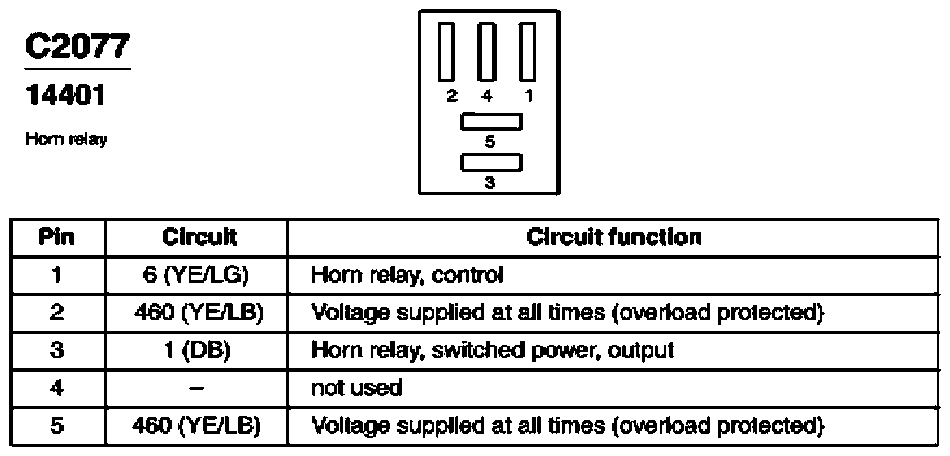

Fig 240: Horn Relay Connector End View (C2077)

G07839247

Courtesy of FORD MOTOR CO.

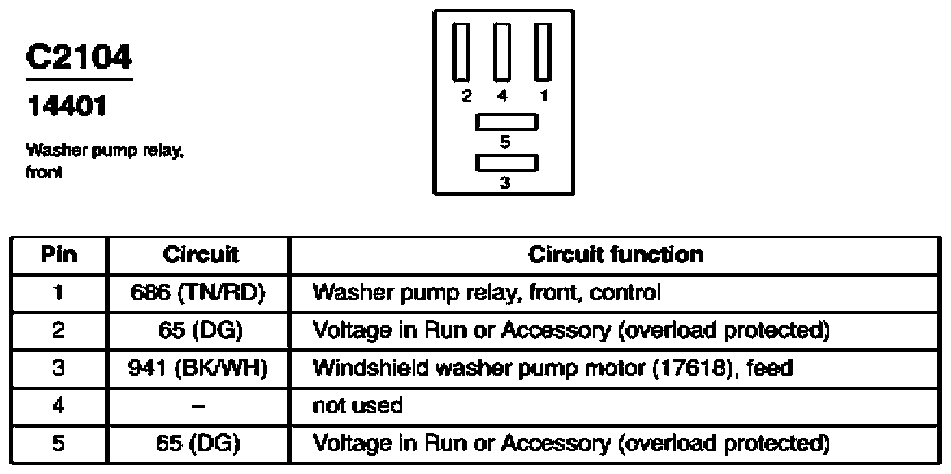

Fig 241: Washer Pump Relay, Front Connector End View (C2104)

G07839248

Courtesy of FORD MOTOR CO.

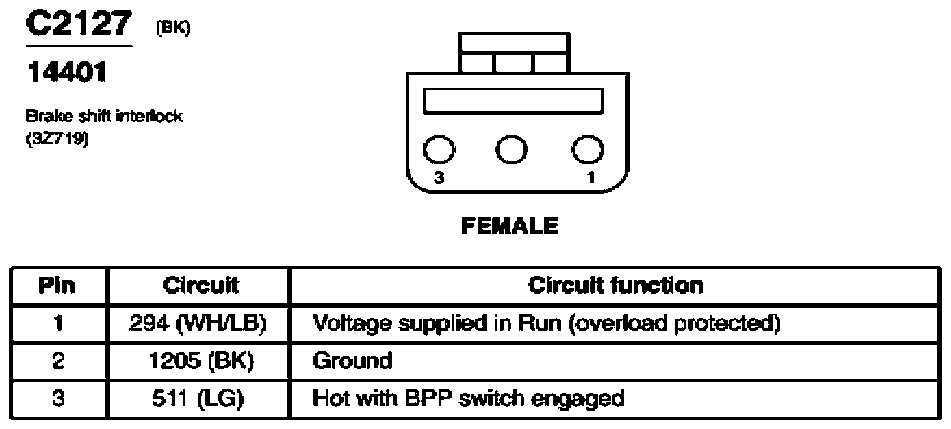

Fig 242: Brake Shift Interlock Connector End View (C2127)

G07839249

Courtesy of FORD MOTOR CO.

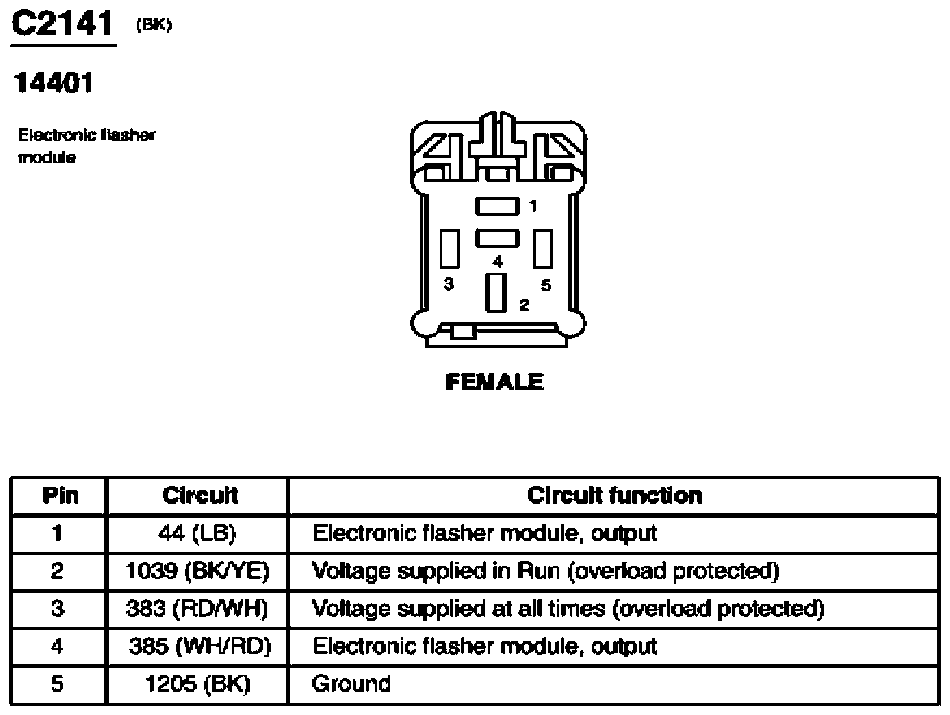

Fig 243: Electronic Flasher Module Connector End View (C2141)

G07839250

Courtesy of FORD MOTOR CO.

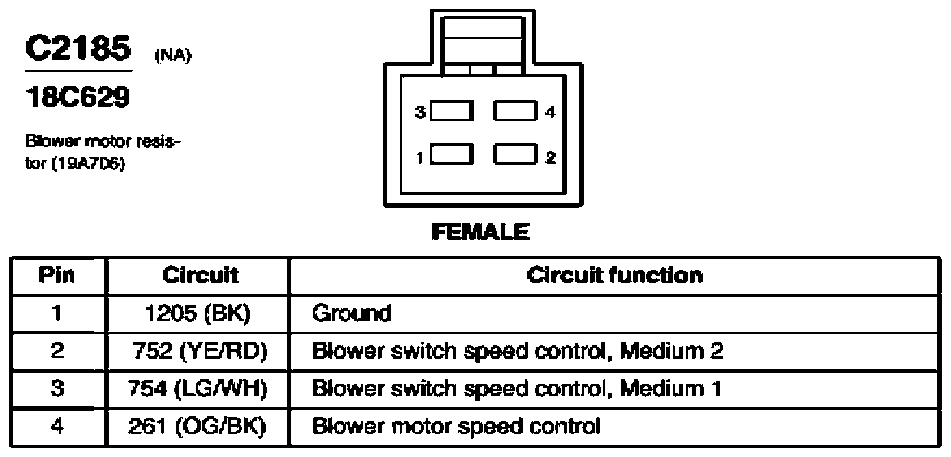

Fig 244: Blower Motor Resistor Connector End View (C2185)

G07839251

Courtesy of FORD MOTOR CO.

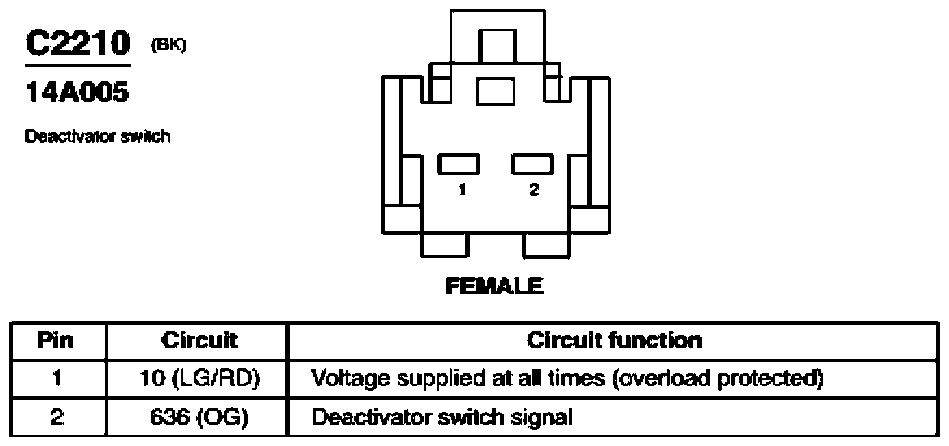

Fig 245: Deactivator Switch Connector End View (C2210)

G07839252

Courtesy of FORD MOTOR CO.

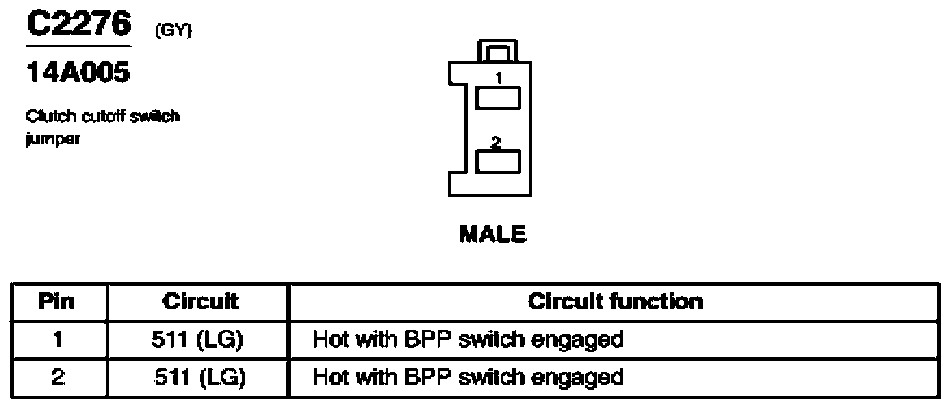

Fig 246: Clutch Cutoff Switch Jumper Connector End View (C2276)

G07839253

Courtesy of FORD MOTOR CO.

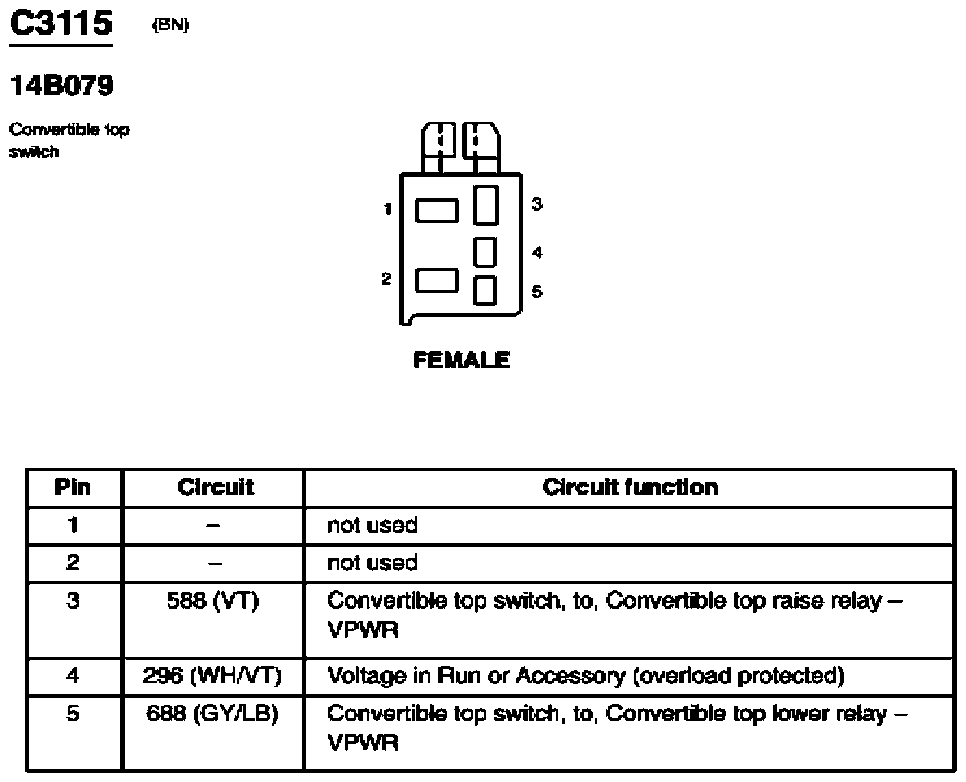

Fig 247: Convertible Top Switch Connector End View (C3115)

G07839254

Courtesy of FORD MOTOR CO.

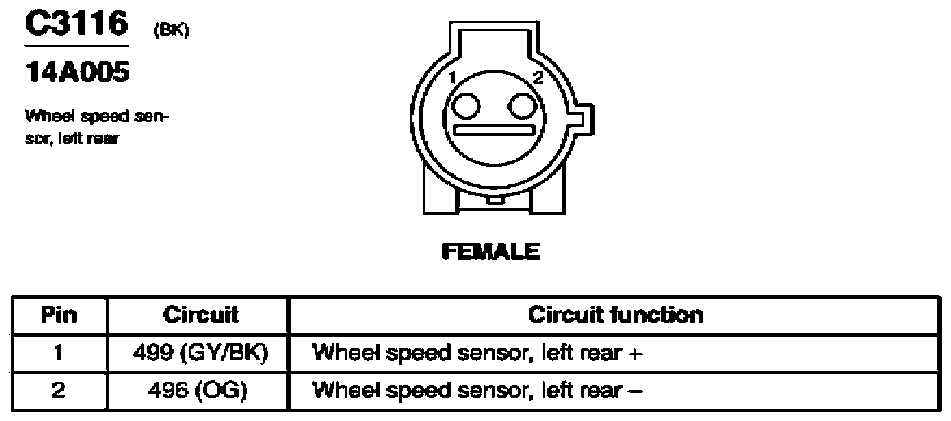

Fig 248: Wheel Speed Sensor, Left Rear Connector End View (C3116)

G07839255

Courtesy of FORD MOTOR CO.

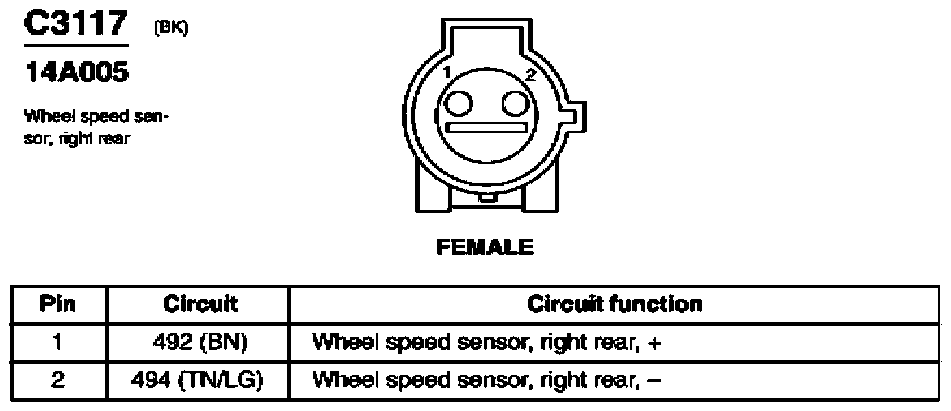

Fig 249: Wheel Speed Sensor, Right Rear Connector End View (C3117)

G07839256

Courtesy of FORD MOTOR CO.

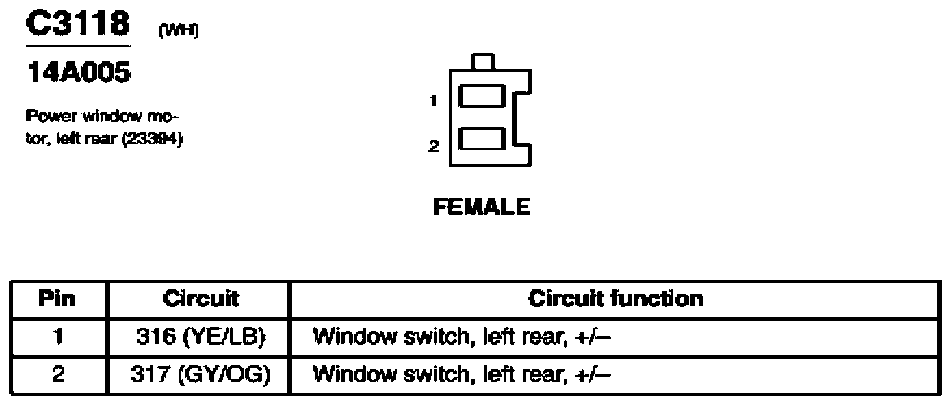

Fig 250: Power Window Motor, Left Rear Connector End View (C3118)

G07839257

Courtesy of FORD MOTOR CO.

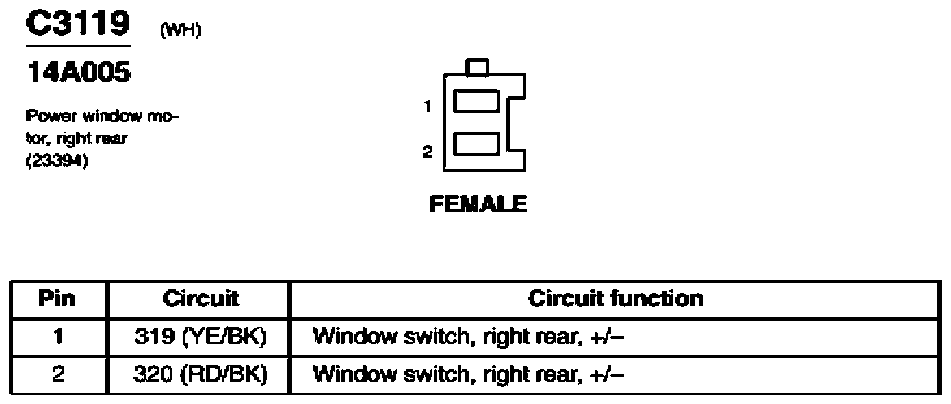

Fig 251: Power Window Motor, Right Rear Connector End View (C3119)

G07839258

Courtesy of FORD MOTOR CO.

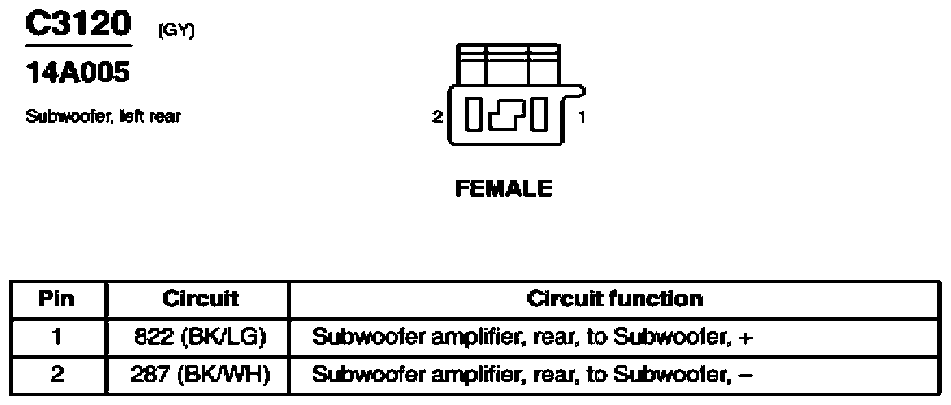

Fig 252: Subwoofer, Left Rear Connector End View (C3120)

G07839259

Courtesy of FORD MOTOR CO.

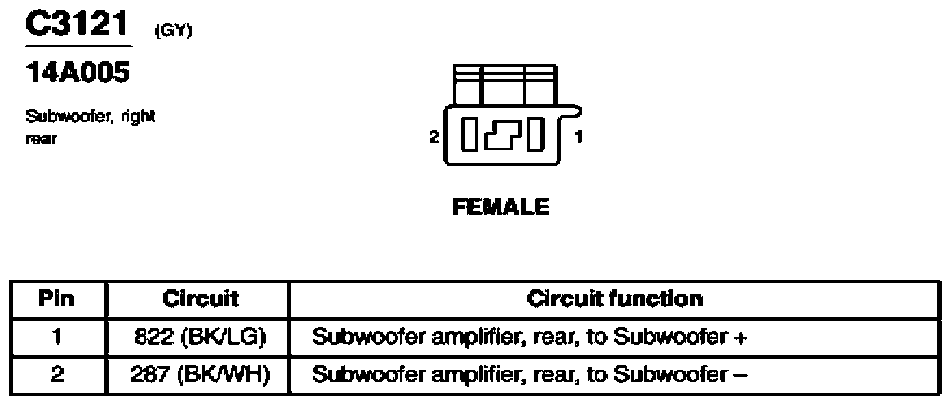

Fig 253: Subwoofer, Right Rear Connector End View (C3121)

G07839260

Courtesy of FORD MOTOR CO.

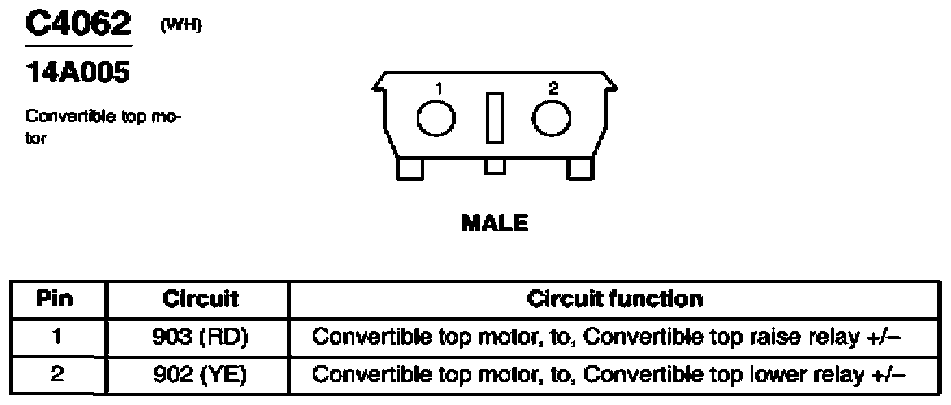

Fig 254: Convertible Top Motor Connector End View (C4062)

G07839261

Courtesy of FORD MOTOR CO.

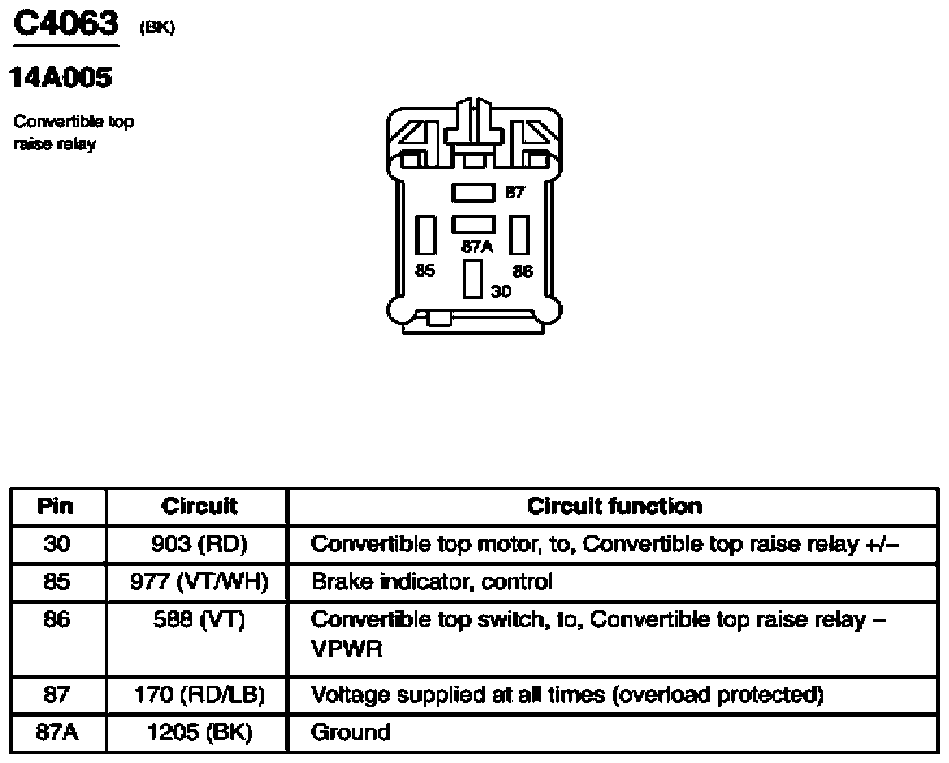

Fig 255: Convertible Top Raise Relay Connector End View (C4063)

G07839262

Courtesy of FORD MOTOR CO.

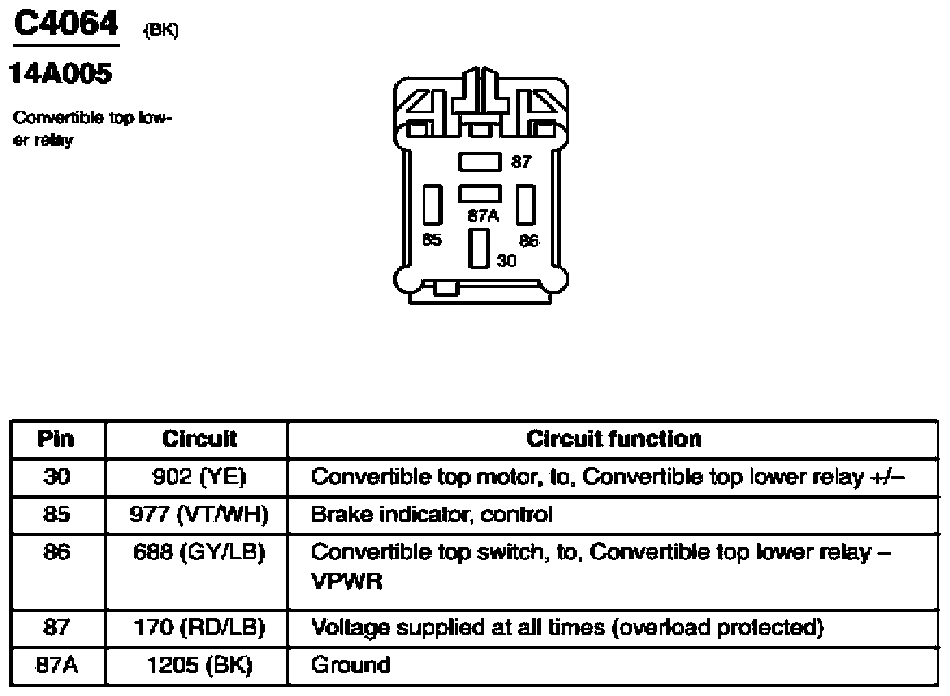

Fig 256: Convertible Top Lower Relay Connector End View (C4064)

G07839263

Courtesy of FORD MOTOR CO.

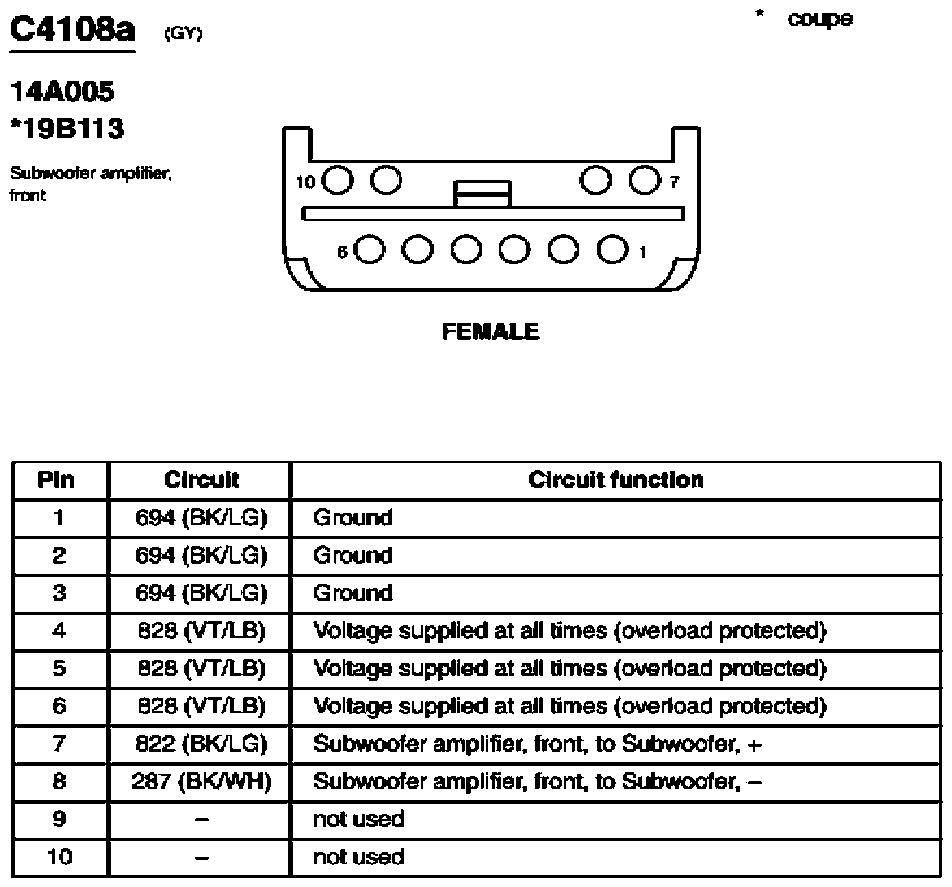

Fig 257: Subwoofer Amplifier, Front Connector End View (C4108a)

G07839264

Courtesy of FORD MOTOR CO.

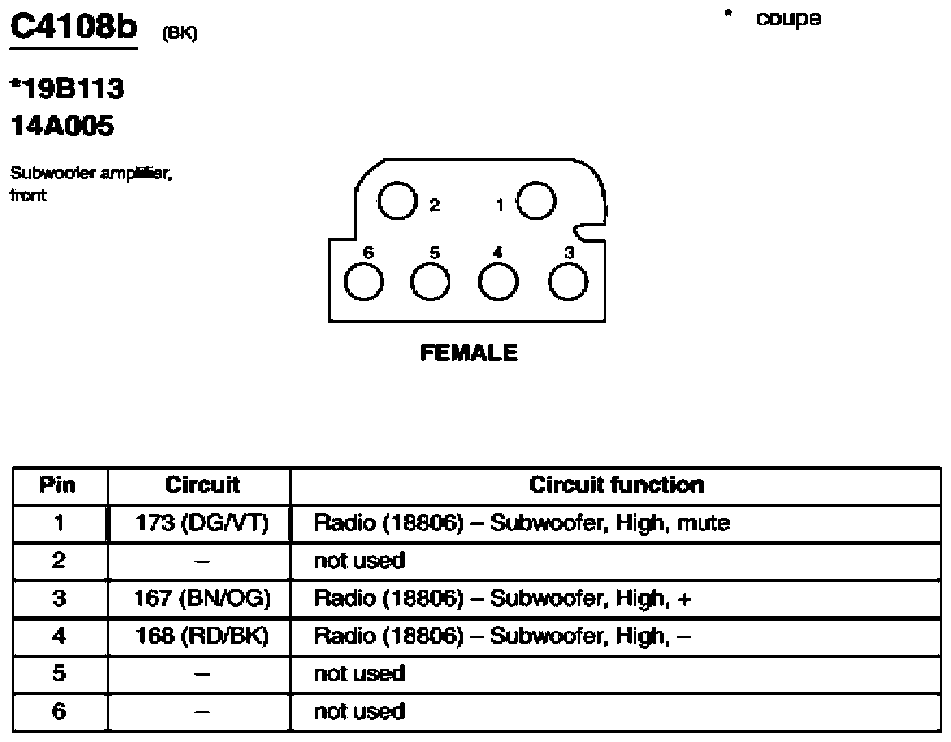

Fig 258: Subwoofer Amplifier, Front Connector End View (C4108b)

G07839265

Courtesy of FORD MOTOR CO.

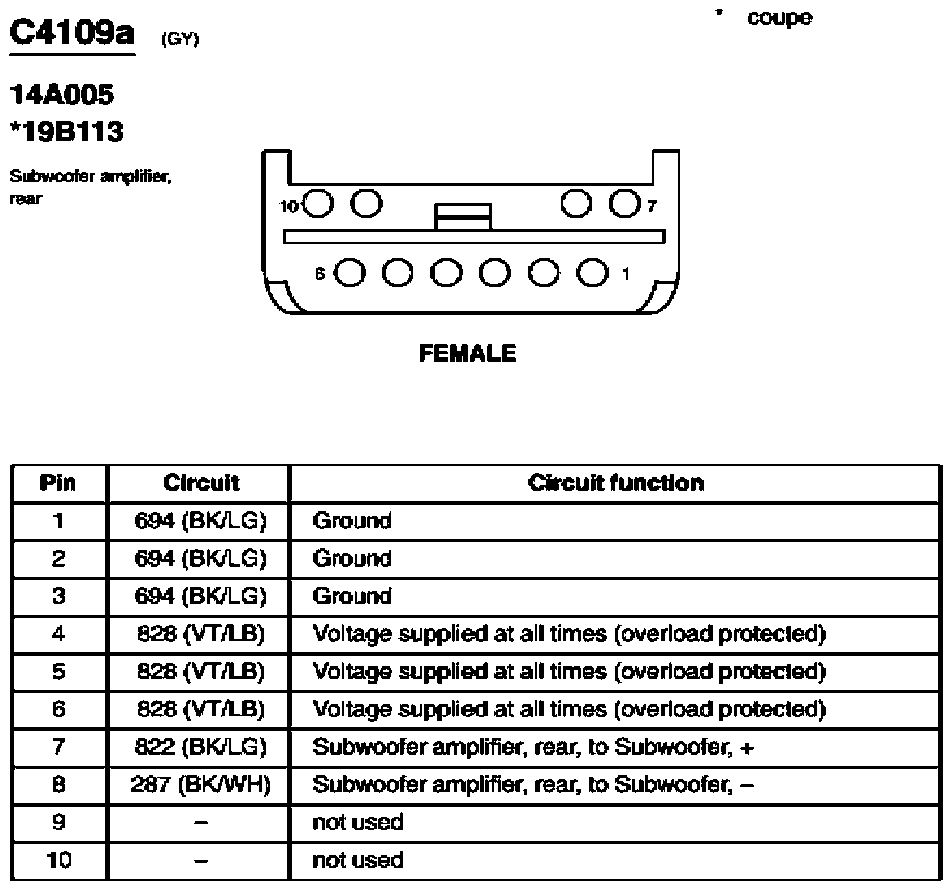

Fig 259: Subwoofer Amplifier, Rear Connector End View (C4109a)

G07839266

Courtesy of FORD MOTOR CO.

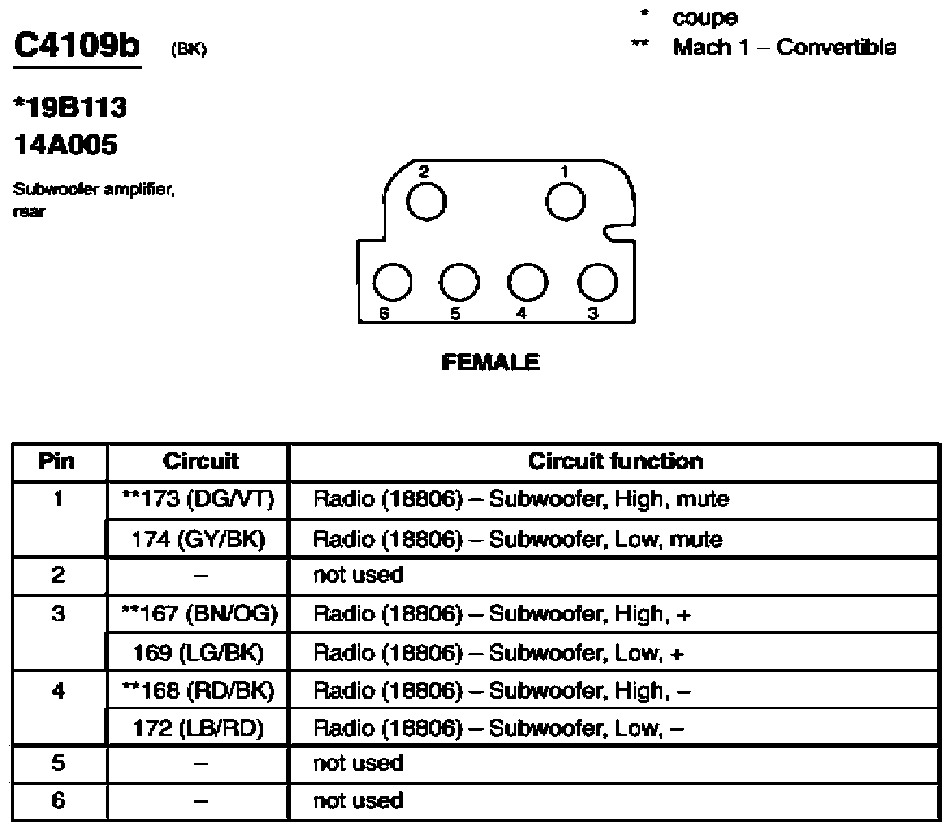

Fig 260: Subwoofer Amplifier, Rear Connector End View (C4109b)

G07839267

Courtesy of FORD MOTOR CO.

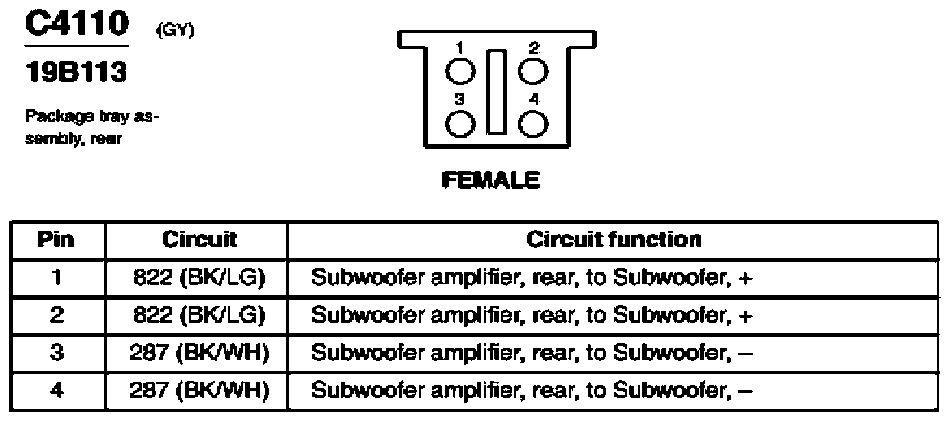

Fig 261: Package Tray Assembly, Rear Connector End View (C4110)

G07839268

Courtesy of FORD MOTOR CO.

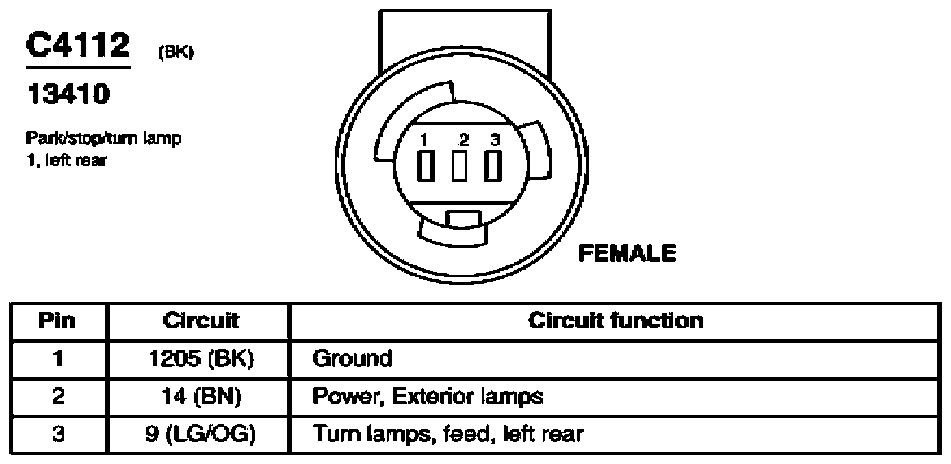

Fig 262: Park/Stop/Turn Lamp 1, Left Rear Connector End View (C4112)

G07839269

Courtesy of FORD MOTOR CO.

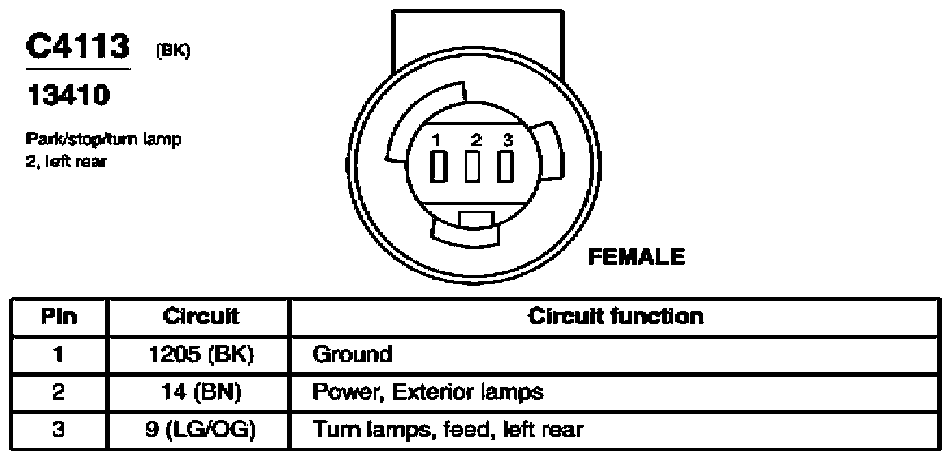

Fig 263: Park/Stop/Turn Lamp 2, Left Rear Connector End View (C4113)

G07839270

Courtesy of FORD MOTOR CO.

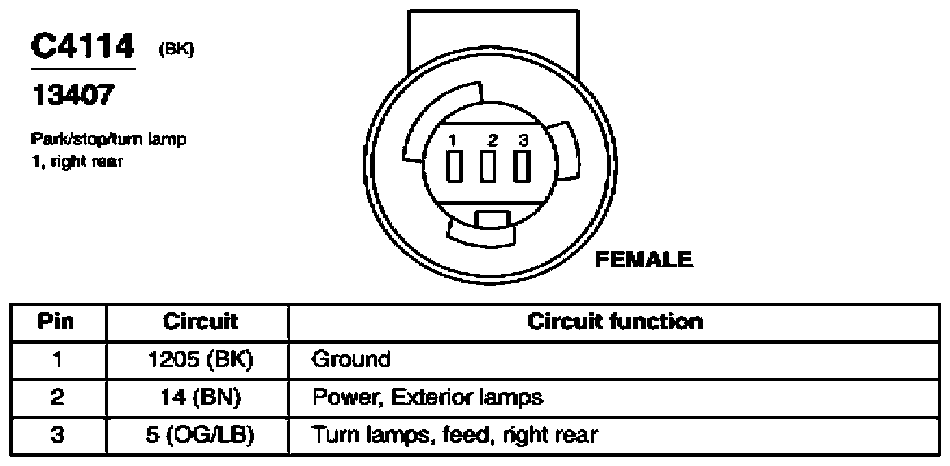

Fig 264: Park/Stop/Turn Lamp 1, Right Rear Connector End View (C4114)

G07839271

Courtesy of FORD MOTOR CO.

Fig 265: Park/Stop/Turn Lamp 2, Right Rear Connector End View (C4115)

G07839272

Courtesy of FORD MOTOR CO.

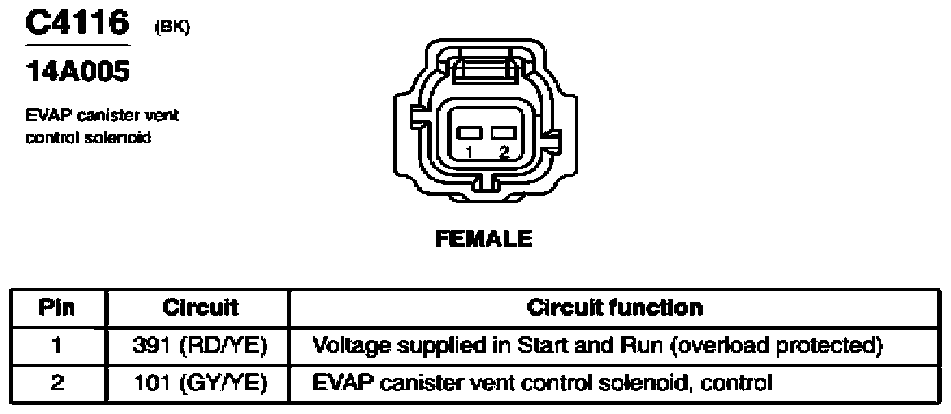

Fig 266: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07839273

Courtesy of FORD MOTOR CO.

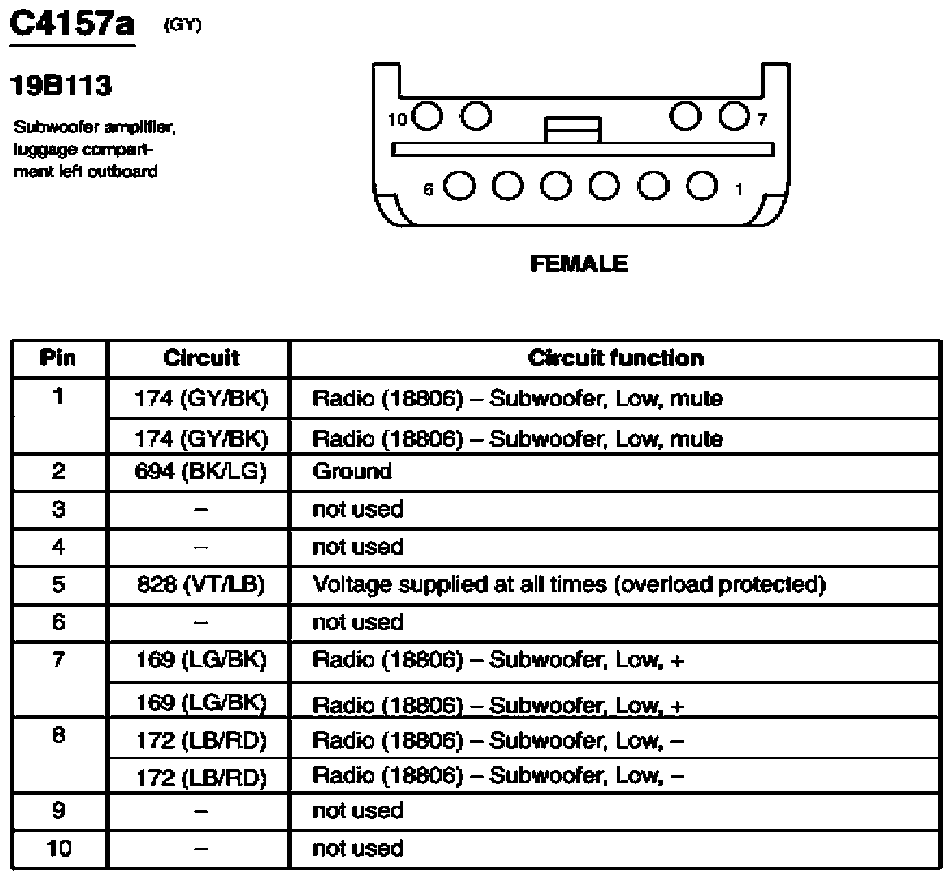

Fig 267: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157a)

G07839274

Courtesy of FORD MOTOR CO.

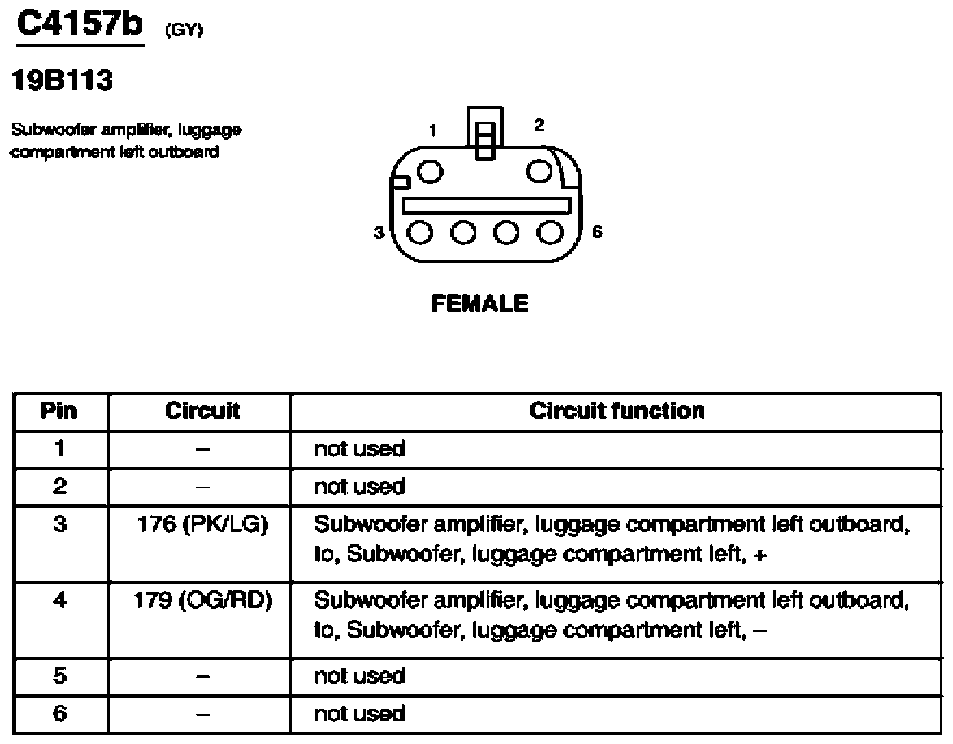

Fig 268: Subwoofer Amplifier, Luggage Compartment Left Outboard Connector End View (C4157b)

G07839275

Courtesy of FORD MOTOR CO.

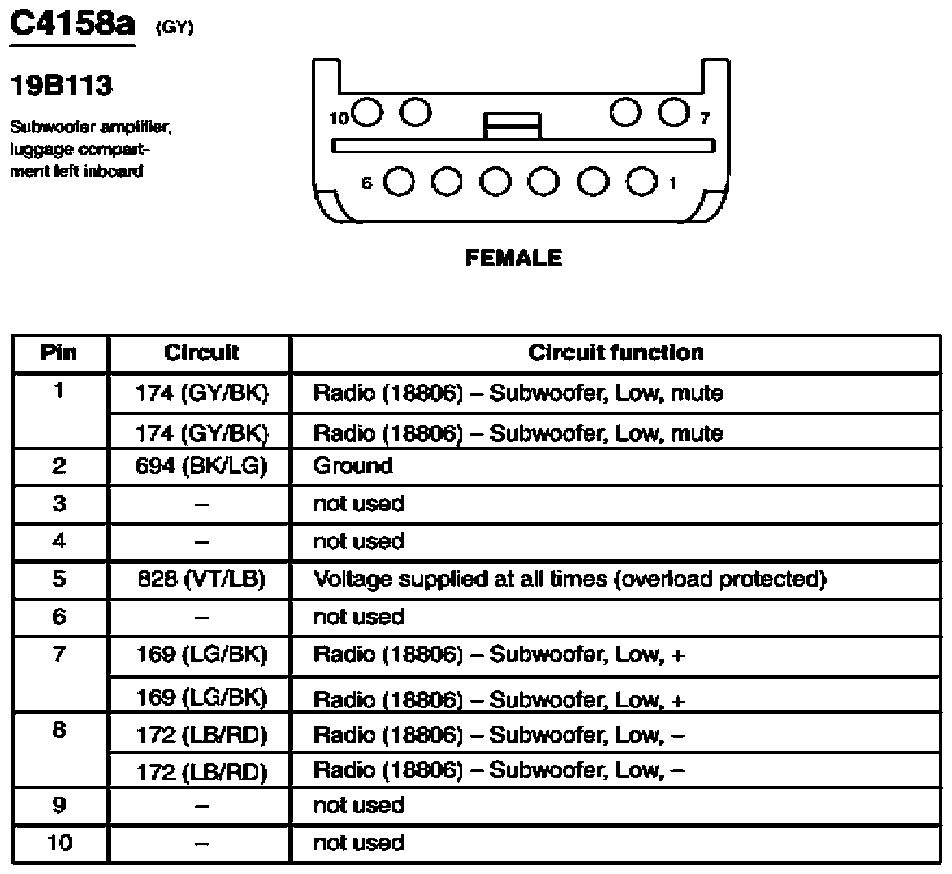

Fig 269: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158a)

G07839276

Courtesy of FORD MOTOR CO.

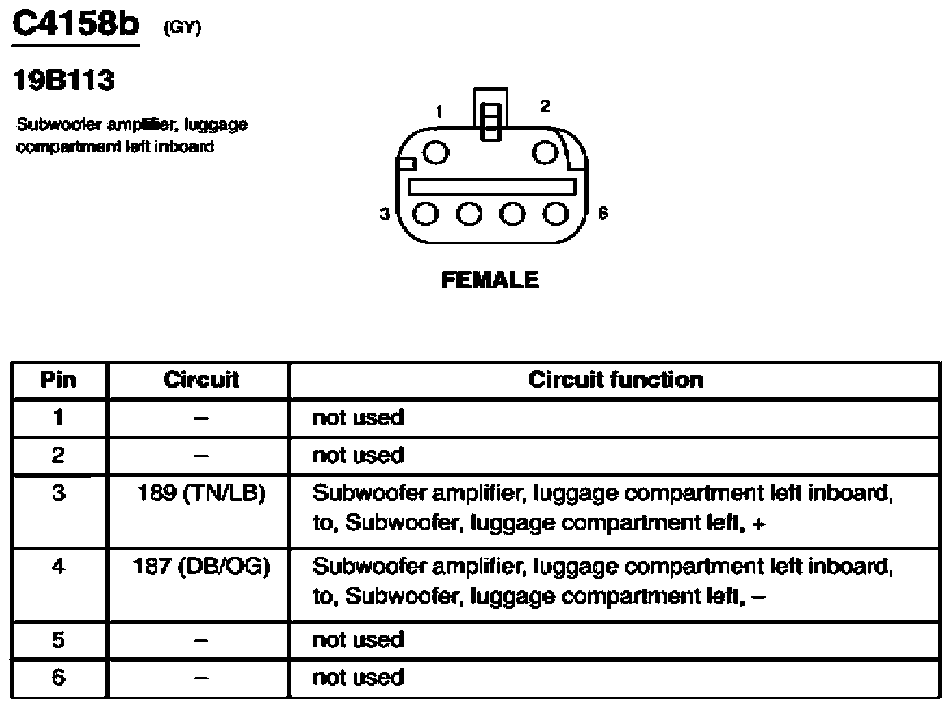

Fig 270: Subwoofer Amplifier, Luggage Compartment Left Inboard Connector End View (C4158b)

G07839277

Courtesy of FORD MOTOR CO.

Fig 271: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159a)

G07839278

Courtesy of FORD MOTOR CO.

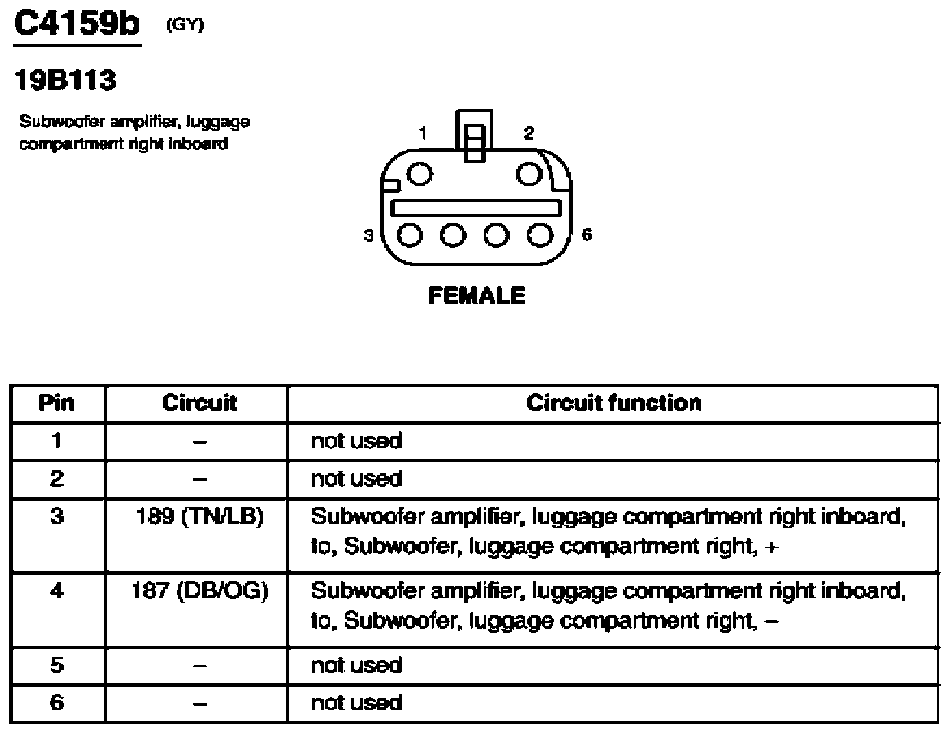

Fig 272: Subwoofer Amplifier, Luggage Compartment Right Inboard Connector End View (C4159b)

G07839279

Courtesy of FORD MOTOR CO.

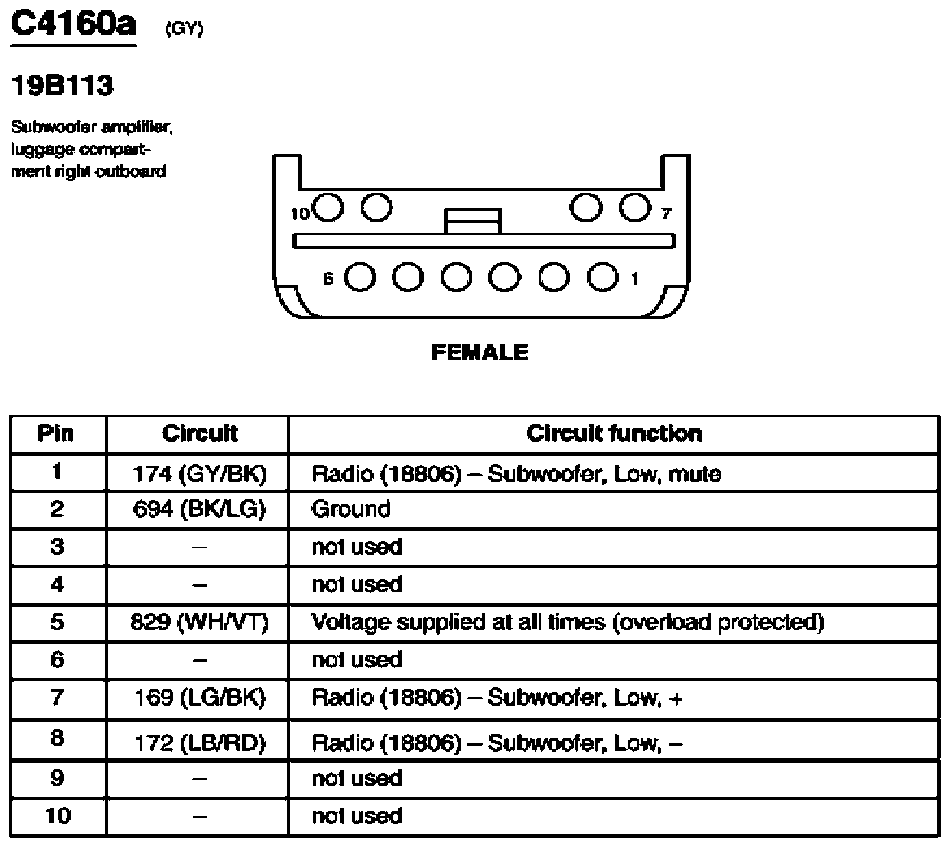

Fig 273: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160a)

G07839280

Courtesy of FORD MOTOR CO.

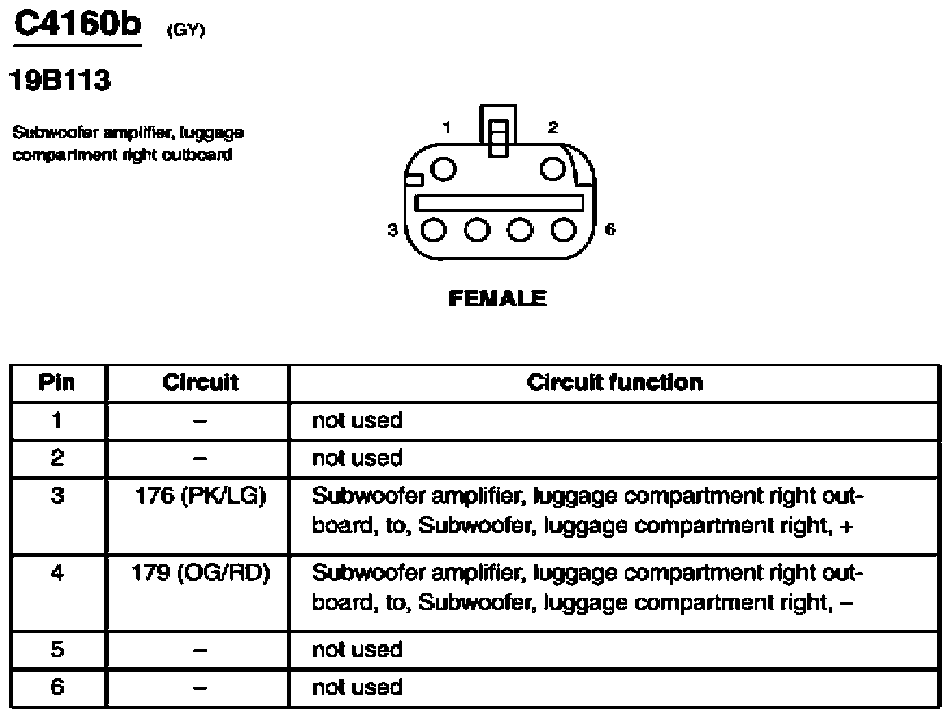

Fig 274: Subwoofer Amplifier, Luggage Compartment Right Outboard Connector End View (C4160b)

G07839281

Courtesy of FORD MOTOR CO.

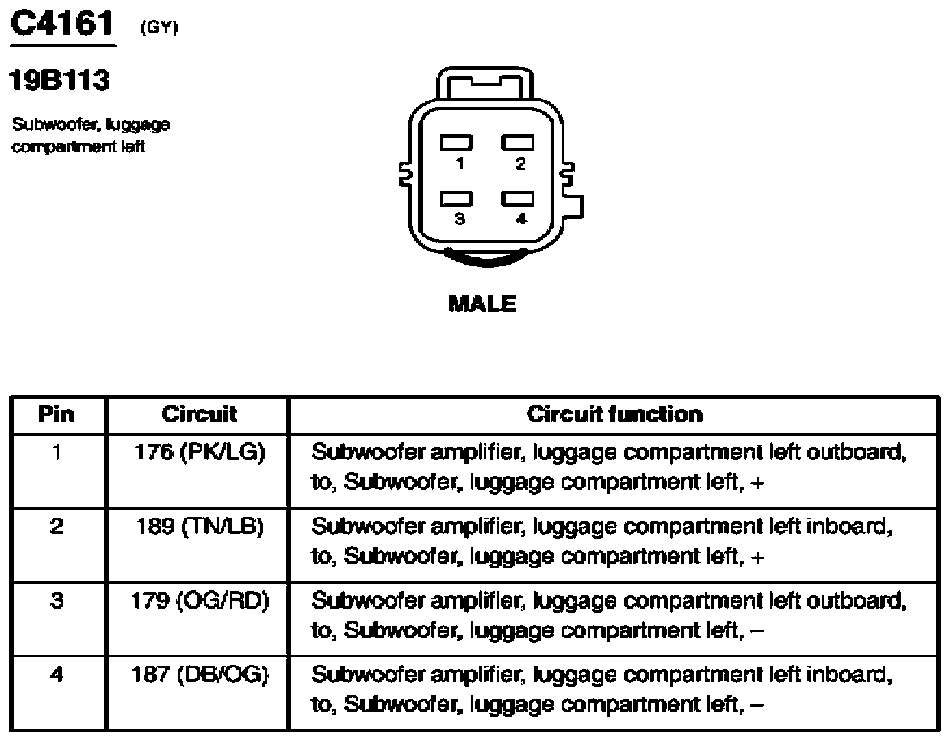

Fig 275: Subwoofer, Luggage Compartment Left Connector End View (C4161)

G07839282

Courtesy of FORD MOTOR CO.

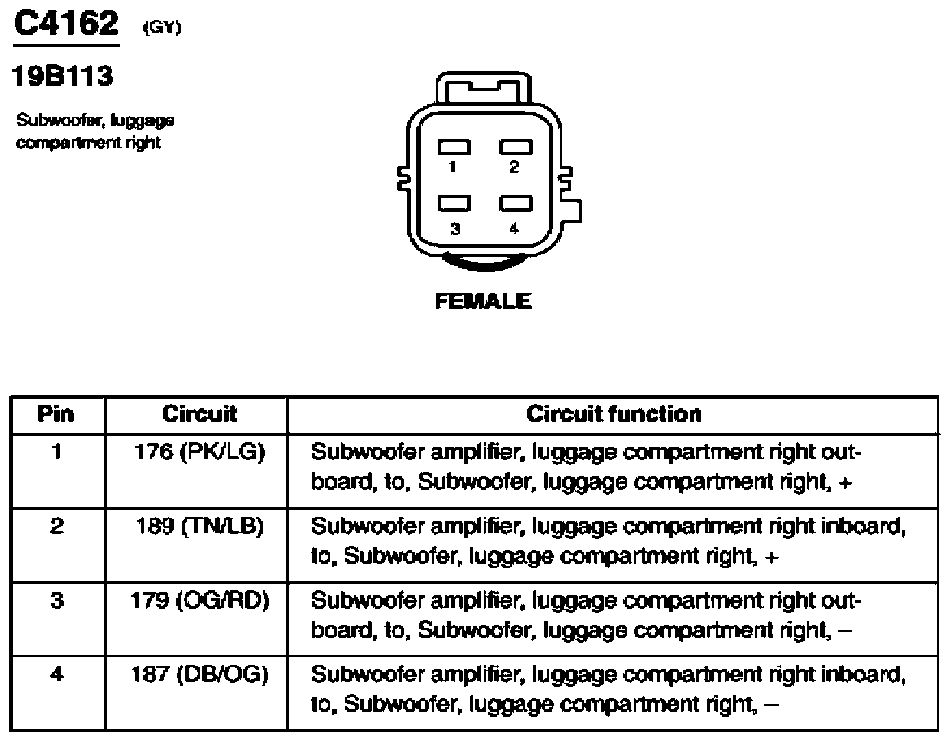

Fig 276: Subwoofer, Luggage Compartment Right Connector End View (C4162)

G07839283

Courtesy of FORD MOTOR CO.

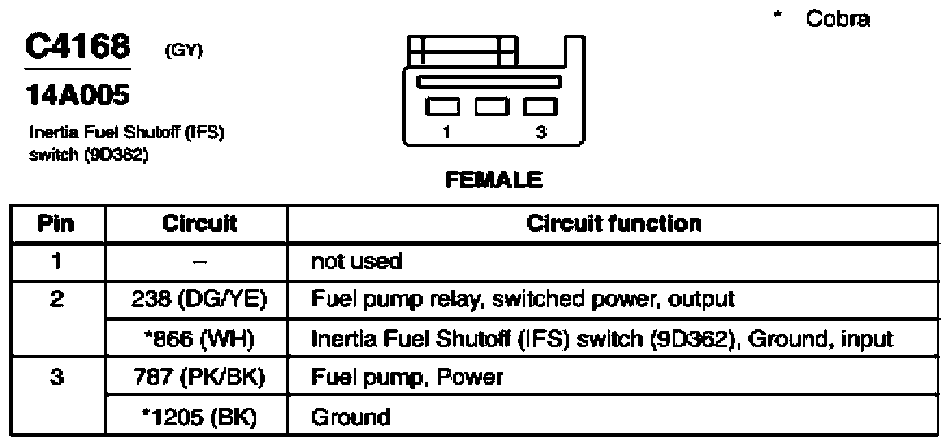

Fig 277: Inertia Fuel Shutoff (IFS) Switch Connector End View (C4168)

G07839284

Courtesy of FORD MOTOR CO.

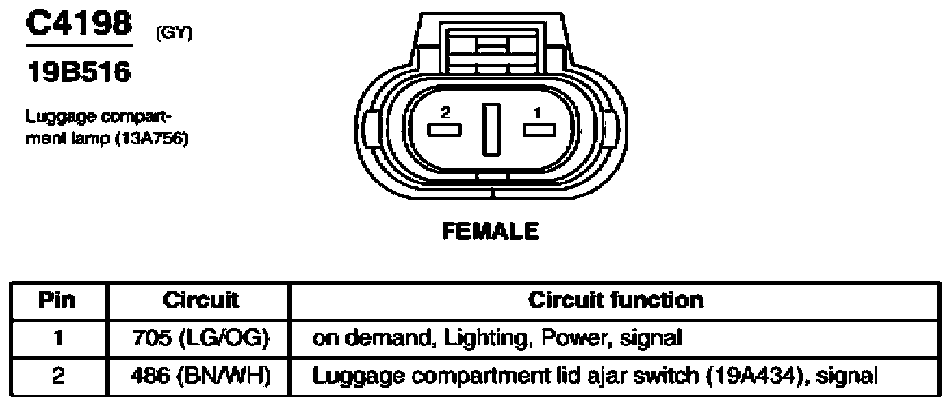

Fig 278: Luggage Compartment Lamp Connector End View (C4198)

G07839285

Courtesy of FORD MOTOR CO.

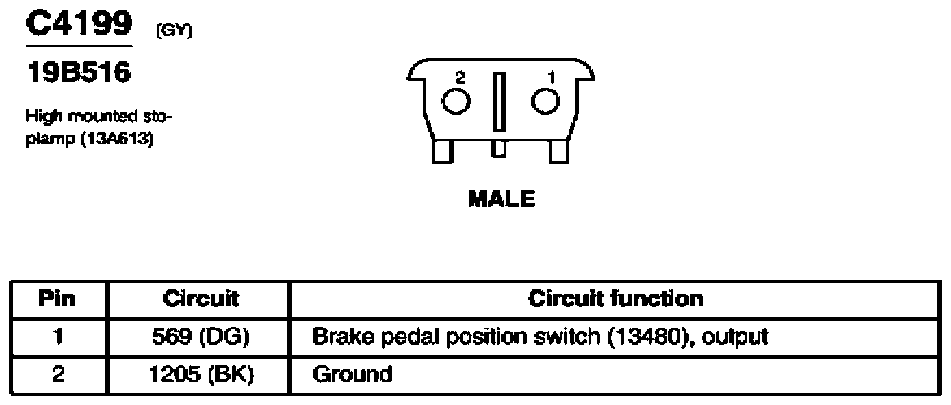

Fig 279: High Mounted Stoplamp Connector End View (C4199)

G07839286

Courtesy of FORD MOTOR CO.
