Control Assembly: Installation

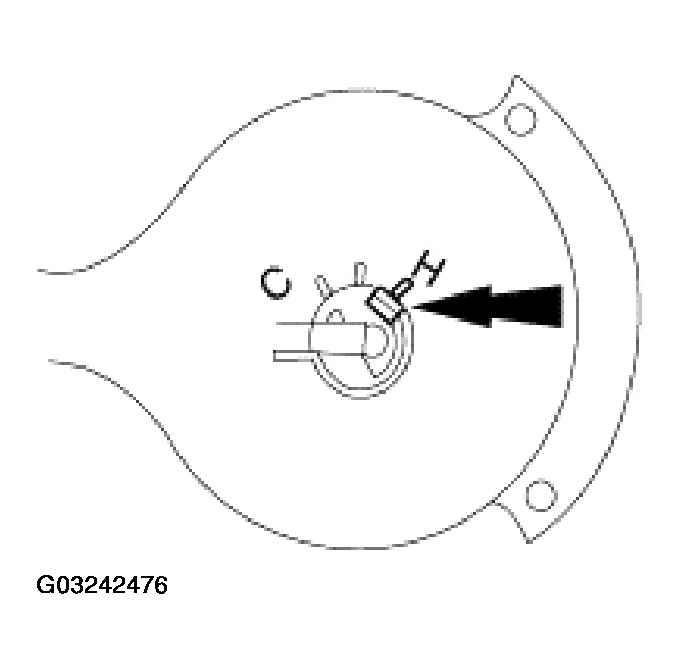

Align the blend door driver to the full heat position.

Fig 1: Setting Blend Door Driver To Full Heat Position
Courtesy of FORD MOTOR CO.

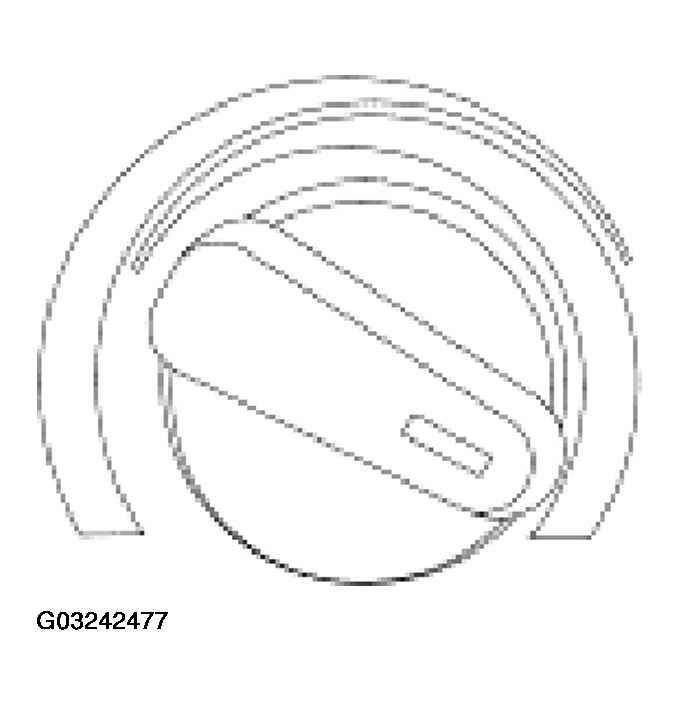

Place the temperature control knob in the full WARM position.

Fig 2: Placing Temperature Control Knob In Full Warm Position
Courtesy of FORD MOTOR CO.
Attach the cable drive to the control head.

Fig 3: Attaching Cable Drive To Control Head
Courtesy of FORD MOTOR CO.

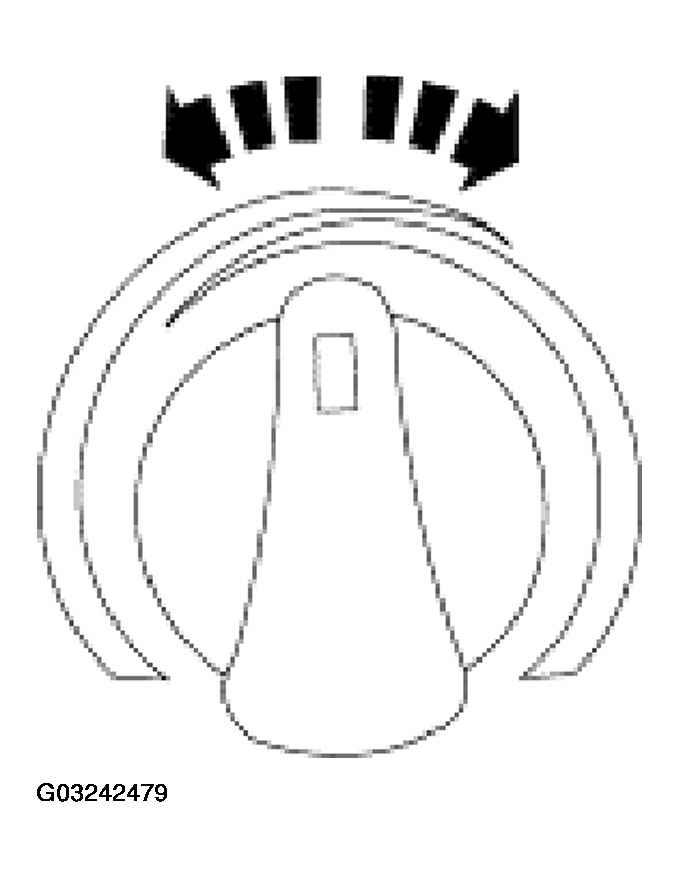

Rotate the knob back and forth from full WARM to full COOL.

Fig 4: Rotating Temperature Control Knob
Courtesy of FORD MOTOR CO.

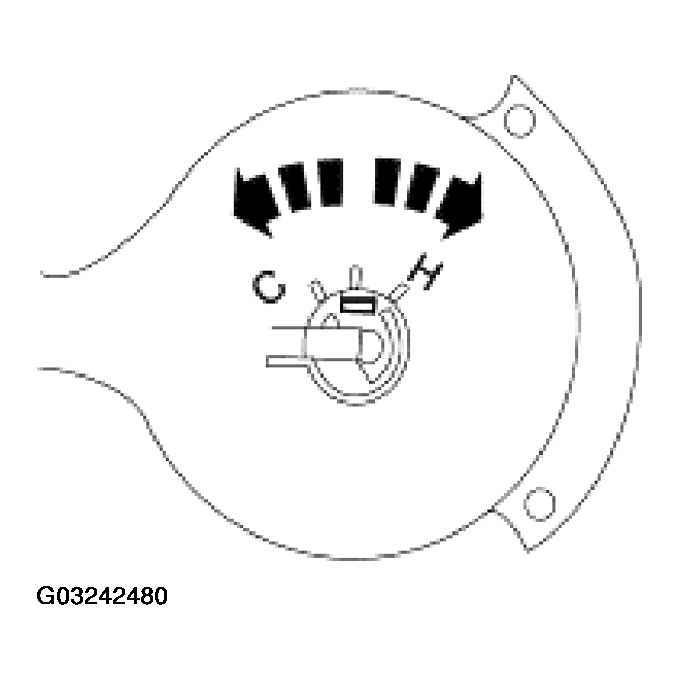

Check the cable control for correct range of movement.

Fig 5: Checking Cable Control For Correct Range Of Movement
Courtesy of FORD MOTOR CO.

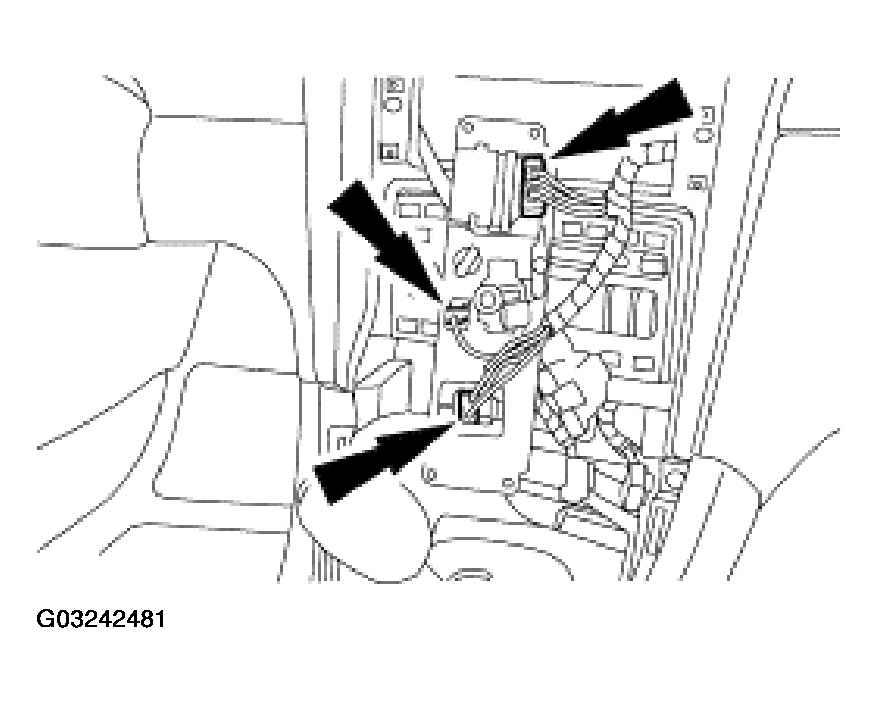

Connect the electrical connectors.

Fig 6: Connecting Control Head Electrical Connectors
Courtesy of FORD MOTOR CO.

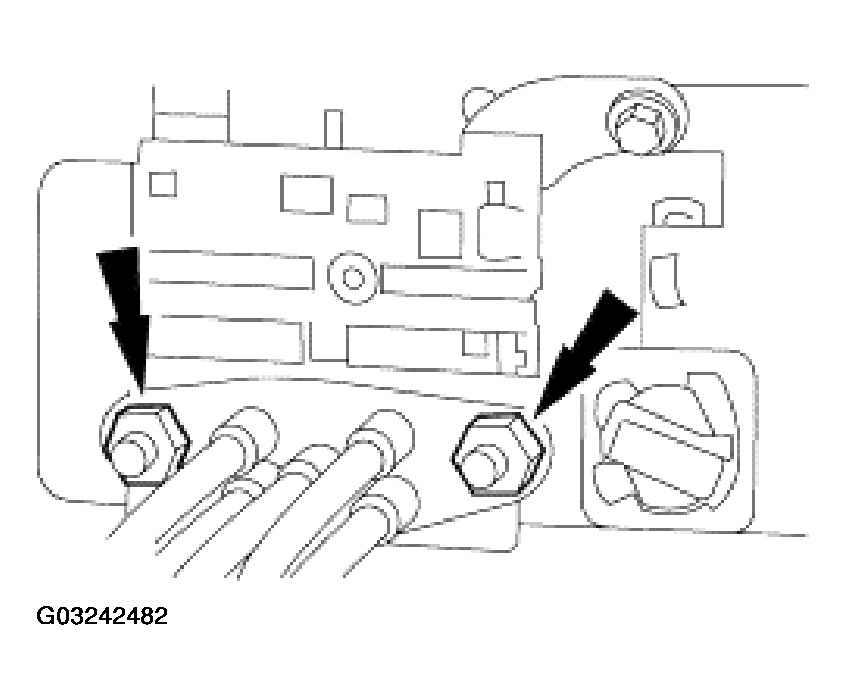

Install the vacuum connector and nuts.

Fig 7: Installing Vacuum Connector
Courtesy of FORD MOTOR CO.

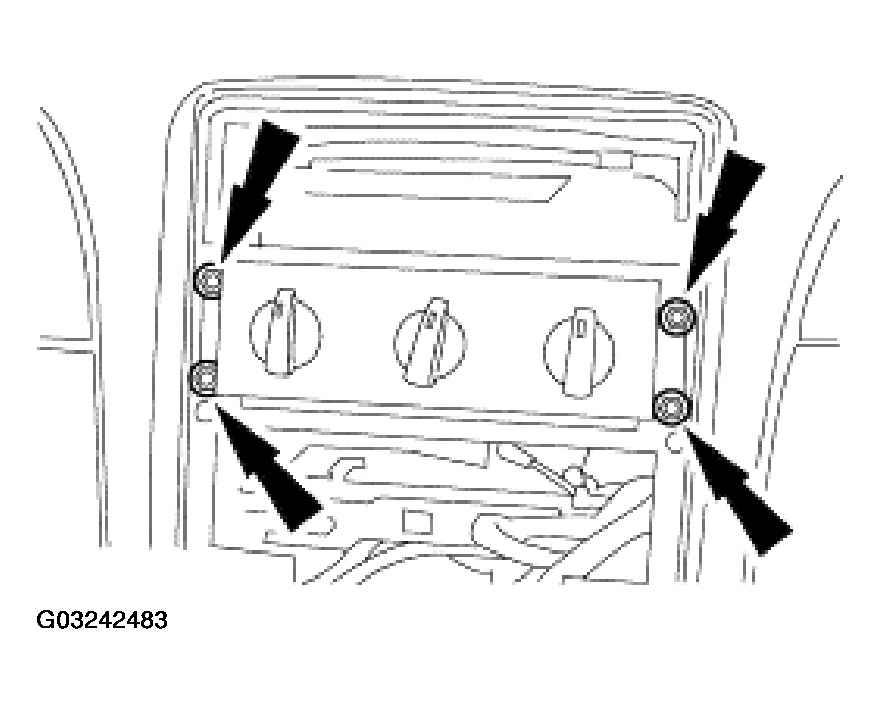

Install the control head.

Fig 8: Installing Control Head
Courtesy of FORD MOTOR CO.
Install the center instrument panel register. For additional information, refer to AIR DISTRIBUTION & FILTERING .
