Control Assembly, HVAC

CONTROL ASSEMBLY

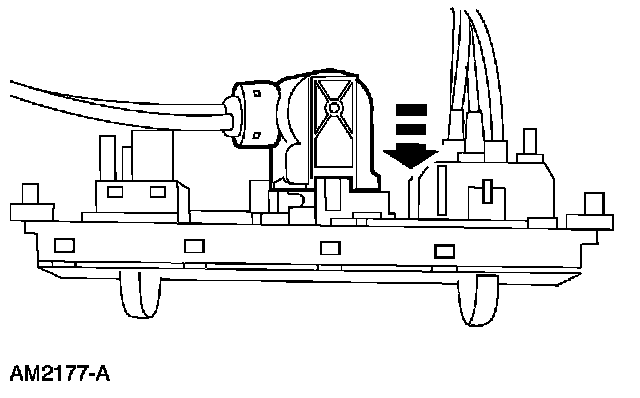

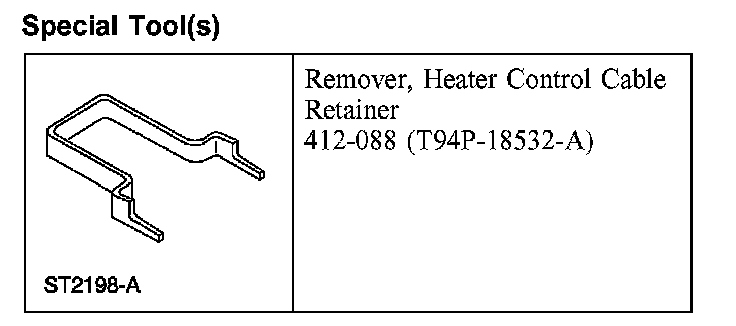

Remover, Heater Control Cable Retainer:

SPECIAL TOOL(S)

REMOVAL
1. Remove the center instrument panel register. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Center Finish Panel, Center Finish Panel

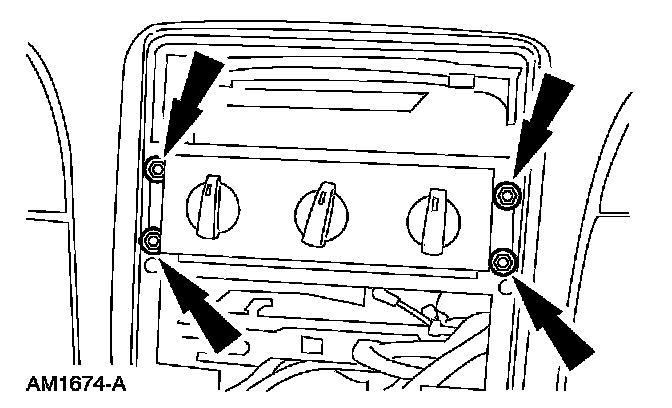

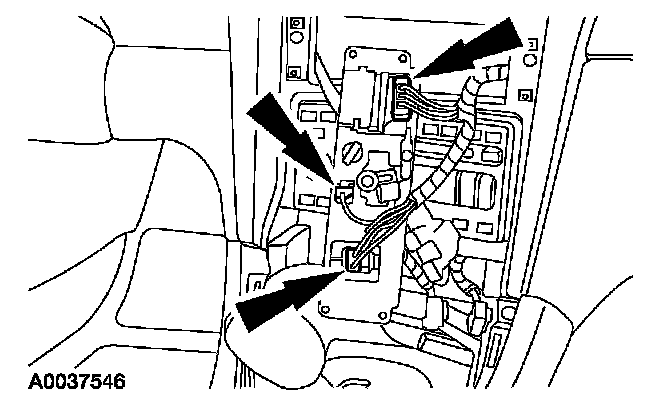

2. Remove the screws.

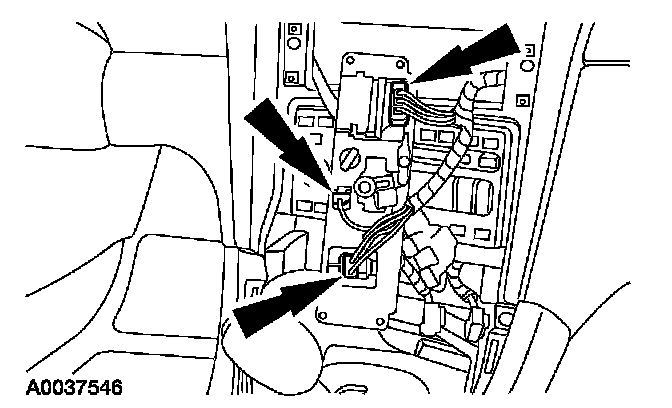

3. Disconnect the connectors.

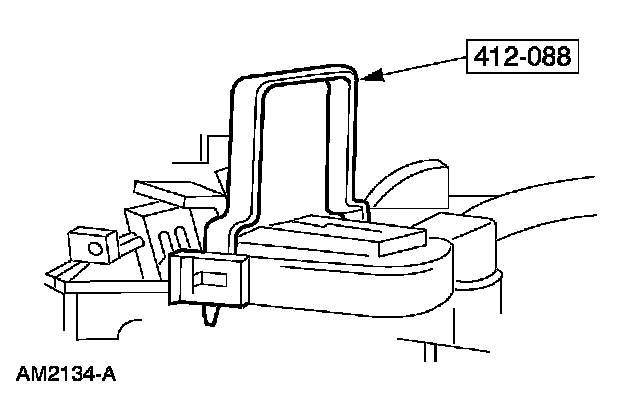

4. Using the special tool, disconnect the temperature control cable from the control head.

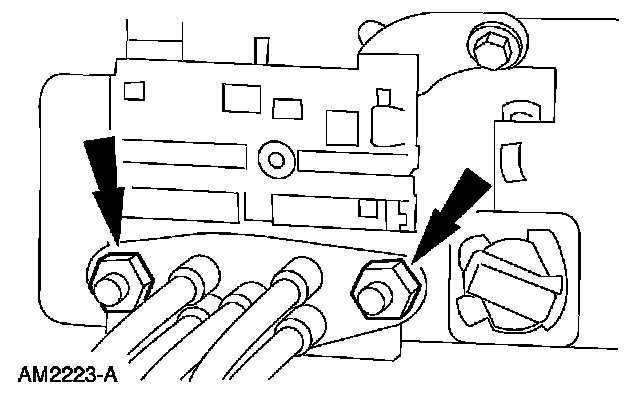

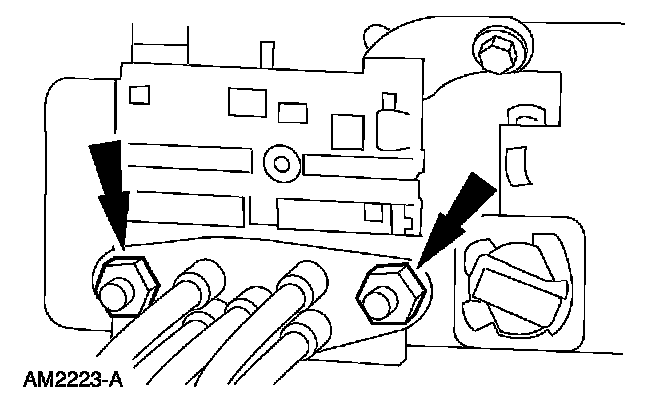

5. Remove the nuts and disconnect the vacuum connector.

INSTALLATION

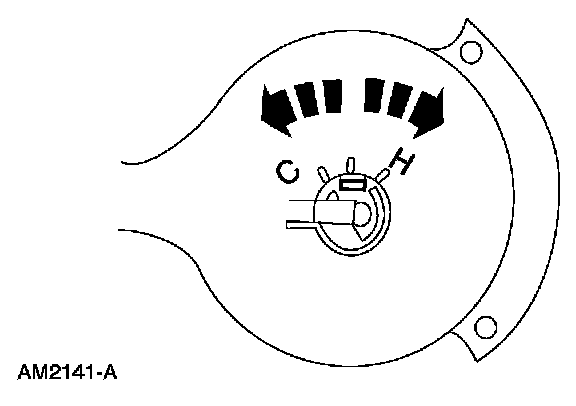

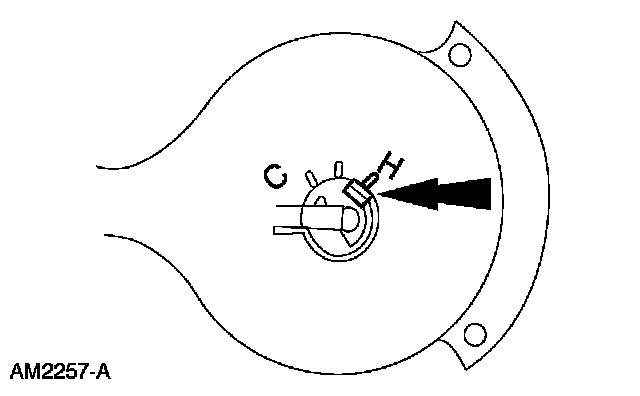

1. Align the blend door driver to the full heat position.

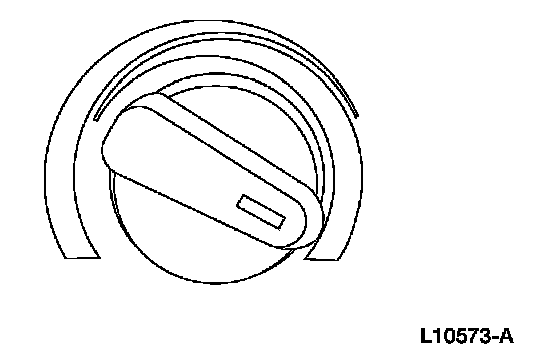

2. Place the temperature control knob in the full WARM position.







3. Attach the cable drive to the control head.

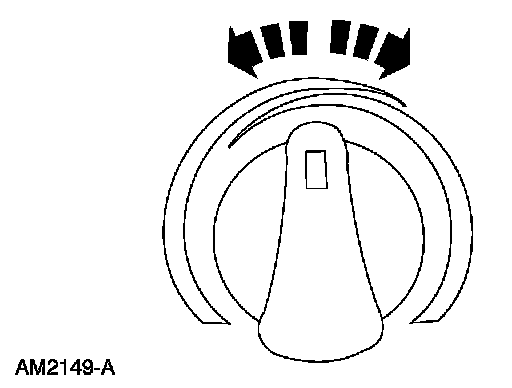

4. Rotate the knob back and forth from full WARM to full COOL.







5. Check the cable control for correct range of movement.







6. Connect the electrical connectors.







7. Install the vacuum connector and nuts.

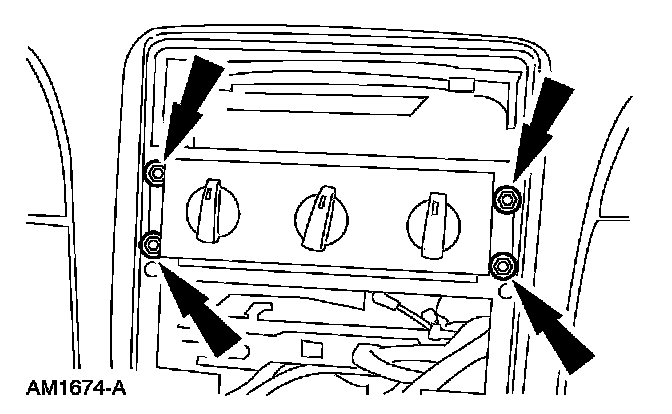

8. Install the control head.
9. Install the center instrument panel register. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Center Finish Panel, Center Finish Panel
