Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

REMOVAL
1. Disconnect the battery ground cable.

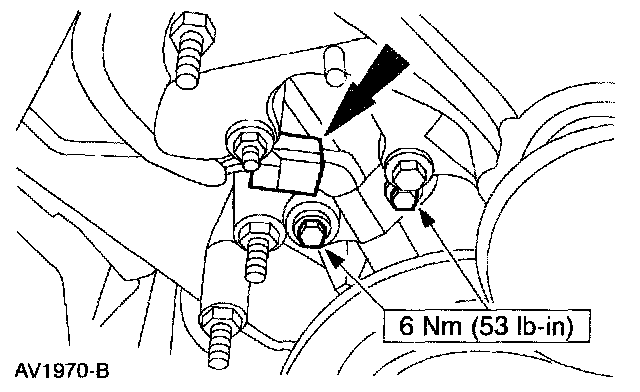

2. Remove the crankshaft position (CKP) sensor.
- Disconnect the connector.
- Remove the bolts and the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
