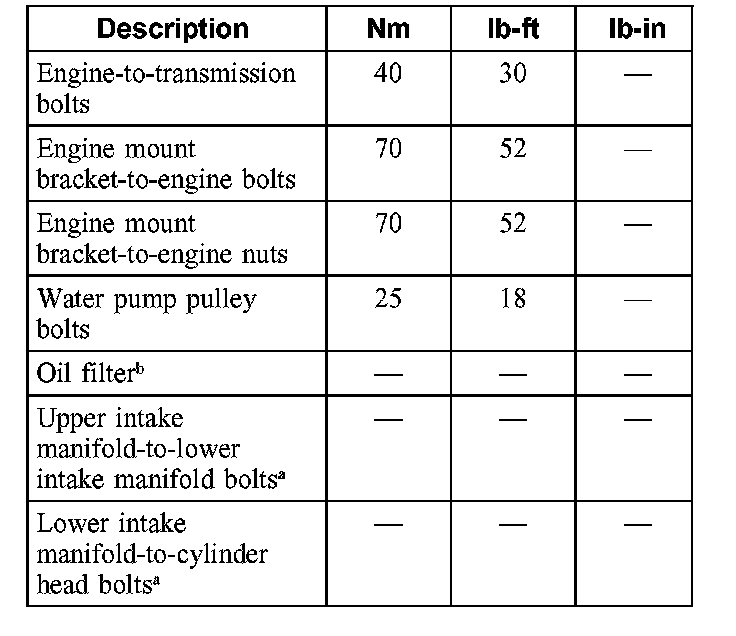

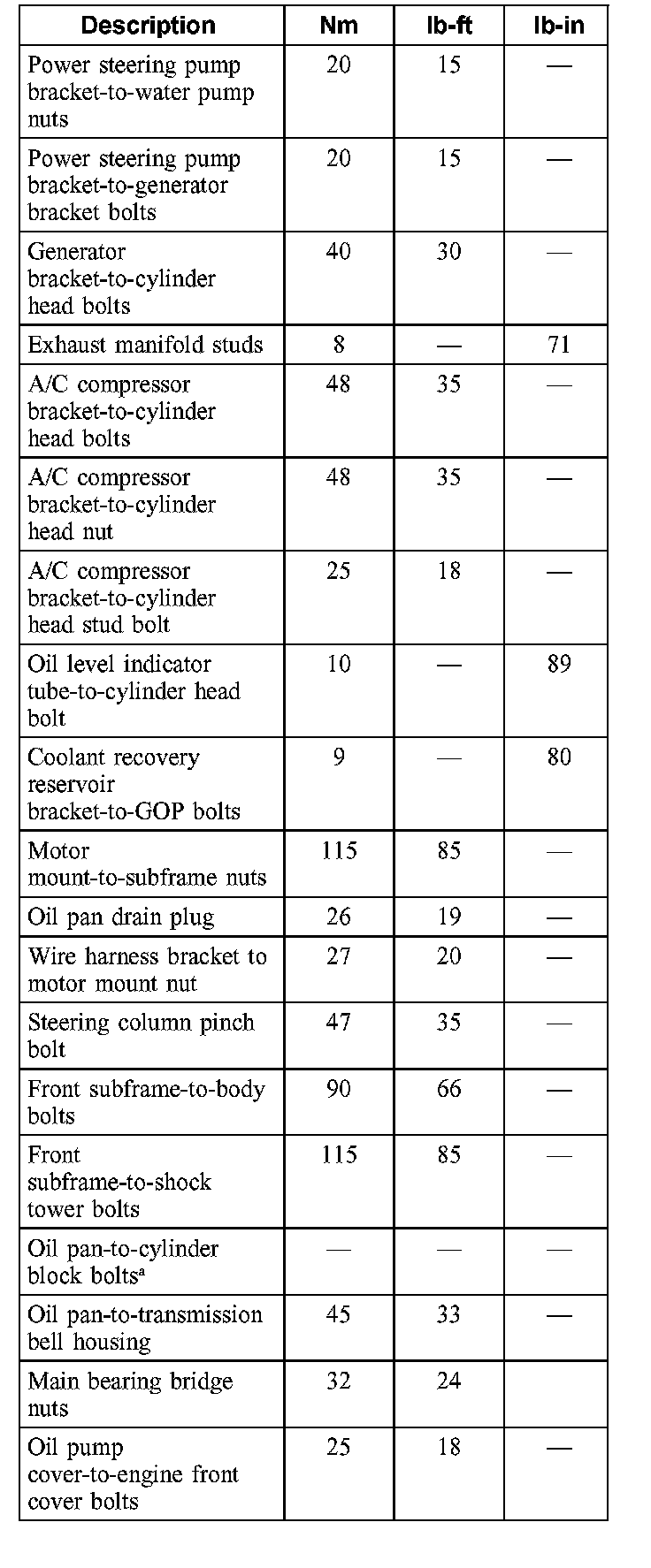

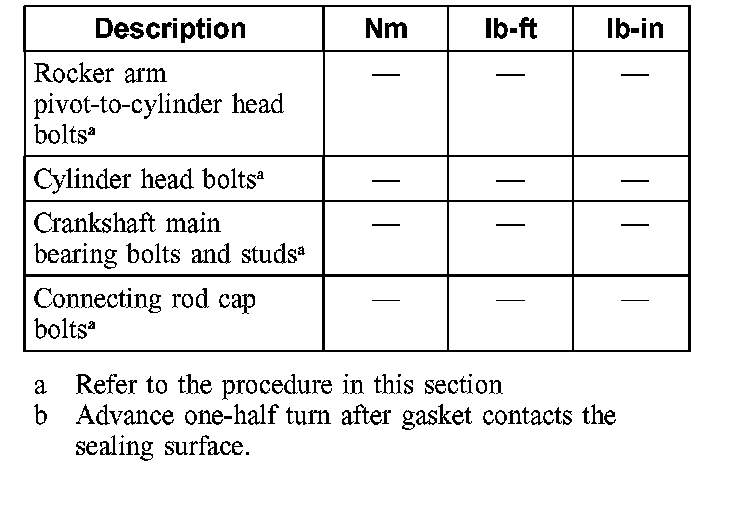

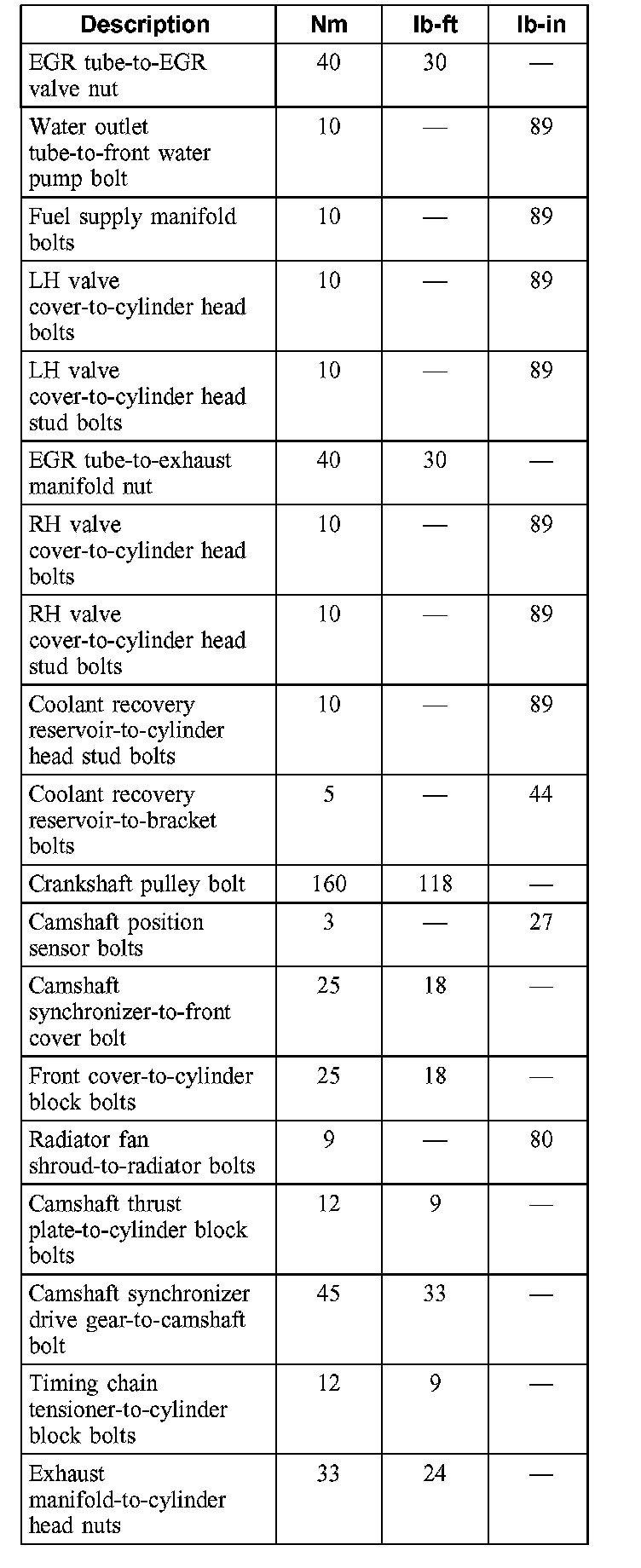

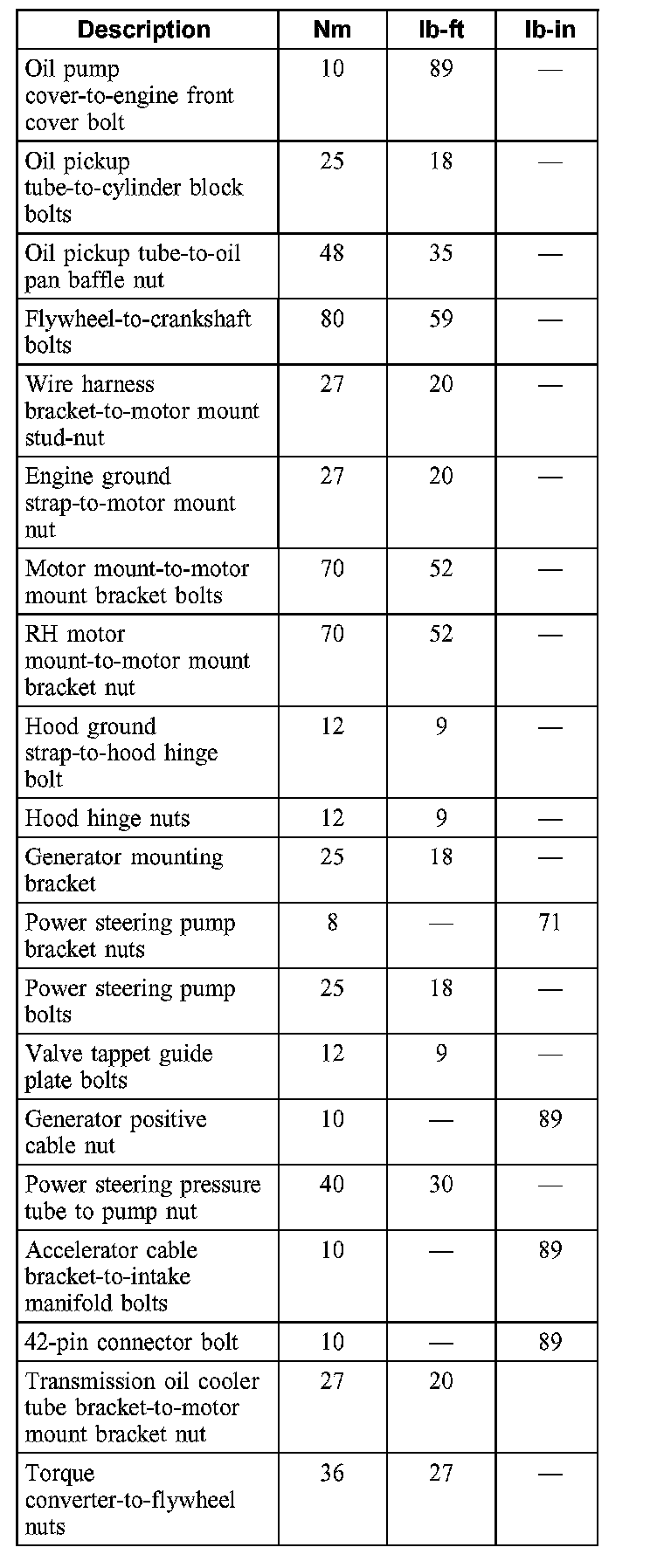

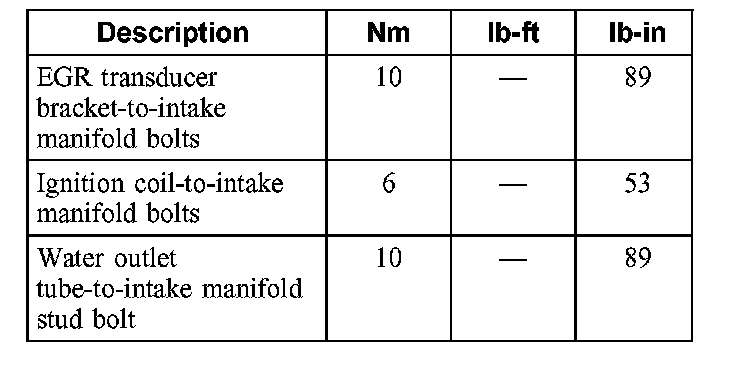

Torque Specifications

Part 1 Of 6:





Part 2 Of 6:





Part 3 Of 6:





Part 4 Of 6:





Part 5 Of 6:





Part 6 Of 6:

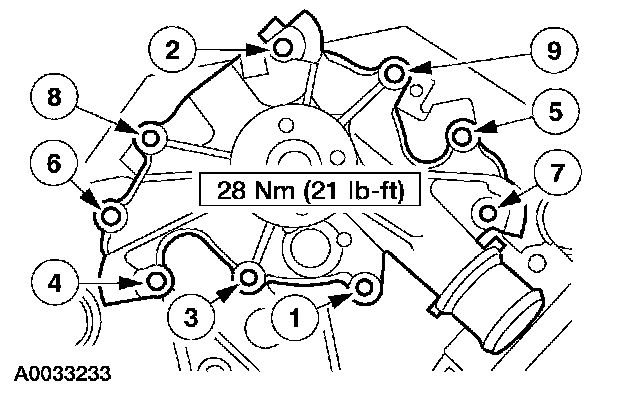

WATER PUMP






Coolant Pump Stud, Bolts And Nuts 28 Nm (21 lb-ft)
