Engine

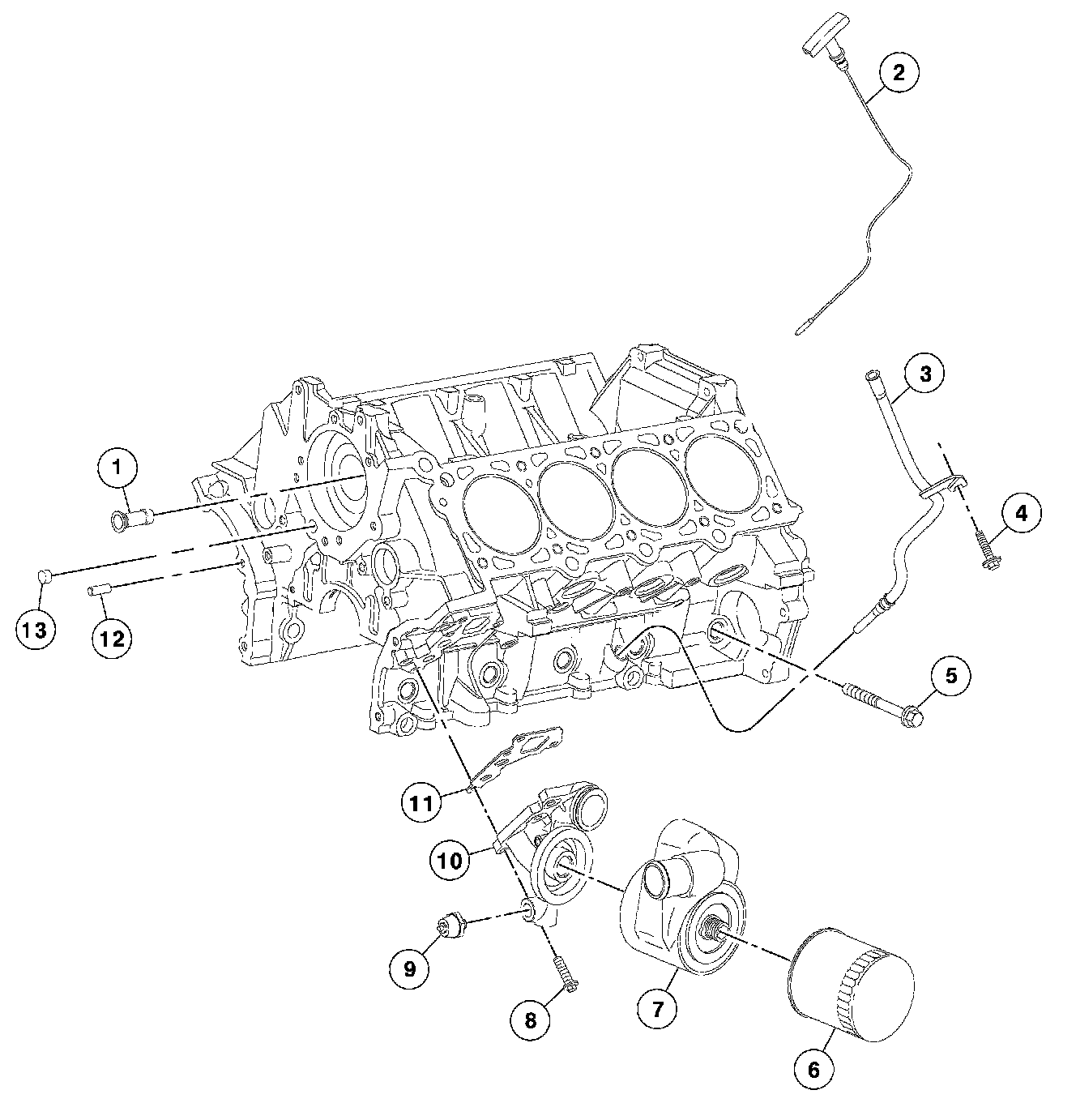

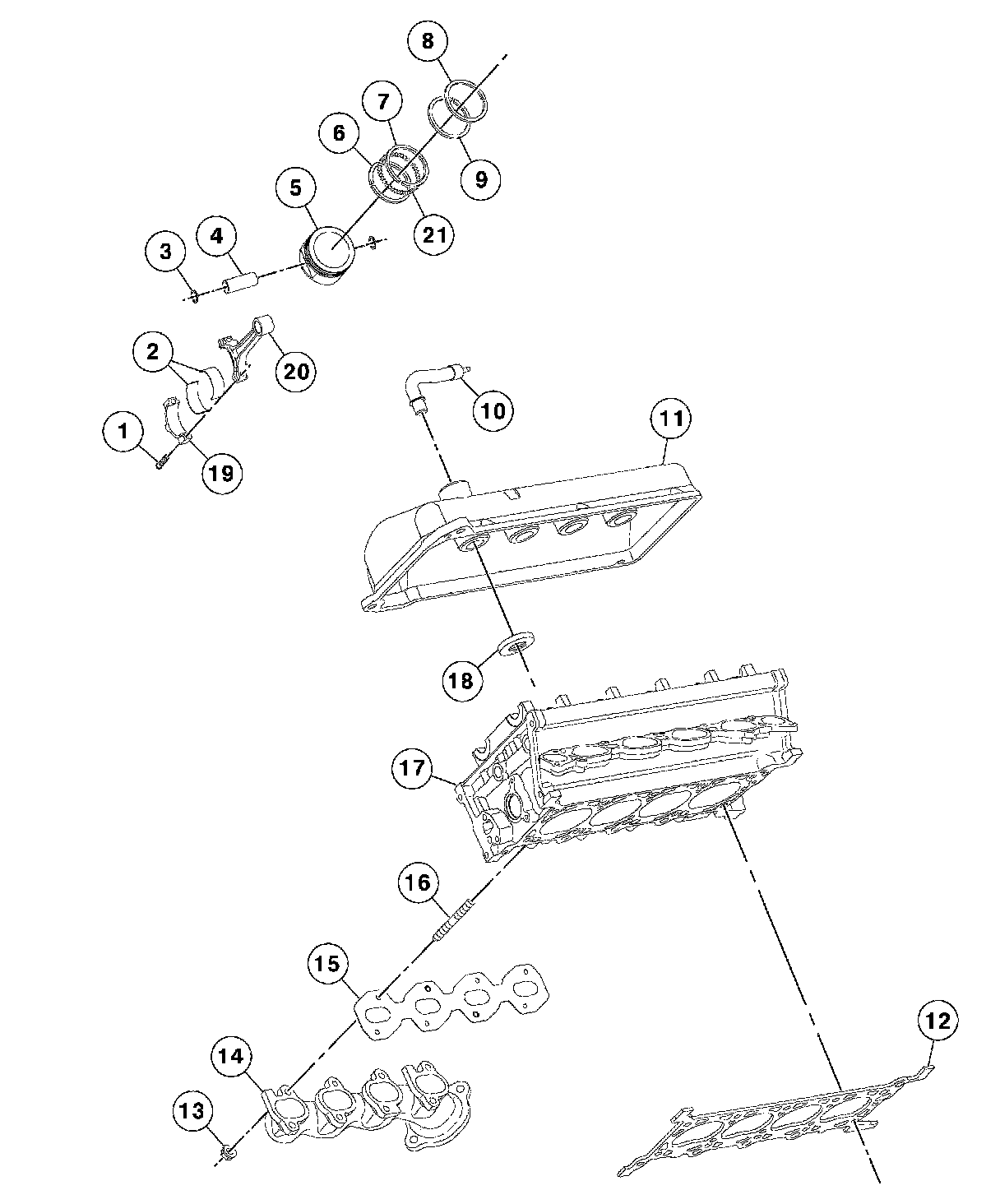

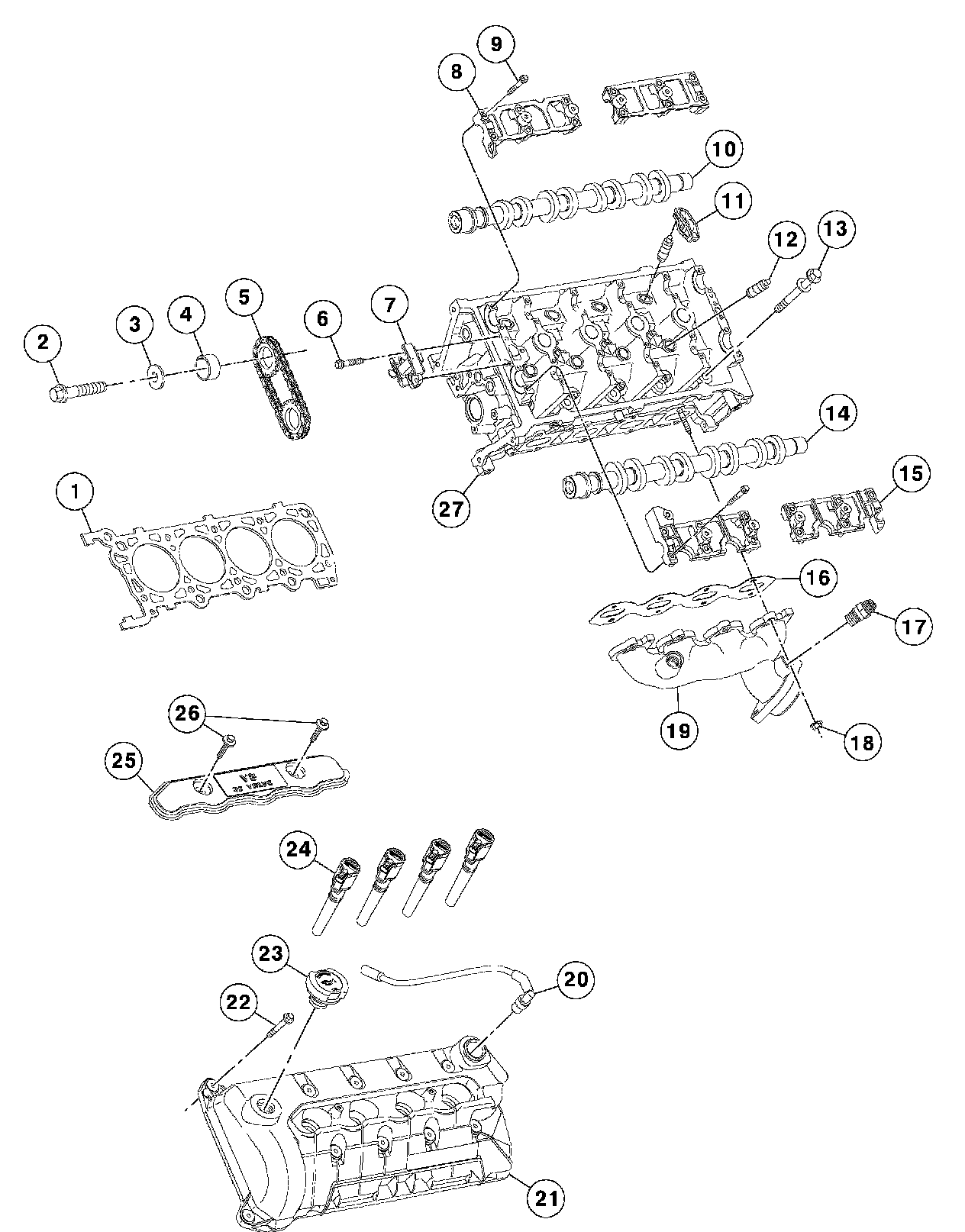

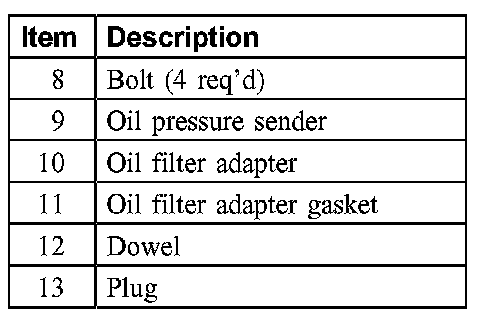

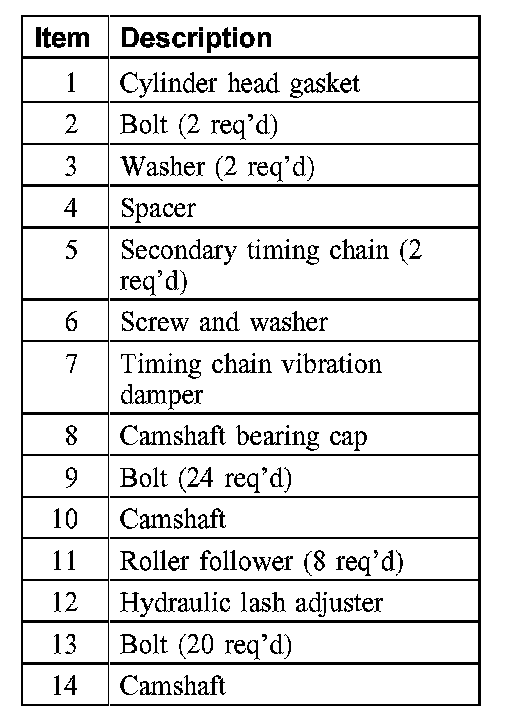

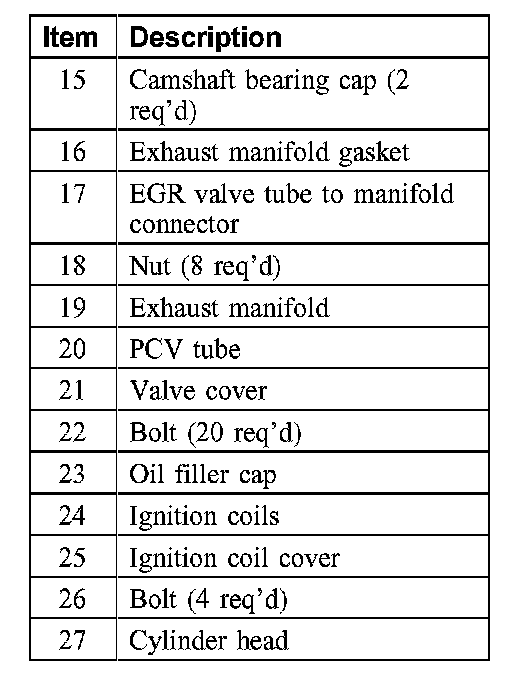

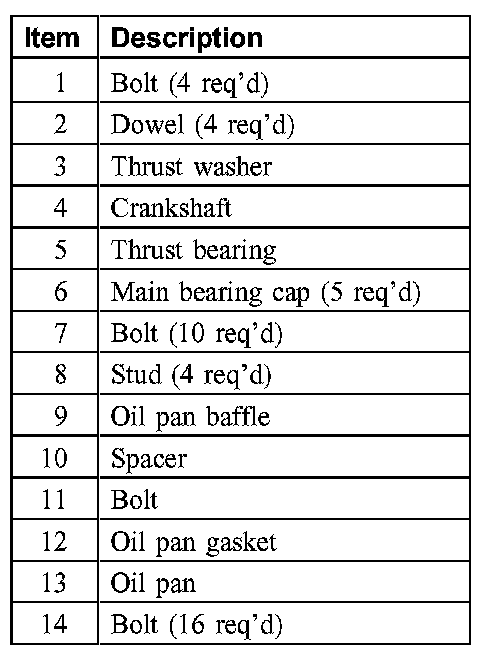

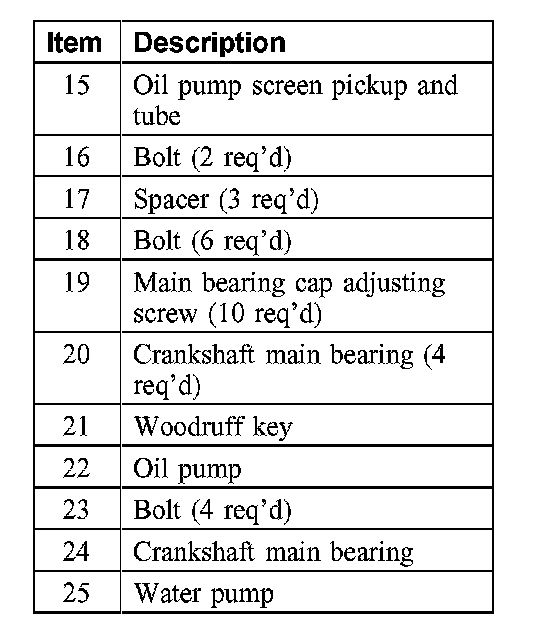

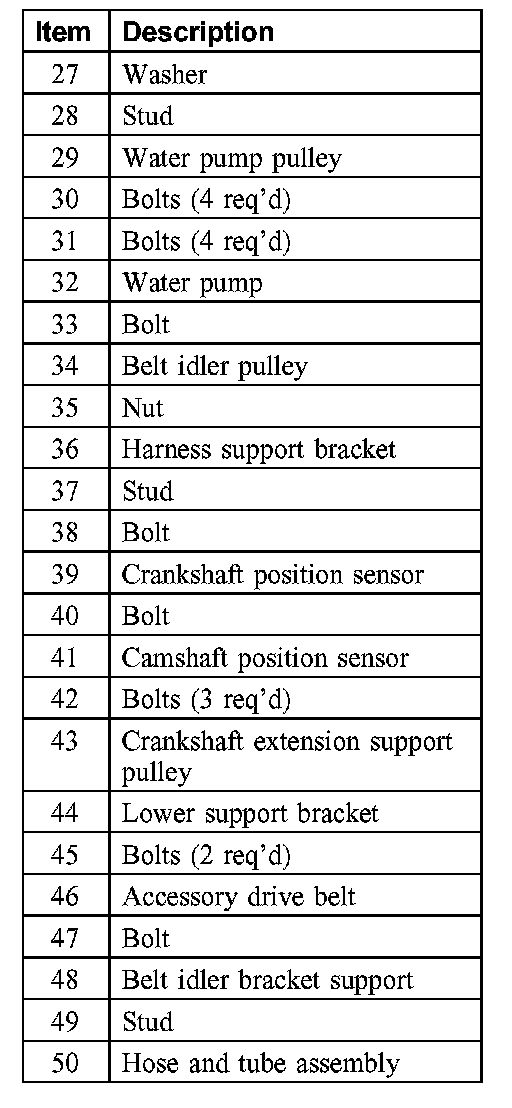

Part 1 Of 20:

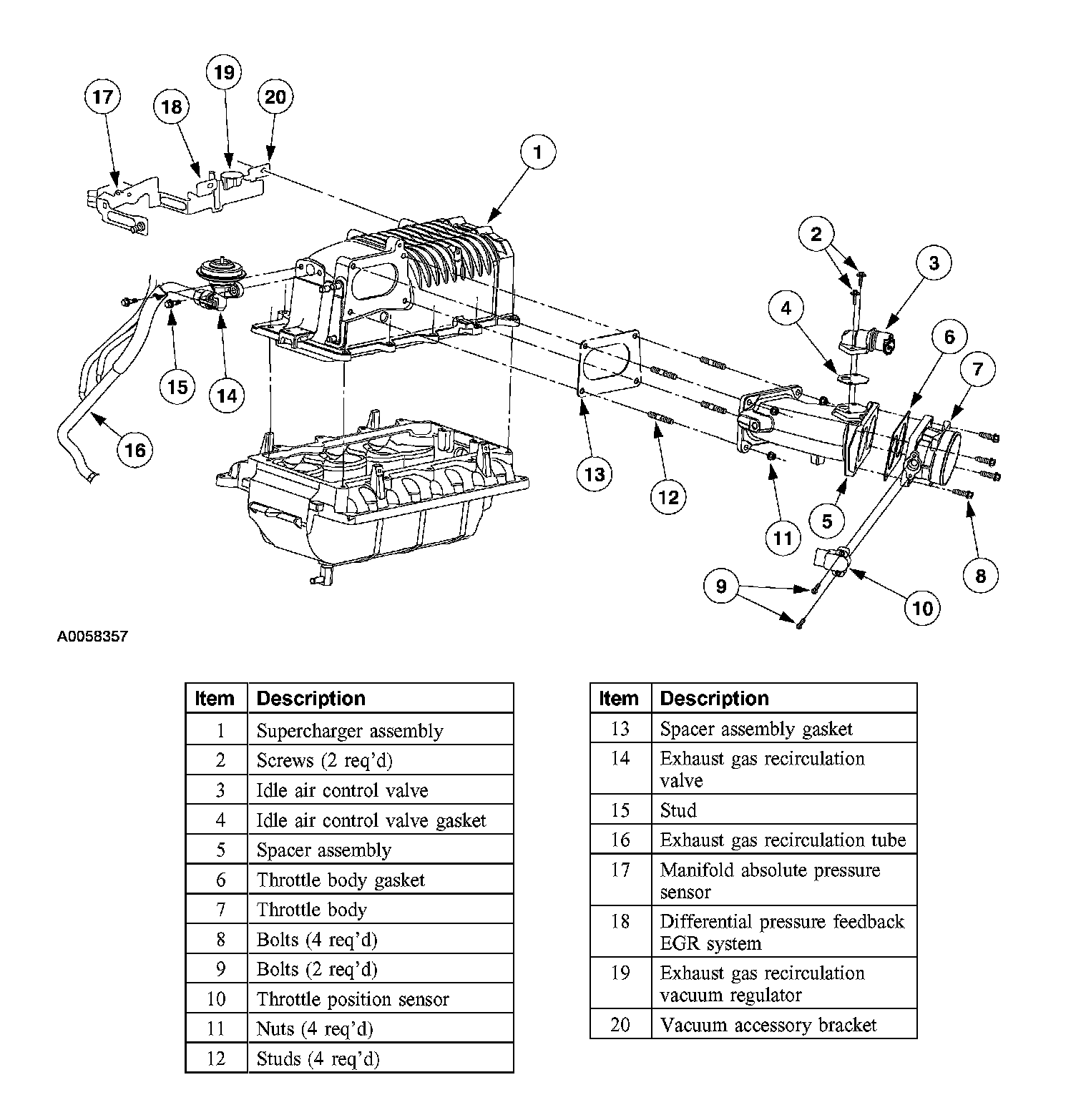

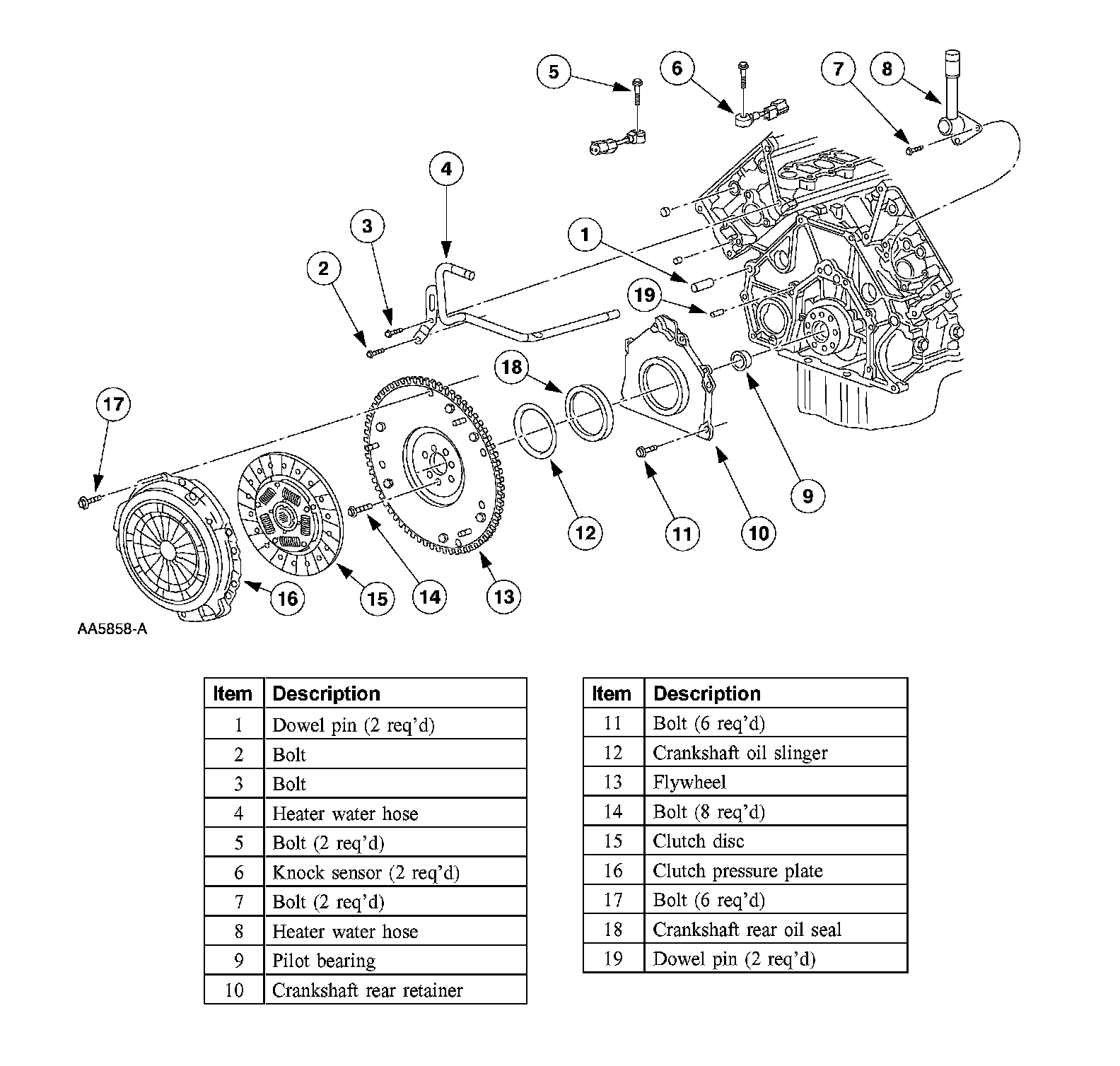

Part 2 Of 20:

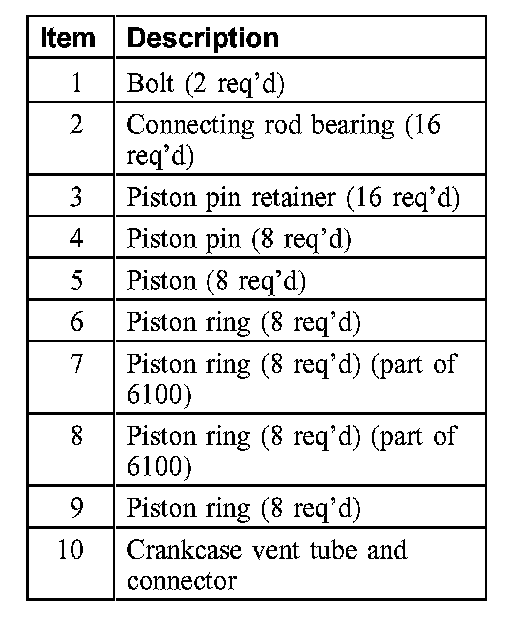

Part 3 Of 20:

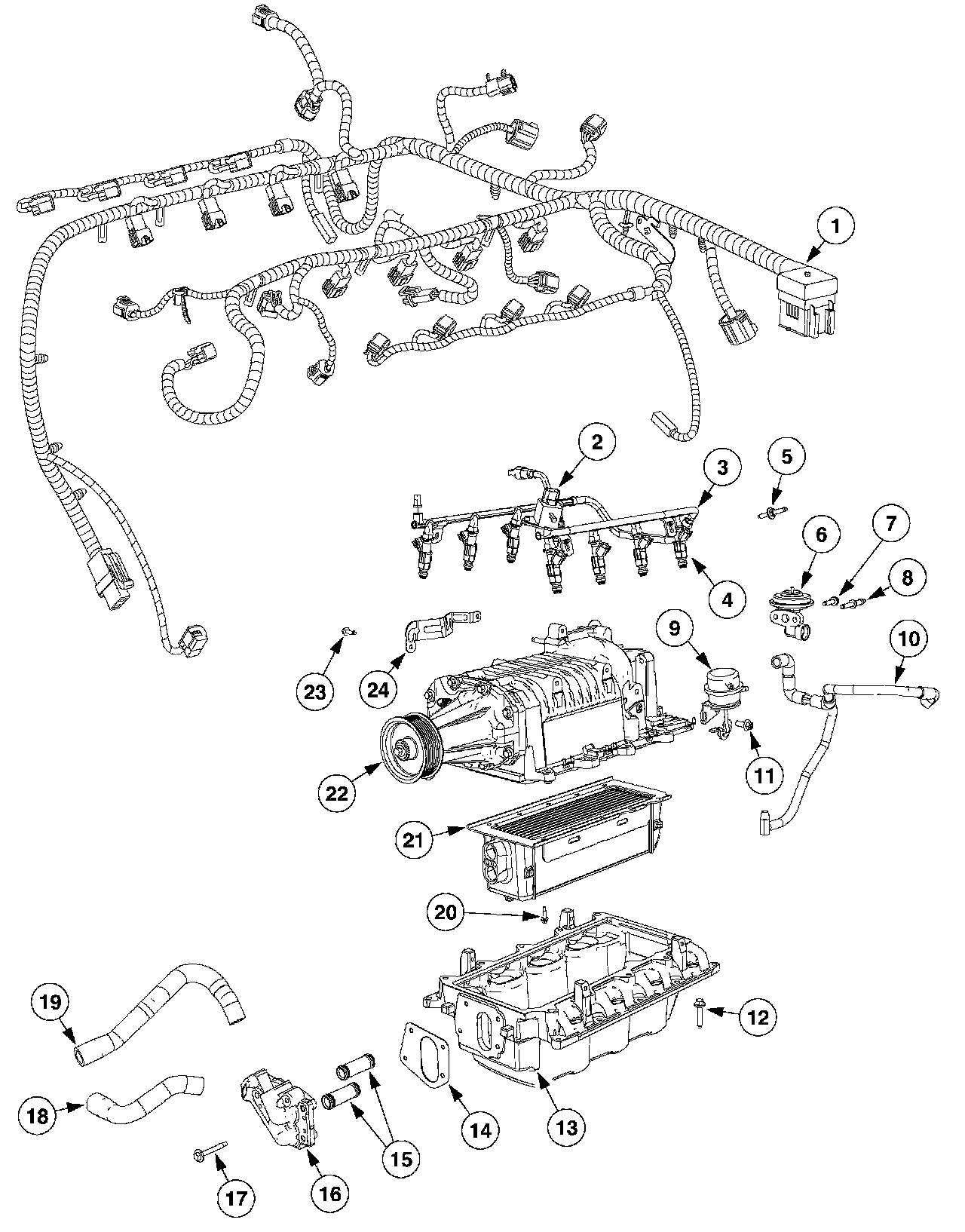

Part 4 Of 20:

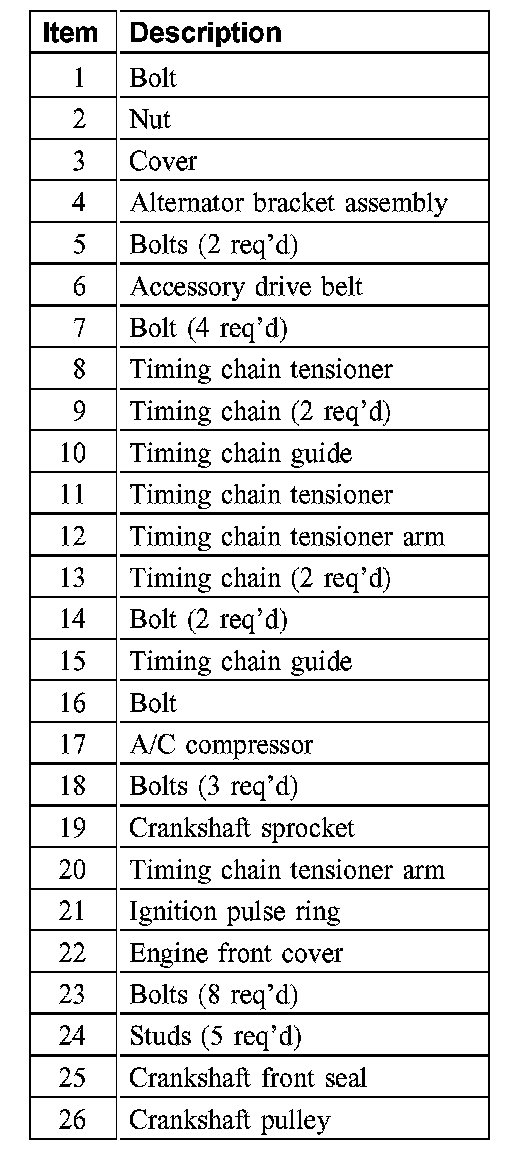

Part 5 Of 20:

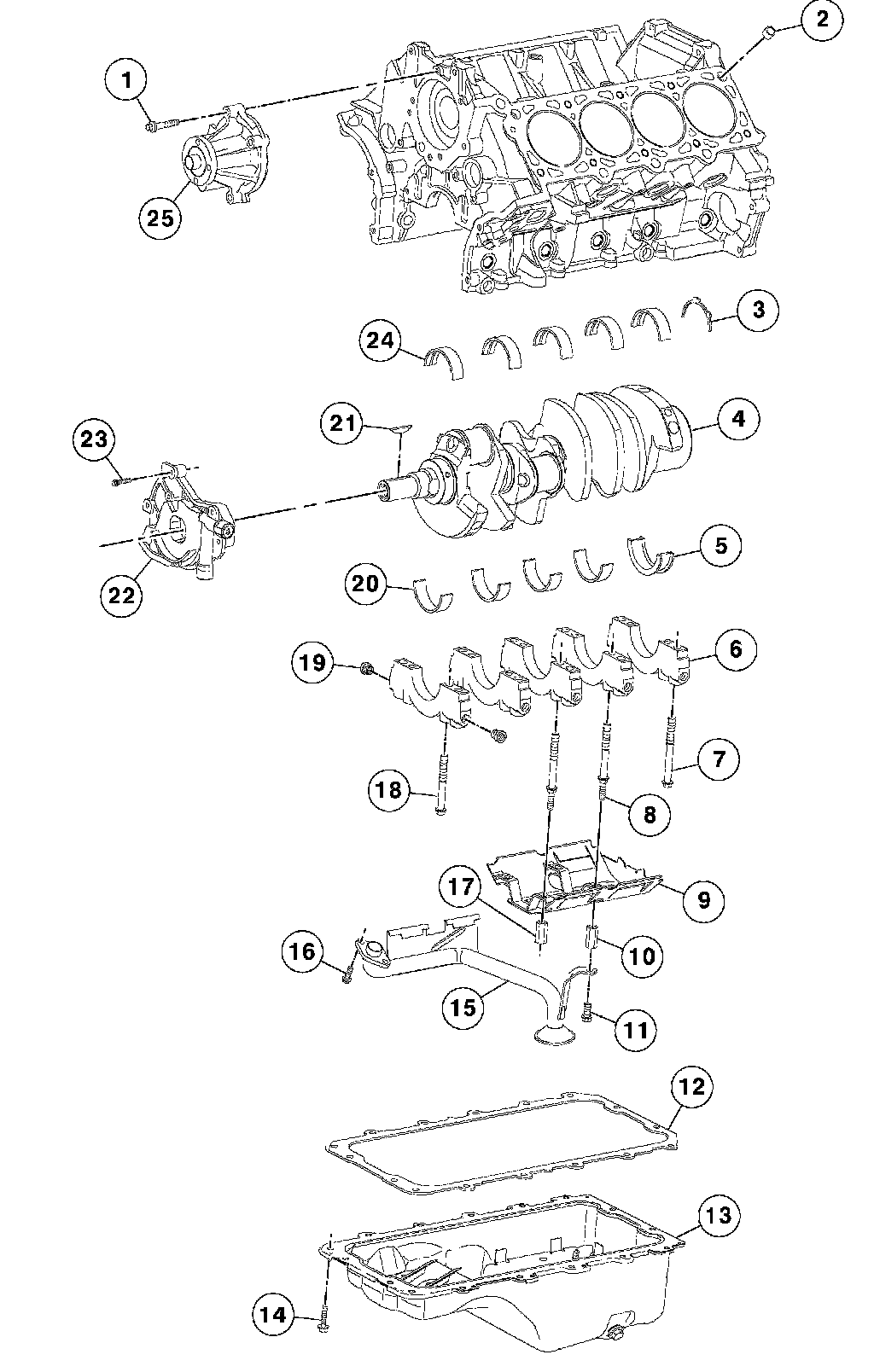

Part 6 Of 20:

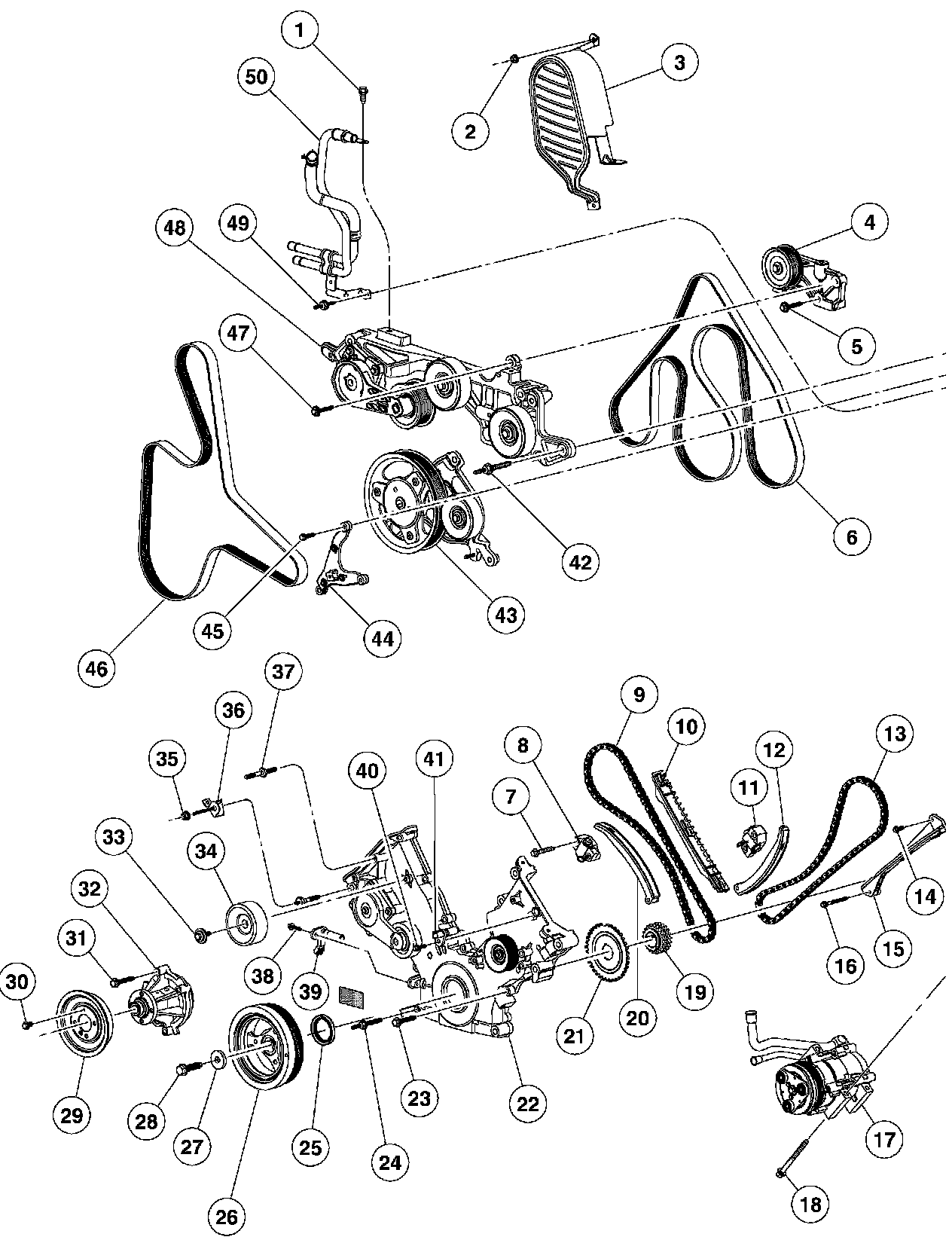

Part 7 Of 20:

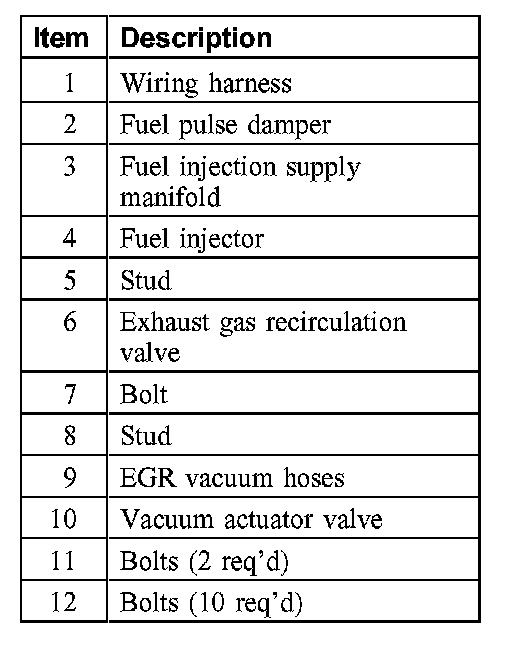

Part 8 Of 20:
Part 9 Of 20:
Part 10 Of 20:
Part 11 Of 20:
Part 12 Of 20:
Part 13 Of 20:
Part 14 Of 20:
Part 15 Of 20:
Part 16 Of 20:
Part 17 Of 20:
Part 18 Of 20:
Part 19 Of 20:
Part 2 Of 20:
