System Specifications

Primary timing chain guide-to-engine bolts 10 Nm (89 inch lbs.)
Timing chain tensioner bolts-primary 25 Nm (18 ft. lbs.)
Timing chain tensioner bolts-secondary 10 Nm (89 inch lbs.)

Crankshaft Pulley
Stage 1: Tighten to 90 Nm (66 ft. lbs.)
Stage 2: Loosen the bolt one full turn.
Stage 3: Tighten to 50 Nm (37 ft. lbs.)
Stage 4: Tighten an additional 90 degrees.

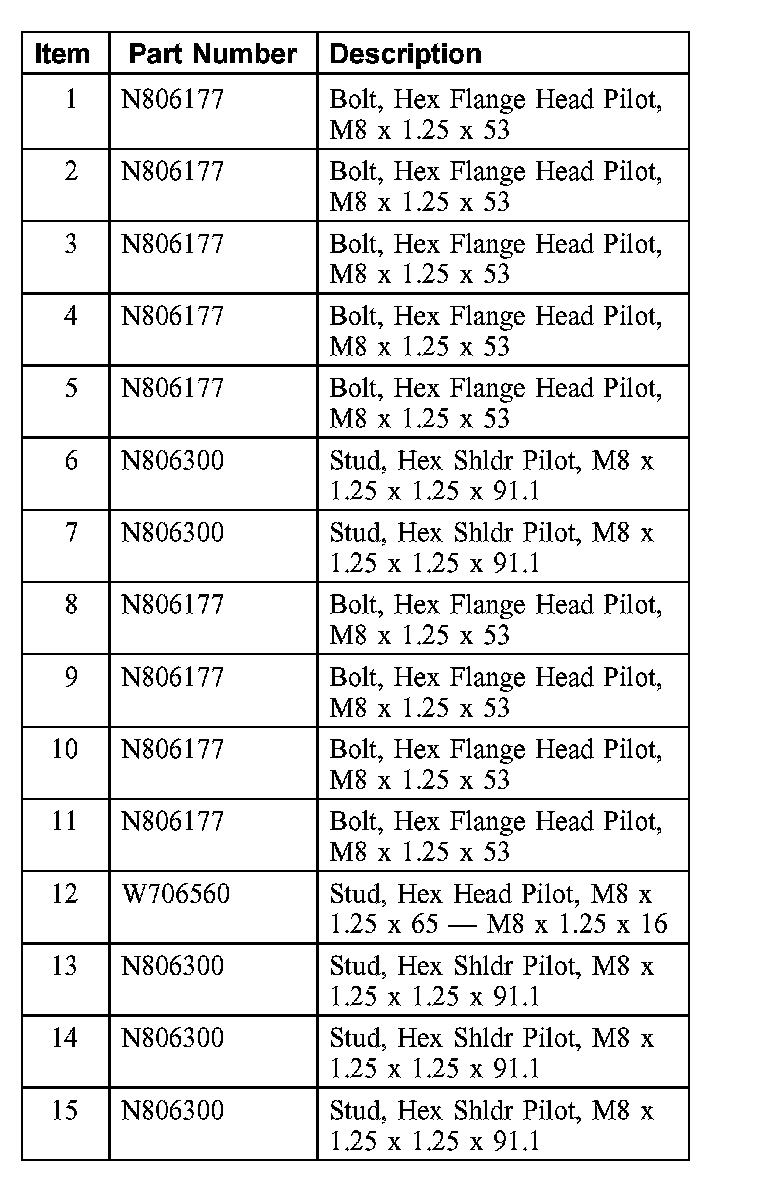

Part 1 Of 2:

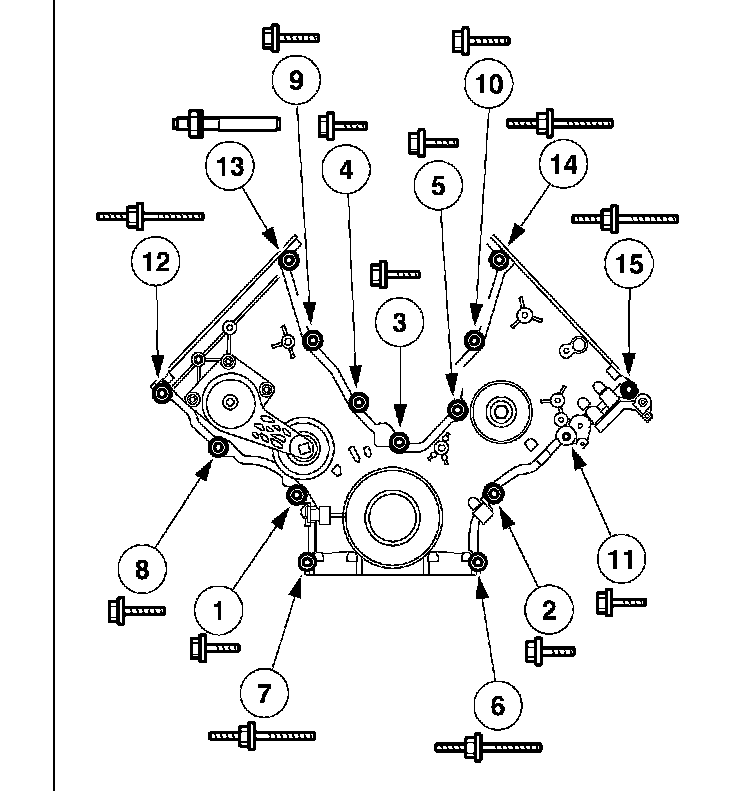

Part 2 Of 2:

Engine front cover bolts and the studs 25 Nm (18 ft. lbs.).
