Diagnostic Trouble Code Descriptions

DIAGNOSTIC TROUBLE CODE (DTC) CHART

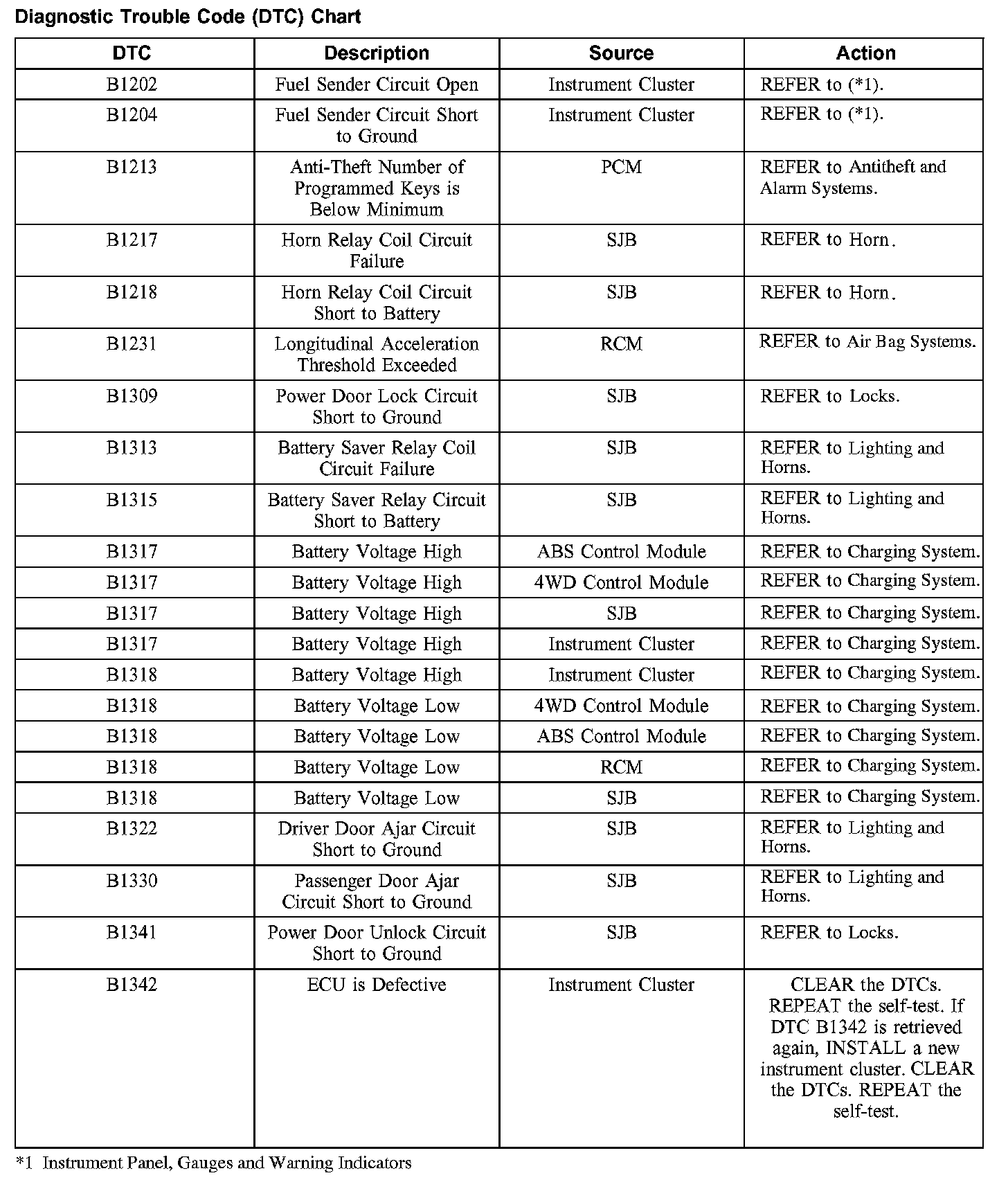

DTC Chart B1202-B1342:

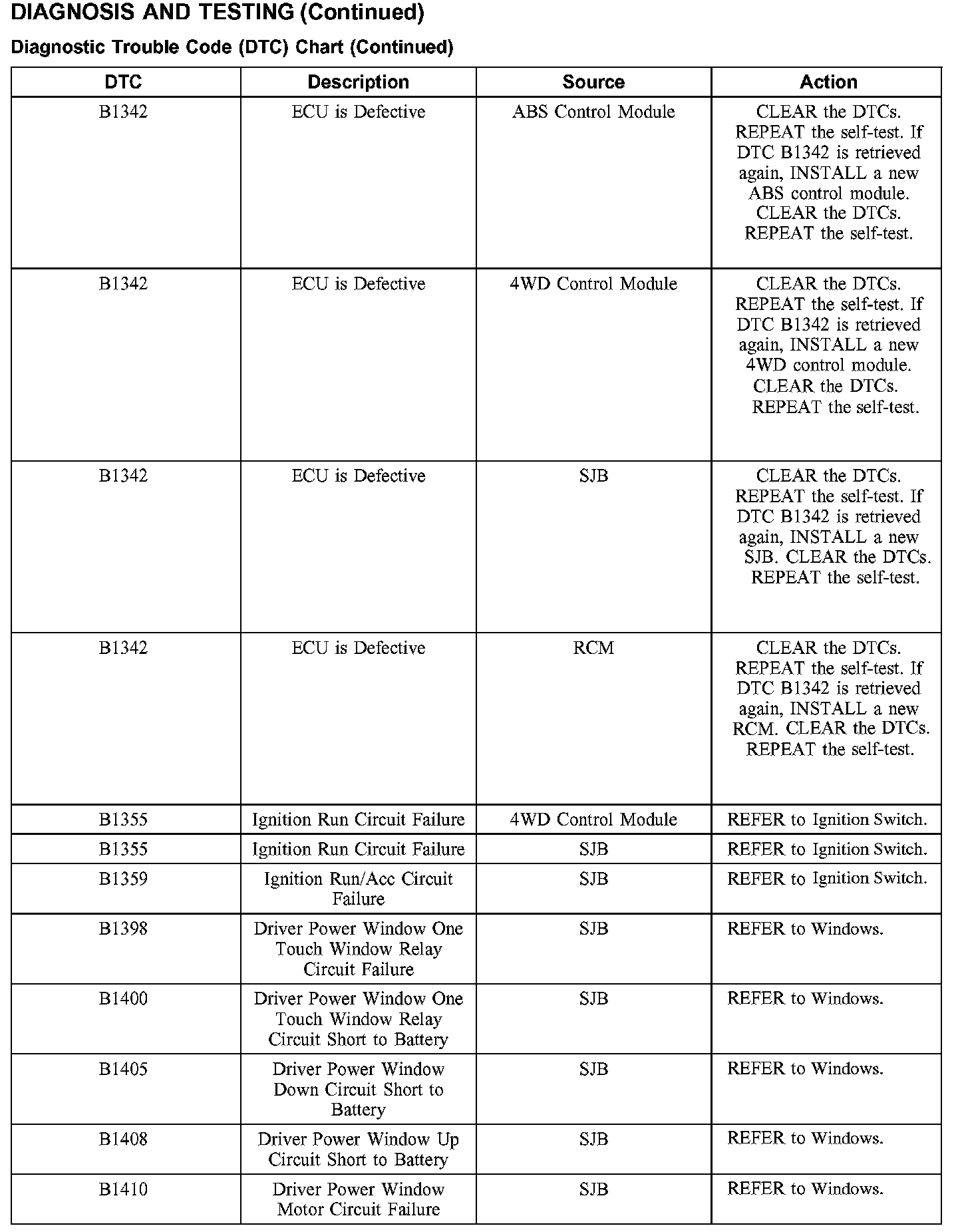

DTC Chart B1342-B1410:

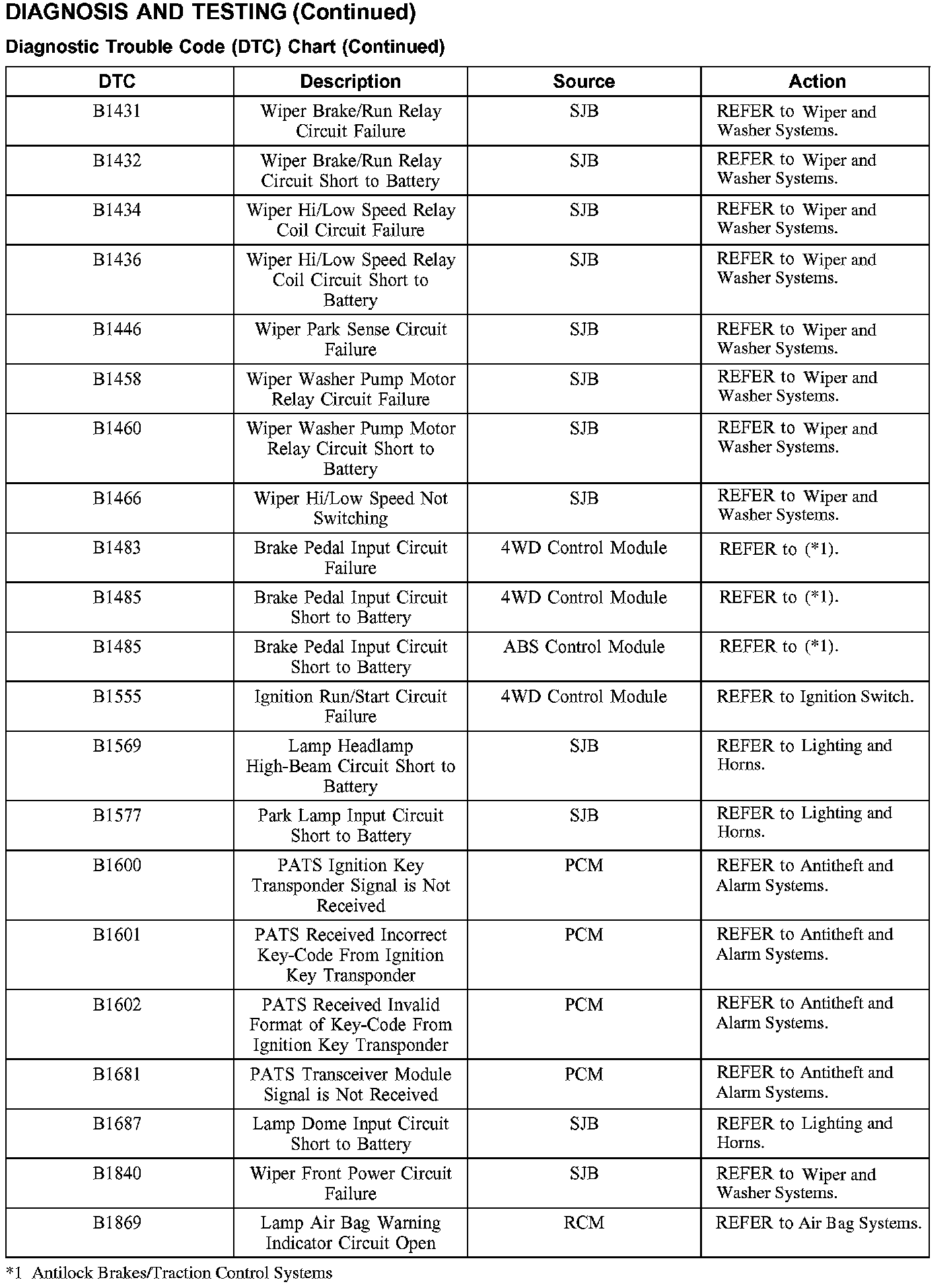

DTC Chart B1431-B1869:

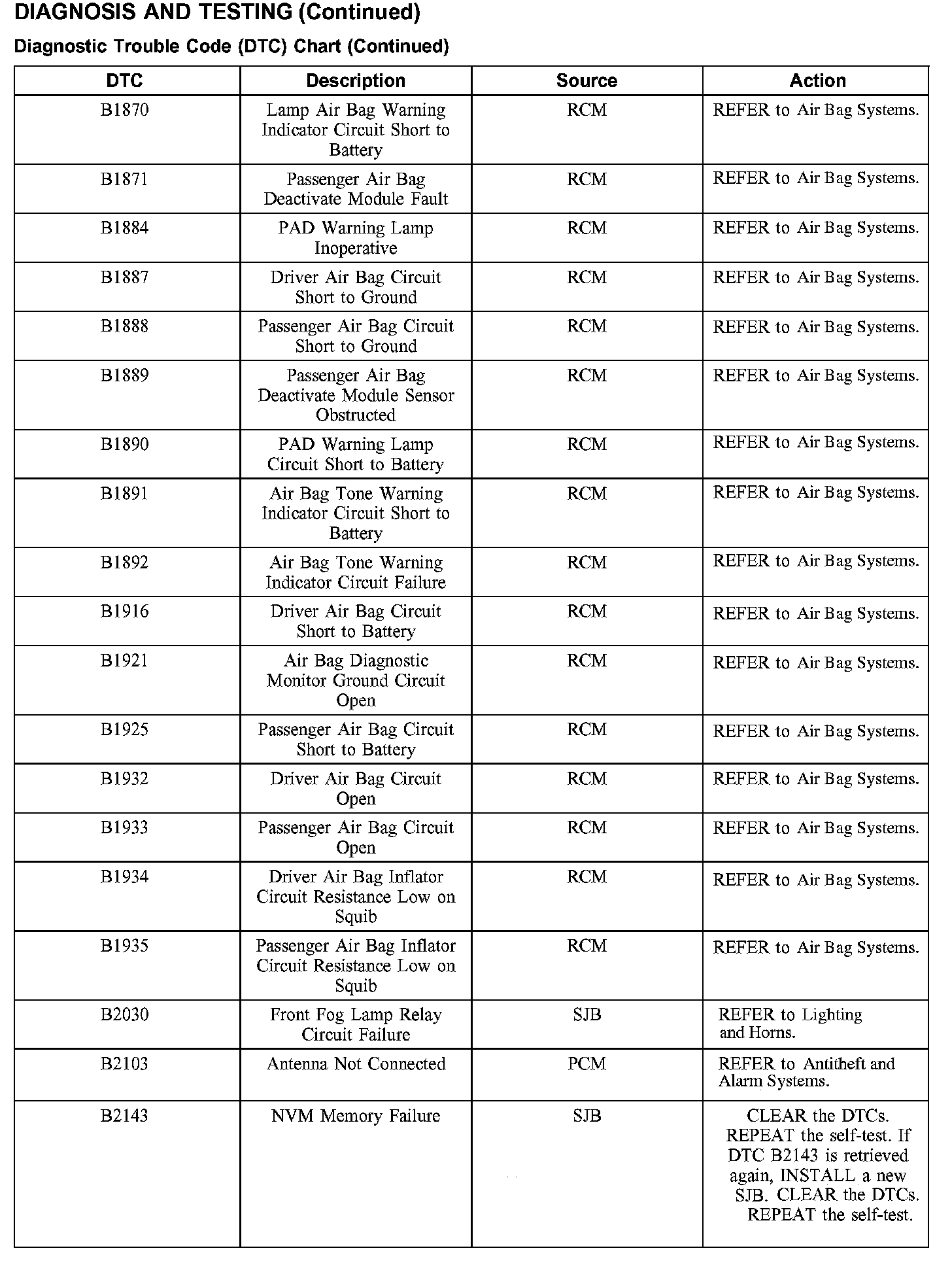

DTC Chart B1870-B2143:

DTC Chart B2143-C1186:

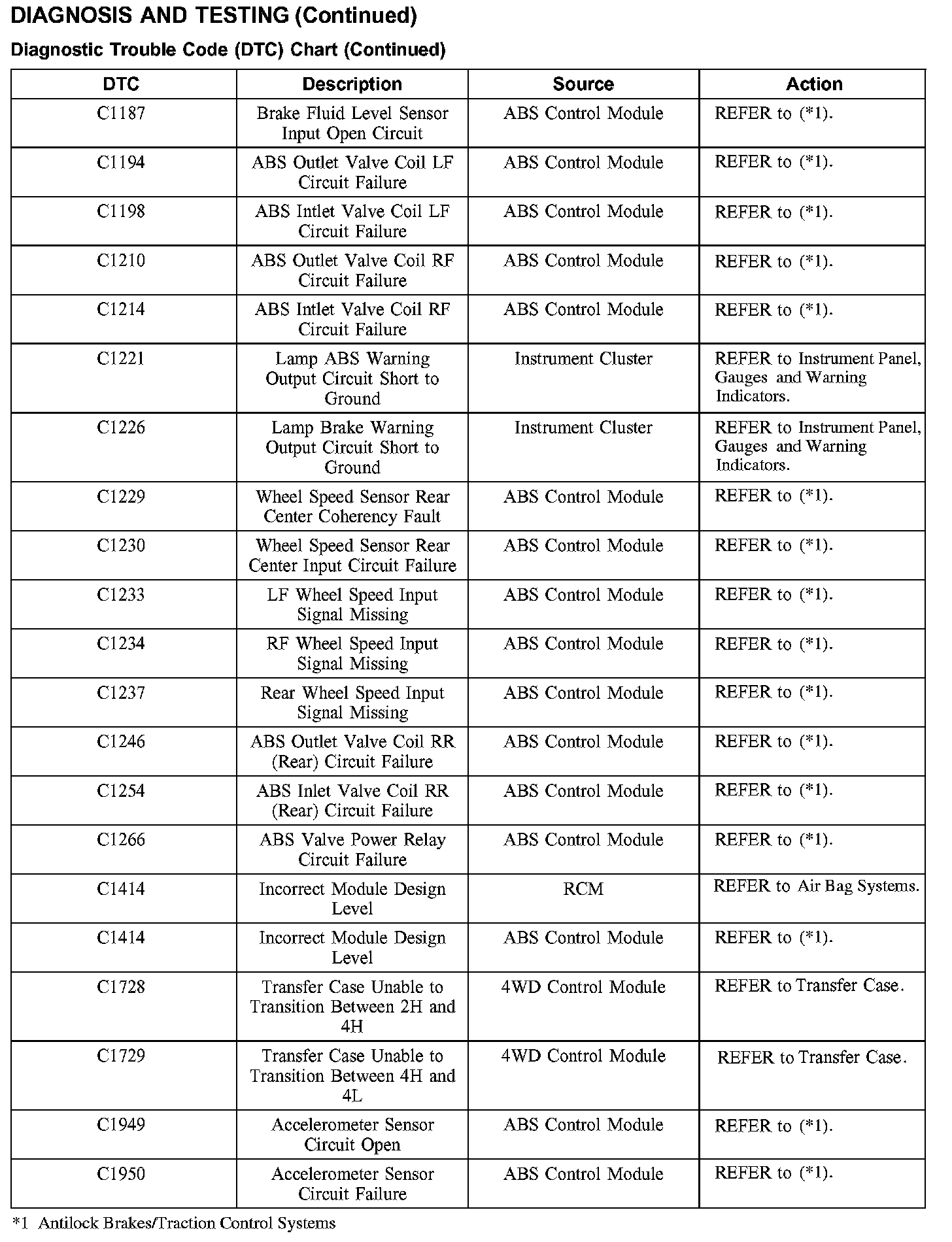

DTC Chart C1187-C1950:

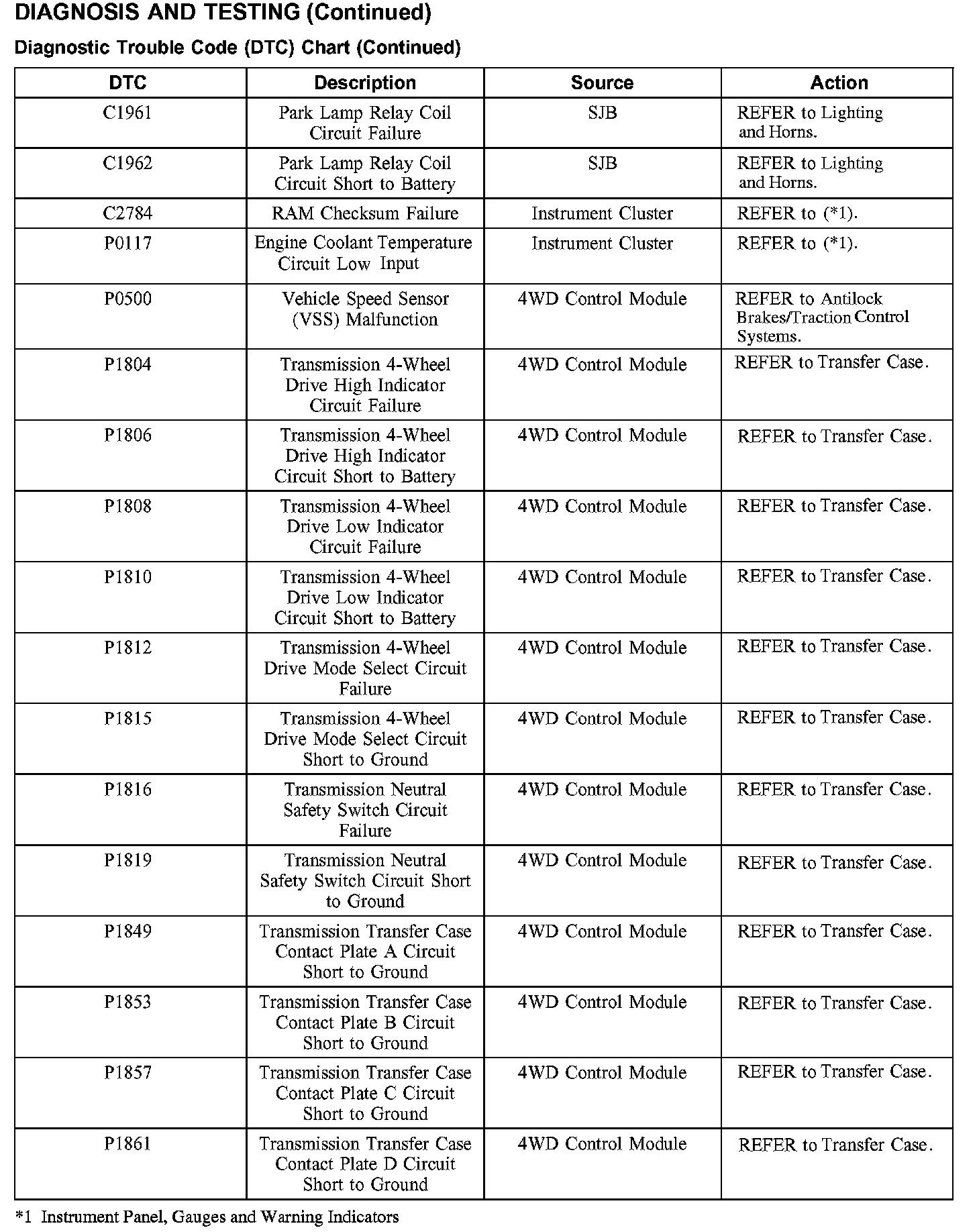

DTC Chart C1961-P1861:

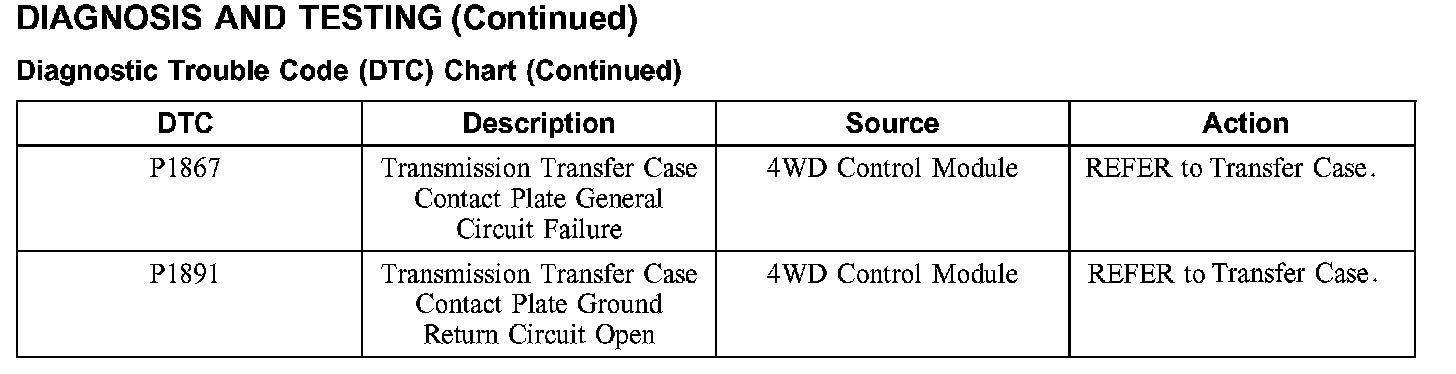

DTC Chart P1867-P1891:
