Cruise Control Switch: Service and Repair

SPEED CONTROL SWITCH

REMOVAL
1. Remove the steering wheel.

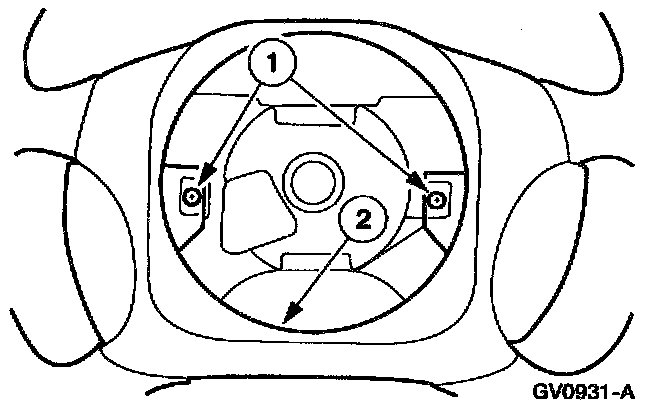

2. Remove the steering wheel rear cover.
1 Remove the screws.
2 Remove the steering wheel rear cover.

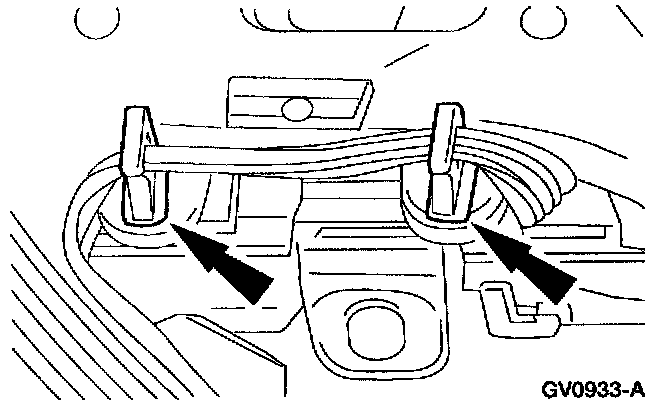

3. Remove the ribbon harness from the clips.

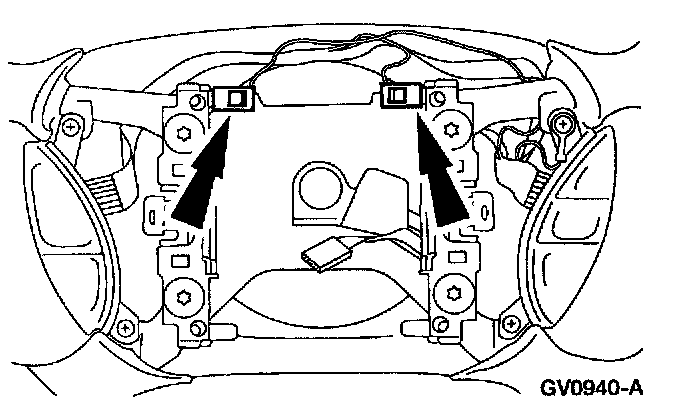

4. Remove the horn contact electrical connectors.







5. Remove the right side horn contact.
1 Remove the screws.
2 Remove the contact.







6. Remove the speed control switch assembly.
1 Remove the screws.
2 Remove the speed control switch assembly.

INSTALLATION
1. To install, reverse the removal procedure.
