Manifold Pressure/Vacuum Sensor: Service and Repair
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSORREMOVAL
1. Disconnect the battery ground cable.

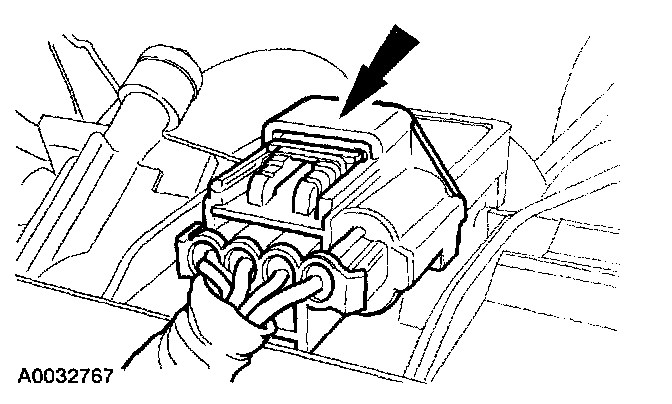

2. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

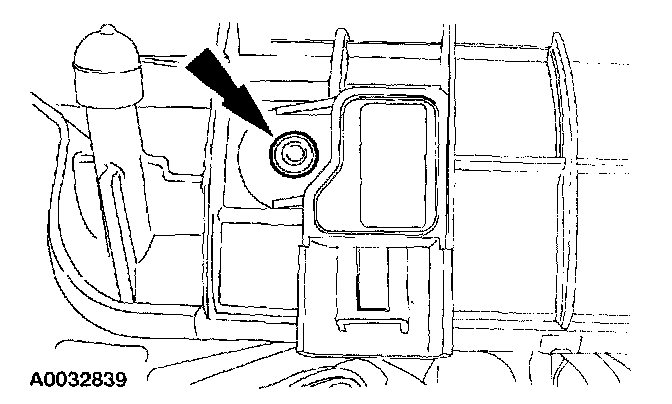

3. Remove the bolt and lift the MAP sensor out of the intake manifold.
INSTALLATION
1. To install, reverse the removal procedure.
