Pinpoint Test B: No Communication With The Driver Seat Module (DSM)

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

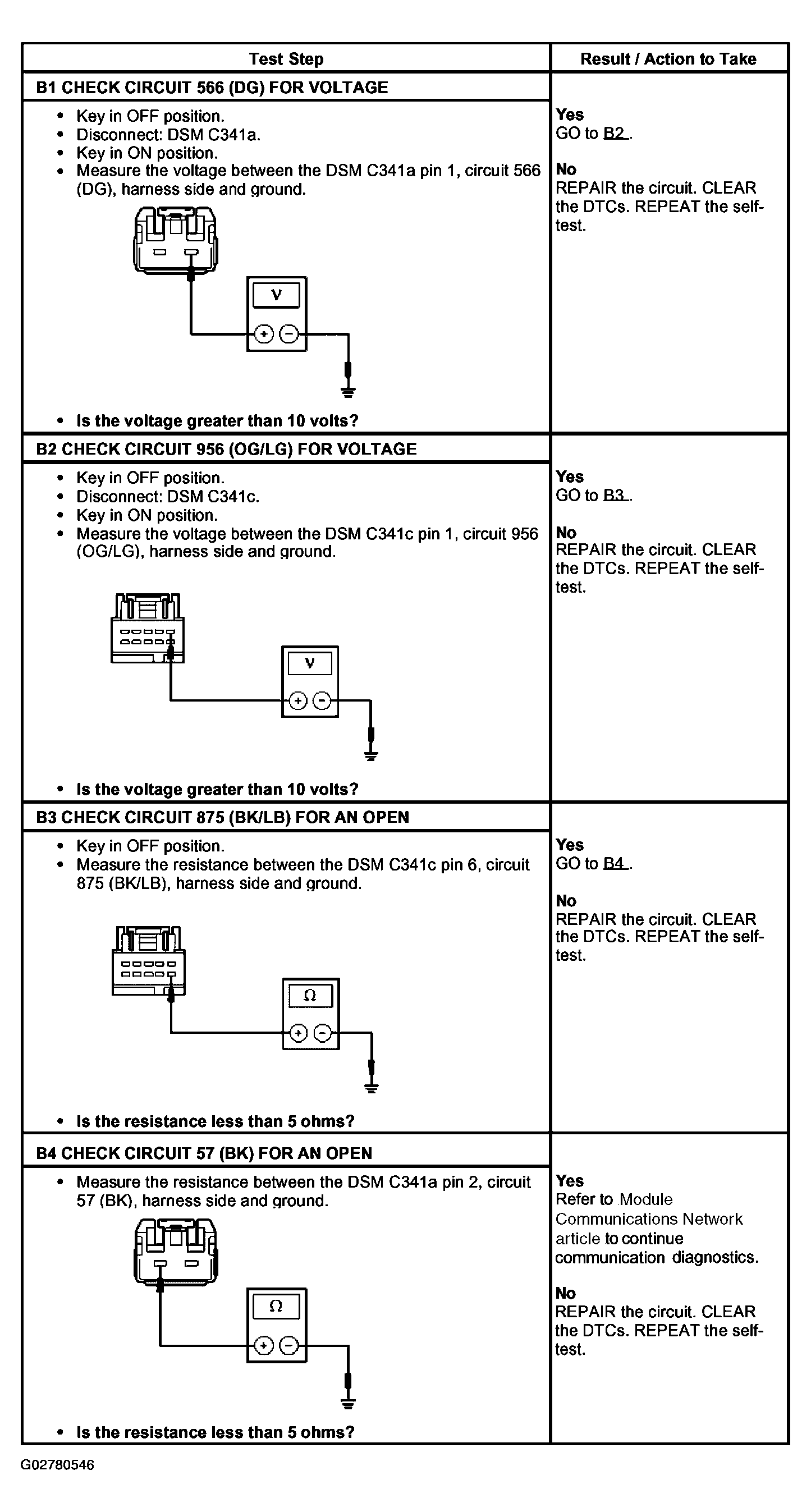

Fig 1: Pinpoint Test B No Communication With Driver Seat Module (DSM) (Steps B1-B4)
G02780546Courtesy of FORD MOTOR CO.
