Removal and Installation

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Prior to removal of the vehicle security module, it is necessary to upload module configuration information to a diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

Disconnect the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the pushpin and the RH interior kick panel.
Remove the glove compartment. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the three vehicle security module electrical connectors.

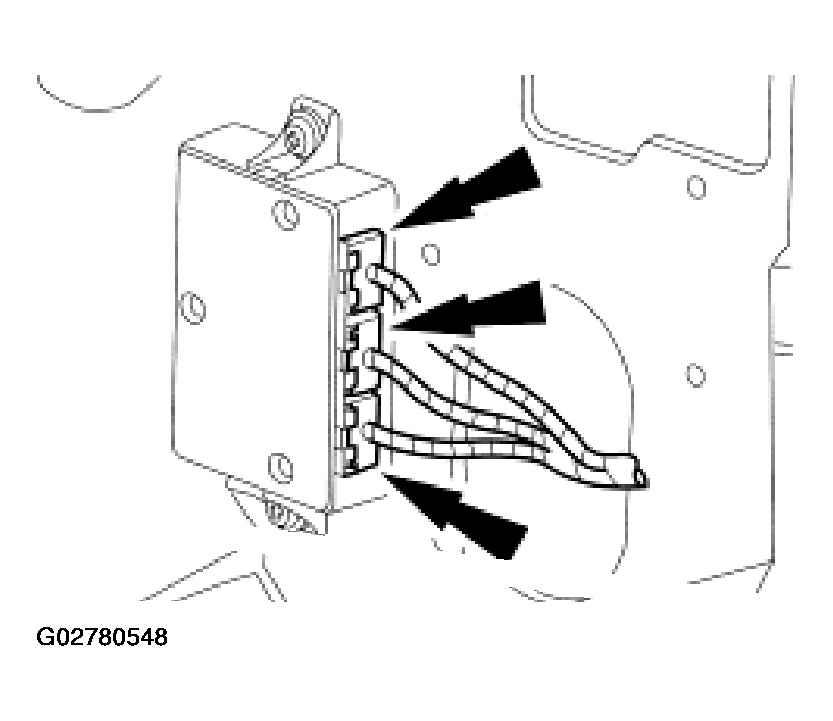

Fig 1: Disconnecting Vehicle Security Module Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the two screws and the vehicle security module.

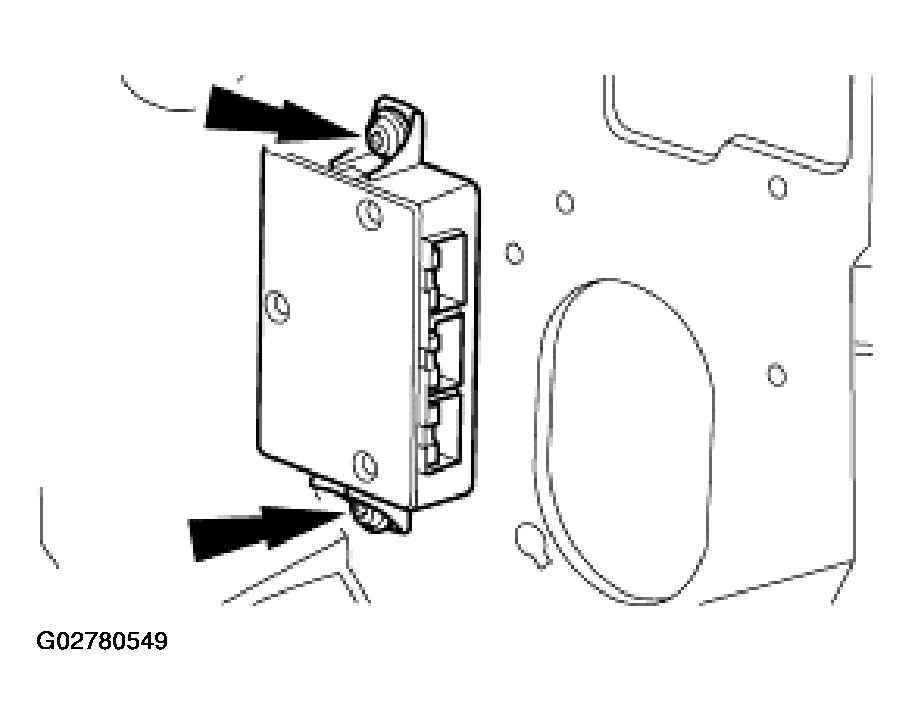

Fig 2: Removing Screws And Vehicle Security Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
